Isotta Nikon Z 8 Underwater Housing
Isotta Nikon Z 8 Underwater Housing
SKU: # is-3961
Price $3,690.00
Custom Options
Add a Flash Trigger
To trigger strobes, you will need to add one of the flash-triggering options below.
Add an Expanded Viewfinder
Add 1-inch Ball Adapters
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description

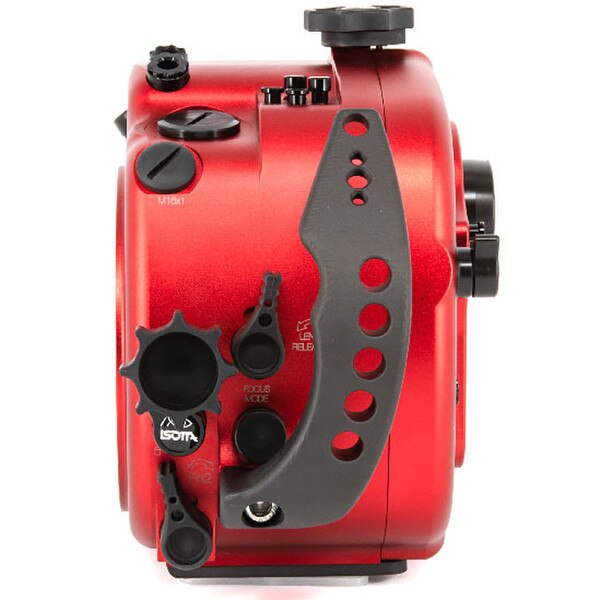

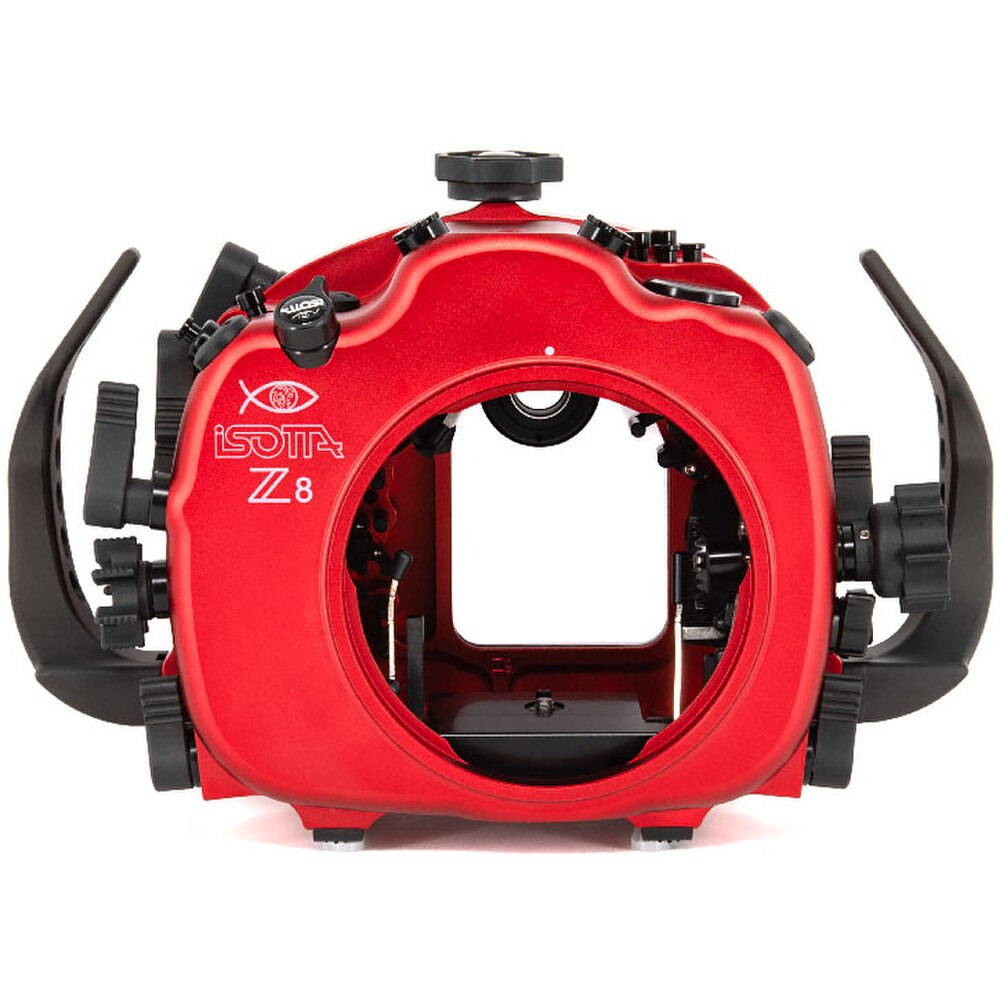

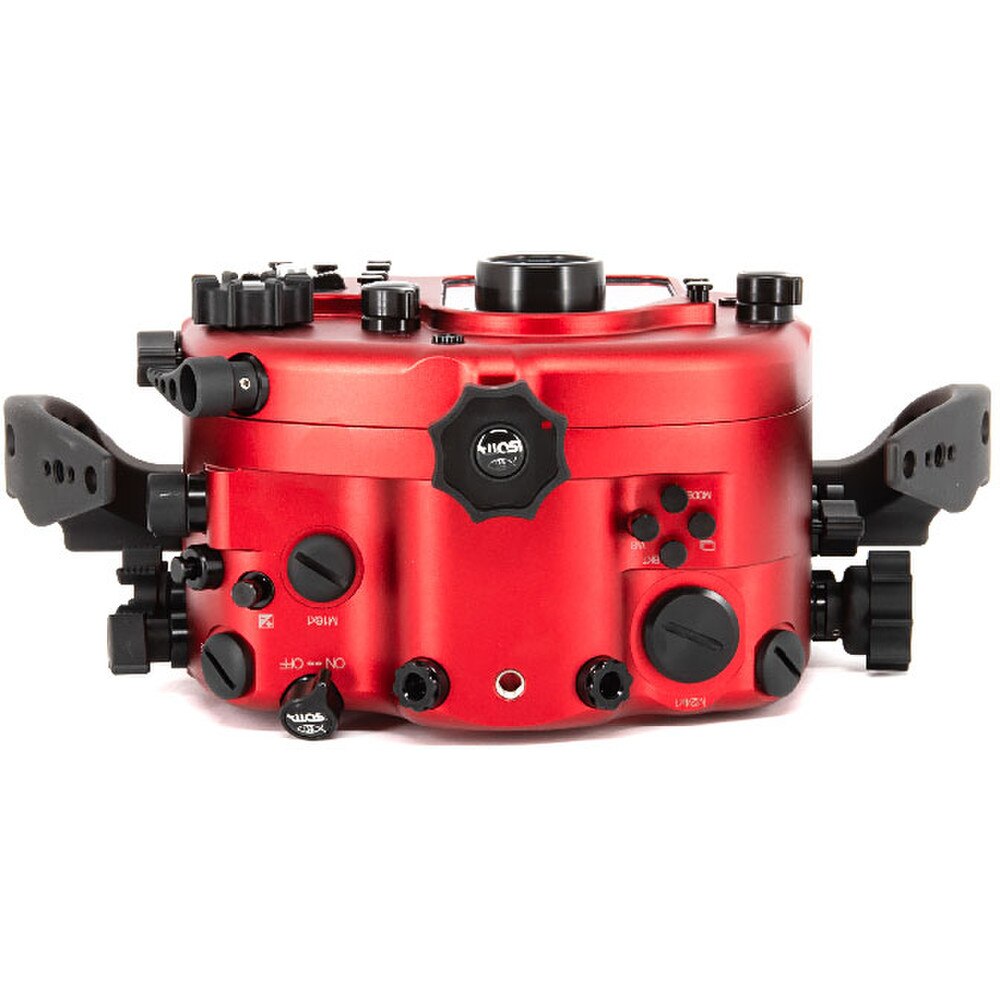

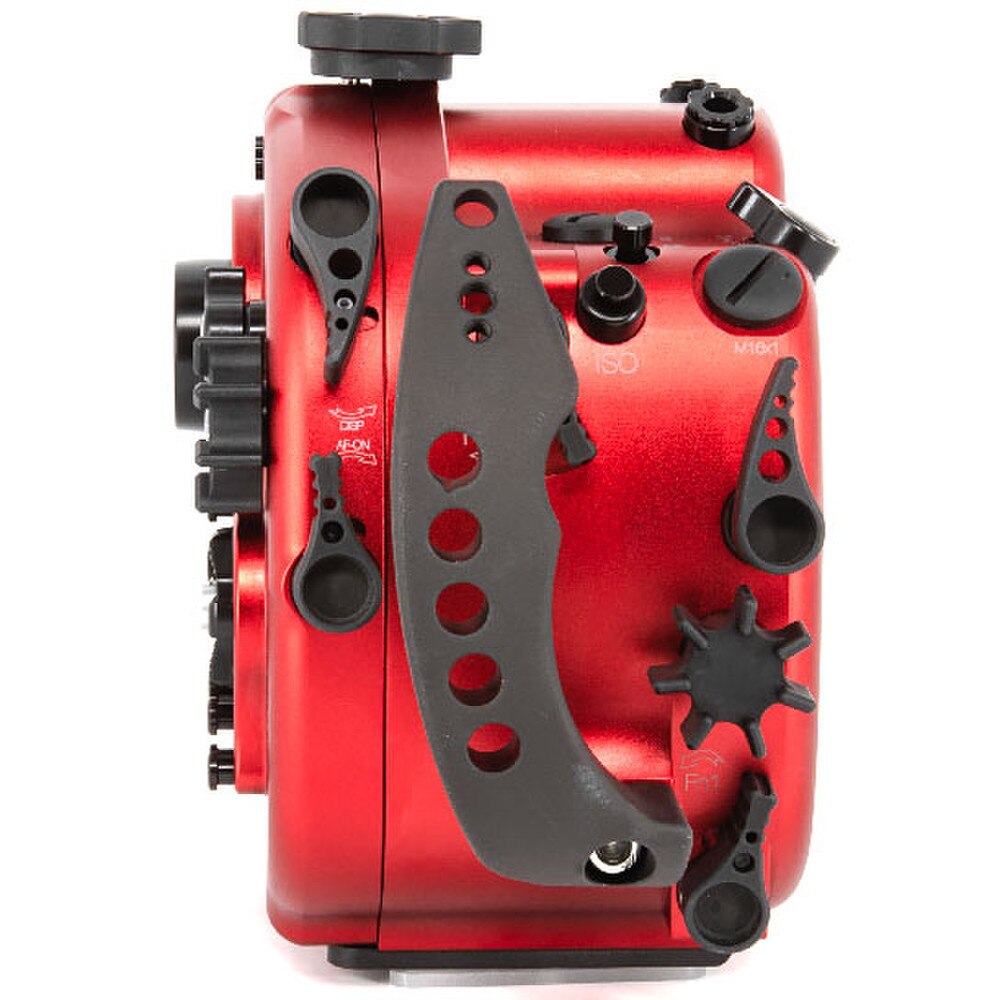

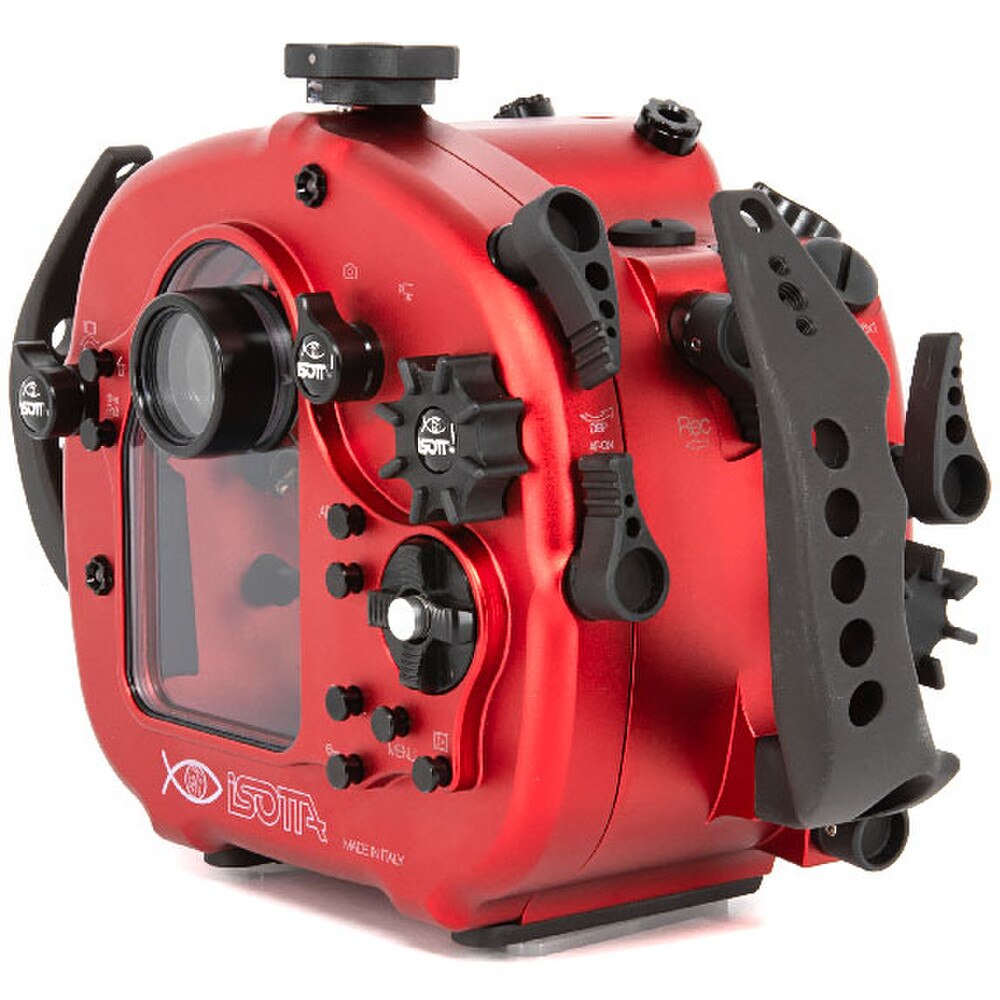

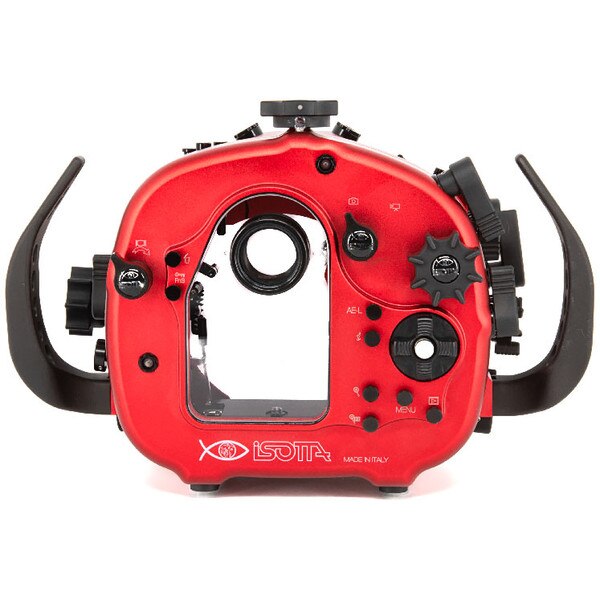

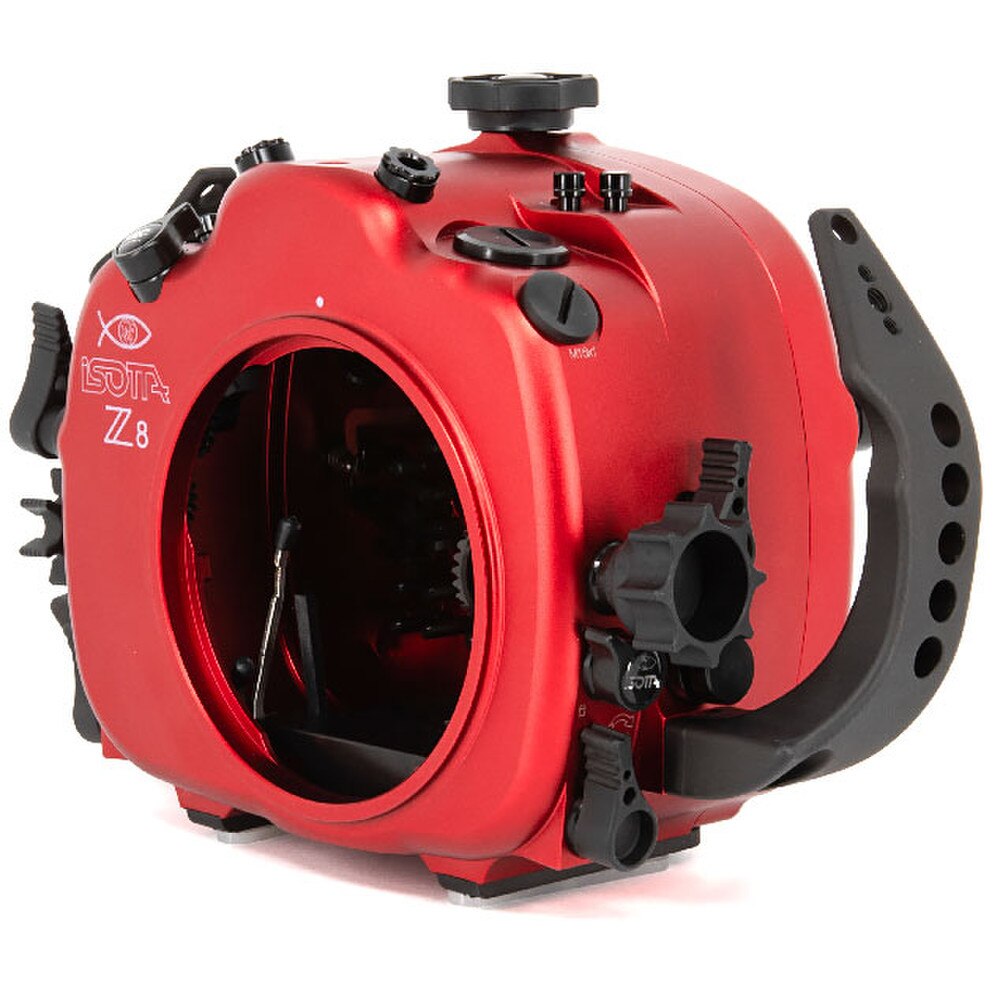

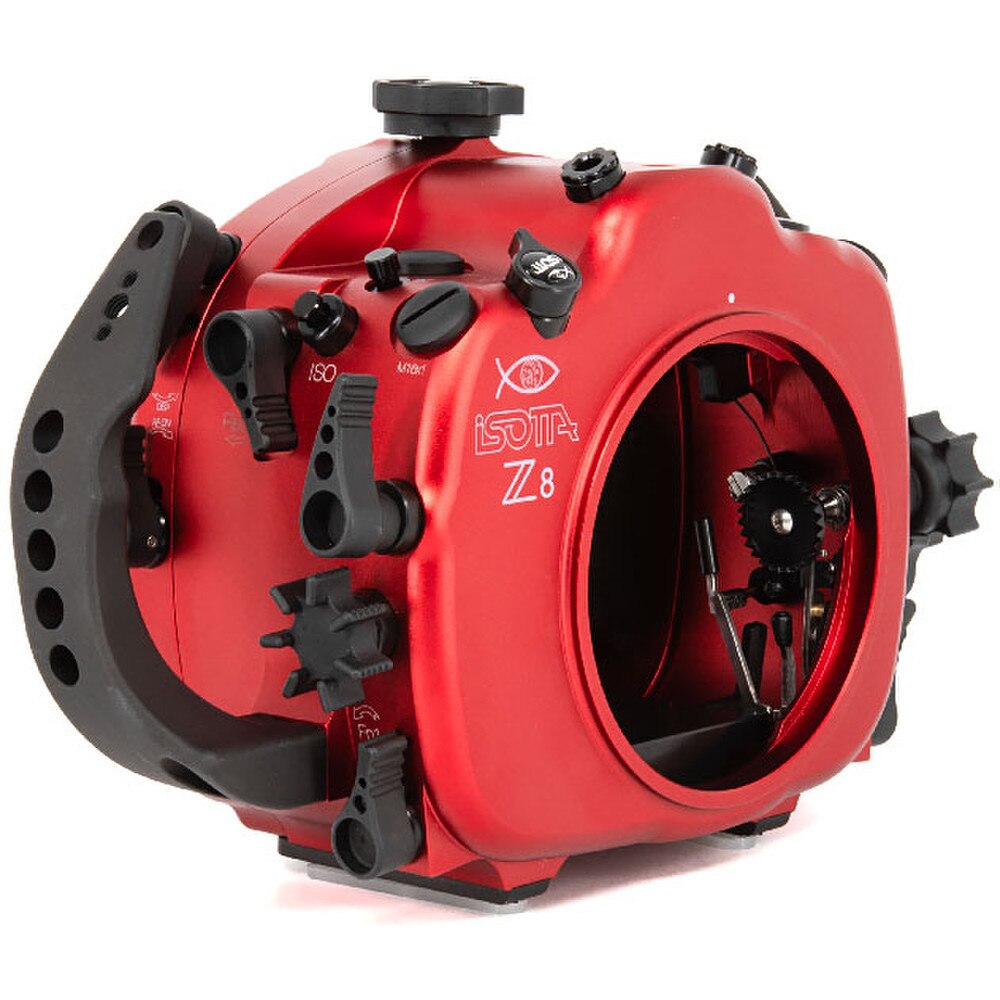

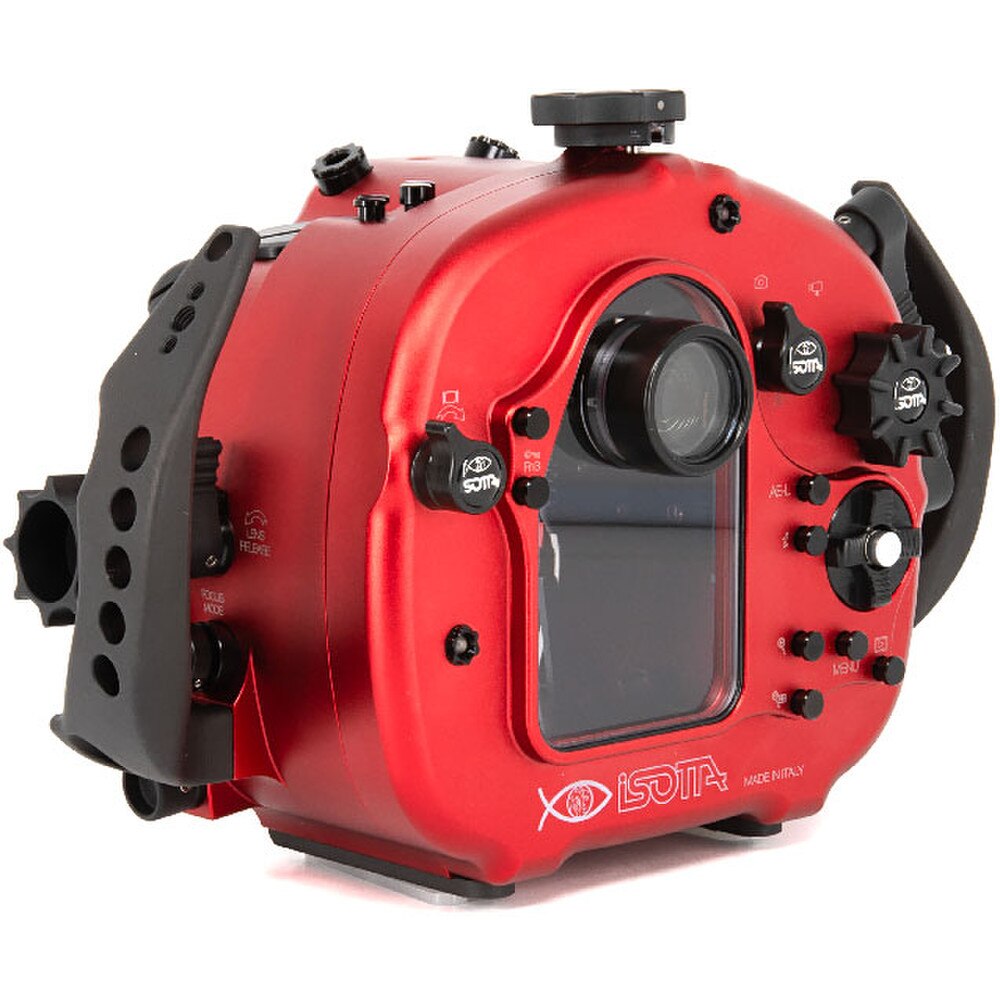

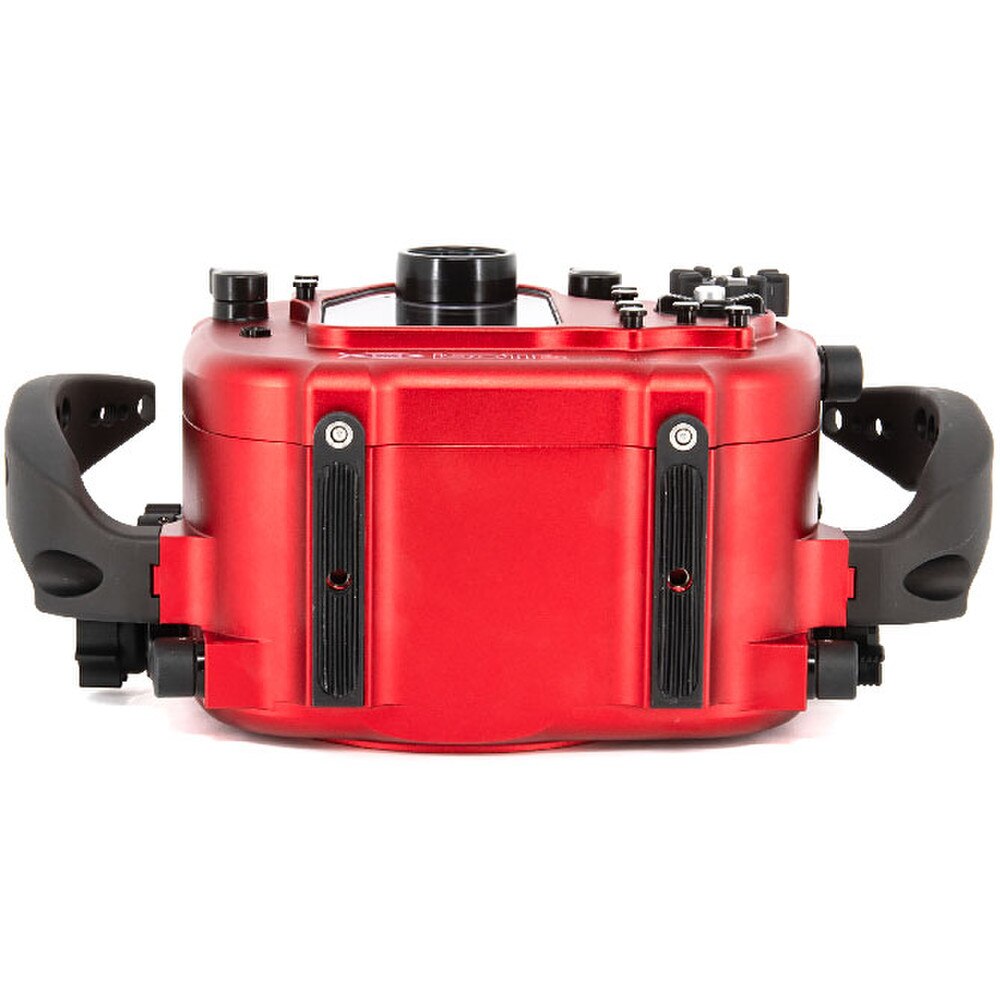

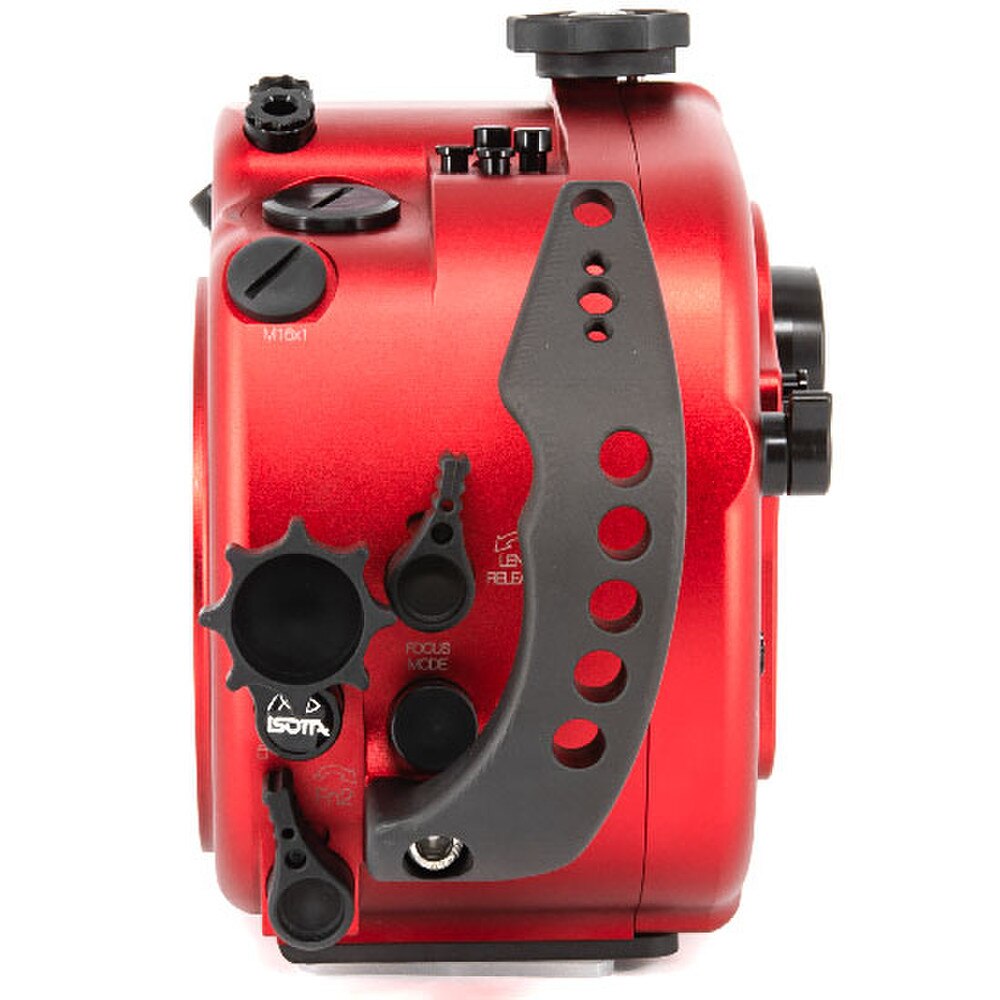

Isotta Nikon Z 8 Underwater Housing
Controls
- On and off lever of the Nikon Z8
- Ergonomic camera focusing and shutter lever, easy to use with gloves
- Lens release lever
- Front dial
- Fn1 lever
- Fn2 lever
- Fn3/Key button
- ISO button
- MODE button
- BKT button
- WB button
- +/- button
- Focus mode button
- Release mode button
- Zoom knob
- Port safety lever
- Movie lever (REC)
- AF-ON lever
- Rear dial R
- i (info) button
- Menu button
- AEL button
- DISP. button
- Multi-selector
- Playback, Viewing pictures button
- Zoom-in (+) button
- Zoom-out (-) button
- Qual button
- Delete button
- Photo/video selector
- On/Off Display lever
What's included
- Housing
- Front lid
- Handles
- ISOTTA standard viewfinder
- Moisture sensor
- Fiber optic connections (to shoot it needs an additional trigger)
- Spare o-ring kit
- Silicone grease 15gr/0,5 oz
- 2-year manufacturer warranty
Technical data
- Red color anodized aluminum body
- Ergonomic side handles, adjustable (via optional accessory)
- Two fiber optic connections standard (to shoot it needs an additional trigger)
- Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
- Back housing completely detachable from the front housing
- Tray with lock for the easy insertion of the camera
- Single-hand closing knob for the back of the housing
- Aluminum buttons and dials with engraved symbols identical to camera controls
- Wide back display viewfinder glass
- Double O-Ring seals on all buttons and removable parts
- Moisture sensor with LED indicator (replaceable battery)
- Removable port 120 mm bayonet
- Ports security latch to prevent accidental opening
- Wide, rubber-covered feet for solid footing on boat floors or sea floor
- M8 hole located on upper side of the housing for various accessories such as focus lights
- Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
- External viewfinders can be mounted, INON X-2 compatible
- Sizes (LxHxP): 310x205x140
- Depth rated to 100 meters
Spare parts
- 4161 - Maintenance o-ring set for Nikon Z8 housing
- 1895 - Housing front lid
Optional
- Trigger
- Nikonos 5 bulkhead
- S6 bulkhead
- Handles extension
- M24 to M16 reducer
