Nauticam Nikon Z 8 Underwater Housing NA-Z8

Nauticam Nikon Z 8 Underwater Housing NA-Z8

The Z8 is arguably the most hotly anticipated full-frame mirrorless camera from Nikon and the first to feature the '8' series badging. Featuring a high-resolution 45.7MP sensor that will also capture 8K/60p N-RAW video while delivering incredible autofocus and dynamic range. The Z8's 3690k-dot OLED EVF packs a fast refresh rate for blackout-free shooting thanks to the camera's electronic shutter. The Nauticam NA-Z8 is the latest release in the world's finest line of underwater camera housings and builds on the field-proven housings for other Nikon Z-series cameras. Nauticam is the market leader in ergonomics, build quality, and reliability that is built on a foundation of innovative product design and modern manufacturing technology. The NA-Z8 is the ultimate accessory for the powerful Nikon Z8.



THE NIKON Z8

The excitement for the Nikon Z8 rivals that of the release of the Nikon D850. Nikon shooters have been eagerly waiting for what this "mini" Z9. The D850 long ruled the Nikon roost for incredible image quality, amazing autofocus, and a wide dynamic range all in a high-resolution package. While the Z6/7 and Z9 have bracketed the spectrum of specs, the Z8 is the system that many D850 shooters have been waiting for.

The Nikon Z8 features a 45.7MP stacked CMOS sensor that delivers incredible still and moving image performance. The Z8's electronic shutter means true zero blackout continuous shooting when using the camera's EVF and the wide range of autofocus options insure there's the right mode for every situation.

For video shooters, the Z8 can capture up to 8K/60p or oversampled 4K/120p internally in their ultra-efficient 12-bit N-RAW format or a variety of ProRes formats including ProRes RAW. The Z8 also adds pro-level video features such as a waveform monitor, focus peaking, and the ability to fine-tune ISO at 1/6EV steps. There's also a convenient 'Video Info Display' and Red Record Border.



THE NAUTICAM NA-Z8

The Nauticam NA-Z8 is the most intuitive and reliable underwater housing available for the Nikon Z8. Building on the successful and field-tested designs for the NA-Z6/7 and Z9 housings the NA-Z8 embodies Nauticam's Mission Control design philosophy placing essential controls within easy reach of the reinforced molded handles.



F AND Z MOUNT COMPATIBLE

The NA-Z8 underwater housing for the Nikon Z8 utilizes the N120 Port System for Z-mount full-frame lenses. However, the NA-Z8 is also designed to accommodate the use of F-mount lenses, thanks to the FTZ adapter. This allows the same port configuration as found on an F-mount DSLR system like the NA-D6 or NA-D850.

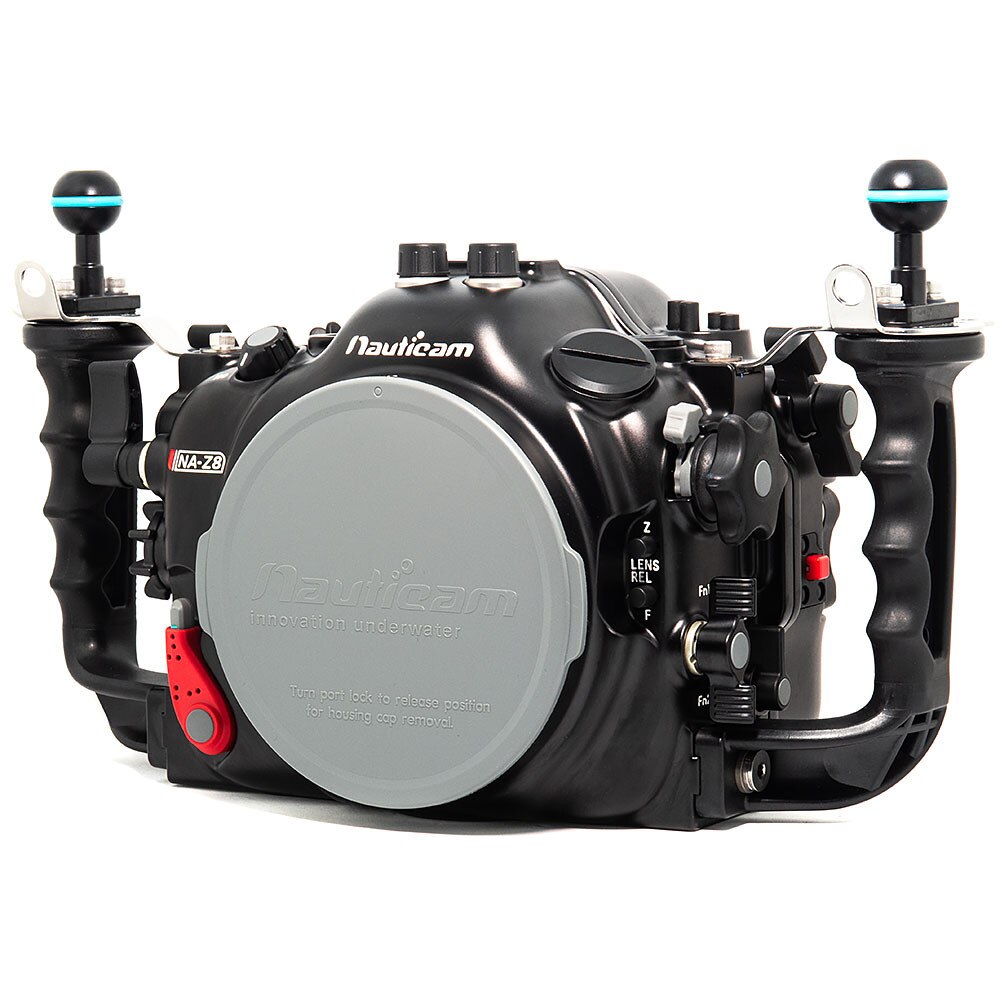

The NA-Z8 housing is equipped with convenient lens release buttons for both F and Z mounts, making lens changes a breeze, regardless of the lens platform. You can quickly and easily switch between different lenses without having to remove the camera from the housing, except when installing or removing the FTZ adapter.



ENHANCED VIEWFINDERS

Electronic viewfinders are constantly achieving higher resolution and better dynamic range and the Z8 features a 3690k-dot OLED 0.5" viewfinder. Pair the Z8's EVF with Nauticam's Full Frame Enhanced Viewfinders for unrestricted viewing of the entire EVF in either a straight or angled configuration. The added working distance from the back of the housing makes for a more comfortable and natural position underwater. Edge-to-edge visibility and a dioptric adjustment make for easier composition and tack-sharp focus.



PREMIUM PROFESSIONAL OPTICS

Nauticam's lineup of optics insures the sharpest, most natural-looking images underwater whether it's super-macro or wide-angle. The WACP-1 Wide Angle Conversion Lens works flawlessly with the Nikkor Z 28-75mm f/2.8 lens to deliver an impressive 130º field-of-view at 28mm and 83º at 48mm. A ~0" minimum focus distance and small front element make composition and lighting even easier. Those looking for a more compact system can use the new WACP-C with the Sony SEL2870 28-70mm f3.5-5.6 OSS lens plus the Megadap ETZ 21 adapter which delivers full zoom through and a 130º to 59º field-of-view.

Want greater than 1:1 magnification with unmatched sharpness? The SMC-1 and SMC-2 provide 2.2x and 3.6x magnification respectively with the Nikkor Z MC 105mm f/2.8 VR S Macro lens and can be easily mounted with the Nauticam flips system allowing for fast deployment as well as secure and accurate placement of the optic.



HDMI OUTPUT

The Nikon Z8 promises clean full-resolution HDMI output using an HDMI type A connector and the NA-Z8 features an M24 bulkhead that can accommodate an HDMI 2.0 connection to a monitor/recorder such as the Atomos Ninja5+ in the NA-Ninja5 housing.



INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

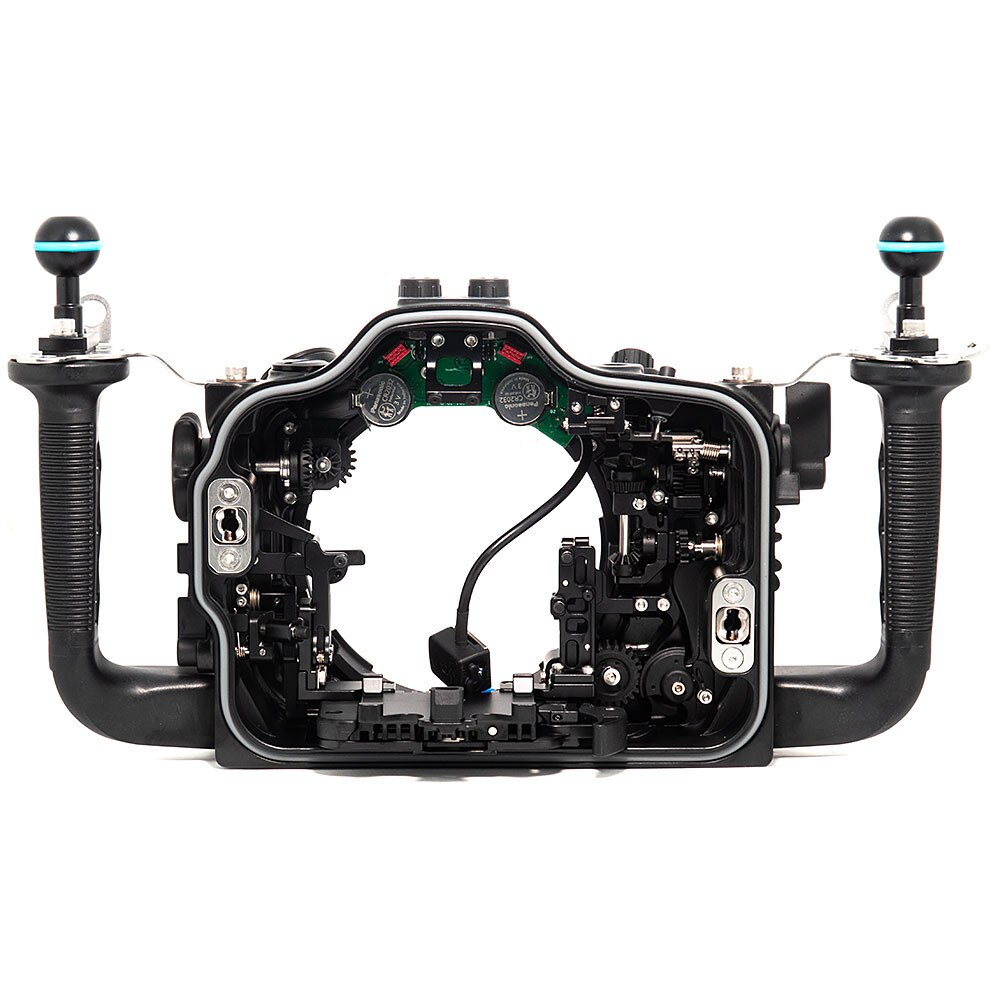

The Nauticam vacuum check and leak detection system is shipped with NA-Z8 as standard equipment. Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the water-tight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.



FEATURES

PATENTED PORT LOCKING SYSTEM

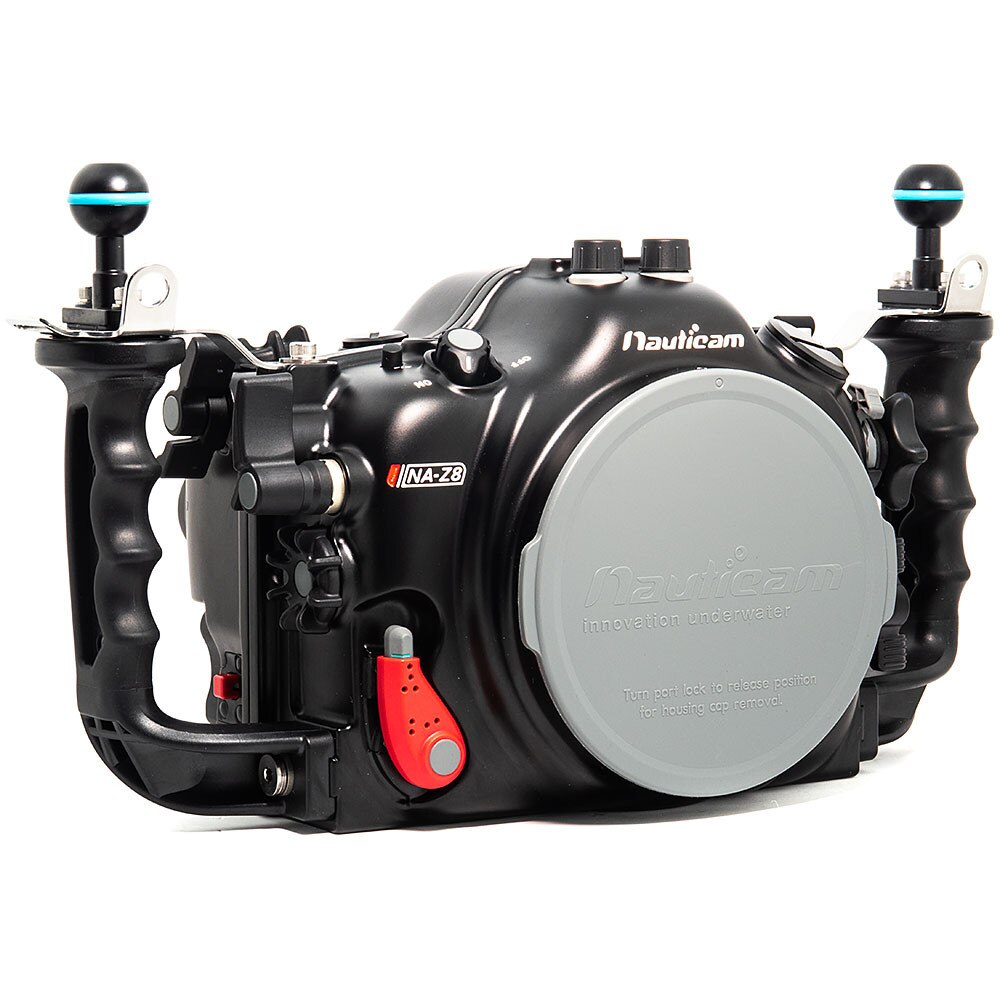

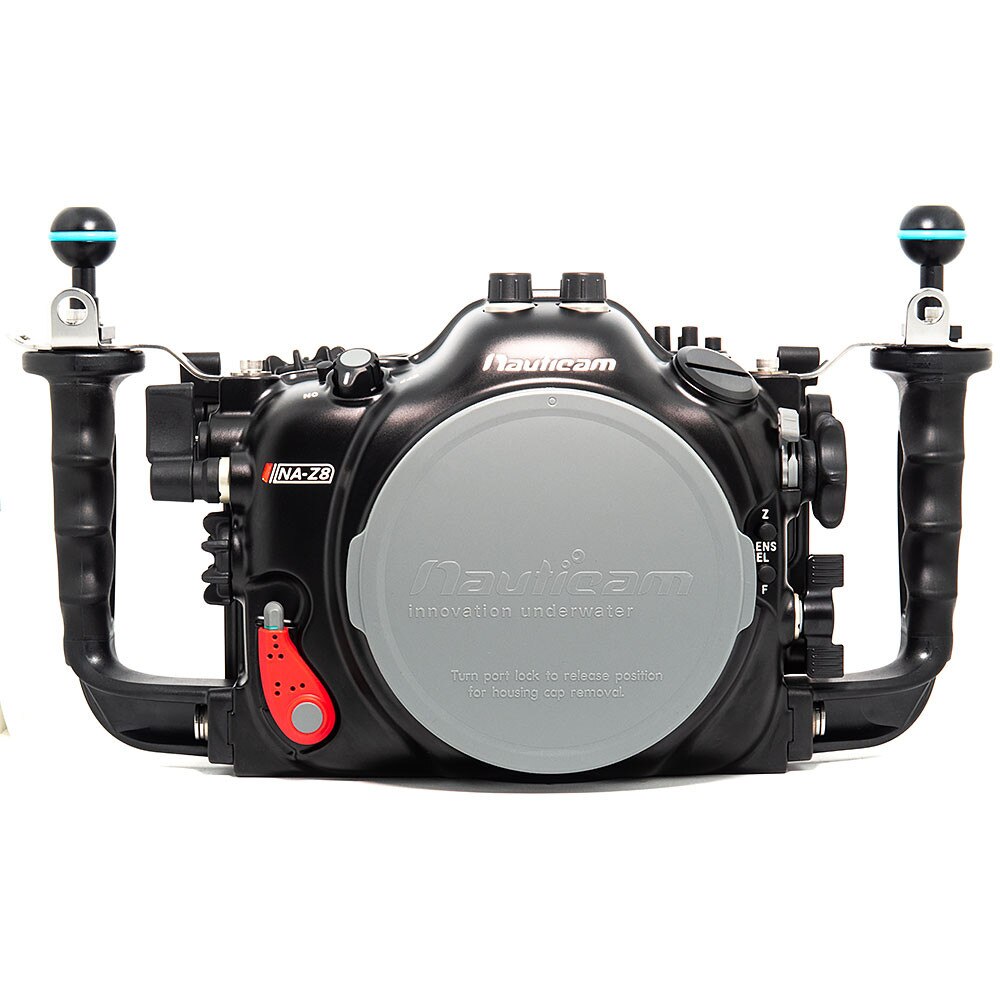

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.



HOUSING LOCKING LATCHES

The industry's easiest-to-use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening, but are easy to open when needed for a quick battery or memory card change.



MISSION CONTROL

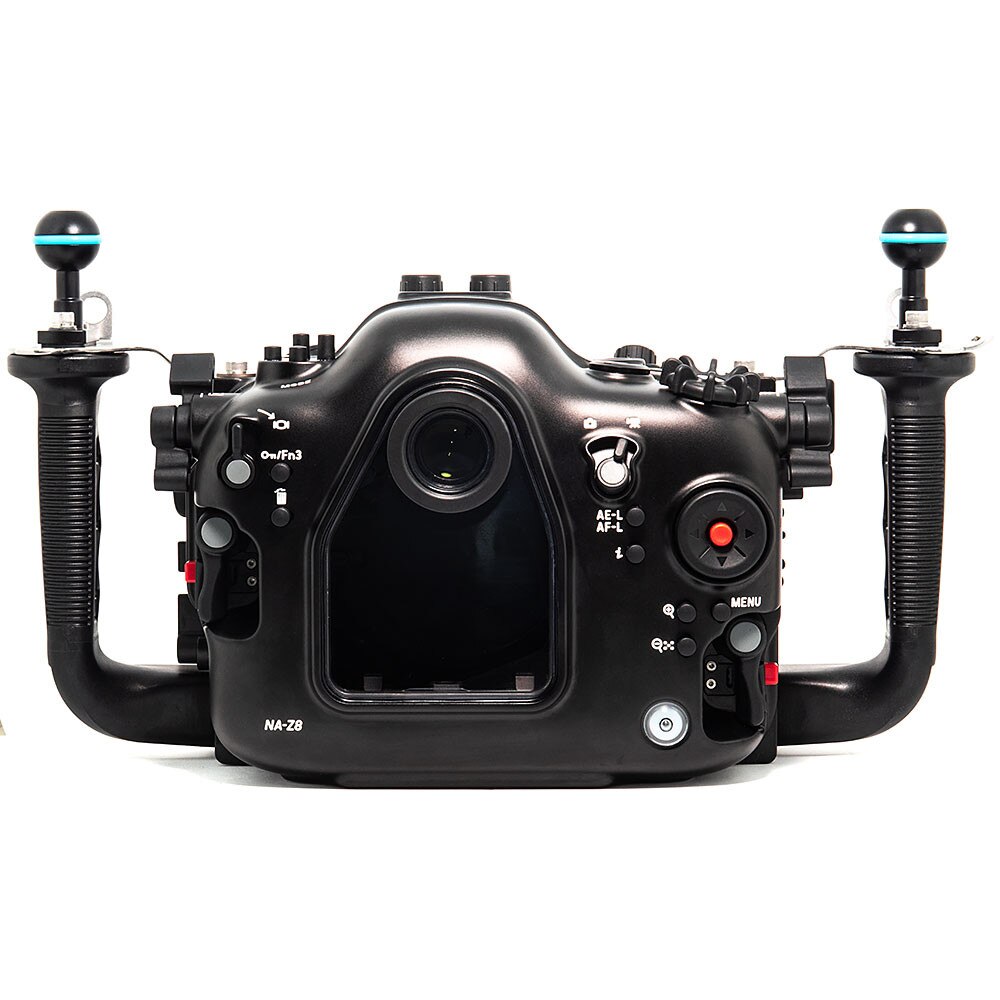

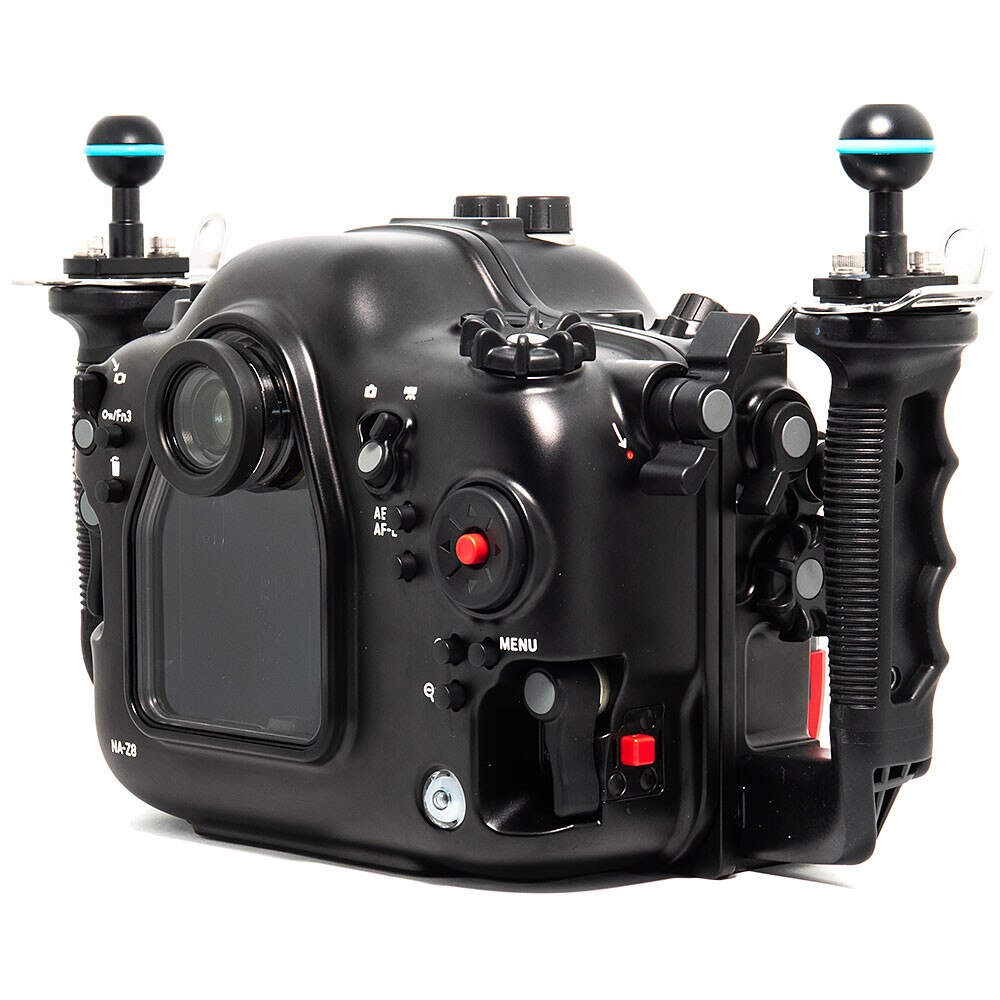

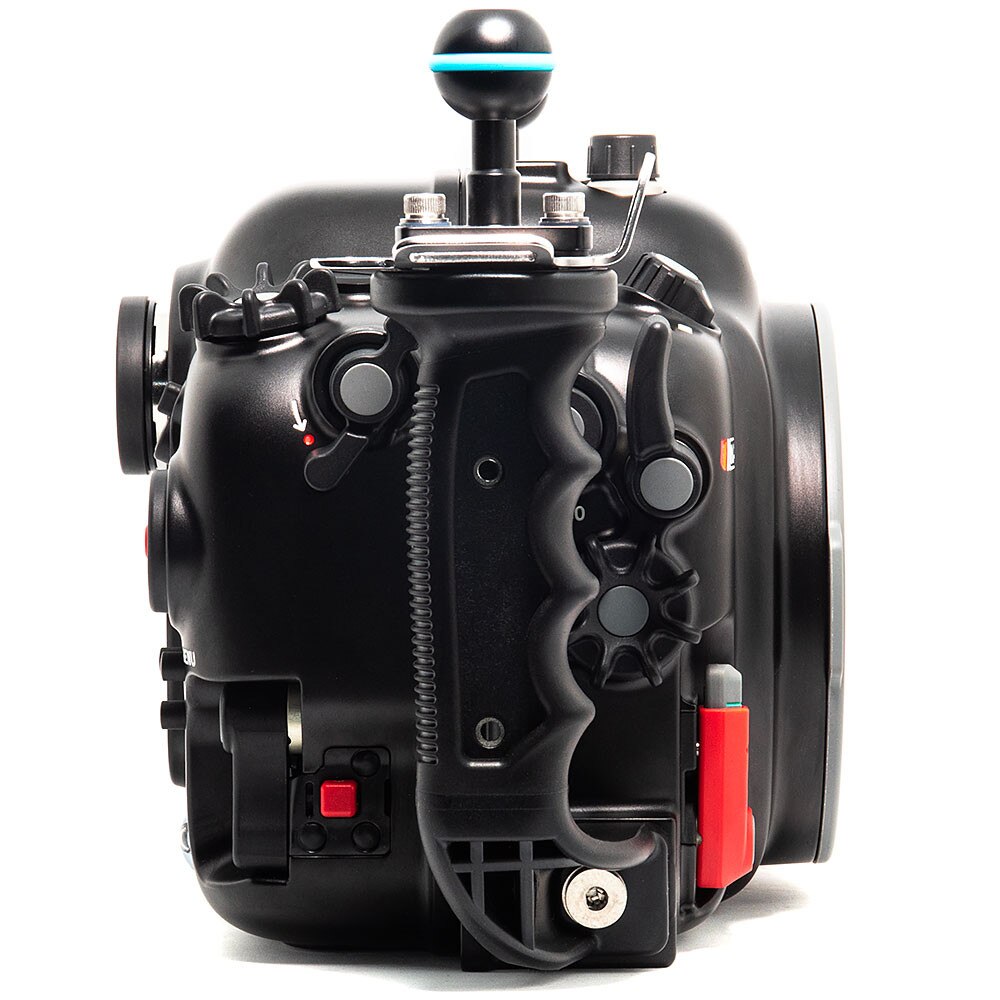

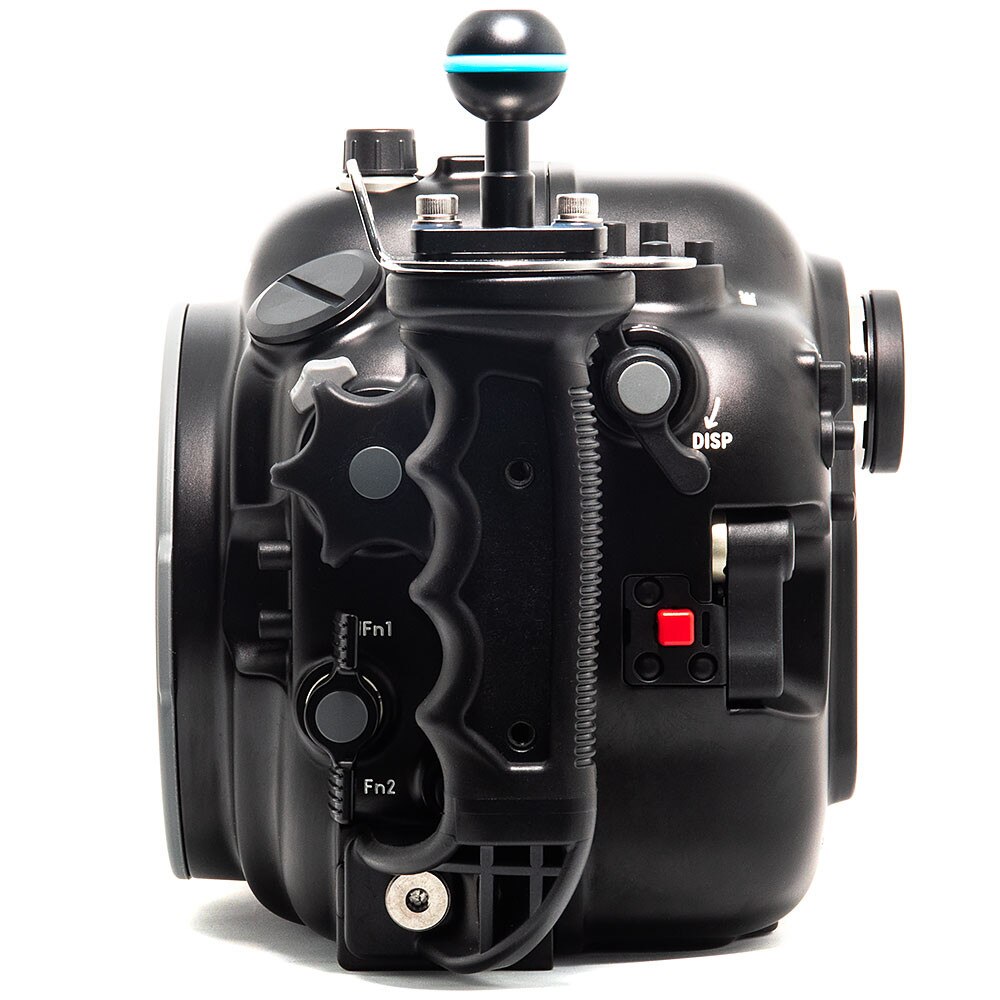

Nauticam engineers pride themselves on giving the underwater image-maker unparalleled access to the essential exposure controls from within easy reach of their housing's handles, making the ergonomic handles of the housing their Mission Control.



TECHNICAL SPECIFICATIONS

• Depth Rating: 100m / 330ft
• Weight: TBA
• Dimensions: TBA
