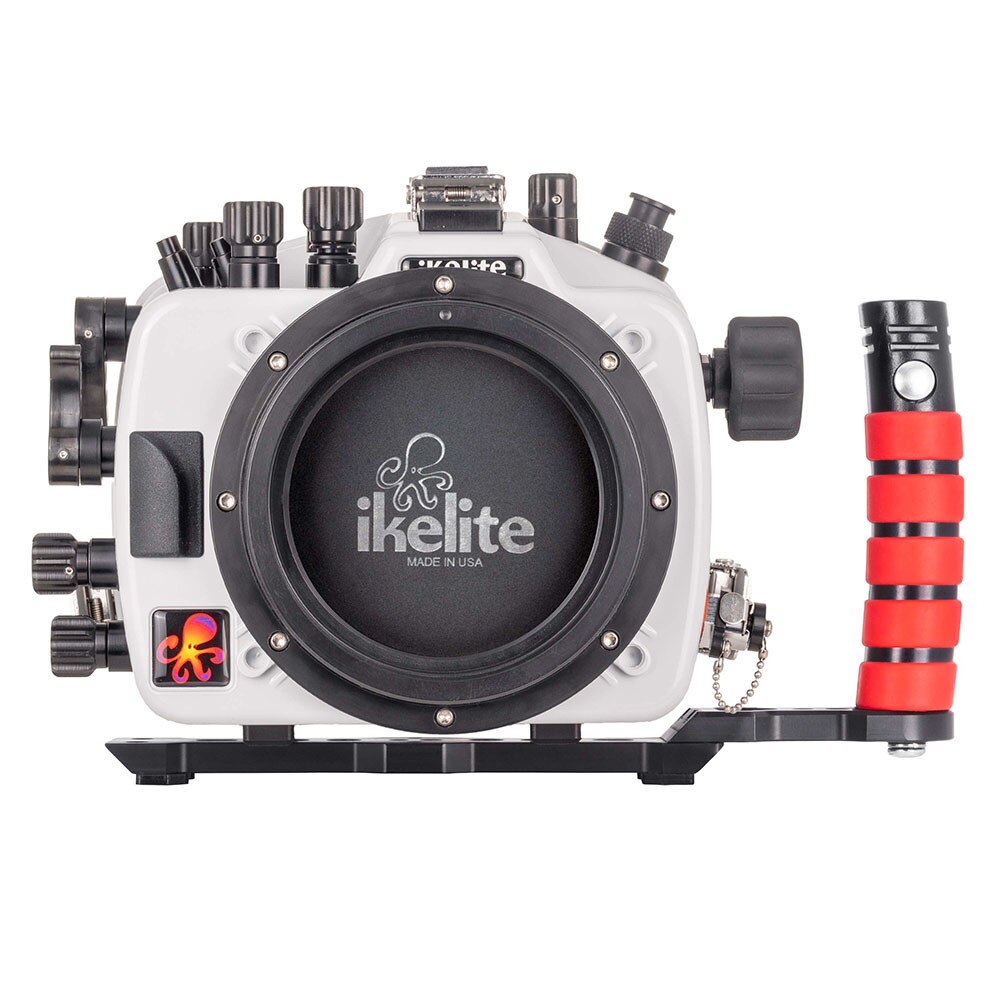

Ikelite 200DL Underwater Housing for Sony a1 II Mirrorless Digital Camera

A full-featured and durable waterproof housing for the Sony Alpha 1 Mark II full-frame mirrorless digital cameras. Suitable for scuba, snorkeling, surfing, pool, and any application in or around the water. The Ikelite system can be expanded for any shooting needs, including the addition of an optional M24 accessory port for an HDMI 2.0 external monitor.

LENS PORT REQUIRED (Sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

Take full control over this powerful Sony full-frame camera in one lightweight and durable underwater housing No other manufacturer makes professional functionality so accessible. Ikelite's housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features, including TTL lighting exposure and enhanced magnifying viewfinders, are available as needed.

Ikelite's DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for Ikelite's housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.

Pre-Dive Checks

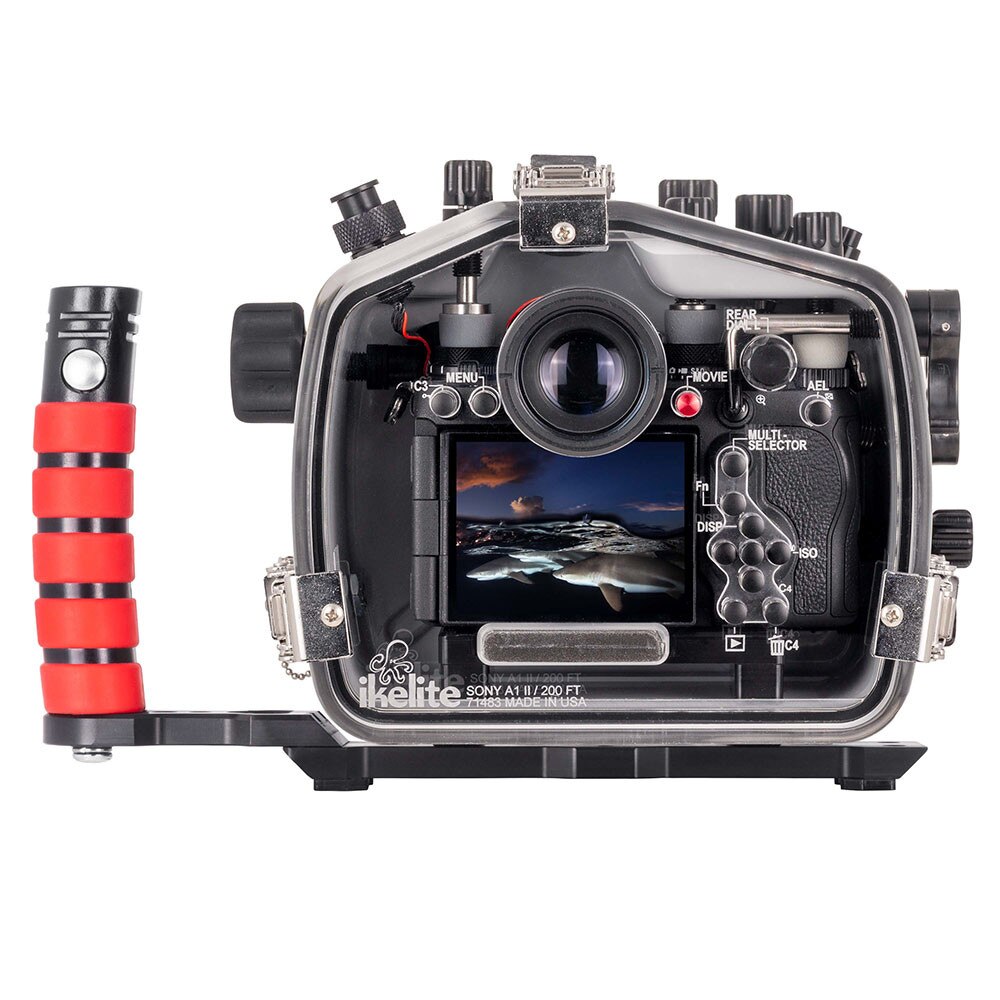

There is no greater assurance than being able to see your camera and O-Ring seal through the back of the housing. Ikelite's signature open-groove design suspends the rear O-Ring in a natural position that is easier to maintain and more reliable than forcing the O-Ring into a channel. Once the housing is closed, the O-Ring forms a solid, waterproof seal.

Ikelite recommends using a pump with a gauge to pull a vacuum on the housing and check for leaks prior to entering the water.

Construction

Ikelite's specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

Ikelite lens ports are the lightest on the market yet robust and capable of standing up to rough surf.

Ikelite supports a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears are sold separately. Refer to the appropriate port chart for compatibility information.

Wi-Fi Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. Ikelite is unaware of any other models that may be used in or adapted to this housing.

In The Box

• Housing
• Rear O-Ring # 0132.59 (installed)
• Front O-Ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Camera Mount for Sony a7S III # 95415
• Camera Mount for Sony a1 # 95419
• Tool for Zoom Gear Retainer # 0945.06
• 0.050" Hex Key # 0945.11
• Silicone Lubricant 1cc Tube

SPECS:

• Controls: Controls are provided for all camera functions except: Diopter adjustment, Focus mode dial; Joystick up/down/left/right (Joystick can be depressed), and Control wheel; Control wheel functions may be accessed using the Front and Rear Dials
• Strobe Connector: Ikelite Bulkhead with Manual Hotshoe
• Port Mount: DL (Dry Lock)
• Accessory Port: M16 Thread
• Depth Rating: 200 feet (60 meters)
• Weight: 5.35 lb (2.43 kg)
• Dimensions: 9 x 7.25 x 6" (229 x 184 x 152 mm) Not including Tray with left handle
• Rear O-Ring: 0132.59
• Front O-Ring: 0132.45
