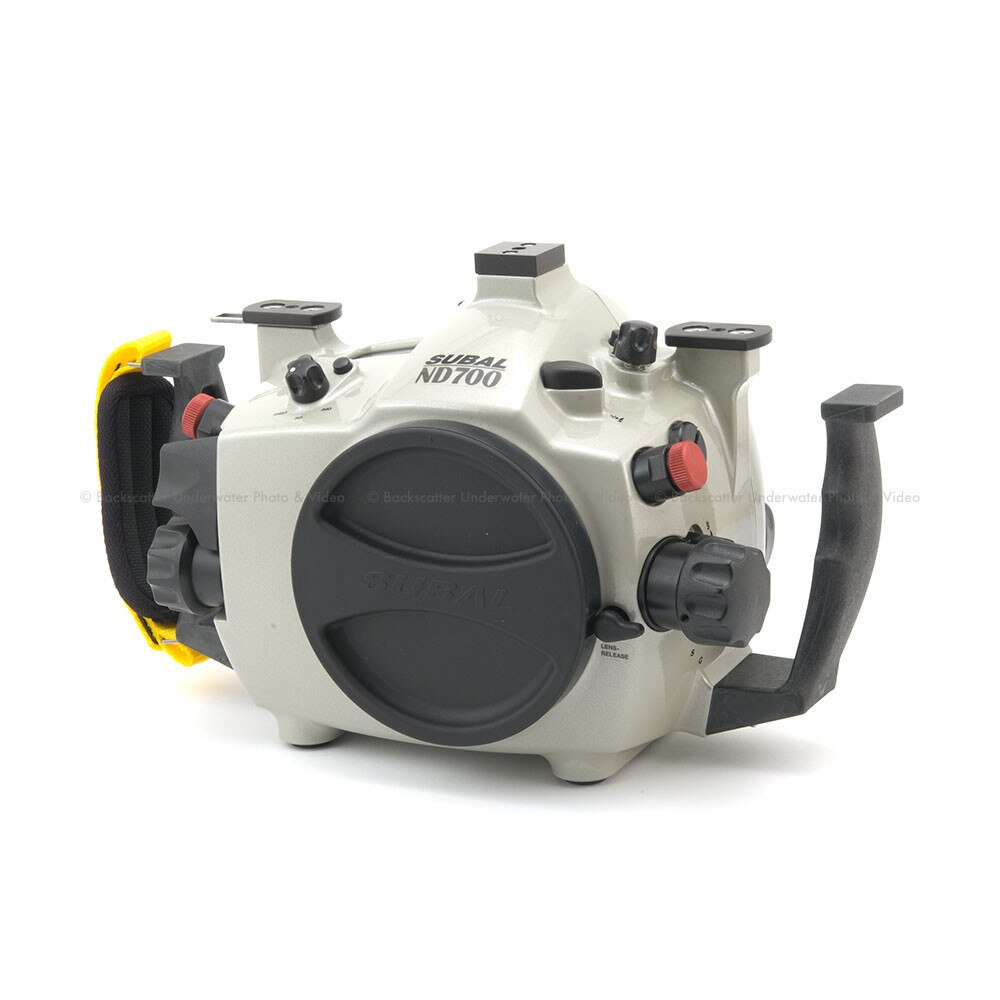

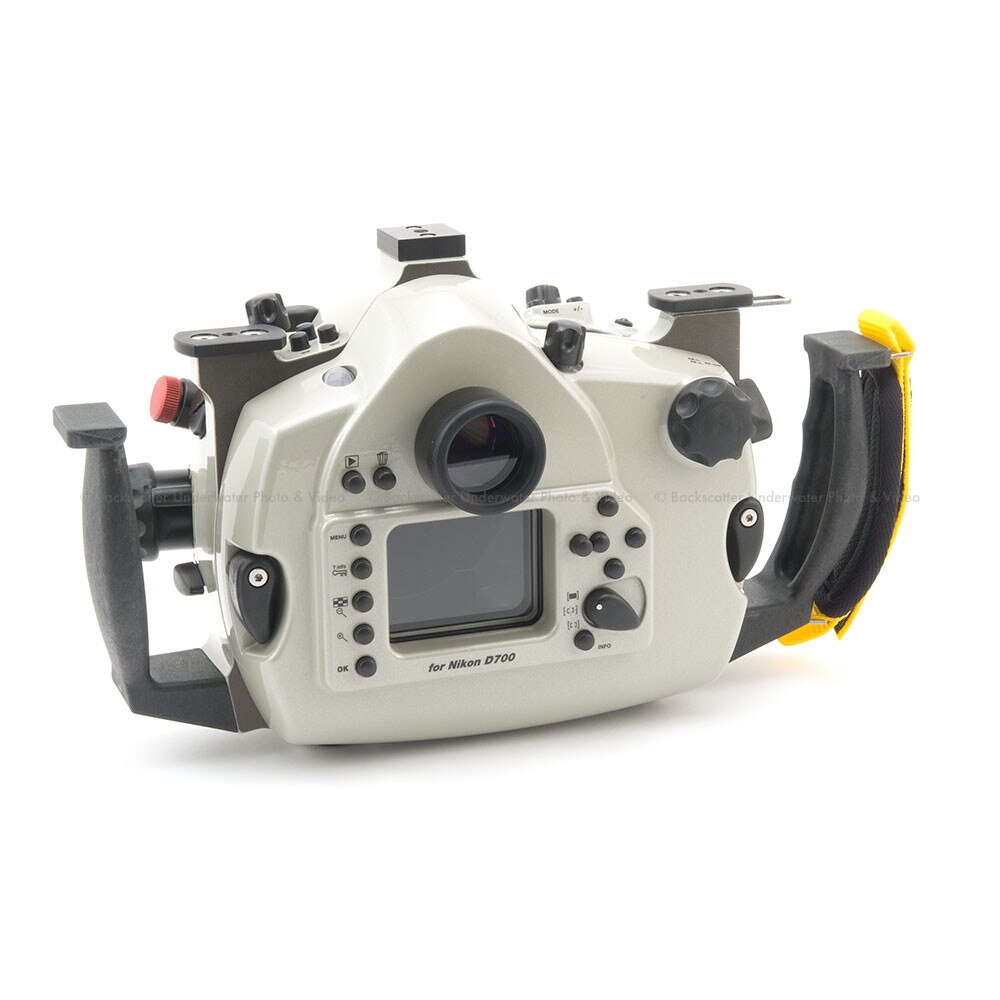

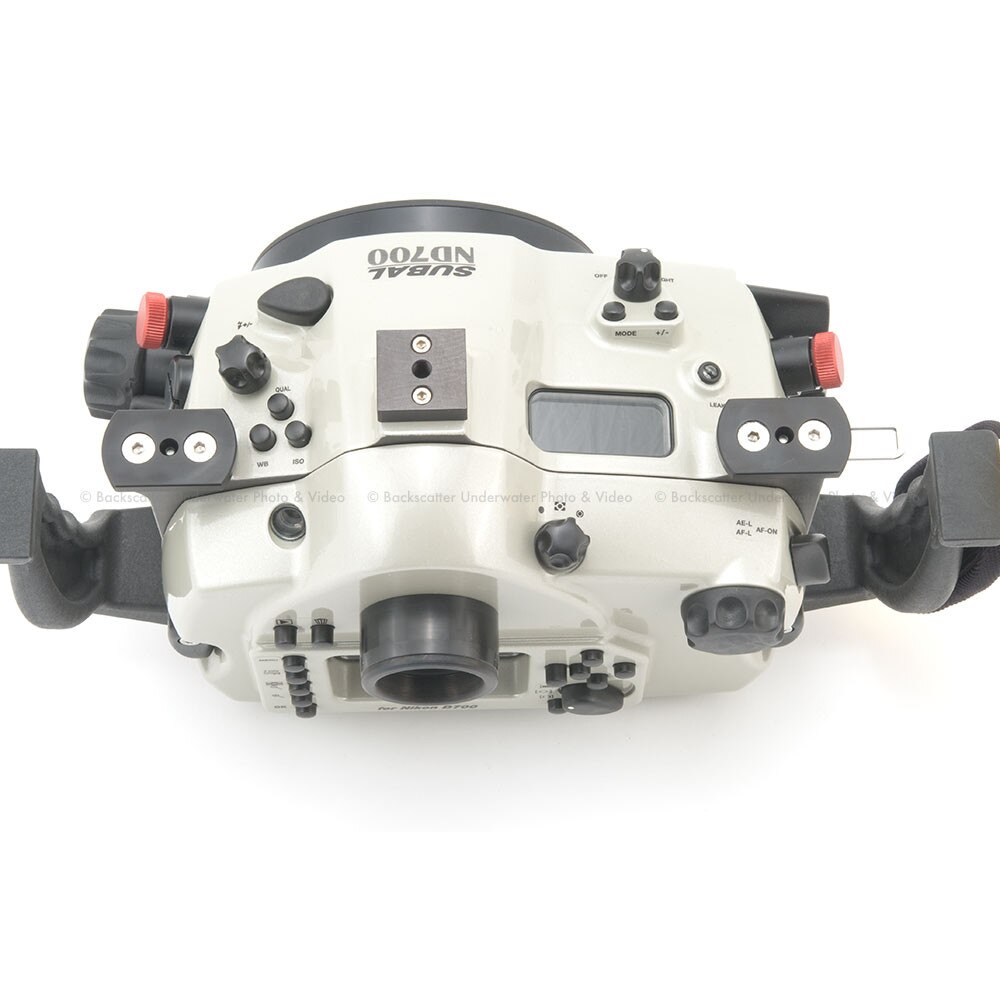

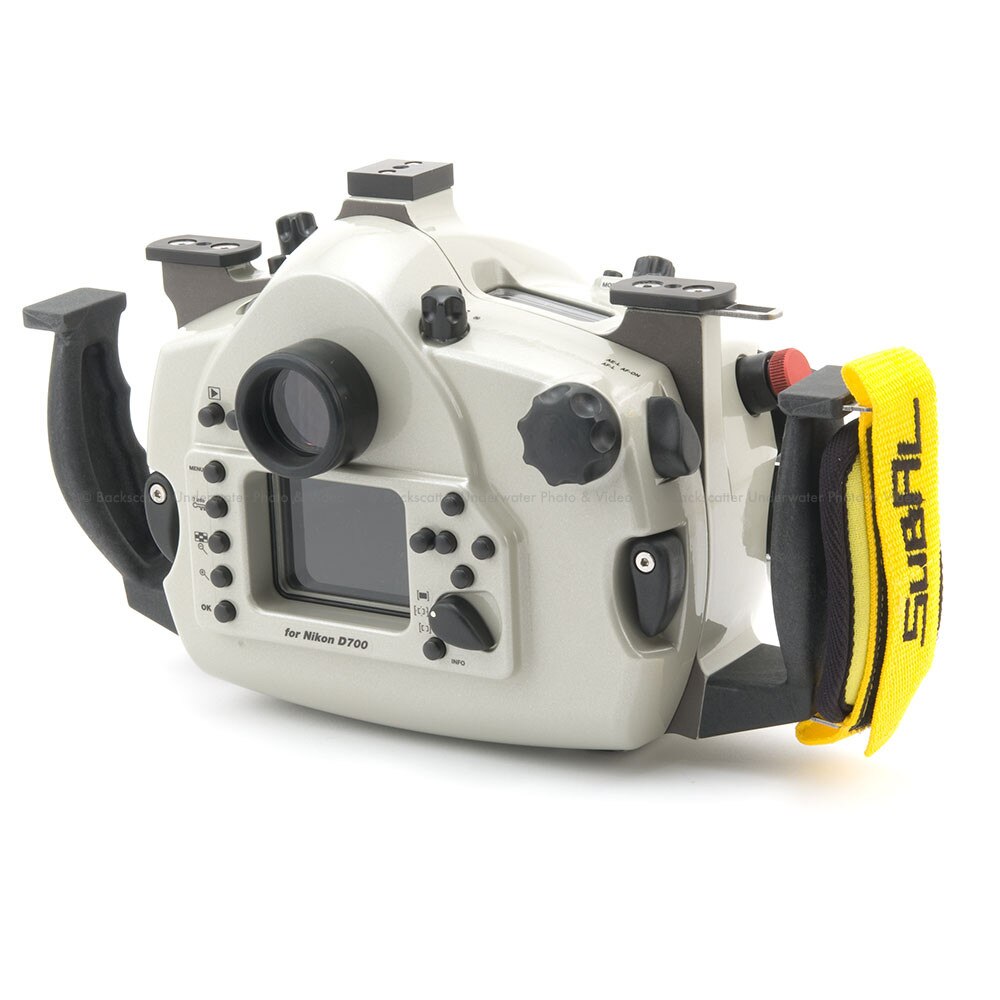

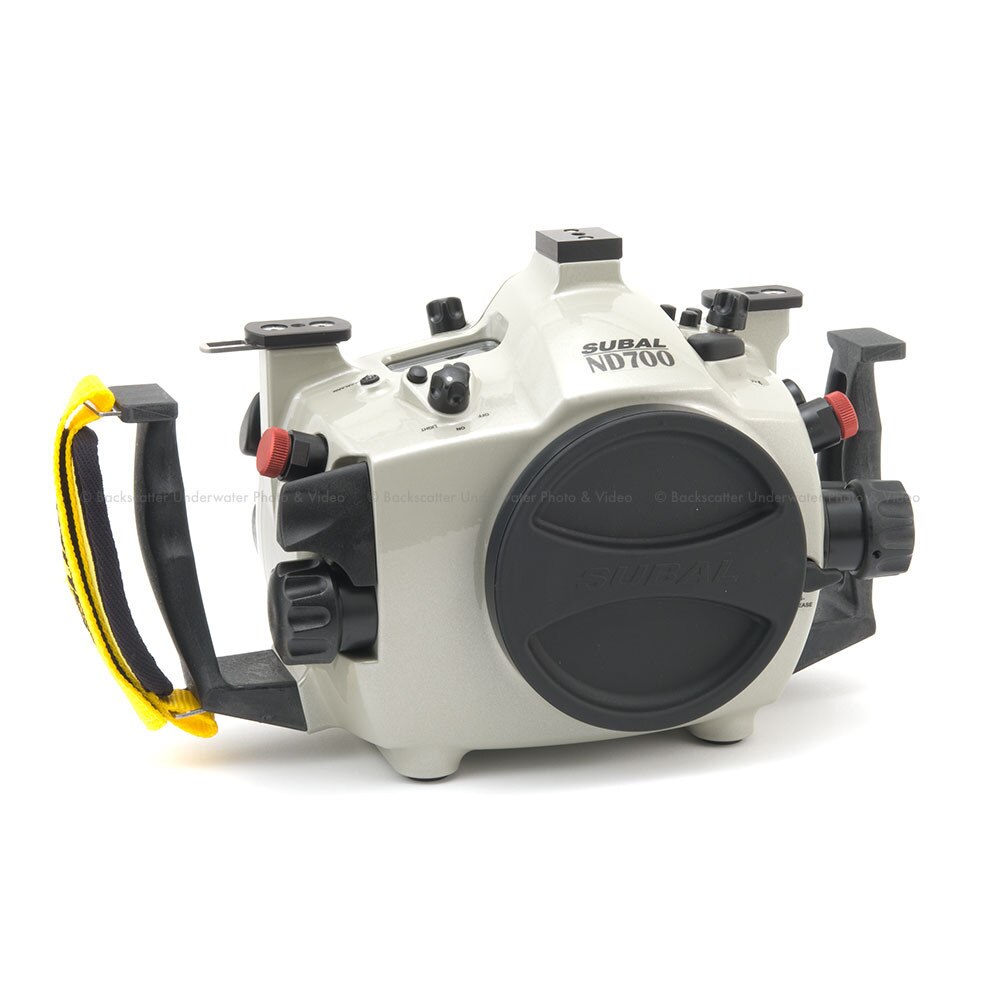

Subal ND700 Underwater Housing for Nikon D700 DSLR Housing - Type 3

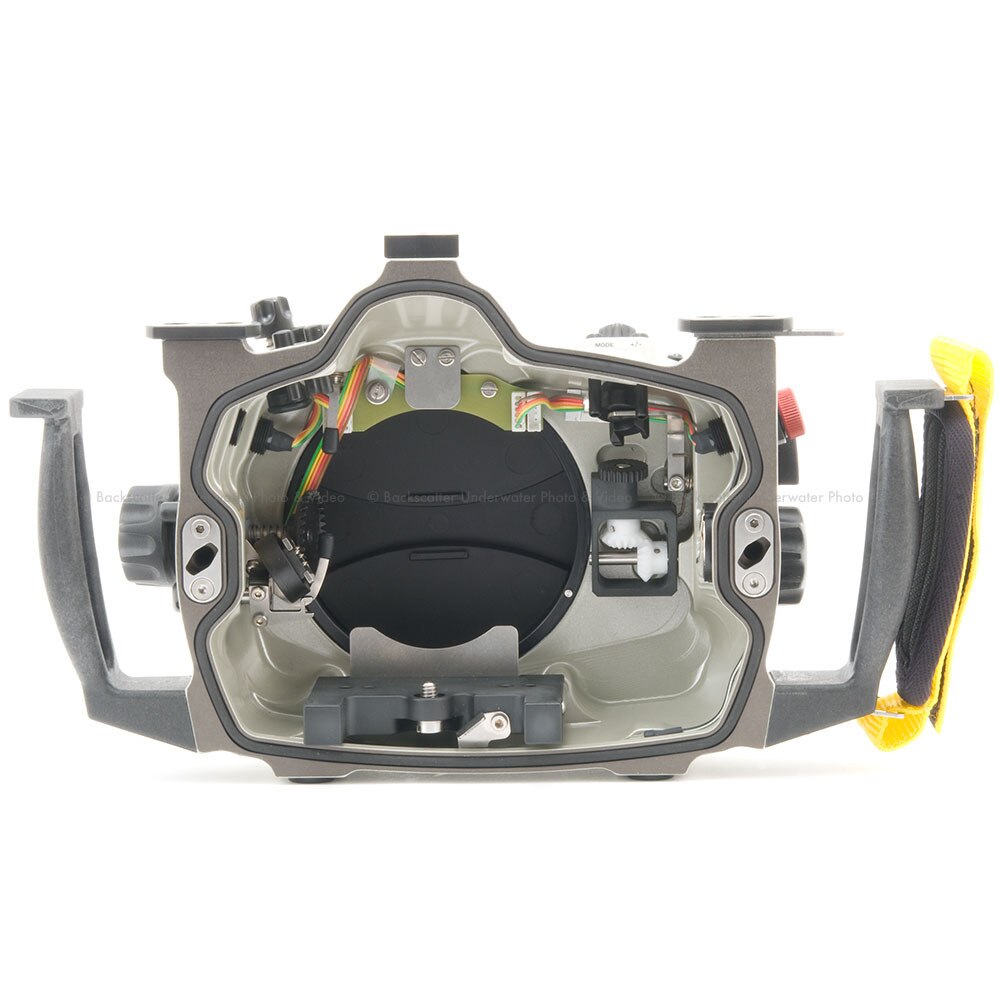

The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera an easy operation without letting go of the handle. The camera is mounted on a special sled, to mount the camera with precision in the housing, this allows a more faster and secure mounting. A 4 mm O ring and the SUBAL QuickLock closure system, prevents accidental crushing of the O-ring, and ensures maximum safety. Threaded holes at the base allows attaching Rails etc. Pilot lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast insight on the camera monitor. Material selection, processing, surface protection and finish conform to the usual standard level of quality that is all the SUBAL products. SUBAL offers for this housing model for the first time, 4 different search systems: the standard viewfinder slimmed reduces the viewfinder image, so that it can fully overlooked despite diving mask. The GS 180 and the 45° viewfinder offer a viewfinder in size approximately corresponding to the camera's viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45°. The new Prism Finder PS-30 shows the camera monitor image at the same size at a viewing angle of 30°. The insight is with normal reading distance, which is why the PS-30 is ideal for video recording. All Subal viewfinders systems are interchangeable and can be mounted easily by the user. All SUBAL ports with bayonet mount on this case can be used (except DP-FE2).

Technical data:

Seawater resistant aluminum alloy worked from the block. Hard Coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint is applied to give the housing the subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.

Width x height x depth:

Approx. 245 x 190 x 145mm (w/o port and handles)

Flash connection:

2 Flash connectors: Optionally Nikonos V, IKELITE or Subtronic S6 Sockets connected in parallel.

Flash arm mounting:

2 T-plates 25 mm, TLC - or ultralight base optional

Transmission and features:

Main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), measuring field control, metering, plant species selection, AF-lock, Flash method/flash compensation.

Push buttons for

Fashion, exposure compensation, playback, delete, menu, protect, image index, enlarge, OK, ISO, quality, white balance, multi-function button, info.
