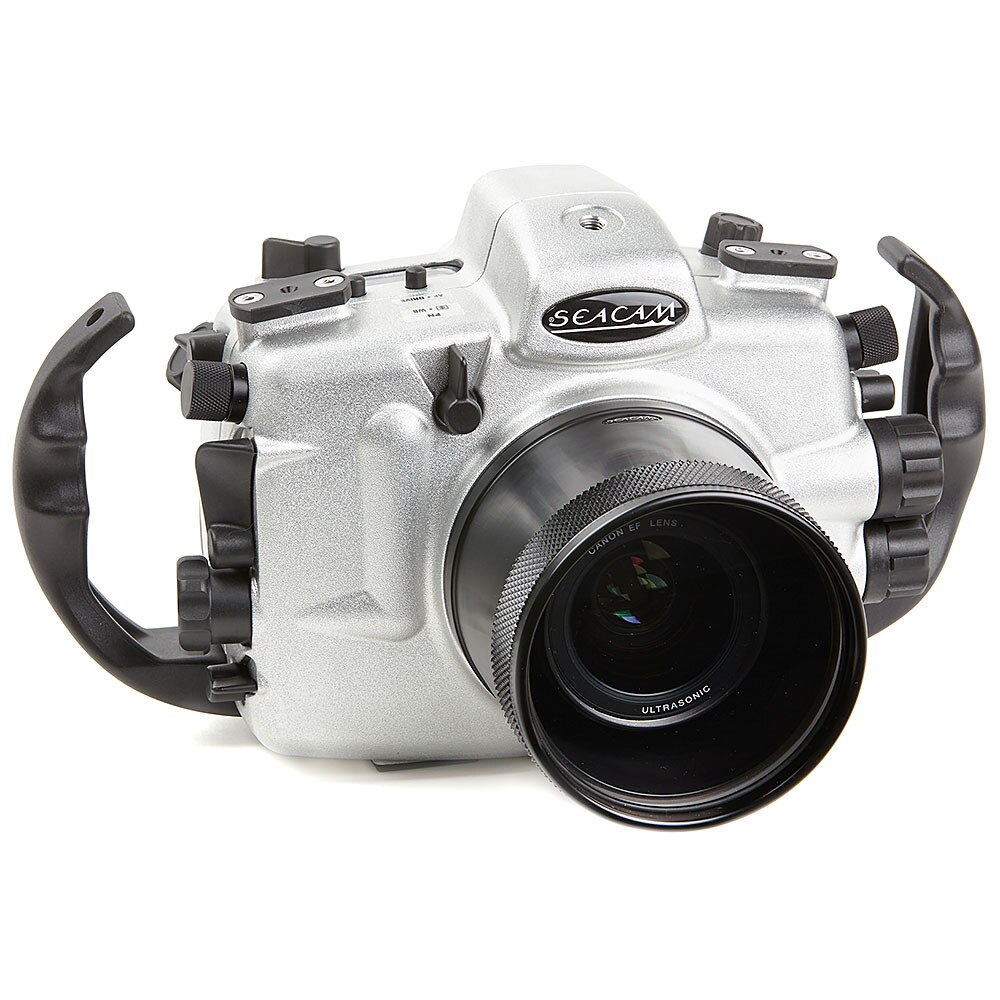

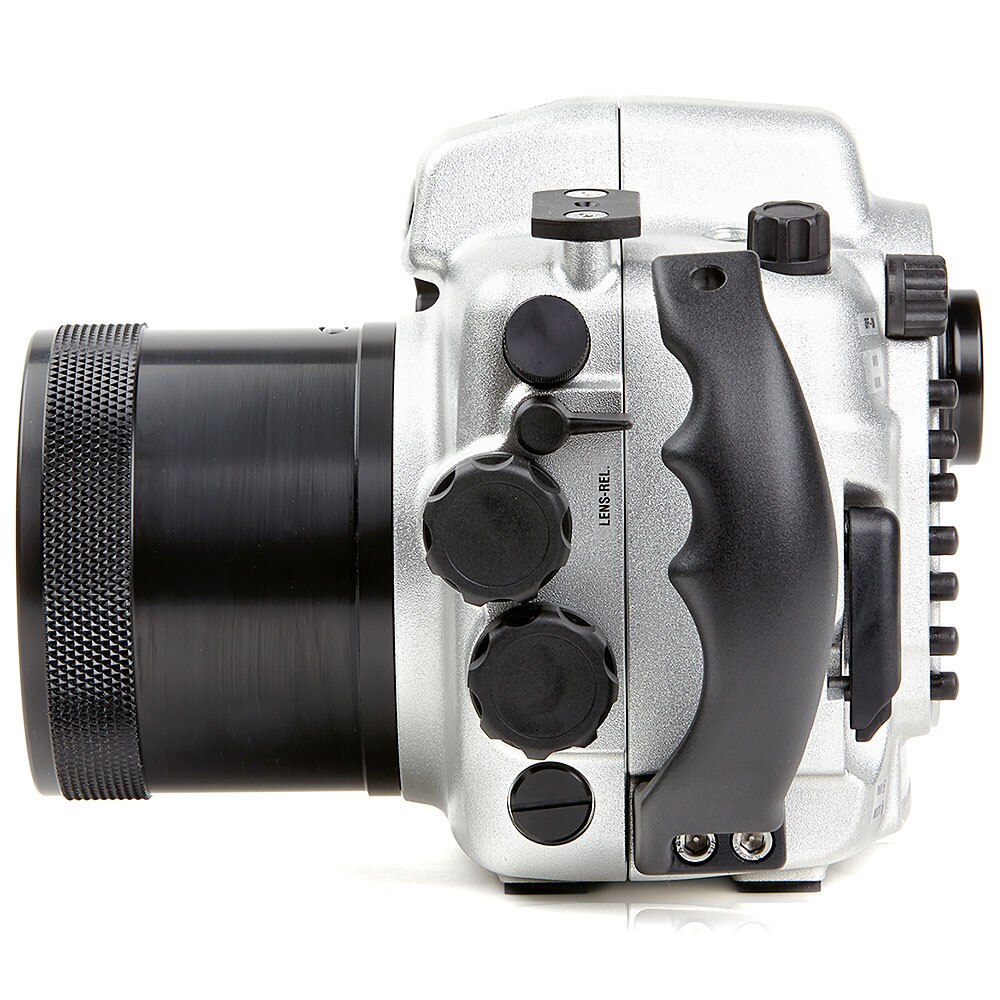

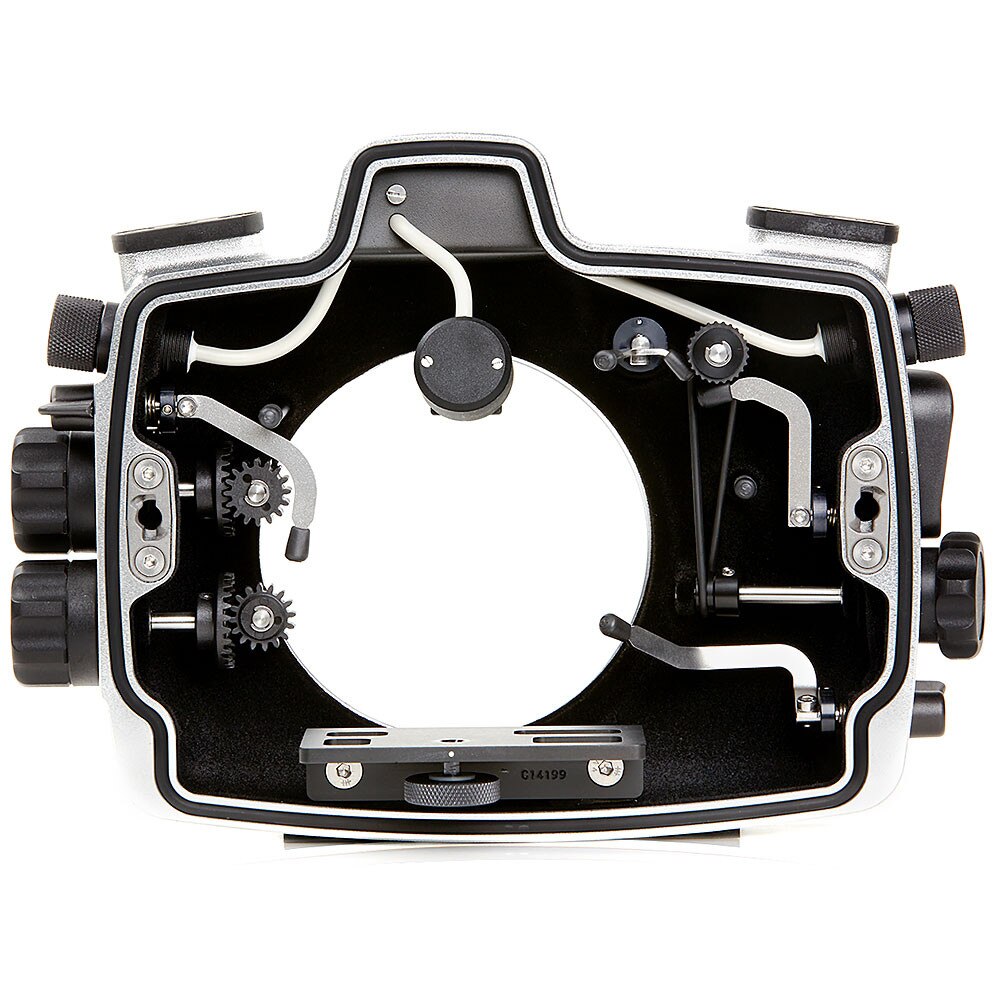

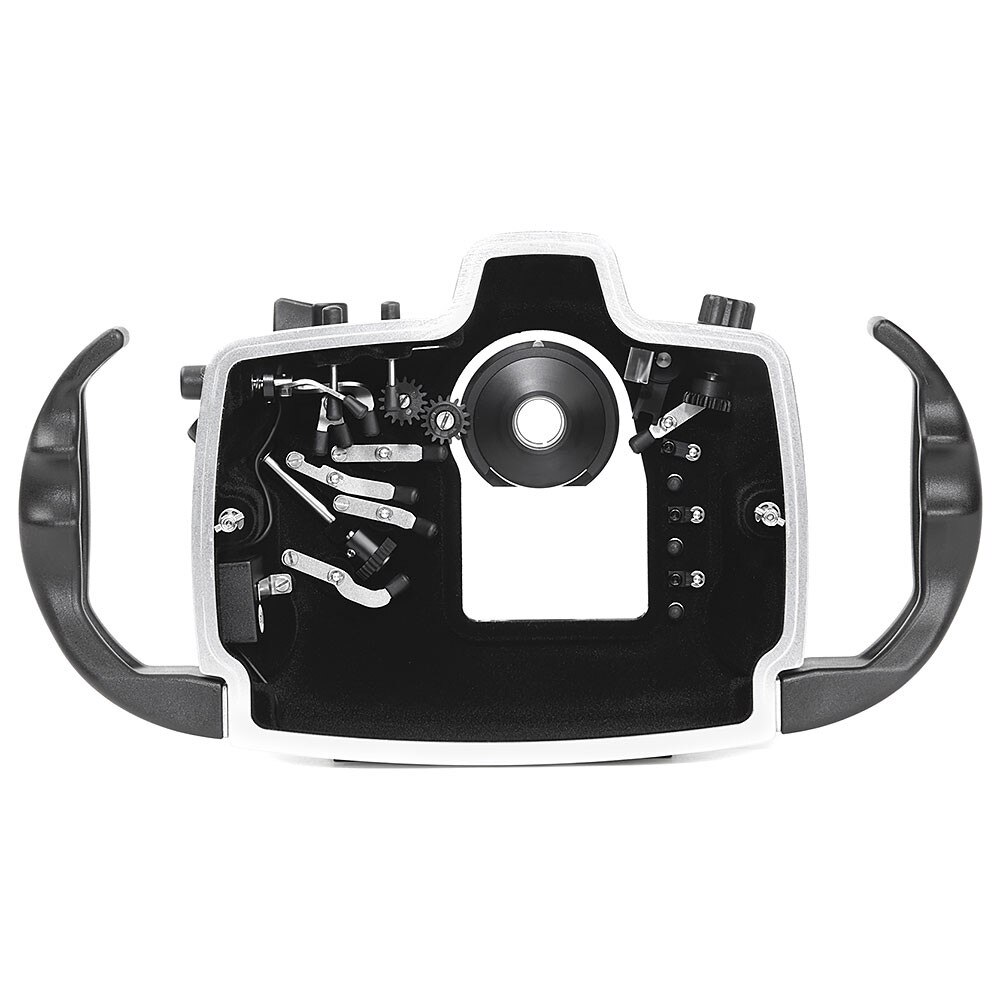

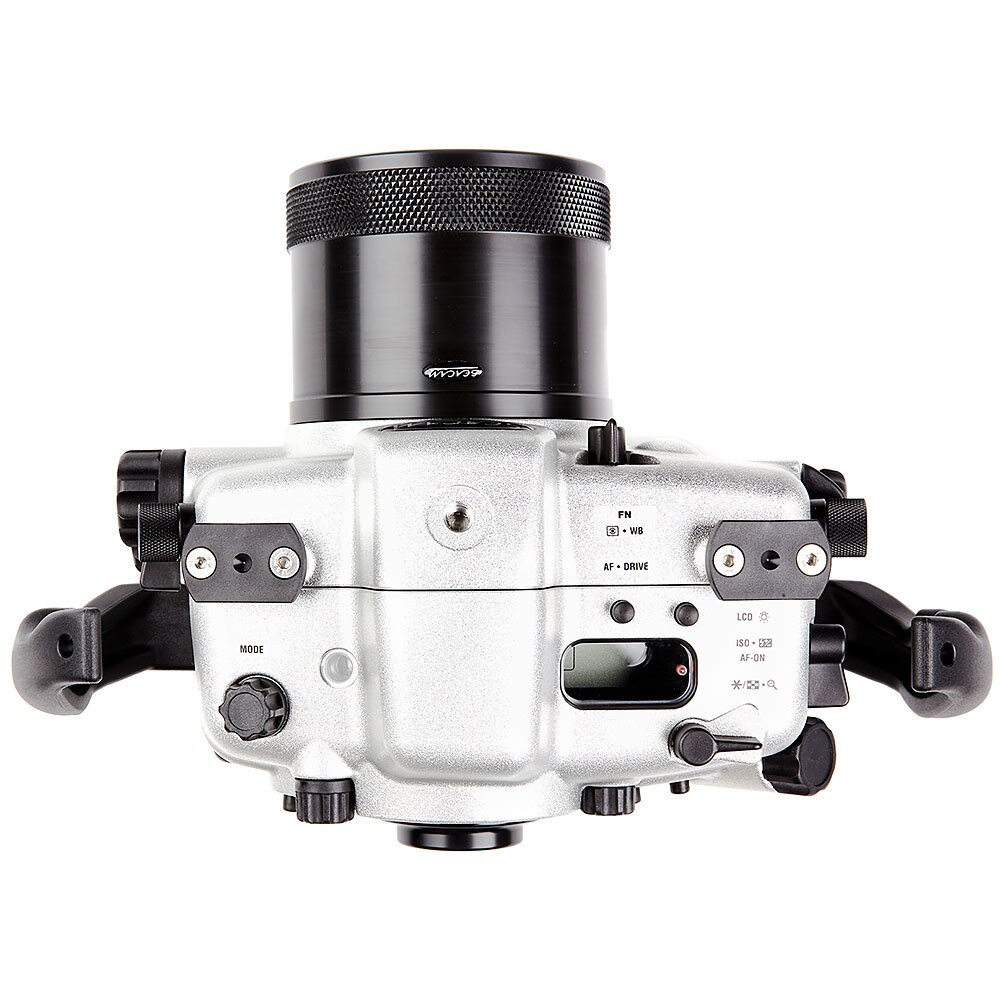

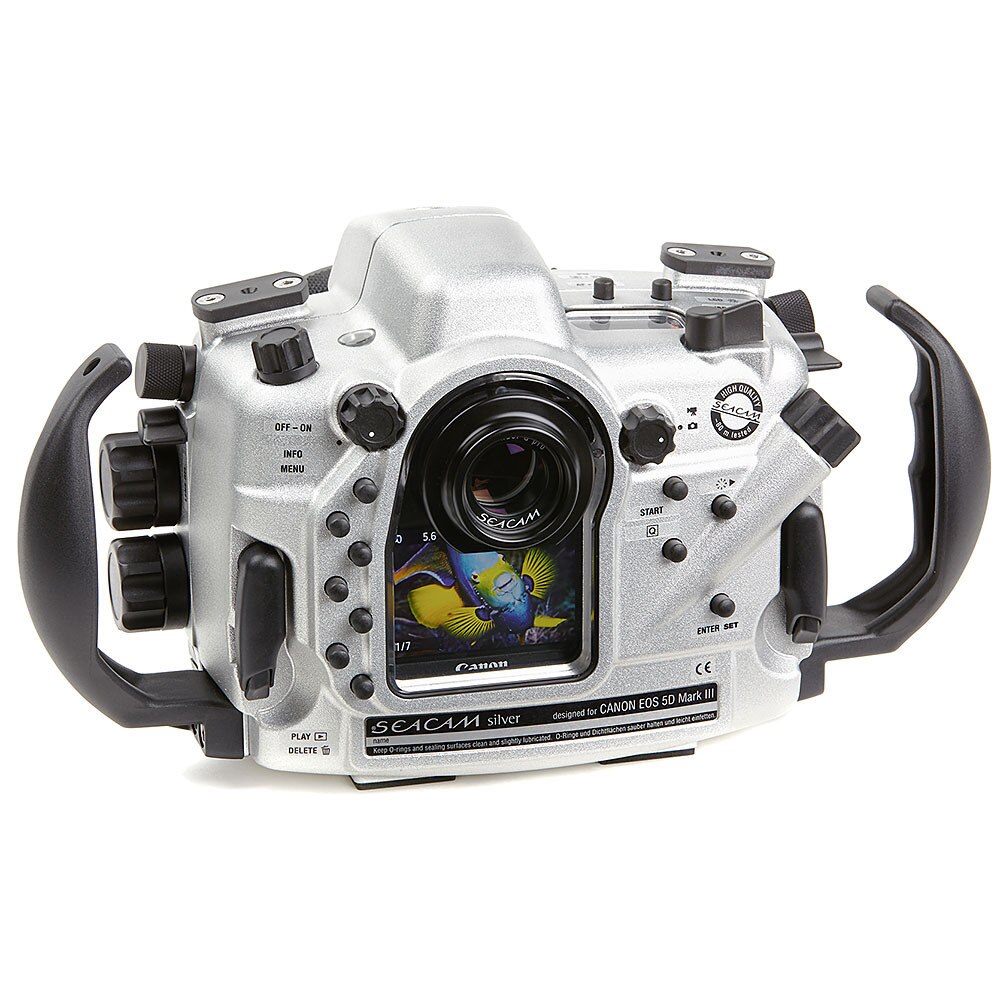

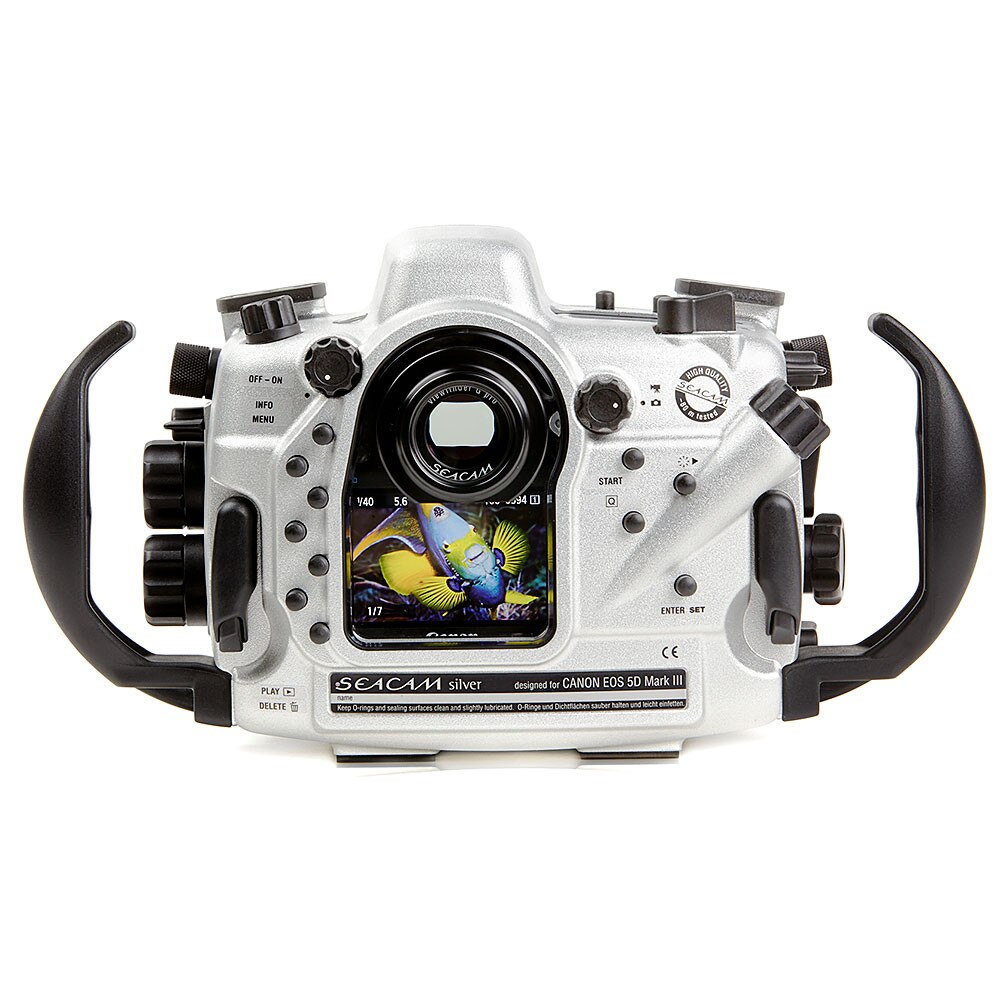

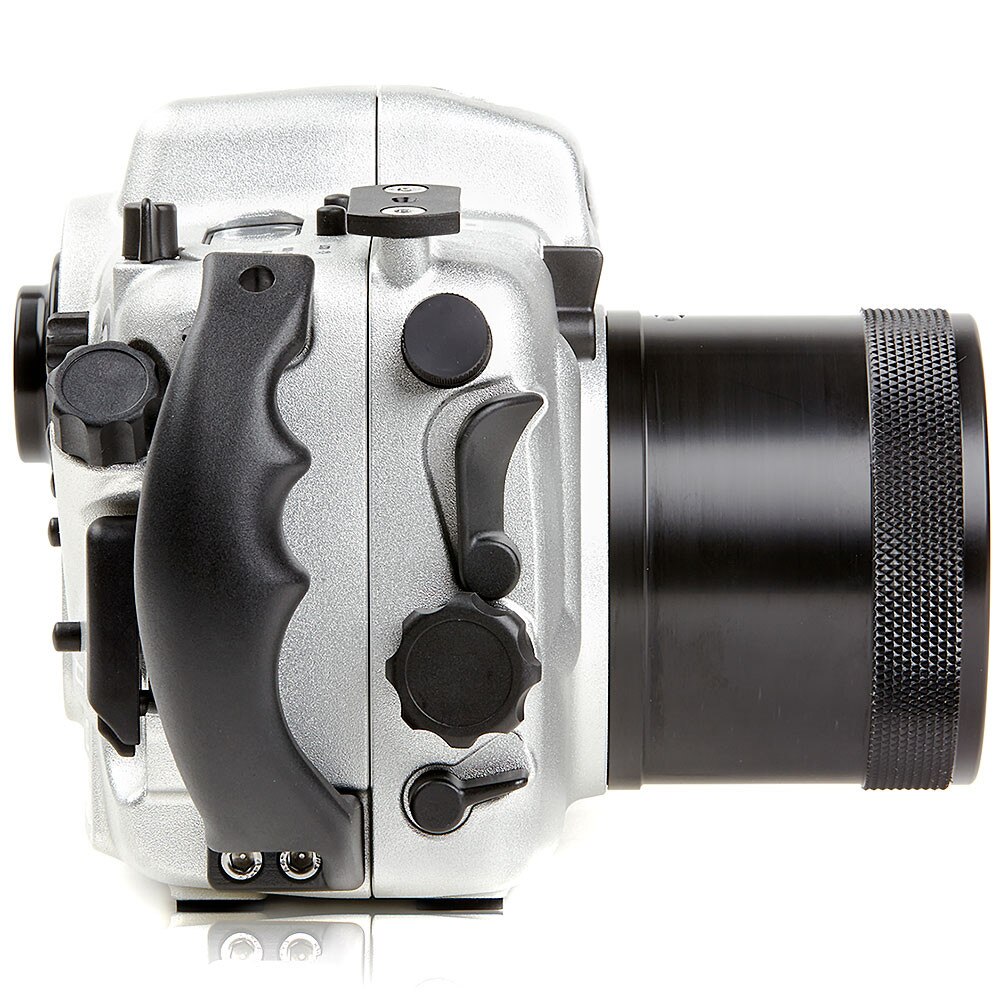

Seacam Canon 5DS & 5DS R Underwater Housing

The Seacam silver for the CANON EOS 5DS & 5DS R sets new standards in design and ergonomics. Due to the special construction, the mounting of the camera is especially easy.

The housing is milled out of a saltwater-proof light metal alloy twice hardened and high-value anodized.

Special longevity is achieved through the use of materials of only the best quality: stainless steel, anodized aluminum, premium synthetics as well as Helicoil threads.

Double sealing with seamless, high-quality precision O-rings protects all shafts and press buttons. The main O-ring is of a particularly strong dimension.

The titanium SAFETY LOCK fastening system safely secures both housing shells.

Seacam's interchangeable viewfinder system includes 4 different viewfinders and can be exchanged without any tool.

The easy mounting system and the double O-ring sealing particularly secures the Seacam front port connection with its bayonet thread.

Functions:

Turning knobs and control levers

Main switch, shutter release, front / rear dial, manual focus, zoom, lens release, MODE dial, AF-ON / ISO / +/- flash compensation, M-FN / WB / measuring mode, AF-area control / AE-storage / lock, DOF depth of field preview, live view.

Pushbuttons

Measuring mode / white balance, LCD light, menu, style, info, play, delete, set/movie.

Specs:

• Clearly laid out LCD color monitor window and upper display window, mode view.
• 2 flash sockets N5 or S6, 2 flash arm tees 25mm, tripod thread 3/8", M8 thread on the housing roof, 2 removable handles and optic-acoustical water alarm.
• Vacuum Test, Remote socket optional
• Spare O-ring set, lubricant and surface oil, hex-wrench set and locking strap in neoprene bag; protection caps and instruction manual.
• Dimensions (W x H x D): 260 x 190 x 130 mm excluding port, viewfinder, and handles.
• Weight: 2800g excluding port and viewfinder, neutral under water depending on port and viewfinder.
• Operation depth: 80m/262ft
