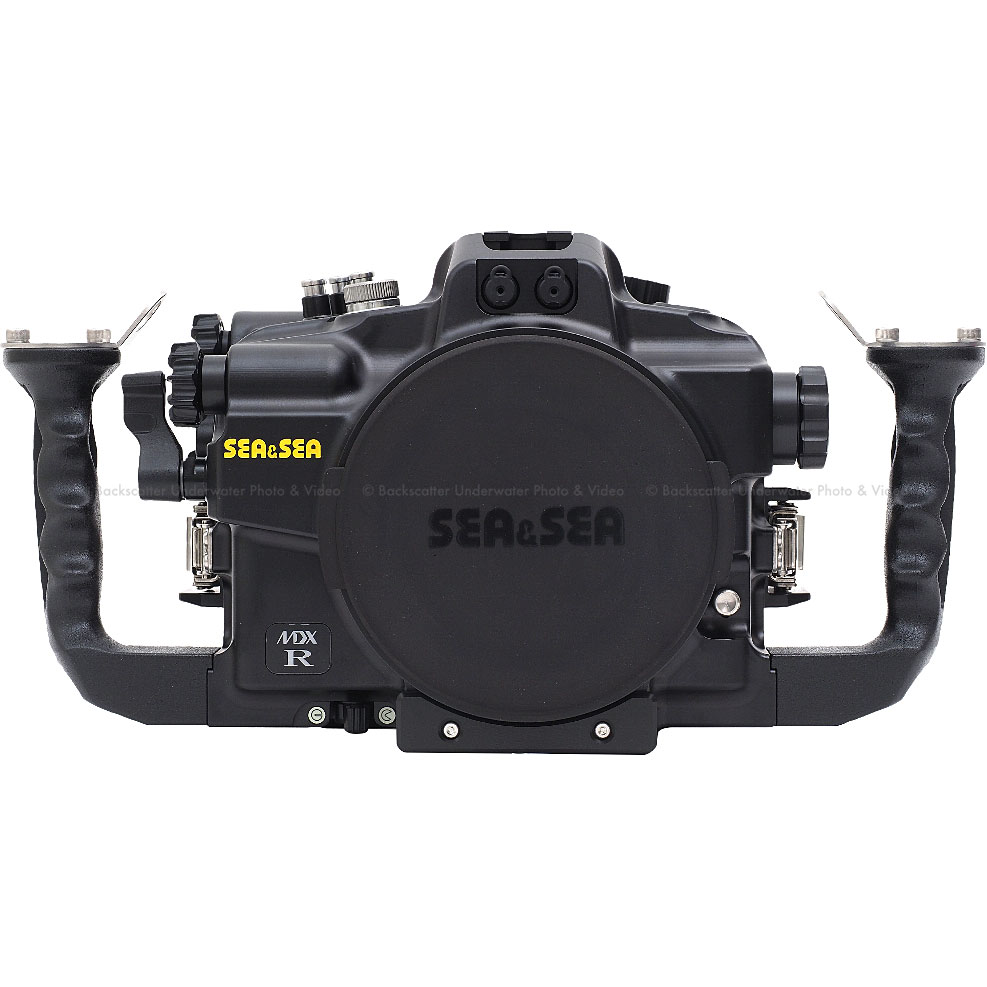

Sea & Sea Canon EOS R Underwater Housing MDX-R

State-of-the-art housing for the full-frame mirrorless Canon EOS R camera. Compact, compatible with the Optical YS Converter and ergonomically designed.

Compact Design

Taking advantages of the mirrorless camera's compact design and lightweight, the housings have been designed accordingly to enhance these features.

Compared to SLR MDX-5D Mark lV camera housing, the MDX-R is 100g/3.5oz lighter in weight on land.

Optical YS Converter C/R Compatible

The new optional Optical YS Converter C/R which converts the camera's hot-shoe TTL signal into an LED light signal is available. With the converter, both TTL and manual exposure photography are possible.

Designed for RF mount lenses.

The Focus/Zoom dial has two gears, one which is dedicated for RF mount lenses.

The MDX-R is compatible with the system chart for the MDX series SLR housings. You can utilize EF mount lenses with the mount adapter and ports/gears for the MDX series housings.

The camera's upper control panel can be seen.

A window for the camera's upper control panel is also incorporated. As the brightness of the camera's upper control panel has increased, the visibility is now greatly improved.

External Port Lock and Lens Releases

Conveniently switch lenses and ports between dives without removing the housing back. Activate the Port Lock on the front of the housing and push the Lens Release for quick and easy lens swap.

MDX-R Other Features

• The Port Lock prevents the port from turning or loosening and the Port Lock lever is specifically located to avoid being unlocked accidentally.
• The housing is equipped with a lens-lock release button which makes it possible to change lenses easily, without opening the housing.
• Pulling out the Focus/Zoom Dial gives sufficient room inside the housing to easily accommodate larger diameter lenses.
• All controls have luminescence stickers which glow in dark environment.
• Equipped with the Optical Viewfinder 0.5x as standard. Other optional viewfinders such as Optical Viewfinder 0.66x,and 0.8x can be used.
• Some vignetting occurs.When the VF45 and VF180 1.2x is mounted on housing, the corners of the camera's viewfinder cannot be viewed due to vignetting.
• Sync Cord 2-pin Connector enables use of conventional hardwired Sync cable (Manual mode only).
• Equipped with two sacrificial zinc diodes (one on the front case and the other on the rear) to prevent electrolysis damage.
• Equipped with under guard to protect from scrach.

Specifications

• Equipped with two (2) Fiber-Optic Cable Sockets
• Equipped with one (1) N-Type (2-pin) connector
• Equipped with two (2) Sacrificial Zinc Diodes (front/rear)
• Built-In Leak Detector Sensor
• Luminescent Buttons: Glow in the dark controls, levers, and buttons.
• Body: Corrosion-Resistant Aluminum Alloy (machined)
• Grip: Corrosion-Resistant Die-Cast Aluminum Alloy
• Depth Rating: 100m / 330ft
• Dim. (WxHxD): 342 x 174 x 159 mm / 13.5 x 6.9 x 6.3 inch
• Weight: Approx. 2,900g / 102oz (housing only)
• Compatible with SEA&SEA Strobes, Sea Arm 8, Fiber-Optic Cable II, Electronic Sync Cords, Leak Sentinel (Vacuum Pump System)
