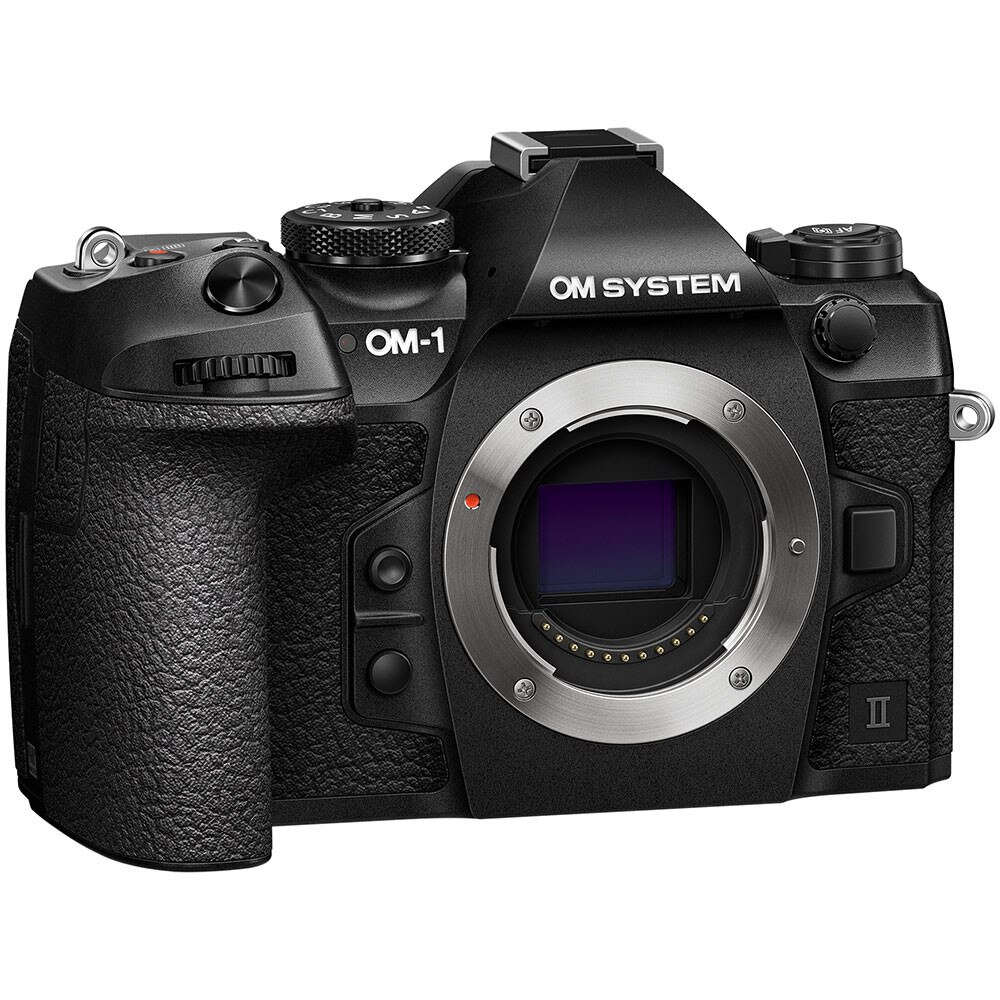

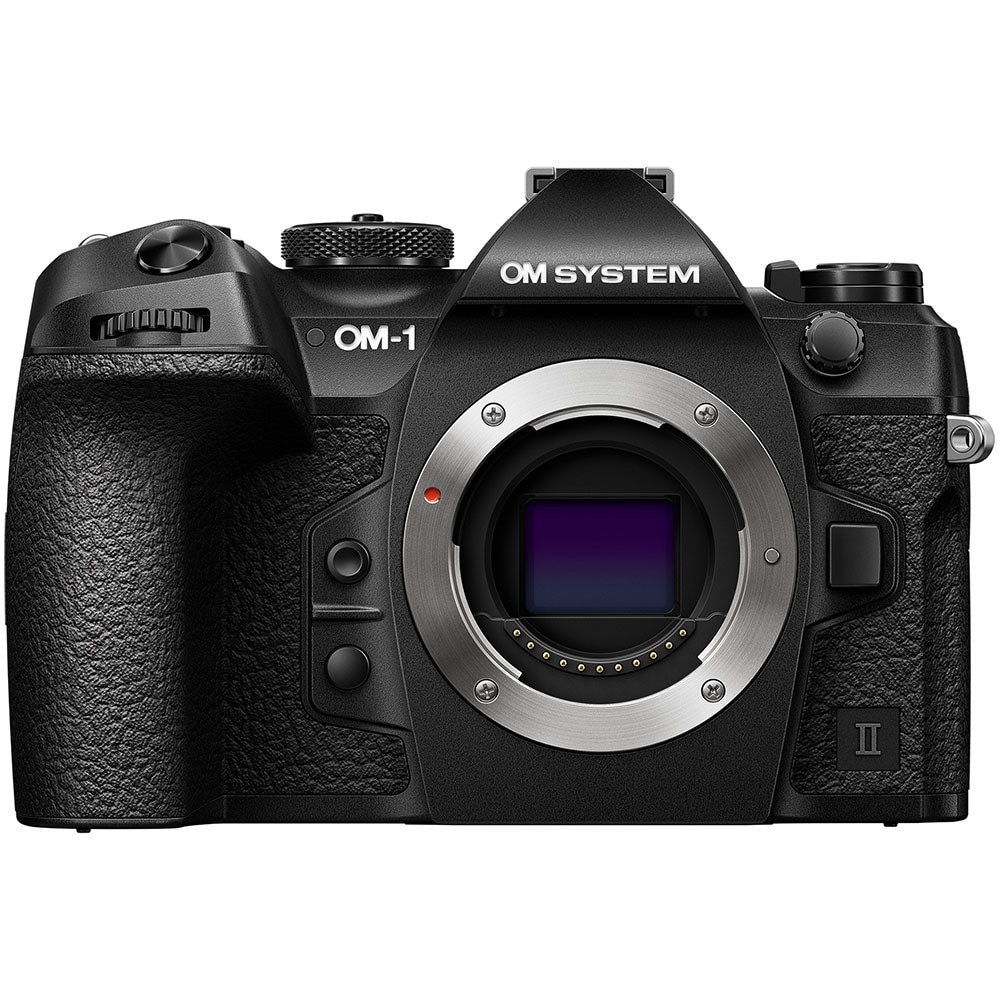

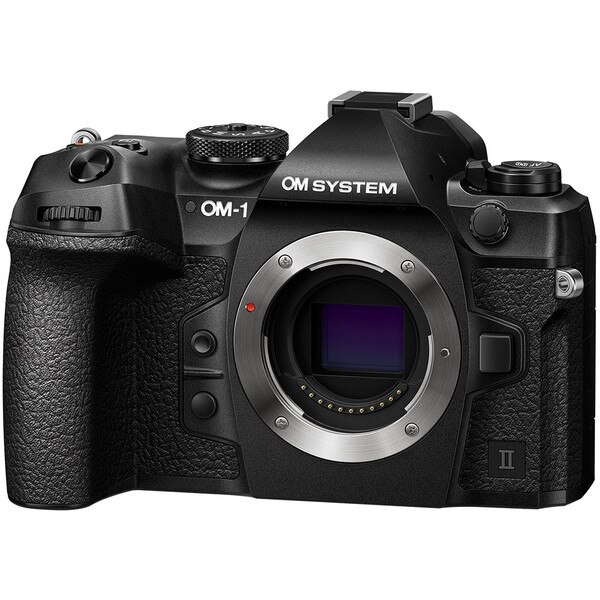

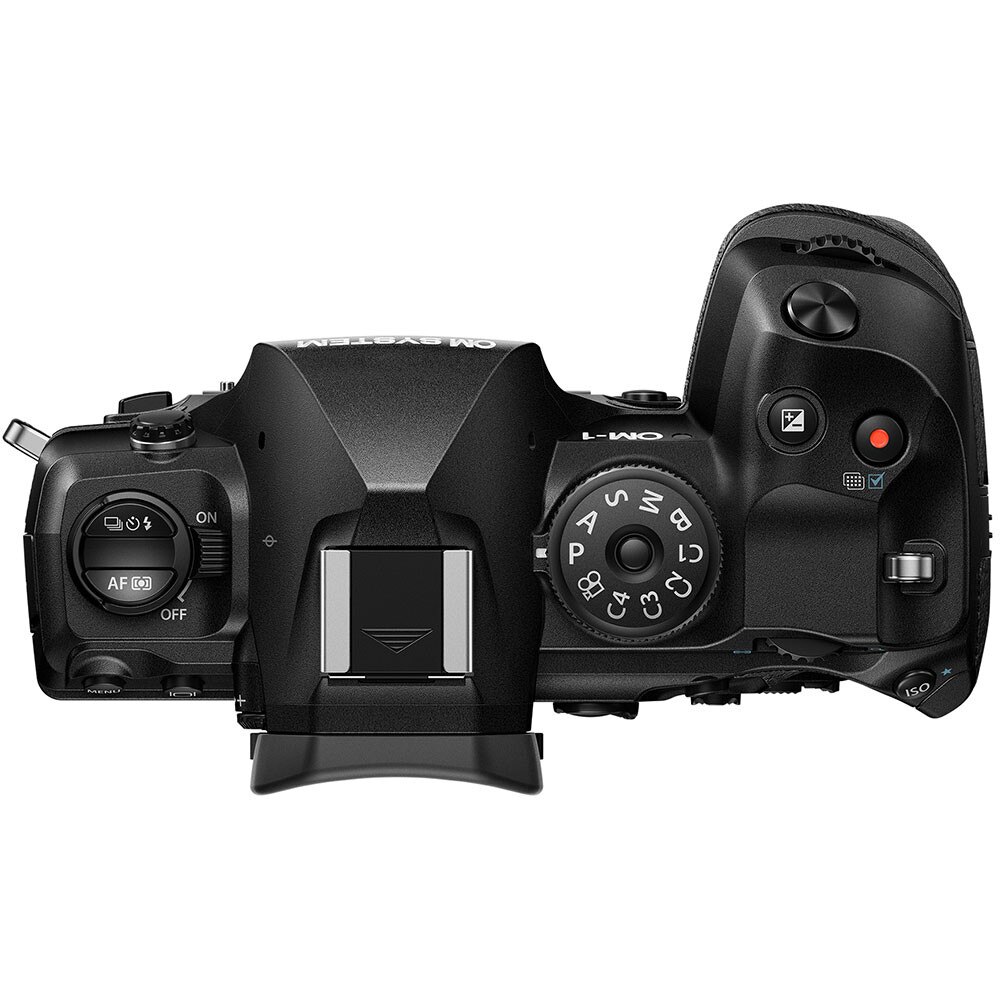

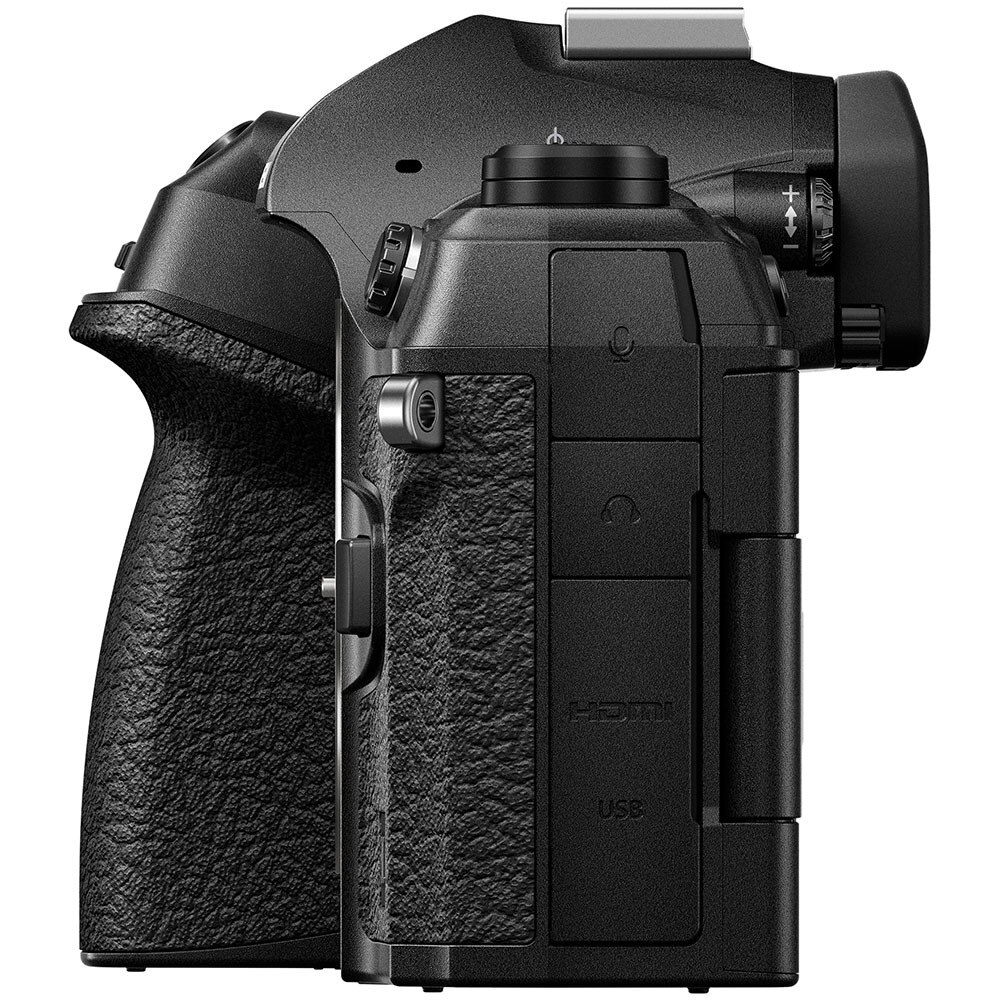

OM System OM-1 II Mirrorless Camera Body

  • 20 Megapixels
  • 4K 60p Video
  • Micro 4/3 Lens Mount
  • AI Subject Detection AF
  • 10 fps Shooting, 120 fps with E. Shutter

SKU: # ol-v210040bu000

FREE Standard Shipping to USA / Canada!

Regular Price $2,399.99
Sale Price $1,999.99
You Save $400.00
Price as Configured
Back

Custom Options

Overview / Product Description

OM System OM-1 Mark II Mirrorless Micro 4/3 Camera



REVEALING WONDER.

The OM-1 Mark II is a statement of blazing fast speeds, unparalleled computational capabilities, and tactile usability with refinements throughout the camera. The OM-1 Mark II presents a true wonder of outdoor photography equipment that will perform wherever you go.

Fast.

Never miss a moment with a large buffer size for sequential shooting, enhanced AI Subject Detection AF, and blazing performance.

Smart.

Industry-leading computational photography features like LiveGND and High Res Shot give you the edge.

Compact.

Go lighter with an improved body feel 8.5 stops of stabilizing Power, and stellar battery life.

Tough.

Built to perform in every environment you find yourself in with IP53-certified weather sealing.
  • 8.5 EV Stops of Stabilisation
  • Bird, Human, Pets, Cars, Aircrafts & Trains AI Subject Detection AF
  • LiveGND: GND2, GND4 & GND8
  • Pro Capture
  • Blackout-free sequential shooting
  • LiveND: From ND2 to ND128
  • 120fps – S-AF in RAW / 50fps – C-AF in RAW
  • 120fps - 213 frame buffer in RAW / 50fps - 256 frame buffer in RAW
  • Highres Shot up to 80MP 14-bit RAW

SPEED AND ACCURACY ARE ESSENTIALS FOR OUTDOOR PHOTOGRAPHY.

The OM-1 Mark II picks up where the original OM-1 left off. The new camera boasts a double buffer size and remarkable high-speed sequential shooting — up to 50fps with continuous autofocus — coupled with improved autofocus accuracy and reliability.

Autofocus with AI subject detection

Om System improved the AI Subject Detection to maintain focus more accurately and reliably and detect humans.

The enhanced AI Subject Detection lets you selectively focus on a single subject, giving you precision in crowded scenes.

More accurate than ever before

OM-1 Mark II significantly enhances Auto Focus precision, especially for wildlife and adventure outdoor photography. This translates to an Auto Focus system that reliably locks onto subjects even in the most demanding photographic scenarios.

Pro Capture up to 120fps

With our Pro Capture Mode, when you press the shutter button down halfway, it begins buffering a running series of photos at 120fps. When you see the moment you want, fully press the shutter, and the camera saves that moment, plus the buffered shots. Never miss a shot again because of a slow reaction.

Double buffer size

With increased memory in the camera, we've more than doubled the buffer size, jumping from 92* (*OM-1) to an impressive 213 photos at 120 fps in RAW format.

Blackout-free sequential shooting

In addition to the existing 25-120 fps, we've added 12.5 and 16 fps for a better shooting experience for static subjects.

IT'S WHAT'S INSIDE THAT COUNTS.

A significant focus of the OM-1 Mark II is its capability in computational photography. With the introduction of LiveGND — an in-camera graduated neutral density filter — you're to leave your costly and clumsy external filters behind and trust the camera. Additionally, we've significantly enhanced the LiveND and High Res Shot features.

No more clumsy filters. LiveGND

Introducing the new LiveGND, our Graduated Neutral Density filter for creative freedom to position the graduation precisely as you like.

The full spectrum of tones High Res Shot

The high-res shot mode has always been a standout feature, and now, you can capture photos in 14-bit RAW.
  • 80MP with tripod
  • 50MP handheld

LiveND

Get long exposure shots in bright daylight with the in-camera LiveND feature. The OM-1 Mark II takes LiveND one EV stop further, up to ND128, providing even greater flexibility in challenging conditions.

Live Composite

The OM-1 Mark II's Live Composite mode takes continuous photos with the same exposure time. Then, it combines them into a single shot — making star trail photography and light painting easy without the fear of overexposure.

Focus stacking

Focus Stacking gives your images a whole new dimension by extending the depth of field from foreground to background. This is achieved by taking up to 15 individual photos at varying focus distances and stitching them into a single rendered composite image.

COMPACT SIZE. FULL EXPERIENCE.

Not only is the OM-1 Mark II built compact enough to go with you anywhere, but It also introduces industry-leading features to let you leave needless things behind. With a record 8.5 EV stops in camera stabilization, you can quickly ditch the tripod and travel lighter.

8.5 EV stops of magic

The OM-1 Mark II boasts an impressive 8.5 EV stops of stabilization, taking it 1.5 stops further than the already remarkable OM-1. It also features Sync-IS up to 8.5 stops.

Keep Calm, Carry-On.

Compared to the rivals, Om System is lighter in system weight. With the OM-1 Mark II, you fit a complete camera gear set in a standard Carry-On bag.

Good to go. All day.

The OM-1 Mark II functions Power efficiently. Coupled with our high-capacity BLX-1 Lithium-Ion rechargeable batteries, you can shoot up to 500 photos for hours with a single charge.

AN OUTDOOR CAMERA AS TOUGH AS YOU ARE.

Om System didn't cut corners with the great outdoors. With IP53-certified weather sealing, the OM-1 Mark II is built to excel through snow, dust, and rain. The tactile hand-feel of the body is also improved with the introduction of new rubbery dials for better grip and feel.

Not just secure but proofed. IP53 Certified

The OM-1 Mark II can take everything from snowy mountain tops to desert sands. The IP53 standard indicates our dedication to keeping your camera dust and splashproof.

Freezeproof Construction

Om System built the OM-1 Mark II to withstand the cold with a build to thrive even when temperatures drop to -10°C.

Super Sonic Wave Filter

The OM-1 Mark II features a sensor filter to ward off dust and dirt with 30.000 vibrations per second each time you Power on the camera.

TECH SPECS

  • Viewfinder Resolution Magnification / Coverage: Eye-level OLED Electronic Viewfinder, approx. 5.76M dots Approx. 1.48x - 1.65x / Approx. 100% Field of View
  • Monitor: 3.0-inch Vari-angle Touch LCD (approx. 1.62M dots)
  • Image Stabilisation: Built-in 5-axis Up to 8 EV steps*

Type

  • Body material: Magnesium alloy body
  • Lens mount: Micro Four Thirds

Image Sensor

  • Type: 4/3" Stacked BSI Live MOS sensor
  • Effective pixels: 20.4 Megapixels
  • Full resolution: 22.9 Megapixels
  • Aspect ratio & area: 4:3 / 17.3 x 13.0mm
  • Filter array: Primary color filter (RGB)

Engine

  • Type: TruePic X

Filter

  • Dust reduction filter: Supersonic Wave Filter

Viewfinder

  • Type: Electronic Viewfinder
  • Pixel number: 5760K dots
  • Magnification: Max. 1.65x with a 50mm lens set to infinity at -1 dioptre (depending on the selected viewfinder style)
  • Angle of view: Approx. 100%
  • Style: 3 styles selectable
  • Brightness adjustment: Adaptive Brightness Technology / Manual settings: +/- 7 levels
  • Correction of color temperature: +/- 7 levels
  • Diopter adjustment: Equipped -4.0 - +2.0 diopters / built-in type
  • Eye point: 21mm at -1 dioptre from eyepiece lens
  • S-OVF: Expands the Live View dynamic range
  • Note: Available in the EVF in P, A, S, M, and B modes. Art filter, WB, and exposure are not reflected in EVF.

Monitor

  • Monitor type: Vari-angle LCD - Touch Panel
  • Resolution: 1620K dots
  • Monitor size: 7.6cm / 3.0" (3:2)
  • Brightness adjustment: +/- 7 levels
  • Color balance: +/- 7 levels
  • Touch Control functions: AF area enlargement, AF area selection, Art Filter, Enlargement, Enlargement playback, Frame forward/backward, Live Guide, Shooting mode, Shutter release, Super Control Panel, Wi-Fi connection, Subject selection

Level Gauge

  • Detection: 2-axis Display: Rear display and viewfinder

Live View

  • Field of view: Approx. 100%
  • Dynamic range expansion: When in HDR1 or HDR2
  • Magnification levels: 3 / 5 / 7 / 10 / 14x
  • Live ND: 128 ----- S/M mode only, flash can not be used, ISO up to 800, the maximum shutter speed is 1/60 (when ND2 is set), and the speed drops if the Number of ND steps is raised.
  • Live GND: Available ----- *P/A/S/M mode, flash can not be used, ISO up to 3200(up to 1600 in ISO Auto), the maximum shutter speed is 1/16000 (when ND2 is set), and the speed drops if the Number of ND steps is raised.

Super Control Panel

  • Displayed information: AEL notification, AE bracketing, AF frame, Aperture value, Battery indicator, Colour saturation compensation value, Colour space, Contrast compensation value, Drive mode, Exposure compensation indicator, Exposure level view, Exposure mode, Face detection, Flash compensation value, Flash mode, Focus mode, Gradation, Histogram, Internal temperature warning, ISO, Metering mode, Noise reduction, Number of storable frames, Record mode, Sharpness compensation value, Shutter speed, White balance, White balance compensation value

Image Stabiliser

  • Type: Sensor shift
  • Modes: Five-dimensional, vertical or horizontal activation, automatic
  • Live View stabilization: Available
  • Effective Compensation Range: Up to 8.5 EV steps* (Body only) ----- Up to 8.5 EV steps** Sync IS
  • Note: Based on CIPA measurement conditions ----- *When using M.Zuiko Digital ED 12-40mm F2.8 PRO II. Focal length: 40mm (35mm equivalent: 80mm) ----- **When using the M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO. Focal length: 150mm (35mm equivalent: 300mm), halfway release image stabilization Off, Frame rate: High.

Focusing System

  • Method: TTL phase difference detection system, contrast detection system
  • Predictive AF: Available
  • Face Detection extension: Eye Detect AF: Off, Left side priority, Near side priority, Right side priority
  • Manual focus: Available with enlarged focusing area, focus peaking, and focus indicator
  • Focus areas: 1053 points / cross-type phase-detection AF ----- 1053 points/contrast AF ----- All target, Single target (1 point), Small target (9 points), Cross target (39 points), Middle target (63 points), Large target (165 points), Custom target* (AF area and its increment steps selectable)*Number of saved custom target settings: 4
  • AF illuminator: Equipped
  • AF lock: Available, Locked by the first position of the shutter release button in single AF mode, AE/AF lock button (customized)
  • AF targeting pad: Available (activate/deactivate with double tap on rear monitor)
  • AF working range: -8 - 19EV (ISO approx.100, with a f/1.2 lens)
  • Focus limit: Available
  • Separate AF-On button: Available
  • AF tracking: Available, Available in continuous AF mode
  • Focus Bracketing Mode: Compatible with All Micro Four Thirds AF lenses
  • Number of images: 3 - 999 shots
  • Step size: 10 levels
  • Modes: Continuous AF*, AF* Tracking, Bracketing, Preset MF**, Stacking, Manual focus, Single AF*
  • Note: * incl. manual override ----- ** Distance setting values are rough estimates, and only AF lenses can be used.
  • Focus peaking: ----------
  • Backlight effect: On / Off
  • Color selection: White, black, red, yellow
  • Intensity: High / Normal / Low
  • Intelligent Subject Detection AF: Aircraft, Birds, Bullet trains, Cats, Dogs, Formula cars, Helicopters, Motorcycles, Rally cars, Standard trains, Steam locomotives, Human
  • Focus Stacking Mode: ----------
  • Technology: 3 to 15 images are taken at different focus points and automatically composited together into a single image
  • Compatible Lenses: M.Zuiko Digital ED 60mm F2.8 Macro, M.Zuiko Digital ED 30mm F3.5 Macro, M.Zuiko Digital ED 7-14mm F2.8 PRO, M.Zuiko Digital ED 8-25mm F4 PRO, M.Zuiko Digital ED 8mm F1.8 Fisheye PRO, M.Zuiko Digital ED 12-40mm F2.8 PRO, M.Zuiko Digital ED 12-40mm F2.8 PRO II, M.Zuiko Digital ED 12-45mm F4 PRO, M.Zuiko Digital ED 12-100mm F4 IS PRO, M.Zuiko Digital ED 40-150mm F2.8 PRO, M.Zuiko Digital ED 40-150mm F4.0 PRO, M.Zuiko Digital ED 100-400mm F5.0-6.3 IS, M.Zuiko Digital ED 150-400mm F4.5 TC1.25x IS PRO, M.Zuiko Digital ED 300mm F4 PRO, M.Zuiko Digital ED 90mm F3.5 Macro IS PRO
  • Compatible Converter: M.Zuiko Digital 1.4x Teleconverter MC-14, M.Zuiko Digital 2x Teleconverter MC-20
  • Note: Angle of view becomes slightly smaller

Exposure System

  • Modes: Aperture priority, Manual, Programme automatic, Shutter priority, Bulb, Custom shooting, Custom 1, Custom 2, Custom 3, HDR, Live Composite, Movie, Time
  • Exposure compensation: +/- 5 EV ( 1, 1/2, 1/3 steps ) ----- Note: Monitor and EVF displays only up to ±3 EV.
  • Exposure bracketing: 2 / 3 / 5 frames ( +/- 1/3, 2/3, 1 EV steps ) ----- 7 frames ( +/- 1/3, 1/2, 2/3 EV steps )
  • ISO bracketing: 3 frames ( 1/3, 1/2, 1 EV steps )
  • HDR bracketing: 3 / 5 frames ( +/- 2 / 3 EV steps ) ----- 7 frames ( +/- 2 EV steps )
  • AE lock: Available ----- Shadow Adjustment Technology ----- Flicker Scan: Available for M, S, and silent mode (can be confirmed in Live View)
  • Anti-Flicker Shooting function: Available

Multi-Exposure

  • Max. Number of frames: 2 frames (shooting)
  • Max. Number (editing): 3 frames (editing)
  • Auto gain control: Available
  • Frame assistance: Live View

Light Metering

  • Method: TTL open aperture light metering
  • Zones: 324 zones Multi-pattern Sensing System
  • Detection range: -2 - 20 EV (f2.8, ISO 100)
  • Modes: Center-weighted metering, ESP light metering, Highlight, Shadow, Spot metering
  • Histogram in shooting mode: Available

Art Filter

  • Modes: Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Colour, Partial Colour*, Pin Hole, Pop Art, Soft Focus, Vintage, Watercolor
  • Variation / Effect: Available
  • Note: * 18 colours selectable

Sensitivity

  • Auto: ISO LOW* - 102400 (upper default ISO 25600)
  • Note: *approx. 80
  • Manual: ISO LOW* - 102400 in 1/3 or 1 EV ISO steps

Shutter

  • Shutter type: Computerised focal-plane shutter
  • Durability: 400000 shots
  • Modes: Bracketing, Self-timer, Sequential shooting, Single frame

Shutter Speeds

  • Shutter speed range: 1/8000 - 60s (in 1/3, 1/2, 1 EV steps)
  • Bulb mode: Up to 30 minutes (selectable longest time in the menu, default: 8 minutes)
  • High res shot: ----------
  • Shutter type: Electronic shutter
  • Shutter speed: 1/8000 - 60s
  • Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
  • Resolution: JPEG: 10368x7776 / 8160 x 6120 / 5760 x 4320 RAW: 10368 x 7776 *High Res RAW Recording bit: 12bit / 14bit ----- Equivalent to 80M / 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift) ----- Available in P/A/S/M mode
  • Handheld High res shot: ----------
  • Shutter type: Electronic shutter
  • Shutter speed: 1/8000 - 60s
  • Resolution: JPEG: 8160 x 6120 / 5760 x 4320 RAW: 8160 x 6120 *High Res RAW Recording bit: 12bit / 14bit ----- Equivalent to 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift) ----- Available in P/A/S/M mode ----- Flash can not be used
  • Anti-shock mode: ----------
  • Shutter type: Electronic first curtain shutter
  • Shutter speed: 1/320* - 60s
  • Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30s
  • Note: * For speeds over 1/320 sec., the mechanical shutter will automatically be selected.
  • Silent mode: ----------
  • Shutter type: Electronic shutter
  • Shutter speed: 1/32000 - 60s
  • Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
  • Flicker Scan: ----------
  • Stills: 1/7634 - 1/50s
  • Movies: 1/250 - 1/30s *
  • Note: * Frame rates greater than 30fps are limited to their reciprocal value

White Balance

  • Auto Flash adjustment: Off / Auto WB / Flash
  • Keep warm color: On / Off
  • White balance bracketing: 3 frames / +/- 2, 4, 6 mired steps
  • Custom WB: 1 setting can be registered at Kelvin temperature (2000K - 14000K)
  • Manual White Balance (One-Touch): Available
  • One-touch white balance: 4 custom settings can be registered
  • Preset values: Flash, Fluorescent 1, Overcast, Shade, Sunlight, Tungsten, Underwater

Sequence Shooting

  • Speed: Approx. 10fps (selectable 1-10fps)
  • Anti-shock mode: ----------
  • Speed: Approx. 10fps (selectable 1-10fps)
  • Pro Capture mode: ----------
  • Speed*: Approx. 20fps (selectable 5, 10, 15, 20fps)
  • Speed SH1*: Approx. 120fps (selectable 60, 100, 120fps)
  • Speed SH2* **: Approx. 50fps (selectable 25, 50fps)
  • Note: *Slower shutter speeds and flash cannot be used ----- *Compatible lenses are limited.
  • Silent mode: ----------
  • Speed: Approx. 20fps (selectable 5, 10, 15, 20fps with blackout)
  • Speed SH1*: Approx. 120fps (selectable 60, 100, 120fps without blackout)
  • Speed SH2* **: Approx. 50fps (selectable 12.5, 16.7, 25, 50fps without blackout)
  • Conditions: Memory card: KIOXIA KSDXU-A064G ----- When using the M.Zuiko Digital ED 12-40mm F2.8 PRO II ----- Low ISO processing: Priority is given to sequential shooting
  • Max. Number of frames: All values are approximate
  • RAW buffer: 213 frames / 120fps
  • 10fps: RAW: 139 / JPG (LF): 169
  • 20fps: RAW: 108 / JPG (LF): 116
  • 50fps: RAW: 96 / JPG (LF): 97
  • 120fps: RAW: 92 / JPG (LF): 92
  • Compatible lenses to SH2 (50fps): M.Zuiko Digital ED 12-40mm F2.8 PRO, M.Zuiko Digital ED 12-40mm F2.8 PRO II, M.Zuiko Digital ED 12-100mm F4.0 IS PRO, M.Zuiko Digital ED 40-150mm F2.8 PRO, M.Zuiko Digital ED 150-400mm F4.5 TC 1.25x IS PRO, M.Zuiko Digital ED 300mm F4.0 IS PRO
  • Interval shooting: ----------

Image Processing

  • Art Filter bracketing: Available
  • Color space: sRGB / AdobeRGB
  • Fisheye compensation: Available when M.Zuiko Digital ED 8mm Fisheye PRO is attached. Angle of view adjustable in 3 levels Compensation automatically ON when using Underwater Modes, available (can be confirmed in Live View)
  • Gradation: 4 levels (auto, high key, normal, low key)
  • Highlight & Shadow control: Highlight / Shadow / Midtone (+/- 7 steps)
  • Black & White filter: Yellow, Orange, Red, Green
  • Black & White toning: Sepia, Blue, Purple or Green in Black & White mode
  • Contrast: 5 levels
  • Saturation: 5 levels
  • Sharpness + Contrast: 5 levels
  • Teleconverter effect: 2x

External Flash Control

  • Modes: 2nd curtain and slow synchronization, Auto, Fill-in for exclusive flash, Manual, Red-eye reduction, Slow synchronization
  • Type: TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL
  • X-sync speed: 1/250s / 1/8000s (Super FP Mode)
  • Intensity: +/- 3 EV ( 1/3, 1/2, 1 EV steps )
  • Compatible external flash: FL-LM3, FL-600R, FL-900R, STF-8, FL-700WR
  • Note: Some functions are only available if the external flash supports them.

Wireless Flash Control

  • Available with cameras compatible with the Olympus wireless RC flash system.
  • Modes: Auto, FP Manual, FP TTL Auto, Manual, TTL Auto
  • Control method: Triggered and controlled (Olympus Wireless RC Flash system)
  • Group setting: 4 groups
  • Compatible external flash: FL-LM3, FL-600R, FL-900R, STF-8, FL-700WR
  • Radio control: ----------
  • Radio wireless control: Available when attaching optional flash commander.
  • Number of channels: 4 channels
  • Group setting: 3 groups
  • Compatible commander: FC-WR, FL-700WR
  • Note: For more details, see the specifications of commander units.
  • Compatible receiver: FL-700WR, FR-WR + wireless RC system flash
  • Number of channels: 4 channels

Recording Formats

  • JPEG: Applied
  • RAW: 12bit
  • RAW & JPEG: Applied parallel recording
  • Aspect ratio: 4:3 / 3:2 / 16:9 / 6:6 / 3:4

Still Image Recording

  • DCF: Applied
  • Dual SD card settings: Standard, Auto Switch, Dual Independent, Dual Same ----- When two cards are inserted, the card to be saved onto or viewed can be designated.
  • EXIF: 2.31
  • RAW: Applied

Image Size

  • RAW: 5184 x 3888
  • JPEG: 5184 x 3888 - 1024 x 768

Movie Recording System

  • Recording format: MOV(MPEG-4AVC/H.264)/ MOV (HEVC/H.265)
  • Picture mode: Flat, OM-Log400, HLG (View assist compatible)
  • Time code: Rec run / Free run ----- Drop frame / Non-drop frame
  • Exposure Modes: Aperture priority, Manual, Programme automatic, Shutter priority
  • Image Stabilisation Mode: Applied Sensor shift (5-axis) ----- M-IS1 (Image sensor shift and electronic image stabilizer with multi-motion IS) ----- M-IS2 (Image sensor shift with multi-motion IS)
  • 3840x2160 (4K): 30p, 25p, 24p / LongGOP (approx. 102 Mbps)
  • 3840x2160 (4K) -2: 60p, 50p / LongGOP (approx. 202 Mbps)
  • 4096x2160 (C4K): 30p, 25p, 24p / LongGOP (approx. 102 Mbps)
  • 4096x2160 (C4K) -2: 60p, 50p / LongGOP (approx. 202 Mbps)
  • 1920x1080 (FHD): 30p, 25p, 24p / ALL-I (approx. 202 Mbps)
  • 1920x1080 (FHD) -2: 60p, 50p / LongGOP (approx. 52 Mbps)
  • 1920x1080 (FHD) -b: / LongGOP (approx. 27 Mbps)
  • MOV(MPEG-4AVC/H.264): ----------
  • MOV (HEVC/H.265): ----------
  • 3840x2160 (4K): 30p, 25p, 24p / LongGOP (approx. 77 Mbps) ----- 60p, 50p / LongGOP (approx. 152 Mbps)
  • 4096x2160 (C4K): 30p, 25p, 24p / LongGOP (approx. 77 Mbps) ----- 60p, 50p / LongGOP (approx. 152 Mbps)
  • 1920x1080 (FHD): 30p, 25p, 24p / ALL-I (approx. 82 Mbps) ----- 60p, 50p / ALL-I (approx. 162 Mbps) ----- / LongGOP (approx. 42 Mbps) ----- / LongGOP (approx. 22 Mbps)
  • Note: Class 10 or higher SD card is recommended for movie shooting ----- UHS-II or UHS-I U3 card is recommended for ALL-I shooting
  • Maximum Recording Time: Unlimited

Movie Specialties

  • Art Filter: Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Colour, Partial Colour*, Pin Hole, Pop Art, Soft Focus, Vintage, Watercolor
  • Note: Frame rate may drop when using certain art filter
  • Fast motion: Available
  • Flicker Scan: Available in M mode (can be confirmed in Live View)
  • HDMI Live View: ----------
  • Modes: Monitor / Record / RAW
  • Monitor mode: Video signal and info display is processed
  • Note: In monitor mode, the image cannot be enlarged on the camera when a movie is being recorded.
  • RAW mode: Compatible external device ATOMOS NINJA, NINJA ULTRA, NINJA V, NINJA V+
  • Notification: In RAW mode, output video quality is 4K/C4K 12-bit RAW data, the frame rate follows the movie setting, and sound will be recorded. ----- ProRes RAW 4:4:4 12bit is supported
  • Record mode: Only video signal is processed
  • Note: In record mode, movie quality can be set to YCbCr 4:2:2 (8-bit). ----- When recording simultaneously in the camera in 4K/C4K/FHD HS, 4:2:0 is upsampled to 4:2:2.
  • High-Speed Recording: 1920x1080 (MOV) / 240fps ----- 1920x1080 / 120fps ----- 1920x1080 / 100fps
  • Vertical Video: Available ----- Video files are saved vertically when holding the camera to shoot. Videos are not played in the vertical orientation of the camera.
  • Time-lapse: 4k, 1080p, 720p / 5, 10, 15, 30fps ----- Max. Number of frames: 9999
  • Slow motion: Available

Sound Recording System

  • Recording format: High-quality sound recording (Stereo linear PCM/24-bit, Sampling frequency 96kHz) ----- Stereo PCM/16bit, 48kHz, Wave Format Base
  • Speaker: Equipped
  • Image footage: 30s
  • Internal microphone: Stereo
  • Microphone functions: Recording Volume, Volume limiter, Wind Noise Reduction

View Images

  • Modes: Calendar, Index, Movie, Single, Zoom
  • Shooting information: Off / On
  • Highlight/Shadow point warning: Available
  • Histogram in playback mode: Available
  • Auto rotation: Available

Erase / Protect / Copy Function

  • Erase modes: Single, All, Selected
  • Image protect mode: Single frame, Selected frames, All Frames, Release protect (Single/All selected)

Image Editing

  • Editing functions: Aspect ratio, Black & White, Correction of brightness, Correction of color balance, Correction of saturation, RAW data edit, Red-eye reduction, Resize, Sepia, Shadow Adjustment, Trimming

Customization Options

  • Programmable button: Equipped
  • Fn Button: Equipped
  • My Mode: 4 settings storable (Can be set to mode dial.)
  • Factory reset: Full / Basic
  • Menu languages in camera: Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Traditional Chinese, Thai, Turkish, Spanish, Swedish

Interface

  • Earphone jack: 3.5 ø mm mini-jack
  • Synchro socket: Equipped
  • Communication method: Bluetooth Low Energy Ver.4.2
  • HDMI: Applied Micro connector (Type D) *
  • Microphone jack: 3.5 ø mm mini-jack
  • USB 3: Type C
  • Wireless connectivity: Bluetooth, Wi-Fi
  • Media: SD Memory Card (SDHC, SDXC, UHS-I, UHS-II compatible) Class 10 or higher SD card is recommended for movie shooting UHS-II or UHS-I U3 card for 4K, C4K, ALL-I shooting.
  • SAR: 0.52W/kg
  • Note: SAR quantifies the user's maximum exposure level to electromagnetic waves when using the device close to the head. ----- SAR shall not exceed 2W/kg by French regulations.
  • Tethered control: Available USB cable (camera operation by both PC or camera controls) ----- Wi-Fi (transfer of recorded images to PC via an access point, 5GHz and 2.4GHz available)
  • Note: * "HDMI," the HDMI logo, and "High-Definition Multimedia Interface" are HDMI Licensing LLC trademarks. ----- The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by OLYMPUS CORPORATION is under license. ----- Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Wi-Fi Functions

  • Easy Connection: QR code setting
  • Wireless Shooting: P/A/S/M exposure modes, Live Composite, Bulb mode, Live View, Movie recording, Power off, Rec View, Self-timer, Short movie, Touch AF & Shutter, Zoom

Power Supply

  • Battery life: ----------
  • Image shooting: 520 shots (using BLX-1 under CIPA testing conditions) and 1100 shots (using quick sleep mode, under Olympus testing conditions based on CIPA test standards)
  • Movie recording: 90min (standard JEITA conditions) 160min (when zoom and other operational functions are not used) ----- * Note: Values are approximate.
  • Battery: BLX-1 Lithium-Ion Battery
  • Internal Charging: USB
  • Sleep mode: 1, 3, 5min. And off selectable.
  • USB bus power: USB PD bus power can be used (PD compliant camera: Rev 3.0 Ver 1.0a)
  • USB charging: Performance varies depending on different USB devices

Dimensions / Weight

  • Width: 138.8mm
  • Depth: 72.7mm
  • Height: 91.6mm
  • Weight: 599g (including battery and memory card)
  • Weight (body only): 511g (body only)

Environment

  • Humidity: 30 - 90% operation humidity / 10 - 90% storage humidity
  • Temperature: -10 - 40°C Operating temperature / -20 - 60°C storage temperature


What's Included:

  • OM-1 Mark II camera body
  • BLX-1 battery
  • USB cable (CB-USB 13)
  • Shoulder strap
  • Instruction manual
  • Warranty card
