Nauticam OM System OM-1 I & II Underwater Housing NA-OM1
The OM Systems OM-1, is the first high-end Micro Four Thirds mirrorless camera from OM Digital Solutions. The OM-1 features a 20MP quad-pixel AF stacked CMOS sensor. It is paired with the latest TruePic X processor to deliver 3x faster-processing speeds and is capable of 120 fps shooting with the electronic shutter. The O-M1 can also capture 4K UHD or DCI at 60p in the OM-Log profile for a great color grading range.
THE OM SYSTEMS OM-1
Key Camera Specs
- 20MP Stacked CMOS Sensor
- 1053 X-type AF points
- Up to 120 fps with an electronic shutter
- Image stabilization is rated to 7EV of correction (up to 8EV with compatible lenses)
- Large 5.76M-dot OLED electronic viewfinder
- Dual UHS-II SD card slots
- UHD or DCI 4K/60p video, 1080 up to 240 fps
- Weather sealing rated to IP53

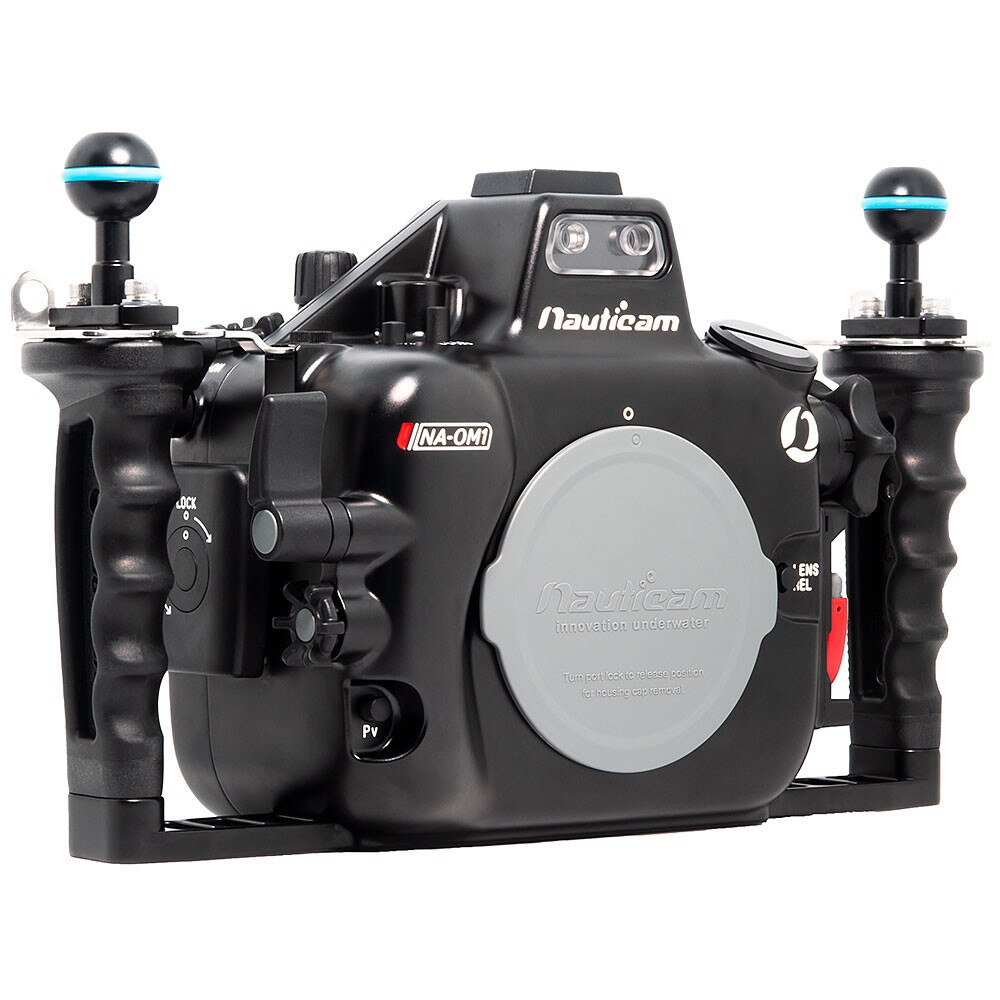

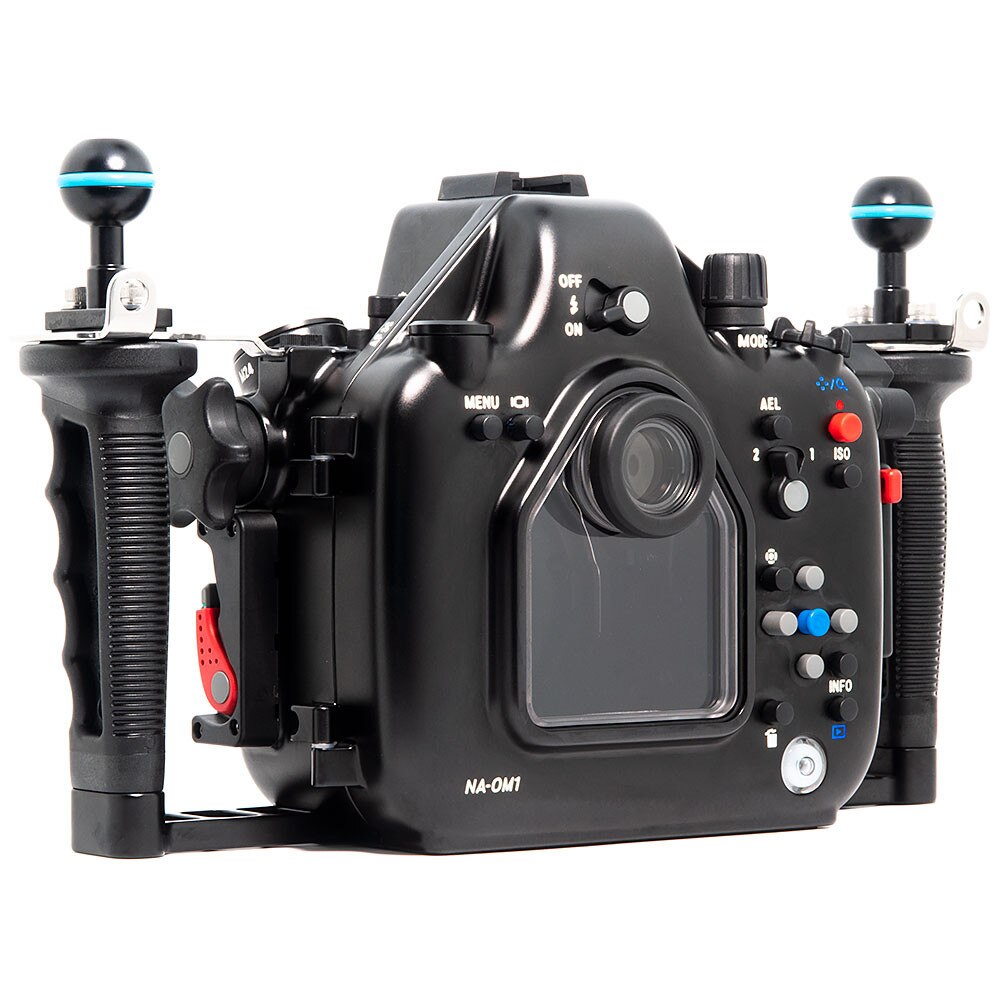

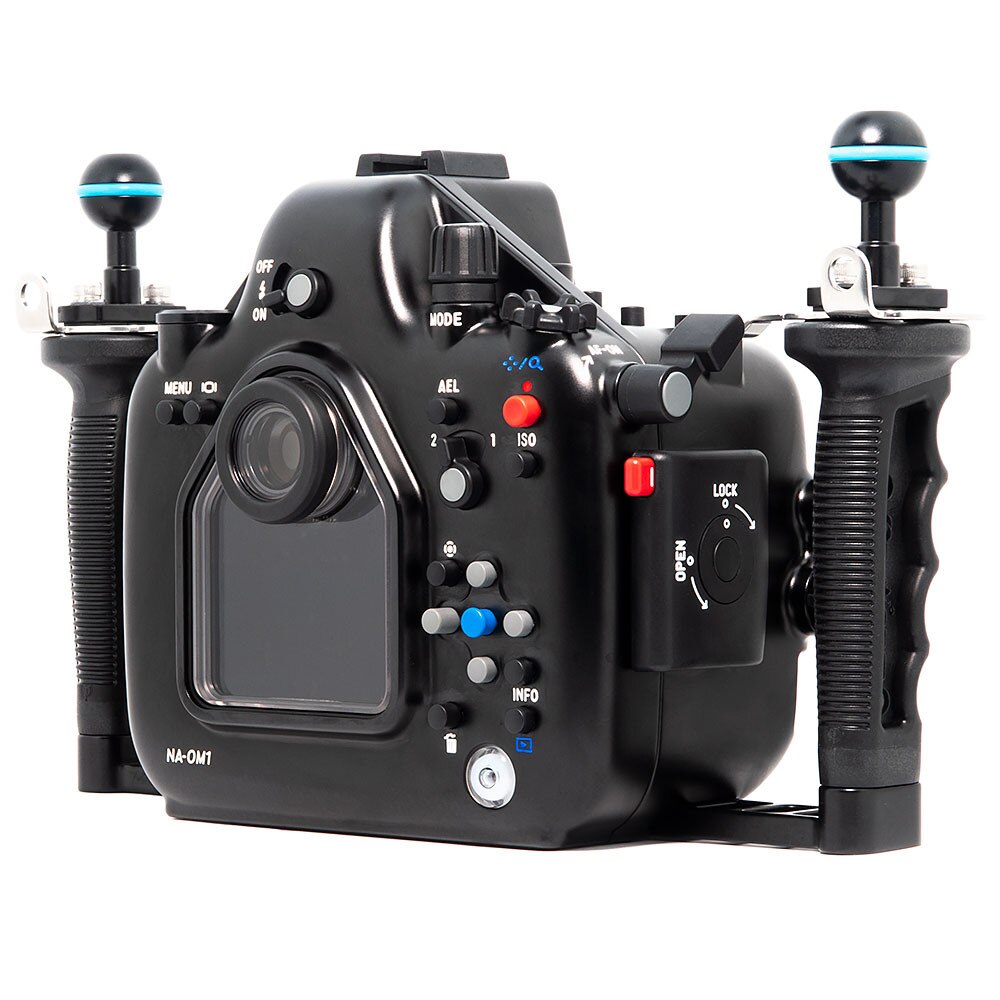

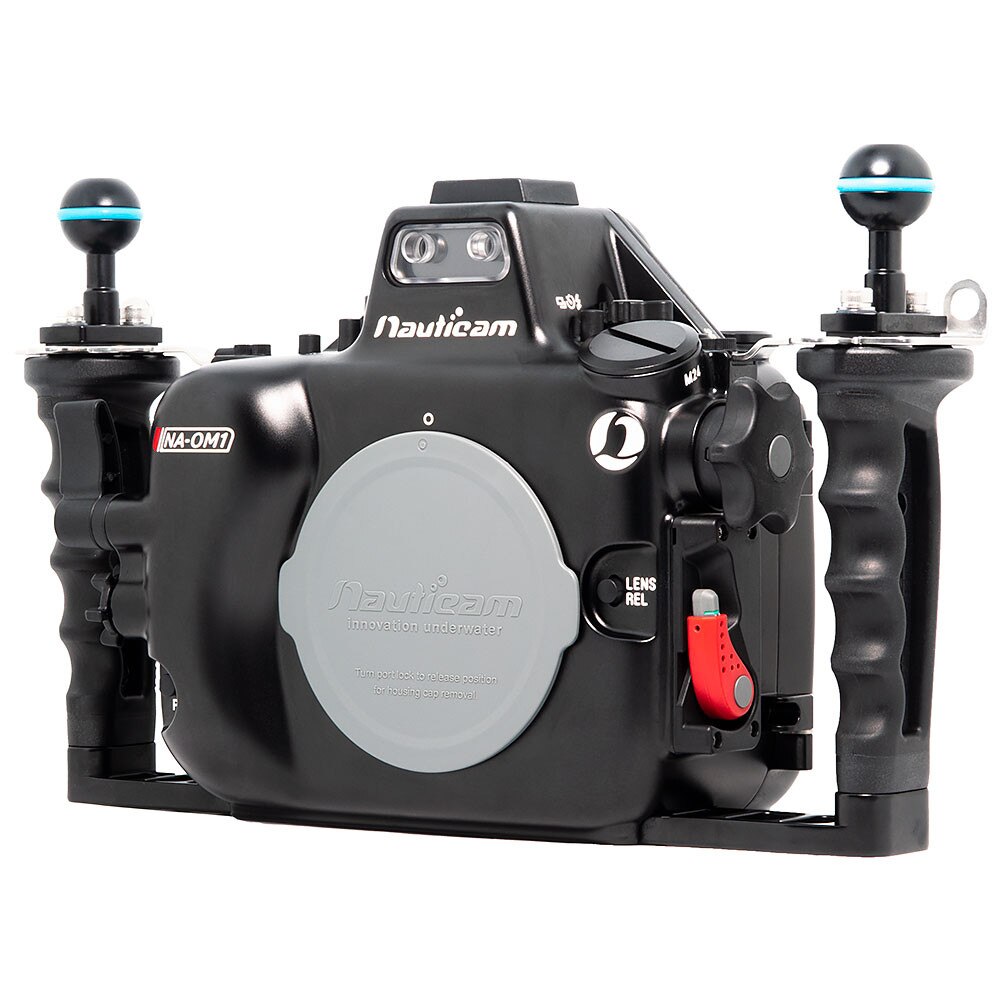

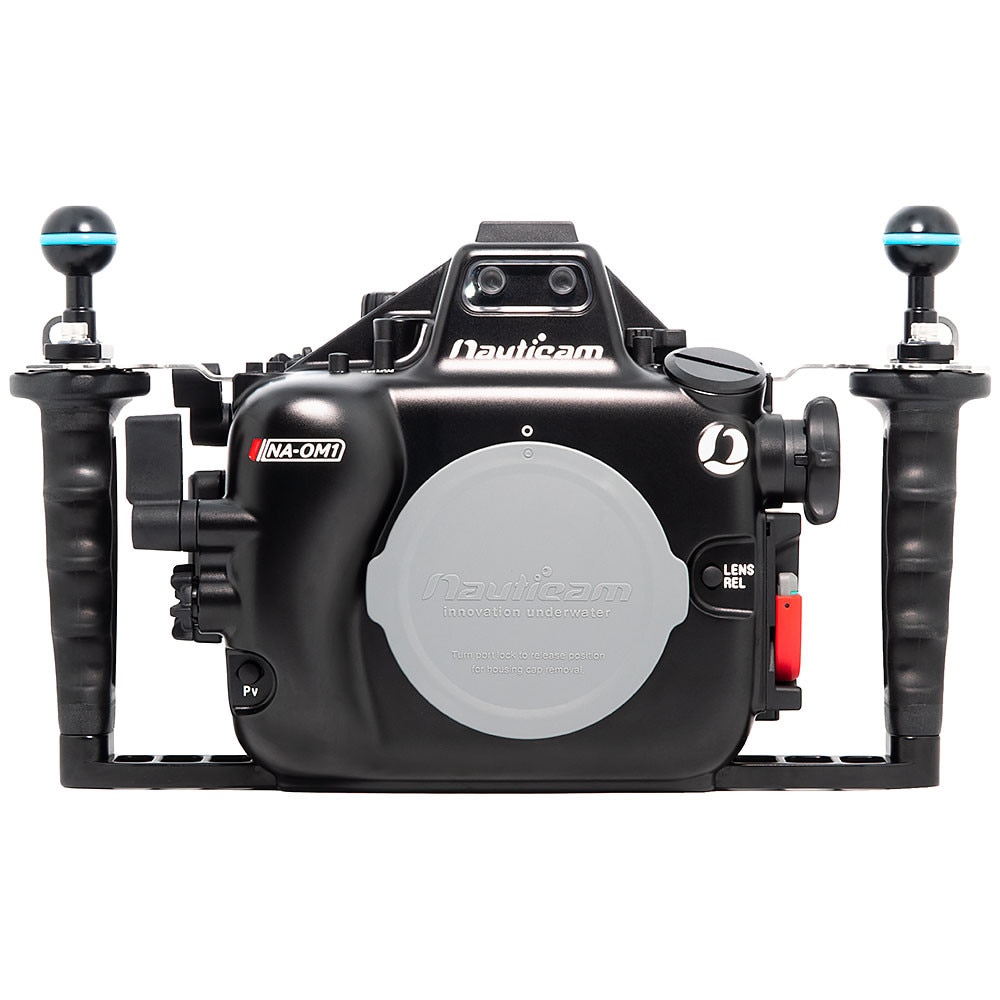

NAUTICAM NA-OM1 UNDERWATER HOUSING
The OM Systems OM-1 is characterized by its combination of extreme customizability and impressive stabilization in a compact hybrid-shooting package. The Nauticam NA-OM1, similar to the OM-1 is a refinement of its predecessors. Nauticam has produced housings for a wide range of Micro Four Thirds cameras from Olympus and Panasonic. Throughout the evolution of Micro Four Thirds cameras, Nauticam has adapted its design to help image-makers get to take full advantage of every camera advancement. More than a simple waterproof case, the NA-OM1 integrates with the OM-1 to adapt and improve upon the camera's features for underwater shooting.
MISSION CONTROL

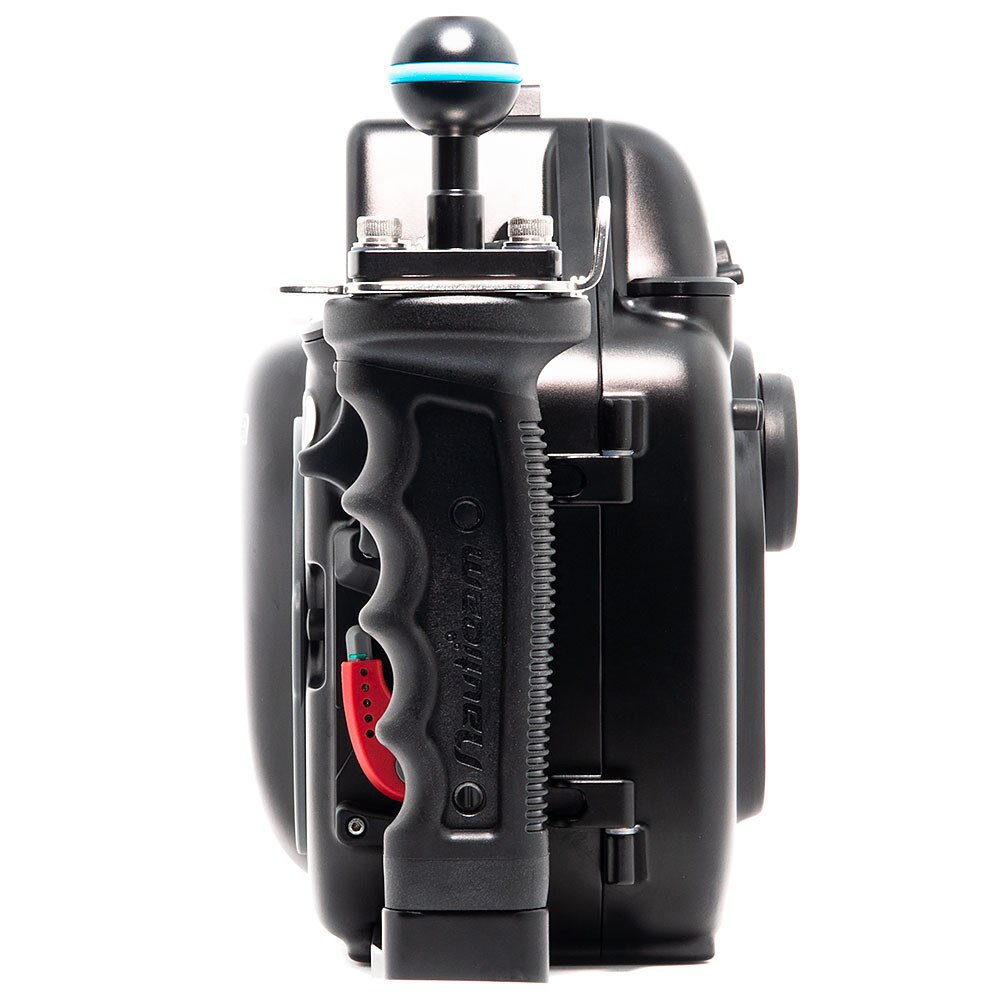

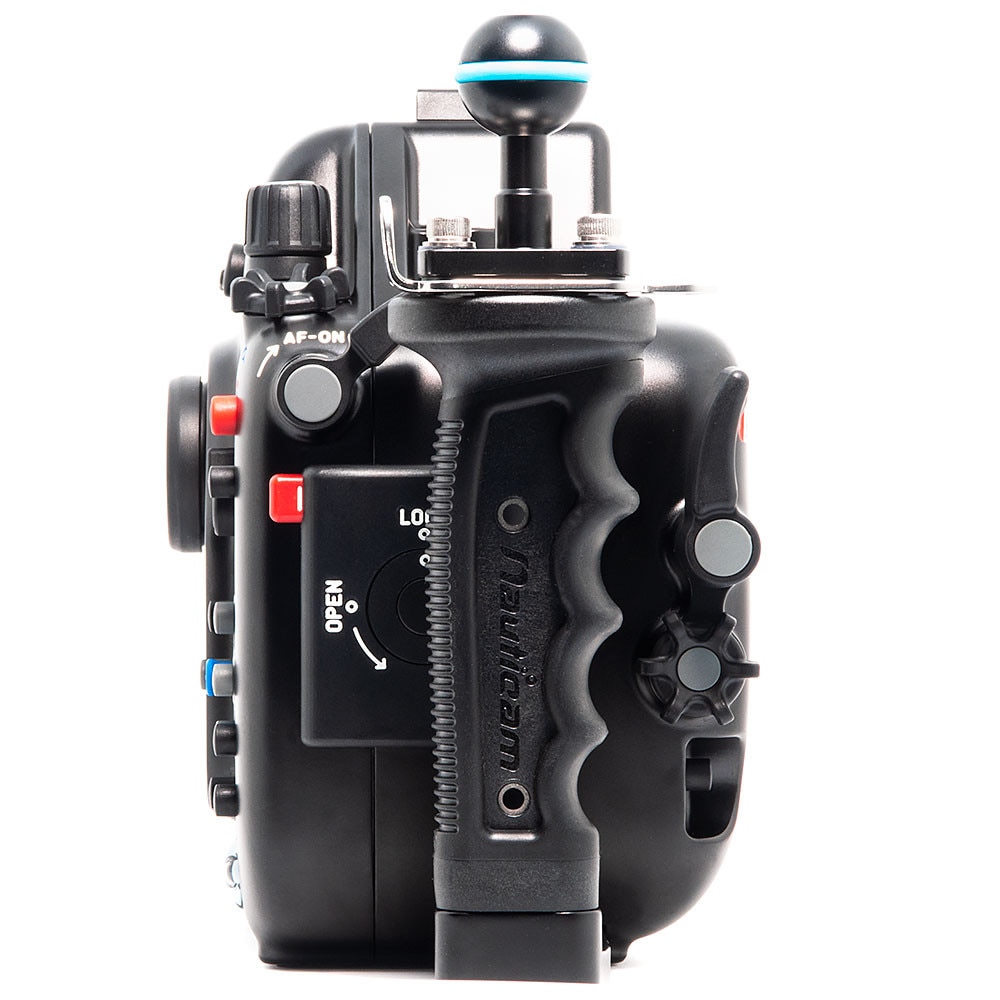

Regardless of where a dial or button may be found on the camera body, Nauticam engineers make sure it is located where it is needed most on the housing. This Mission Control philosophy drives the design of every housing and provides for the most intuitive and easy-to-use housing available. The NA-OM1 features a thumb lever, easily accessed from the ergonomic rubberized right handle that actuates the AF-ON control. This back-button autofocus method prevents the camera from refocusing between shots, allowing the user fine control over a shot's focus and is critical whether shooting macro or fast-moving wide-angle subjects.
FLASH TRIGGERING

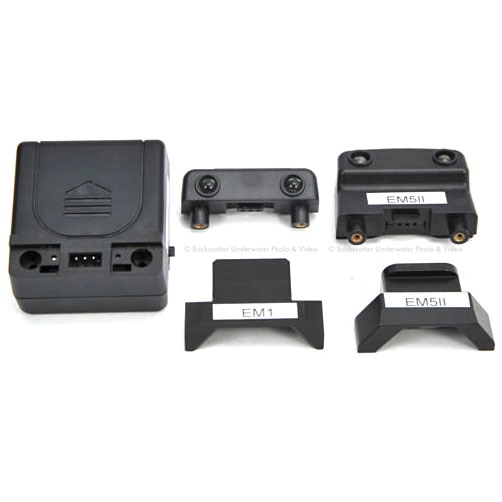

The OM-1 can be used with the optional Olympus FL-LM3 flash inside the NA-OM1 to provide accurate TTL flash triggering through the integrated Sea&Sea style fiber optic bulkheads. For high-speed manual flash triggering, the optional Mini Flash Trigger for Olympus (26306) can be used. The trigger is powered by onboard coin-style lithium batteries, with thousands of flashes available from a set. Electrical triggering of legacy wired strobe systems is possible via an electrical Nikonos style bulkhead (optional).
PREMIUM PROFESSIONAL OPTICS
A camera system is only as good as the optics placed in front of it. Nauticam's extensive line of the dome and flat ports support a wide variety of Micro Four Thirds lenses. For even higher image quality and versatility, the NA-OM1 can be used in conjunction with Nauticam's lineup of Water Contact Optics. For example, with the Olympus 14-42mm f/3.5-5.6 EZ Lens, the Nauticam WWL-1 provides a full zoom through an ultra-wide-angle 130º field of view.
MAGNIFYING VIEWFINDERS
A clear view for fine focus and composition is critical for successful underwater photography, and nothing beats a magnifying viewfinder. These viewfinders use distance, do not close up vision, and provide a large, clear view of the high-resolution Olympus electronic viewfinder. Available in Angled 45º (PN 32205 or 32213) and Straight 180º (PN 32204 or 32211) formats, both viewfinders have external dioptric adjustments for dialing in perfect correction matched to the photographer’s eyesight. The Full Frame Angle Viewfinder 32°/ 1:1 (32213) or the Full Frame Straight Viewfinder 32°/ 1:1 (32211) requires the 32215 Viewfinder Collar Adaptor.
INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

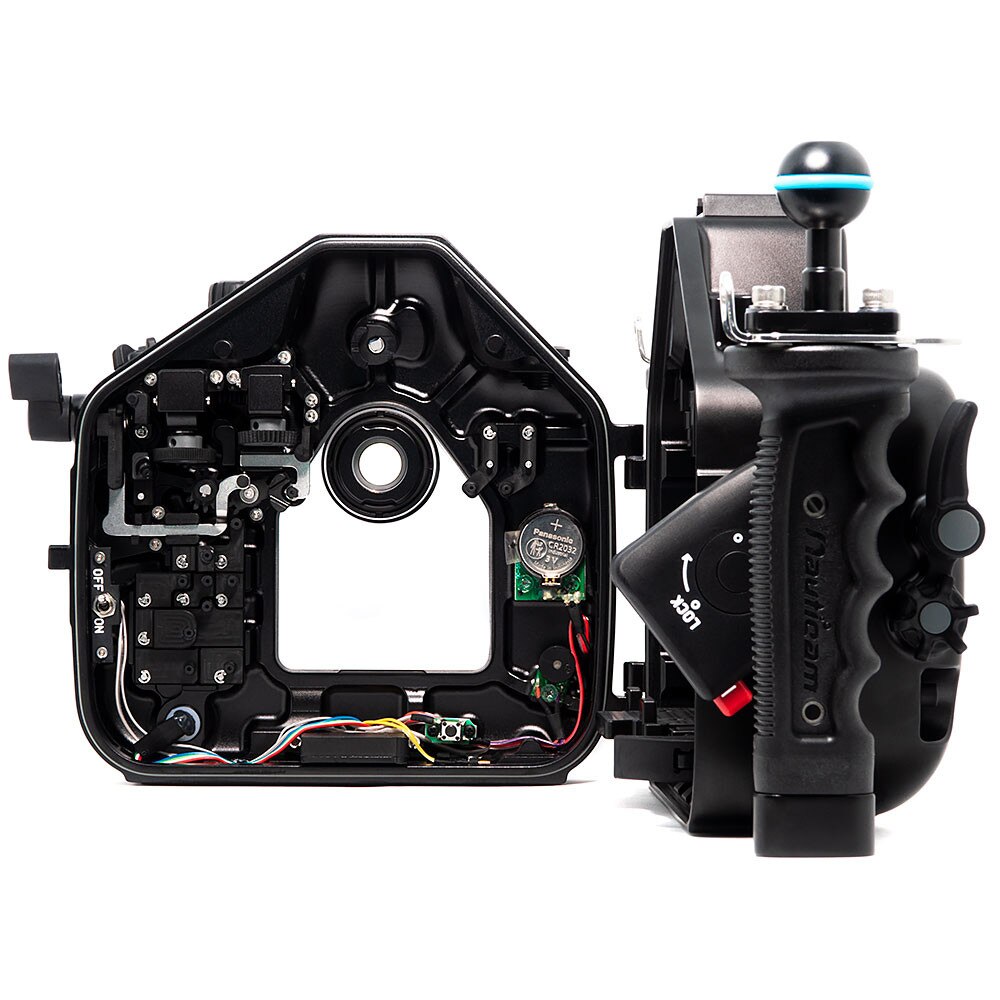

The Nauticam vacuum check and leak detection system is available with NA-OM1 as standard equipment. Combined with an optional vacuum valve (PN 25624), this monitoring system provides constant updates on the water-tight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.
What's In The Box
- NA-OM1 Housing with two handles and mount balls
- 90136 Spare main o-ring, o-ring remover, and lubricant
- 2x plugs for optical fiber cable mount
- Panasonic CR-2450 battery (for moisture alarm and leak detector)
- Set of Allen Keys
- Manual instruction card
- Padded housing bag and shoulder strap
Recommended Accessories
- 25624 M14 Vacuum Valve II (Pushbutton Release)
- 32204 Nauticam 180˚ straight viewfinder for MIL housings
- 32205 Nauticam 45˚ viewfinder for MIL housing
- 26306 Mini Flash Trigger for Olympus (Compatible with NA-EM5II/EM1)
- 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1*
- 32213 Nauticam Full Frame Angle Viewfinder 32°/ 1:1*
- 32215 Viewfinder Collar Adaptor for 32211/2/3/4 to use with MIL Housings
- 26216 Universal Optical Fiber Cable
- 25221 M10 strobe mounting ball for housing
- *32215 is required for use with NA-OM1
Incompatible Accessories
- 36059 O1250-Z Zoom Gear for Olympus 12-50mm EZ to use with GH5/EM1X (for NA-GH5/EM1X)
- 36147 O1250-Z Olympus M.Zuiko 12-50mm F3.5-6.3 EZ zoom gear
- 36061 P1442X-PZ Zoom Gear (compatible with NA-GH5) for Panasonic Lumix G X Vario PZ 14-42mm F3.5-5.6 ASPH. POWER O.I.S.
- 36146 P1442X-PZ Panazonic Lumix G X Vario PZ 14-42mm F3.5-5.6 ASPH. POWER O.I.S. (H-PS14042) zoom gear
- 36051 Adaptor for Olympus 4/3 port and gear system
HDMI Output Accessories
For HDMI 2.0
- TBD
Monitor housing:
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
For HDMI 1.4
- TBD
Monitor housing:
- 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
- 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with
HDMI 1.4 input
17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor (With HDMI 1.4 input)
TECHNICAL SPECIFICATIONS
- Dimensions: 307mm(W) x 179mm(H) x 118mm(D)
- Weight in Air: TBD
- Weight in Water: TBD
- Depth Rating: 100m / 330ft
- Port Mount: N85
