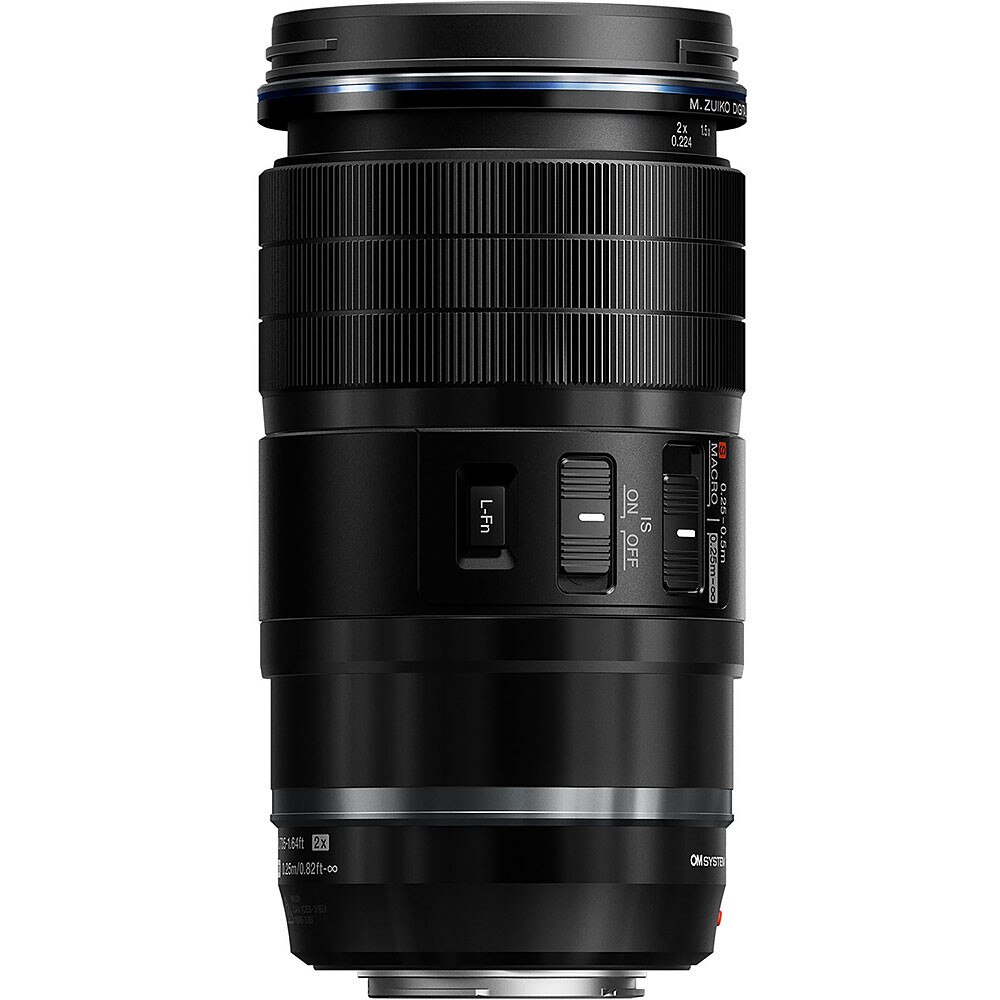

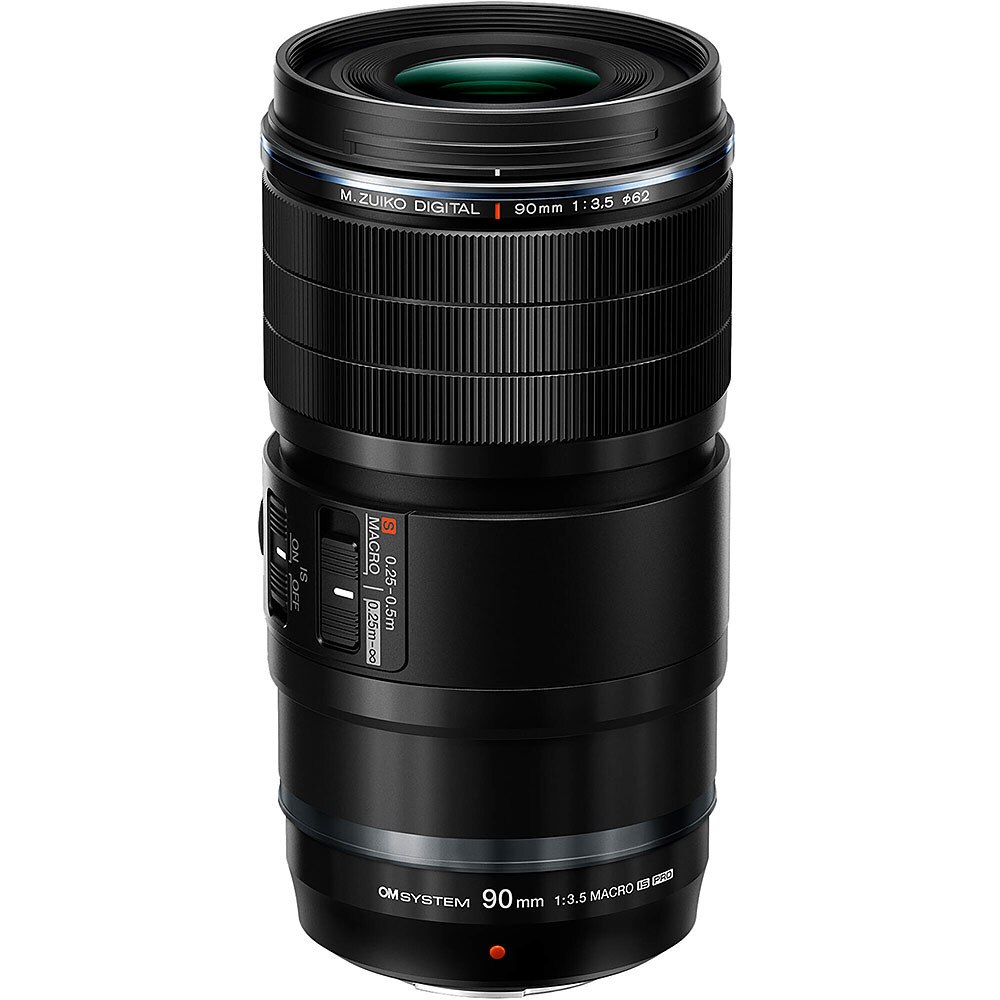

OM System / Olympus M.Zuiko ED 90mm f/3.5 IS PRO Micro 4/3 Macro Lens



SEE THE UNSEEN.

Every day we walk past adventures. Treasures hidden in plain sight, tucked away in nature, so close we don’t even notice. But some see past the obvious and go even closer to find an unseen world full of majesty, mystery, and borderline magic.

There are no encounters too close or curiosity too courageous here. But enter at your own peril, for once you taste the never-ending world of outdoor macro, you might never see your surroundings in the same way again. Every leaf can be a home for wildlife, every bush a canvas for art, and every water droplet a mirror for the very soul of the forest.

This is OM System's ode to those who see the unseen.


CLOSE & CLOSER.

2x magnification ratio for extreme macro adventures (4 35mm equivalent).


SEEK & FIND.

Autofocus with macro credentials so that you can focus on your art.


READY & STEADY.

In-lens Sync IS to get the shot and always be ready for the next.


ADVENTURE ALL DAY.

Unbeatable all-weather performance. All weather is now macro weather.


A WHOLE NEW WORLD.

No lens can change the way you see the world as much as a macro lens can, and there’s no macro lens quite like the M.ZUIKO DIGITAL ED 90mm F3.5 Macro IS PRO.

A culmination of years of development and listening to customer feedback, OM System thinks they have created the ultimate field macro lens for the seasoned pro and macro curious alike.


High Magnification

There’s close, closer, and then there’s this. A whopping 2x (4x 35mm equivalent) magnification ratio opens up whole new possibilities. Need more? Add a teleconverter for up to 4x (8x equivalent).


PURPOSE-BUILT

It doesn’t matter if a blade is sharp if it’s hard to handle. Everything from controls and handling on the lens is built to enable split-second macro shooting.


WEATHER-SEALED

Mundane macro scene? Just add water. Get close without worrying about the weather and capture wondrous water worlds like never before.


TECH SPECS

• Focal Length Range: 90mm
• 35mm Equivalent: 180mm
• Angle of View: 14°
• Maximum Aperture: f/3.5



Lens Construction

• Lens configuration: 18 elements / 13 groups
• Maximum image magnification: 1.00x - 2.00x(S-MACRO)
• Angle of view: 14°
• Closest focusing distance: 0.250m - 0.224m(S-MACRO)
• Minimum field size: 8.7 x 6.5 mm (S-MACRO)
• SED lens elements: 2
• ED lens elements: 4
• HR elements: 1
• Super HR elements: 1



Focal Length

• Focal length: 90mm
• Focal length (equiv. 35mm): 180mm



Aperture

• Maximum aperture: F3.5
• Minimum aperture: F22
• Number of aperture blades: 7 (Circular aperture diaphragm for natural background blurring)



Dimensions / Weight

• Diameter: 69.8mm
• Length: 136mm
• Filter diamater: 62mm
• Weight: 453g (without Lens Cap, Lens Rear Cap, and Lens Hood)



Compatibility

• Compatible with Tele Converter MC-14: Yes
• Compatible with Tele Converter MC-20: Yes
