Nauticam NA-A6600 Underwater Housing for Sony a6600 Mirrorless Camera

Sony's latest flagship APS-C mirrorless, the a6600 brings some welcome changes for the underwater image-maker including Sony's latest stellar autofocus and much-improved battery life. For video shooters, the A6600 also does away with the recording time limit for the 4K30p HLG video which was debuted with the A6400.


INTRODUCING NA-A6600

The Sony a6600 is the new flagship model of the venerable APS-C mirrorless line. The a6000 series benefits from a large lens selection paired with a large sensor and high-powered processor. For the a6600 Sony is adding a host of features that will benefit the underwater image-maker.


Key Camera Specs

• 24.2 APS-C Exmor CMOS Sensor
• ISO Range of 100-32000
• 810 shot (CIPA standard) Battery
• 4K 30p HLG 100Mbps Video Recording
• Unlimited video record time

Sony's 4D autofocus system provides ultra-fast 0.02s and accurate tracking autofocus, taking advantage of the camera's 425 phase-detection autofocus points.

Combined with 5-axis optical image stabilization and HLG 4K 30p video recording, the A6600 is sure to be a video shooter favorite.

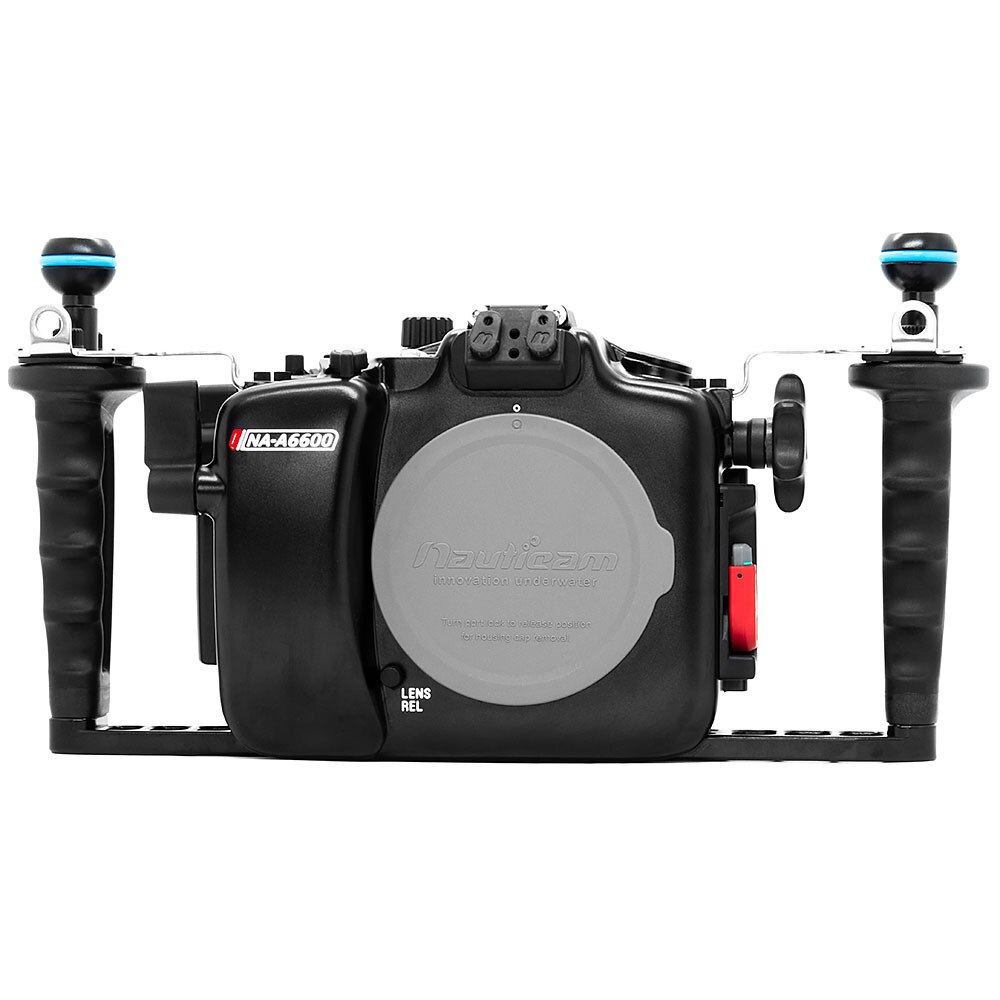

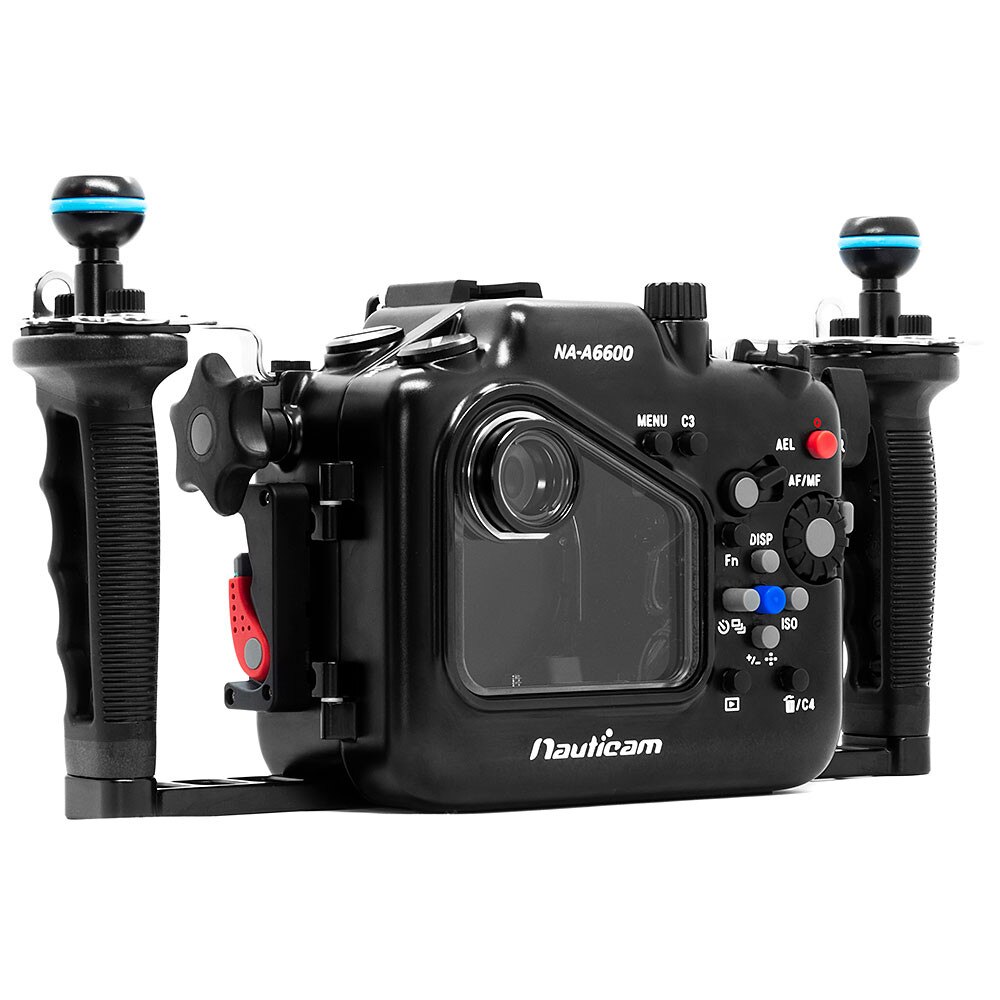

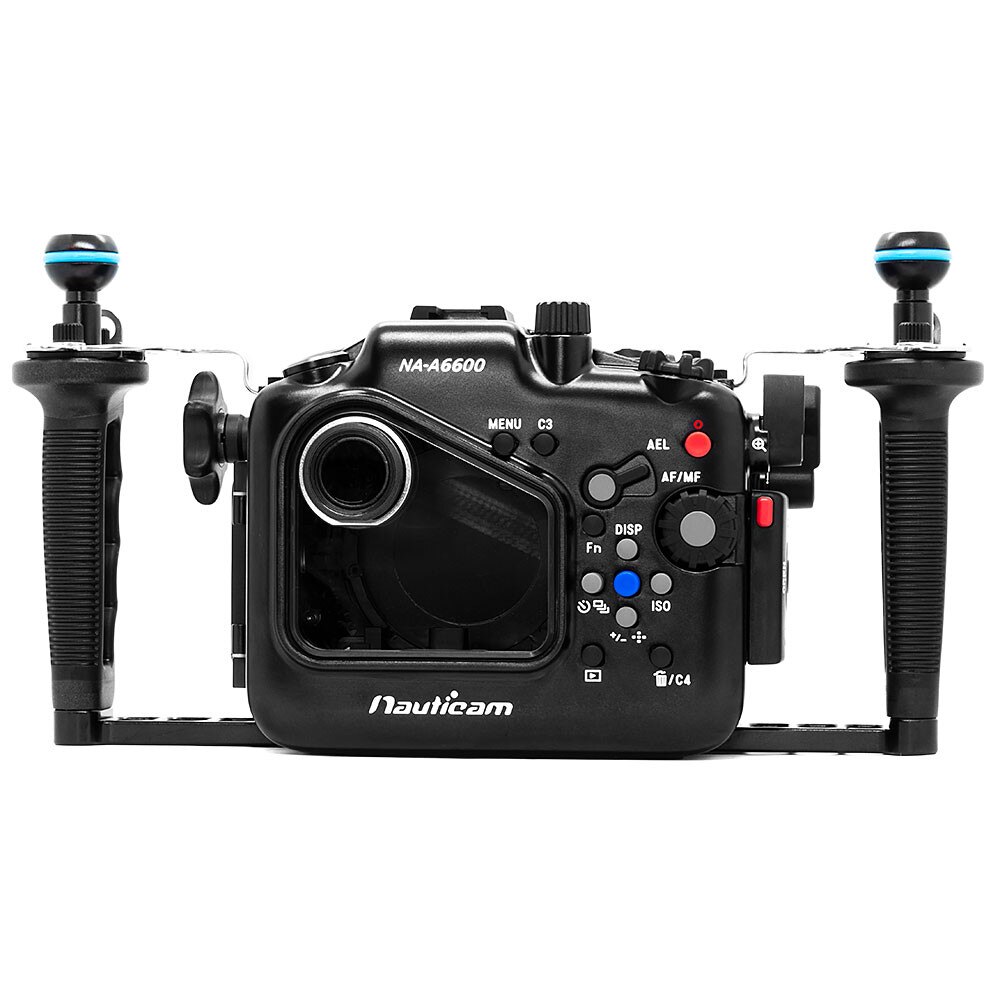

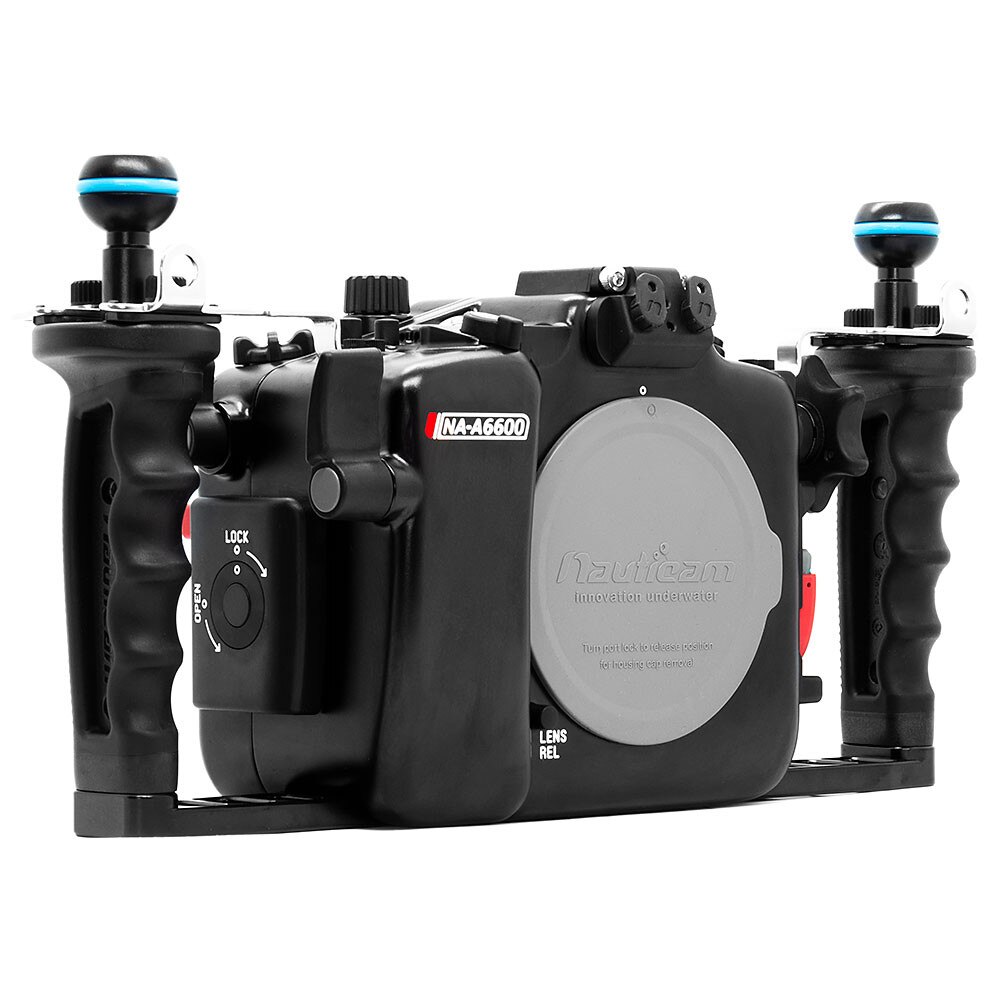

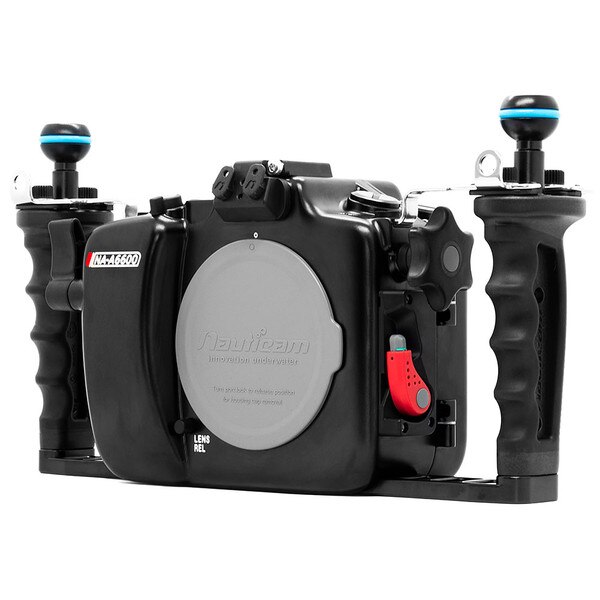

THE NAUTICAM NA-A6600 UNDERWATER HOUSING

Nauticam is the industry leader in mirrorless interchangeable lens underwater camera support. Nauticam has housed more mirrorless cameras and more Sony E (NEX) Mount cameras than any other housing manufacturer. This experience results in the most evolved housing line with the broadest range of accessories available today.

Pioneering optical accessories elevate the performance to a new level. Magnifying viewfinders, the sharpest super macro accessory lenses ever made, and now the highest quality wet mount wide-angle lens (the WWL-1) combine with the NA-A6600 housing to form a complete imaging system.

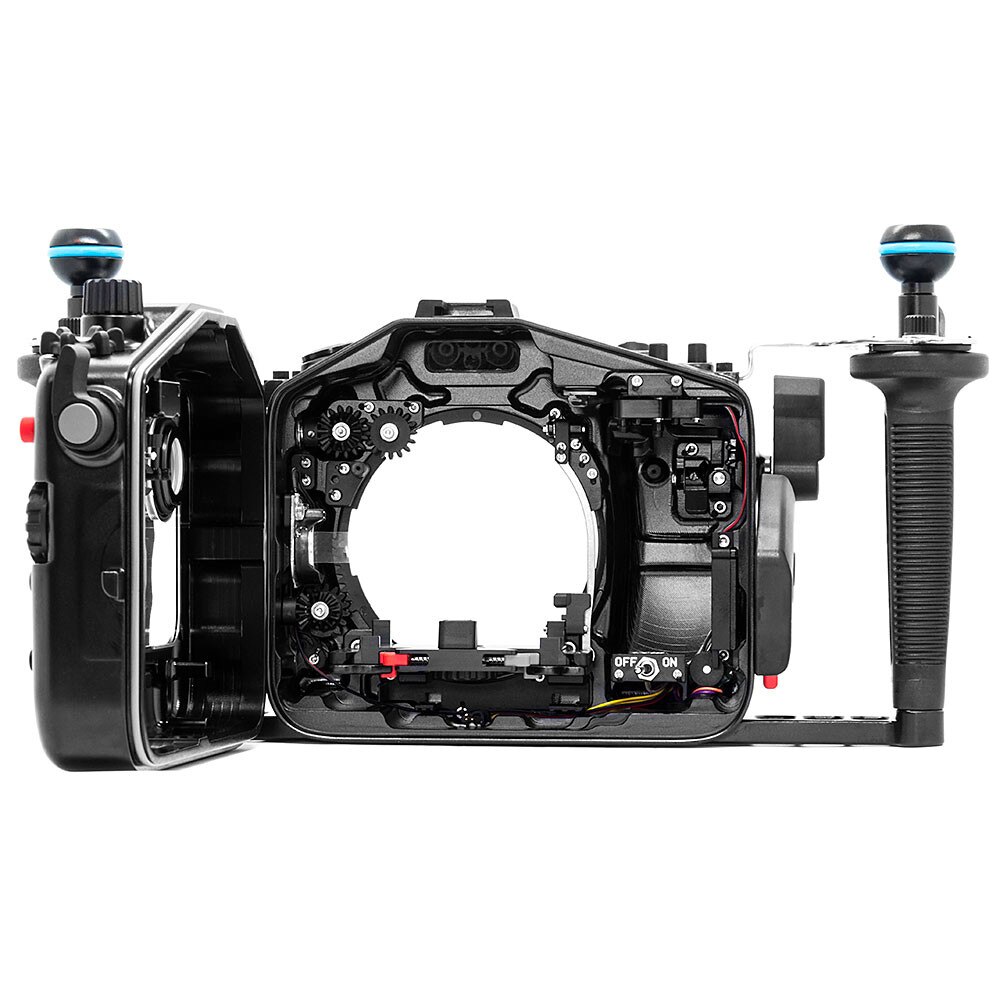

Nauticam is known for ergonomics and an unmatched experience. Key controls are placed at the photographer’s fingertips. The housing and accessories are lightweight and easy to assemble. The camera drops in without any control presetting, and lens port changes are effortless.

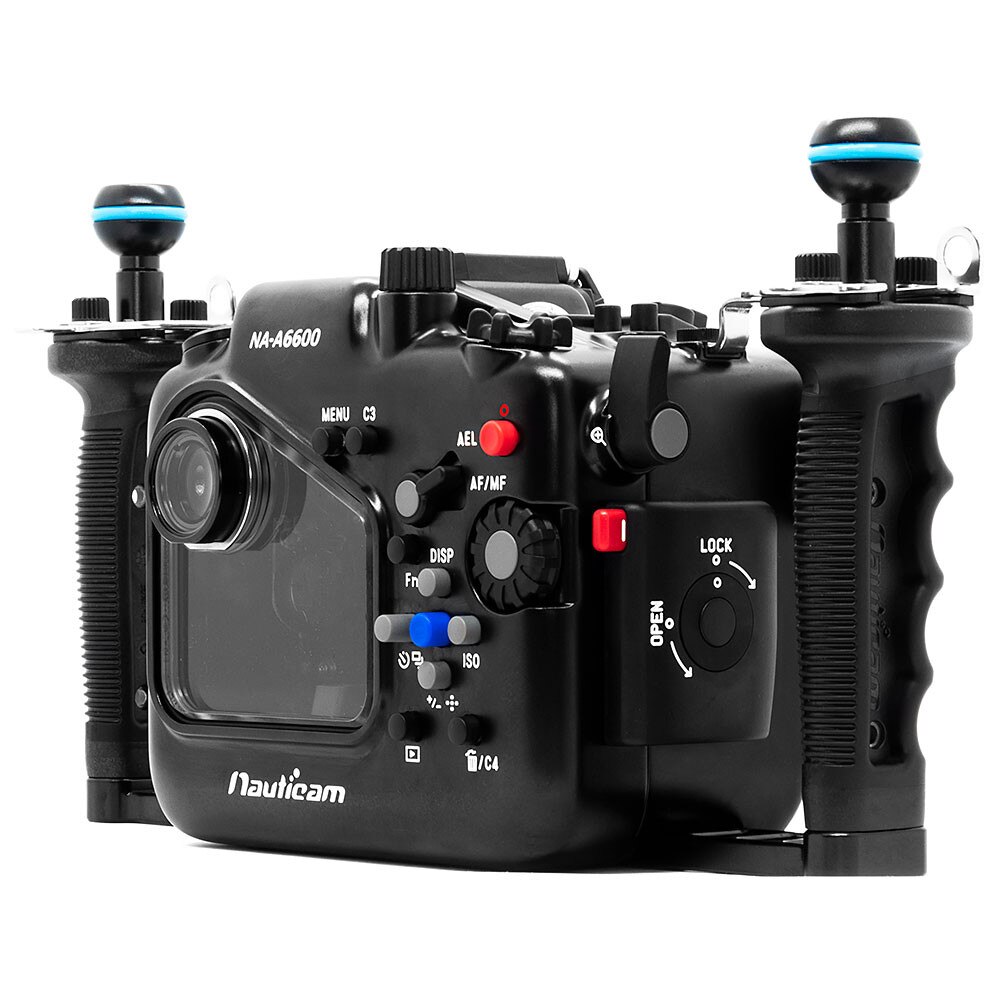

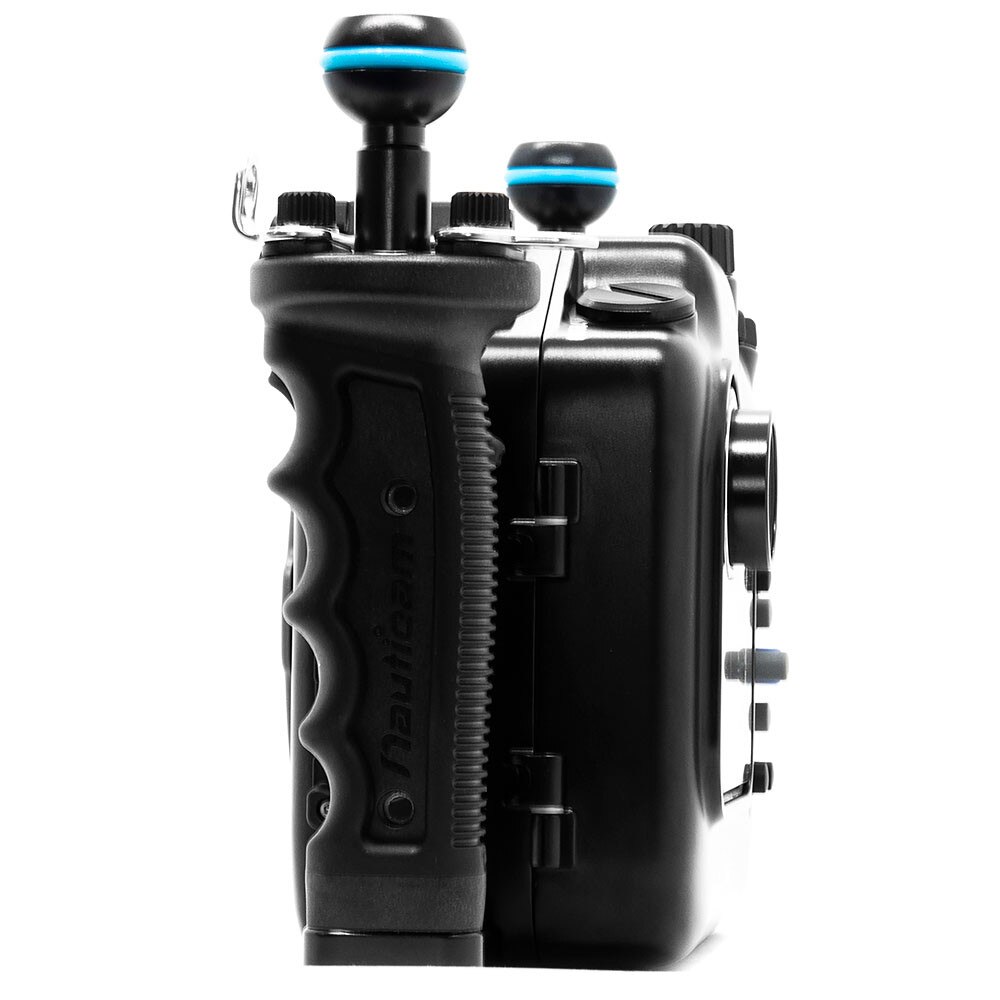

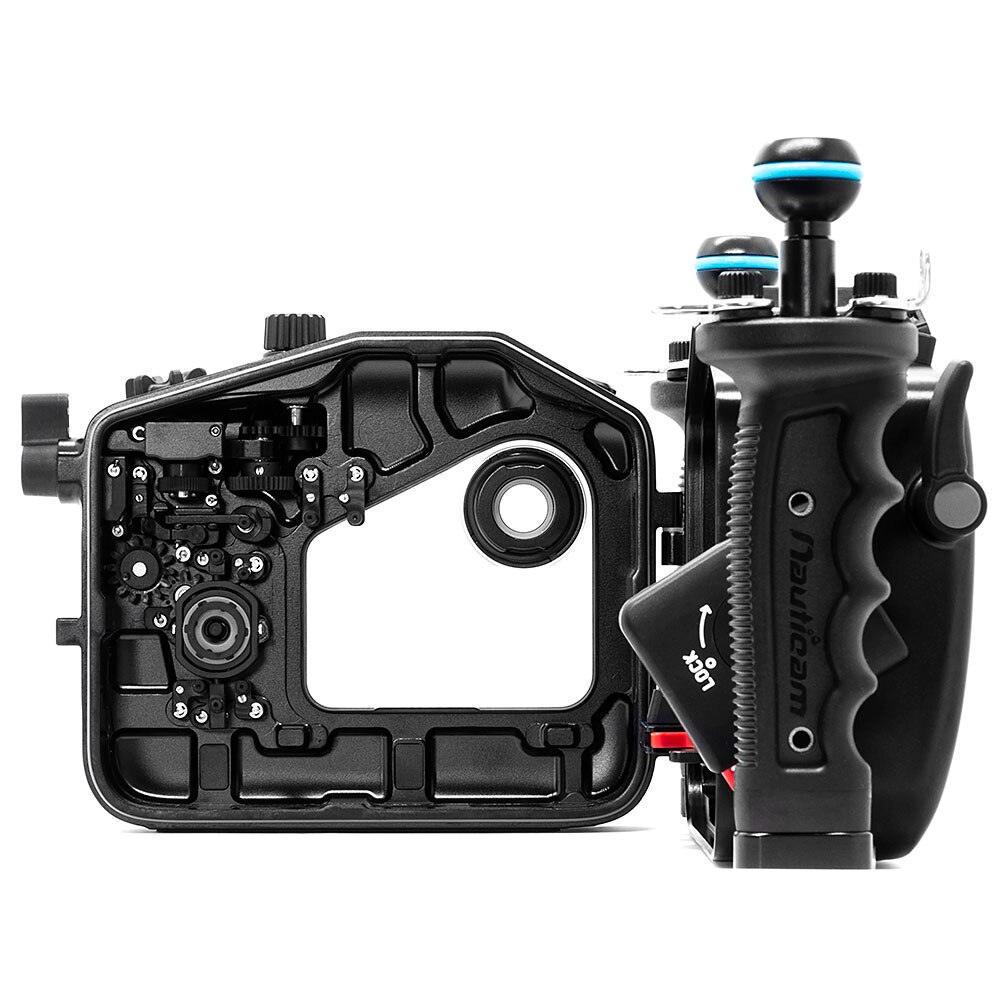

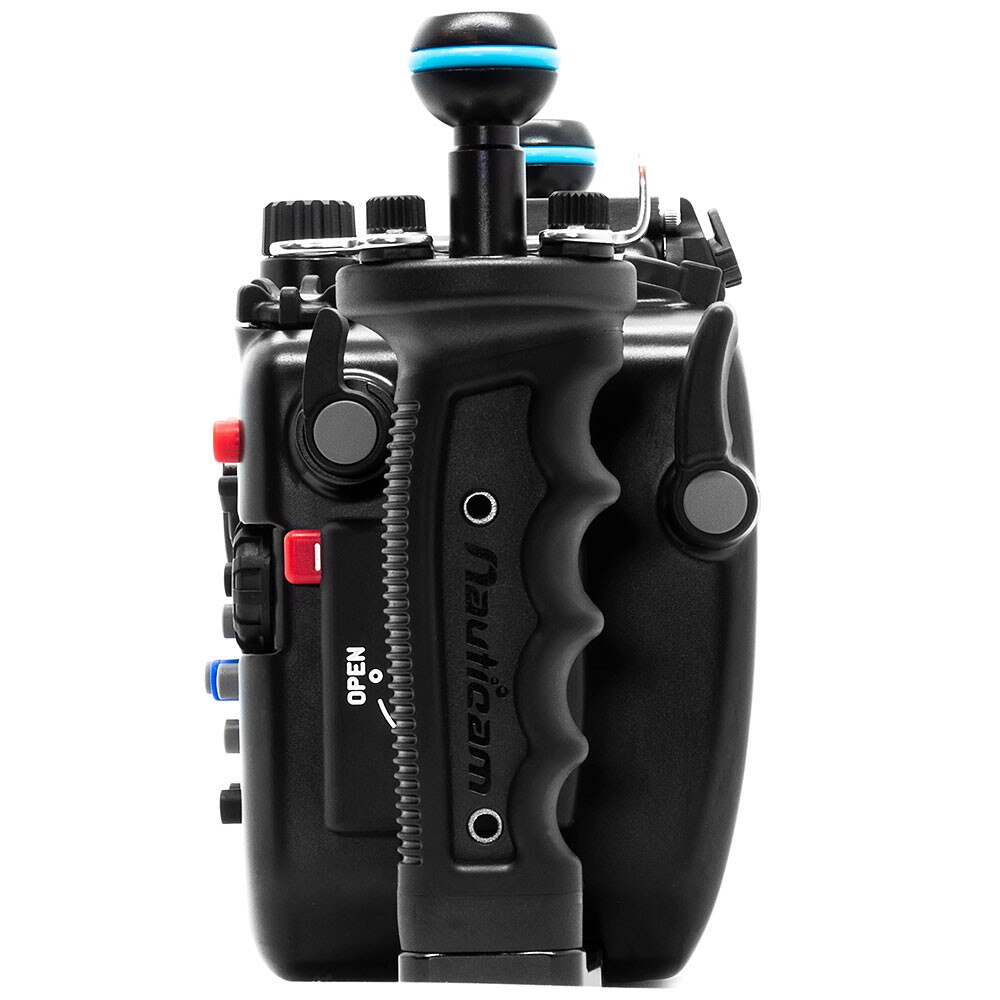

NA-A6600 features an integrated handle system. This ergonomic style provides exceptional control access, even with thick gloves, and ideal placement of the shutter release and AE-L / AF-L buttons at the right handle.

Nauticam build quality is well known by underwater photographers around the globe. The housing is machined from a solid block of aluminum, then hard anodized making it impervious to saltwater corrosion. Marine-grade stainless and plastic parts complete the housing, and it is backed by a two-year warranty against manufacturing defects.


HDMI 1.4 OUTPUT

With 4K HDR internal video recording and updated autofocus, pairing the NA-A6600 with an external monitor such as the SmallHD 502 Bright 5" gives video shooters a large, bright screen that features focus and exposure tools. HDMI 1.4 output requires HDMI Bulkhead (25032) as well as a supported monitor housing and internal HDMI cable (25076).


WWL-1, CMC-1, AND CMC-2

Three in-house Nauticam optical designs, designed by founder and Managing Director Edward Lai, are the perfect lenses to complete an a6600 underwater system. The magic of the wet lenses is their tremendous versatility, paired with outstanding in-water performance. Both macro and super wide-angle optics are available to the underwater photographer on the same dive. These lenses are completely engineered for use in water, providing the highest image quality available today in a wet mount optic.

WWL-1 is a wide-angle conversion lens, compatible with several lenses in the Sony system. The field of view is widest when paired with the Sigma 19mm f2.8 DN Lens, providing a 130-degree diagonal field of view. WWL-1 is also an ideal match for the Sony E 16-50mm F3.5-5.6 PZ OSS lens providing over 100-degree diagonal field of view with full zoom through! With either lens on the camera, class-leading center sharpness, corner sharpness, and contrast result in the clearest wide angle images possible underwater.

CMC-1 and CMC-2 provide the best macro performance available, with two different magnification strengths, suitable for a wide variety of macro subjects. With the popular Sony E 16-50mm F3.5-5.6 PZ OSS lens, CMC-1 is capable of capturing a macro frame 26mm wide, while CMC-2 captures an area 33mm wide. CMC-2 is less strong, making it easier to use with more accurate autofocus. CMC-1 is best suited for the smallest of macro subjects. Macro enthusiasts will surely want both!


FAST AND RELIABLE FLASH TRIGGERING

Reliable rapid-fire manual flash triggering is available with the NA-A6600 for a variety of optically fired flashes when used with a new LED Flash Trigger (36315). The NA-A6600 comes fiber optic ready and accepts standard Sea & Sea style bushing connections.

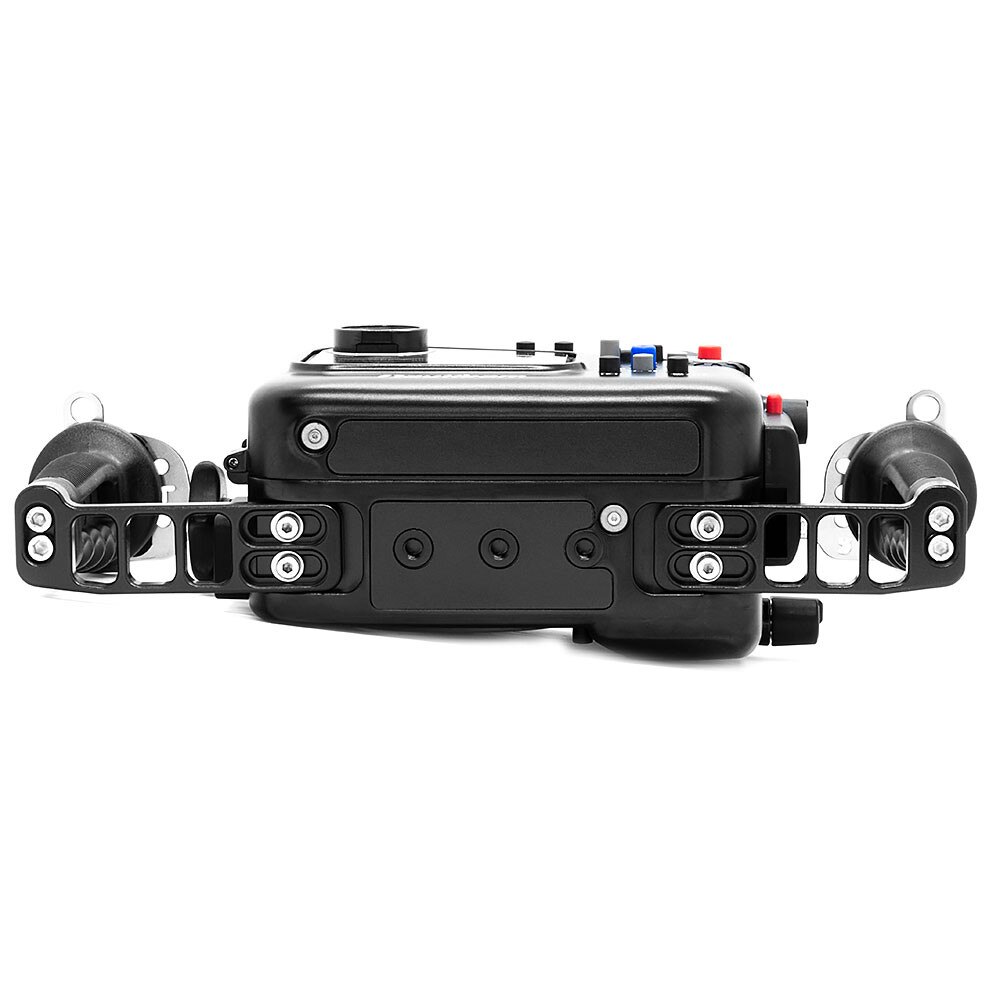

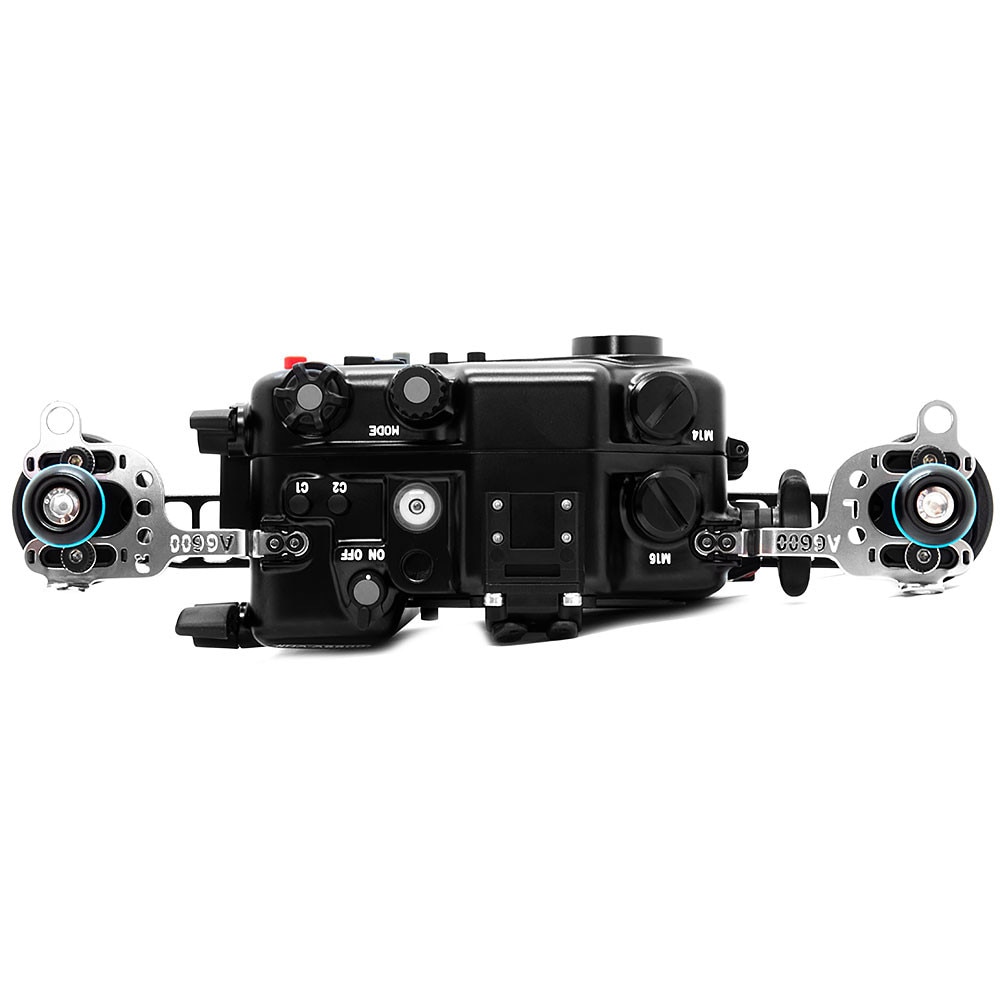

Strobes and light arms can be attached to the housing via included 1″ accessory mounting balls. The housing also features a cold-shoe and M10 threaded mount for a focus light or other accessories.

Electrical strobe triggering (with power set manually on the flash head) is still an option for those with an investment in legacy lighting gear, requiring the purchase of an accessory electrical bulkhead.

Battery Pack for NA-6600 Housing (2500mAh, inc. USB cable) (36332)

The a6600 does feature a larger battery but especially when shooting video the benefit of an accessory battery pack greatly extends the time between battery swaps, and allows the housing to remain sealed between dives.


INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is available with NA-A6600 as standard equipment. Combined with an optional vacuum valve (PN 25624), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.


What's In The Box:

• NA-A6600 Housing
• 1x 90133 Spare Main O-ring, O-ring remover and lubricant
• Housing Cap
• CR-2032 Battery (for Moisture Alarm)
• Set of Allen Keys
• Padded housing bag and shoulder strap
• 2x Stainless Steel Handle Brackets
• 2x Handles with mounting balls and tray

Recommended Accessories:

• 36315 LED Flash Trigger
• 26216 Universal Fiber Optic Cable
• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 32204 Nauticam 180˚ straight viewfinder for MIL housings
• 32205 Nauticam 45˚ viewfinder for MIL housing 36332 Battery Pack for NA-XT2/XH1/A6400 Housing (2500mAh, inc. USB cable)
• 25226 20cm lanyard with shackles
• 25412 23cm lanyard with 2 snap hooks

HDMI Connectivity:

• HDMI1.4 Bulkhead
  • 25028 Socket extension for 25032 HDMI bulkhead with M16 thread
  • 25032 Custom HDMI bulkhead to use with a socket extension
• Internal cable
  • 25076 HDMI (D-D) 1.4 Cable in 200mm Length for NA-XT2/XH1/A6400/A6600 (for internal connection from HDMI bulkhead to camera)
• Compatible monitor housings
  • 17906 NA-502H housing for Small HD 502 5-inch HD monitor (with HDMI 1.4 input support)
  • 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor (with HDMI 1.4 input support)

TECHNICAL SPECS

• Dimensions (w/ handles): 307mm (W) x 168mm (H) x 104mm(D)
• Dimensions (w/o handles): 208mm (W) x 144mm (H) x 104mm (D)
• Weight (in air): 1.65kg
• Weight (in water w/ camera): 0.43kg
• Depth Rating: 100m/330ft
• Port Opening: N85
