Nauticam NA-EM1III Underwater Housing for Olympus OM-D E-M1 Mark III Camera

The Olympus OM-D E-M1 Mark III, the latest iteration of the ground-breaking Micro Four Thirds camera brings improvements from the larger E-M1X to the more compact E-M1 form factor. The Mark III features a 20MP Four Thirds sensor that is paired with the latest TruePic IX processor from the E-M1X to deliver even more autofocus and stabilization horsepower to the already impressive E-M1 system. The E-M1 Mark III can also capture 4K UHD at 30p in the OM-Log profile with excellent autofocus performance.


THE OLYMPUS OM-D E-M1 MARK III

The OM-D E-M1 has always stood out from the competition with platform leading image stabilization and the option for exceptional control customization. The Mark III features the latest TruePic IX processor that is also found on the pro-level E-M1X. The TruePic IX helps the Mark III deliver exceptional autofocus performance and fast continuous capture of up to 60fps. The Dual F.A.S.T autofocus system uses a combination of Contrast and Phase Detection autofocus to insure reliable continuous autofocus across a wide range of ambient lighting conditions.

The Mark III, similar to the Mark II can capture UHD 4K video at up to 30p leveraging the impressive sensor stabilization and autofocus to generate ultra-sharp buttery-smooth handheld video. DCI 4K is also possible at 24p with a high 237Mbps bit rate.


Key Camera Specs

• 20MP Four Thirds sensor
• 121-point autofocus system with TruePic IX Processor
• Up to 60 fps Raw + JPEG capture
• Image stabilization rated at 7.0 (CIPA standard), up to 7.5EV with 'Sync IS' lenses
• Large 2.36M-dot LCD viewfinder able to work at up to 120 fps
• 420 shots per charge (CIPA) battery life rating
• Dual SD card slots (1x UHS-I, 1x UHS-II)
• UHD 4K/30p video and DCI 24p at up to 237Mbps
• Extensive, IPX1-rated weather sealing

With this latest update, the OM-D E-M1 Mark III becomes an even more capable hybrid shooter, combining excellent video and still features in a reliable and portable IPX1 rated platform.

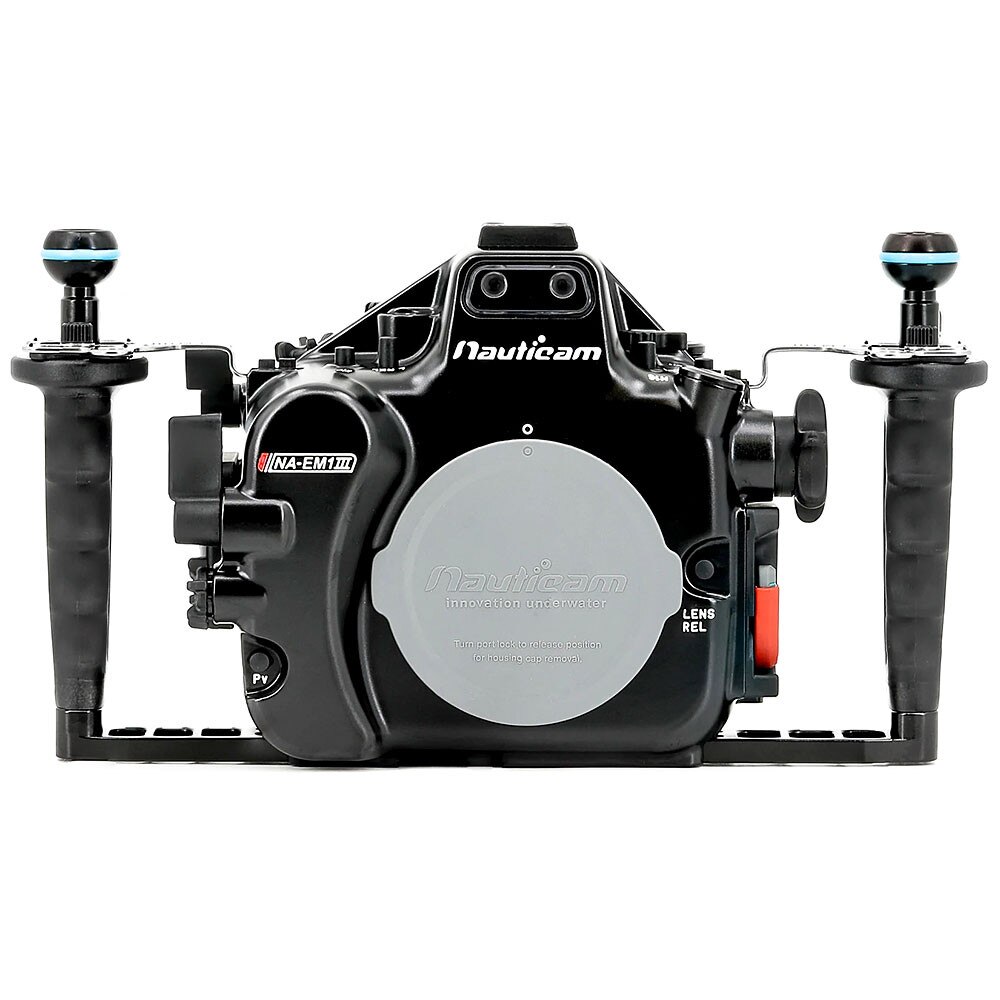

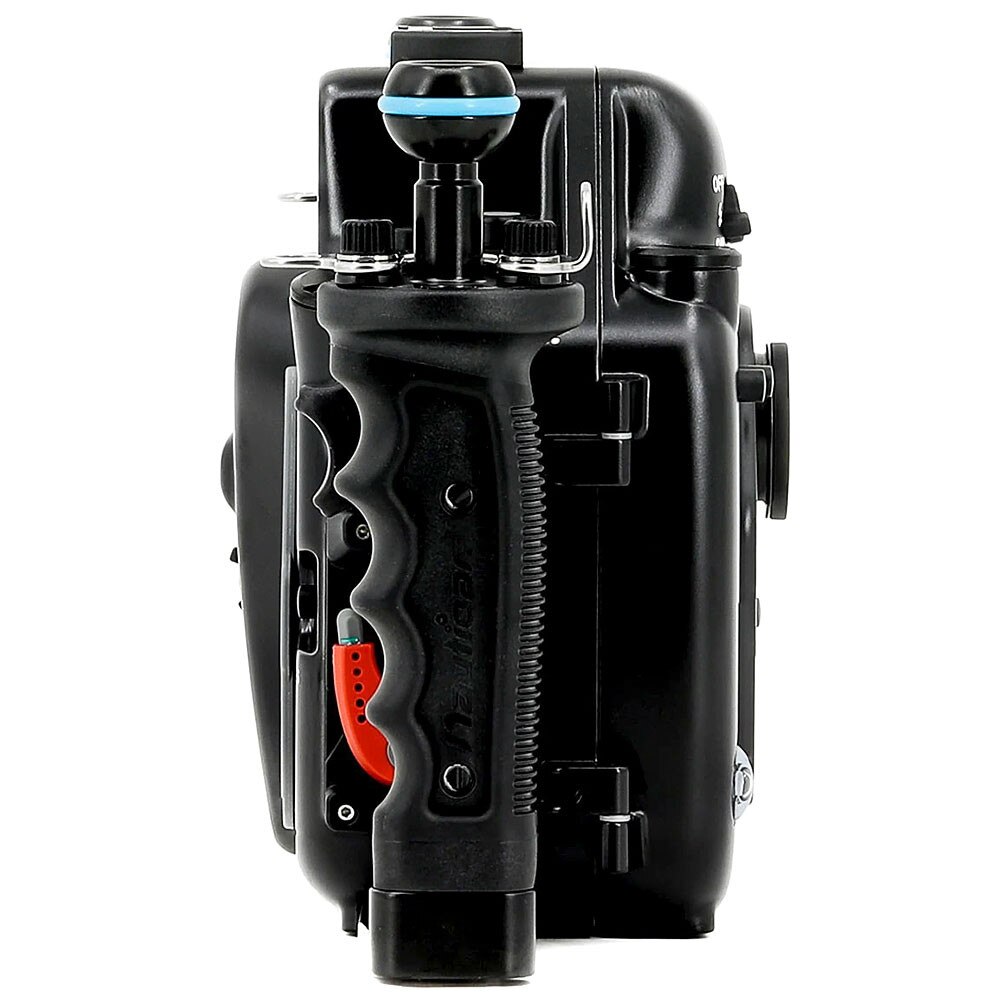

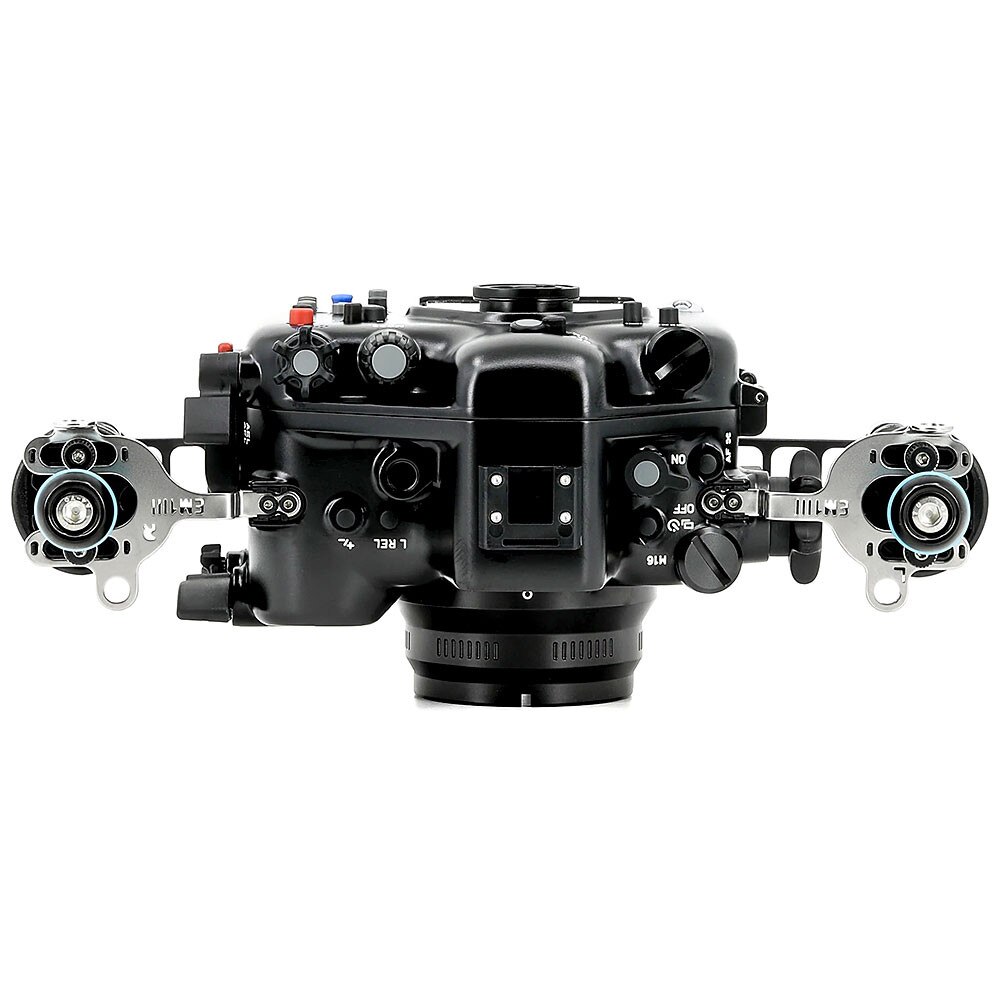

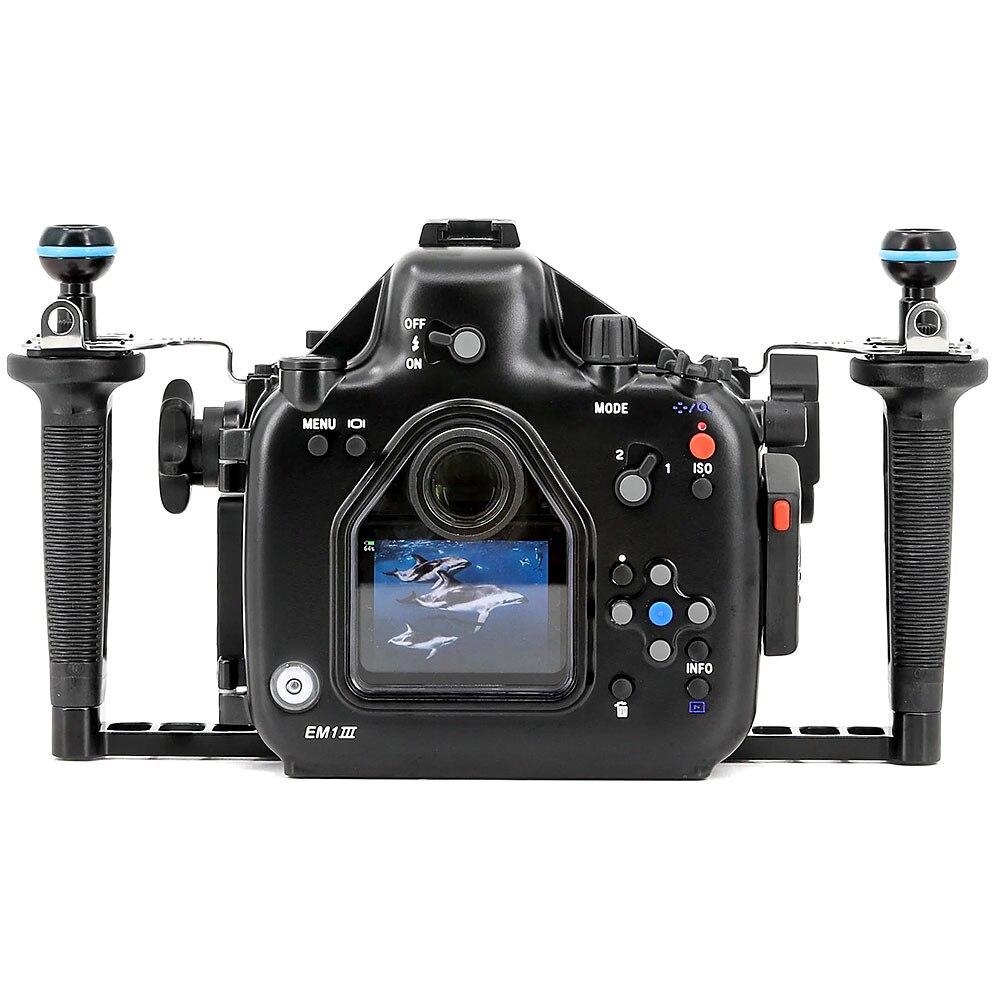

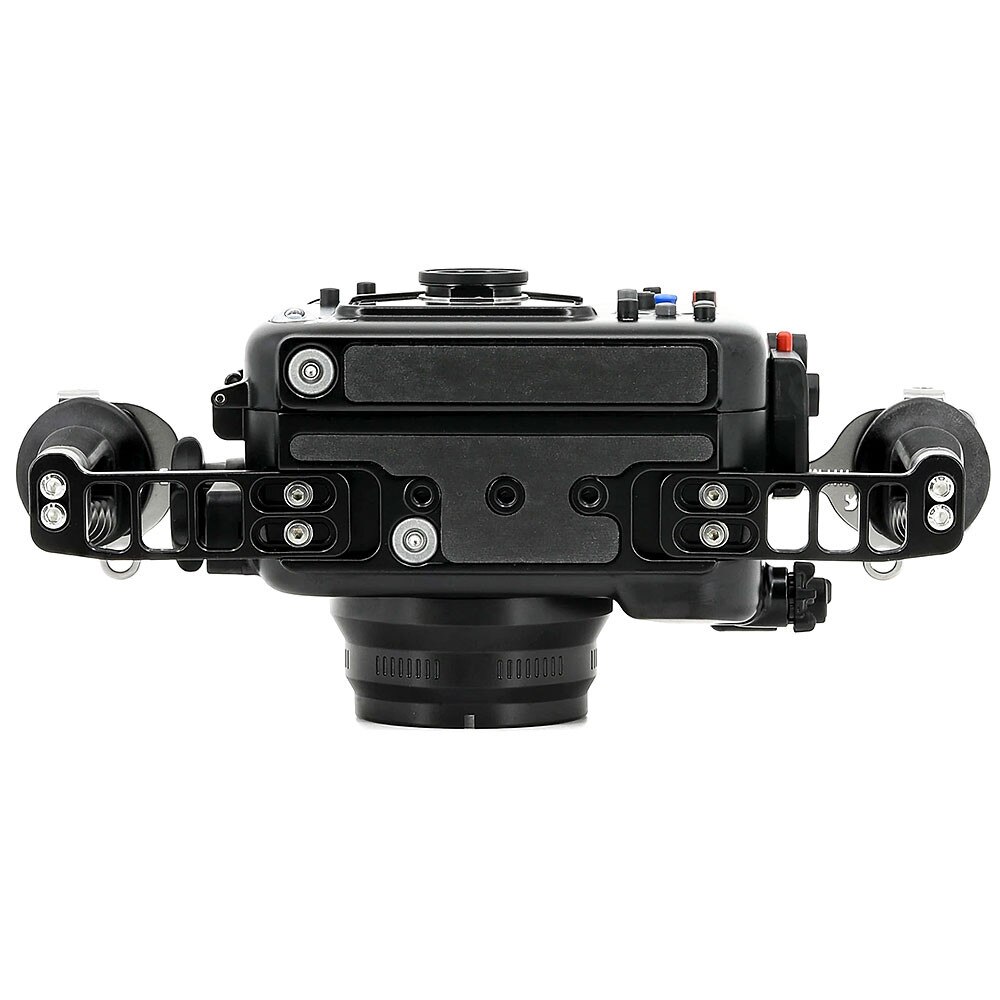

NAUTICAM NA-EM1III UNDERWATER HOUSING

The Olympus OM-D E-M1 is characterized by its combination of extreme customizability and impressive stabilization in a compact hybrid-shooting package. The Nauticam NA-EM1III, similar to the E-M1 Mark III is a refinement of its predecessors. Nauticam has produced housings for a wide range of Olympus cameras from the compact Tough TG series to the PEN and OM-D lines. Throughout the evolution of Olympus' cameras, Nauticam has adapted our design to help image-makers get to take full advantage of every camera advancement. More than a simple waterproof case, the NA-EM1III integrates with the EM-1 Mark III to adapt and improve upon the camera's features for underwater shooting.


Mission Control

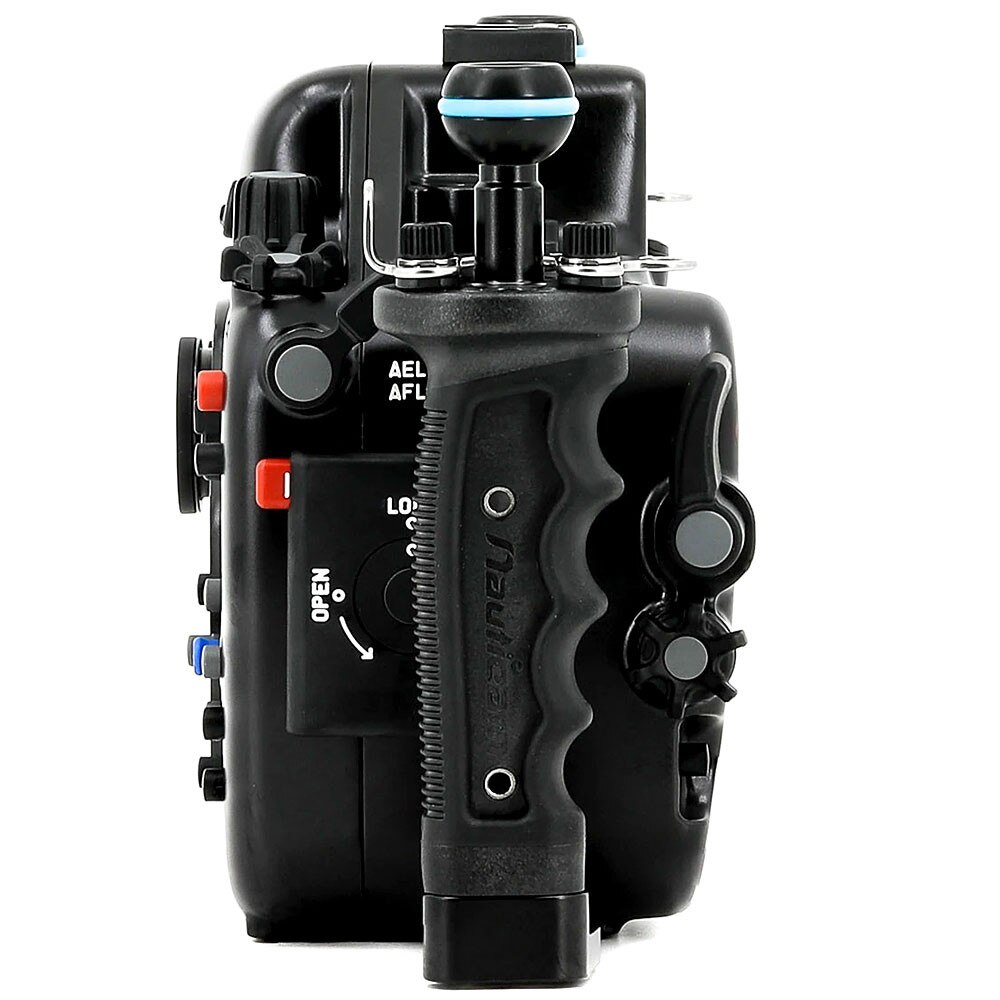

Regardless of where a dial or button may be found on the camera body, Nauticam engineers make sure it is located where it is needed most on the housing. This Mission Control philosophy drives the design of every housing and provides for the most intuitive and easy to use housings available. The NA-EM1III features a thumb lever, easily accessed from the ergonomic rubberized right handle that actuates the customizable AEL/AFL control. Typically, for underwater use, this control is assigned to trigger momentary autofocus. This back-button autofocus method prevents the camera from refocusing between shots, allowing the user fine control over a shot's focus and is critical whether shooting macro or fast-moving wide-angle subjects.


TECHNICAL SPECIFICATIONS

• Dimensions: 305mm(W) x 175mm(H) x 116mm(D)
• Weight in Air: 2kg
• Weight in Water: 0.4kg (with camera and battery)
• Depth Rating: 100m/330ft
• Port Mount: N85
