Overview / Product Description

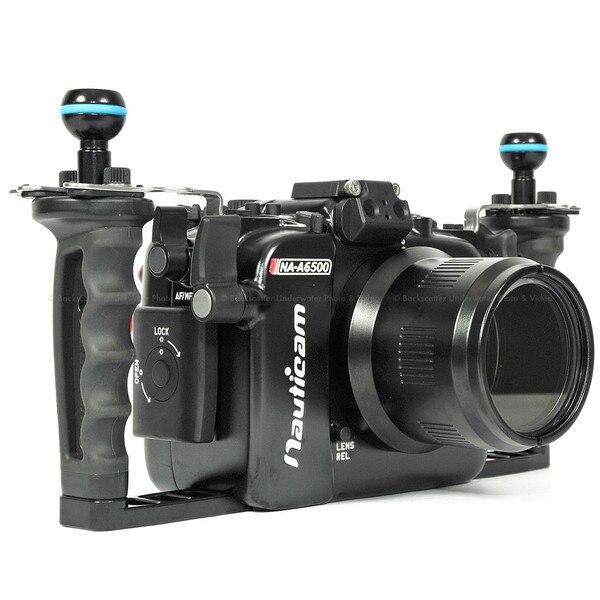

Nauticam NA-A6500 Underwater Housing for Sony a6500 Mirrorless Camera
A New Nauticam Housing for Sony a6500 Sony a6500 is the latest high performance mirrorless interchangeable lens camera placed in the Sony E Mount lineup. Similar in size to many compact cameras, the a6500 body surrounds a large APS-C image sensor with fast and accurate autofocus performance.
The a6500 is an incredible camera for underwater imaging (both stills and motion) when paired with the ergonomic, rugged, and down right good looking Nauticam housing. The combo excels at fast action still photo shooting, 4K video, and everything in between.
The Sony a6500The a6500 predecessor, a6300, unveiled incredible enhancements in all aspects of performance. All of those features remain in the a6500, with a few significant upgrades.
The most notable new feature is 5 axis in-body image stabilization. This means that every lens - even retro manual glass from previous rangefinder systems, benefits from image stabilization. Modern Sony OS lenses work in conjunction with the in-body system for even greater stabilization. Underwater photographers can use this feature to allow slower shutter speeds in low light or available light situations, brighten backgrounds, and as a steady shot function when shooting video.
The focus system is astounding, with the fastest auto focus acquisition of any interchangeable lens digital camera available, and the highest number of phase detect focus points. These 425 focus points spread across almost the entire frame help the camera accurately track subject motion in all directions. This phase detect AF system has an uncanny ability to track moving subjects, dramatically improving the accuracy of continuous focus.
A high resolution, low lag electronic viewfinder provides an experience remarkably like an optical viewfinder, with minimal delay. Uninterrupted live view while shooting at up to 8fps is possible, reducing the blackout that previous mirrorless cameras have when shooting bursts of photos. The a6500 live view display is much like a digital SLR, with minimal blackout between shots. The a6500 is capable of 4K video capture. The camera records a 20 megapixel (6K!) portion of its sensor, then resamples in body to produce an extremely sharp low noise image.
A more extensive buffer with a newly developed front-end chip that provides more processing power increases the burst shooting capacity to 300 JPEG or 107 Raw images at 11 fps with full autofocus and auto exposure. Instant image review is possible, even while images are being written to the card. This expanded buffer means you can shoot continuously at 11 fps for 14 seconds!
Operationally, the camera is extremely intuitive. A new touch screen can be used for focus point selection. New C1 and C2 buttons provide even more extensive customizability (with 10 total customizable buttons). The extensive menu system has been organized, and is much easier to navigate.
- 24MP CMOS APS-C sensor with copper wiring 425-point on-sensor phase-detection AF system 11 fps continuous shooting for up to 300 JPEGs / 100 Raws (8 fps continuous live view without blackout)
- 5-axis in-body image stabilization
- 2.4m dot XGA OLED Tru-Finder with 120 fps refresh rate
- Tilting Rear Touch Screen
- Silent shooting in continuous drive (3 fps with AF/AE)
- Max ISO of 51200
- 4K video capture up to 100 Mbps
- Phase-detect AF compatible with A-mount lenses via LA-EA3 adapter
- Magnesium alloy design with upgraded dust and moisture resistance
- Improved hand grip

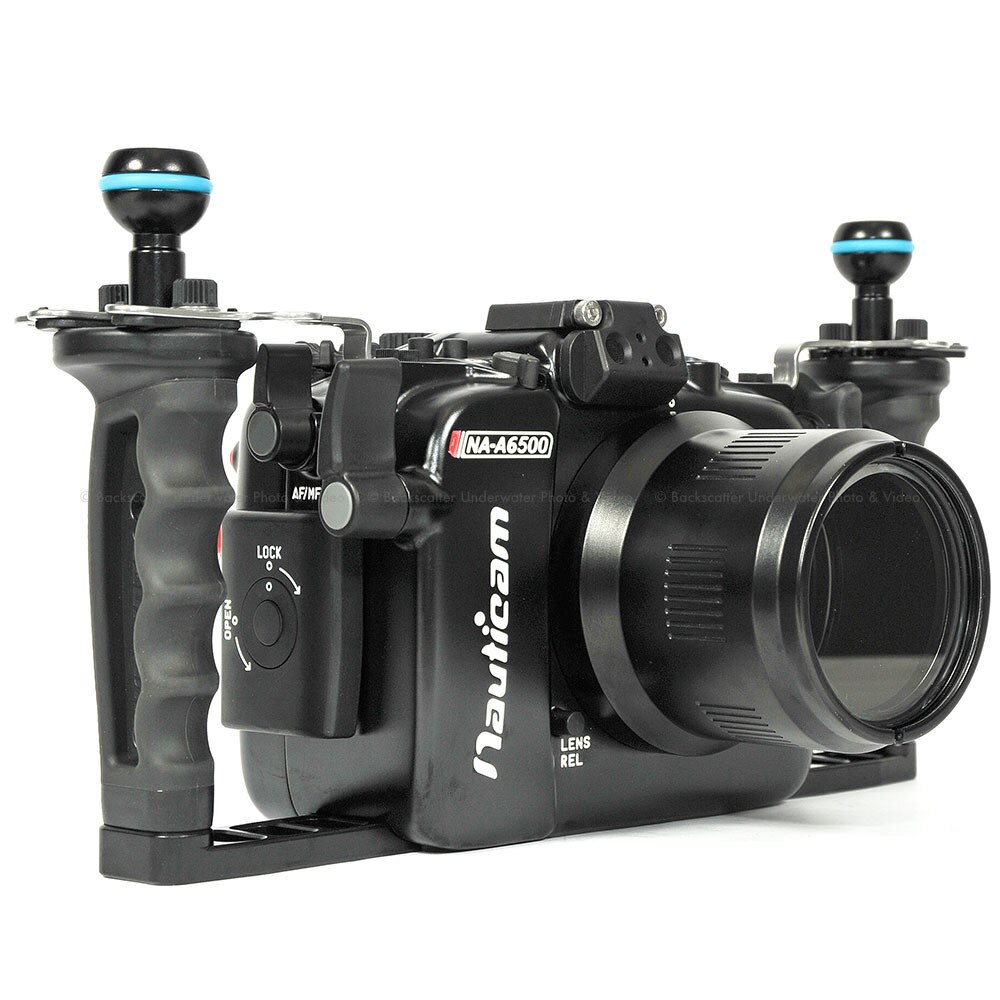

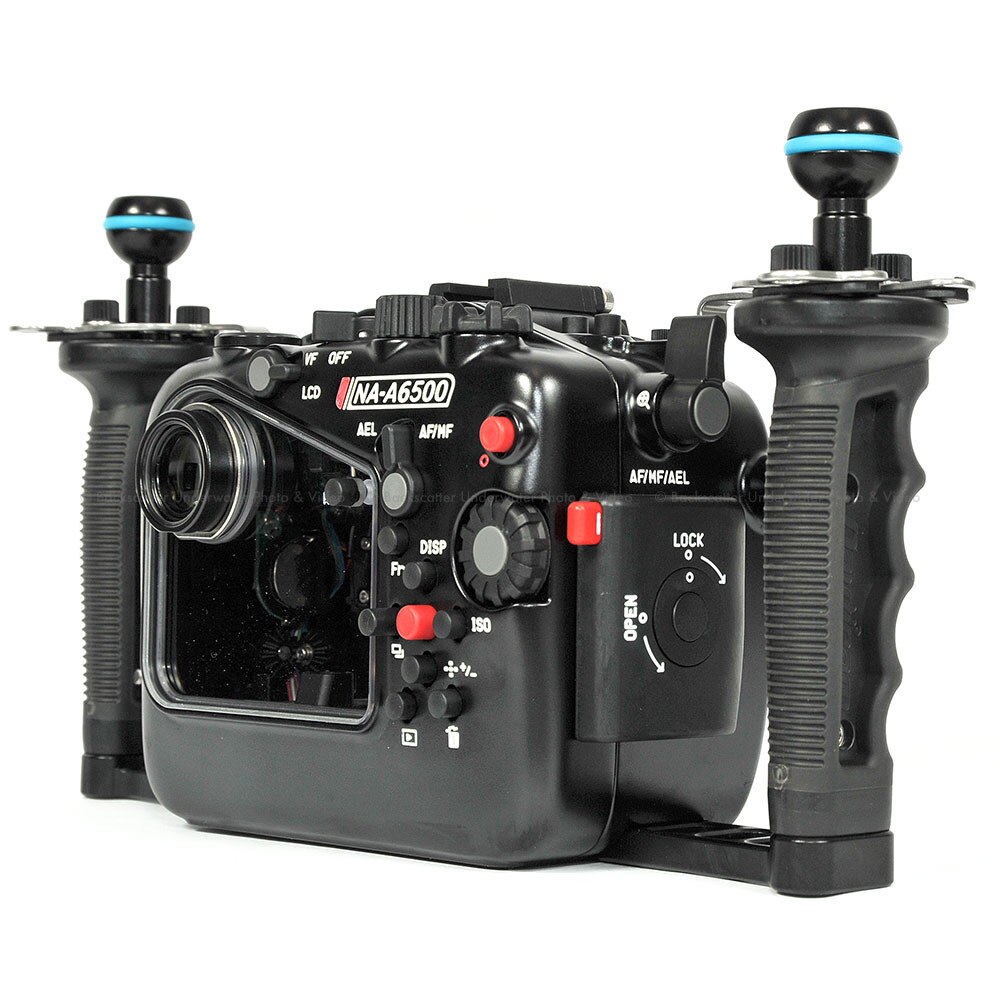

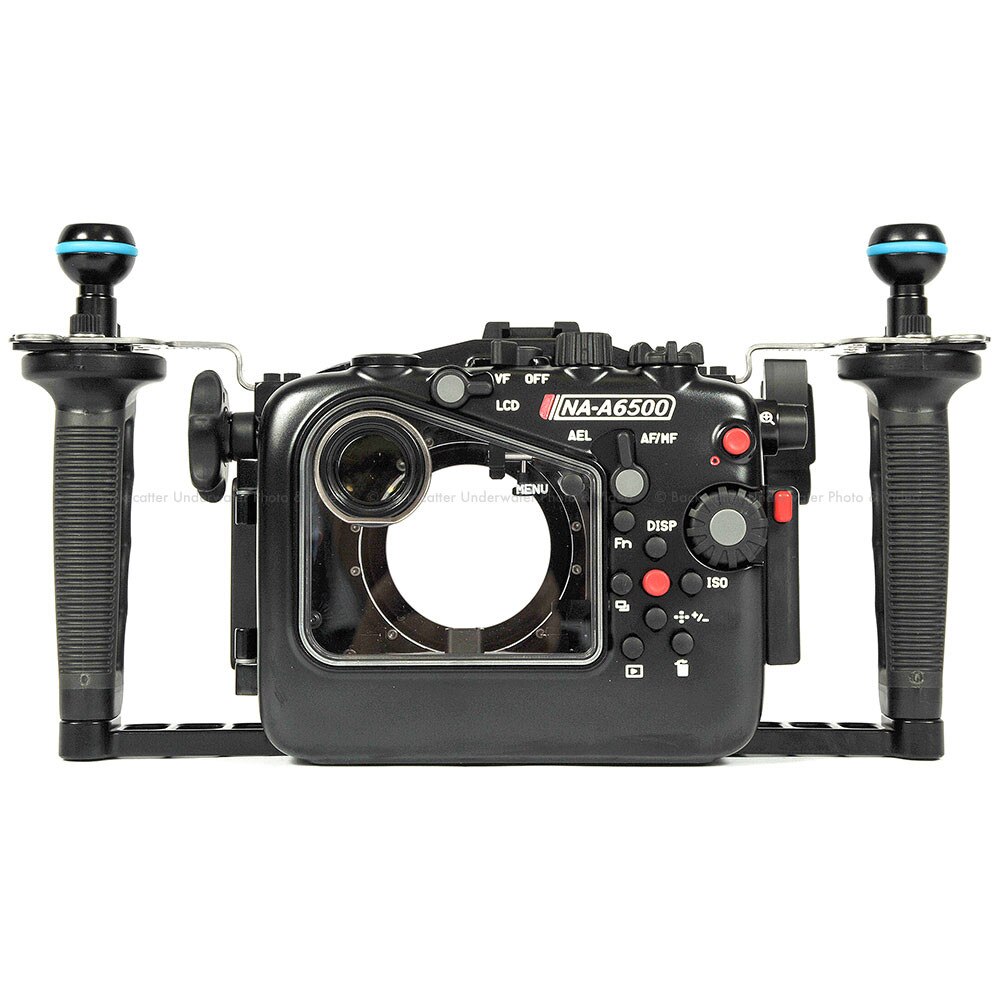

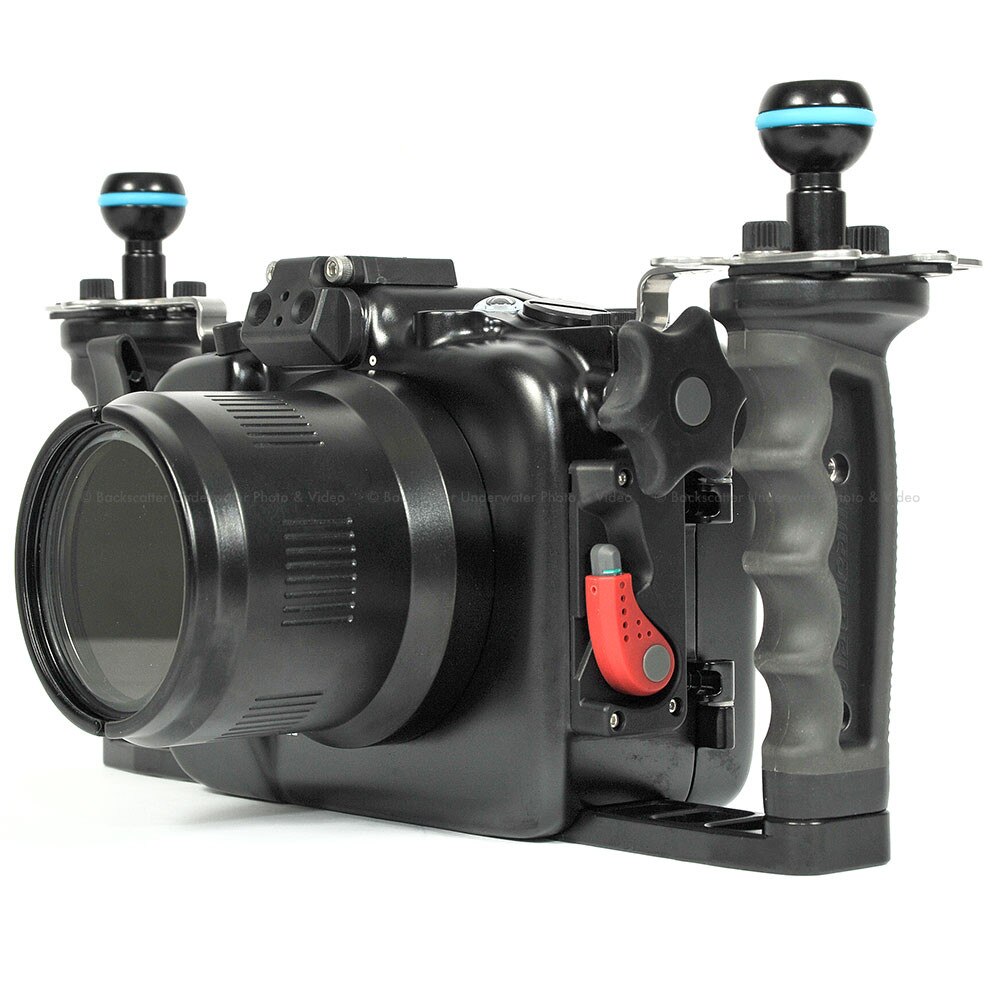

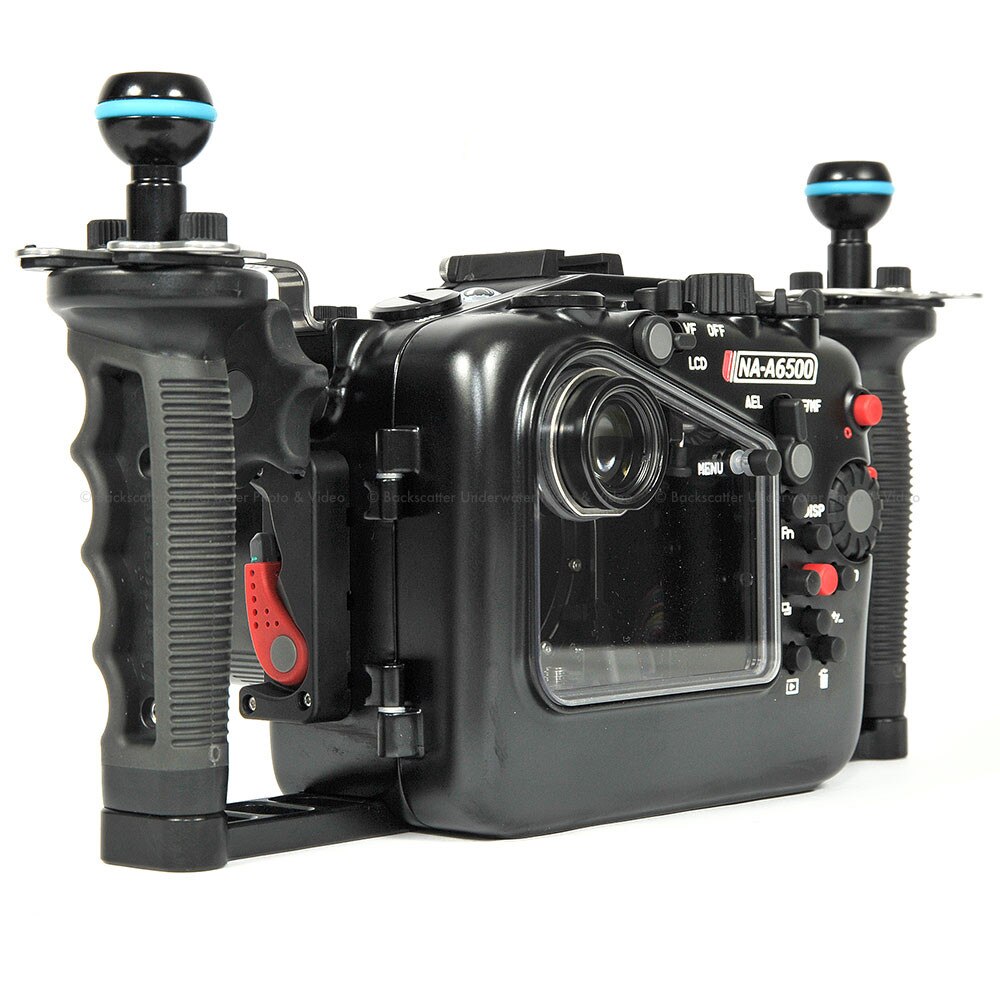

The Nauticam NA-A6500 Underwater HousingNauticam is the industry leader in mirrorless interchangeable lens underwater camera support. Nauticam has housed more mirrorless cameras, and more Sony E (NEX) Mount cameras than any other housing manufacturer. This experience results in the most evolved housing line with broadest range of accessories available today.
Pioneering optical accessories elevate performance to a new level. Magnifying viewfinders, the sharpest super macro accessory lenses ever made, and now the highest quality wet mount wide angle lens (the WWL-1) combine with the NA-A6500 housing to form a complete imaging system.
Nauticam is known for ergonomics, and an unmatched experience. Key controls are placed at the photographers fingertips. The housing and accessories are light weight, and easy to assemble. The camera drops in without any control presetting, and lens port changes are effortless.

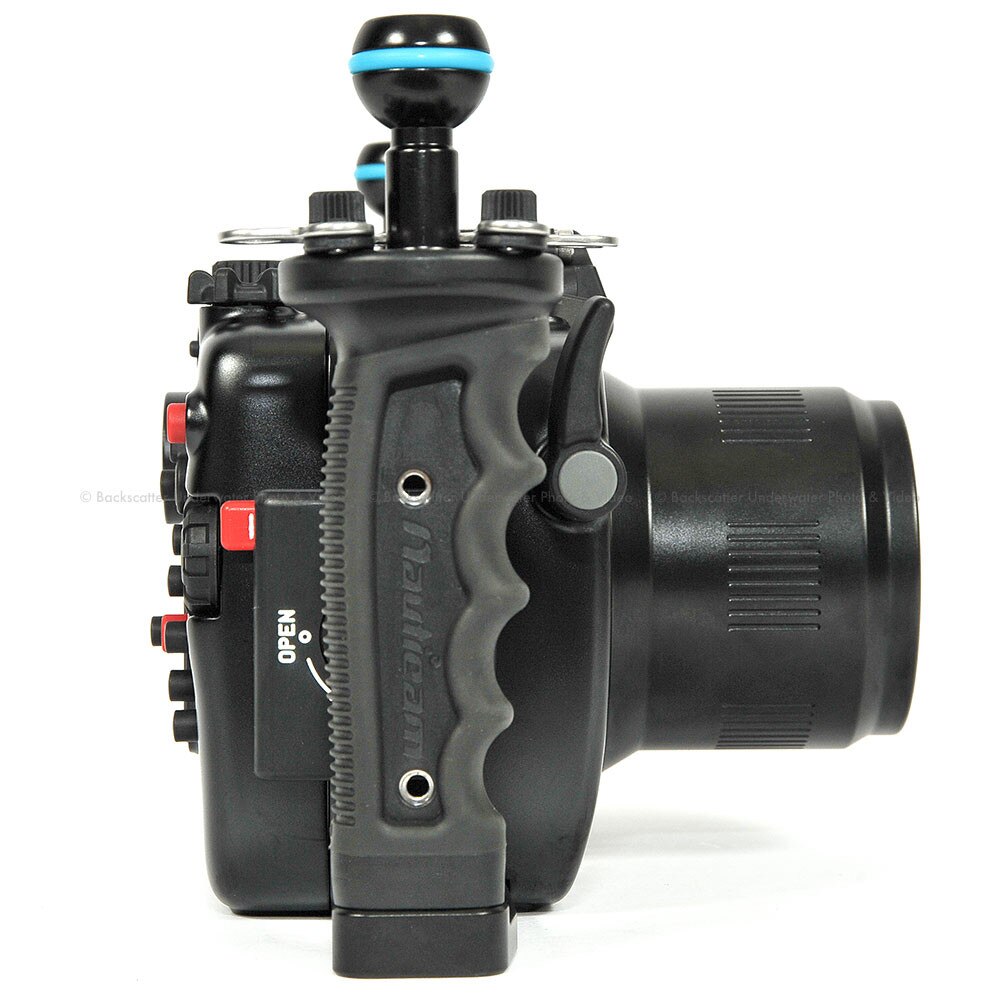

NA-A6500 features an integrated handle system. This ergonomic style is well proven on the full frame NA-A7 and NA-A7II housings for Sony Full Frame (FE) cameras. Exceptional control access, even with thick gloves, and ideal placement of the shutter release and AE-L / AF-L buttons at the right handle.
Nauticam build quality is well known by underwater photographers around the globe. The housing is machined from a solid block of aluminum, then hard anodized making it impervious to salt water corrosion. Marine grade stainless and plastic parts complete the housing, and it is backed by a two year warranty against manufacturing defects.
Integrated Vacuum Monitoring and Leak DetectionCircuitry included as standard equipment provides constant monitoring of water tight integrity when combined with an optional Nauticam M14 Vacuum Valve II (PN 25624).

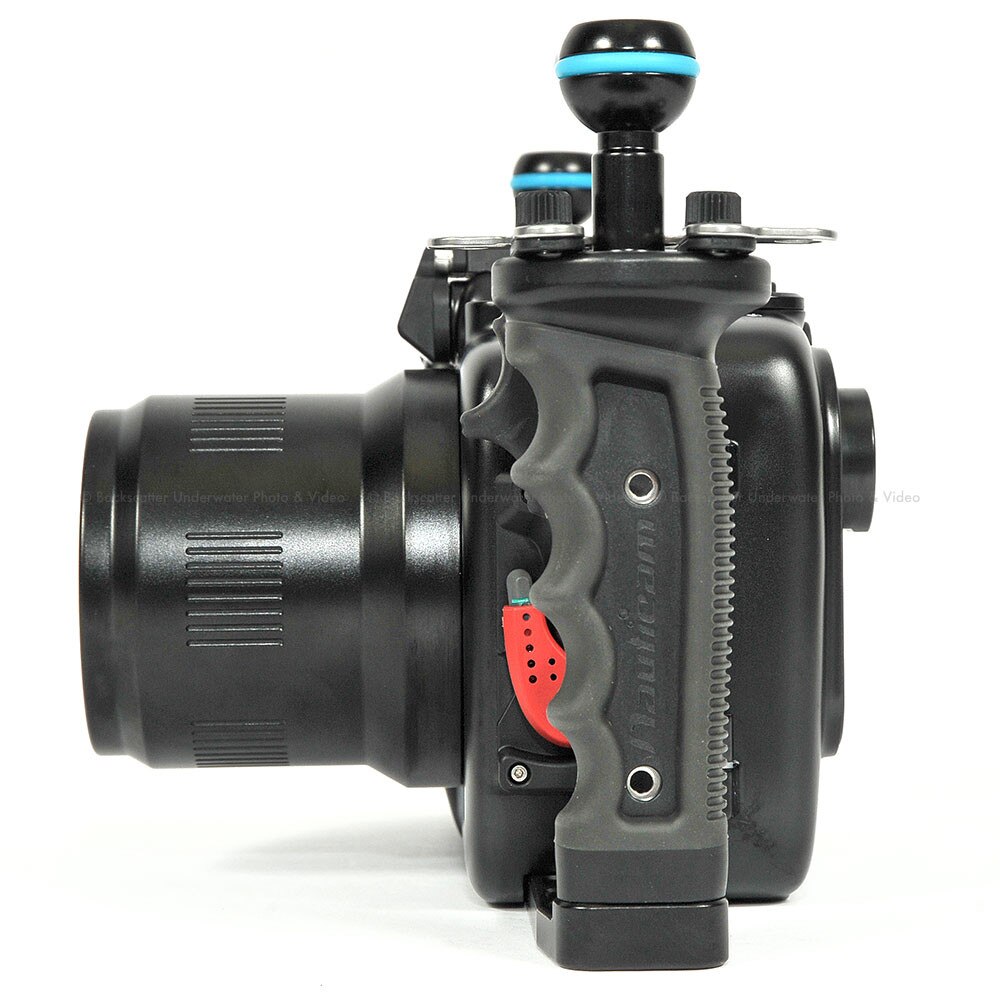

Shutter Release ExtensionCold water divers rejoice! The housing has been designed with an oversized paddle style shutter lever, perfectly placed for operation from the integrated handle system.
AE-L / AF-L Thumb LeverA rear thumb lever can be assigned various focus related tasks, such as autofocus on, or autofocus lock. This lever is easily reached while the finger is on the shutter release, and the combination of half press and focus lock functionality puts the user in complete control of the advanced a6500 autofocus system.

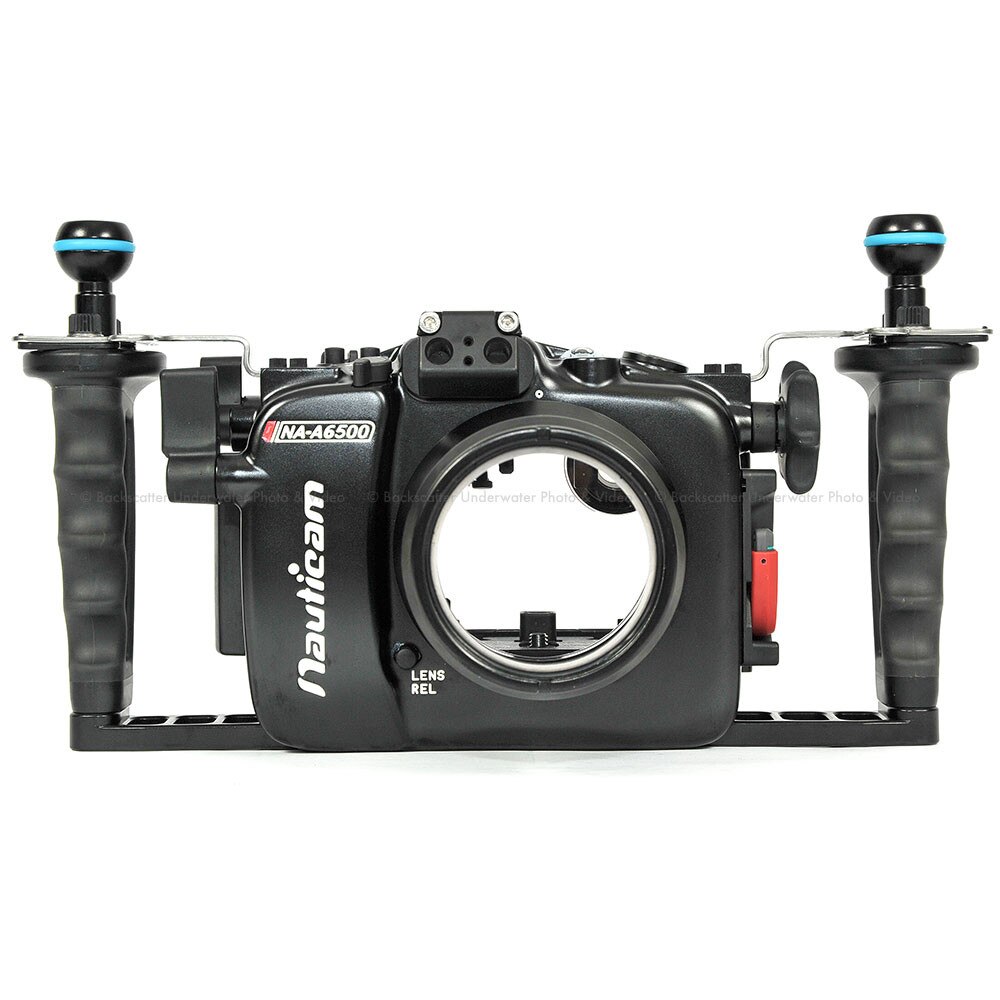

Patented Port Locking SystemLens ports are securely locked in place with our iconic port locking system. This system was launched on our very first DSLR housing in 2009, and provides effortless port mounting for quick lens swaps without twisting. Lens ports are securely locked in place, and wont twist in the mount even in extreme conditions (like surf).

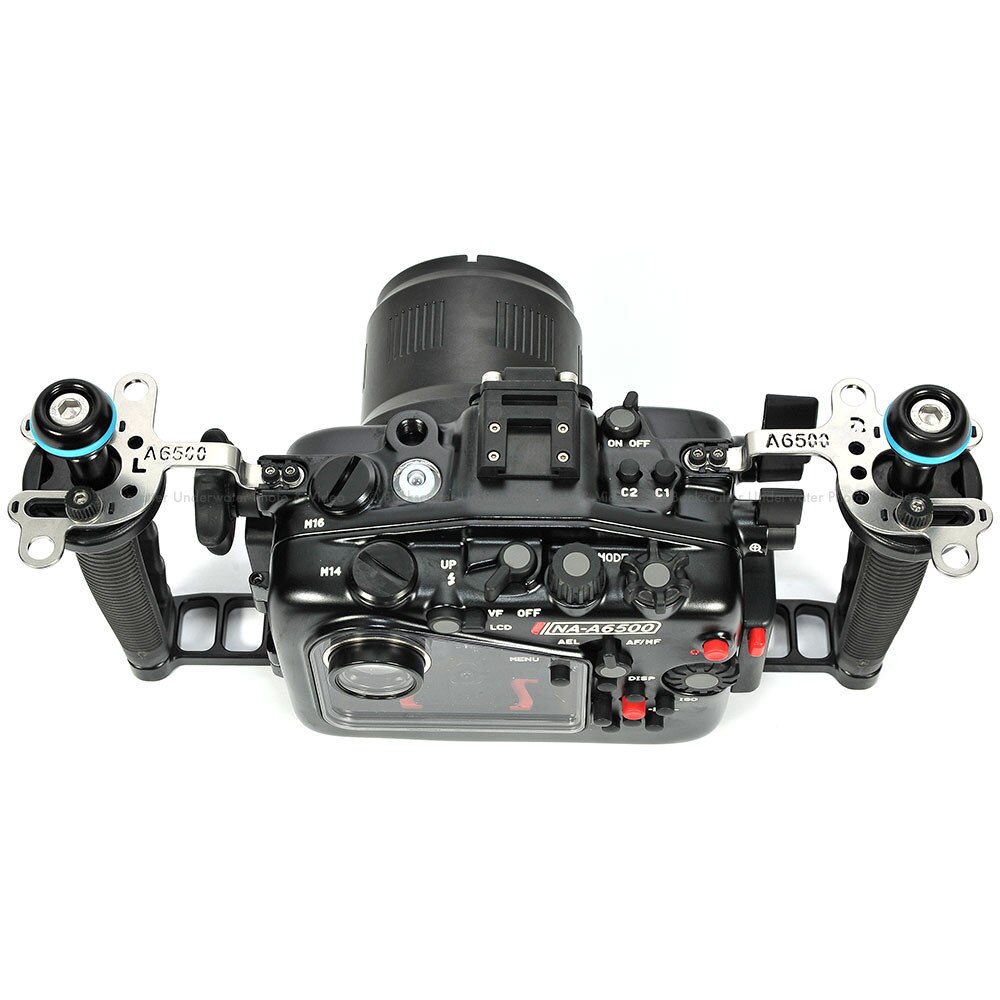

Stainless Steel Handle BracketsStiffening handle brackets are included with the housing, providing a solid wobble free attachment to the integrated tray and handle system. Multiple lanyard attachment points are included in the brackets.
Optional Angled LCDThe camera mounting tray allows the rear LCD screen to be positioned at a 15 deg angle. This small angle benefits low angle compositions where the camera is below the diver, and is also useful for snorkeling / surface imaging.

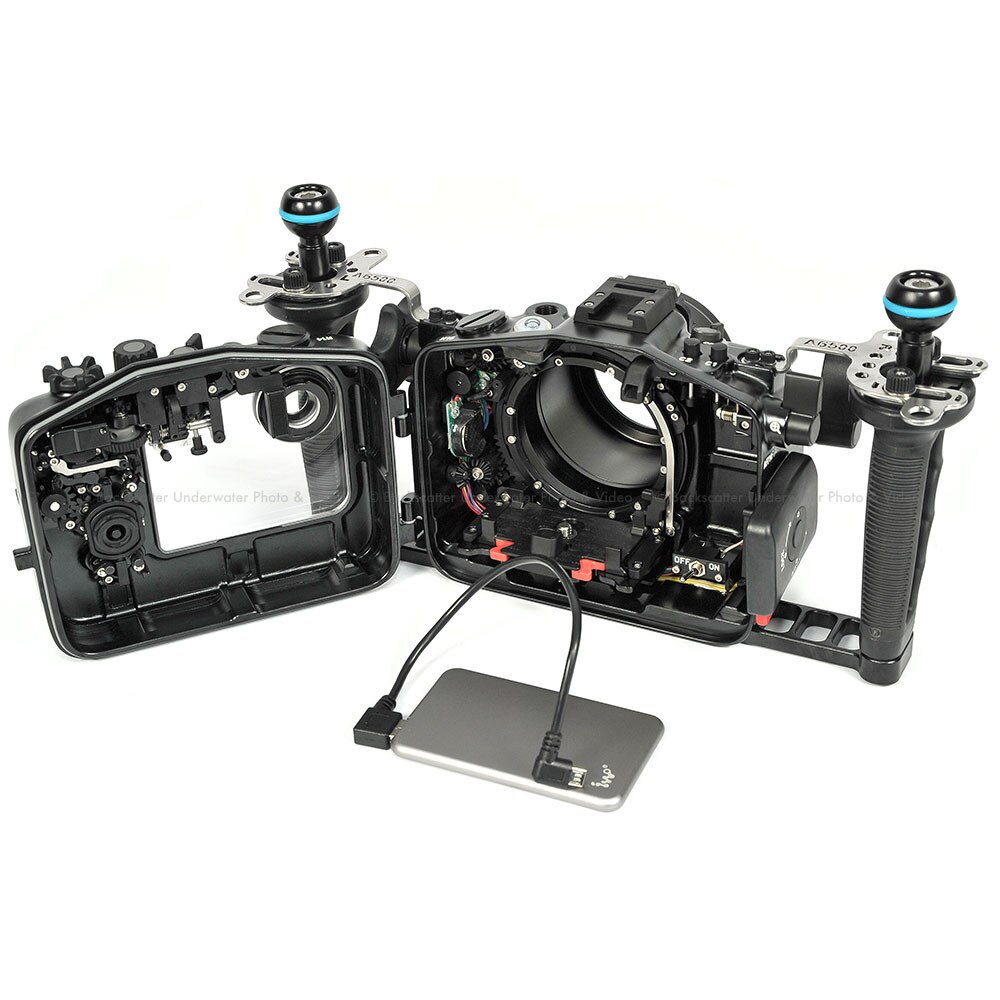

Battery Pack for NA-6500 Housing (2500mAh, inc. USB cable) (36331)A new accessory battery pack has been released along with NA-A6500! This larger capacity battery provides 2.5x the power of a single Sony NP-F50 battery pack, and slides conveniently into the underwater housing below the camera mounting plate.
This accessory benefits all users, greatly extending the time between battery swaps, and allowing the housing to remain sealed between dives.
WWL-1, CMC-1, and CMC-2Three in house Nauticam optical designs, designed by founder and Managing Director Edward Lai, are the perfect lenses to complete an a6500 underwater system. The magic of the wet lenses is their tremendous versatility, paired with outstanding in water performance. Both macro and super wide angle optics are available to the underwater photographer on the same dive. These lenses are completely engineered for use in water, providing the highest image quality available today in a wet mount optic.
WWL-1 is a wide angle conversion lens, compatible with several lenses in the Sony system. The field of view is widest when paired with the Sigma 19mm f2.8 DN Lens, providing 130 degree diagonal field of view. WWL-1 is also an ideal match for the Sony E 16-50mm F3.5-5.6 PZ OSS lens providing over 100 degree diagonal field of view with full zoom through! With either lens on camera, class leading center sharpness, corner sharpness, and contrast result in the clearest wide angle images possible underwater.
CMC-1 and CMC-2 provide the best macro performance available, with two different magnification strengths, suitable for a wide variety of macro subjects. With the popular Sony E 16-50mm F3.5-5.6 PZ OSS lens, CMC-1 is capable of capturing a macro frame 26mm wide, while CMC-2 captures a area 33mm wide. CMC-2 is less strong, making it easier to use with more accurate autofocus. CMC-1 is best suited for the smallest of macro subjects. Macro enthusiasts will surely want both!
Viewfinder OptionsA clear view for fine focus and composition is critical for successful underwater photography, and nothing beats a magnifying viewfinder. These viewfinders use distance, not close-up vision, and provide a large, clear view of the high resolution Sony electronic viewfinder. Available in angled 45° (PN 32205) and Straight (PN 32204) formats, both viewfinders have external dioptric adjustments for dialing in perfect correction matched to the photographers eyesight.
45° and 180° Magnifying Viewfinders provide a large, clear, corner-corner view of the Sony 2.36m dot OLED Electronic Viewfinder.
Integrated Vacuum Check and Leak Detection SystemThe Nauticam vacuum check and leak detection system is available with NA-A6500 as standard equipment. Combined with an optional vacuum valve (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.
Flash Connectors for Inon S-TTL, Sea & Sea DS-TTLReliable automatic flash exposure is available with the NA-A6500 and a variety of optically fired flashes. The Inon Z-240, D-2000, S-2000, and Sea & Sea YS-D1/YS-D2 strobes provide automated lighting, precisely reproducing the cameras onboard flash at a proportionally greater intensity. This system yields accurate automatic TTL flash performance even in manual mode - with no electrical sync cables to flood! The NA-A6500 comes fiber optic ready and accepts standard Sea & Sea style bushing connections. Nauticam Fiber Optic cables, available for both Inon and Sea & Sea strobes, provide the best light transmission and therefore more accurate TTL of any fiber optic cable on the market.
Strobes and light arms can be attached to the housing via included 1 accessory mounting balls. The housing also features a cold-shoe and M10 threaded mount for a focus light or other accessories.
Electrical strobe triggering (with power set manually on the flash head) is still an option for those with an investment in legacy lighting gear, requiring the purchase of an accessory electrical bulkhead.
- WWL-1 (83201)
- CMC-1 (81301)
- CMC-2 (81302)
- M67 to Bayonet Mount Converter (83213)
- 180° Enhancing Viewfinder for MIL Housings (32204)
- 45° Enhancing Viewfinder for MIL Housings (32205)
- Battery Pack for NA-6500 Housing (2500mAh, inc. USB cable) (36331)
- M14 Vacuum Valve II (25624)
- HDMI Out for External Monitors (25028+25032+25046)
- Nauticam Nikonos 5 Pin Bulkhead With Universal Hotshoe (25056)
- Complete line of flat/dome ports for all major lenses, available in acrylic and glass
- Fiber optic cables for Inon (26214) and Sea&Sea (26215)
- Full line of mounting accessories for lighting, including mount balls, strobe adapters, arms, clamps, and specialty items
- Multiple styles of lanyards
- Lens holders, including flip-up
- Replacement Housing O-Ring
Details and Specifications
- Depth Rating: 100m
- Weight: 1.56 kg (including handles and strobe mounting balls)
- Dimensions with Handles: (306mm x 168mm x 100mm W x H x D)
- Dimensions without Handles: 198 mm x 138mm x 100mm (W x H x D)
