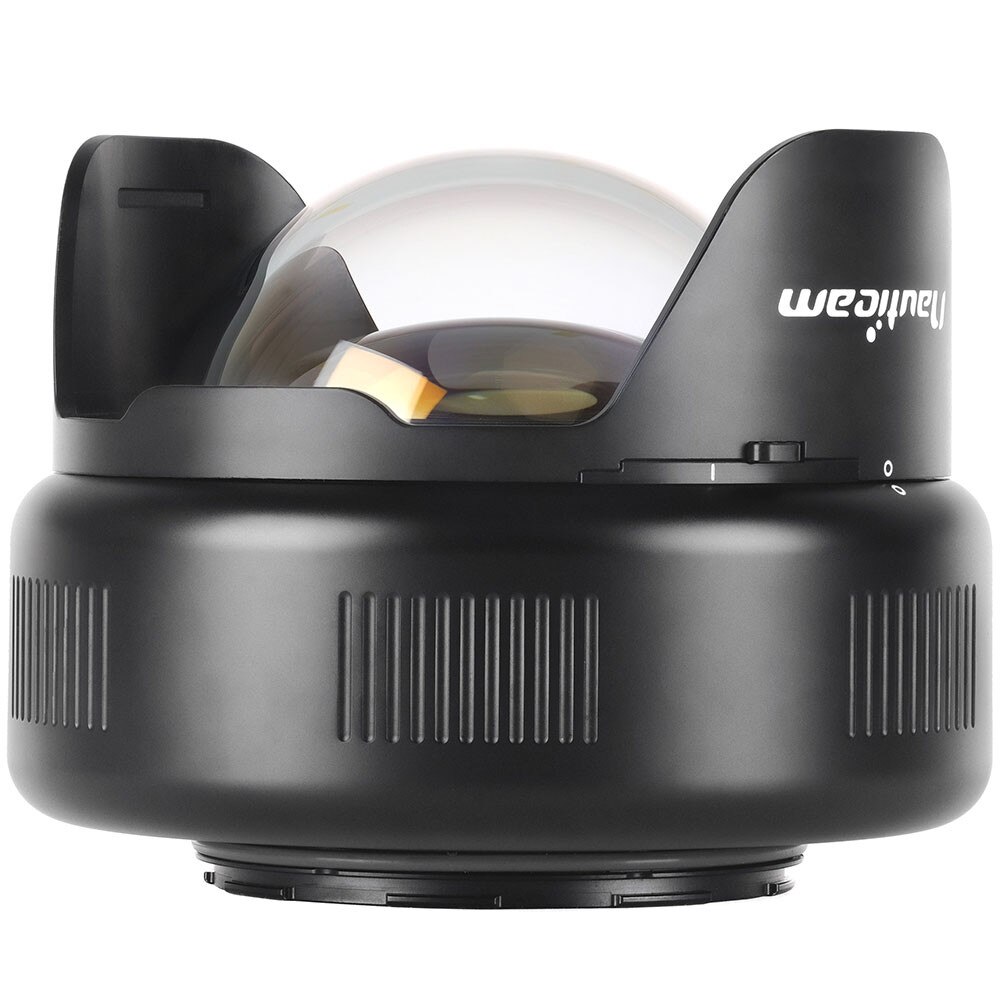

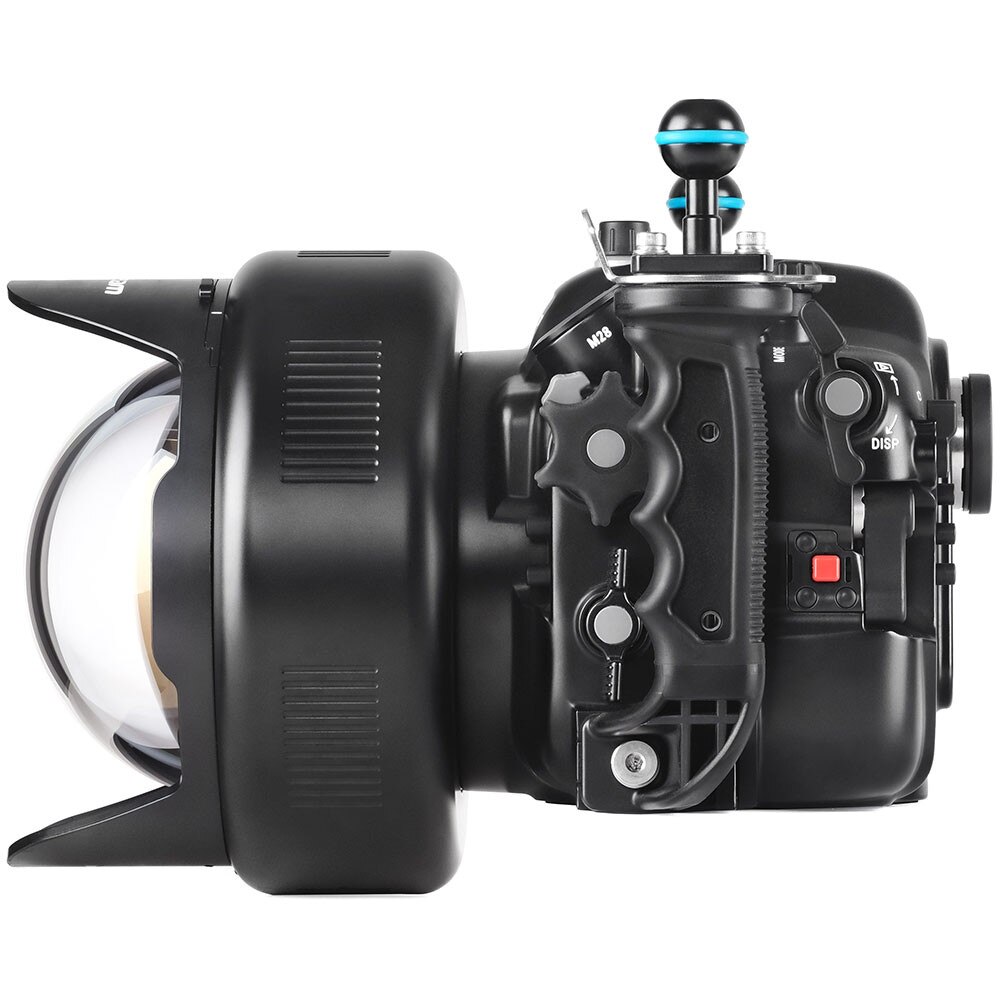

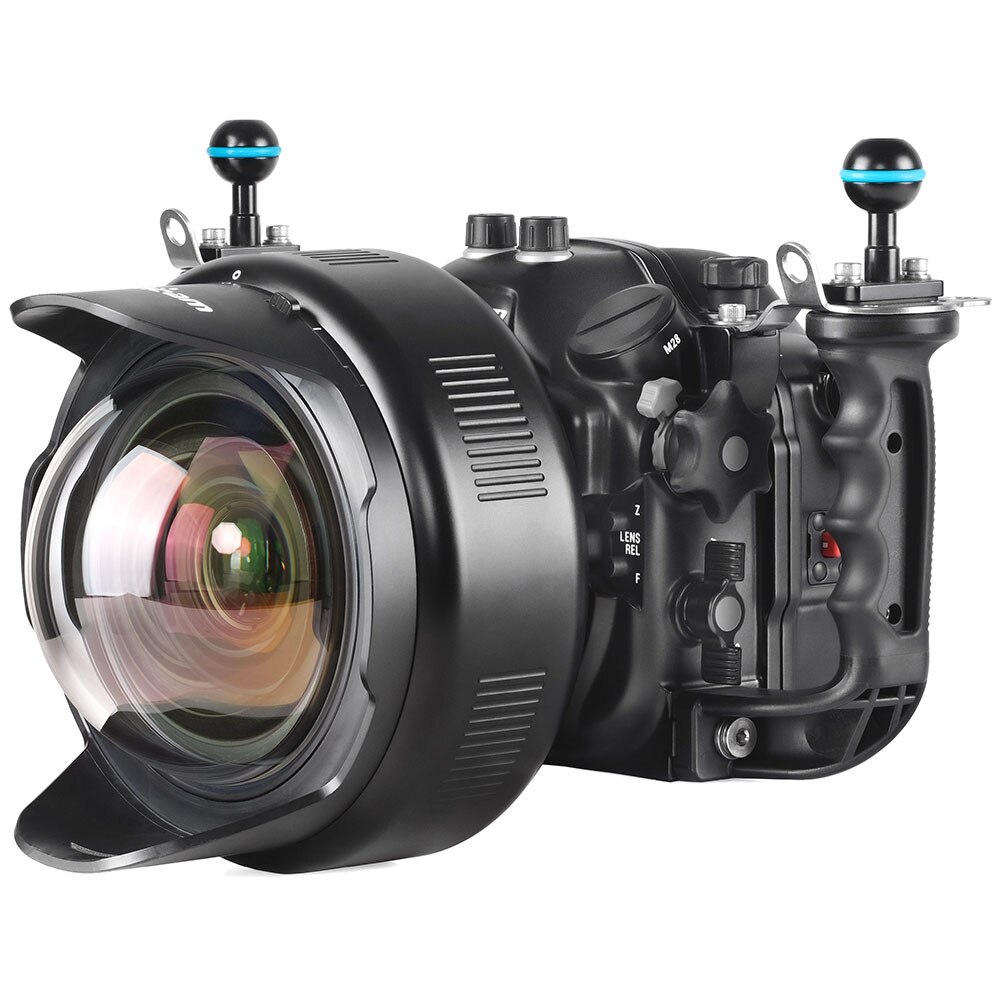

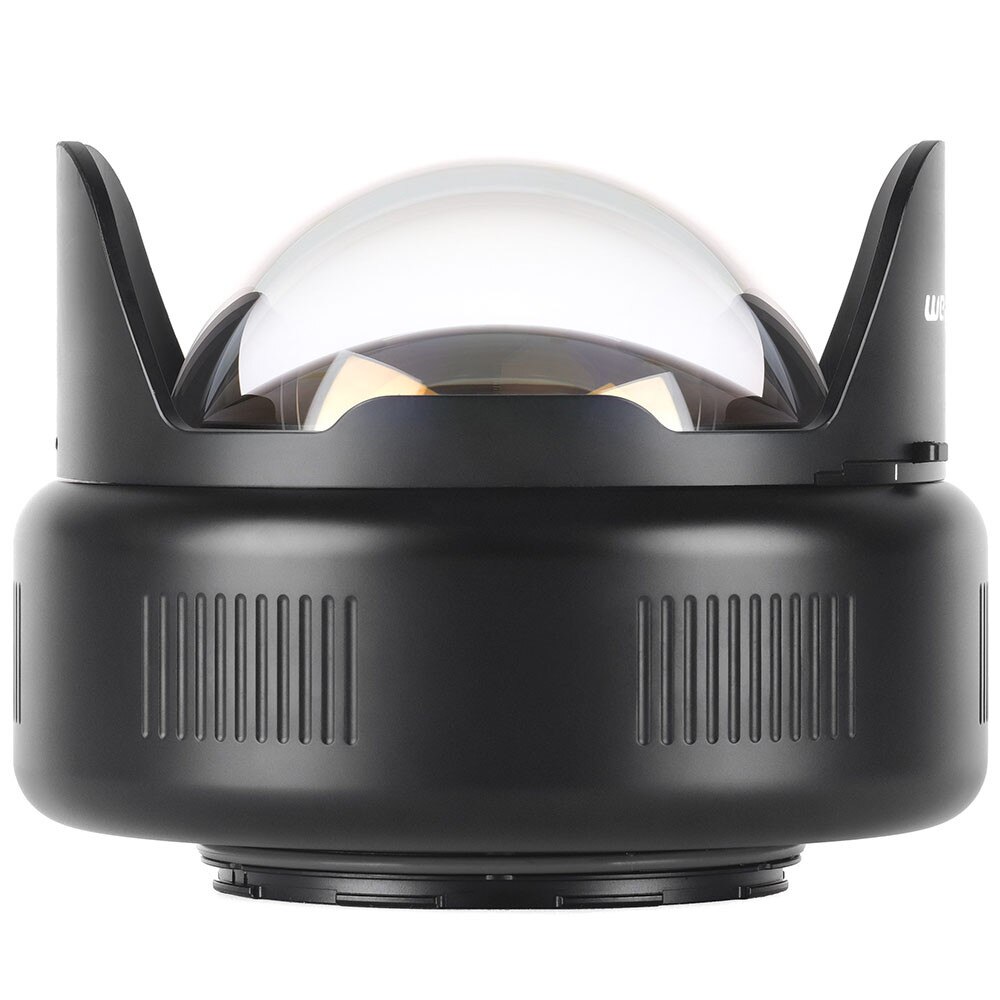

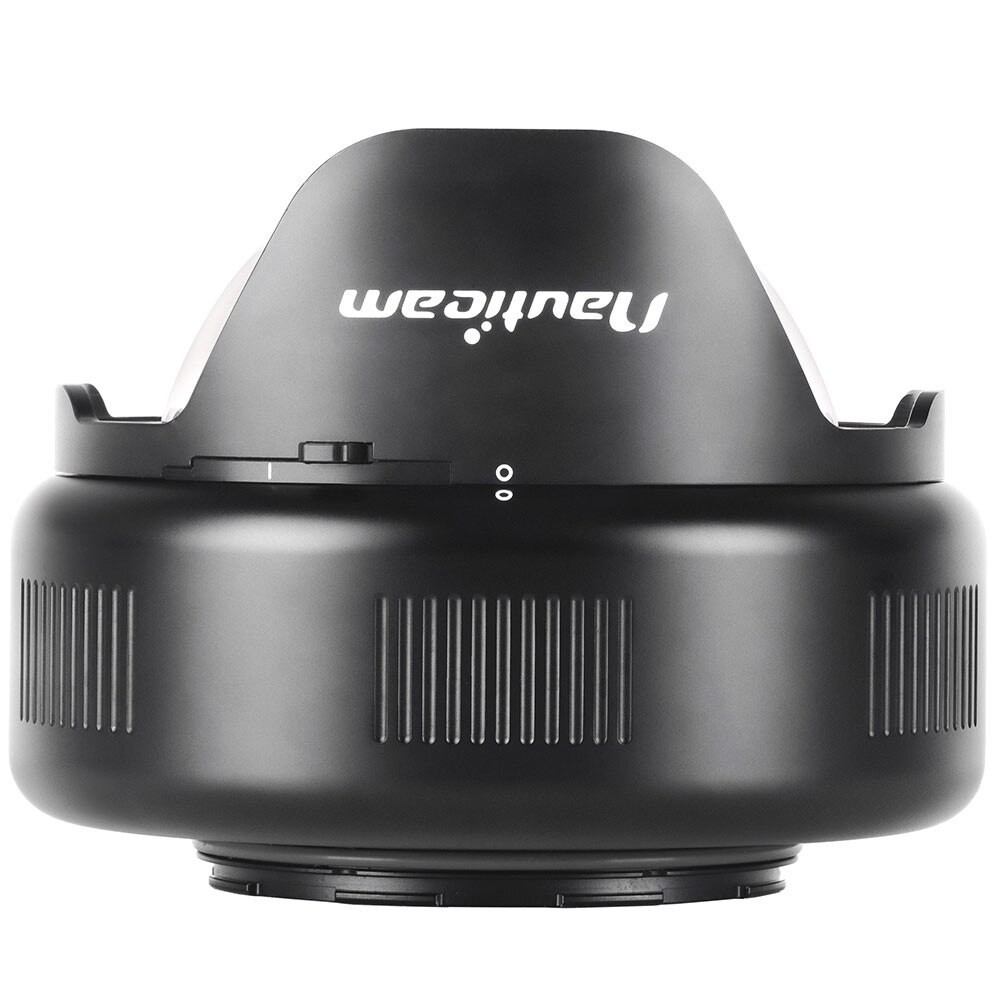

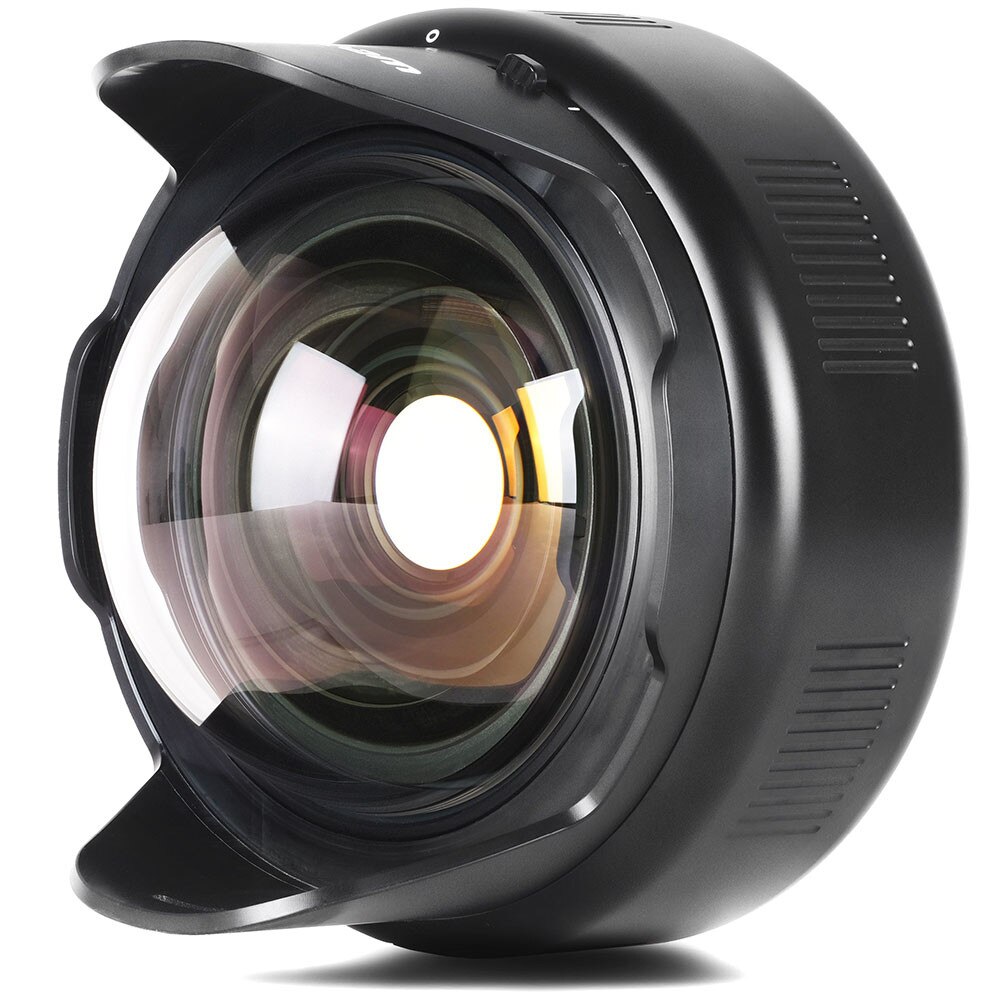

Nauticam FCP-1 N120 / N100 Fisheye Conversion Port Underwater Lens Port

  • Nauticam N120 & N100 Port System
  • 170° Field of View
  • Designed for 28mm Lenses
  • Buoyancy in water: Negative 0.4kg / 0.9lbs
  • Designed for Nikon, Canon, Sony, and Super35 Cinema Systems
  • Depth Rating: 100m / 330ft

SKU: # na-85207

FREE Standard Shipping to USA / Canada!

Price $7,500.00
Back

Overview / Product Description

Nauticam N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses



INTRODUCING N120/N100 FISHEYE CONVERSION PORT WITH INTEGRATED FLOAT COLLAR (FCP) 170 DEG. FOV WITH COMPATIBLE 28MM LENSES

FOCUS

Much like most of Nauticam's Water Contact Optics, the FCP-1 can focus from its front element to infinity in water, allowing for extremely close-focus fisheye shooting. Depending on your lens choice, you will have a variety of field of view options when zooming through various focal lengths.

BUOYANCY COLLAR

An aluminum float collar is integrated into the FCP-1, bringing the in-water buoyancy to 0.4kg negative.

COMPATIBLE LENSES

The FCP-1 is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms, for Nikon, Canon, Sony, and Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations, as some lenses will require extension rings or adapters.

Included in the box:

  • FCP-1 with integrated Float Collar
  • Removable Shade
  • N120 port mount (pre-installed)
  • N100 port mount ring
  • Front hard lens cap
  • Rear lens caps
  • Padded carrying bag
  • 90140 N120 Port O-ring
  • 90141 N100 Port O-ring
  • Snap hook with lanyard
  • Clean cloth
  • Lubricant

Specifications

  • Outer Diameter x Length (port mount to front): DIA 198 x 136mm / 7.8 x 5.4in
  • Outer Diameter x Length (incl. front and rear cap): DIA 198 x 161mm / 7.8 x 6.6in
  • Weight in air: 3.2kg / 7lbs
  • Buoyancy in water: Negative 0.4kg / 0.9lbs
  • Body construction: Hard-anodized aluminum alloy
  • Lens construction: 6 elements in 5 groups
  • Lens coatings: Anti-corrosion Coating on the outside of the dome. Anti-reflection Coating on other surfaces
  • Focus distance: From front element to infinity
  • Maximum FOV (underwater): 170 Degrees (Ref. 28mm equivalent) - 180 Degrees circular fisheye (Ref 14mm equivalent. *Remove shade
  • Port Mount: N120/N100 Port Mount
  • Depth rating: 100m / 330ft
  • Pre-installed: Integrated aluminum float collar
