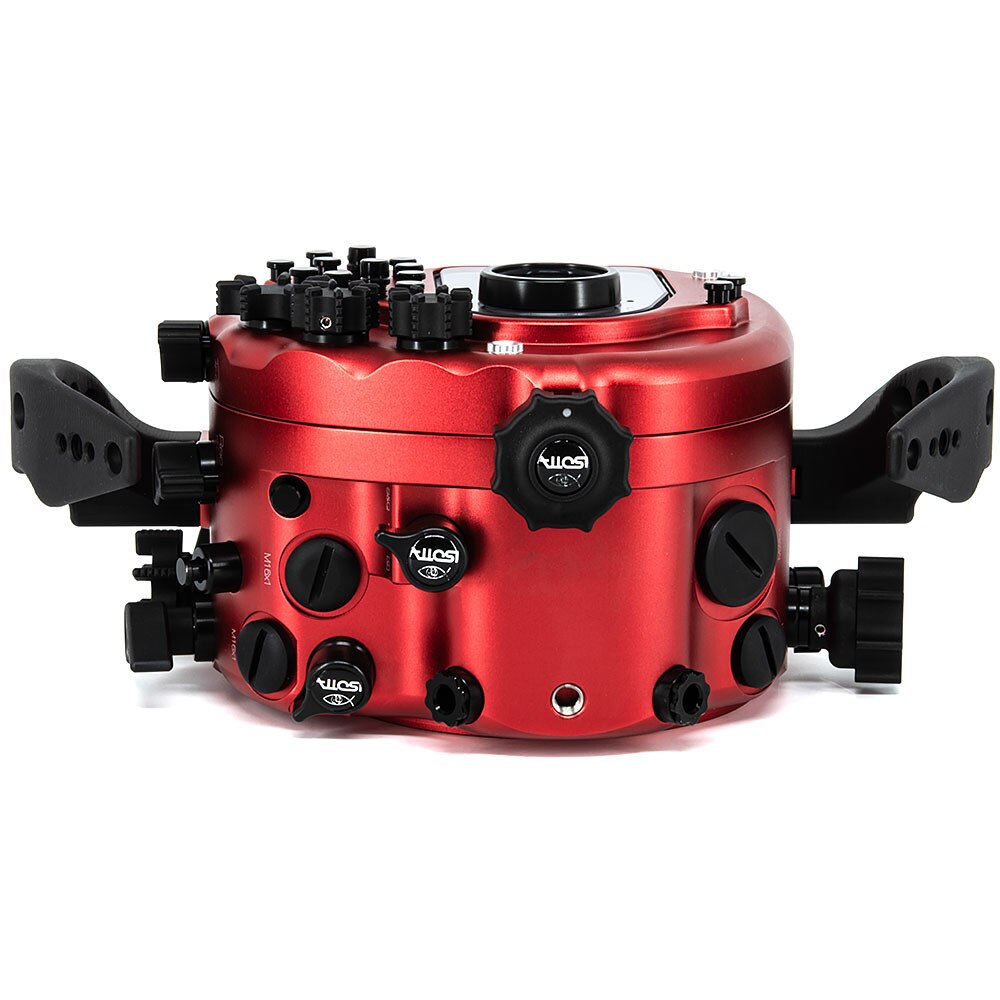

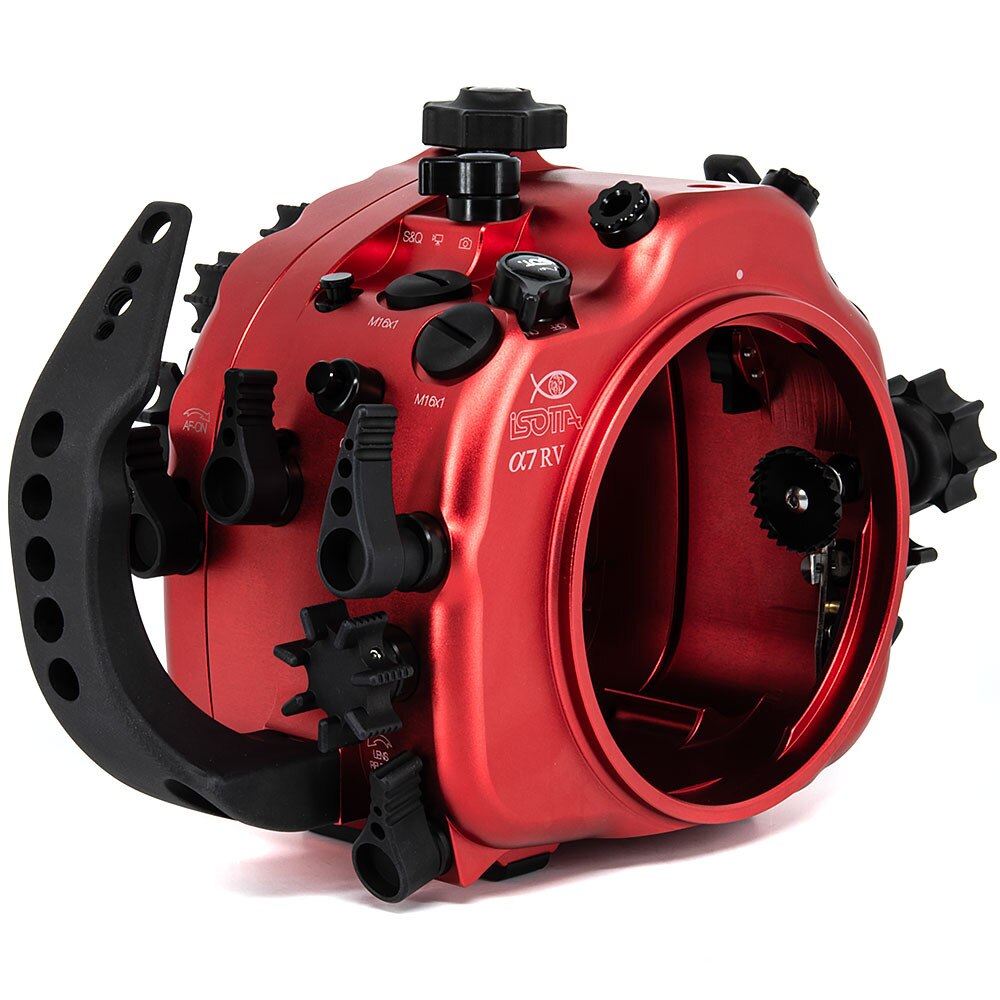

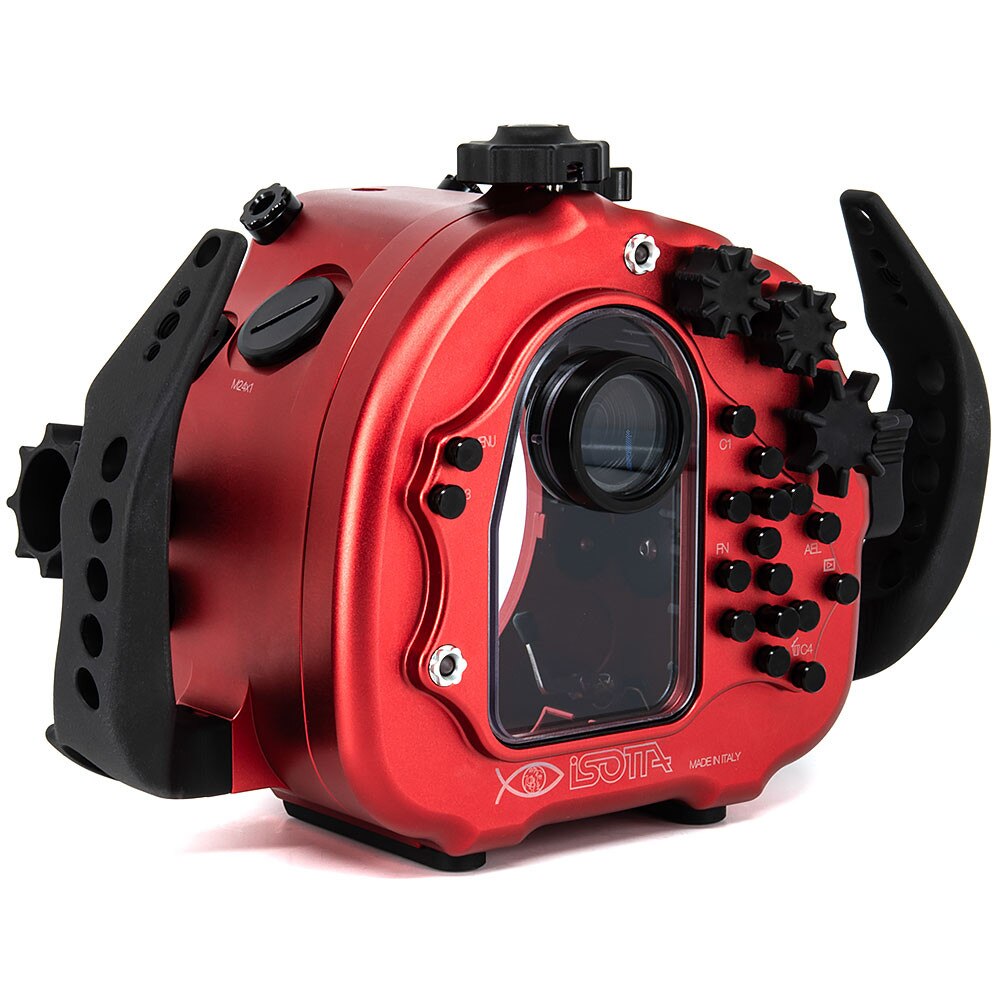

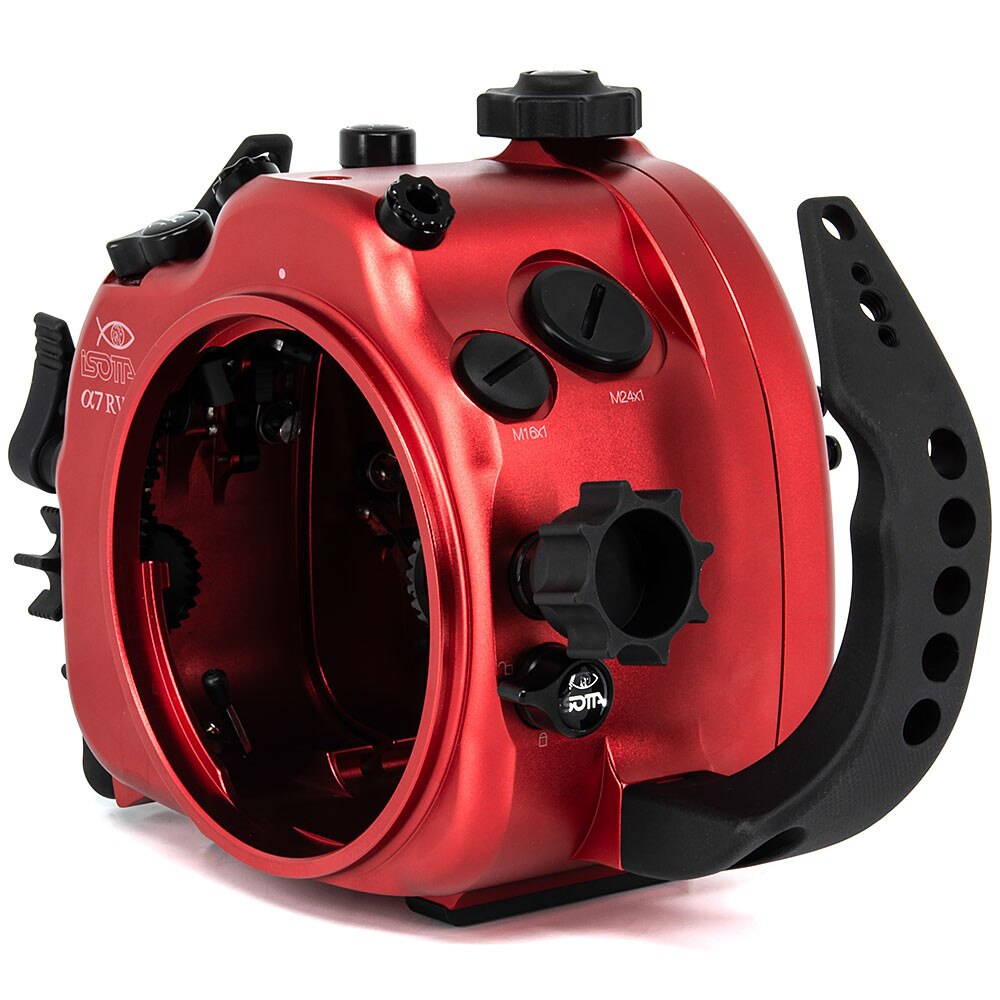

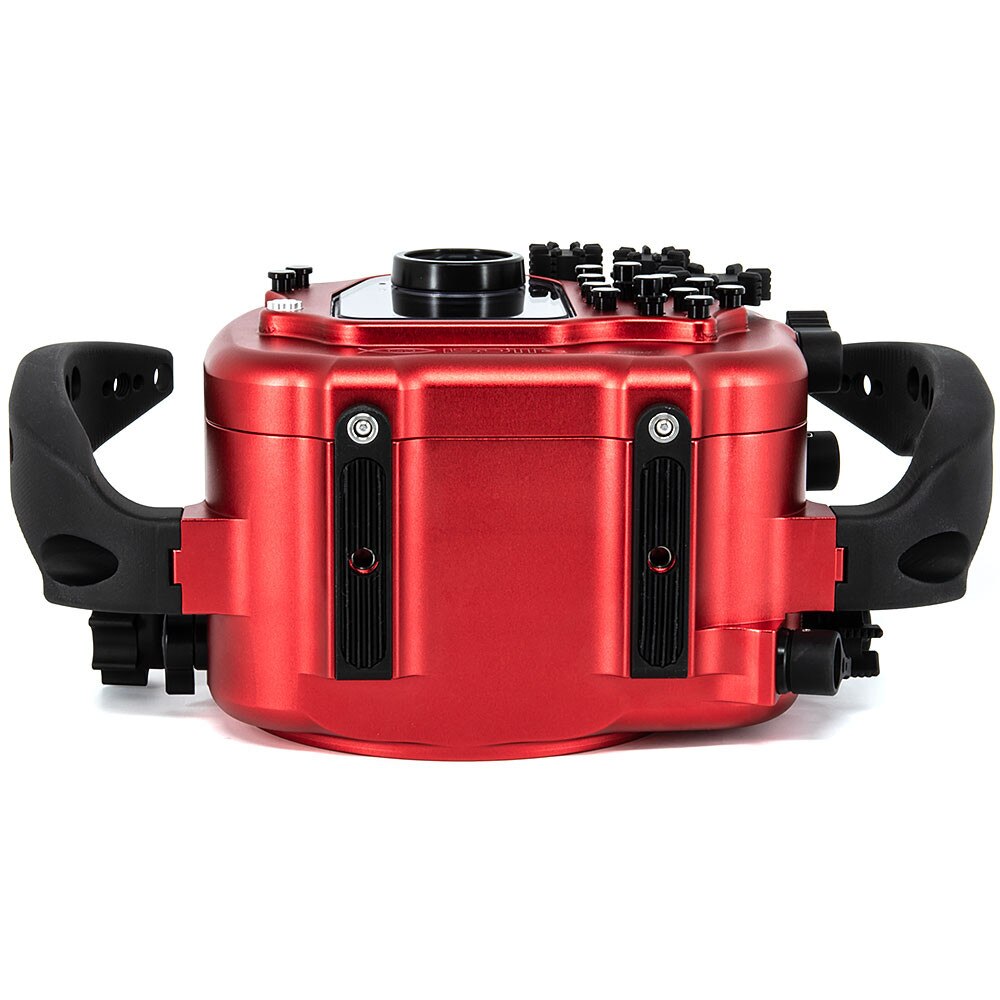

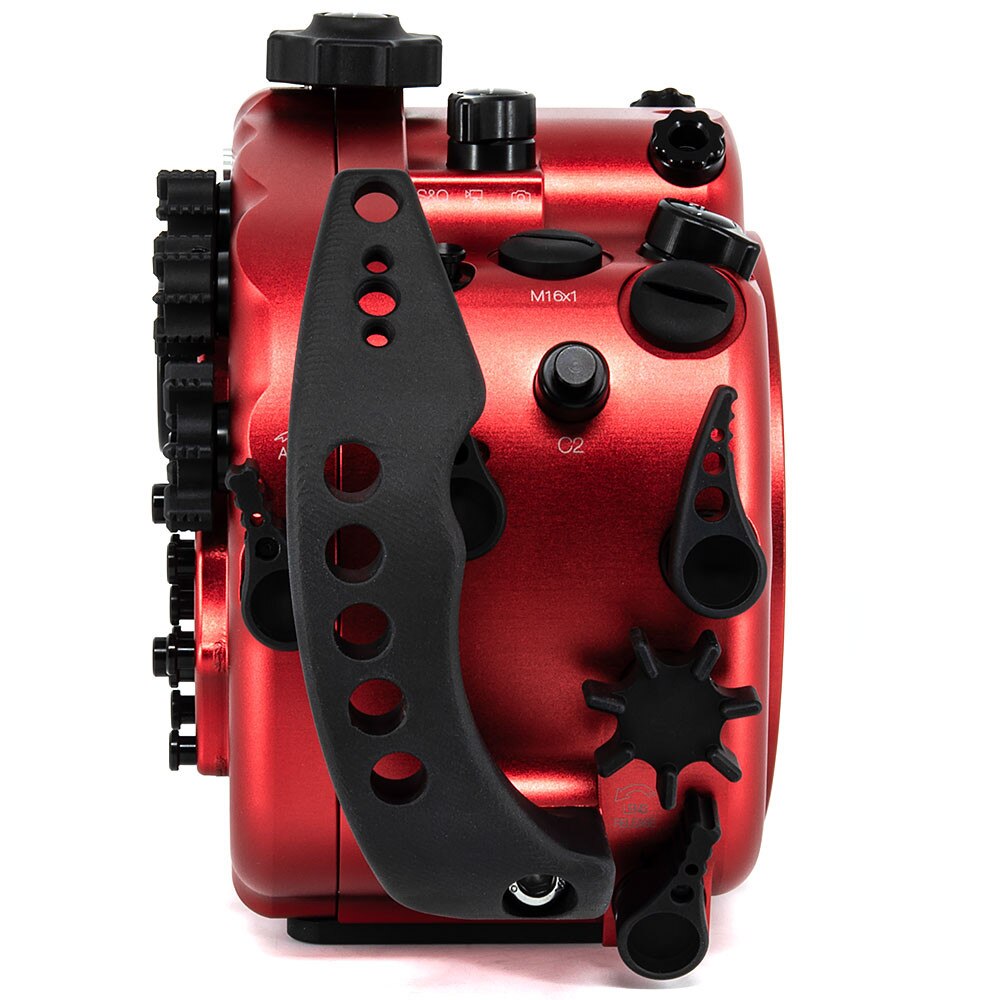

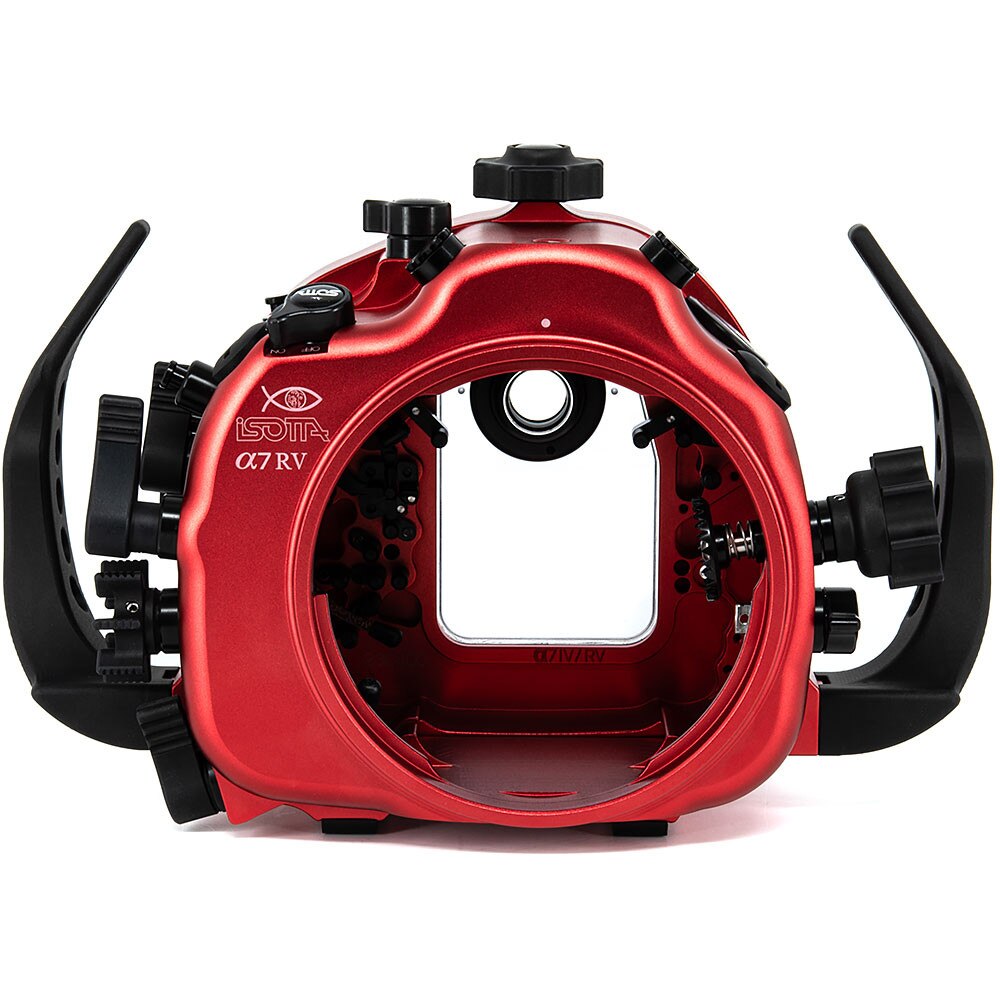

Isotta Sony a7 V & a7R V Underwater Housing

  • B120 Port System
  • 24mm Accessory Bulkhead
  • Double O-ring seals
  • One Hand Open/Close
  • Depth rated to 100m/330ft

SKU: # is-3965

Custom Options

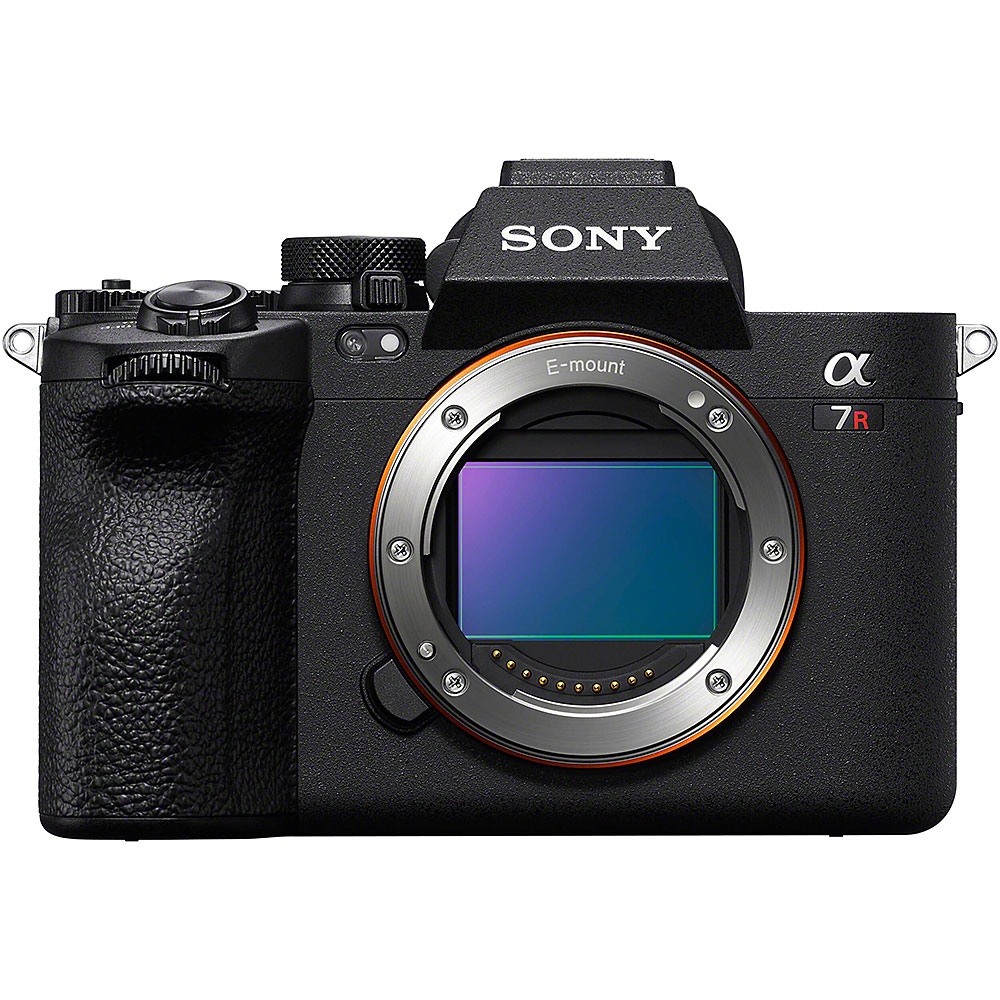

Add the Camera

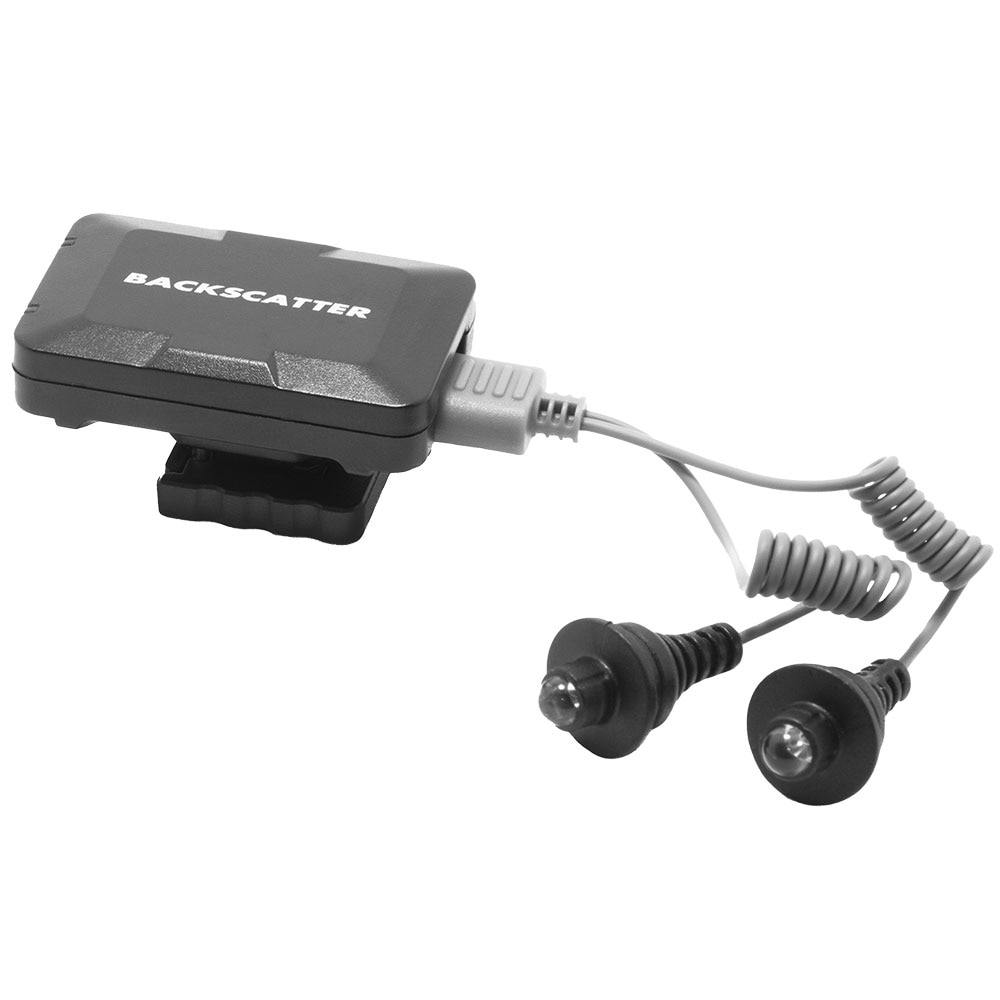

Add an LED Flash Trigger

To trigger strobes, you will need to add one of the flash-triggering options below.


Add a Vacuum System

Check that your system is watertight before you even get it wet!


Add an Expanded Viewfinder


Add 1-inch Ball Adapters


Price as Configured


Overview / Product Description

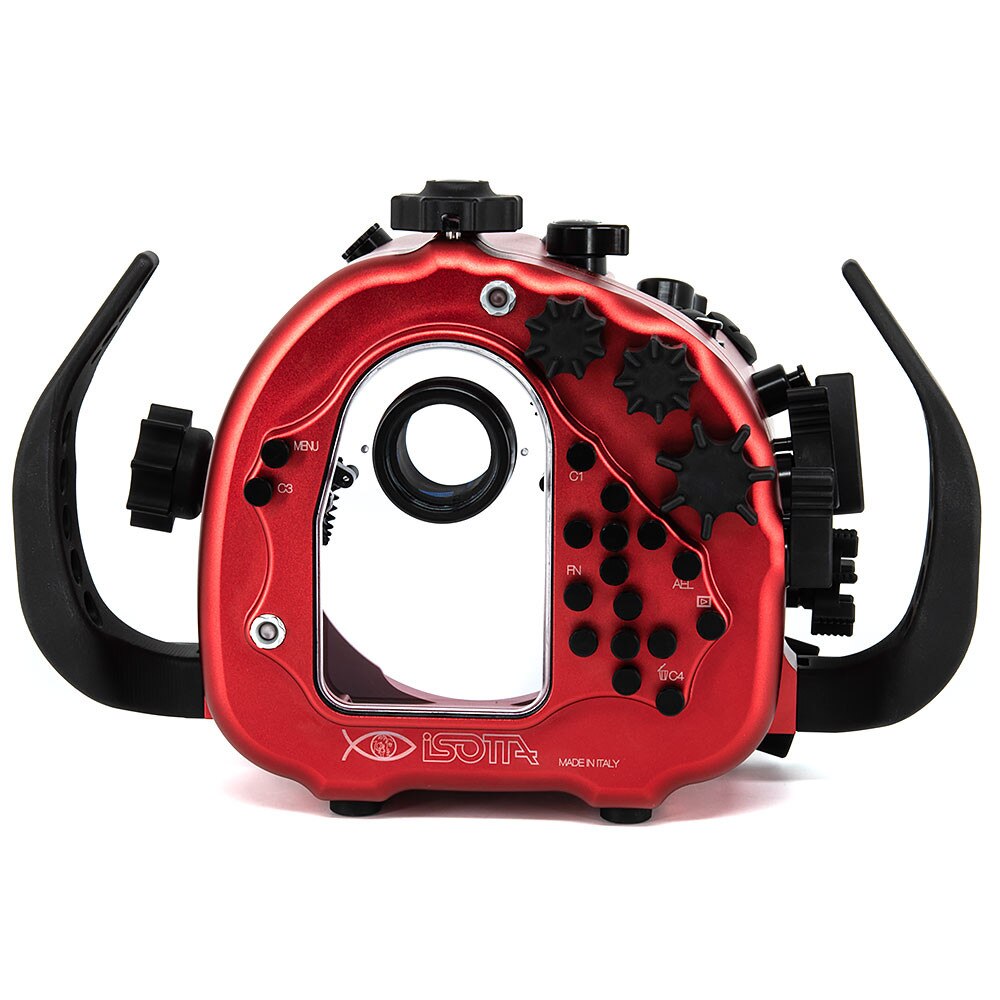

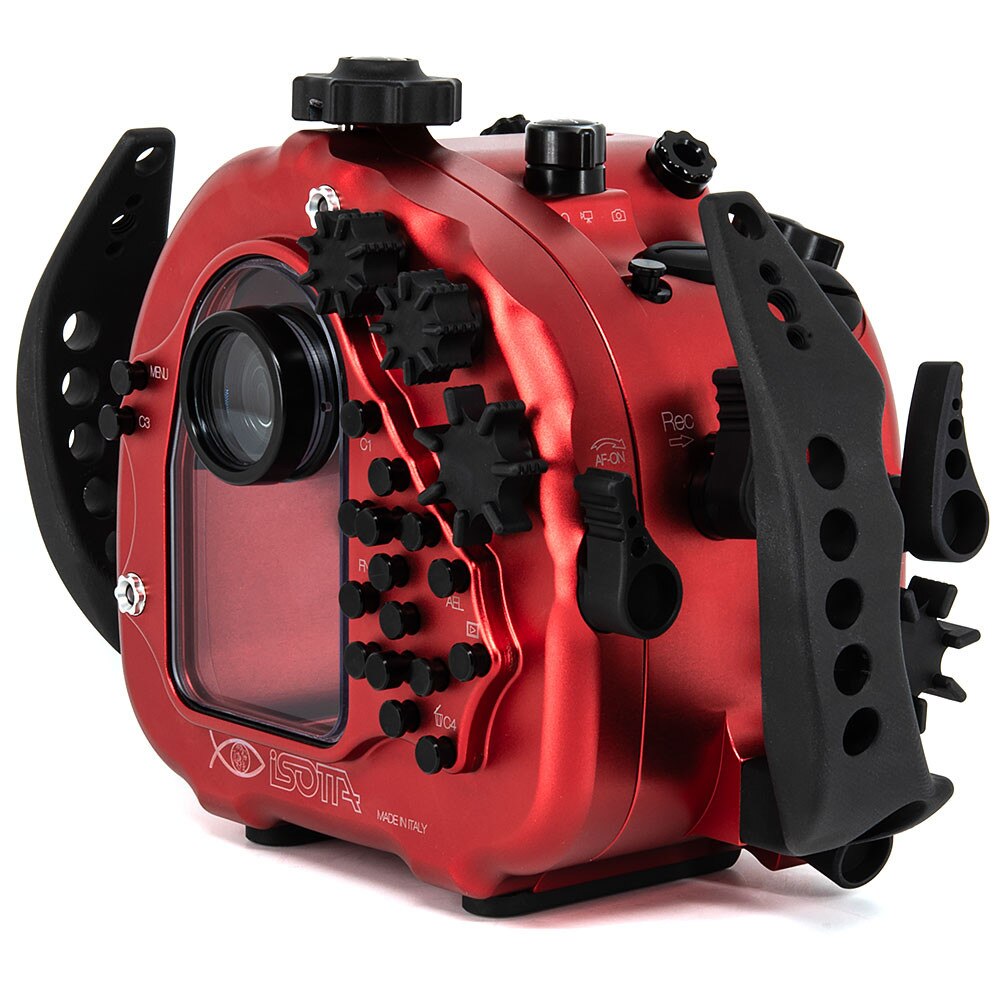

Isotta Sony a7 V & a7R V Underwater Housing


TECHNICAL DATA ALPHA 7R V HOUSING

COMMANDS

  • On and off lever of the della Sony Alpha 7R V
  • Ergonomic camera focusing and shutter lever, easy to use with gloves
  • Lens release lever
  • Front dial
  • C1 button
  • C2 button
  • C3 button
  • C4/Delete button
  • Mode dial
  • Still/Movie/S&Q lever
  • Zoom knob
  • Port safety lever
  • Movie lever (REC)
  • AF-ON lever
  • Rear dial L
  • Rear dial R
  • Lock button rear dial R
  • Menu button
  • AEL button
  • Multi-selector
  • Playback button
  • Control wheel buttons
  • Fn button


WHAT IS INCLUDED

  • Housing
  • Front lid
  • Handles
  • ISOTTA standard viewfinder
  • Moisture sensor
  • Fiber optic connections (to shoot it needs an additional trigger)
  • Spare o-ring kit
  • Silicone grease 15gr/0,5 oz
  • 2 years manufacturer warranty


TECHNICAL DATA

  • Red color anodized aluminum body
  • Ergonomic side handles, adjustable (via optional accessory)
  • Two fiber optic connections standard (to shoot it needs an additional trigger)

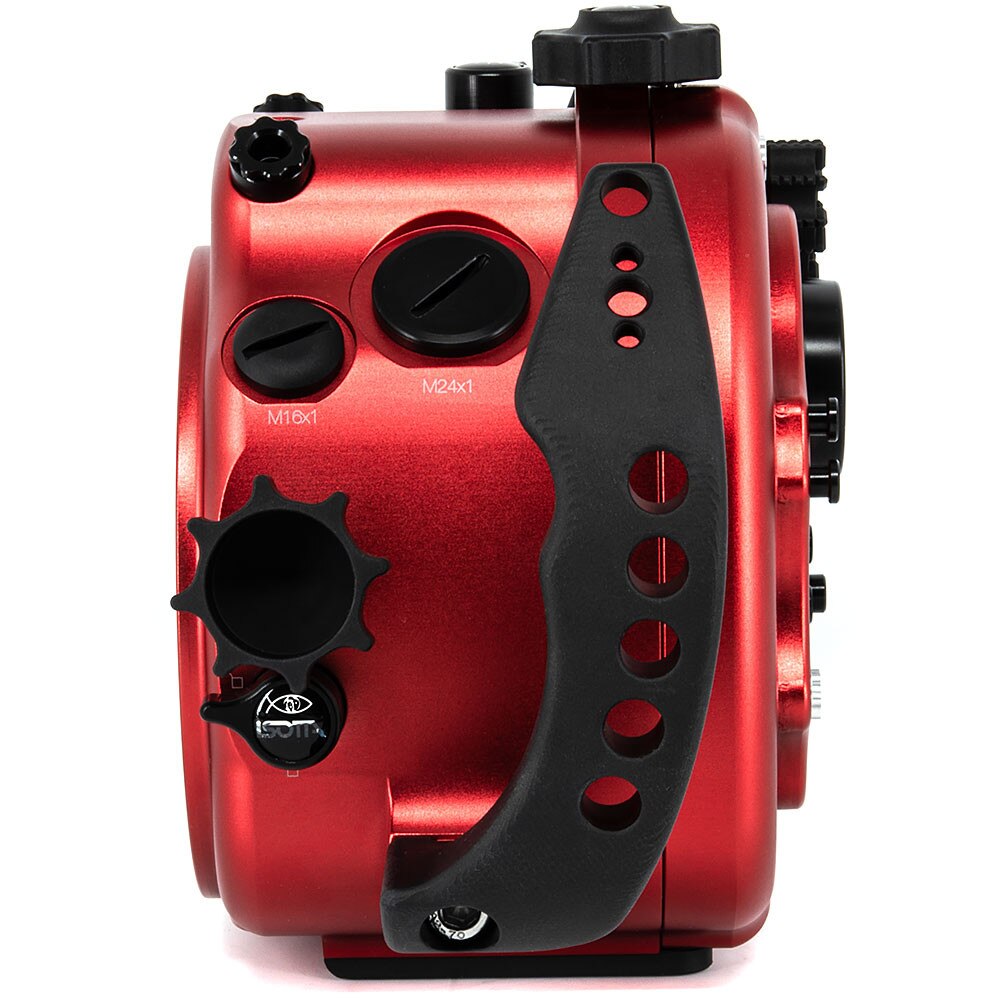

  • Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
  • Back housing completely detachable from the front housing
  • Tray with lock for the easy insertion of the camera
  • Single-hand closing knob for the back of the housing
  • Aluminum buttons and dials with engraved symbols identical to camera controls
  • Wide back display viewfinder glass
  • Double O-Ring seals on all buttons and removable parts
  • Moisture sensor with LED indicator (replaceable battery)
  • Designed for the ISOTTA Vacuum System
  • Removable port 120 mm bayonet
  • Ports security latch to prevent accidental opening
  • Wide, rubber covered feet for solid footing on boat floors or sea floor
  • M8 hole located on upper side of the housing for various accessories such as focus lights
  • Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
  • External viewfinders can be mounted, INON X-2 compatible
  • Sizes (LxHxP): 281.6x185.3x126.9
  • Depth rated to 100 metres


SPARE PARTS

  • TBD - Maintenance o-ring set for Sony Alpha 7R V housing
  • 1895 - Housing front lid


OPTIONAL

  • Trigger
  • Nikonos 5 bulkhead
  • S6 bulkhead
  • Handles extension
