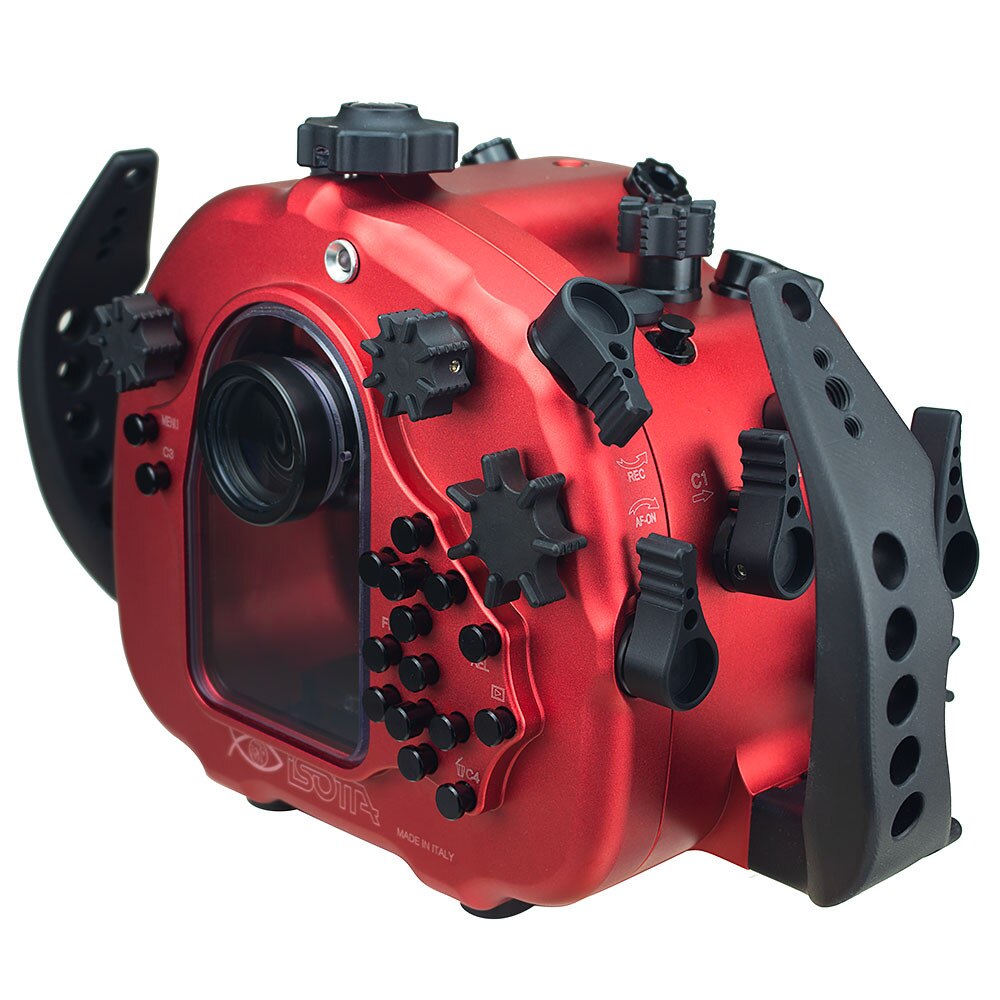

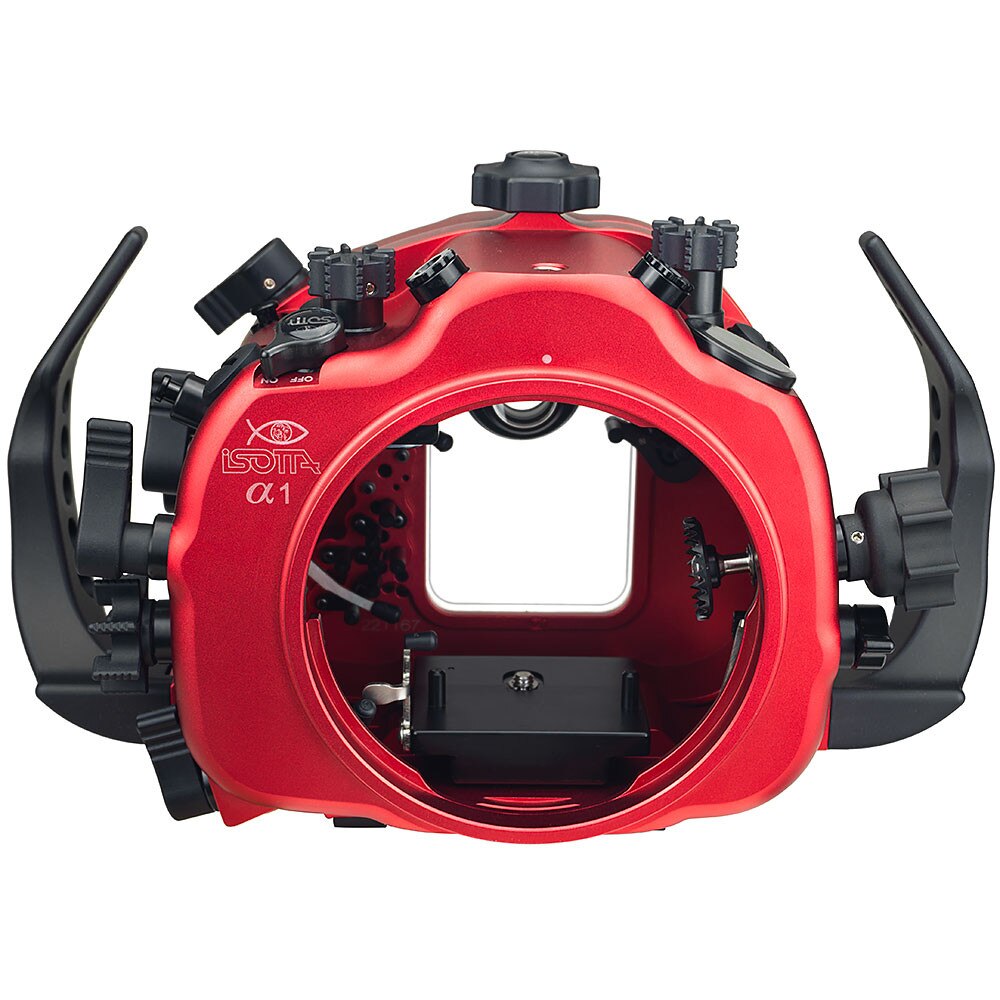

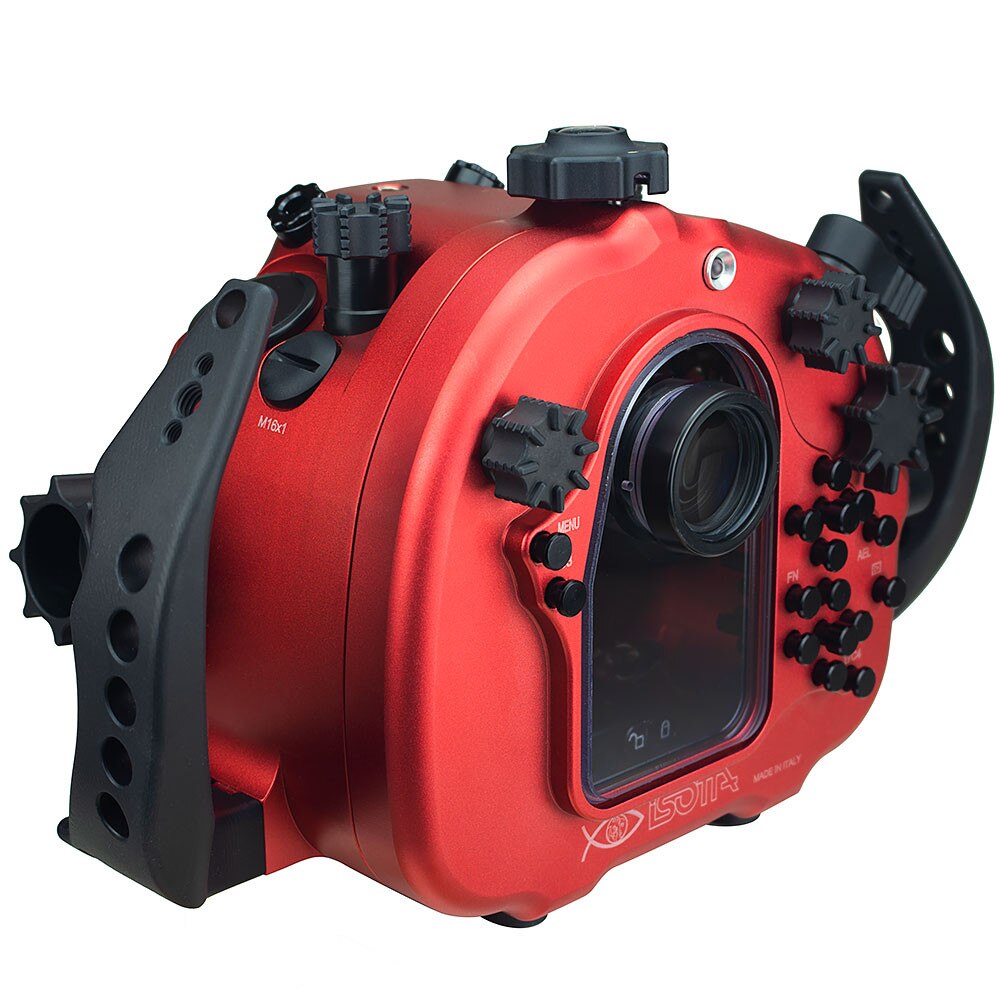

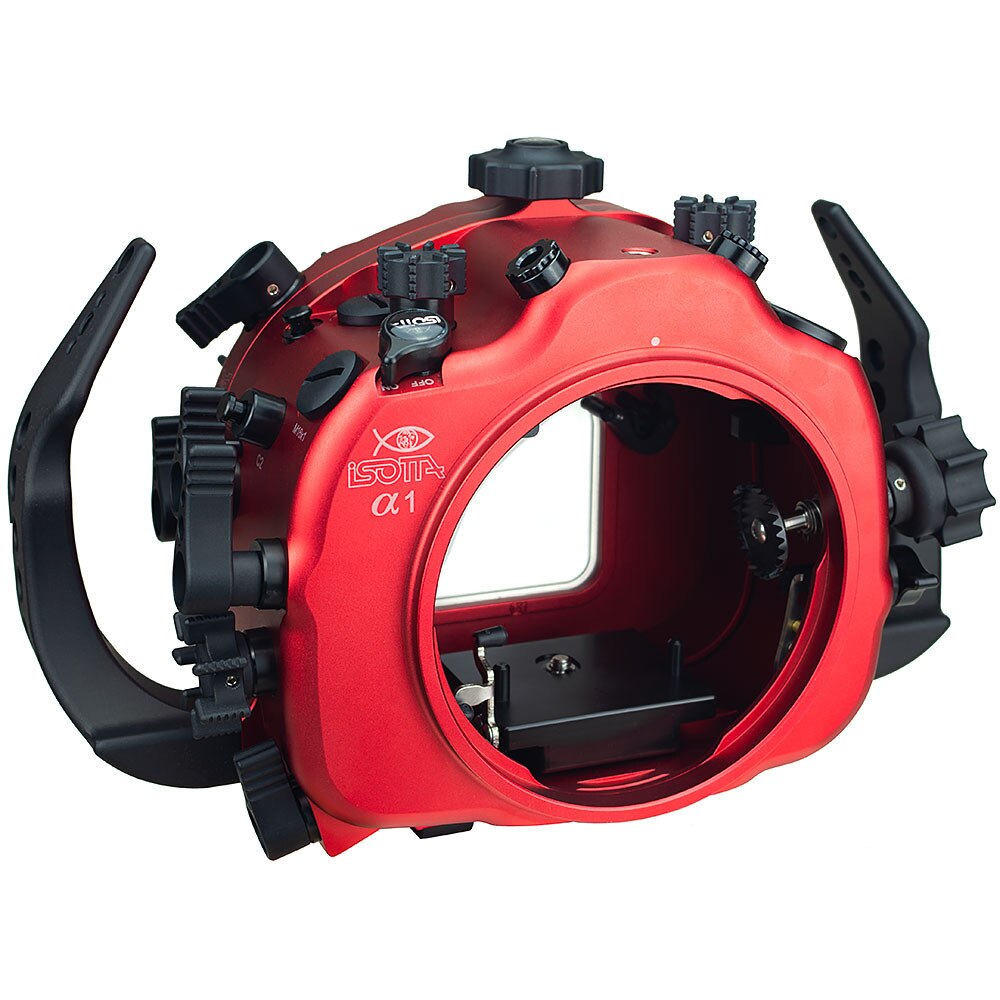

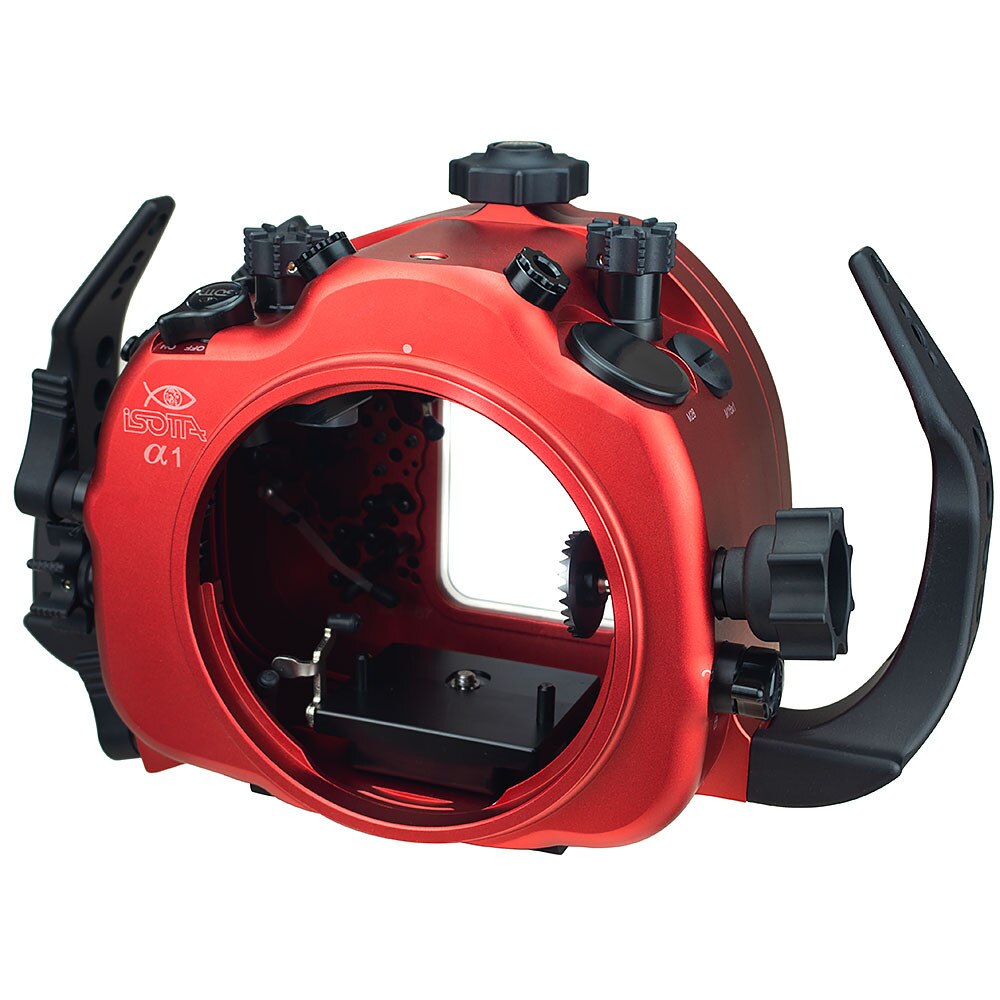

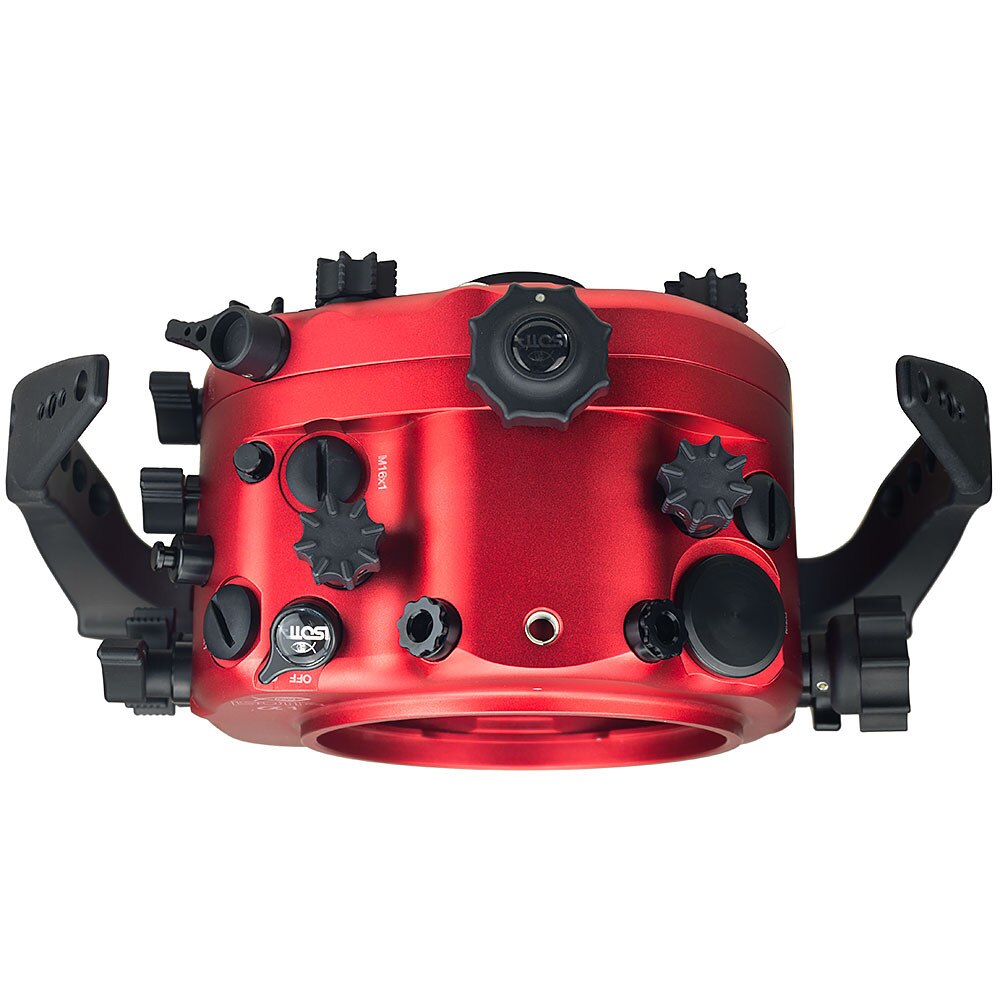

Isotta Sony Alpha 1 Underwater Housing

Controls

• On and off lever on the Sony Alpha 1
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Aperture knob
• C1 lever
• C2 button
• Mode knob
• Focus selector knob
• Zoom knob
• Port safety lever
• REC lever
• AF-ON lever
• Multi-shot selector knob
• Shutter speed knob
• Exposure knob
• Lock/unlock exposure dial button

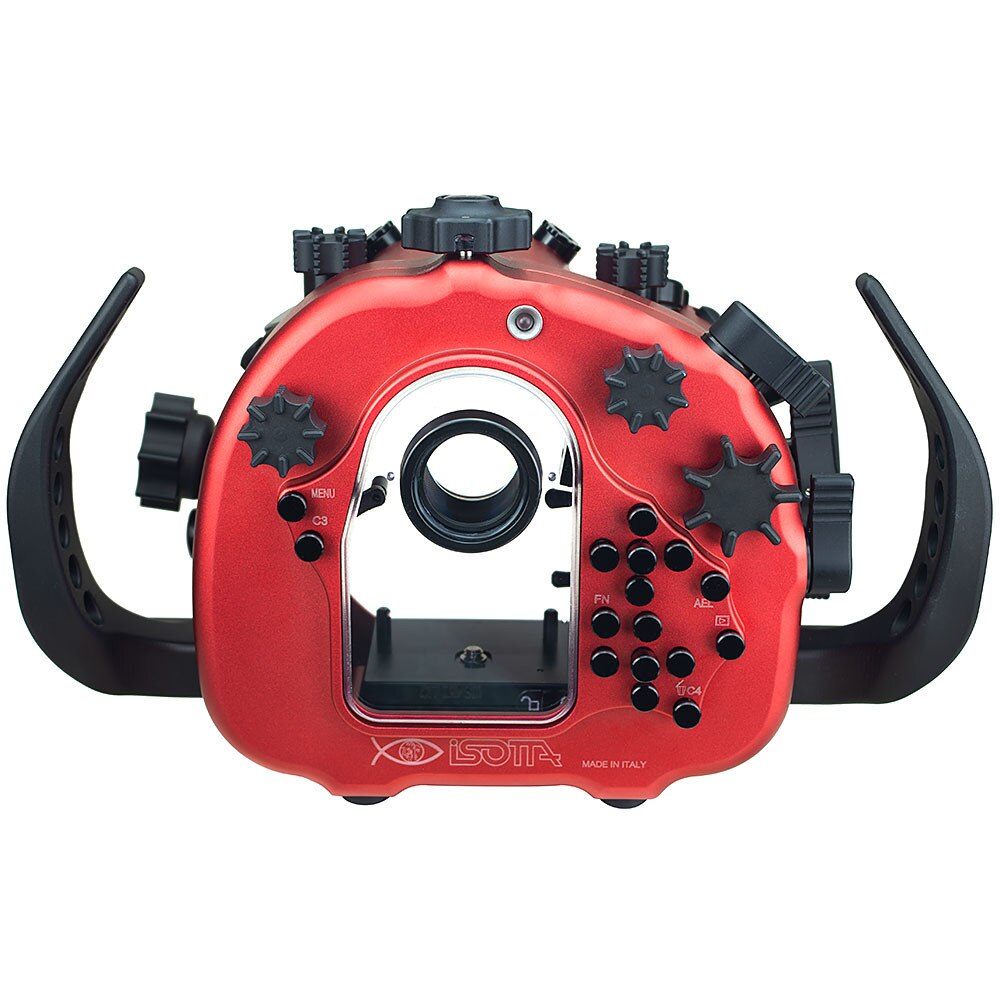

• The rear control panel of the camera

What's included

• Housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections:
• Spare o-ring kit
• Silicone grease 15gr / 0,5 oz
• 2 years manufacturer warranty

Technical data

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard
• *

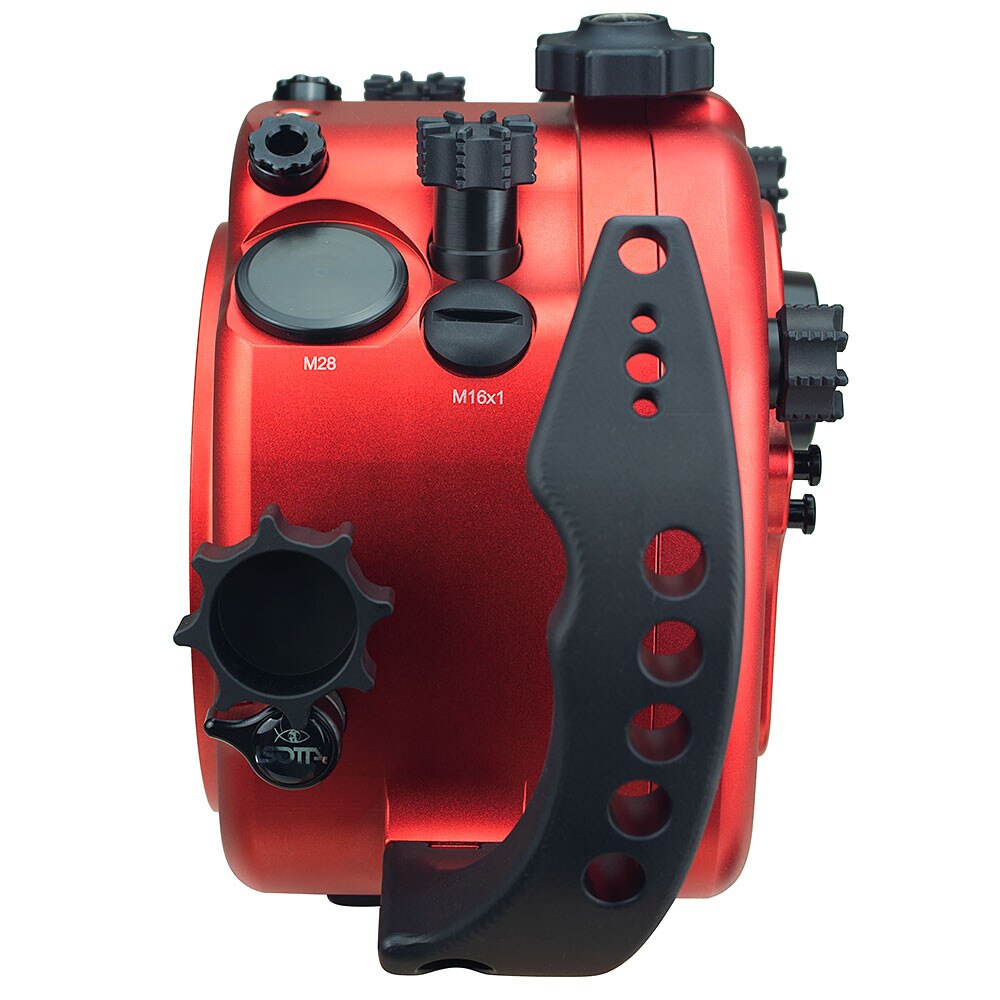

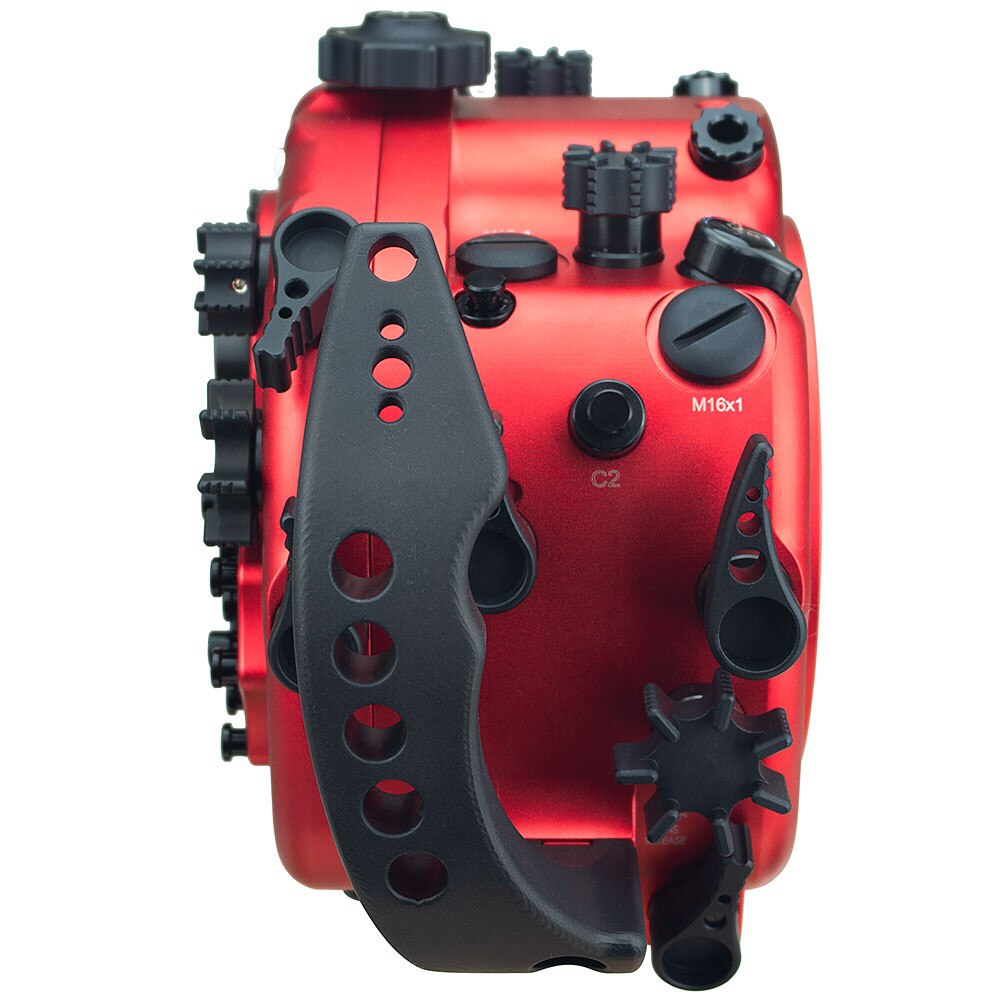

• Two M16 holes and one M28 for installation of accessories, e.g. sync cords, vacuum valves, monitors
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port 120 mm bayonet
• Ports security latch to prevent accidental opening

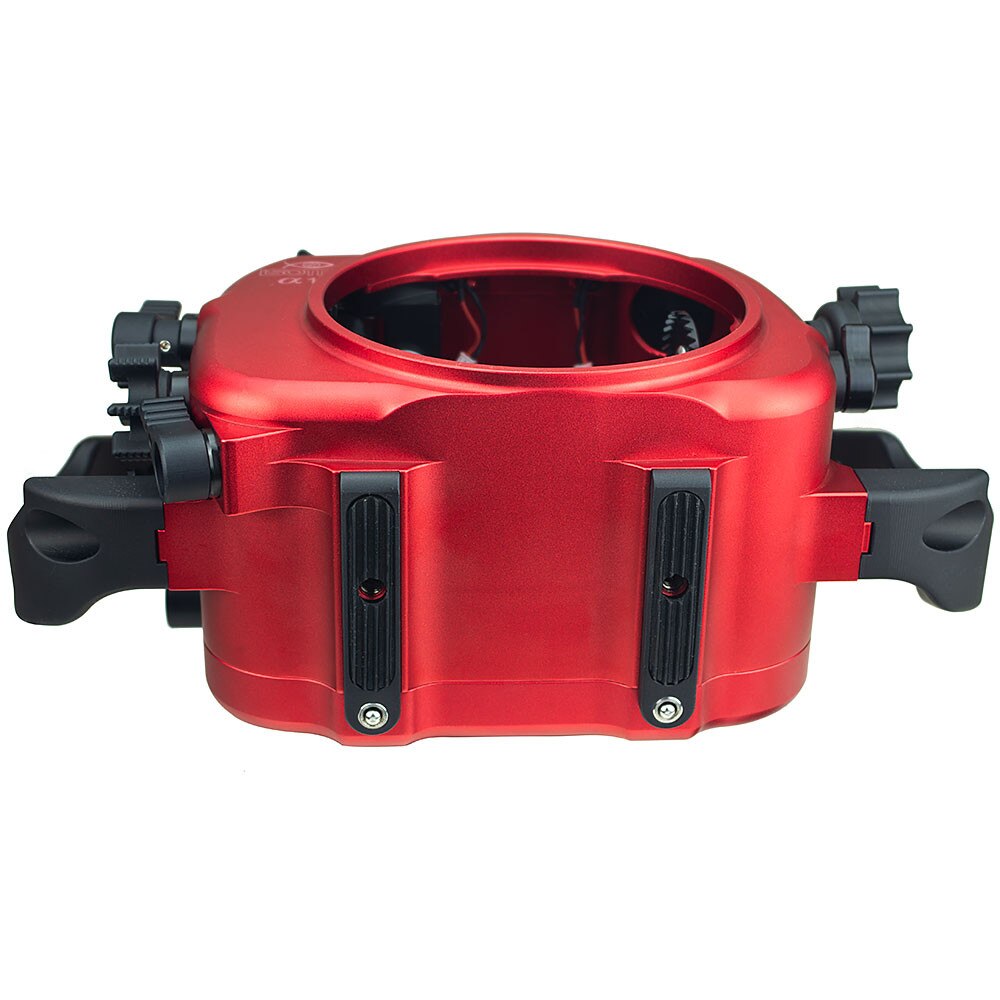

• Wide, rubber-covered feet for solid footing on boat floors or sea floor
• M8 hole located on the upper side of the housing for various accessories such as focus lights
• Two M6 holes located on the housing bottom side for different accessories such as brackets for strobes or tripods
• External viewfinders can be mounted, INON X-2 compatible
• Depth rated to 100 meters / 330 feet

Spare parts

• 3714 - Maintenance o-ring set for Sony Alpha 1 housing
• 1895 - Housing front lid

Optional Accessories

• Trigger
• Nikonos 5 bulkhead
• S6 bulkhead
• Handles extension
