Overview / Product Description
Isotta OM System TG-7 & Olympus TG-6 Underwater Housing
The housing for Olympus Tough TG-6 allows to capitalize on the camera full potential and to capture amazing pictures underwater.

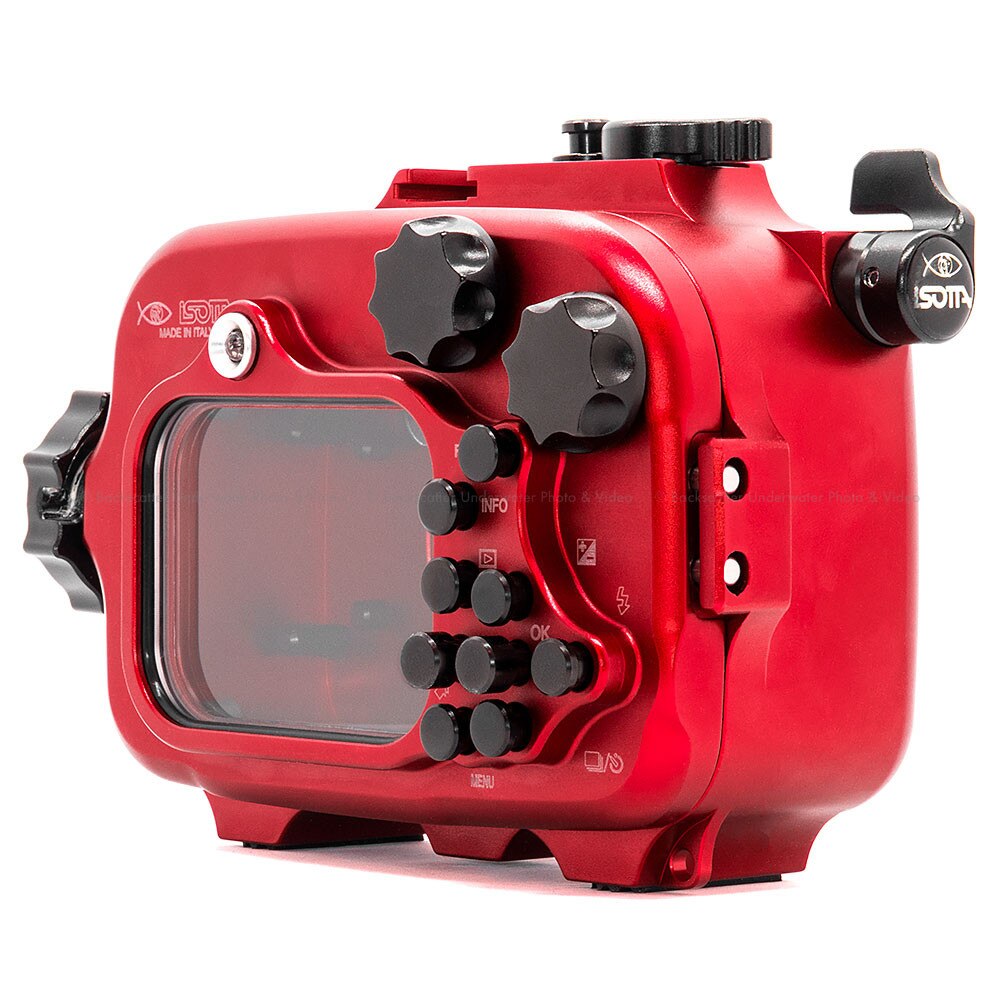

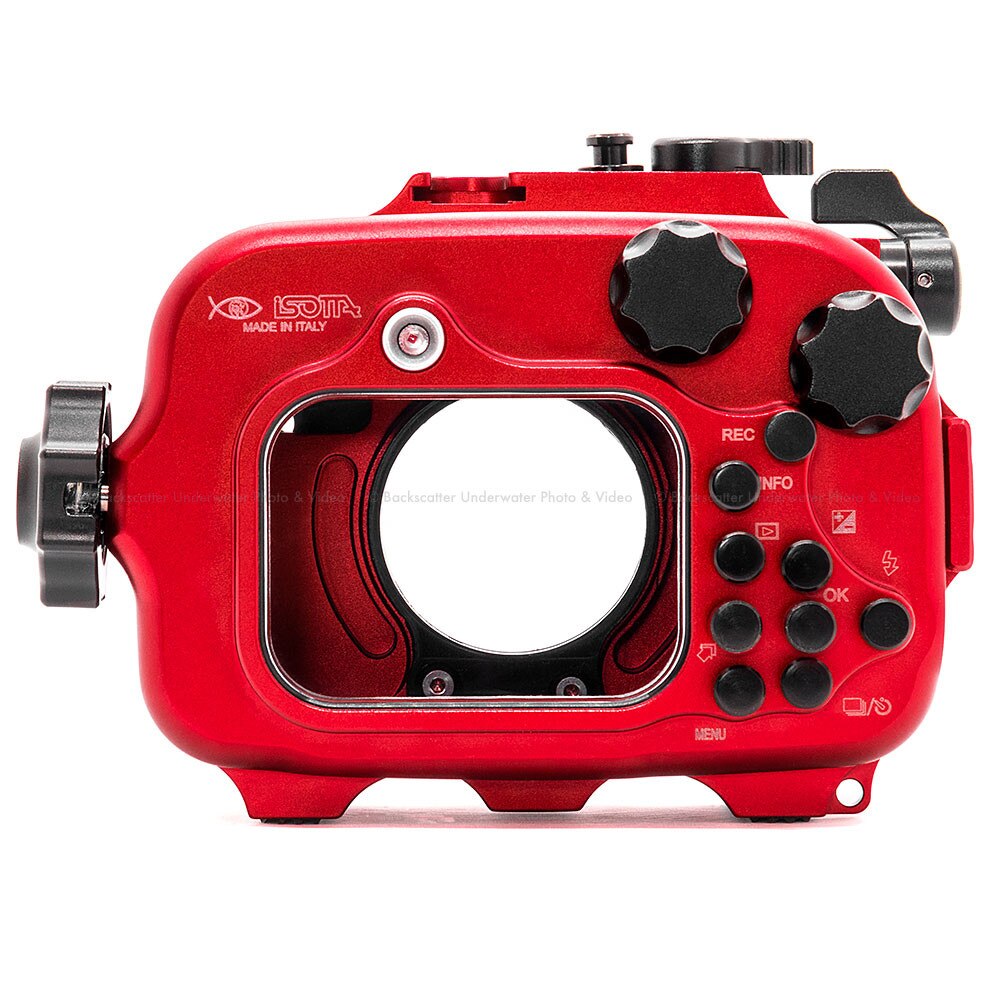

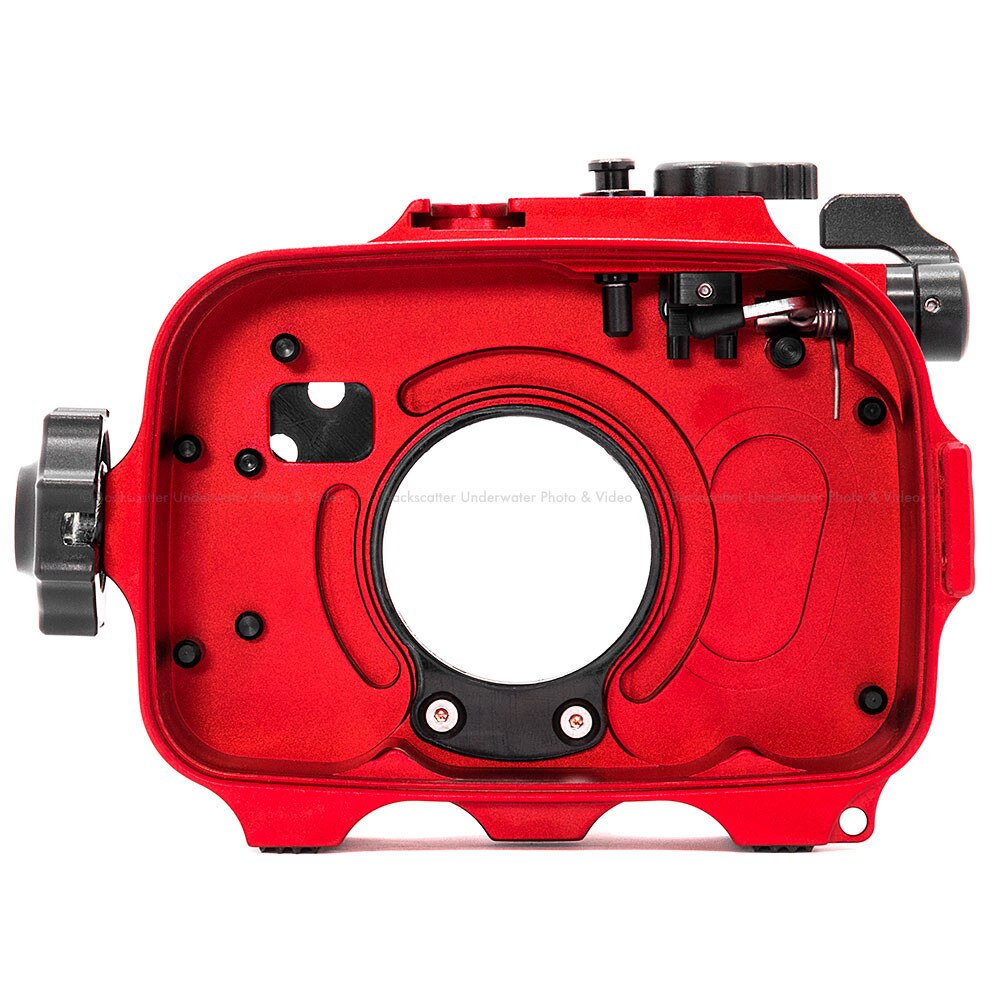

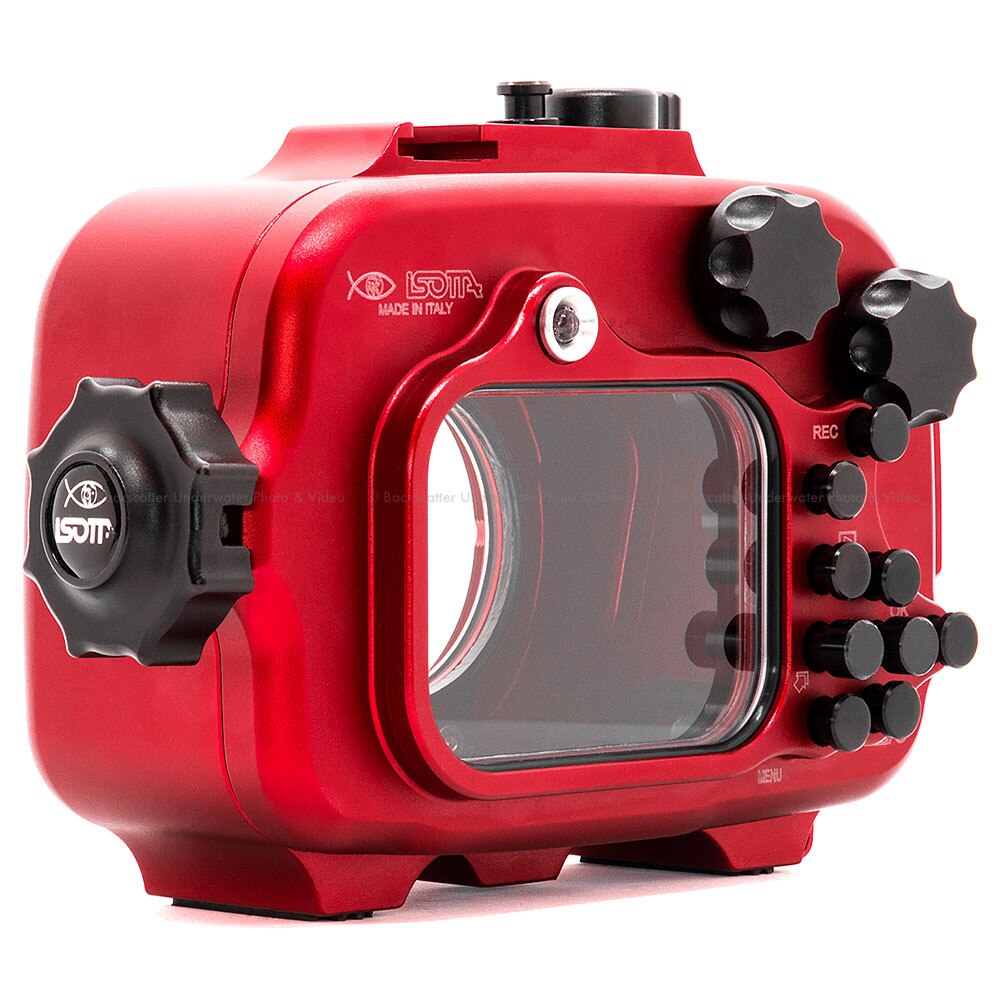

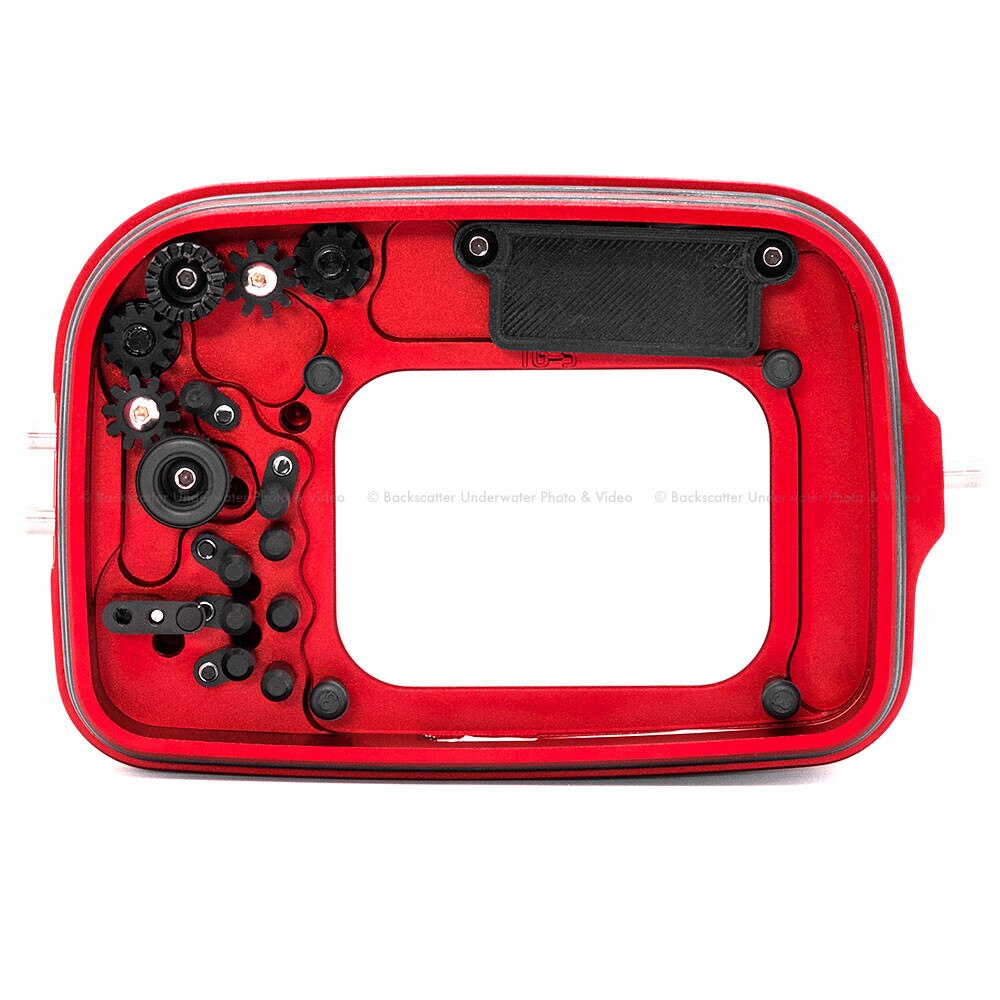

An easy to use, highly professional product has been created through techniques and innovations gained from years of experience. The housing for Olympus Tough TG-6 perfect handling by means of adjustable strips. Easy access to all key/main camera controls by means of clearly labeled laser-engraved longlasting buttons. The back door has a large window for a fine camera display view and it is entirely detached from the front body to make easier the camera fitting.
ONE HAND OPEN/CLOSE

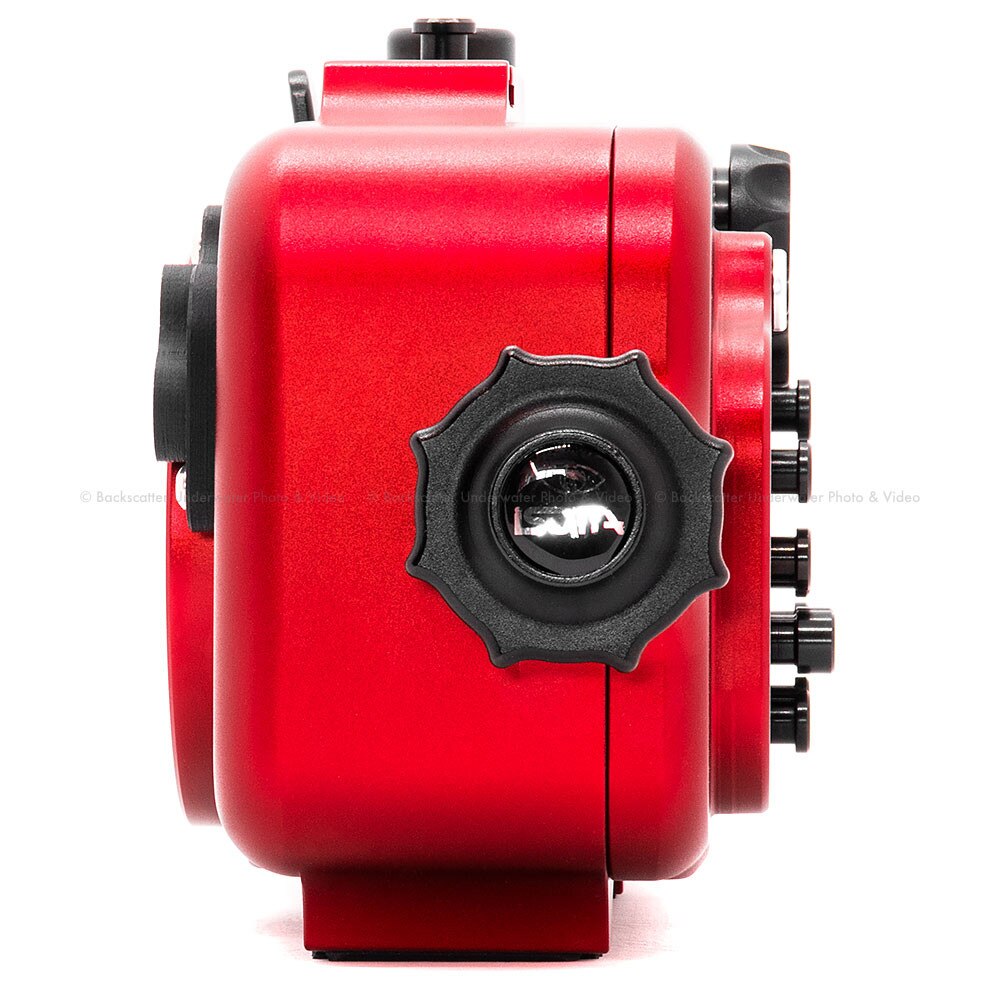

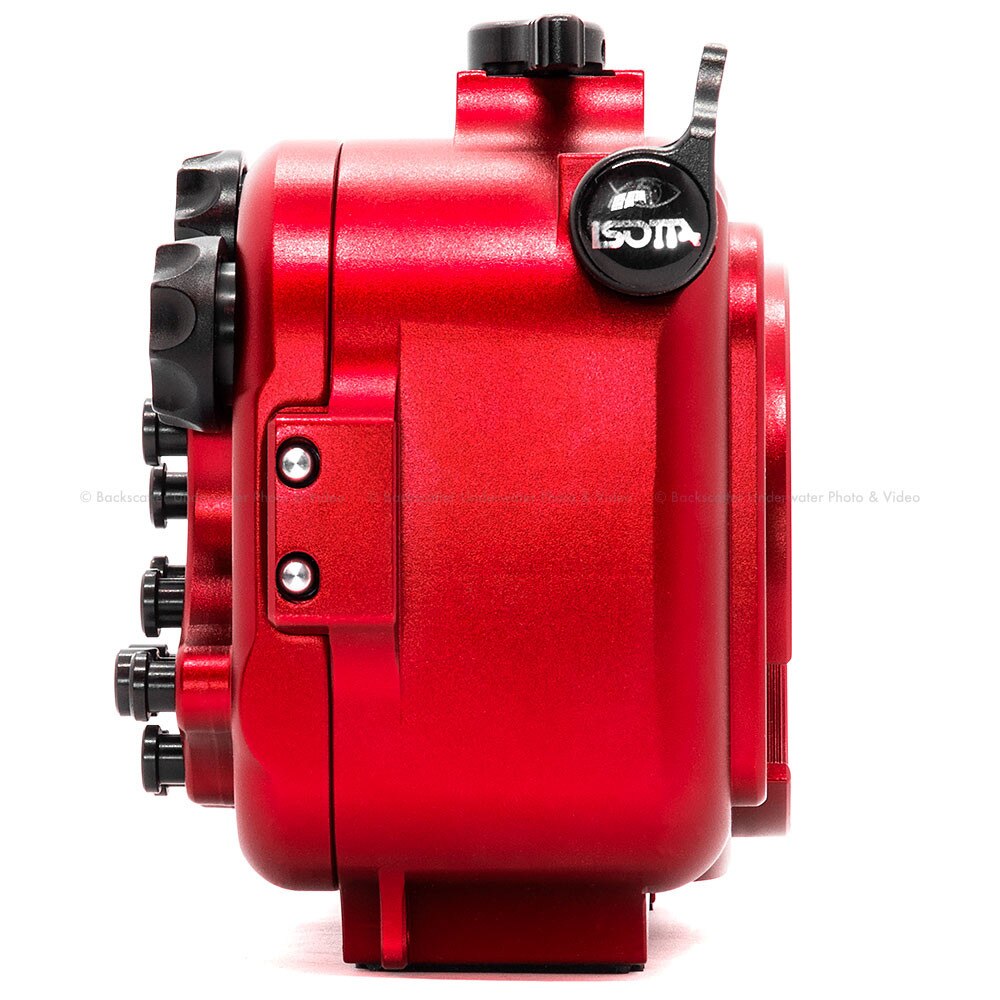

It’s very fast to open and close Olympus Tough TG-6, without any efforts by the user thanks to the side helicoid screw and the bottom centered pins. The housing stands with great stability due to sturdy and wide rubber feet located on the bottom.
PORT, CLOSE-UP AND WIDE-ANGLE LENSES

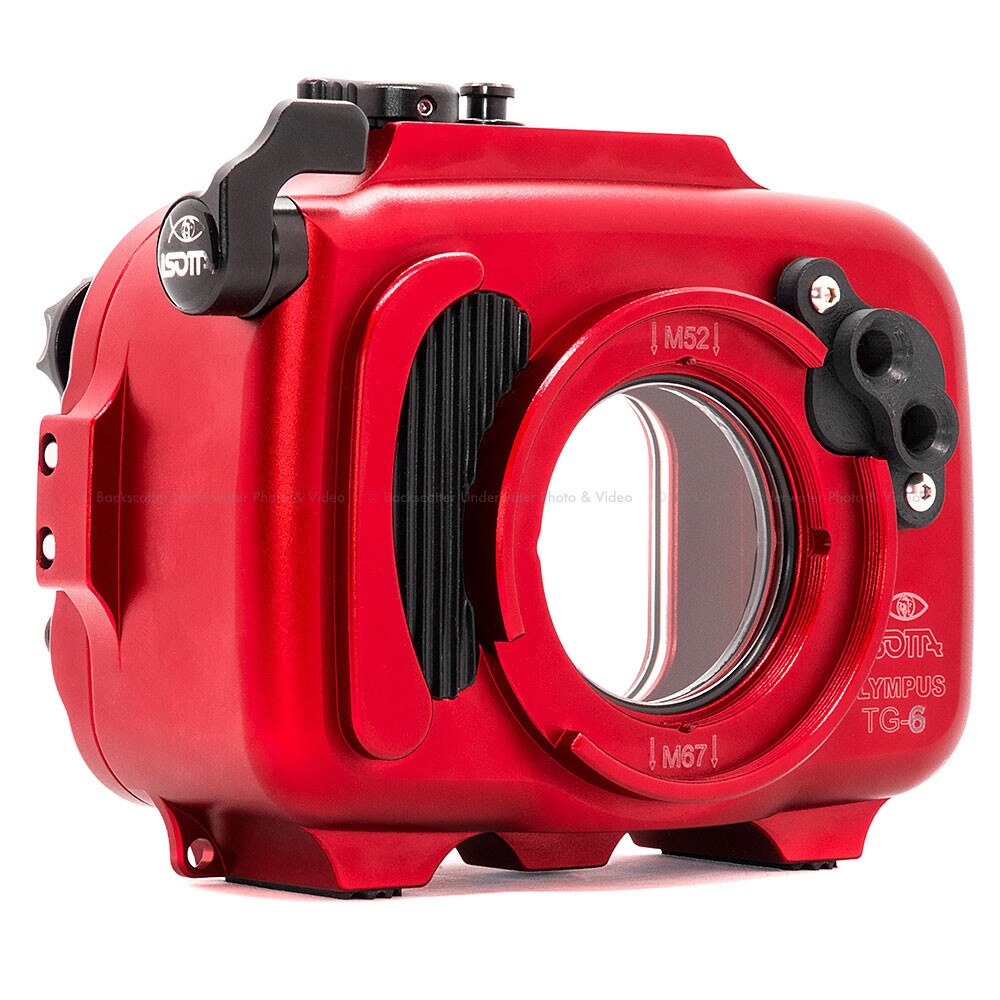

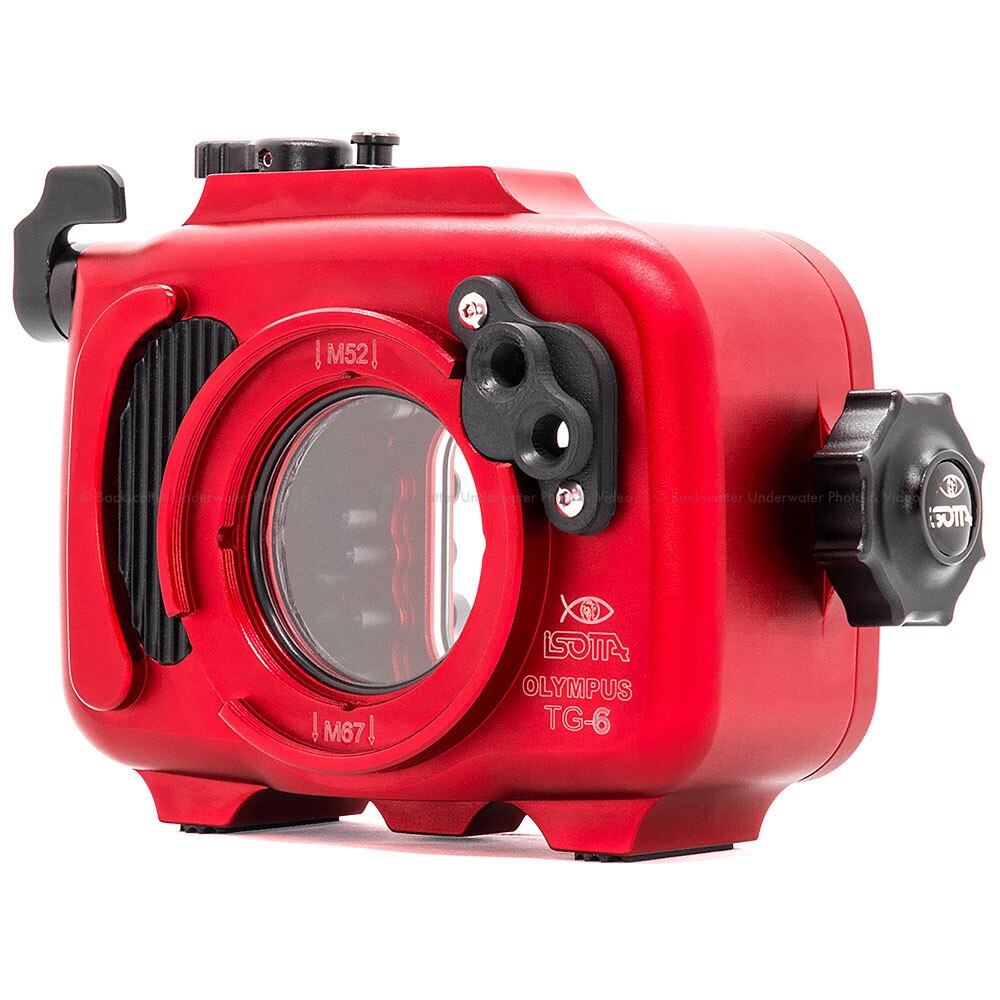

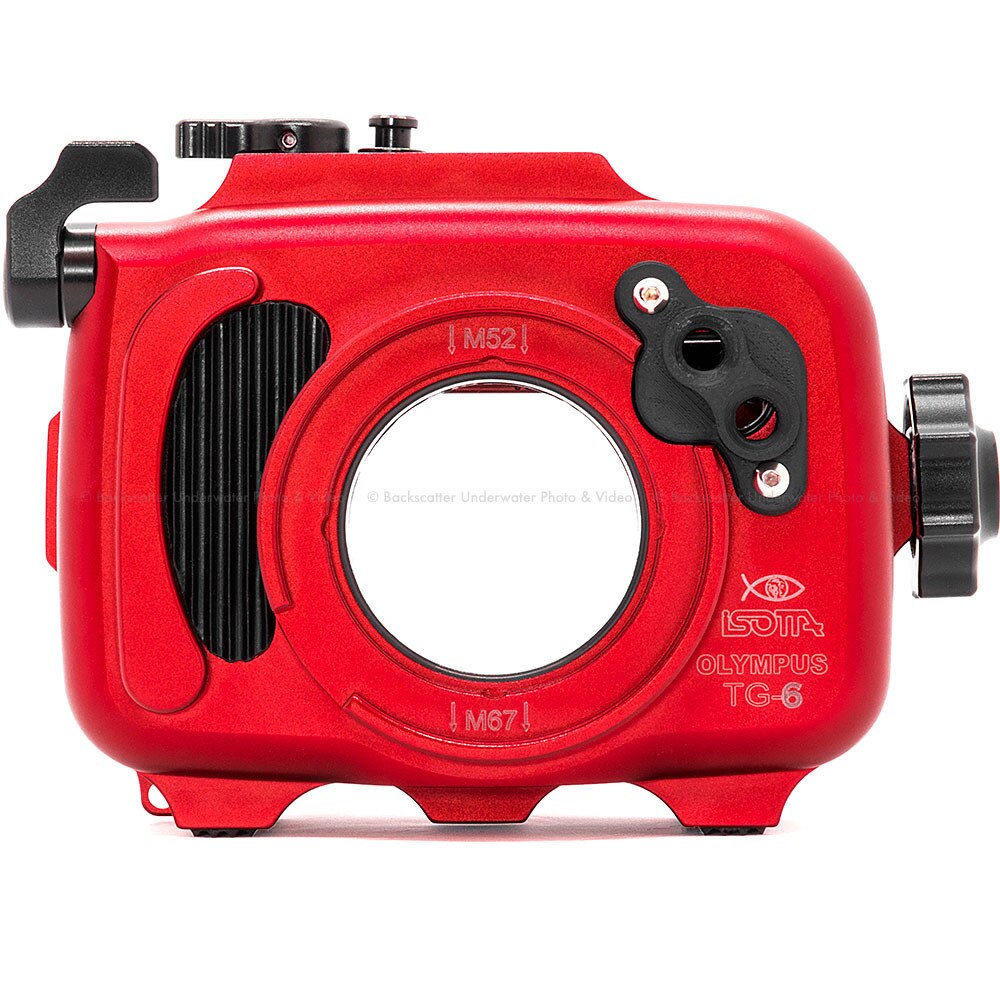

The housing for Olympus Tough TG-6 ends with a tempered glass optic and features an M67 and M52 thread mount that allows the use of an additional wide angle lens and macro lens.
LIGHTING
The Olympus Tough TG-6 own strobe lighting is enhanced thanks to a standard diffuser placed in the provided flash window. For better performance with wide angle lenses, one or two external strobes can be connected by optic fiber bushing.
CONSTRUCTION AND SAFETY

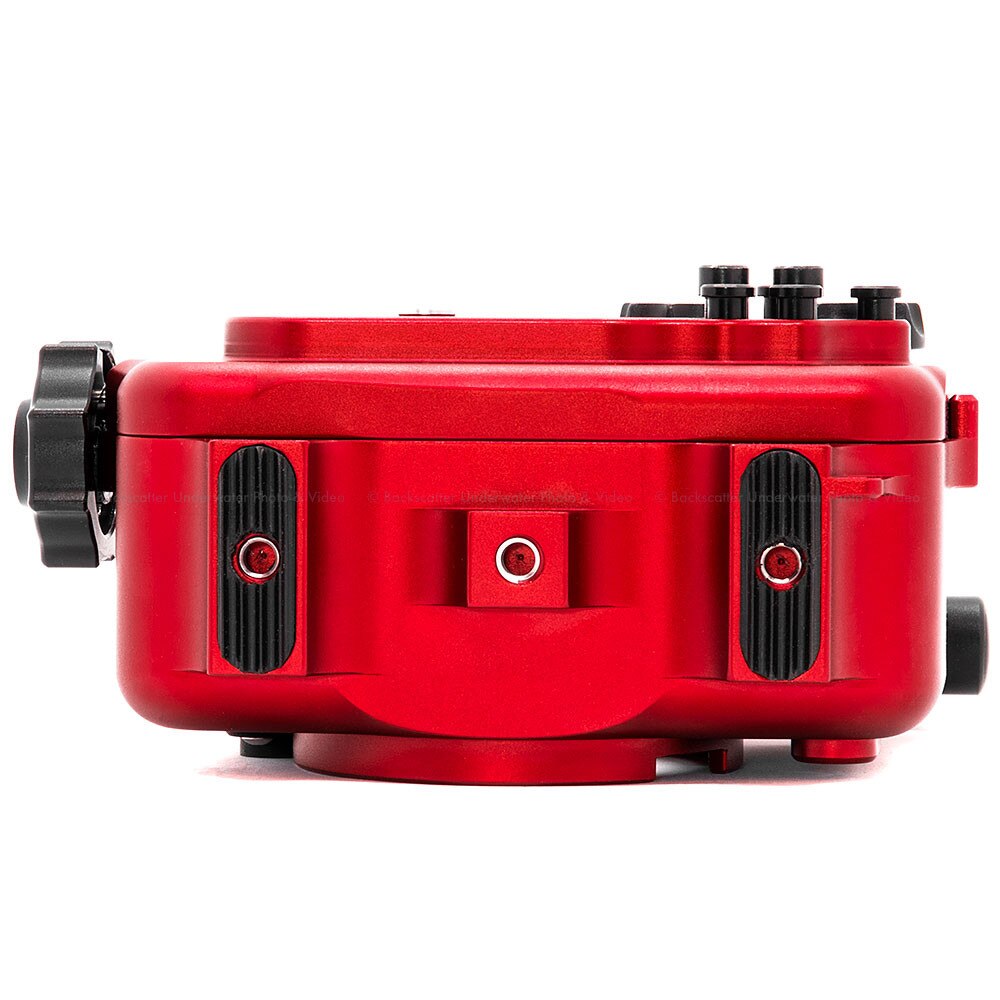

Only the best materials are used to manufacture our housings such anodized aluminum which is anticorodal and thermo-coated and stainless steel. A longlasting product that requires easy and simple maintenance by the user. So small and so rich in technology! Dual high precision and quality O-Ring seals protect and ensure a perfect and secure watertight for all movable and/or removable parts; a red alarm for humidity/water inside the housing is powered by a battery replaceable by the user. Working depth is 100 meters. A hole positioned on the bottom allows securing the housing for Olympus Tough TG-6 with a strap. Different accessories can be fitted by means of an upper sliding tray and double threaded M6 holes and one 1/4W on the bottom.
Controls

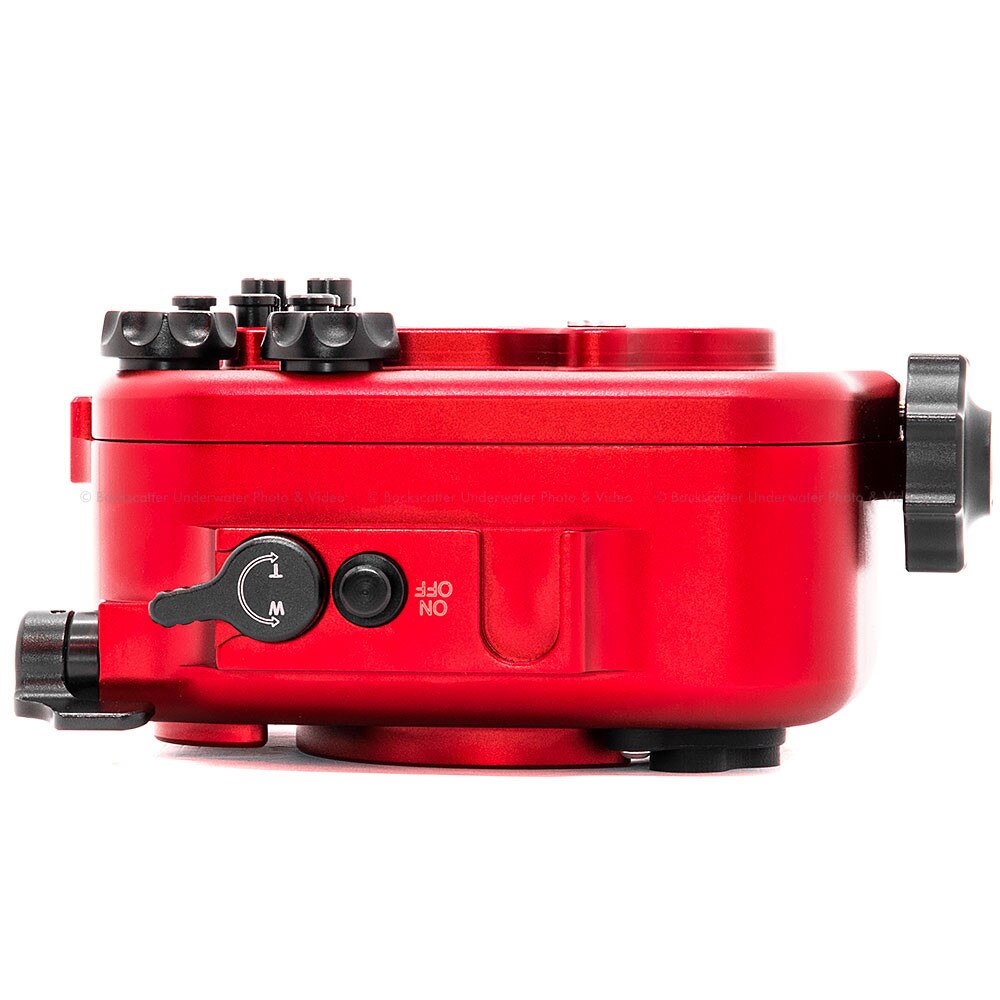

- ON/OFF of Olympus Tough TG-6
- Ergonomic camera focusing and shutter button for easy use with gloves
- Mode button
What's included
- Housing
- Replacement O-Ring Kit
- Diffuser
- Silicone Grease 10gr
- 2 years manufacturer warranty
Technical data
- 100 meters depth rating
- Dual Fiber Optic Cable Adaptor for TG-4/TG-5/TG-6 (included)
- All Olympus Tough TG-6 main controls
- Easy one hand open/close
- Moisture alarm
- Double M67 and M52 thread mount to use additional wide angle and/or macro lenses
- Double high-quality O-Ring seals
- Weight: 830 gr
- Dimensions: 153,5 L. x 70 P. x 112 A.
Spare parts
- AS562 - O-Ring Set Olympus Tough TG-4/TG-5/TG-6
- AS882 - Forefinger shutter trigger
- AS883 - Thumb shutter trigger
- AS732 - Dual Fiber Optic Cable Adaptor for TG-4/TG-5/TG-6
- AS046 - Double handles tray
