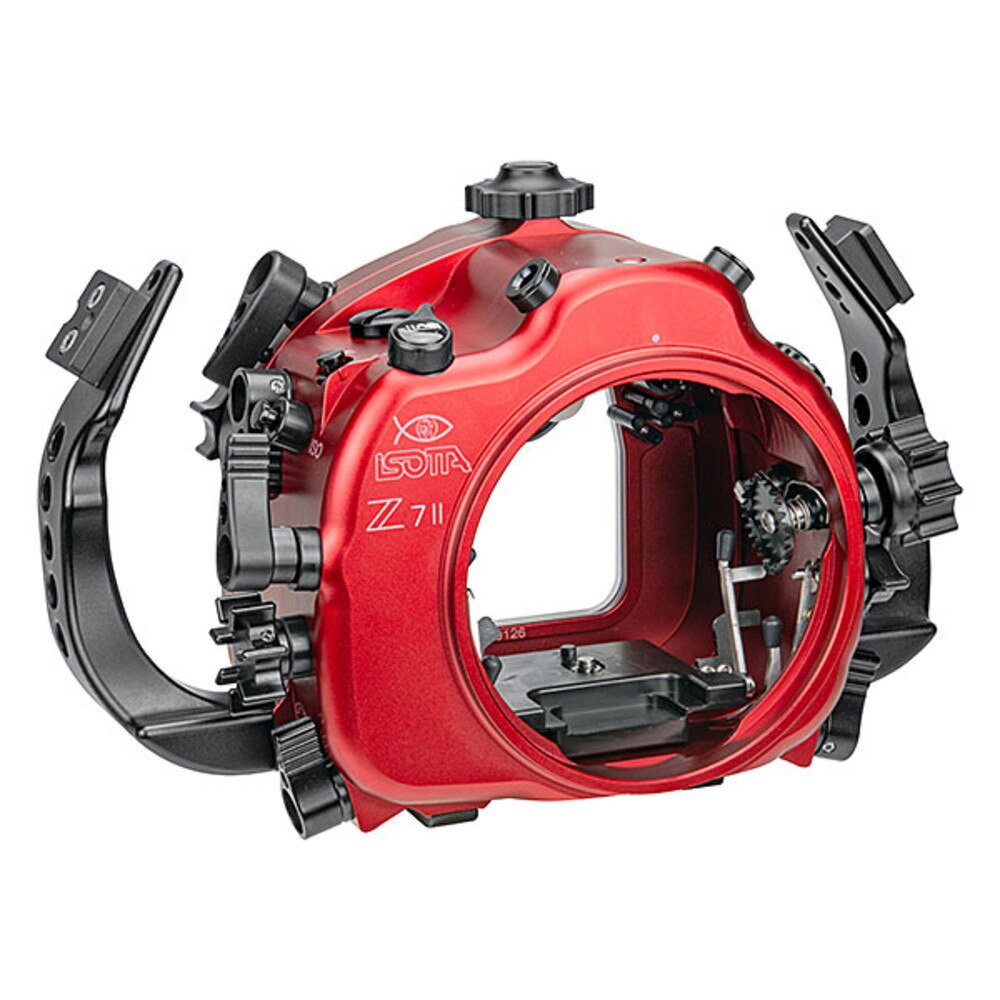

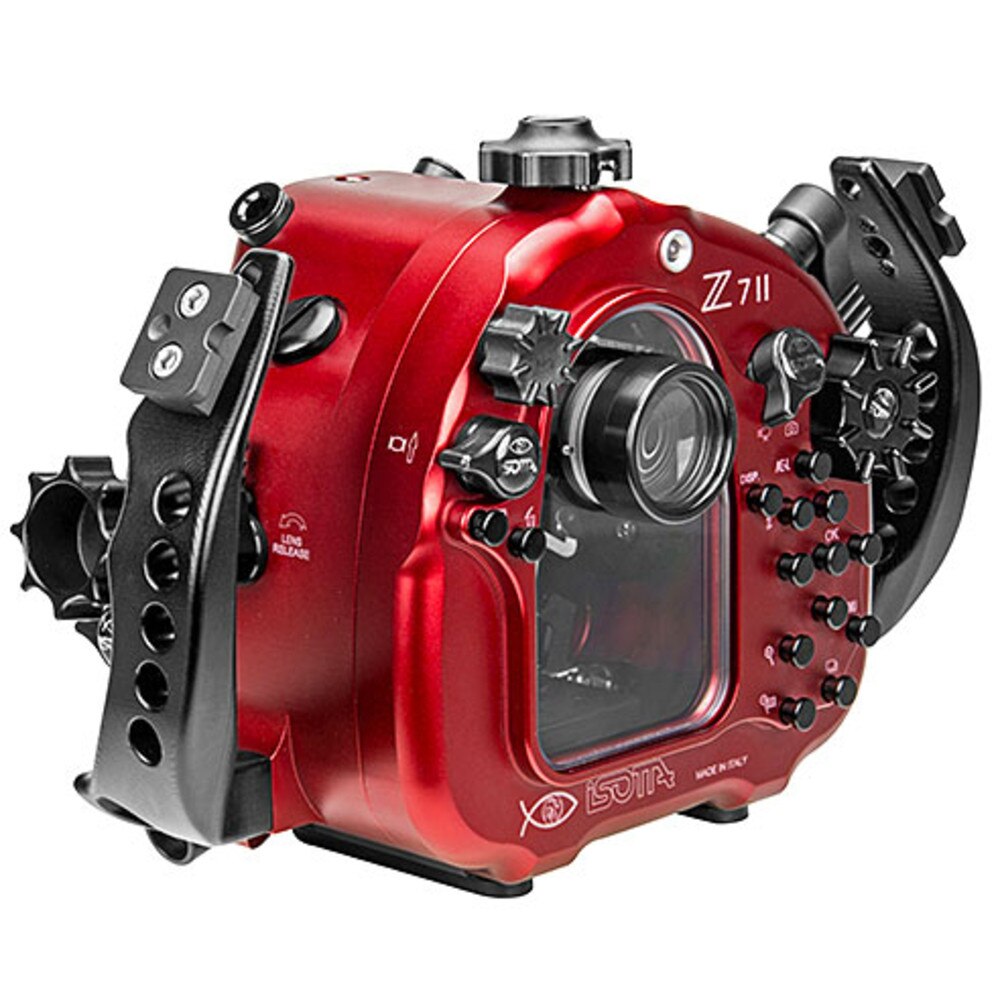

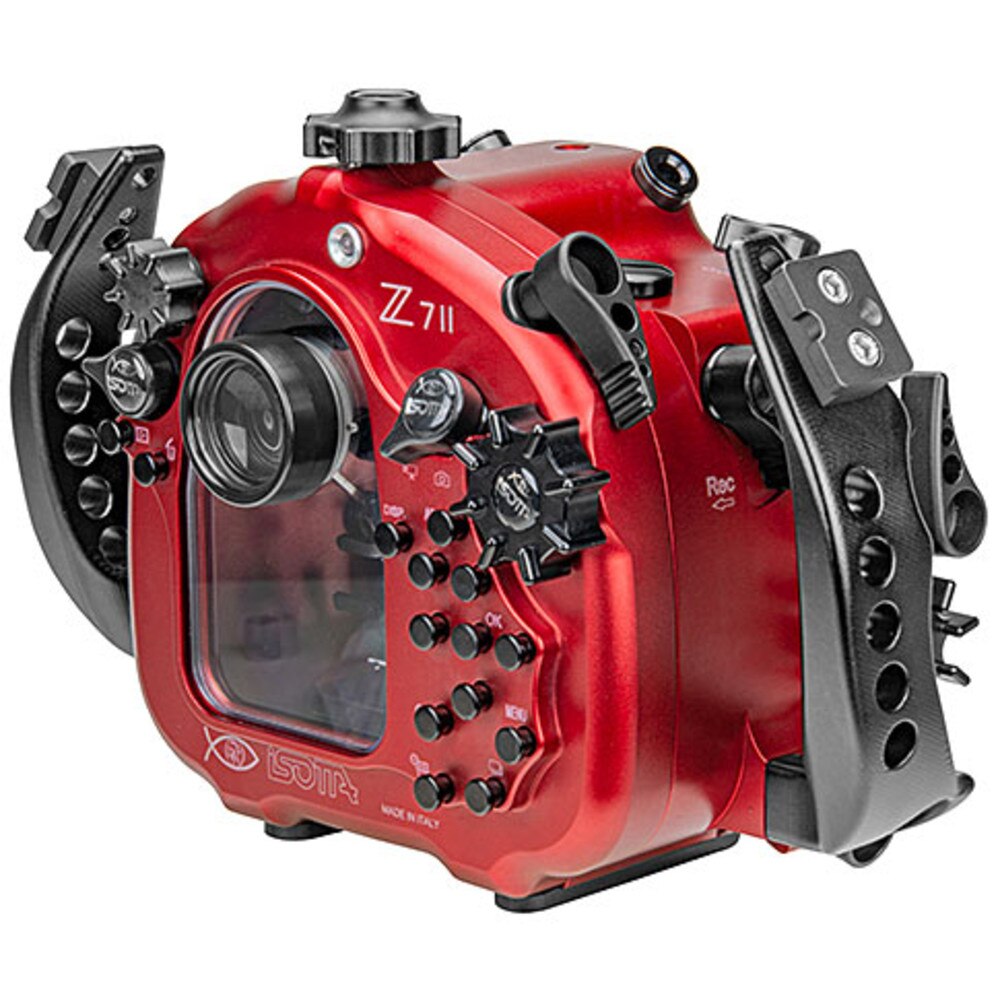

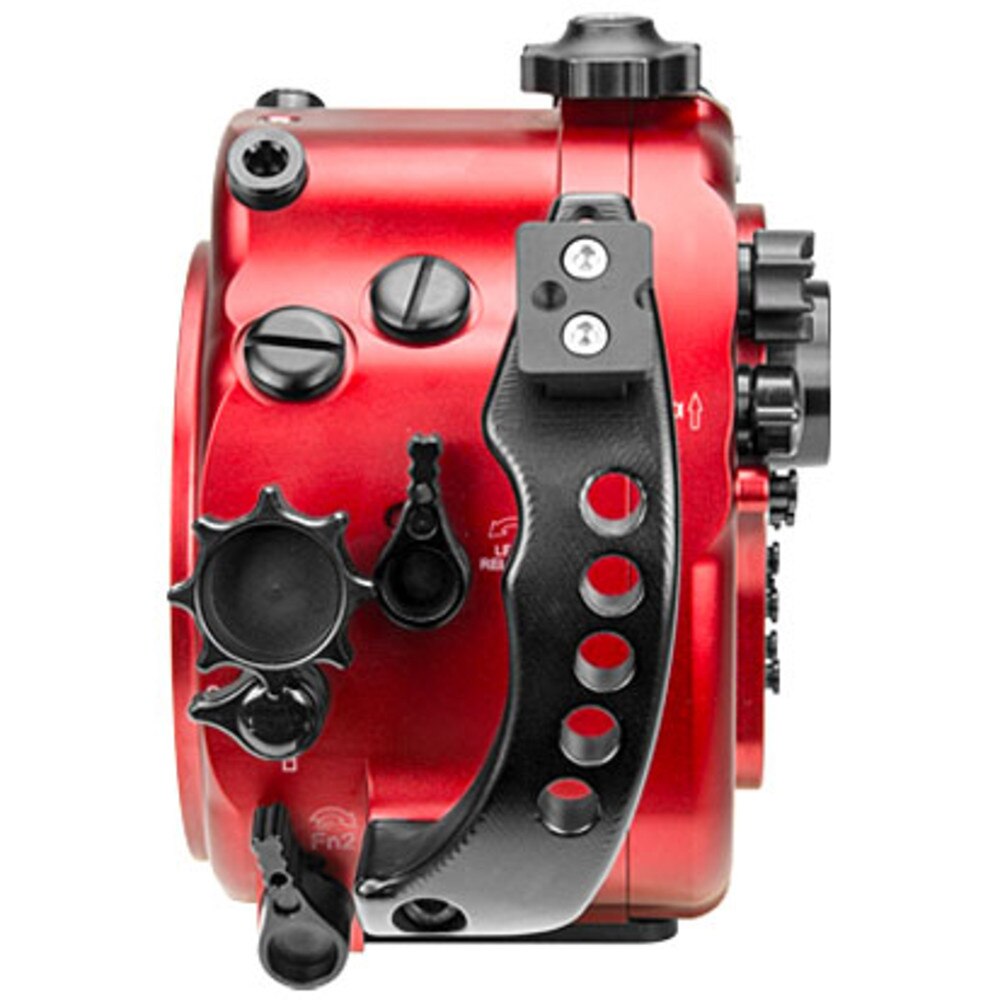

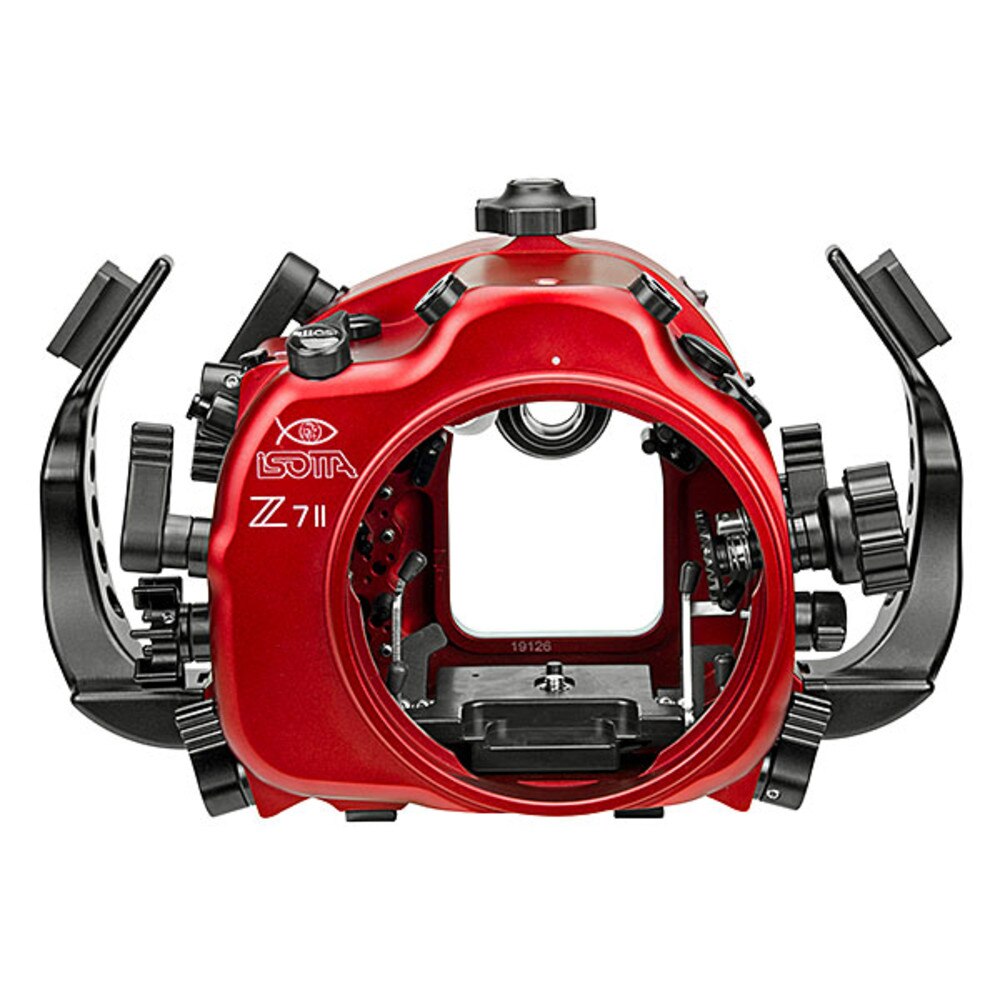

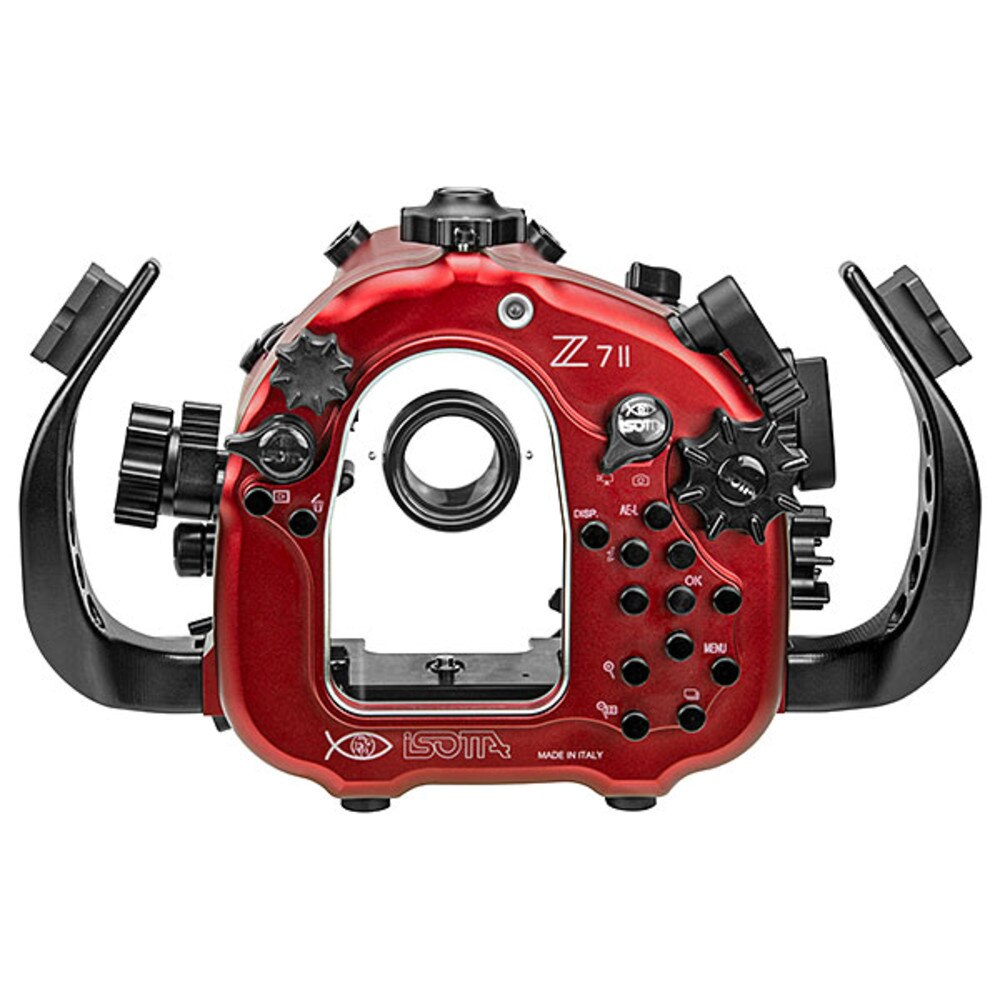

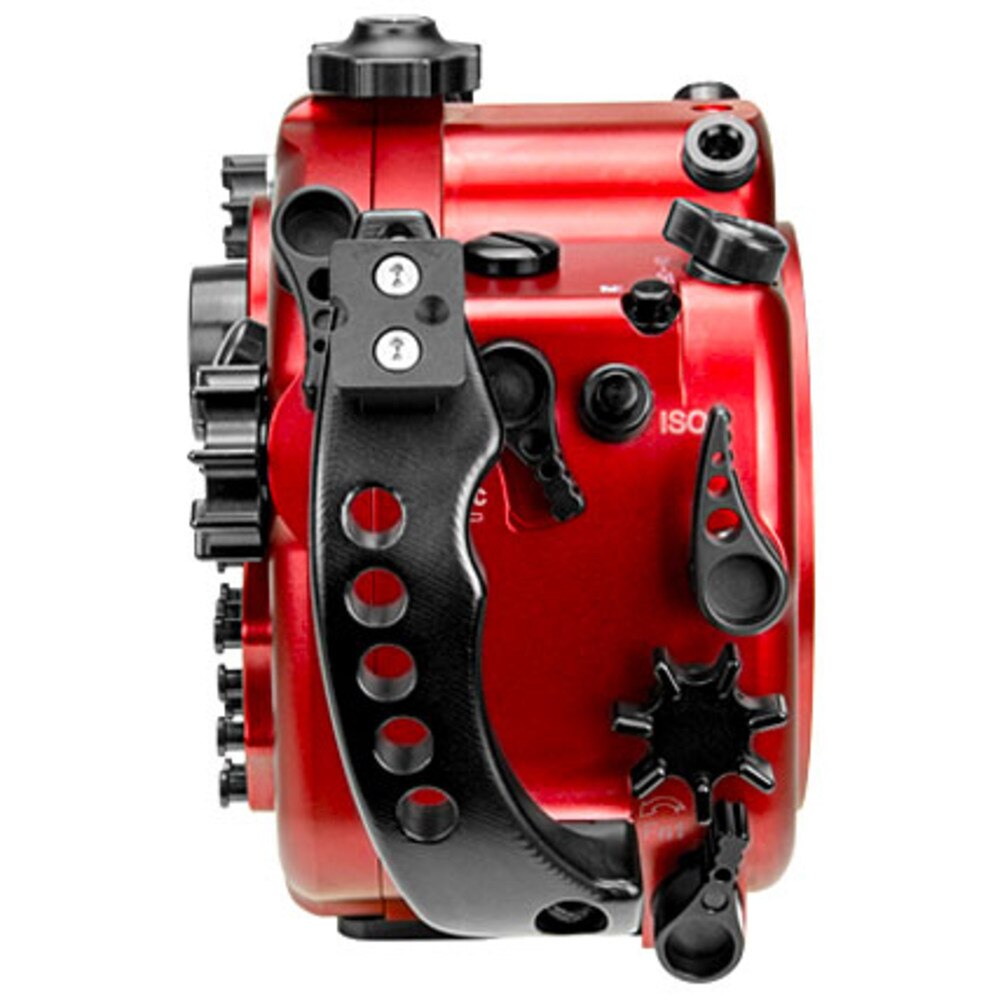

Isotta Nikon Z 7 II & Z 6 II Underwater Housing

Hand-crafted with the highest quality and entirely Made in Italy, with a stylish, compact and ergonomic design, the new Isotta housing has been specifically created for the breakthrough model of Nikon Z7II/6II. The durable anodized aluminum protects the camera from water and other damaging elements and its unique Isotta signature-red color makes it stand out from the crowd.

Double O-Rings on all parts

An excellent watertight seal is ensured by double O-Rings on every mobile and removable part, such as back housing, buttons, ports, caps, and connectors.

Single-hand locking knob

The housing features the Isotta well-known easy and secure opening/closing of the housing thanks to the upper helicoid that can be operated using only one hand.

Full controls accessibility and lens versatility

Isotta Housing for Nikon Z7II/6II gives full accessibility to the camera controls (levers, knobs, buttons) and dials that are in aluminum and with clearly labeled functions providing better handling when in water. The housing has been crafted with a bayonet 120mm connection and with enough internal space to fit the Nikon FTZ adapter, which allows the use of Nikon F-mount lenses on the Z7II – with varying degrees of compatibility. The interchangeable port bodies and extensions rings combine to allow the use of most of the lenses on the market for maximum versatility and performance.

Three M16 X1 holes

This versatile housing present three M16 holes on the upper side for installation of accessories, e.g. sync cords, vacuum valves, monitors. Integrated Back Visual and Acoustic Leak Detection System The back housing features an immediately visible moisture indicator with an evident red LED signal light and an acoustic warning signal, with battery easily replaceable by the user.

Viewfinders options

The back door has a large window anti-scratch glass for a fine camera display and optical viewfinder view and it is entirely detached from the front body to make easier the camera fitting. External viewfinders can be mounted, INON X-2 is compatible.

The compact, solid red anodized aluminum body weighs 2100 grams with handles included (1800 gram without). Dimensions: 200 mm W. x 117 mm D. x 173 mm H. Working depth is 100 meters.

TECHNICAL DATA

• Signature red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• TTL Flash Trigger included
• Two fiber optic connectors
• Dedicated REC lever and ISO button
• Three M16 holes, for installation of accessories, e.g. sync cords, vacuum valves or monitors
• Back housing completely detachable from the front housing
• Tray with lock for easy fitting of the camera
• Single-hand closing knob
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass with optical viewfinder
• Dual O-Ring seals on all buttons and removable parts
• Moisture sensor with an acoustic signal and LED indicator (replaceable battery)
• Removable port - 120mm bayonet
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• External viewfinders can be mounted, INON X-2 compatible
• Depth rated to 100 meters / 330 feet
• Weight: 2.1 kg / 4.6 lbs with handles
• Size: 200 mm W. x 117 mm D. x 173 mm H.
