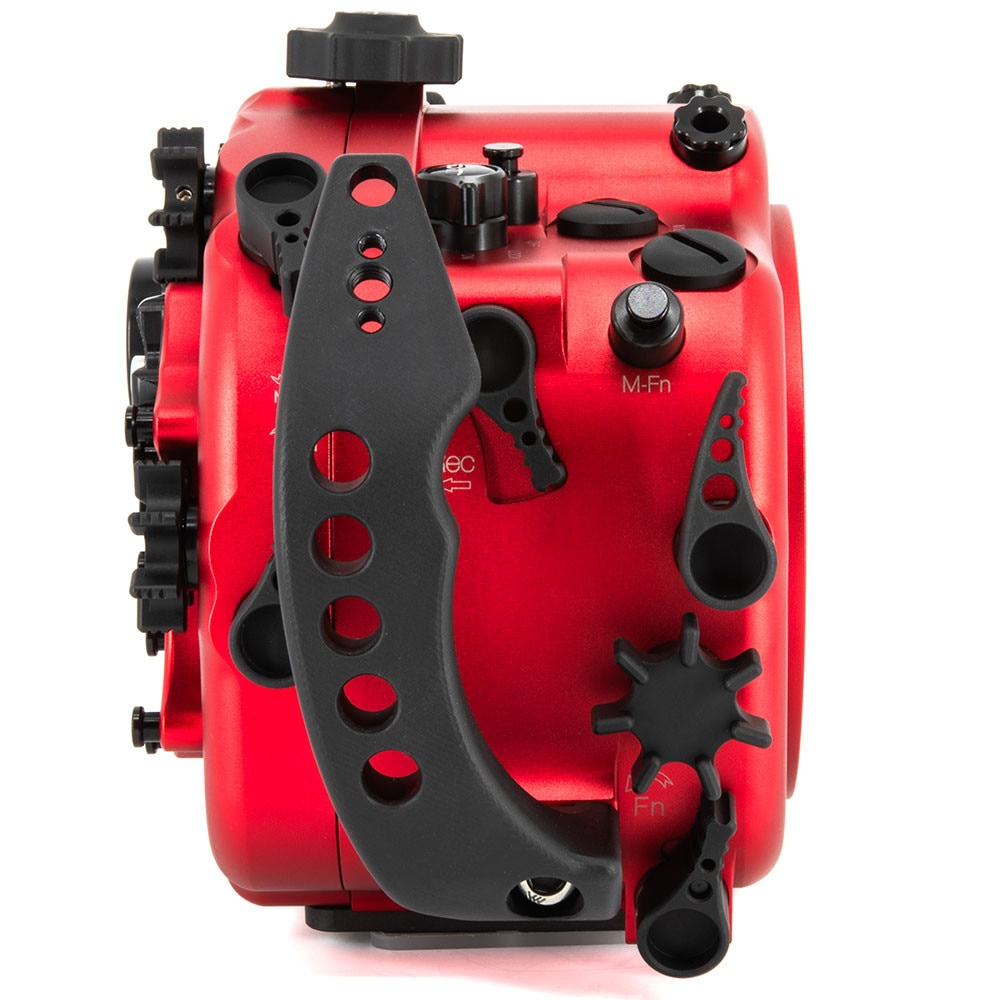

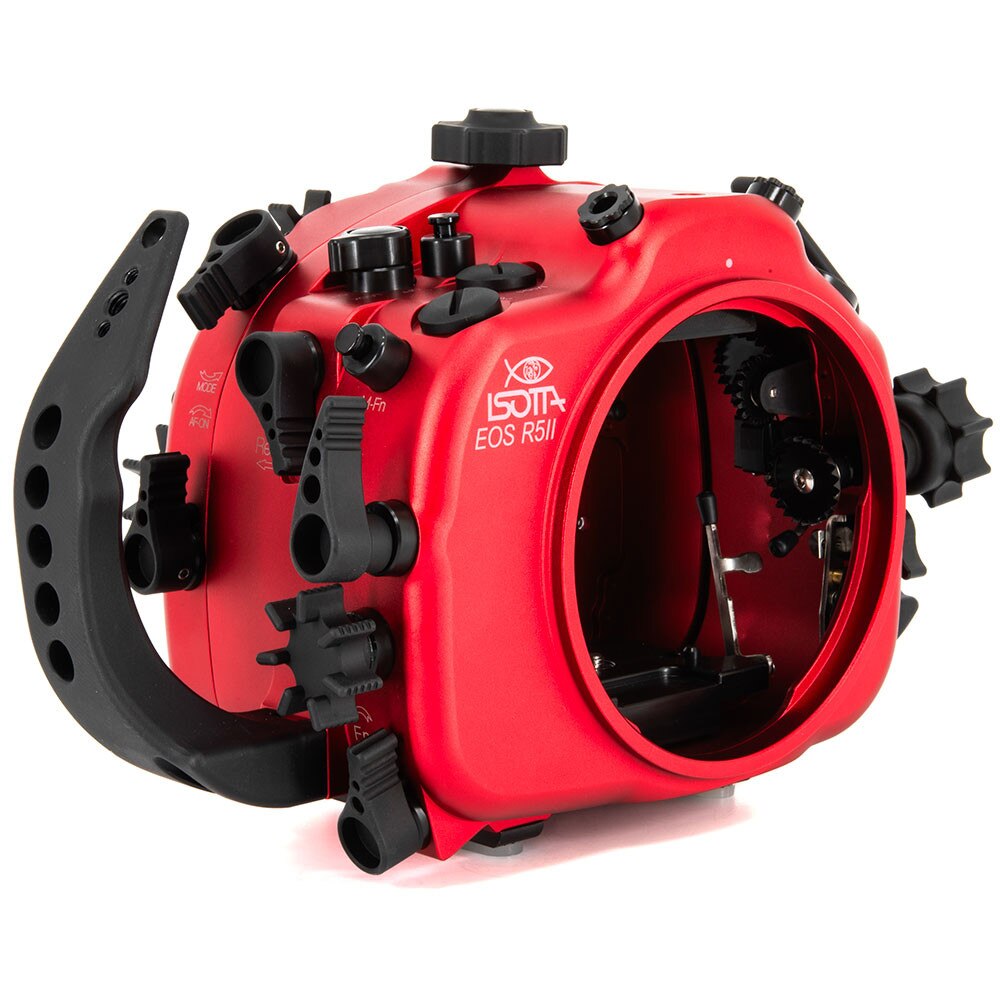

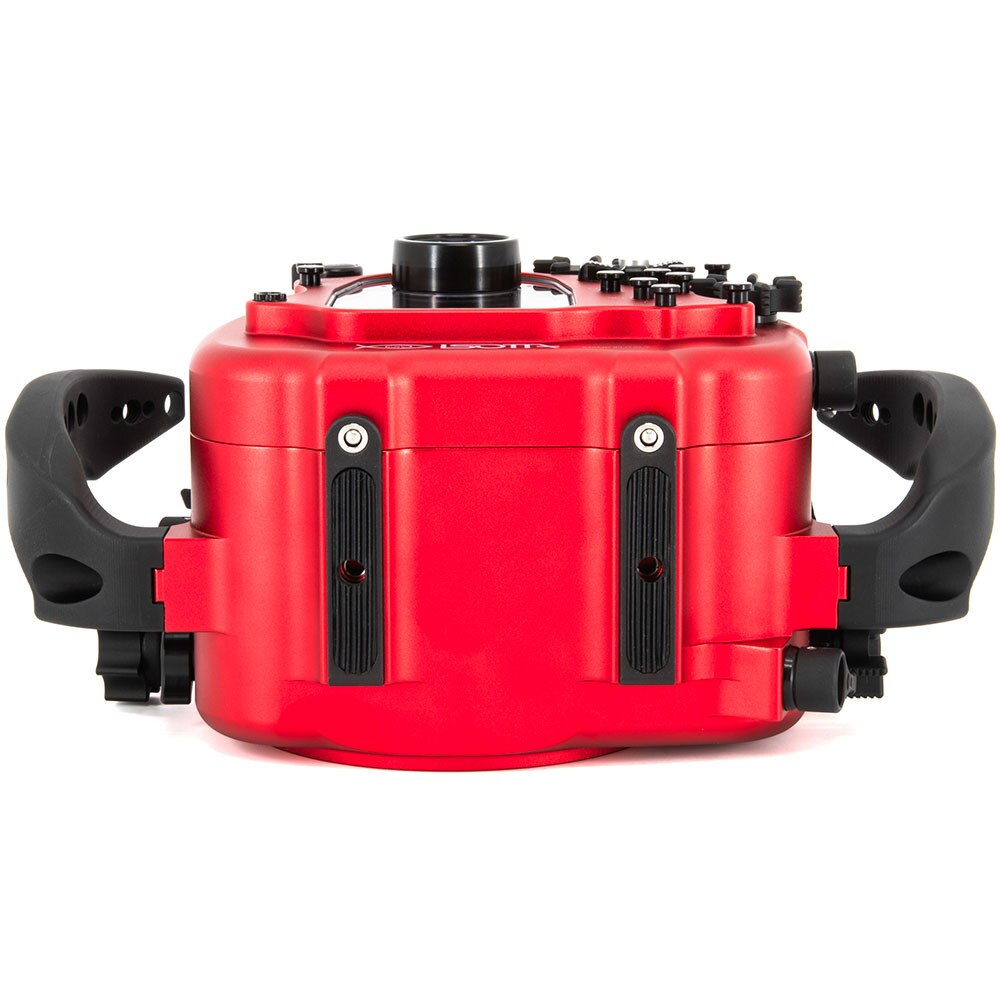

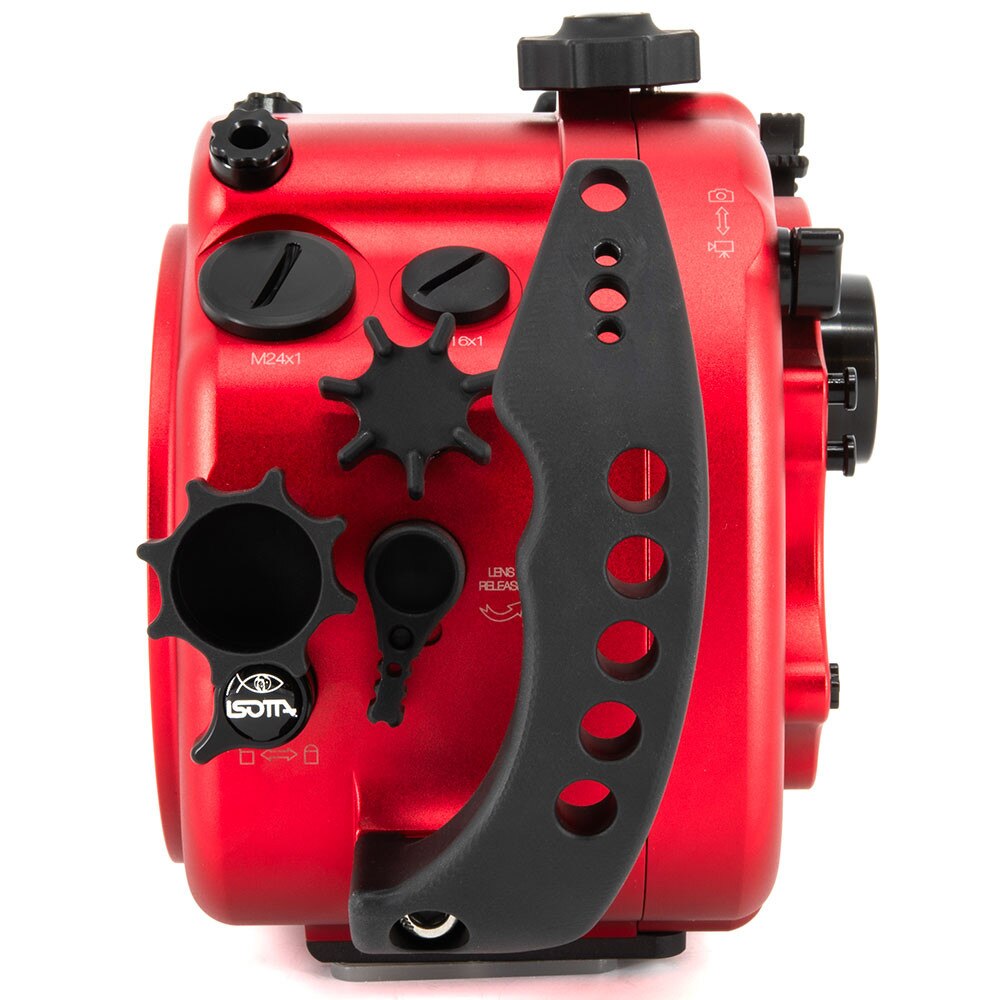

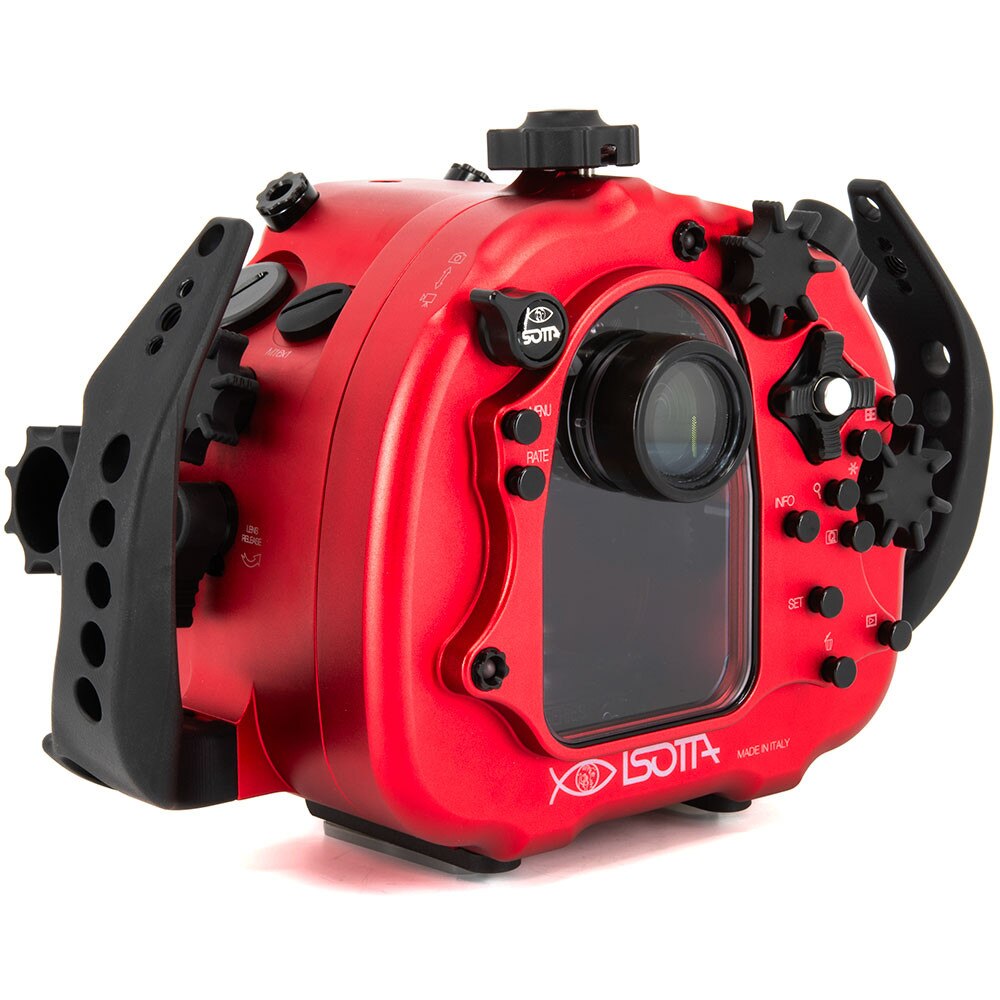

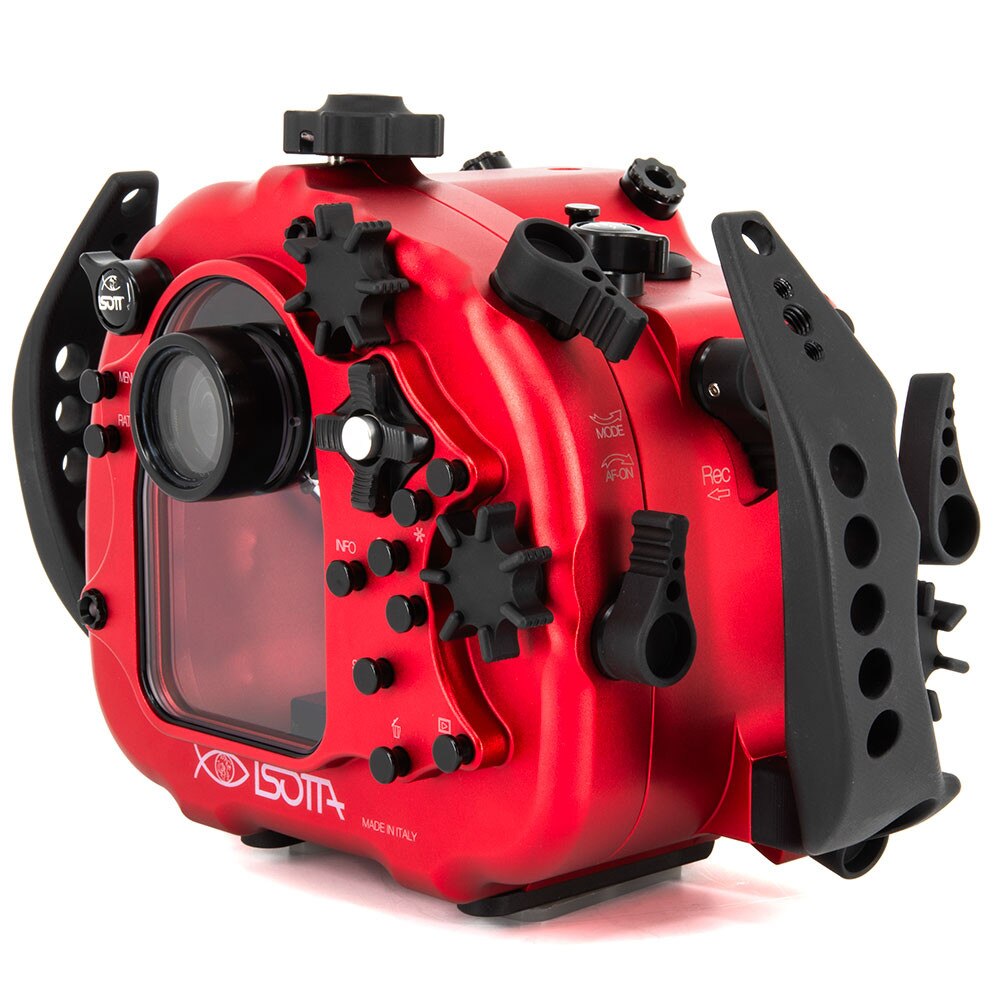

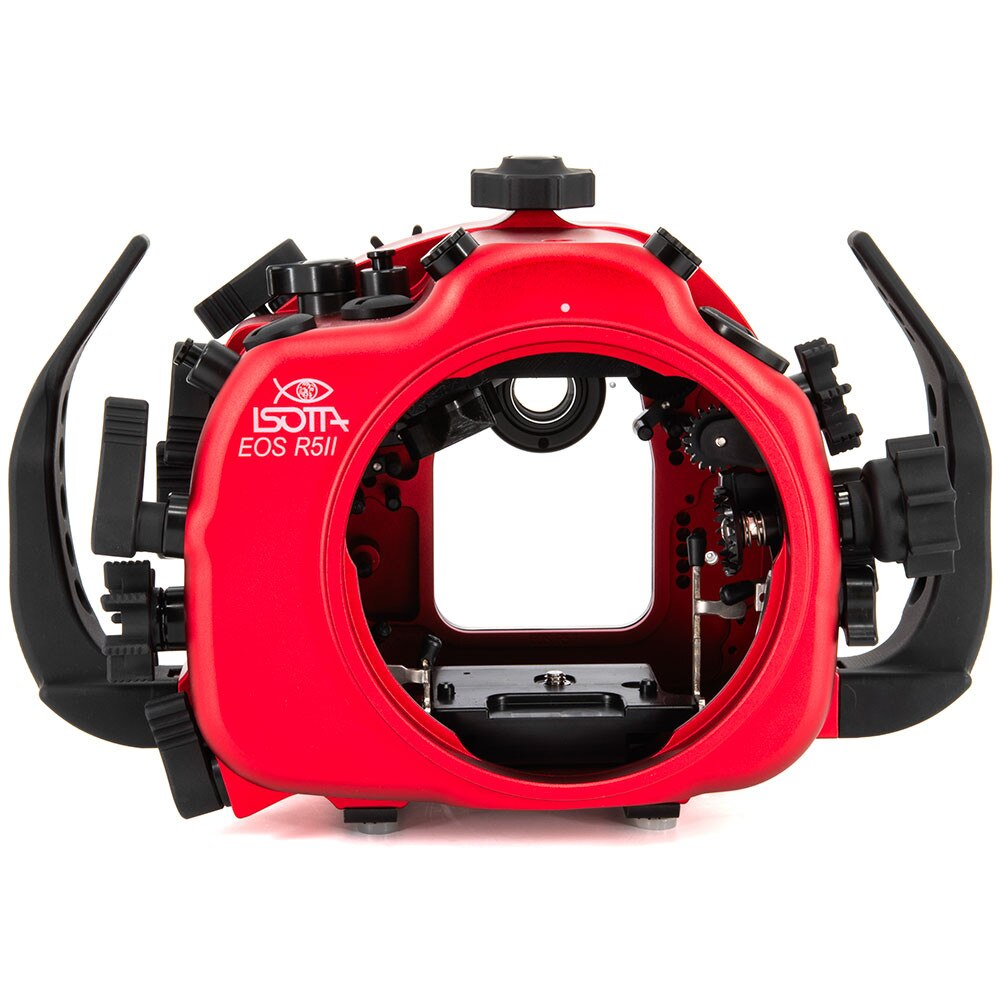

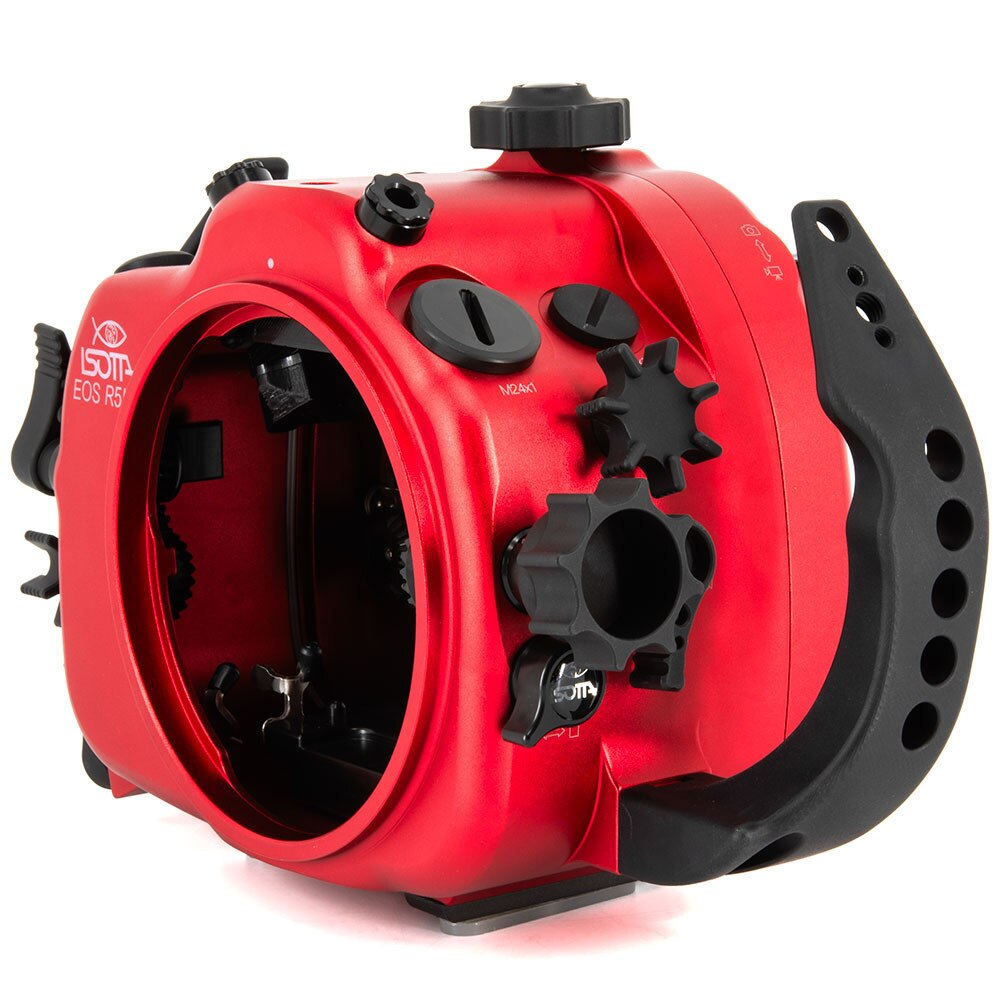

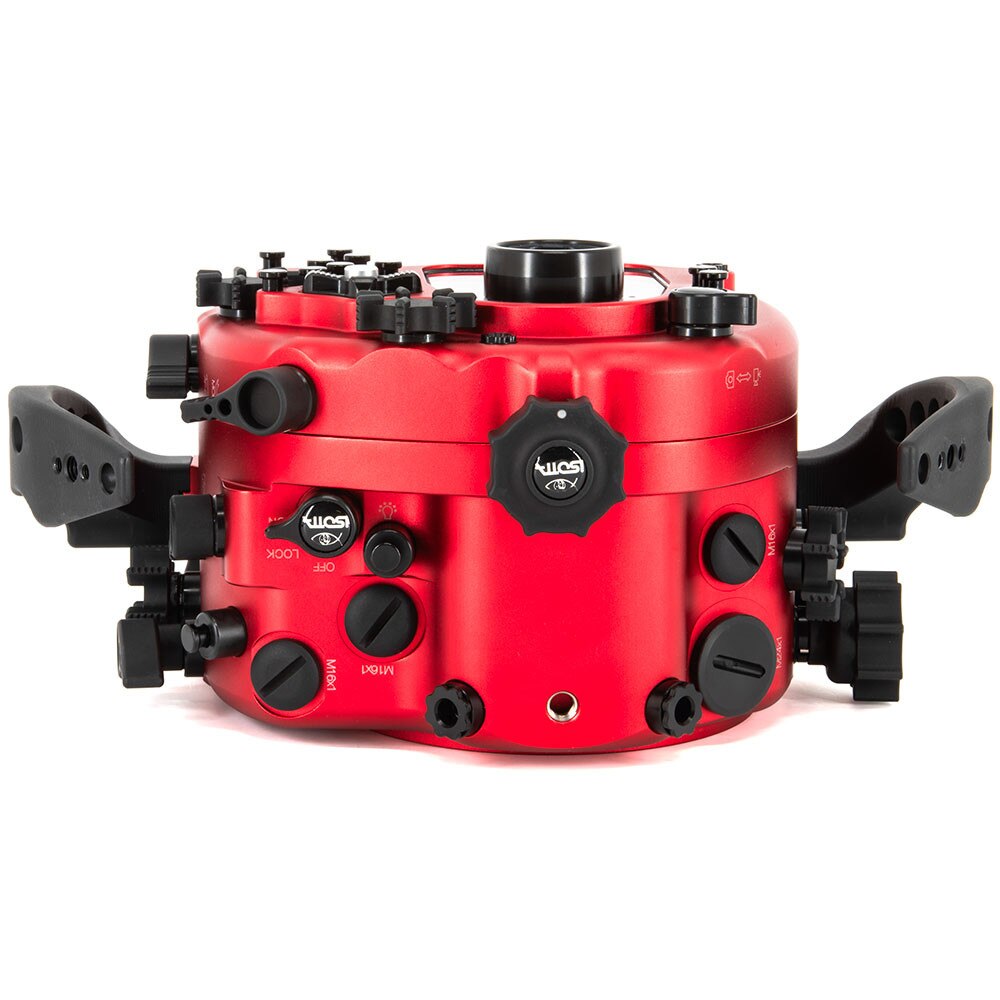

Isotta Canon EOS R5 II Underwater Housing

COMMANDS

• ON/OFF lever of the Canon R5 Mark II
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Zoom knob with RF lens
• Zoom knob with EF lens
• Port safety lever
• Lens release lever
• LCD panel info switching/illumination/cropping button
• Multi-function button (M-Fn)
• Movie shooting lever (REC)
• Depth-of-field preview button
• Main dial
• Rating/Voice memo button (RATE)
• MENU button
• Still photo shooting/movie recording switch
• Mode dial
• Multi-controller buttons
• Multi-controller center buttons
• AF point selection button
• AE lock button
• Quick control dial 1
• Magnify/Reduce button
• Quick control button
• Playback button
• Erase button
• SET button
• INFO button

WHAT IS INCLUDED

• Housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections (to use the flash needs an optional trigger)
• Spare o-ring kit
• Silicone grease 15gr / 0,5 oz
• 2 years manufacturer warranty (excluding batteries)

TECHNICAL DATA

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard(to use the flash needs an optional trigger)
• Two M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port 120 mm bayonet
• Ports security latch to prevent accidental opening
• Wide, rubber covered feet for solid footing on boat floors or sea floor
• M8 hole located on upper side of the housing for various accessories such as focus lights
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods
• Prepared for ISOTTA vacuum (not included)
• External viewfinders can be mounted, INON X-2 compatible
• Sizes (LxHxP): 291.6x185.3x137.4
• Depth rated to 100 meters / 330 feet

SPARE PARTS

• 3357 - Maintenance o-ring set for Canon R5, R6, R6 Mark II and R5 Mark II housings
• 1895 - B120 housing front lid
• 1905 - M16X1 cap
• 3352 - M24X1 cap

OPTIONAL

• Manual trigger
• Vacuum system
• Nikonos 5 bulkhead
• S6 bulkhead
• Handles extension
