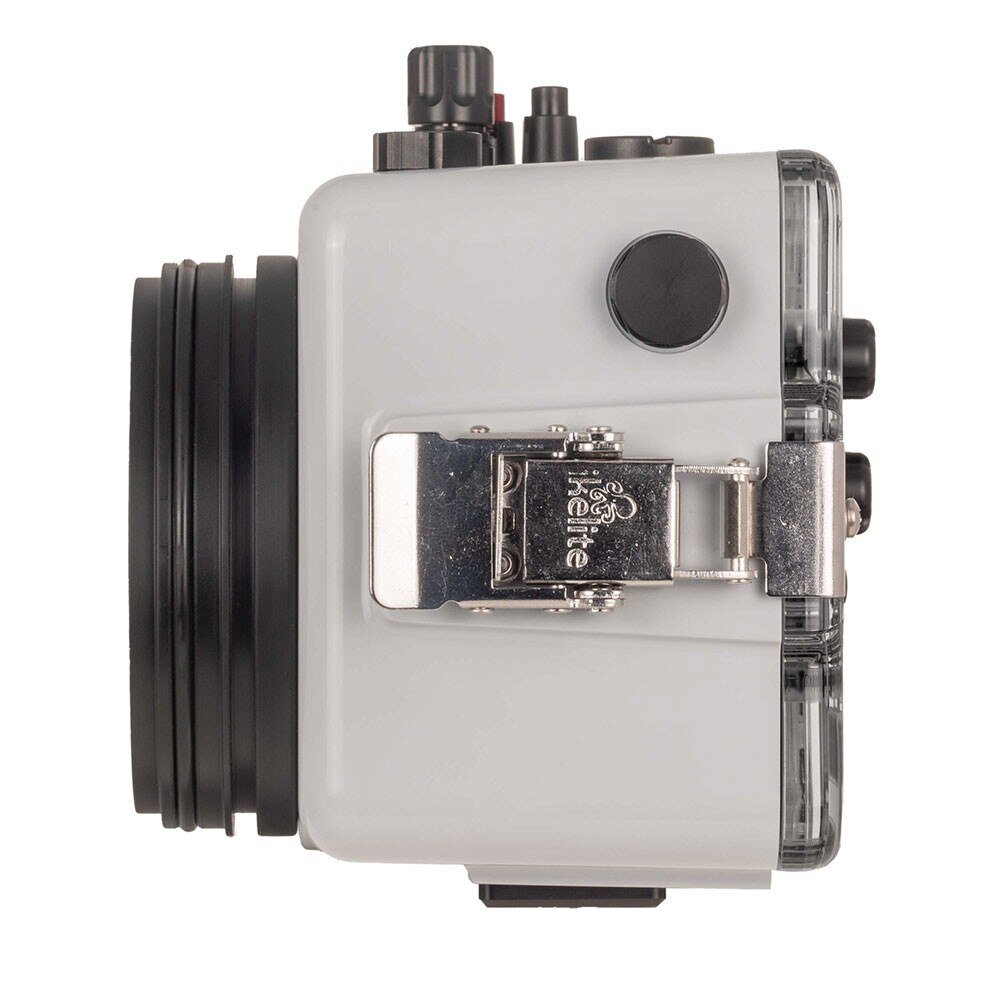

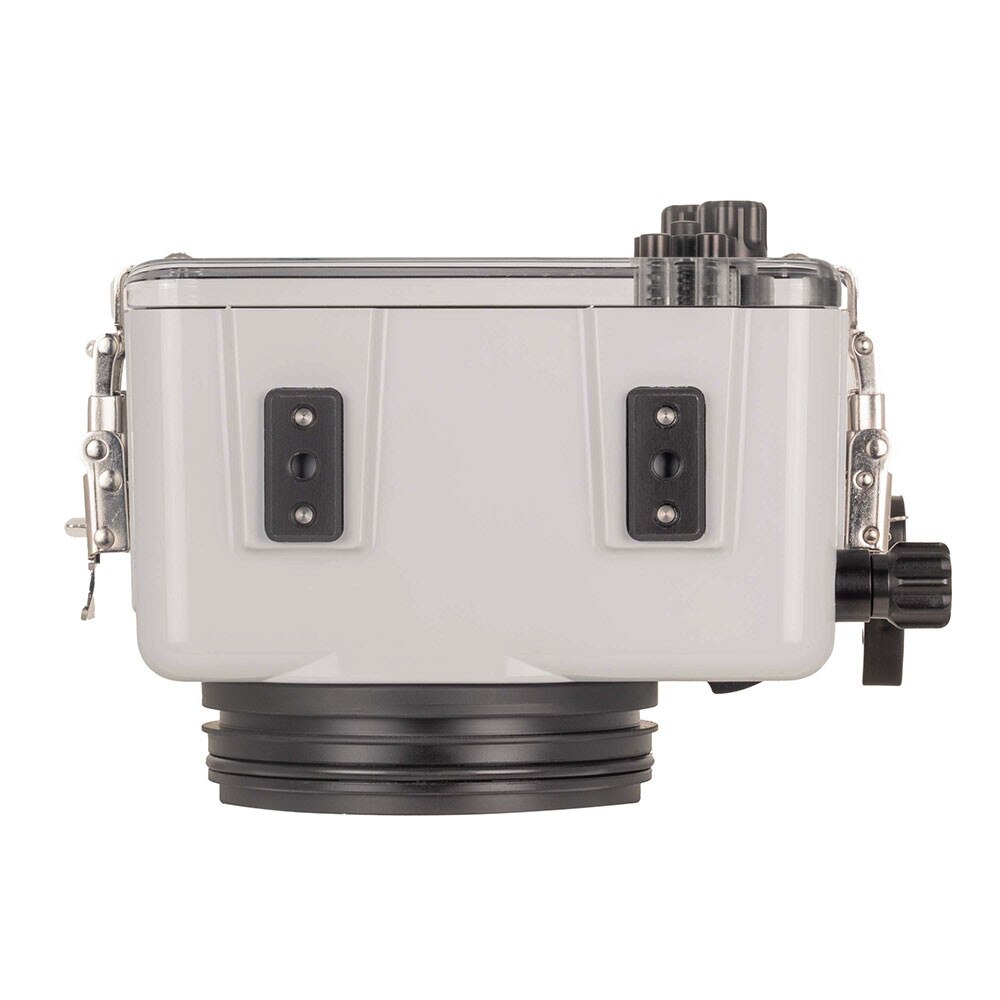

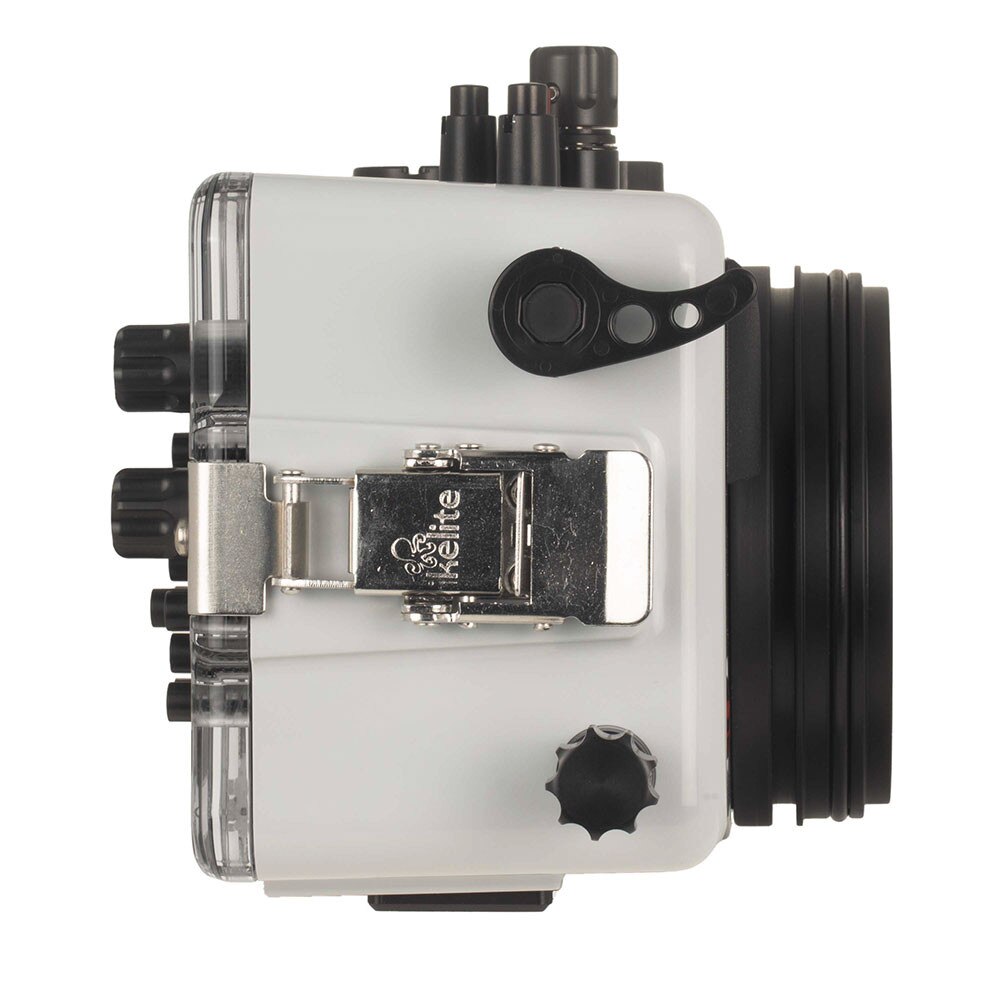

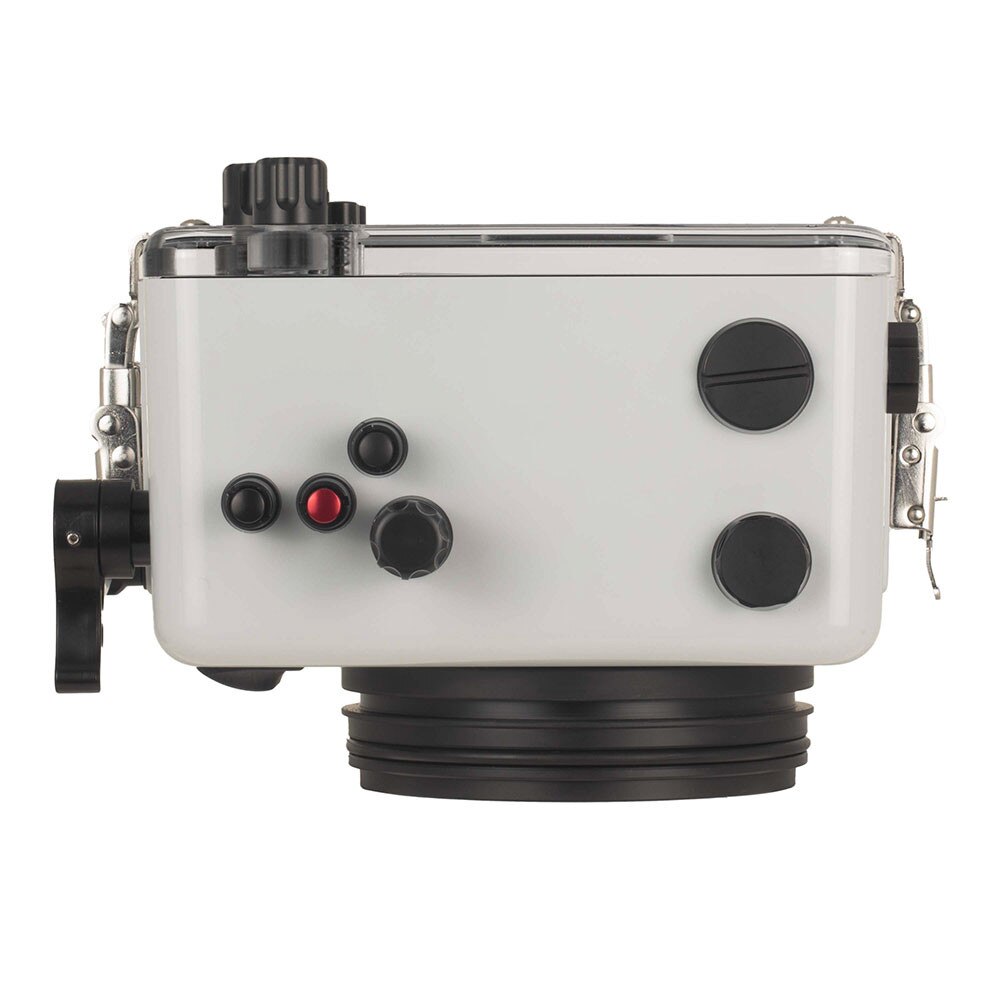

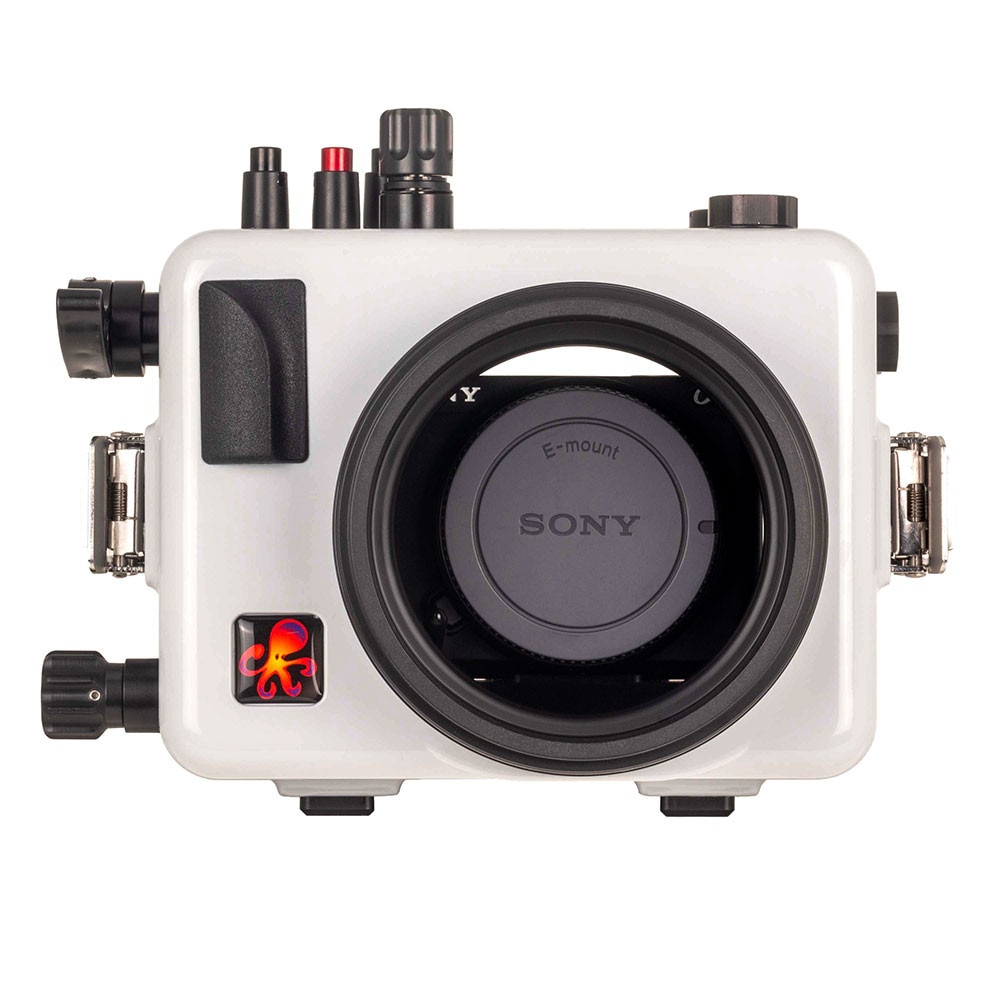

Ikelite 200DLM/A Underwater Housing for Sony ZV-E10 Mirrorless Cameras

The 200DLM/A Underwater Housing combined with the Sony ZV-E10 is a compact and affordable option for great video while scuba diving, freediving, surfing, pool, or any adventure.

The ZV-E10 features a 24-megapixel APS-C CMOS sensor capable of UHD 4K video. It provides good battery life in a small form factor designed to appeal to vloggers and casual shooters.

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

Pre-Dive Checks

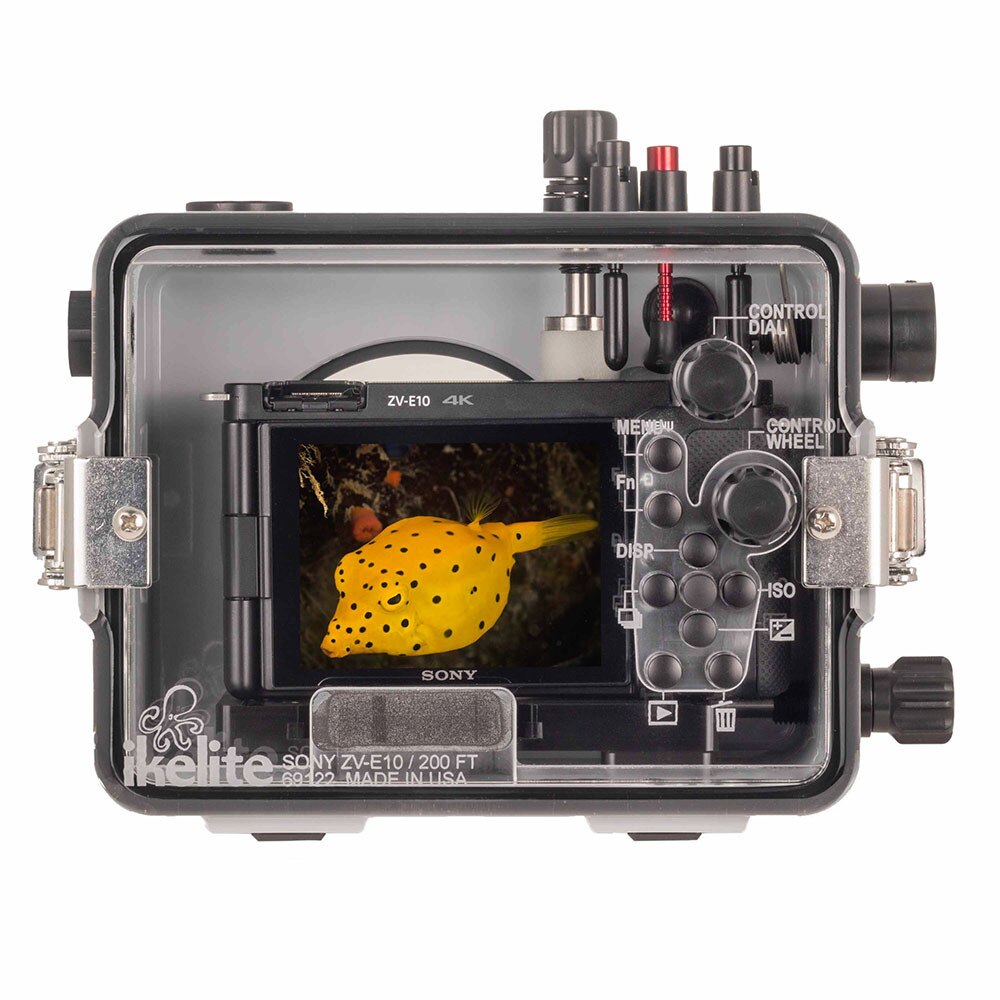

There is no greater assurance than seeing your camera and o-ring seal through the back of the housing. Ikelite's signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed, you can see the o-ring form a solid, waterproof seal.

Ikelite recommends adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks before entering the water.

Construction

Ikelite's specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

Ikelite lens ports are the lightest on the market yet robust and capable of standing up to rough surf.

Ikelite supports a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears are sold separately. Refer to the appropriate port chart for compatibility information.

Wi-Fi Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. Ikelite is unaware of any other models that may be used in or adapted to this housing.

In The Box

• Housing
• Rear O-Ring # 0110 (installed)
• Front O-Ring # 0132.36 (installed)
• 0.050" Hex Key # 0945.11
• 1/16" Hex Key # 0945.16
• Silicone Lubricant 1cc Tube

SPECS:

• Controls: Controls for all camera functions W/T (zoom) lever. The zoom function is supported via the lens' zoom ring when using a compatible DLM port and zoom gear. Refer to the DLM/A Port Chart for information on specific lenses.
• Port Mount: DLM (Dry Lock Micro)
• Accessory Port: 1/2-20 Thread and M16 Thread
• Depth Rating: 200 feet (60 meters)
• Weight: 2.6 lb (1.2 kg)
• Dimensions: 7.25 x 5.5 x 6" (184 x 140 x 152 mm)
• Rear O-Ring: 0110
• Front O-Ring: 0132.36
