Ikelite Underwater Housing for Olympus Stylus 1s

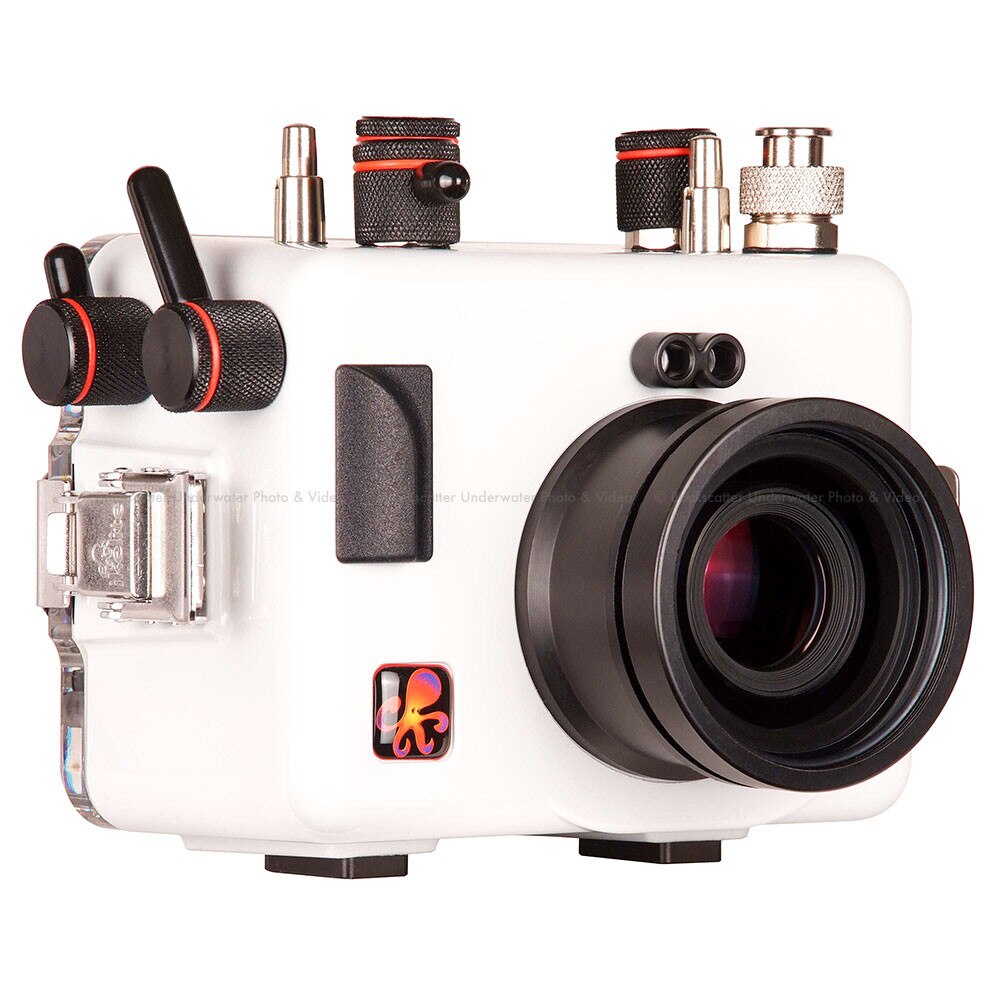

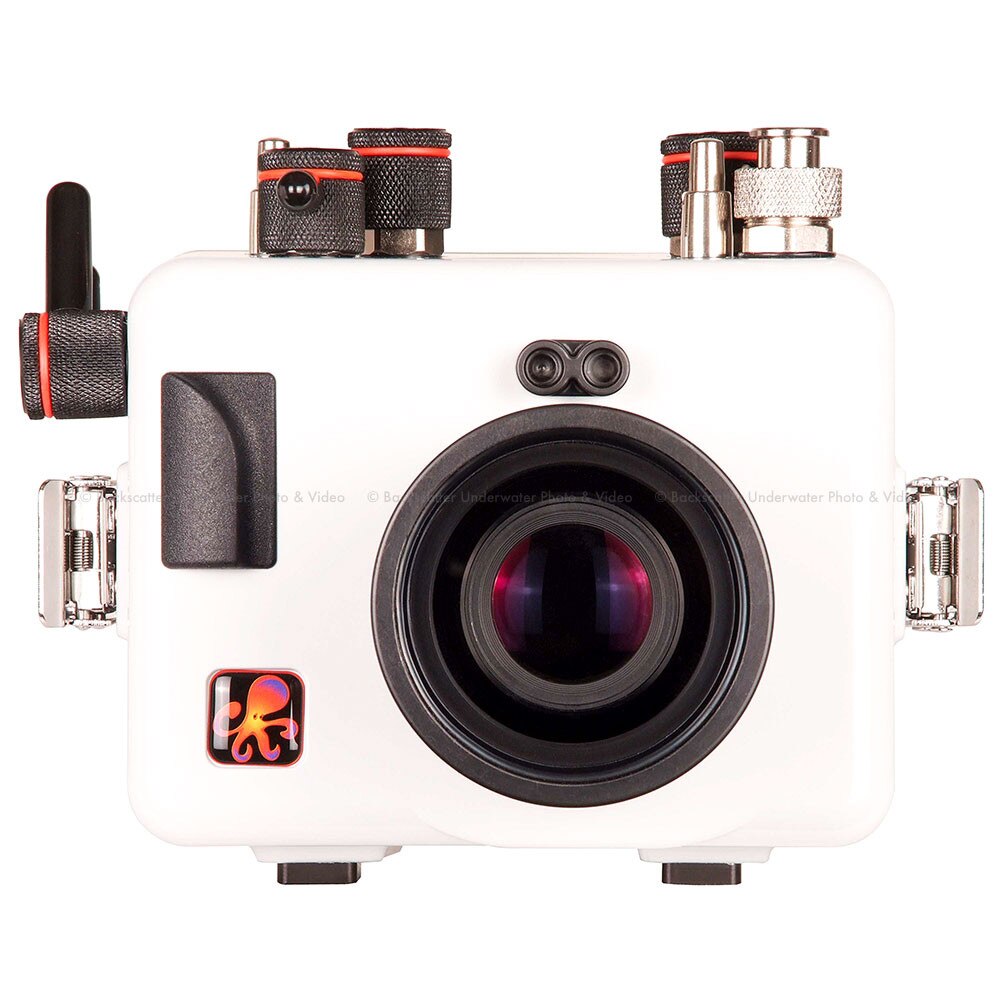

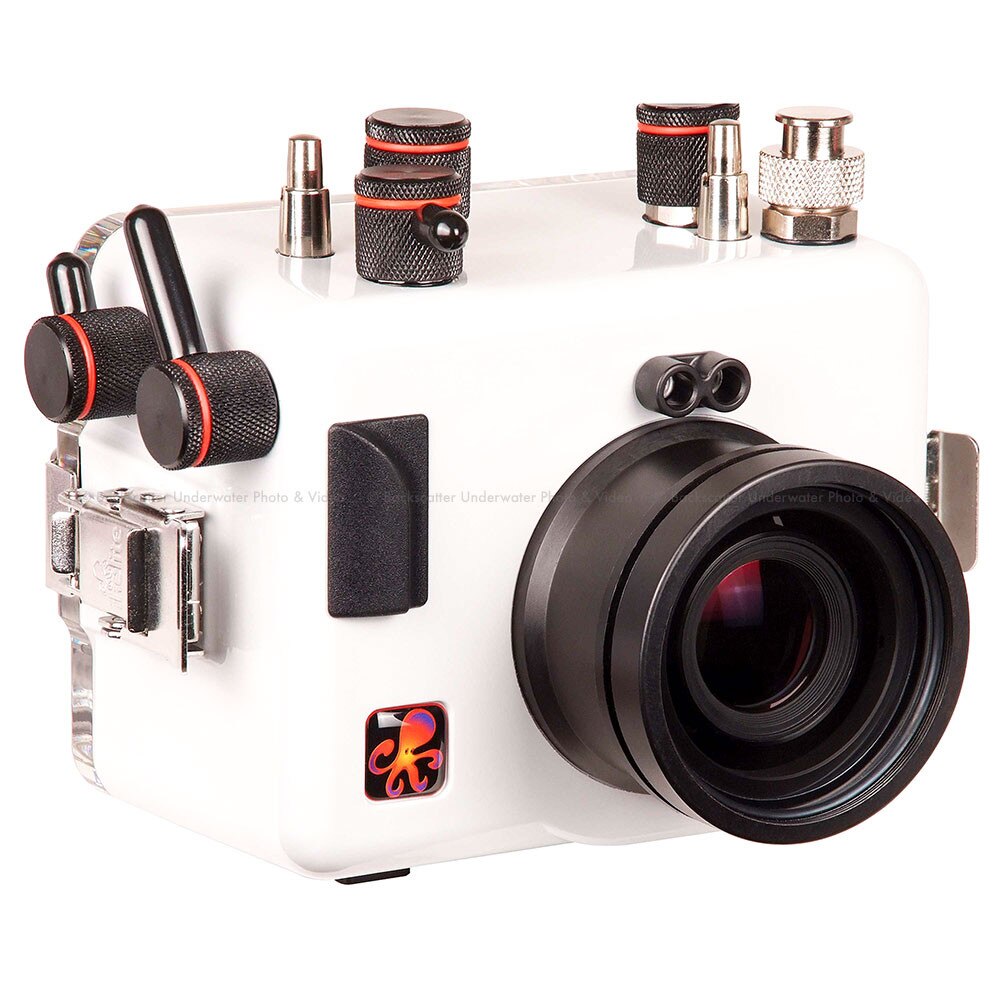

This compact and lightweight housing provides operation of all important camera functions up to depths of 200 feet (60m). The housing controls are placed in a configuration as similar to the camera's layout as possible for the most natural operation taking advantage of the muscle memory you've already developed in surface use. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off. The front-loading camera mounting system makes installation and removal a breeze.
FREE Standard Shipping to USA / Canada!
Base Price $
Price as Configured $
This product has been discontinued. Please scroll down for accessories and other options.
Overview / Product Description
Ikelite Underwater Housing for Olympus Stylus 1s
This compact and lightweight housing provides operation of all important camera functions up to depths of 200 feet (60m). The housing controls are placed in a configuration as similar to the camera's layout as possible for the most natural operation taking advantage of the muscle memory you've already developed in surface use. Rear controls are marked with easy-to-see laser engraved symbols which never fade or fall off. The front-loading camera mounting system makes installation and removal a breeze. The camera mounting plate allows ready access to the battery and memory card, and features a standard 1/4-20 mounting point for attachment to a tripod topside.
Color correction and external lightingLight is absorbed as it travels through even short distances underwater, making colors appear dull or monochromatic. To preserve the natural colors of your subject, it's important to stay within arm's reachno more than 3-4 feet (1m) away.
Additional color correction and clarity can be obtained by adding a color filter or external light. The lens port of the housing accept Ikelite's 3-inch diameter color filters. Color filters attach via a press fit and are available for both tropical blue water and green water settings. A color filter reduces the amount of light that reaches the camera's sensor, so they are most effective in sunny conditions at relatively shallow depths up to approximately 80 feet (24m).
A flash or constant on light is necessary for close-up, night dives, and deep depths. An external light also brings out more colors in sunny conditions. External lights are typically not used in conjunction with color filters, as the combination will result in tones that are too red or too purple.
True TTL exposureAn integrated TTL circuit is fine-tuned to the Olympus Stylus 1s flash exposure protocol for the most accurate exposure possible. The circuit is powered by the strobe for zero maintenance and no batteries to change. Exposure compensation in TTL mode is supported using the camera's built-in control. At this time, only Ikelite DS strobes are capable of powering the circuitry. SEA&SEA, INON, and Nikonos strobes will still enjoy fast recycle times and improved battery life, but must be used in manual exposure modes only.
This housing provides a direct electrical connection to the camera's external flash hot shoe. Cord attachment is as easy as screwing in a lightbulb, and the threaded fit prevents accidental detachment during use. The bulkhead connection has been moved to the top of the housing to keep cords out of your way and reduce strain on the cord ends. A variety of sync cord terminations are available for Ikelite, SEA&SEA, INON, or Nikonos strobes for ultimate versatility.
The camera's built-in flash is suitable for firing an external strobe, but not for lighting a photo underwater. Two fiber optic ports are built into the front of the housing provide an attachment point for fiber optic cords from most major manufacturers. Use of a fiber optic connector requires the camera's built-in flash to fire, reducing battery life and bypassing the TTL functionality of the housing.
A bright constant-on video light can be used instead of or in addition to a flash. A constant-on light is not as bright as a strobe flash. Constant-on lights do provide added versatility because they can be used for focus assist and for improved colors when shooting video.
Two 1/4-20 threaded mounting points are included on the bottom of the housing for the attachment of a tray and handle system. Handles provide improved ergonomics underwater and are the foundation for your lighting mounts.
There is a simple rule that brighter is better underwater. A high-quality lighting system can produce magazine quality results with almost any compact camera system.
Wide angle, macro, and color filtersThe housing provides full access to the camera's zoom range. The design of this camera's lens limits the addition of external wide angle accessories. For wide angle photography, Ikelite recommends the WD-3 Wide Angle Dome which restores the camera's true angle of coverage and clarity underwater. Unlike a wet lens, the WD-3 is super sharp edge-to-edge, free of dark shadows in the corners of the image, and lightweight for travel. The WD-3 can be removed and replaced underwater so that you can shoot wide angle and macro on the same dive.
The port is threaded for the direct attachment of 67mm threaded accessory macro lenses. Ikelite recommends a macro lens which is designed for underwater use like those from Epoque, INON, Subsee, Nauticam, and other manufacturers. 67mm threaded wide angle wet lenses may be attached to the front of the lens port, but will exhibit vignetting (dark shadows around the edges of the image). Vignetting can be reduced by zooming in or cropping the photo in post-production.
Durability and corrosion free performanceIkelite's brand new ABS-PC blend provides strength and corrosion free performance year with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light gray color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

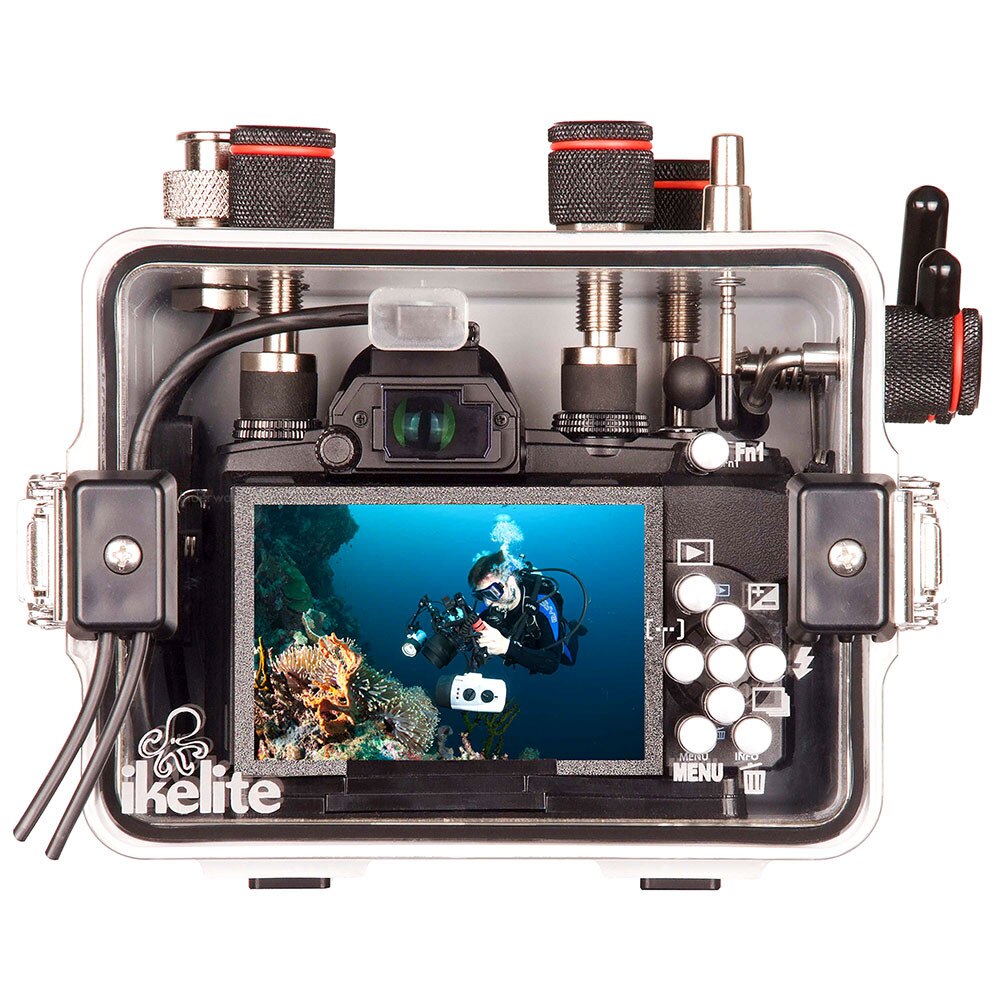

The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. Ikelite has eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Two double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes.
Ikelite products are designed, built and tested in the USA. Ikelite uses locally sourced, top-grade materials. Ikelite's housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 200 feet (60m). Ikelite backs their products with over 50 years of experience and the best reputation for service within the dive industry.
- Port cover
- Waterproof bulkhead cap
- 1 year manufacturer warranty
- 200 ft (60m) depth rating
- Controls for all camera functions except Diopter adjustment dial, Flash switch, Size zoom lever, Front control ring, Fn2 button, Front lever
- Ikelite flash bulkhead connector with built-in TTL circuitry
- Slightly negative buoyancy in fresh water
- 1/4-20 thread tray mounting with 3-inch (76mm) spacing
- Weight 3.1 lb (1.4 kg)
- Dimensions 7.5 x 5.5 x 5.75 in (190 x 132 x 146 mm)
- 3.0-inch diameter glass lens port
- ABS-PC, acrylic, and acetyl construction
- 0110 - Main o-ring
- 9104.5 - Waterproof bulkhead cap
- 0200 - Port cover
- 0184.2 - Silicone lubricant resealable 2cc tube
