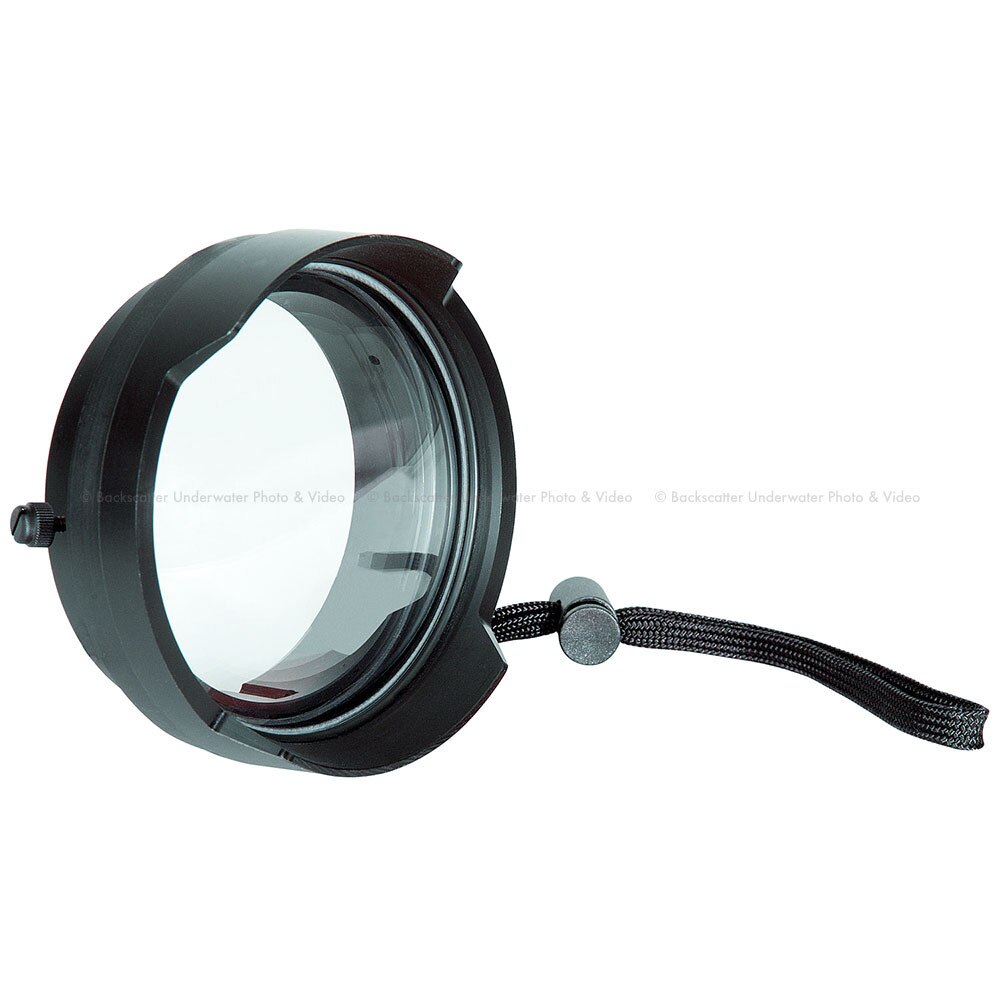

Ikelite WD-3 Wide Angle Dome

Ikelite WD-3 Wide Angle Dome

The WD-3 Wide Angle Dome provides a wider angle of coverage underwater without the distorted edges or vignetting (dark shadows in the corners of the image) that are typically present when using a standard wide angle wet lens. At less than 6oz (168g), the WD-3 is also substantially lighter weight than the average wet lens and easier to use. The resulting image is crisp and clear edge-to-edge.

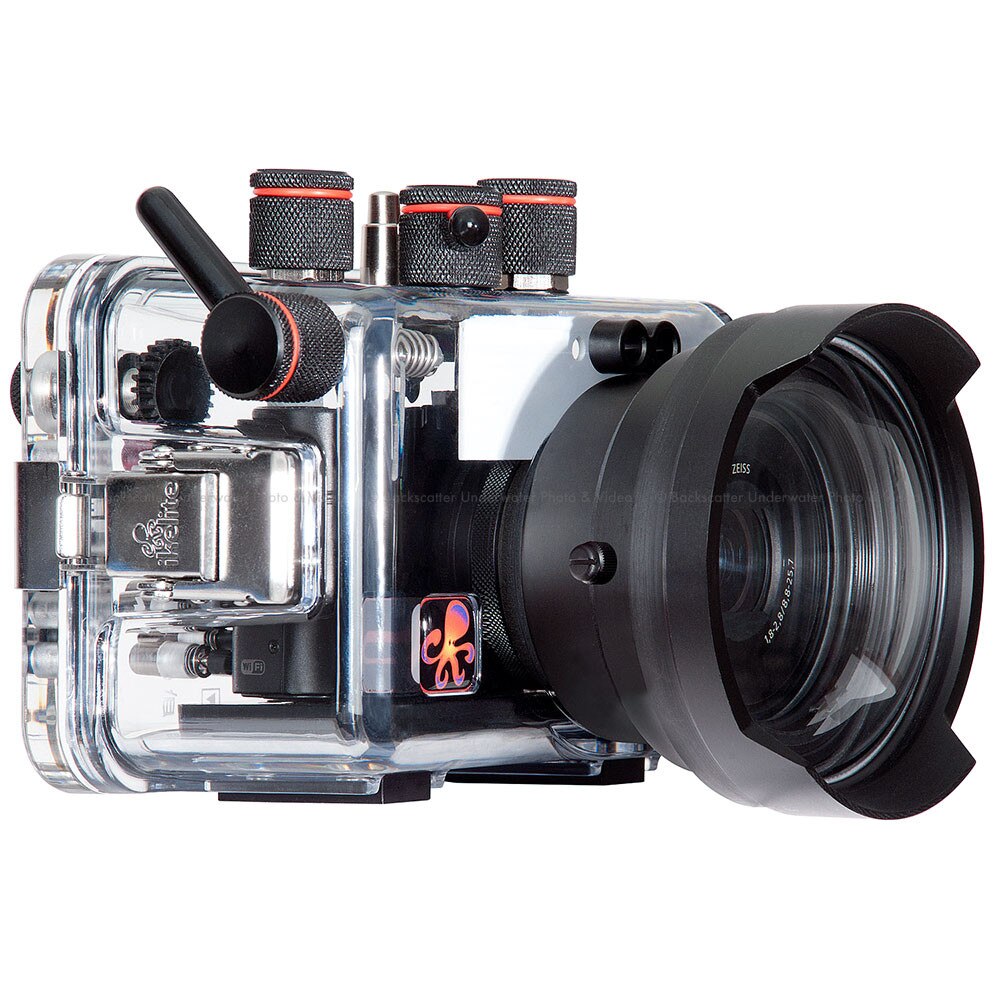

The WD-3 simply slides onto the standard port of the Ikelite housing no modification to or replacement of the housing's original port is necessary. The WD-3 can be removed and replaced underwater so there is no limit to the camera's zoom or macro capabilities. Approximately 3/4 of the camera's zoom range can be used with the dome in place (varies by camera model).

The conversion dome features a 0.75x conversion factor to correct for the refractive magnification of a flat port underwater. The WD-3 Wide Angle Dome is compatible with any Ikelite housing featuring a 3.0-inch diameter lens port. To check compatibility with Ikelite housings, please refer to the housing instruction manual or webpage.

What's Included

• Dome
• Lanyard
• Neoprene cover

Specifications

• Magnification 0.75x
• 200 ft (60m) depth rating
• Optical grade acrylic
• Slightly positive buoyancy in fresh water
• Weight 5.9 oz (168 g)
• Dimensions 4 inches diameter x 1.7 inches length (101 x 43 mm)

Spare Parts

• 0203.93 - Thumbscrew
• 0200.5 - Neoprene cover
