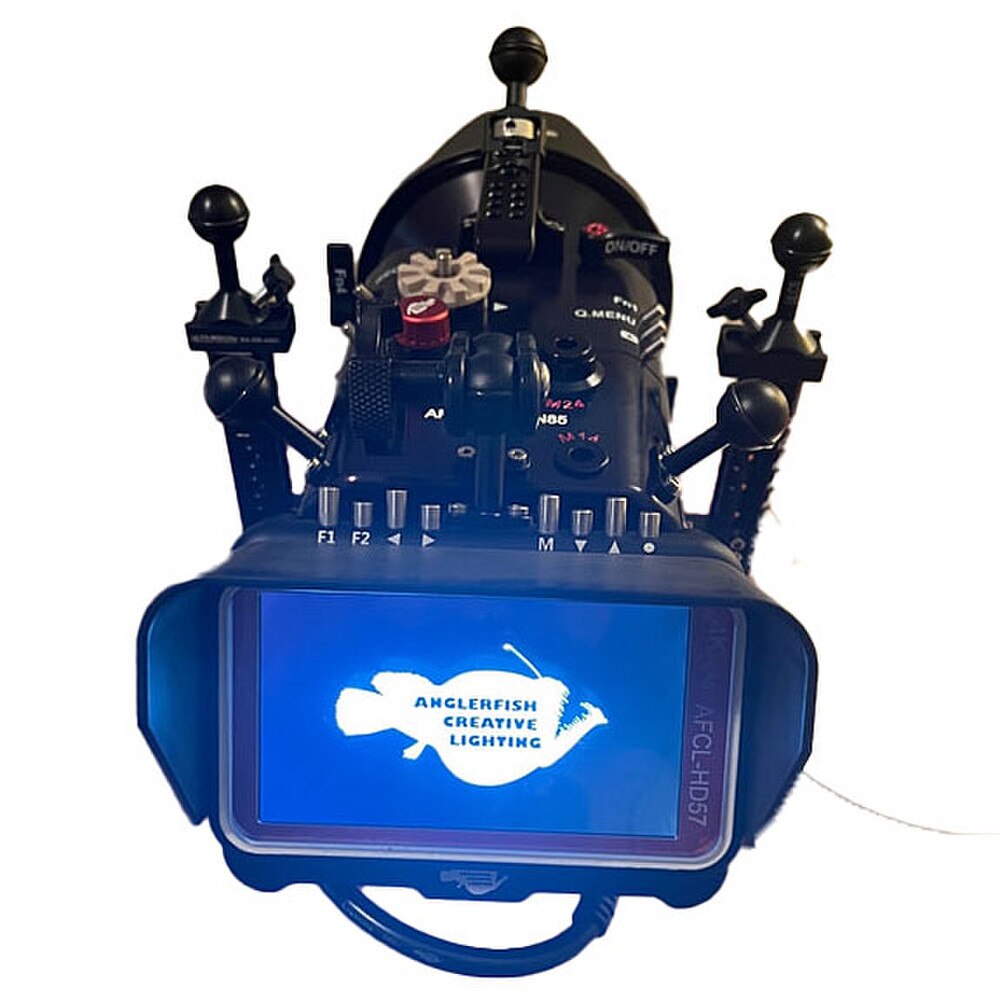

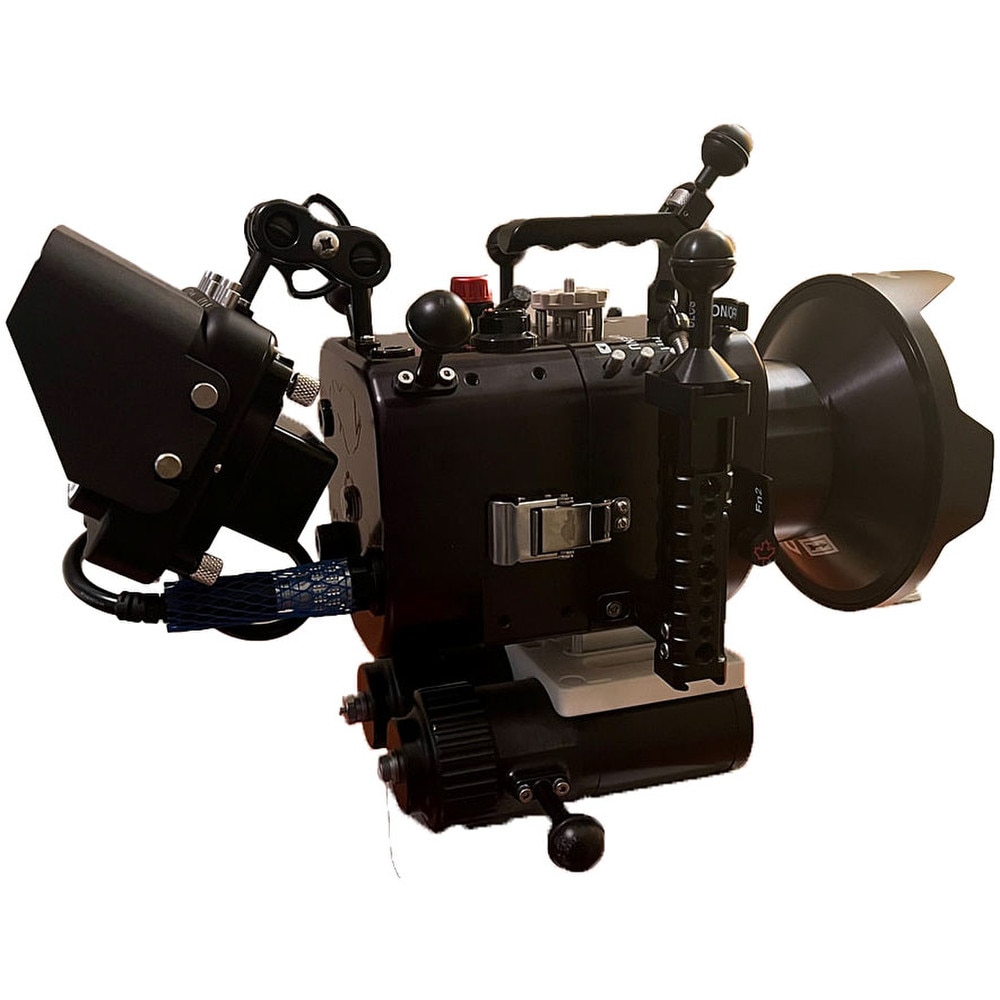

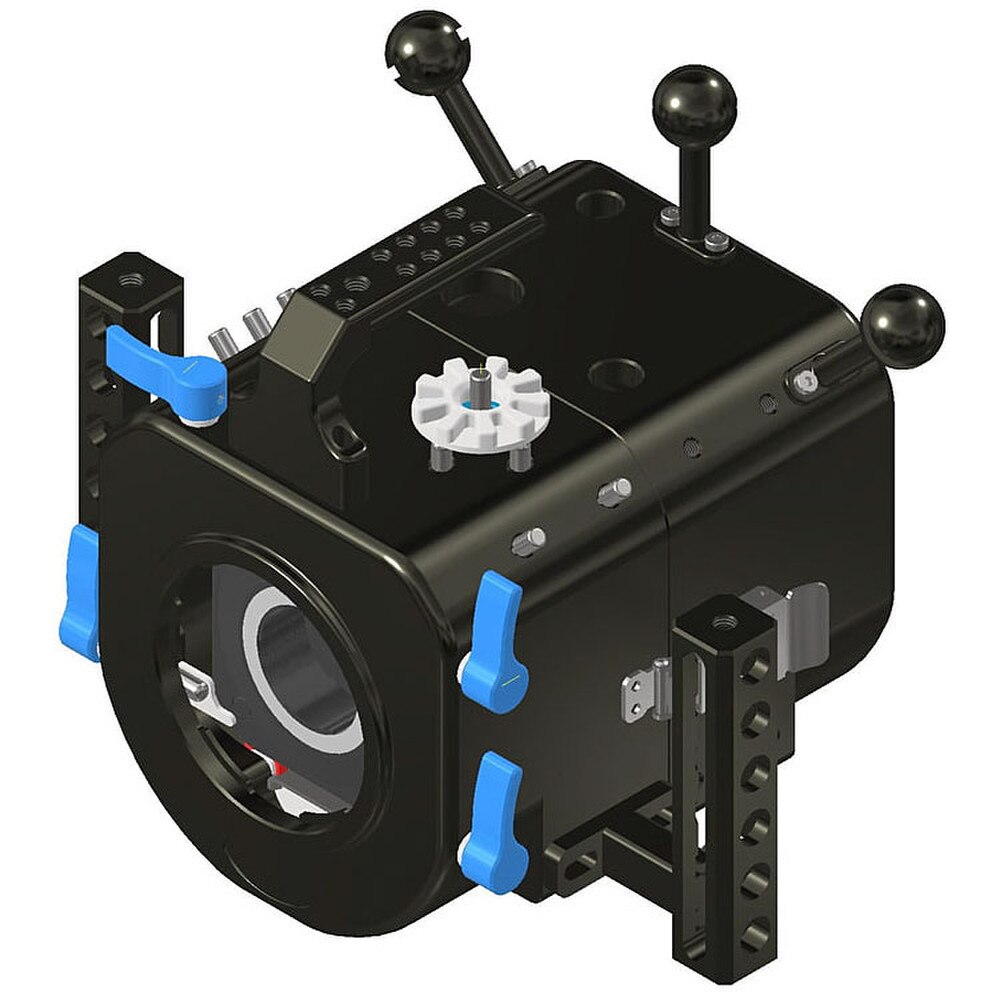

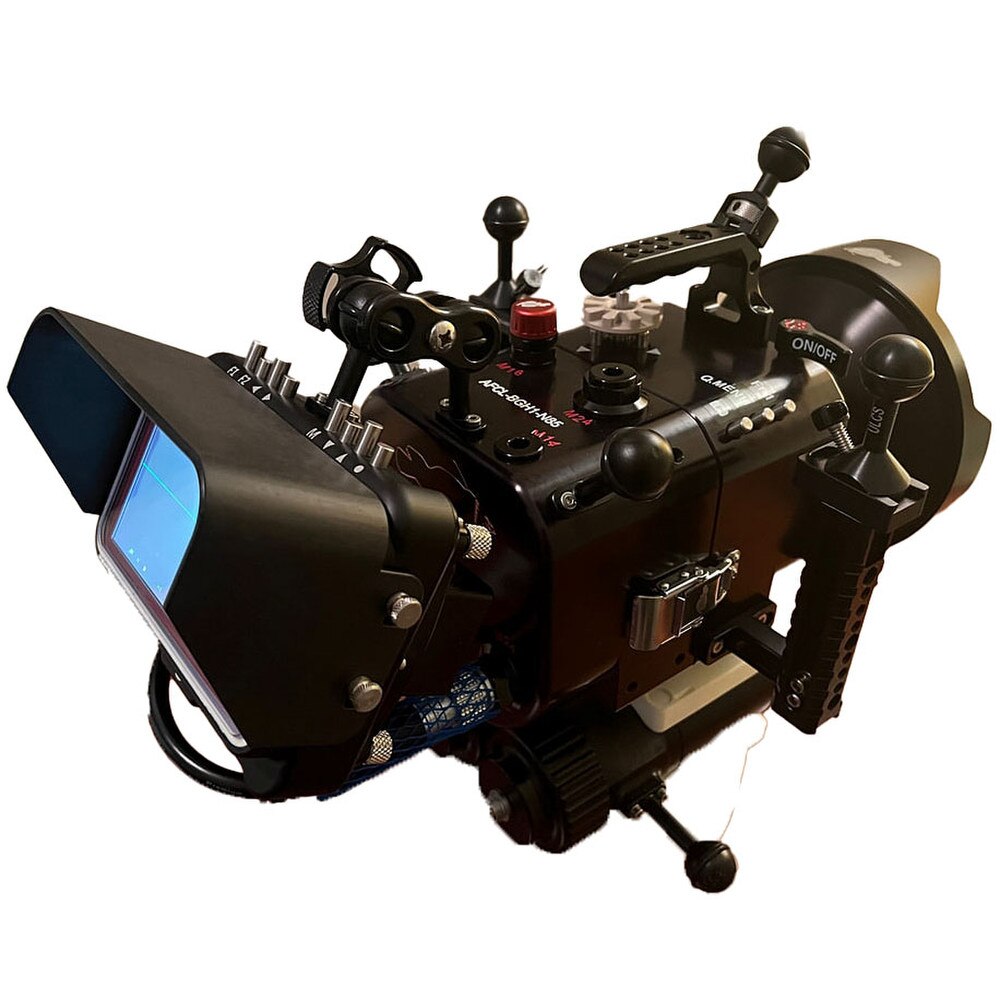

Anglerfish Panasonic BGH1 Underwater Housing

Anglerfish Creative Lighting is announcing an underwater camera housing for the Panasonic BGH1. This housing provides the operation of all the functions of cinema camera underwater. We are currently taking pre-orders for this housing.

Panasonic BGH1 is a compact and lightweight 4K cinema camera offering remote camera function through Power Over Ethernet (POE+) as well as 4K 60hz broadcasting and streaming functions. The camera also features the ability to record RAW video data output over HDMI at 4K, 60hz, 12bit. Users also can record Apple ProRes RAW on Atomos NINJA V. The camera has both HDMI and SDI output. It features Genlock in, TimeCode in and out for camera synchronization.

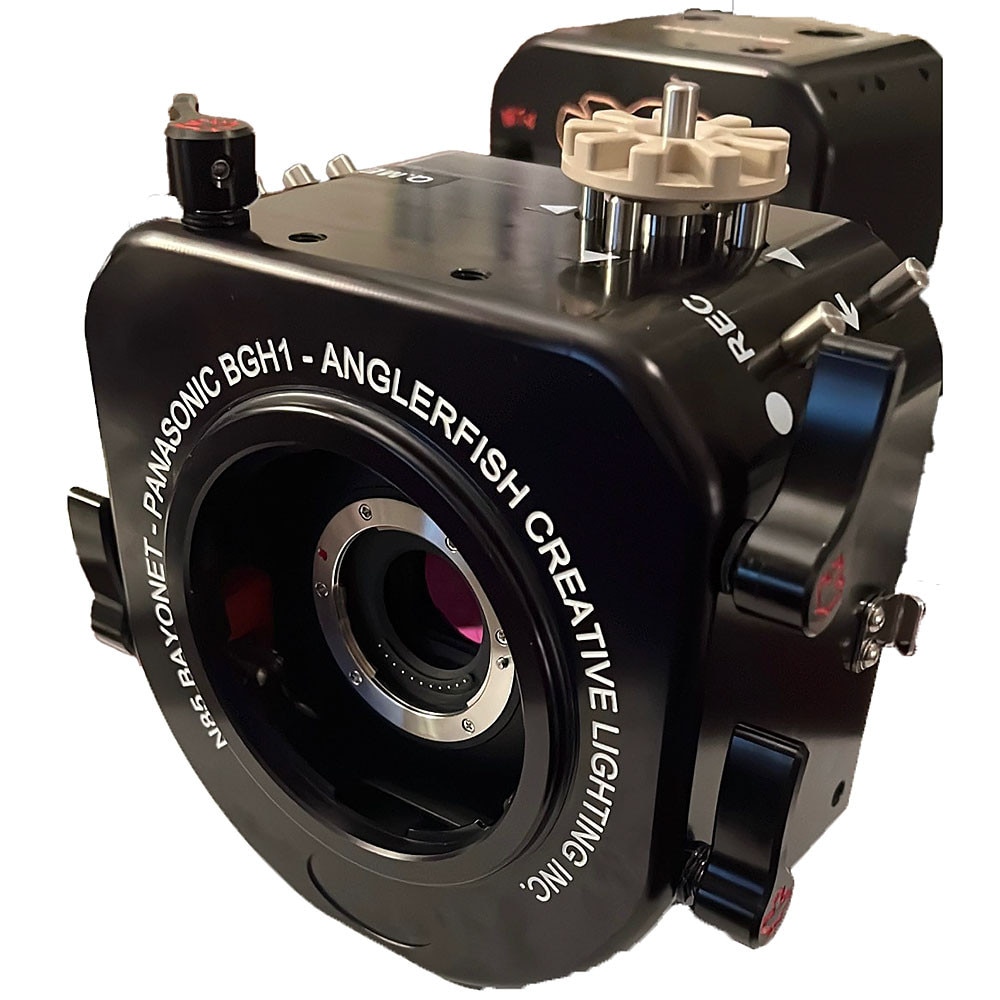

BAYONET DESIGN

The housing Bayonet is compatible with the N85 system. This means that users can either utilize their existing N85 ports and extension tubes or use one of Anglerfish’s 4-inch, 6.5-inch, 9.5-inch, and 12-inch glass domes or the macro flat ports.


BULKHEAD PORTS

The housing feature two for each listed bulkhead ports: M24, M16, and M14.


MULTI-FUNCTION DIAL MECHANISM

The housing is designed to offer the diver with full function of the camera. In particular, we have designed a mechanism to fully operate the multi-function dial on the camera


VACUUM VALVE & LEAK DETECTION SYSTEM

The housing comes standard with a leak detection Smart Phone Application which allows the user to detect the smallest leak in the housing. The vacuum valve is a simple design that allows the user to service the valve in the field.
