Nauticam NA-A2020 Underwater Housing for Sony a9 II & a7R IV Camera with HDMI 2.0 Support

Sony has been at the forefront of the mirrorless evolution, offering cameras with specifications that are truly geared towards meeting the disparate needs of today's image-makers while maintaining a similar, if not almost identical form factor. With the a7R IV, Sony introduced the highest resolution full-frame mirrorless camera to date and with the a9 II, it took speed image quality to another level. Luckily, for those wishing to take their cameras underwater, the a7R IV and the a9 II have extremely similar body size and control placement. For this reason, Nauticam is offering the NA-α2020 housing that offers full support for both cameras in the same housing without modification.

THE SONY A7R IV AND SONY A9 II CAMERAS

While both the a7R IV and the a9 II feature the same size sensor and body, they are two very different cameras. With the NA-α2020 Underwater Housing, you now can choose the right camera for the job while using the same housing, lenses, and ports. Both cameras share 5-axis in-body stabilization (IBIS) providing up to 5.5 stops of stabilization and the ability to record 4K video either from the full sensor width or a Super35 crop at up to 30p to dual UHS-II SD card slots.

Both cameras are capable of clean HDMI video output up to UHD 4K 4:2:2 8-bit at up to 25p.

THE SONY A7R IV CAMERA

The Sony a7R IV is the company's fourth generation, high-resolution full-frame mirrorless camera. The 61.0-megapixel full-frame Exmor R CMOS sensor combined with the BIONZ X imaging engine delivers unprecedented resolution, fine gradation, and low noise. Relative to previous generations, it promises more robust build quality, refined controls, the company's latest autofocus.

The a7R IV also received a serious upgrade from a7R III to its electronic viewfinder (EVF) in a 1.6x bump in resolution to an impressive 5.76-million-dots of UXGA OLED display, the highest of any mirrorless full-frame camera.

• Sony Alpha a7R IV Key Specifications
• 61MP BSI CMOS full-frame sensor
• Fast Hybrid AF with tracking
• 10 fps burst shooting (12-bit Raw mode) with AF Tracking
• 5.76M dot OLED viewfinder
• 4K video from full sensor width (sub-sampled) or oversampled from Super35 crop
• S-Log 2, S-Log 3 and 'HLG' video modes (8-bit only)

THE SONY A9 II CAMERA

The a9 II is the flagship full-frame mirrorless camera in Sony's lineup and features a 24.2MP Exmor RS BSI CMOS sensor. The original a9 set the bar for high speed shooting with an incredible 20fps without EVF blackout, a trait passed on to the a9 II. It's 693 phase-detection pints cover over 93% of the sensor's surface which, combined with the BIONZ X processor leads to fast and accurate autofocus, even while tracking. Placing only 24.2 megapixels on the sensor, the a9 II prioritizes dynamic range and excellent low-light sensitivity over resolution.

Sony Alpha a9 II Key Specifications

• 24.2MP BSI CMOS full-frame sensor
• 20fps continuous shooting without EVF blackout
• Fast Hybrid AF with Tracking
• 3.69M dot OLED viewfinder
• 4K video from full sensor width (sub-sampled) or oversampled from Super35 crop

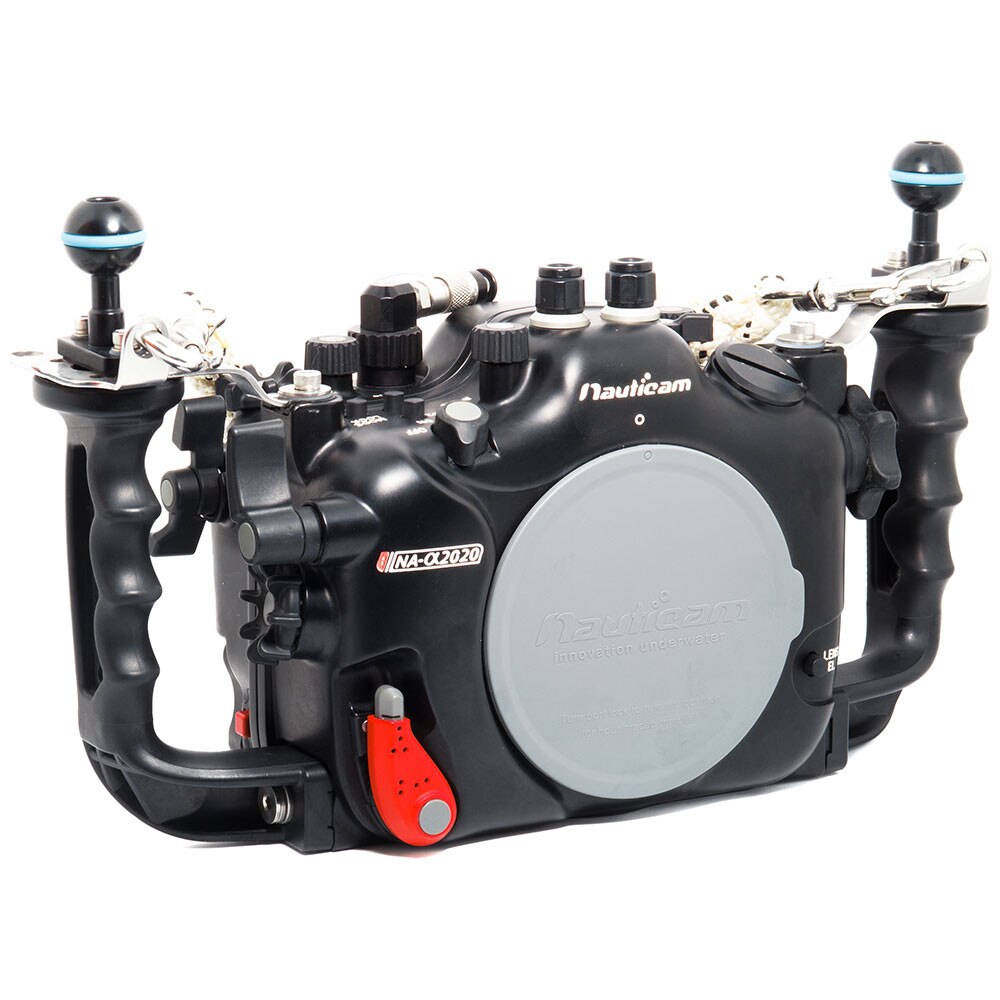

THE NAUTICAM NA-Α2020 UNDERWATER HOUSING

Nauticam has supported the Sony Alpha full-frame line since the original a7 with professional-grade aluminum housings that offer intuitive access to all the controls and functions of the cameras. As the cameras have evolved, so have the Nauticam housings. The Nauticam NA-α2020 takes our commitment to the Sony full-frame mirrorless line to another level by delivering the first housing that will support both the a9 II and the a7R II with full access to all controls without modification or restriction.

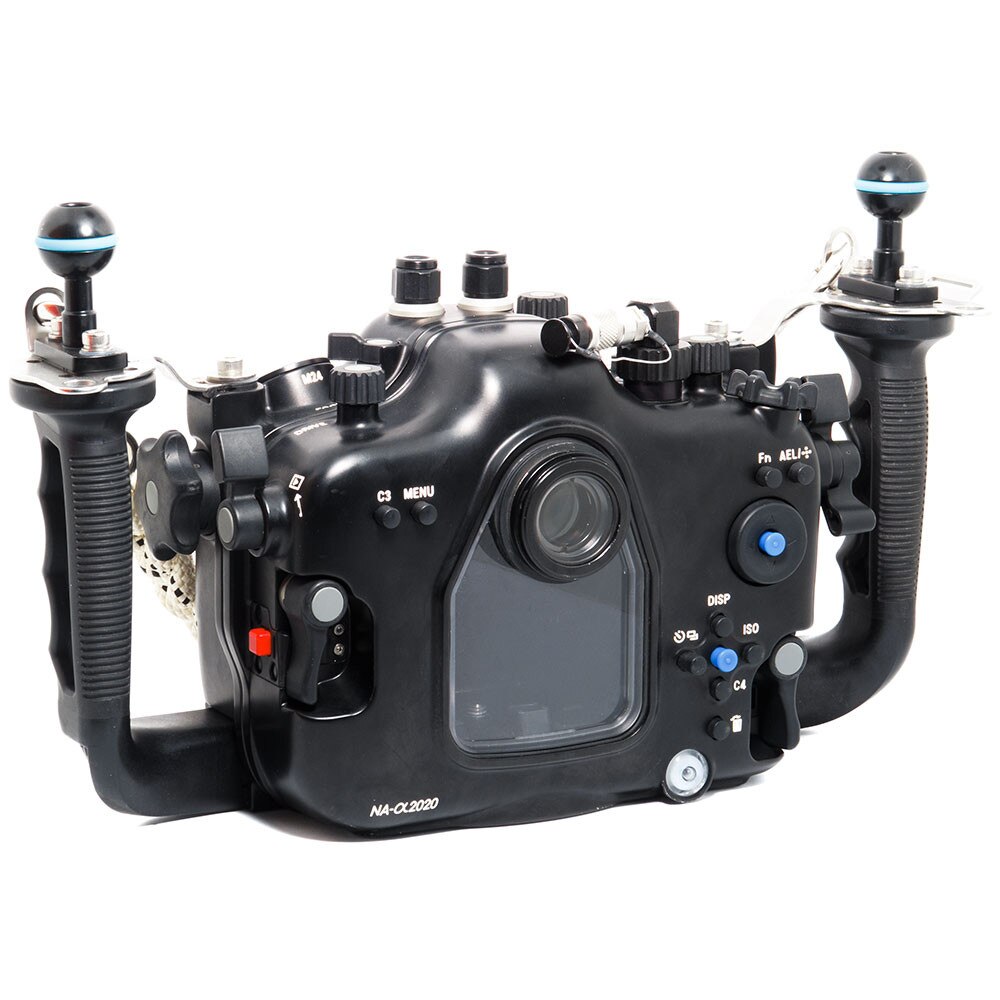

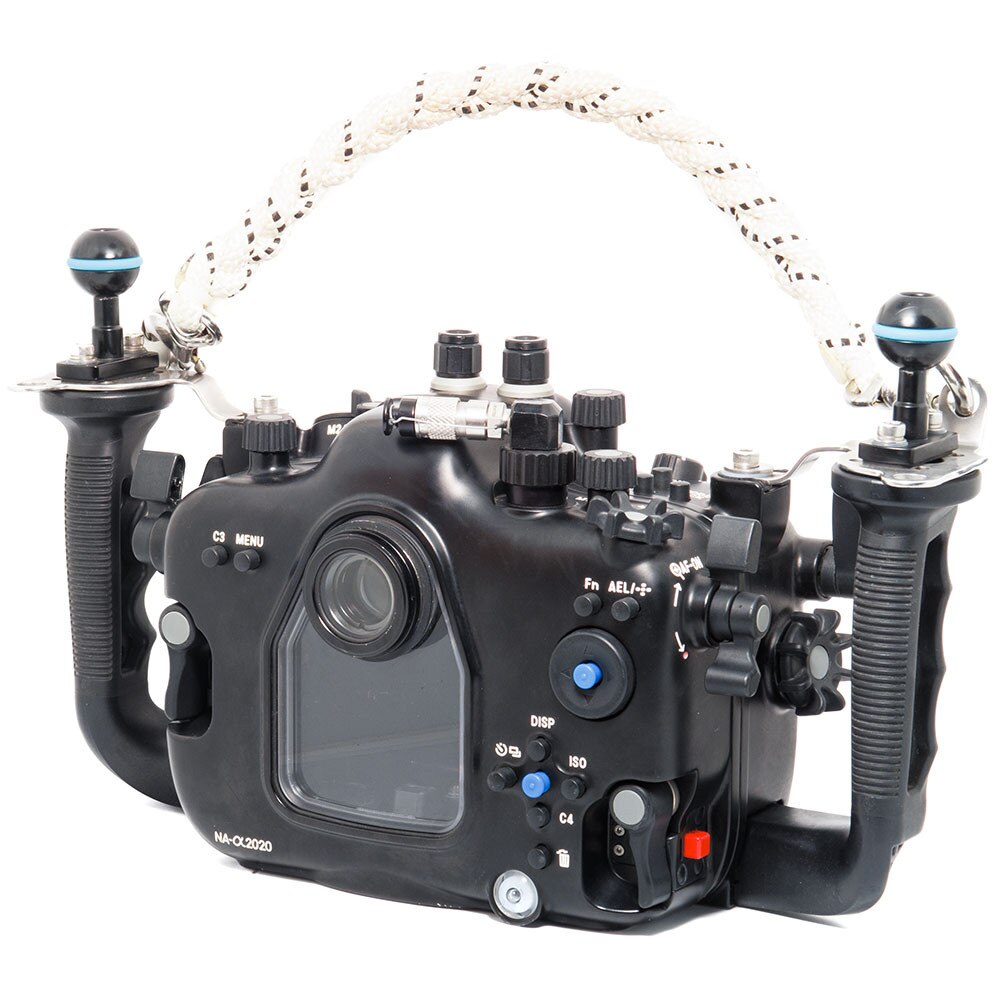

Integrated DSLR-housing styled handles with ergonomic rubberized grips and stainless steel stiffening brackets add stability and accessory mounting points. The NA-α2020 also features dual rear thumb-levers that are easily reached from the handle that access three of the most-used controls on the rear of the camera. The right lever actuates the AF-ON and RECORD buttons while the left lever is mapped to the PLAY button.

Atop the housing on the left side are controls specific to the a9II in the form of a MODE dial and FOCUS mode lever. The C1, C2 buttons, as well as the EV compensation dial, also have direct access from the top of the housing. The C3, which is typically assigned to control switching between the EVF and the LCD screen is easily reachable on the rear of the housing from the left handle.

ACCESSORY PORTS

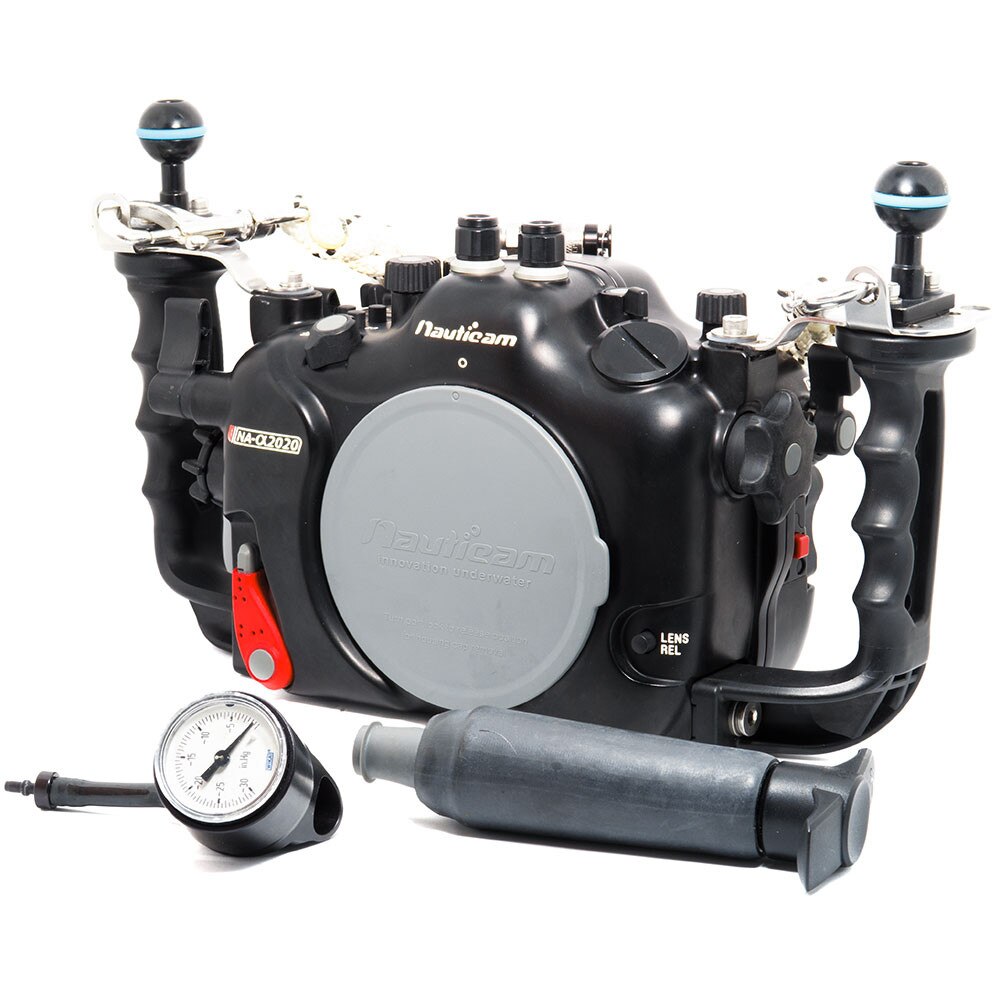

The NA-α2020 has both an M24 port at the front of the housing for both HDMI 1.4 and HDMI 2.0 connectivity (see sidebar for recommendations) as well as an M14 at the rear for the optional Vacuum Valve (25624). The housing comes with electronics pre-installed for Nauticam's Vacuum Check and Leak Detection system. This monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

PREMIUM PROFESSIONAL OPTICS

Nauticam's wide range of ports and in-house corrective optics are the perfect compliment to the NA-α2020's inherent flexibility. Built around the N100 Port System, the NA-α2020 supports a wide variety of Sony FE mount lenses, as well as EF mount lenses via adapters. Also, there are several options available to use the groundbreaking WACP and WACP-2 wide-angle corrective lenses as well as the more compact and in-water removable WWL-1.

For example, With the Sony SEL1635GM FE 16-35mm F2.8 GM, the WACP 2 brings the original 105º field-of-view to an impressive 128º with sharper corners, an ~0" minimum focus distance and a more natural-looking image than would be provided by a standard glass dome port.

FLASH TRIGGERING

Both fiber-optic and electrical strobe triggering options are available. The Nauticam Universal Fiber Optical cables attach to the built-in bulkheads atop the housing and feature modular connections for both Sea&Sea-style bushings and INON threaded connections. Triggering is achieved using the optional Nauticam Mini Flash Trigger for Sony (26302) which uses LEDs powered by an on-board coin-cell battery to generate a manual signal that is transmitted via the optical cables to compatible strobes.

FEATURES

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.

MISSION CONTROL

Nauticam engineers pride themselves on giving the underwater image-maker unparalleled access to the essential exposure controls from within easy reach of their housing's handles, making the ergonomic handles of the housing their Mission Control.

HDMI CONNECTIVITY

The NA-α2020 features an M24 bulkhead that supports both HDMI 2.0 and 1.4 output to an external monitor or recorder such as the Atomos Ninja V.

HOUSING LOCKING LATCHES

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening but are easy to open when needed for a quick battery or memory card change.

What's In The Box:

• NA-α2020 Housing
• AirLock Vacuum System (Installed)
• Nauticam Carry Lanyard
• 2x Optical bulkhead caps
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)

Recommended Accessories:

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder
• 26302 Mini Flash Trigger for Sony (compatible with NA-A7/A7II/A9) – compatible with YS-D2
• 26216 Universal Optical Fiber Cable
• 28130 Hand Strap for 28113 (For NA-1DXII/D500/D5/80D/A9)
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
• 37302 Nikonos adaptor for NA-A7II/A9/A7RIII/A7RIV/a2020
• 25081 M24-M16 Step Down Adaptor
• 25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection

HDMI Output Accessories

• For HDMI 2.0
• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25087 M24D2R200-M28A1R170 HDMI 2.0 Cable (for NA-A7RIV to use with Ninja V housing)
• For HDMI 1.4
• 25081 M24-M16 Step Down Adaptor
• 25046 HDMI (D-D) cable in 200mm length (for internal housing connection)
• 25033 standard HDMI bulkhead with M16 thread

Technical Specifications

• Dimensions: 339mm(W) x 170mm(H) x 123mm(D)
• Weight In Air: 2.71kg
• Weight in Water: 0.63kg
• Depth Rating: 100m
• Port Mount: N100
• Compatible Cameras: Sony a7R IV and Sony a9 II
