  • Recsea RVH-AX55-LCD Underwater Housing for Sony FDR-AX40, FDR-AX53 & FDR-AX55 4K Camcorder
Pro Video / Housings / Sony AX40 / Sony AX53 / Sony AX55

Recsea RVH-AX55-LCD Underwater Housing for Sony FDR-AX40, FDR-AX53 & FDR-AX55 4K Camcorder

  • Lightweight, ergonomically designed.
  • 100 meter (328 feet) Depth Rating
  • RECSEA Vacuum System Built-in
  • Electronic remote control
  • M67 Lens Port

SKU: # rs-rvh-ax55-lcd

FREE Standard Shipping to USA / Canada!

Price $3,000.00

This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.

Back

This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.

Custom Options

Add an Expanded Viewfinder

Price as Configured


Overview / Product Description

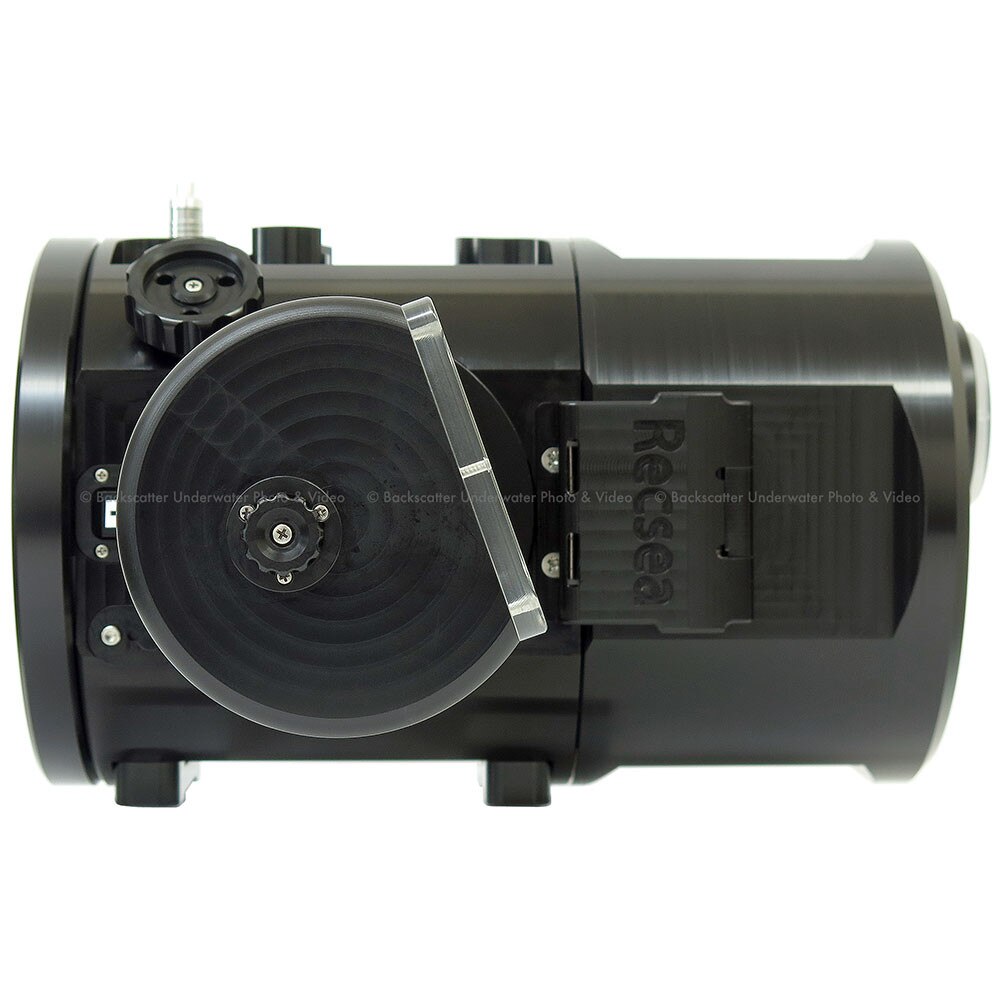

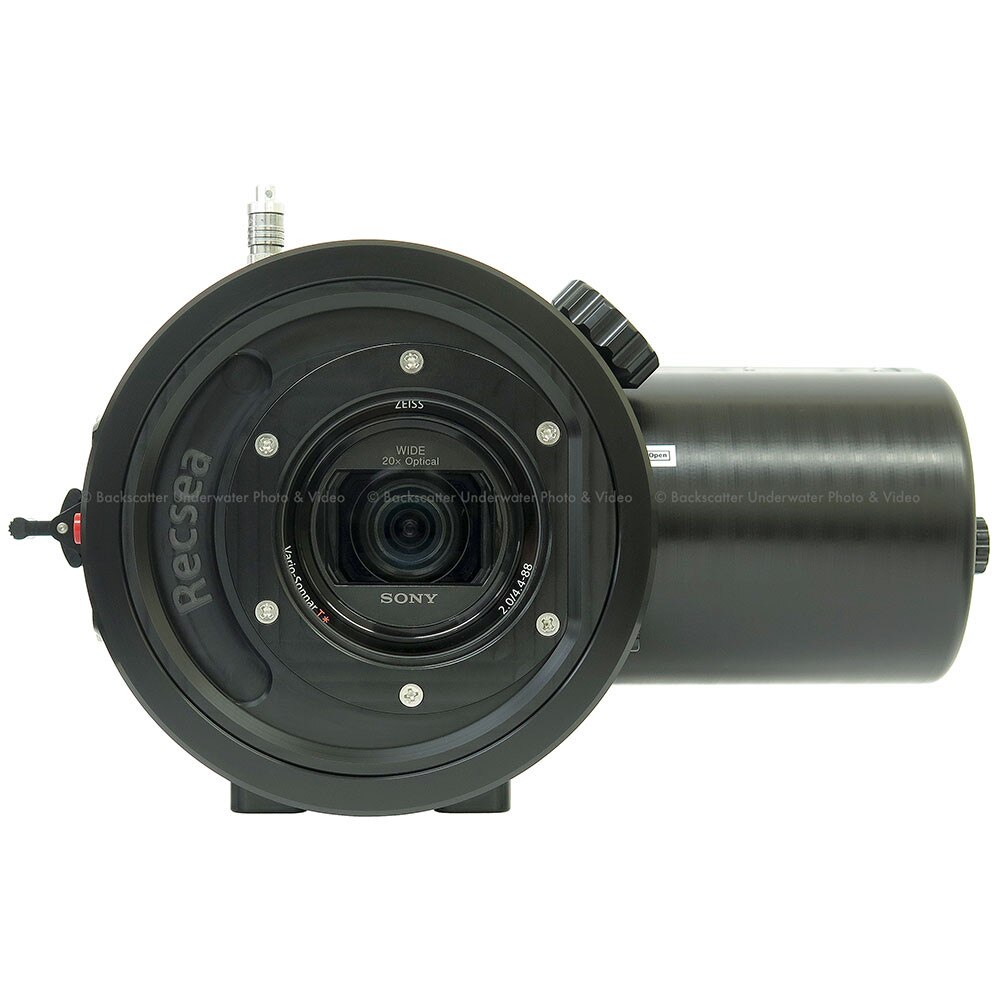

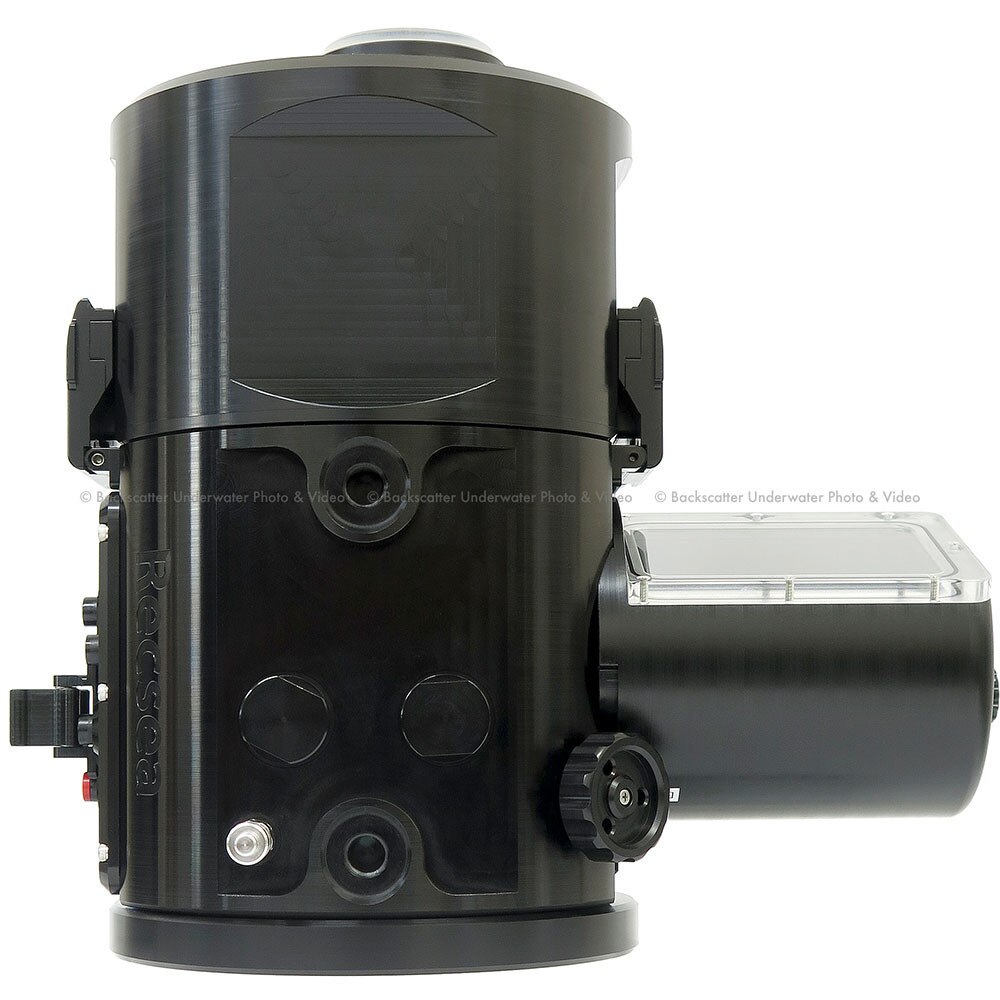

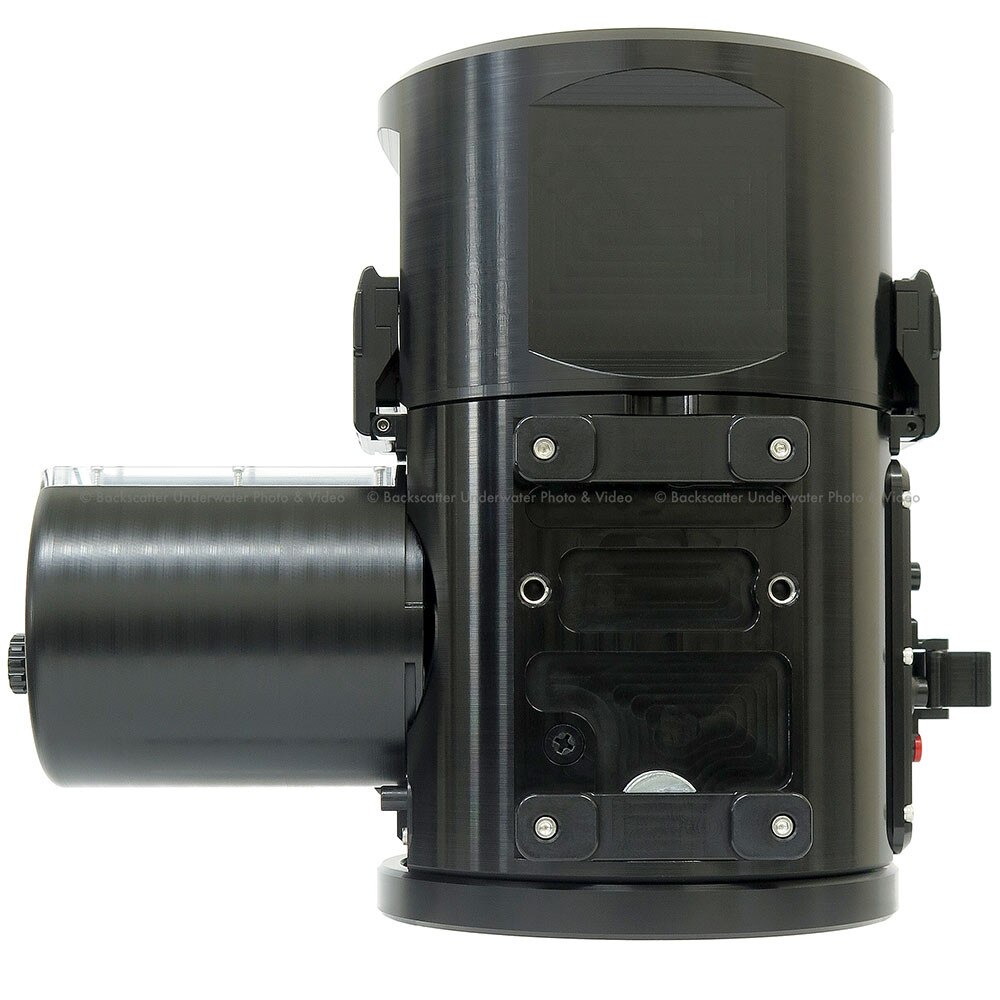

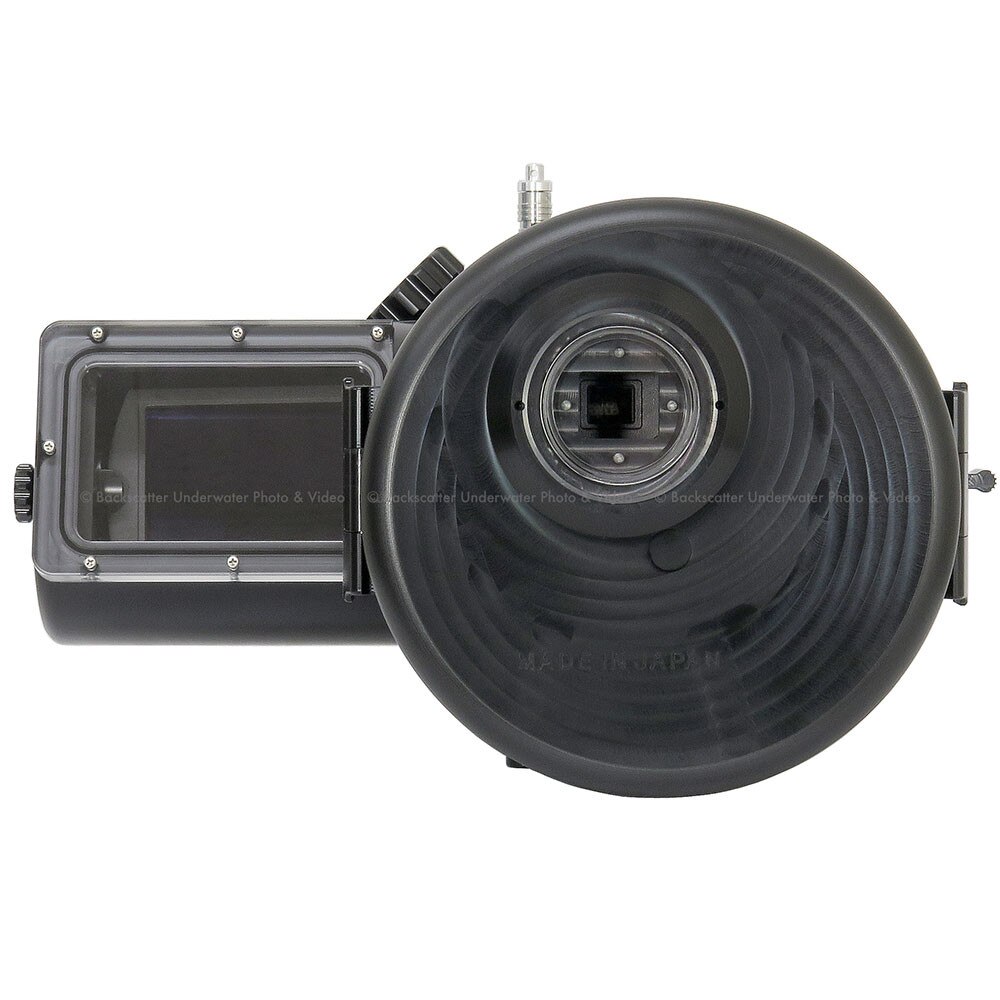

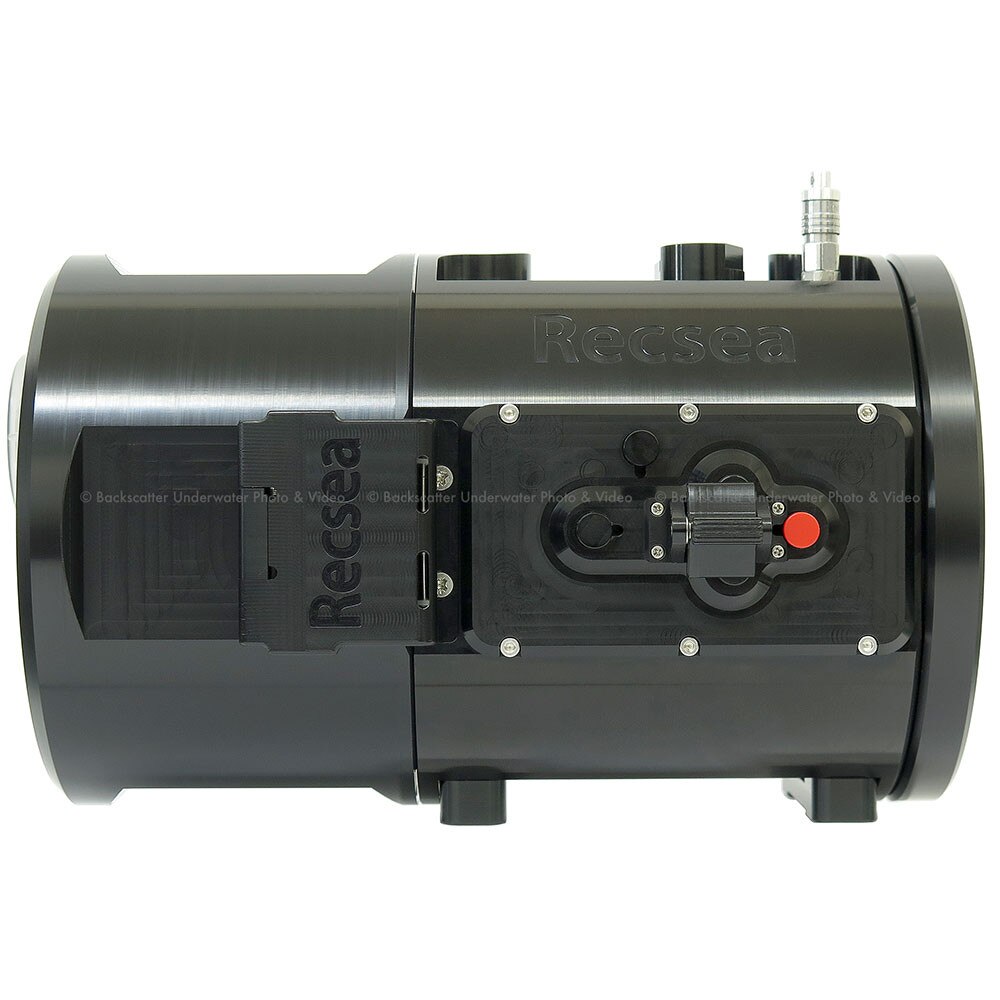

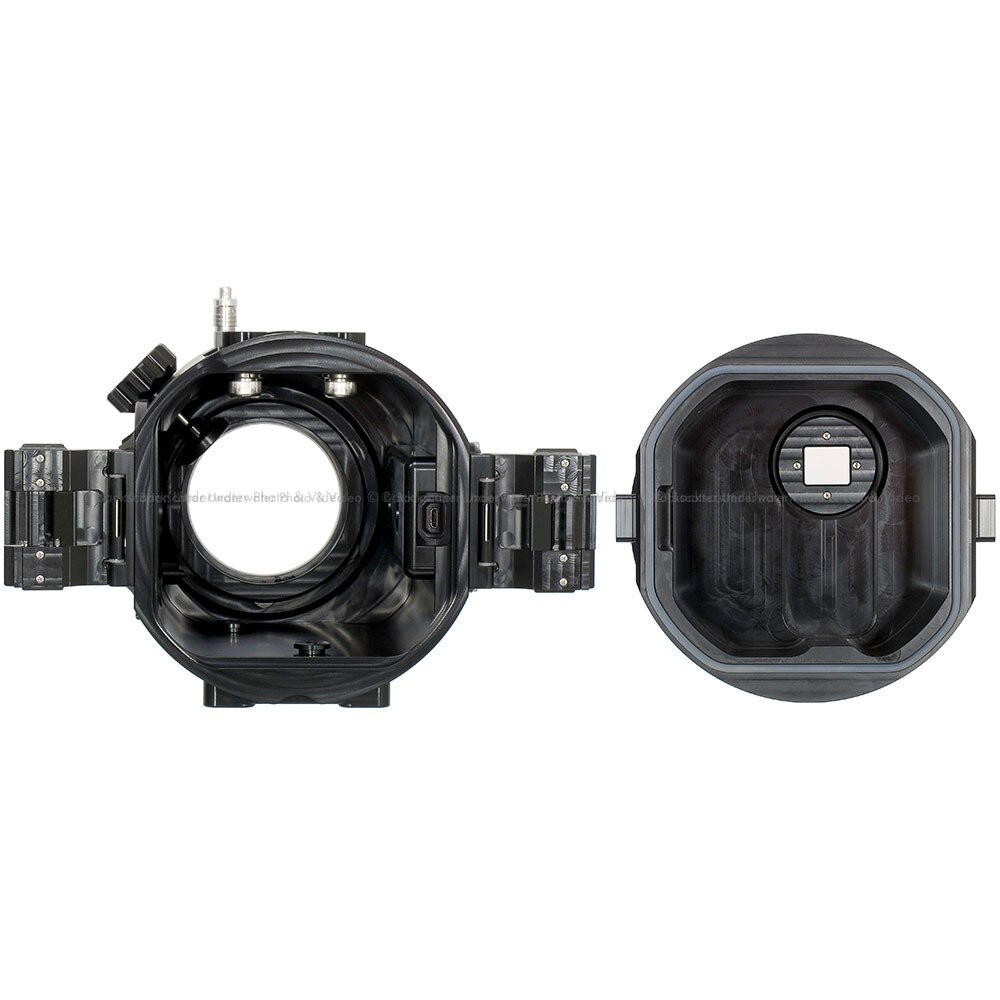

Recsea RVH-AX55-LCD Underwater Housing

for Sony FDR-AX40, FDR-AX53 & FDR-AX55 4K Camcorder


FEATURES
  • Compact and durable, CNC precision machined corrosion-resistant Aluminum and POM housing.
  • Lightweight, ergonomically designed.
  • Maximum Operating Depth (MOD) 100 meters (328 feet).
  • RECSEA Airlock Vacuum System (built-in) w/Gauge and Pump
  • Electronic remote control via SONY RM-VPR1 Remote Controller (built-in).
  • Manual Ring Dial and Manual Button.
  • Removable LCD Port.
  • M67 Lens Port.
  • INON 45_ Viewfinder Unit compatible (No adapter required).
  • RECSEA original Secure-Latch locking system for easy opening and closing.
  • One One (1) EO Bulkhead 26-5FBRA-4 Port and one (1) Backscatter Wahoo HD Monitor Aquatica Bulkhead Port for external monitors.
  • Two (2) M10 Ball Joint Sockets.
  • Quality silicone Back Cover O-ring with wider Back Cover contact surface for added protection at greater depths.
  • Variety of supported RECSEA original options.
SPECIFICATIONS
  • Compatible Camera
    • SONY FDR-AX40 4K Camcorders
    • SONY FDR-AX53 4K Camcorders
    • SONY FDR-AX55 4K Camcorders (SONY FDR-AXP55 Viewfinder Configuration only)
  • Maximum Depth: 100 meters (328 feet)
  • Material
    • Main Body: Corrosion-resistant Aluminum Alloy, Anodized
    • Back Cover, LCD Port: POM
    • Lens, LCD Port Window, Viewfinder: Hard Coat Acrylic
    • Levers, Buttons, Dials, Levers: POM, PVC
    • Screws, Springs, Shafts: Stainless Steel, Galvanized / SUS
    • Main Body Color: Black Alumite
  • Dimensions
    • Approx. W230mm x D232mm x H140mm (Housing only)
    • Approx. W 9in x D 9.1in x H 5.5in (Housing only)
  • Weight
    • Approx. 2.44kg (Land ) / Positive Buoyancy (Freshwater w/AX55 & Grip Assembly)
    • Approx. 5.4lbs (Land ) / Positive Buoyancy (Freshwater w/AX55 & Grip Assembly)
  • Accessories
    • RECSEA Airlock Vacuum System (built-in) w/Gauge and Pump
    • SONY RM-VPR1 Remote Controller (built-in)
    • Camera Fixing Plate
    • LCD Type Grip & Tray Assembly
    • Reserve O-ring
    • SEATOOL O-ring Grease w/O-ring Pick
