OM System PEN Mirrorless Camera
OM System PEN Mirrorless Camera
SKU: # ol-v210080su000
Price $999.99
Overview / Product Description
OM System PEN Mirrorless Camera
A compact, weather-sealed interchangeable-lens camera with creative profiles, 4K video, AI autofocus, and image stabilization for everyday and travel photography.
OM SYSTEM PEN is a compact interchangeable-lens camera for travel and everyday photography, designed for people who want high image quality and creative flexibility without carrying a bulky kit. At just 393 g (13.9 oz), its easy-to-carry body features IPX1-rated weather sealing for added protection when shooting in rain.
Creative color and monochrome profiles let you shape the look of your images, while five computational photography modes make creative effects easier to achieve — all in-camera. You can also share your profiles with others via the OI.Share app and discover new looks through the app's Profile Library.
OM SYSTEM PEN also offers 4K and vertical video. A fast 121-point all-cross phase-detection autofocus system, together with AI-powered Human and Pet Detection AF, helps keep subjects sharp and in focus. Image stabilization providing up to 5.5 stops of compensation helps reduce camera shake for steadier handheld stills and video, especially when shooting in low light or at night.
Main benefits
- The compact body is easy to carry for travel, everyday life and spontaneous photography.
- A viewfinder, shutter button, dial-based operation, and interchangeable lenses give you a dedicated, intuitive camera shooting experience.
- Color, monochrome, and CP-button controls make it easier to create distinctive looks in-camera.
- Image stabilization supports steadier handheld shooting while keeping the kit compact.
- AI Human and Pet Detection Autofocus helps you concentrate on the moment when photographing people and pets.
Main features
- Weight: 393 g (13.9 oz) (Body)
- IPX1-rated weather sealing for added protection when shooting in rain
- Rangefinder-style viewfinder
- Image stabilization providing up to 5.5 stops of compensation for steadier handheld shooting
- 4 Color profiles and 4 Monochrome profiles
- 5 computational modes via the CP button: High Res Shot, Live ND, Focus Stacking, HDR and Multiple Exposure
- 4K video and vertical video with a 3.5mm microphone connector for external microphones
- Wi-Fi and Bluetooth LE for connection to mobile devices
- 121-point all-cross phase-detection autofocus system
- AI Human and Pet Detection Autofocus
Technical Specifications
Type
- Lens mount: Micro Four Thirds
Image Sensor
- Type: 4/3" Live MOS sensor
- Effective pixels: 20.4 Megapixels
- Full resolution: 21.8 Megapixels
- Aspect ratio & area: 4:3 / 17.3 x 13.0mm
- Filter array: Primary color filter (RGB)
Filter
- Dust reduction filter: Supersonic Wave Filter
Viewfinder
- Type: OLED Electronic Viewfinder
- Pixel number: 2.36M dots
- Magnification: Approx. 1.10×–1.23× depending on Finder Style (-1m⁻¹, 50mm lens, infinity)
- Angle of view: Approx. 100%
- Style: 3 styles selectable
- Correction of color temperature: +/- 3 levels
- Diopter adjustment: Equipped -4.0 to +2.0 diopters / built-in type
- Eye point: Approx. 20.5 mm (-1m⁻¹, from rear lens surface)
Monitor
- Monitor type: Vari-angle LCD - Touch Panel
- Resolution: 1040K dots
- Monitor size: 7.6cm / 3.0" (3:2)
- Brightness adjustment: +/- 7 levels
- Color balance: Brightness ±7 levels / Colour temperature ±7 levels
- Touch Control functions: AF area enlargement, AF area selection, AF targeting pad, Art Filter, Face/Subject selection, Frame forward/backward, Live Guide, Magnified playback, Menu control, Movie Controls, Profile mode controls, Scene Modes, Shutter release, Super Control Panel, Wi-Fi connection
Level Gauge
- Detection: 2-axis
- Display: Rear display and viewfinder
Live View
- Magnification levels: 3 / 5 / 7 / 10 / 14x
- Live ND: Available (ND2 / 4 / 8 / 16)
- S/M mode only; flash unavailable; ISO up to 800; max shutter speed 1/30 sec. at ND2, decreasing with higher ND steps
Image Stabiliser
- Type: Sensor shift
- Modes: S-IS AUTO, S-IS1, S-IS2, S-IS3, OFF
- Lens IS priority: Available
- Live View stabilization: Available
- Effective Compensation Range: Center 5.5 steps / Corner 4.5 steps
- Up to 5.5 EV steps
- Note: * With M.Zuiko Digital 14-42mm F3.5-5.6 III at 42mm (84mm equiv.); yaw/pitch/roll; CIPA 2024 standard
Focusing System
- Method: High-speed imager AF; imager phase detection AF + imager contrast AF
- Face Detection extension: Face / Eye detection AF available in Video recording mode only
- Manual focus: Available, with enlarged focusing area, focus peaking, and focus indicator
- Focus areas: 121 points * /
- 121-point contrast AF
- All target, single target (normal/small), group target (5-area / 9-area / 25-area), custom target 1-4 (AF area and its increment steps selectable)
- AF illuminator: Equipped
- AF targeting pad: Available
- AF working range: -3.5 EV to 20 EV (ISO approx. 100, F2.8 lens)
- Focus limit: Available; up to 3 distance settings can be saved
- AF tracking: Available (C-AF+TR / C-AF+TR+MF)
- C-AF tracking sensitivity: 5 steps
- C-AF Center Priority: Available
- Number of images: 3 - 999 shots
- Step size: 10 levels
- Modes: S-AF, S-AF+MF, C-AF, C-AF+MF, MF, C-AF+TR, C-AF+TR+MF, Preset MF, Starry Sky AF, Starry Sky AF+MF, Super spot AF
- Focus peaking:
- Backlight effect: On / Off
- Color selection: White, black, red, yellow
- Intensity: High / Normal / Low
- Focus Stacking Mode:
- Technology: Available
- Compatible Lenses: 100-400mm F5.0-6.3 IS, 12-100mm F4 IS PRO, 12-40mm F2.8 PRO, 12-40mm F2.8 PRO II, 12-45mm F4 PRO, 150-400mm F4.5 TC1.25x IS PRO, 300mm F4 PRO, 30mm F3.5 Macro, 40-150mm F2.8 PRO 40-150mm F4.0 PRO, 60mm F2.8 Macro, 7-14mm F2.8 PRO, 8-25mm F4 PRO, 8mm F1.8 Fisheye PRO, M.Zuiko Digital ED 100-400mm F5.0-6.3 IS II, M.Zuiko Digital ED 90mm F3.5 Macro IS PRO, 14-42mm F3.5-5.6 III, M.Zuiko Digital ED 150-600mm F5.0-6.3 IS, M.Zuiko Digital ED 50-200mm F2.8 IS PRO
- Compatible Converter: 1.4x Teleconverter MC-14, 2x Teleconverter MC-20
- Note: Angle of view becomes slightly smaller
Exposure System
- Modes: Aperture priority, Art Filter, AUTO, Bulb (Live Bulb, Live Time, Live Composite), Custom, Manual, Program automatic, Scene select, Shutter priority
- Exposure compensation: +/- 5 EV ( 1, 1/2, 1/3 steps )
- Note: Monitor and EVF displays only up to ±3 EV.
- Exposure bracketing: 3/5 frames (2.0 or 3.0 EV)
- 7 frames (2.0 EV)
- ISO bracketing: 3 frames ( 1/3, 1/2, 1 EV steps )
- HDR bracketing: 3 / 5 frames ( +/- 2 / 3 EV steps )
- 7 frames ( +/- 2 EV steps )
- AE lock: Available
- Flicker Scan: Available
Multi-Exposure
- Max. number of frames: 2 frames (shooting)
- Auto gain control: Available
Light Metering
- Method: TTL image sensor metering
- Zones: 324 zones Multi-pattern Sensing System
- Detection range: -2 - 20 EV (f2.8, ISO 100)
- Modes: Center-weighted metering, ESP light metering, Highlight, Shadow, Spot metering
Art Filter
- Modes: Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Color, Partial Color, Pin Hole, Pop Art, Soft Focus, Vintage, Water Color
- Variation / Effect: Art Filter Fine Tune available for Pop Art, Soft Focus, Pin Hole, Cross Process, Instant Film
- Note: * 18 colors selectable
Monochrome Profile Control
- Monochrome Profile Control: 8 color filters with 3 levels; shading effect 11 steps (-5 to +5); Film Grain Off/Low/Med/High; monochrome color Normal/Sepia/Blue/Purple/Green; MONO1–MONO4 memories
Color Profile Control
- Color Profile Control: Color Profile Control Saturation of 12 colors adjustable in 11 steps (-5 to +5); shading effect 11 steps (-5 to +5); COLOR1–COLOR4 memories; Highlight & Shadow settings can be stored
Sensitivity
- Auto: ISO LOW 64 - 6400
- Manual: ISO LOW approx. 64 / approx. 100; ISO 200-25600
White Balance
- AUTO WB system: Auto WB
- White balance bracketing: 3 frames; A-B / G-M axis; 2 / 4 / 6 steps
- Custom WB: Custom WB (Kelvin setting)
- Manual White balance (One-Touch): Available
- One-touch white balance: 4 custom settings can be registered
- Preset values: 7
Sequence Shooting
- Speed: Approx. 5fps (selectable 1-5fps)
- Max. number of frames: RAW 29 / JPG (LF): 154
- Anti-shock mode:
- Speed: Approx. 4.8fps (selectable 1-5fps)
- Pro Capture mode:
- Speed*: Approx. 30fps (selectable 15, 20, 30fps)
- **Compatible lenses are limited.
- ***Focus and exposure are fixed at the first frame
- Speed (H): Approx. 30fps
- Speed (L): Approx. 8fps
- Silent mode:
- Speed (H): Approx. 30fps
- Max. number of frames: RAW 20 / JPG (LF): 20
- Speed (L): Approx. 8fps
- Max. number of frames: RAW 23 / JPG (LF): 48
- Conditions: SanDisk SDSDXWH-064G-JNJIP (UHS-I U3 Class10 64GB)
- When using the M.Zuiko Digital ED 12-40mm F2.8 PRO II
- Low ISO processing: Priority is given to sequential shooting
Image Processing
- Art Filter bracketing: Available
- Color space: sRGB / AdobeRGB
- Fisheye compensation: Available; 3 styles with M.Zuiko Digital ED 8mm F1.8 Fisheye PRO
- Gradation: Auto / Normal / High Key / Low Key
- Black & White filter: Yellow, Orange, Red, Green
- Black & White toning: Normal / Sepia / Blue / Purple / Green
- Picture mode: Art Filter, Color Creator, Color Profile Control, Custom, Monochrome Profile Control, Monotone, Natural, Portrait, Underwater, Vivid, Flat, e-Portrait
- Engine: TruePic™ IX
- Tele converter effect: 2x
External Flash Control
- X-sync speed: 1/250 sec.; electronic shutter: 1/50 sec. up to ISO 6400, 1/20 sec. ISO 8000+ / ISO bracketing
- Intensity: +/- 3 EV ( 1/3, 1/2, 1 EV steps )
Wireless Flash Control
- Available
Recording Formats
- JPEG: Applied
- RAW: 12bit
- RAW & JPEG: Applied parallel recording
- Aspect ratio: 4:3 / 3:2 / 16:9 / 6:6 / 3:4
Still Image Recording
- DCF: 2.0
- EXIF: 3.0
- RAW: Applied
Image Size
- RAW: 5184 x 3888 compressed
- JPEG: 5184 × 3888 to 1024 × 768
Movie Recording System
- Recording format: MOV(MPEG-4AVC/H.264)
- Picture mode: Flat, OM-Log400, OM-Cinema1, OM-Cinema2
- Timecode: Rec run / Free run
- Drop frame / Non-drop frame
- ALL-I: FHD 30p/25p/24p approx. 202 Mbps (48kHz/16bit) or approx. 205 Mbps (96kHz/24bit)
- FullHD IPB /LongGOP FHD 30p/25p/24p approx. 30/33 Mbps; 60p/50p approx. 52/55 Mbps depending on audio
- Image Stabilisation Mode: M-IS1, M-IS2, OFF
- 4K Movie quality: 4096×2160 (C4K) / 24p approx. 237/240 Mbps
- 3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
- HD Movie quality: Full HD 1920 × 1080 30p/25p/24p ALL-I or LongGOP; 60p/50p LongGOP
Movie Specialties
- Art Filter: Available
- Fast motion: S&Q Movie available
- Flicker Scan: Available
- Monitor mode: Live View Output via HDMI: Monitor mode / Record mode
- Record mode: 4K/C4K cannot be set; movie quality can be YCbCr 4:2:2 8-bit
- High-Speed Recording: S&Q capture up to 120 fps
- Time-lapse: 4K / FHD: 5 / 10 / 15 / 30 fps
- Slow motion: Available
Sound Recording System
- Speaker: Built-in mono speaker
- Image footage: 30s
- Functions: Wind noise reduction / Recording volume / Microphone volume limiter
- Internal microphone: Built-in stereo microphones
- Microphone functions: Recording Volume, Volume limiter, Wind Noise Reduction
View Images
- Modes: Calendar, Enlargement, Index, Movie, Single-frame
- Shooting information: Off / On
- Highlight/Shadow point warning: Available
- Histogram in playback mode: Available
- Auto rotation: Available
Image Editing
- Editing functions: Aspect ratio, Correction of saturation, e-Portrait, Gradation auto, Image Overlay, Monochrome, Post recording, RAW data edit, Red-eye reduction, Resize, Sepia, Trimming
Movie Editing
- In-movie image extraction: Available (4K only)
- Trimming: Available
Customisation Options
- Programmable button: Equipped
- Fn Button: Equipped
- My Mode: 5 settings storable (Can be set to mode dial.)
- Factory reset: Full / Basic
- Menu languages in camera: Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish, Ukrainian
Interface
- Hot shoe: Equipped
- HDMI™: Micro HDMI (Type D)
- Microphone jack: 3.5 mm ø mini-jack (plug-in power on/off)
- USB 2.0 High Speed: Applied
- USB 3: Type C
- Wireless connectivity: Bluetooth®, Wi-Fi
- Communication method: Bluetooth® Low Energy Ver.5.2
- Media: SD / SDHC (UHS-I) / SDXC (UHS-I)
- Note: "HDMI", the HDMI logo and "High-Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.
- The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by OLYMPUS CORPORATION is under license.
- Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Functions
- Easy Connection: QR code setting
- GPS info: Available through Smartphone GPS data
- Image Share: Available; marking function for image share
- Simple Image Transfer (Power-Off Standby): Images can be automatically imported using image-share marking / remotely viewed while camera power is off; activated via Bluetooth and imported via Wi-Fi
- Wireless Release Remote Control: Wireless release (half/full press), movie start/stop
- Wireless Shooting: Available (Live View remote control)
Power Supply
- Image shooting: EVF approx. 410 shots / LCD approx. 410 shots (CIPA)
- Movie recording: Approx. 80 min CIPA; approx. 130 min when zoom and other operational functions are not used

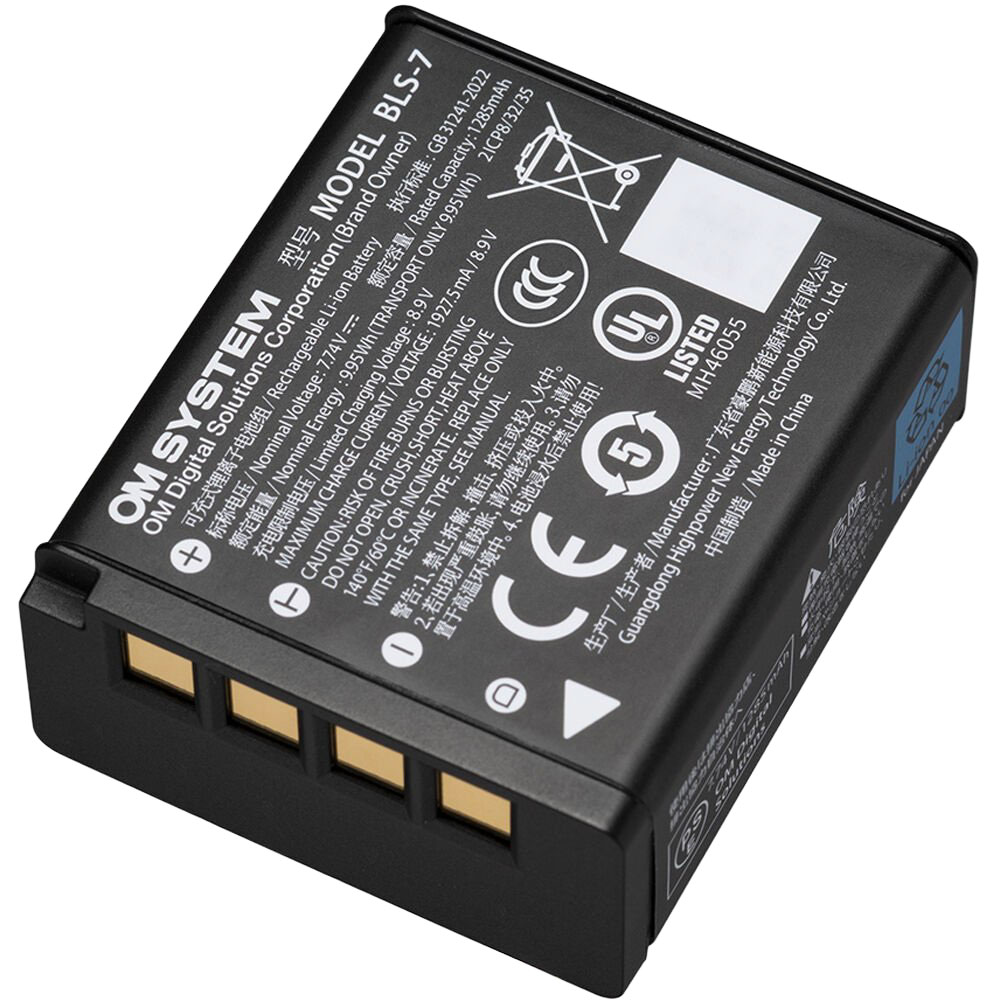

- Battery: BLS-7 Li-ion battery
- Sleep mode: 1, 3, 5min. and off selectable.
- USB charging: Built-in battery can be charged with USB (when camera power is off)
Dimensions / Weight
- Width: 125.8mm / 4.95in
- Depth: 43.3mm / 1.70in
- Height: 74.5mm / 2.93in
- Weight: 393g / 13.9oz (including battery and memory card)
- Weight (body only): 344g / 12.1in (body only)
Environment
- Humidity: 30 - 90% operating humidity / 10 - 90% storage humidity
- Temperature: -10 - 40°C Operating temperature / -20 - 60°C storage temperature
