Nauticam Red Komodo Underwater Cinema Housing
Komodo is RED's smallest and most affordable camera to date. With 6K resolution, 16 stops of dynamic range, and global shutter Komodo packs an incredible amount of power in the palm of your hand. When paired with the Nauticam housing an easy-to-use and travel-friendly cinema system is created.
THE RED KOMODOThe Komodo camera features a 6K Super 35 sensor with up to 16 stops of dynamic range. R3D files (REDCODE RAW) can be recorded directly to CFast 2.0 cards, eliminating the need for expensive proprietary media. It also features Canon's new RF mount with full support of the Canon EF to EOS R lens adaptor allowing a wide variety of focal lengths to be used. Komodo is RED's smallest form-factor and most economically priced camera to-date. The feature set is aimed at those requiring professional-level specs in a travel-friendly package, which accurately describes the majority of underwater filmmakers.
Key Camera Specifications:
- 6K Super 35 Sensor (6144 x 3240)
- R3D Files (REDCODE RAW)
- Records to CFast 2.0 cards
- Canon RF Lens Mount
- Dual Battery Mount (Canon BP-955/975)
- 12G SDI Out
- Integrated LCD Screen with Touch Camera Control
- Wireless Control From a SmartPhone
- Global Shutter Mode
- Anamorphic Options
- Recording Formats:
- REDCODE RAW
- 6144 x 3240 at 40 fps
- 5120 x 2700 at 50 fps
- 4096 x 2160 at 60 fps
- 2048 x 1080 at 120 fps
- ProRes 422/ProRes 422HQ
- 4096 x 2160 up to 60 fps
- ProRes 422
- 2048 x 1080 up to 120 fps

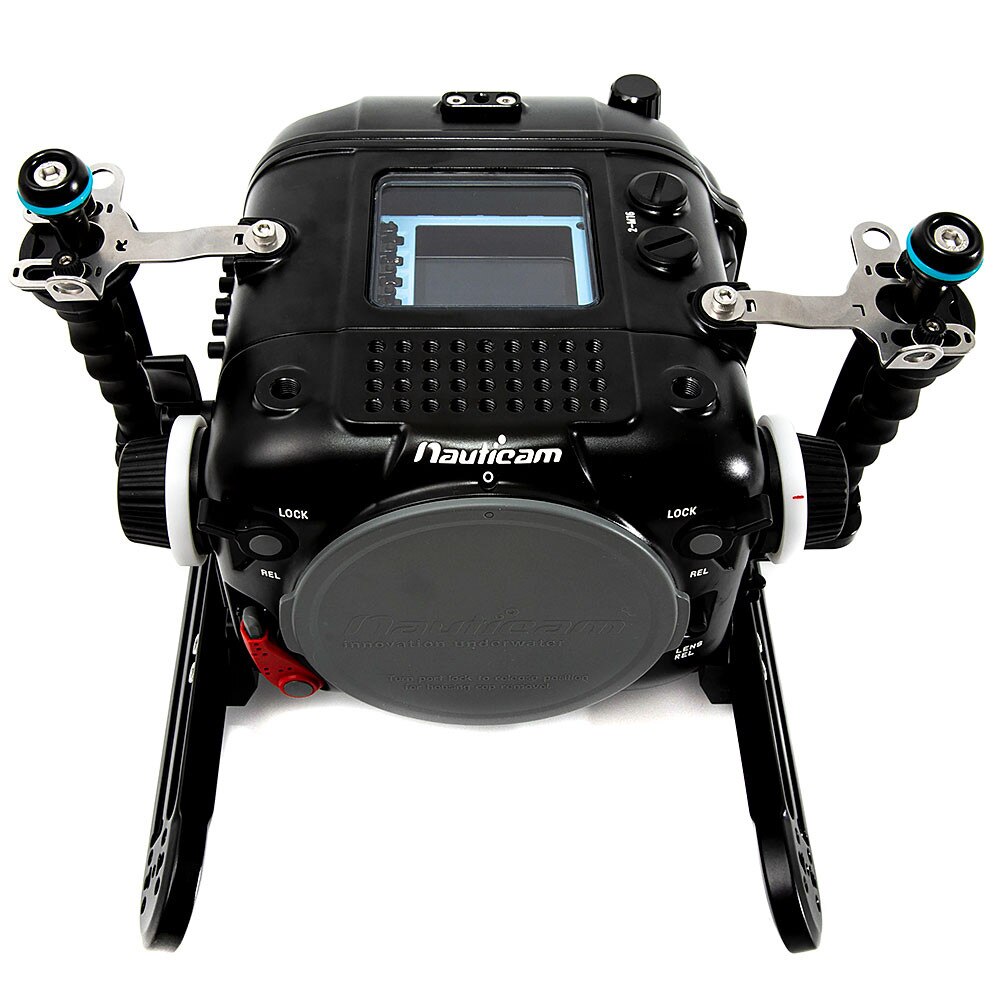

THE NAUTICAM KOMODO HOUSINGThe Nauticam Komodo housing is officially RED APPROVED. The housing is engineered similarly to previous Epic LT and DSMC2 LT housings, providing the most compact and travel-friendly system possible. Komodo offers seamless integration with DSLR lenses and the same N120 port system used in Nauticam DSLR and Cinema systems. Enjoy unmatched user-friendly setup and intuitive operation including tool-less set up and tear down in minutes. Batteries can be swapped without ever removing the camera from the housing, and lens changes can be accomplished in seconds.
The Nauticam Komodo housing uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for an easy transition to the Nauticam Komodo from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.
The housing also features adjustable handles with easy access to the cinema-style zoom and focus knobs. On top of the housing is a 1/4"-20 cheese plate which allows for a wide variety of accessory mounting points.
The Nauticam Komodo is also backed by Nauticam's 2-year warranty.
LENS SUPPORTThe Komodo features a Canon RF lens mount, but currently RED is only offering support of Canon EF lenses. The Nauticam Komodo housing offers full support of the Canon EF to EOS R Adaptor along with the Canon EF to EOS R Adaptor with Variable ND Filter. The left side of the housing features an easily accessible command wheel for smooth ND changes. Once RED releases RF lens support, the Nauticam Komodo housing will be ready and fully compatible. Regardless of EF or RF lens selection, changing lenses is quick, easy, and doesn't require any tools. Note that when changing between RF and EF lenses, the camera must be removed from the housing to remove or install the RF to EF adapter. Nauticam is constantly testing new lenses to provide optimized port and extension combinations. Large cinema-styled control wheels on the housing, located within easy reach of the handles, provide precise manual focus and zoom control with supported lenses when used with the corresponding lens gear set.
Not being limited to using DSLR lenses is crucial for cinema systems and the Nauticam Komodo housing, when used with the 16410 N120 to N200 Port Adapter can support the use of Cinema Lenses and the associated N200 Port System. Installation is quick, easy, and requires no tools allowing seamless lens switching in the field - even when changing between DSLR and Cinema lenses.
INTERNAL MONITOR SUPPORTThe Komodo has a built-in monitor on top of the camera. The Nauticam Komodo does feature a large window for using the Komodo's built-in monitor to be used for an extremely streamlined solution. If an additional monitoring option is required, the Atomos Shinobi SDI monitor is an ideal lightweight monitoring solution for the RED Komodo. The Shinobi Monitor Back option Komodo Housing supports the use of the Atomos Shinobi SDI monitor inside the rear of the housing allowing the monitor to be viewed by the camera operator from a natural filming position. The monitor back features control buttons for the on-screen buttons of the Shinobi.
EXTERNAL MONITOR SUPPORTThe Atomos Shinobi SDI monitor can also be mounted in the external Nauticam NA-Shinobi-S housing and connected via SDI bulkheads and cables allowing greater flexibility when positioning the monitor on the Nauticam Komodo housing.
Required accessories for SDI Cable System
- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.3m Length
Recommended monitor housing
- 17921 NA-502B-S Housing for SmallHD 502 Bright Monitor
- 17924 NA-Shinobi-S Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with SDI input
BATTERY COMPATIBILITYThe system supports Canon BP- batteries and the housing will fit up to two Canon BP-975 batteries with the standard housing back. When using the Shinobi Monitor Back, dual BP-955 can be used. Swapping batteries is as simple as opening the housing as the camera does not need to be removed to access the batteries.
ETHERNET REMOTE CONTROLWhile the Nauticam Komodo housing is engineered to allow for full control by the operator, it also supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths. Within the housing, there is space to install a small ethernet router which would allow for full control of the camera at the surface through the RedControl App.
Recommended Ethernet Cables
- 16261 Ethernet Surface Cable Set in 45m length (incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
- 16262 Replacement of Housing Lemo Bulkhead with Integrated Ethernet Cable
- 16263 Ethernet Surface Cable Set in 5-meter length (incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)

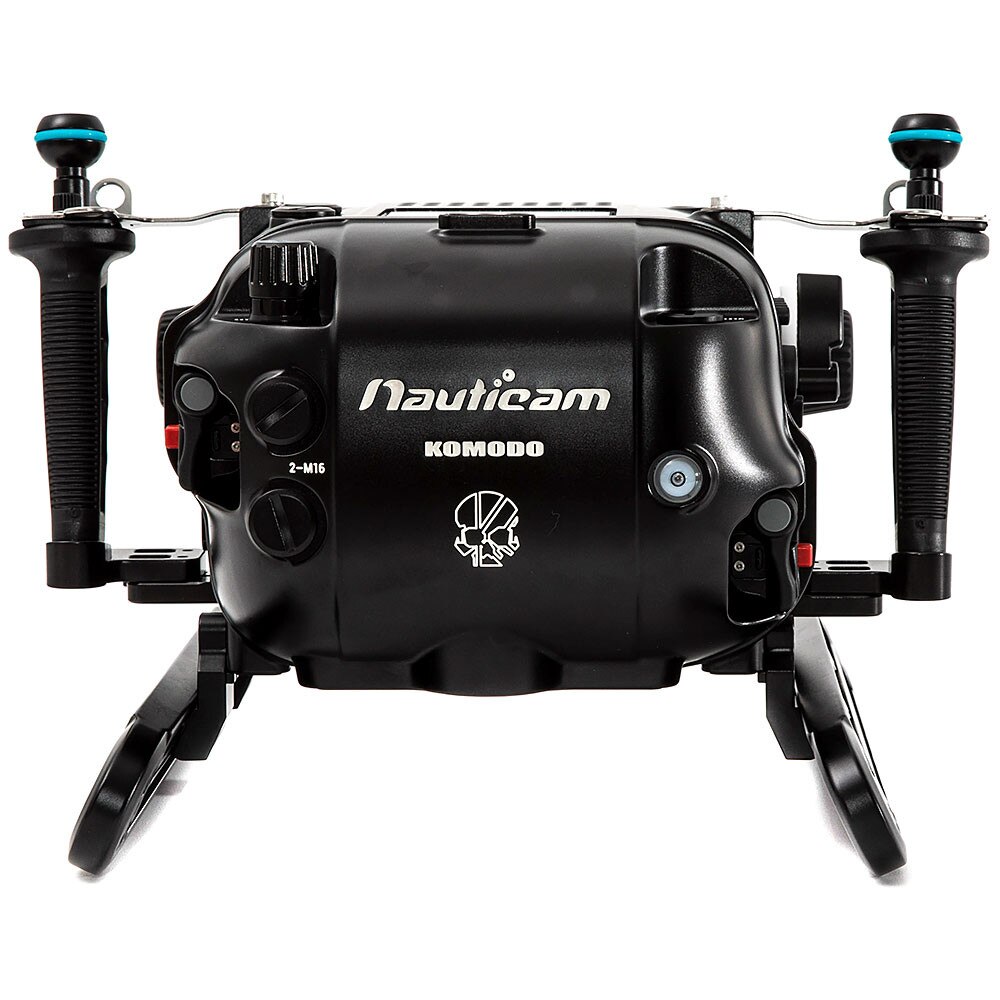

VACUUM CHECK AND LEAK DETECTION SYSTEMThe Nauticam Komodo housing features Nauticam's field-tested Vacuum Check and Leak Detection System that provides constant updates on the watertight and safe-to-dive status of the housing. By drawing a slight vacuum inside the housing using a reliable and compact manual hand-pump, the system can ensure water-tightness before entering the water as well as throughout the dive. A simple color-coded LED lighting system, easily visible at the rear of the housing lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

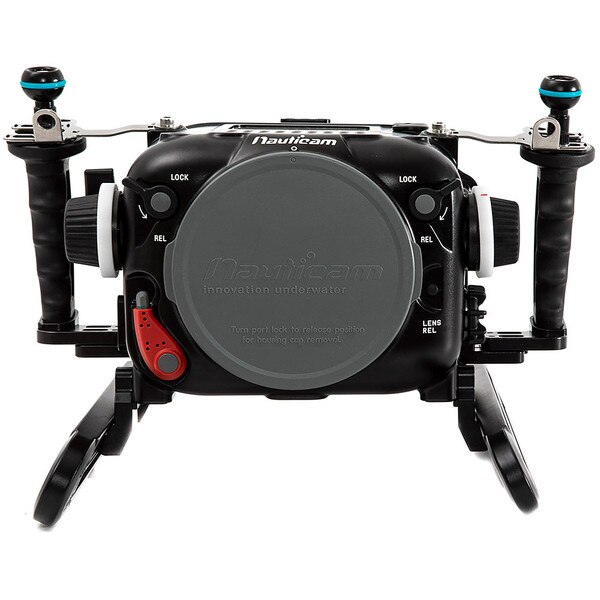

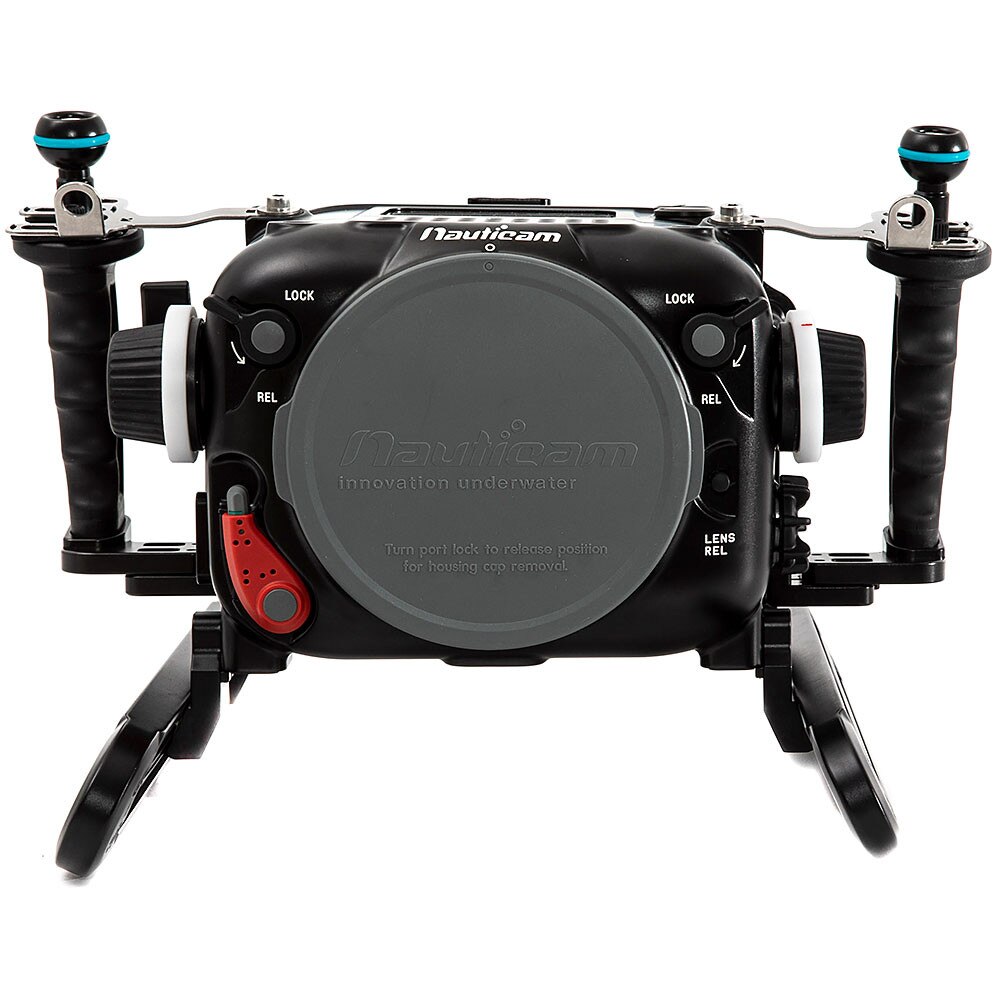

PATENTED PORT LOCKING LEVERThe Komodo housing features Nauticam's signature port locking system. Ports can be easily installed and securely locked in place. The housing will support both RF and EF mount lenses through the N120 Port System.

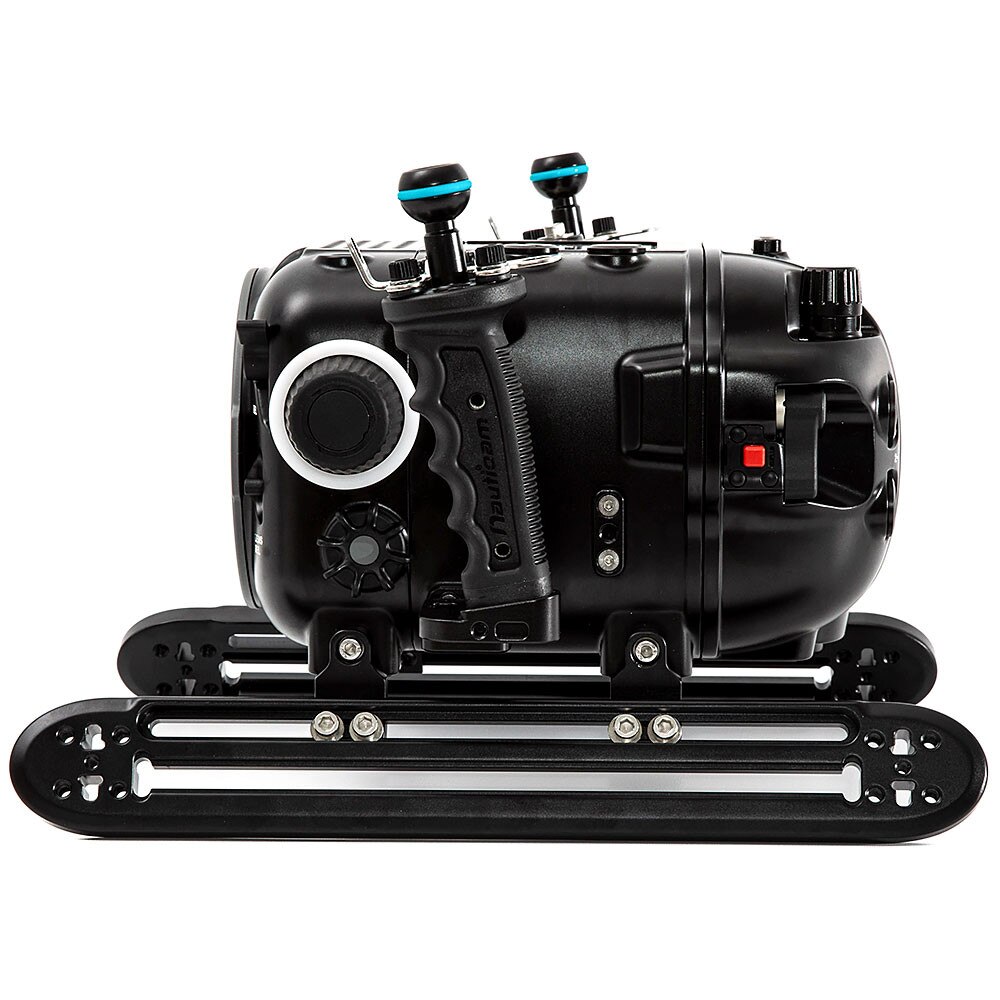

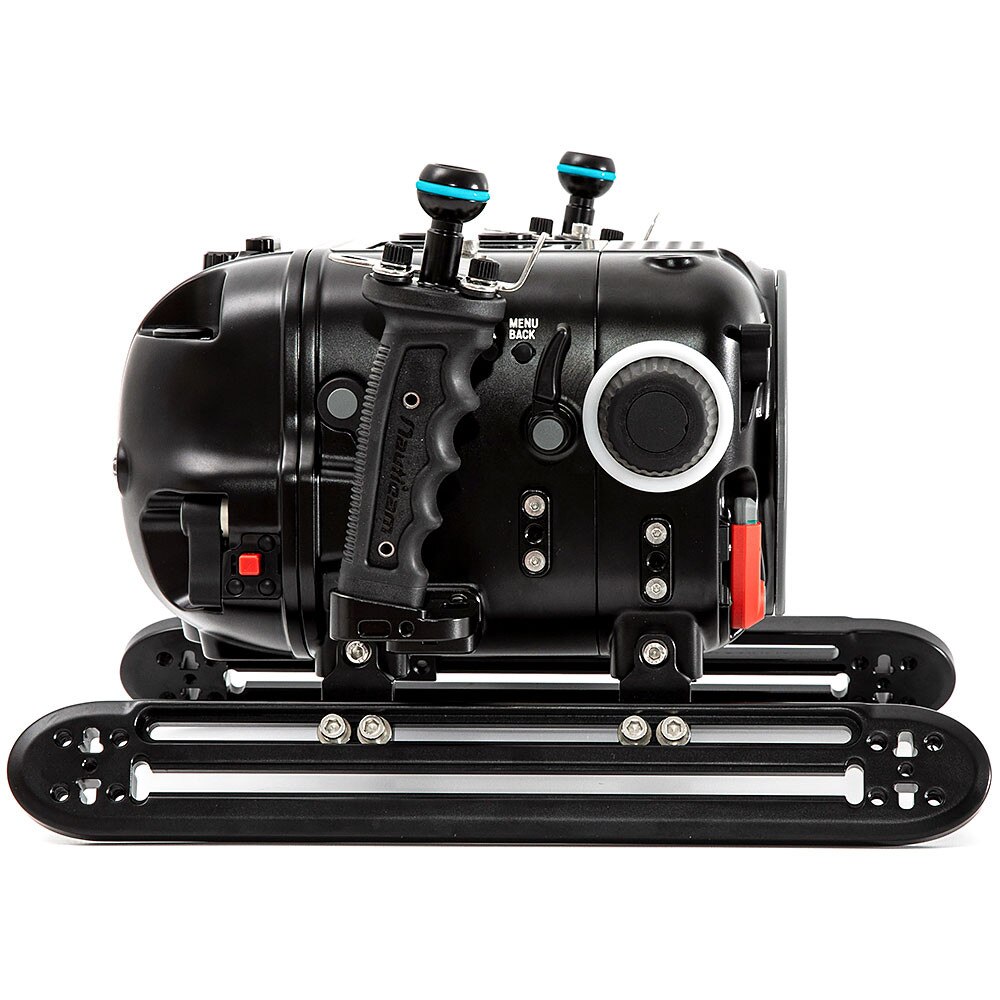

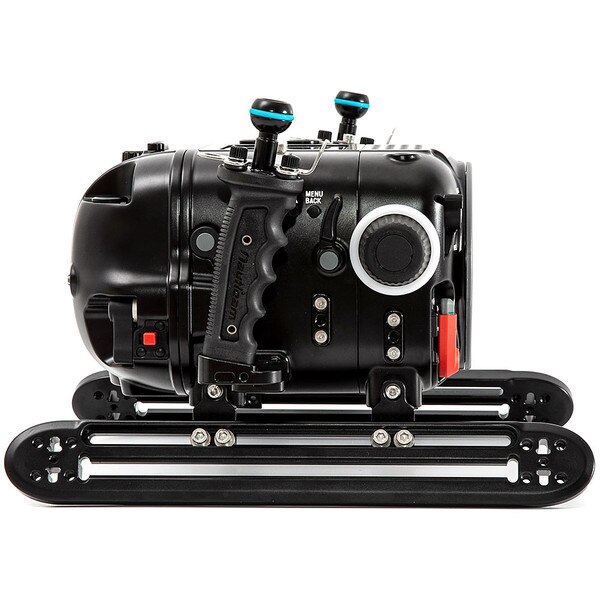

ZOOM AND FOCUS CONTROL KNOBSThe Nauticam Komodo housing features oversized mechanical zoom and focus knobs with erasable surfaces for focus/zoom position marks. The internal gearing is moved away quickly via a small external lever to allow removal of the camera or lens without disruption of focus/zoom gear alignment.

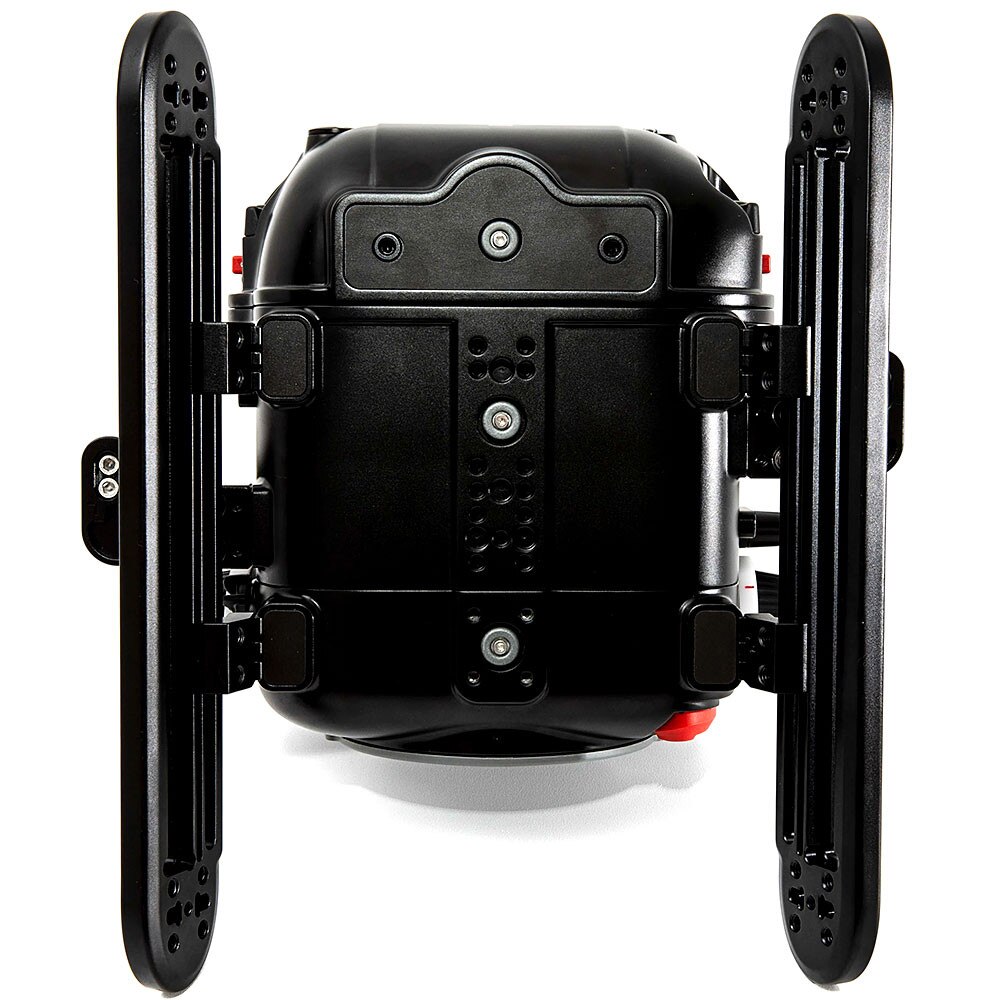

TRIPOD AND SKID MOUNTING POINTSQuickly switch between optional tripod legs or skids with four integrated attachment points for either 1" ball mounts for tripod legs or skids. 1" ball mounts can also be attached to the skids for ultimate flexibility.
CINEMA ACCESSORIESThe trim weights (sold separately) can be moved independently along the length of the skids and additional mounting points are featured on the housing itself to trim the housing to the shooter's exact needs.

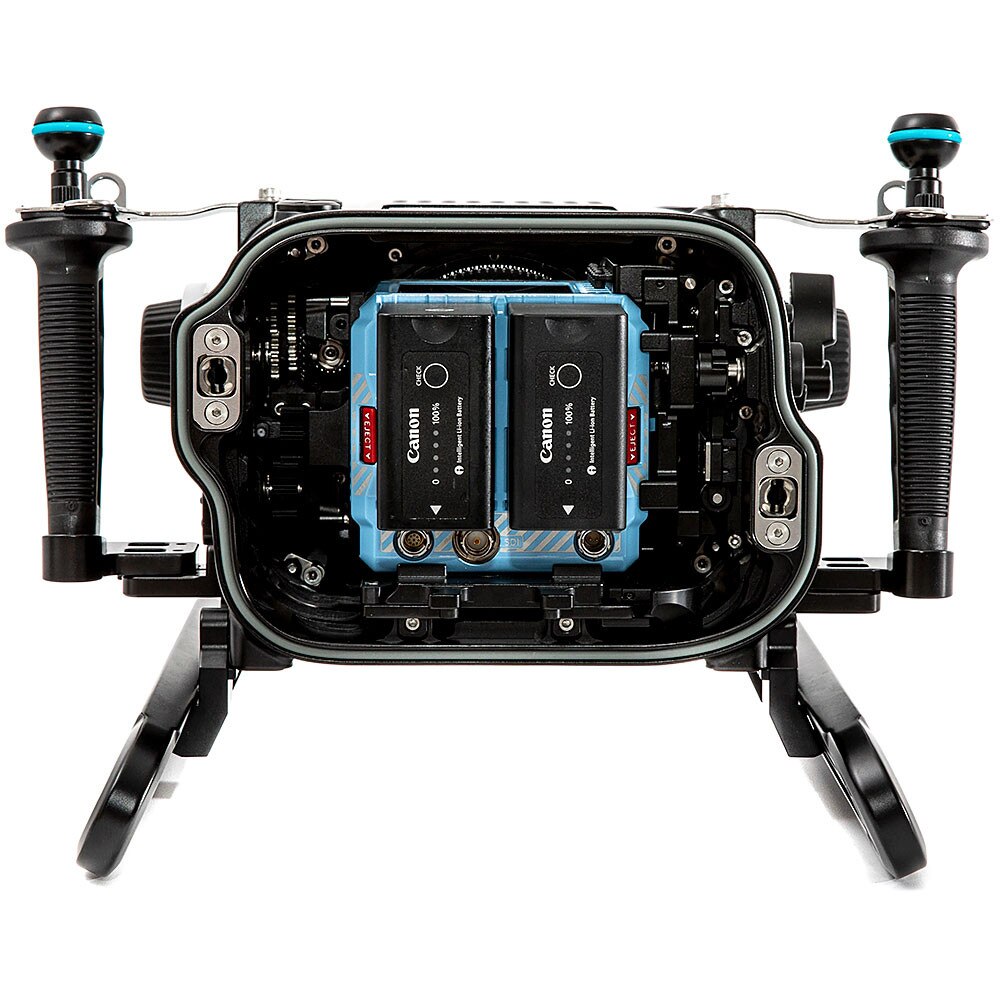

EASY BATTERY CHANGESThe Komodo housing supports dual Canon BP style batteries and the camera does not need to be removed for access when changing batteries.
MONITOR BACK OPTIONThe Komodo housing is also available in a Monitor Back configuration that supports the mounting of an Atomos Shinobi SDI Monitor in the rear of the housing without reducing the streamlined profile of the system.
What's In The Box:
- Komodo Housing
- 25625 M16 Vacuum Valve II
- 90120 Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls
- Monitor Shade (only included with Shinobi monitor back)
- CR2032 Battery (for moisture alarm and vacuum system)
- Padded Travel Case
- Allen Wrench Set
- Housing Skids
- Wheeled Case with Custom fit foam insert
- 17959 Housing Mounting Ball with 1/4" Screws
- 25221 M10 Strobe Mounting Ball for Housing
- 16232 0.25kg Trim Weights for 16227
- 16233 0.5kg Trim Weights for 16227
- 25060 Spare/Replacement SDI Cable in 0.3m Length (for connection from camera to Shinobi SDI monitor
- 16116 Standard Housing: 254mm (W) x 158mm(H) x 246mm(D)
- 16118 Housing with Shinobi Back: 254mm (W) x 158mm (H) x 324mm(D)
- Weight in Air:
- 16116 Standard Housing: 4.0 kg
- 16118 Housing with Shinobi Back: 4.9kg
- Weight in Water (incl. camera and battery): TBD
- Depth Rating: 80m/260ft
- Port Opening: N120 Cinema
