Nauticam Panasonic Lumix S1R II Underwater Housing NA-S1RII

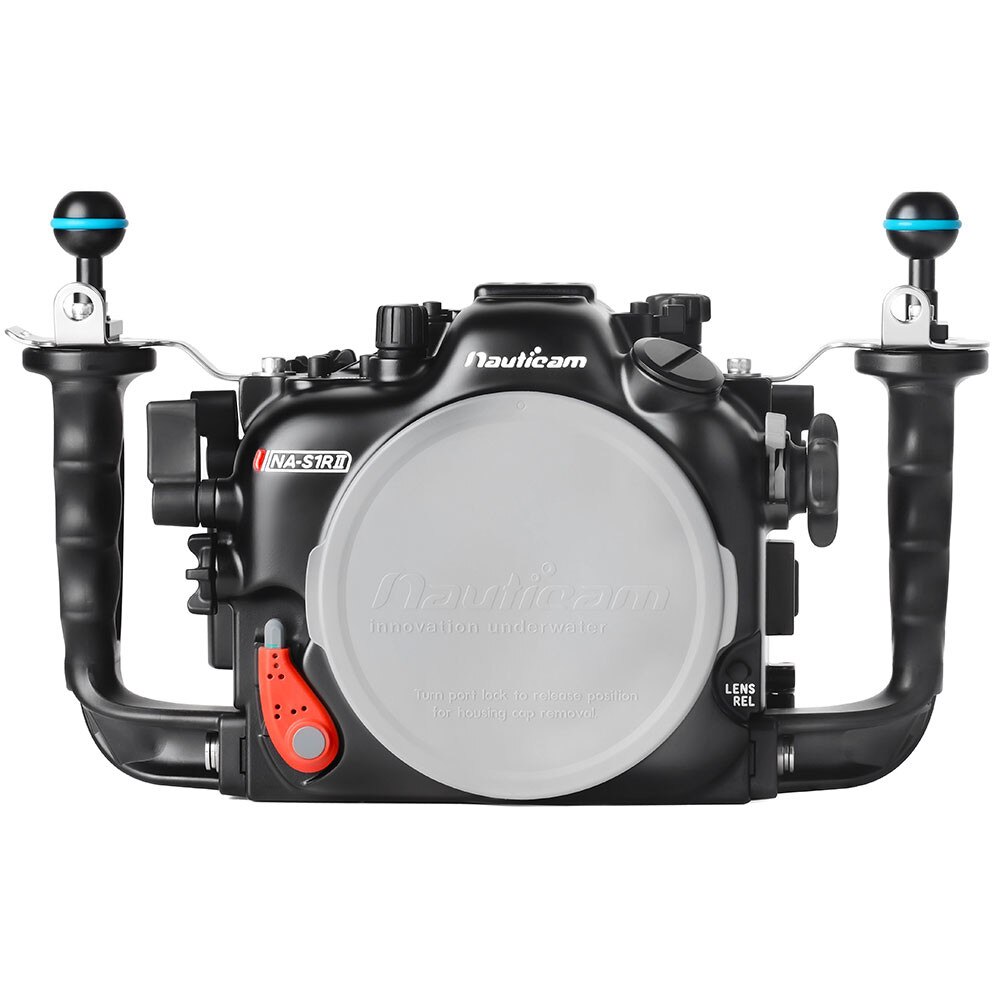

The Nauticam NA-S1RII Underwater Housing

Flash Triggering

For rapid-fire manual flash triggering, the NA-S1RII is compatible with the Mini Flash Trigger (26305), which uses small LED units to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216).

Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection electronics are shipped with the NA-S1RII as standard equipment. Combined with an optional accessory vacuum valve, this monitoring system provides constant updates on the housing's watertight and safe-to-dive status. A simple color-coded LED lighting system lets the user know that the vacuum is solid or that the housing is losing vacuum. Leak detection is built into the same circuit, so an audible and visual indication will occur if there is water intrusion.

The Nauticam system is temperature-compensated, eliminating false alarms caused by a change in outside temperature or from a camera heating up during an action-packed dive.

What's in the box

• NA-S1RII Housing
• 90137 Spare main housing o-ring
• 2x Plugs for Optical fiber cable mount
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Padded housing bag and shoulder strap

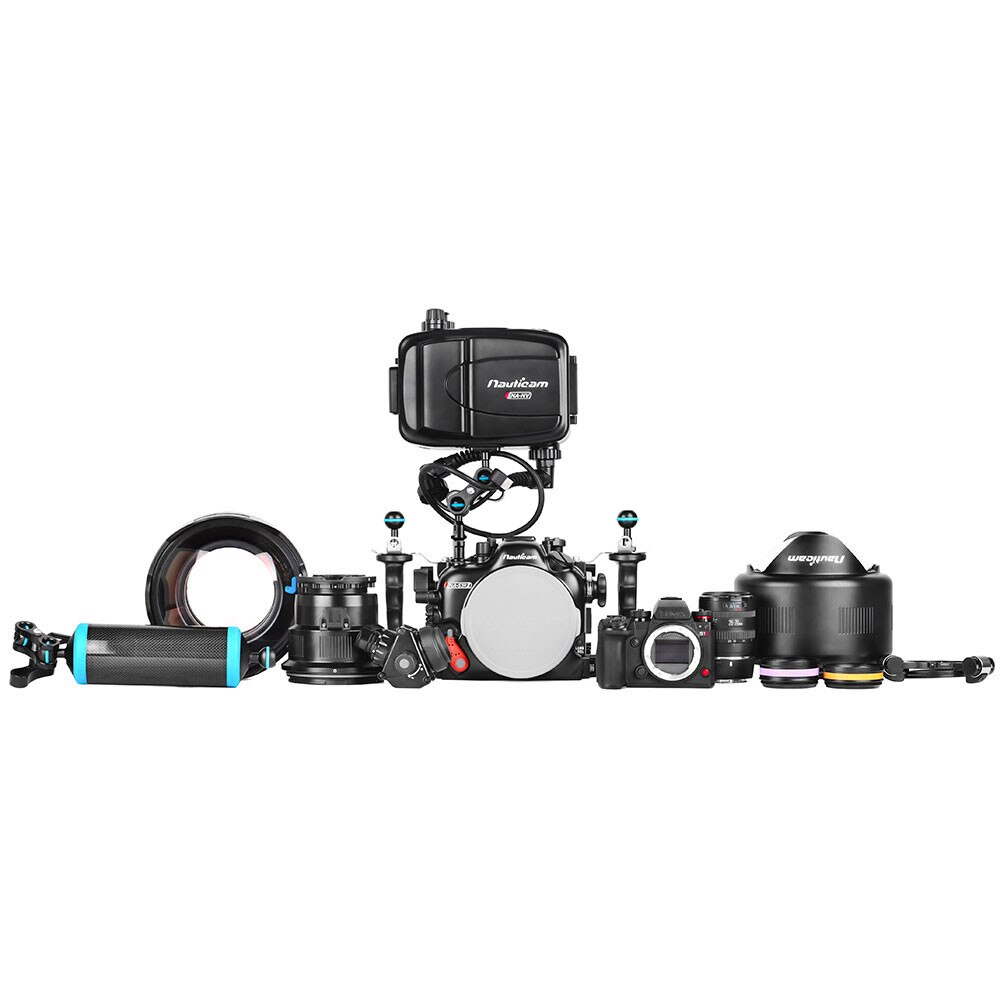

Recommended Accessories

Vacuum Valve

• 25625 M16 Vacuum Valve II (Pushbutton Release)

Viewfinder

• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
• 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
• 87213 Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
• 87214 Reverse Straight Viewfinder for EMWL （40°/ 0.8:1）
• *32212/32214, 87213/87214 are preferred.

Hand Strap

• 28130 Hand Strap for 28113

Optical Trigger

• 26305 mini Flash trigger Fujifilm/Canon/Panasonic

Housing Mount

• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
• 17959 Housing Mounting ball with 1/4'' screws
• 17960 Universal Quadra-Pod Plate for Nauticam Housings
• 25218 mounting ball set for tripod

Surface USB-PD Power Bank

• 26325 USB-C Bulkhead with USB-C Connector *Can be installed on either M24 or M16.
• 26326 M24-M16 Adaptor for use with 26325 *for use with M24 only.

HDMI Output

1) Required accessories for HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Compatible HDMI 2.0 Monitor Options

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)

• 25033 Standard HDMI bulkhead with M16 thread (included in 17927)
• 26326 M24-M16 Adaptor for use with 26325
• 25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera)

Compatible HDMI 1.4 Monitor Options

• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2'' HDMI Monitor
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• 25082 HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922

Technical Specifications

• Dimensions: 330mm(W) x 200mm (H) x 165mm (D) / 13in (W) x 7.9in (H) x 6.5in (D)
• Weight In Air: 2.25kg / 4.96lbs
• Weight in Water: Positive 0.5kg / 1.1lbs (includes camera and battery)
• Depth Rating: 100m / 330ft
• Port Opening: N120
