Nauticam NA-EVA1 Underwater Housing for Panasonic AU-EVA1 5.7K Super 35 Cinema Camera





Handheld cinema cameras suitable for underwater use are entering a new phase with new models offering advanced features and modularity rivaling their larger studio siblings. The Panasonic AU-EVA1 brings a 5.7K Super 35 sensor to the arena. The camera is able to record 10bit 4:2:2 4K at 30p in 400Mbps in Super 35 mode. This downsamples the full 5.7K giving richer colors through the additional photosites. 2K, with a 4/3 crop is available at up top 240fps. With the Version 2.0 firmware update, the AU-EVA1 will receive 4K/60p Raw SDI output at a 4/3 crop or 4K/30p with the full S35 FOV. With a host of other cinema camera features, the EVA1 is sure to be at the top of independent and production underwater filmmakers wish lists alike.



THE PANASONIC AU-EVA1 5.7K SUPER 35 HANDHELD CINEMA CAMERA

The compact and lightweight AU-EVA1 from Panasonic is the next model in the growing "production ready" compact cinema cameras that are finding themselves popular with the underwater image makers.



5.7K AND SD CARD RECORDING

The EVA1 offers several cinema features that will appeal specifically to the underwater videographer. The large 5.7K sensor contains 17.25 million photosites, almost double what is needed to produce a DCI 4K image (8.8 million). This means that the EVA1 is capturing more information than necessary producing richer colors for its 10bit 4:2:2 400Mbps 4K output. Furthermore, the EVA1 is able to record this to SD cards via the dual SD card slots. This further reduces the need for costly media.



EF MOUNT AND EIS

Of particular interest to the underwater shooter are the camera's EF lens mount and EIS stabilization integration. With a wide variety of EF mount lenses supported for underwater, this will keep the overall investment to a more reasonable level. The EVA1 is equipped with an ND filter wheel that applies an ND filter mid-roll from +2 to +6 strength allowing for shallower depth of field imaging even in bright conditions or a way to increase contrast in direct sunlight situations.



DUAL NATIVE ISO AND 14 STOP DYNAMIC RANGE

The EVA1 features Panasonic's Dual Native ISO that is a prominent feature of the larger Varicam lineup. This essentially means that when shooting at either an ISO of 800 or 2,500 the noise level will be the same, only the sensitivity increases. There is also V-Log and V-Gamut capture that takes full advantage of the camera's 14-stops of dynamic range.



KEY CAMERA SPECIFICATIONS

  • 5.7K Super 35 Sensor
  • Dual Native ISO 800 and 2,500
  • 10-bit 4:2:2 Color 4K recording to SD Media
  • Dual SD card slots
  • V-Log and V-Gamut capture with 14 stops of Dynamic Range
  • EIS Electric Image Stabilization
  • EF Lens Mount
  • 2,4 and 6-Stop Built-in Neutral Density filters
  • 5.7K Raw Output (Version 2.0 Firmware)

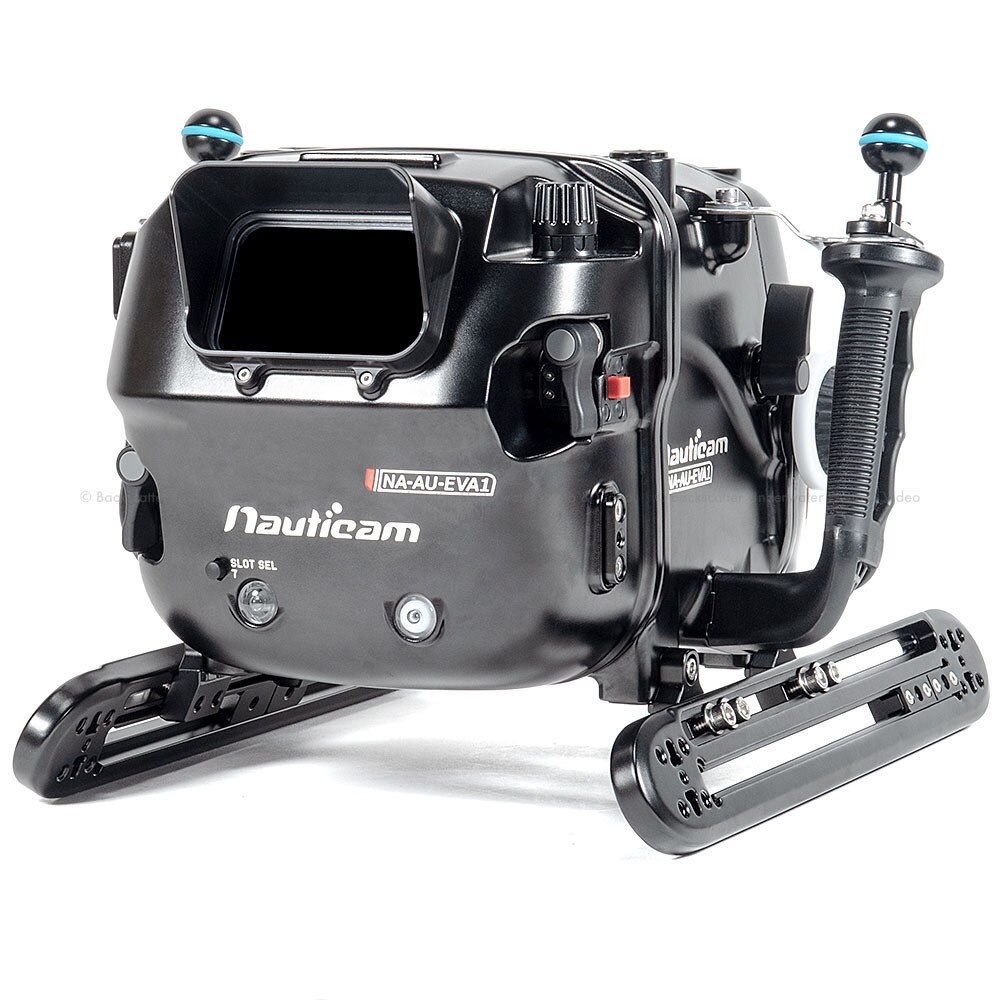

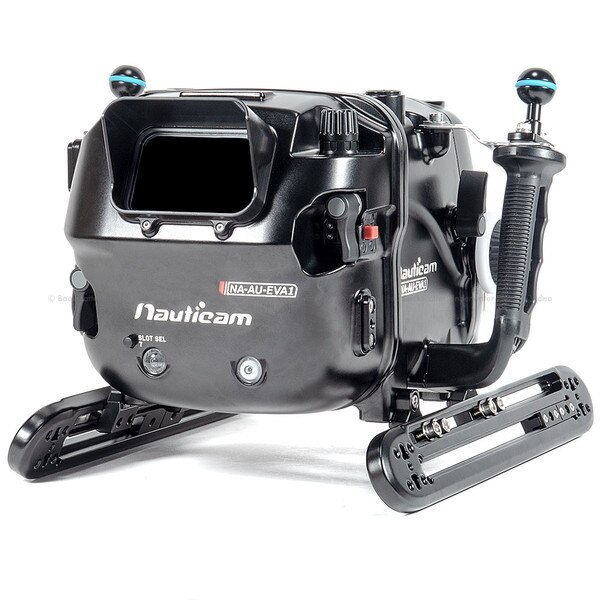

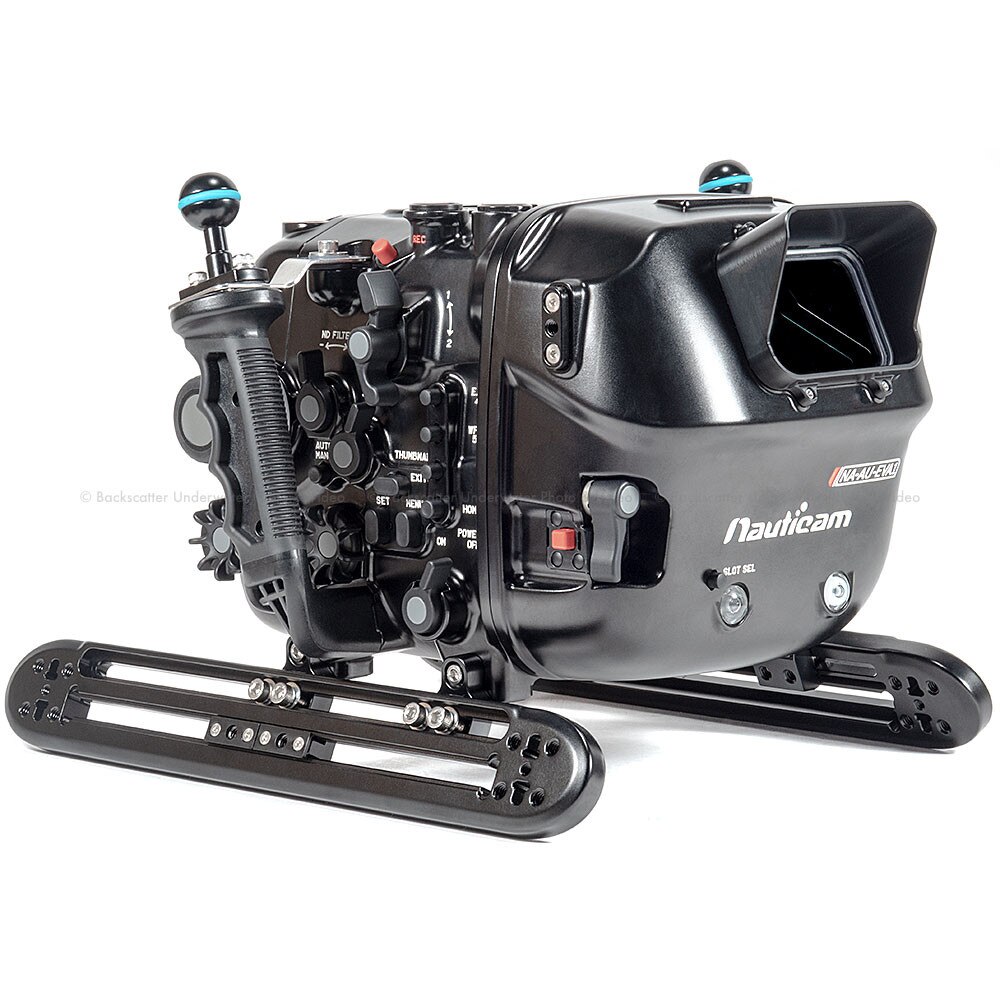

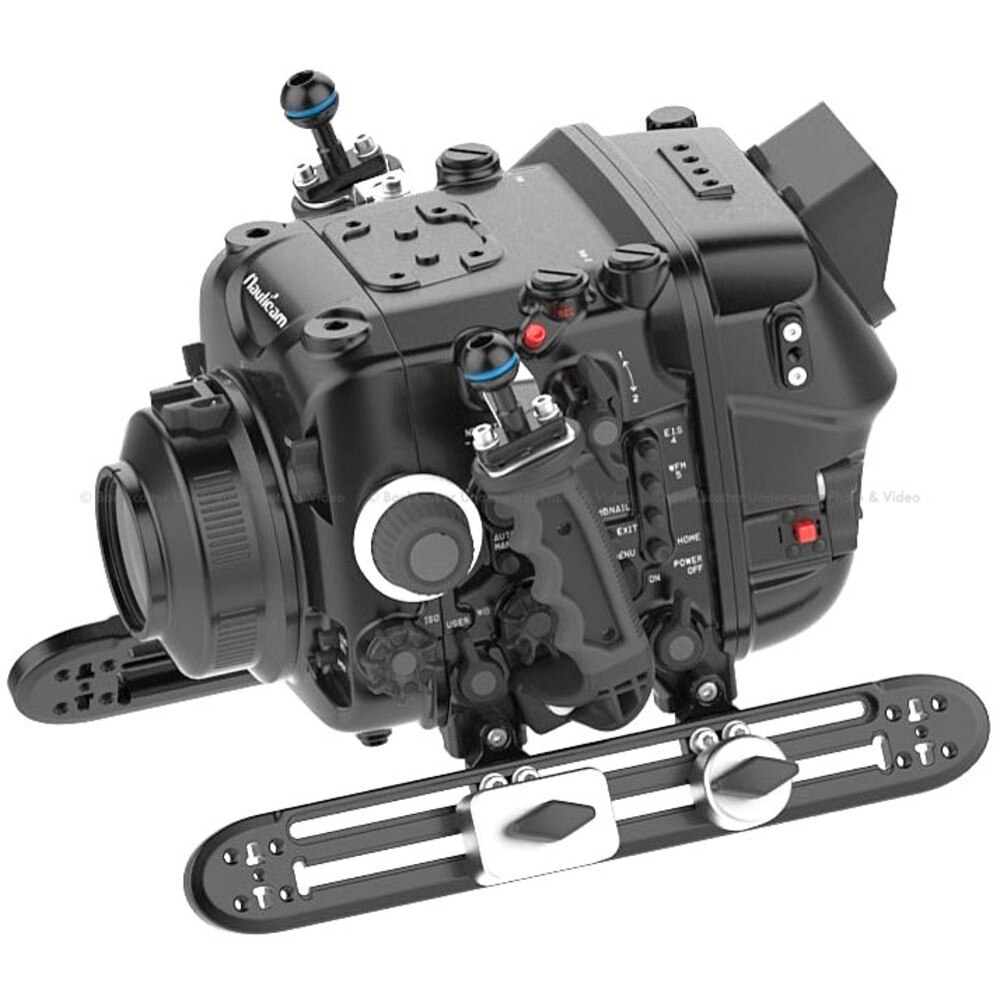

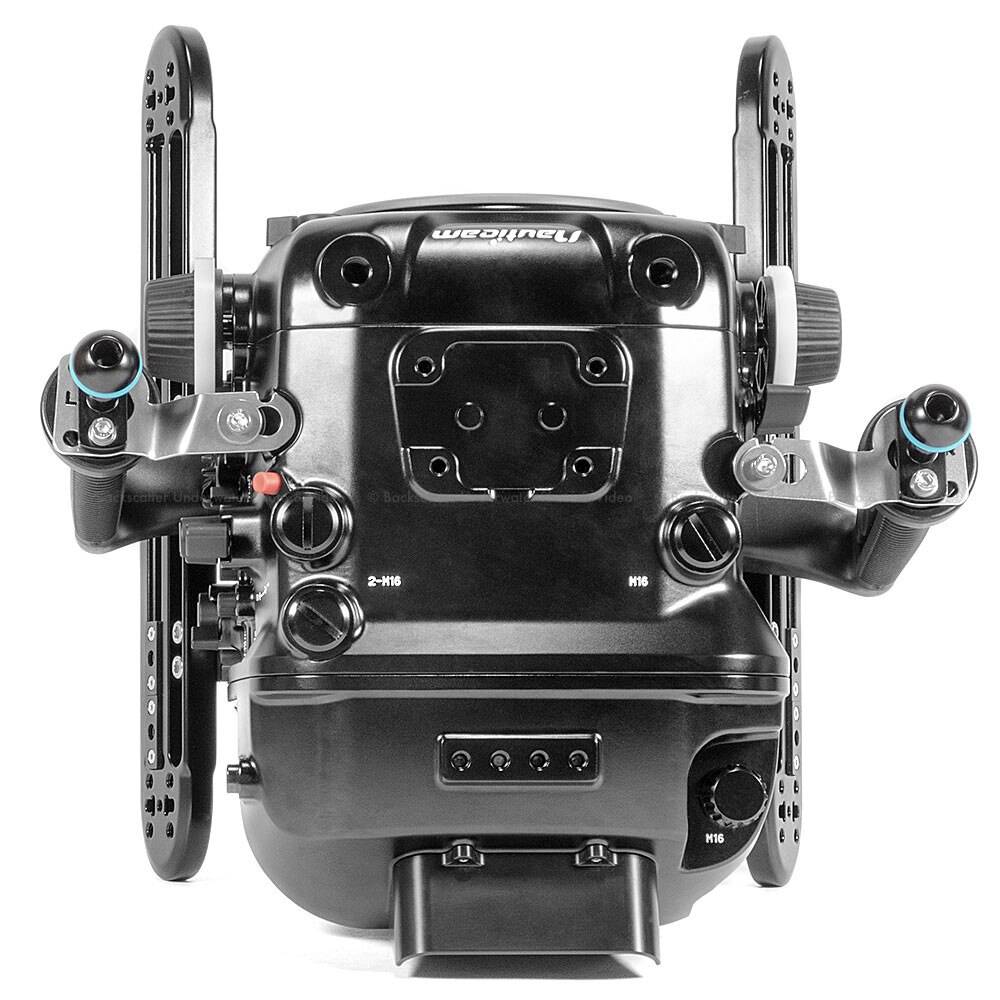

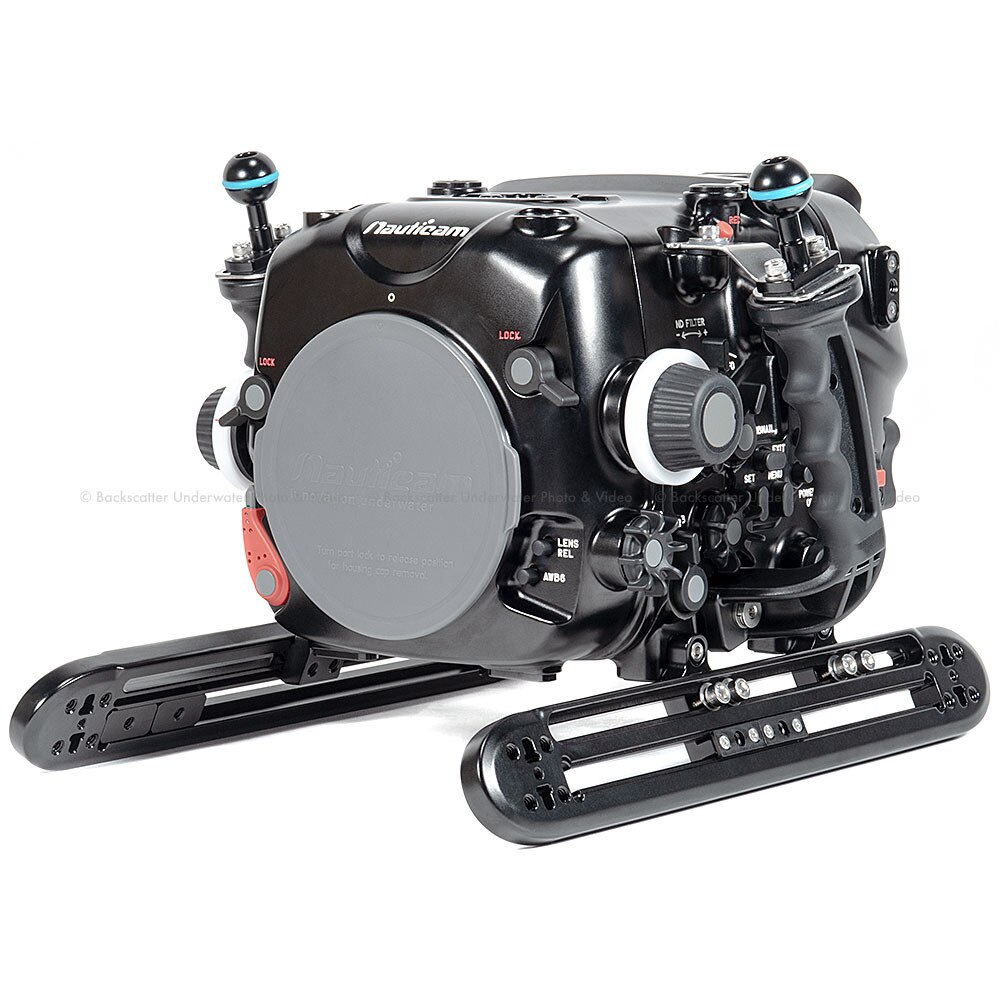

THE NAUTICAM NA-EVA1 HOUSING

Nauticam has been producing the most technologically advanced and production-friendly underwater cinema housings and accessories with support for multiple brands including ARRI, RED, BlackMagic, and Canon. Nauticam continues this with the introduction of the NA-EVA1 for the Panasonic AU-EVA1 5.7K Super 35 Handheld Cinema Camera.



Building upon this successful lineage the NA-EVA1 incorporates the latest features that are also found on the recent NA-C200 for the Canon C200 handheld cinema camera.



LENSES AND PORTS

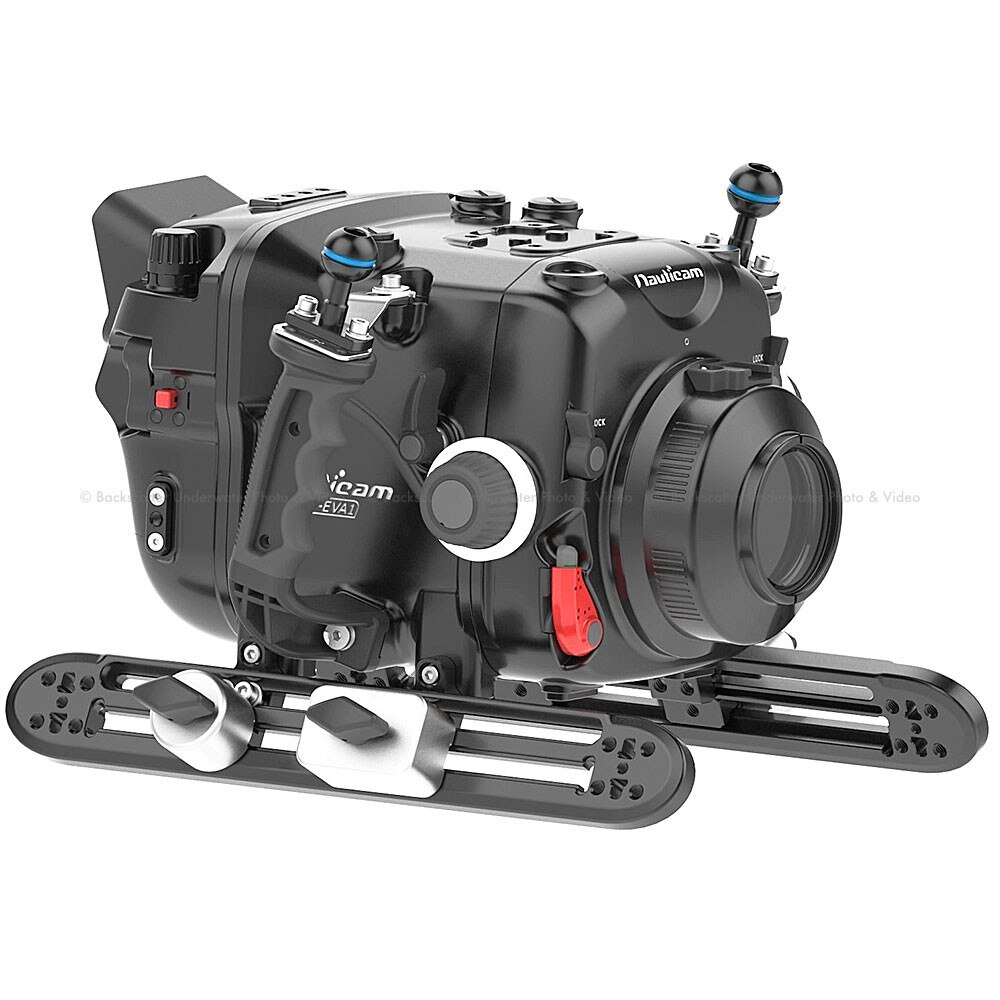

The NA-EVA1 is built around the N120 port system for Cinema and DSLR lenses. Ports are secured using the patented iconic Nauticam locking lever feature. With the N120 to N200 port adapter, the NA-EVA1 is also able to use Cinema Styled lenses supported by that adapter. The EVA1 uses a Canon EF mount.



MONITOR OPTIONS

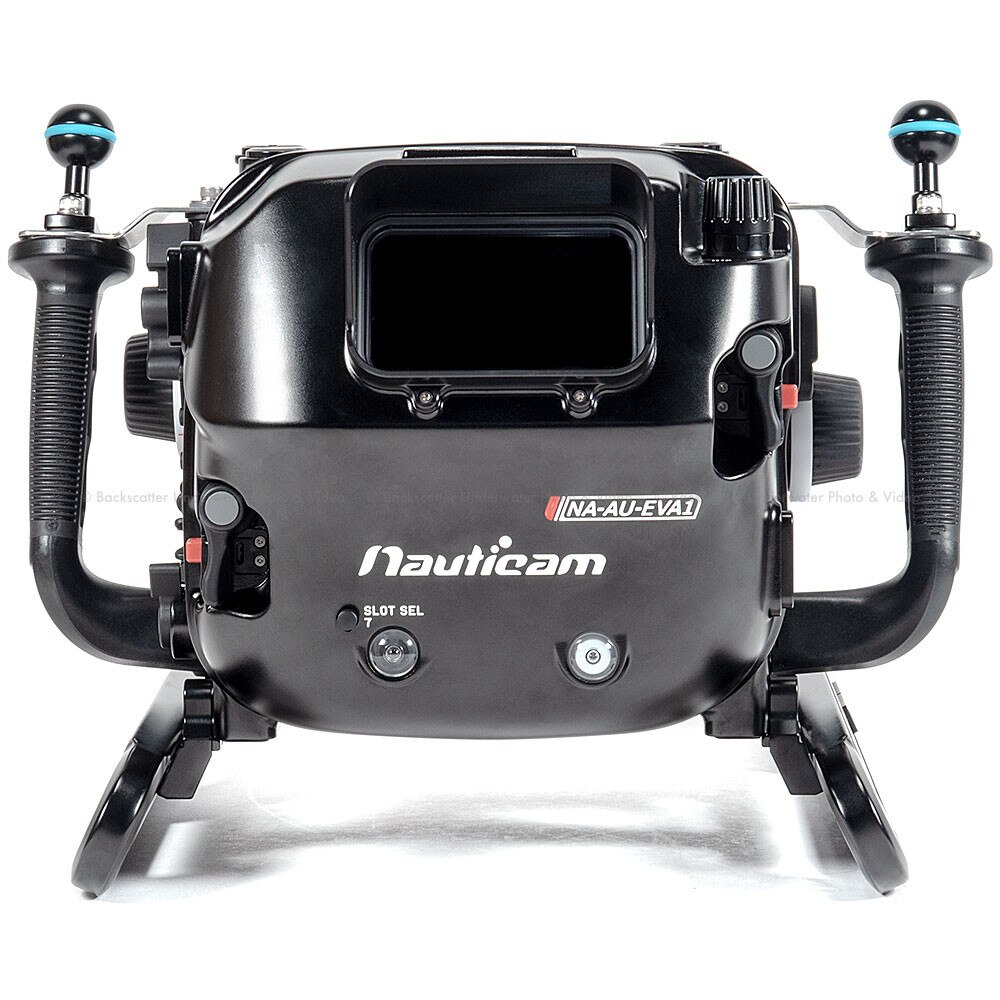

The NA-EVA1 will have a built-in window for the supplied Panasonic monitor. This can be used as either the primary monitor for a streamlined application such as when freediving or as a status monitor when an external monitor such as the Shogun Inferno is used with the appropriate HDMI or SDI bulkheads and cables.

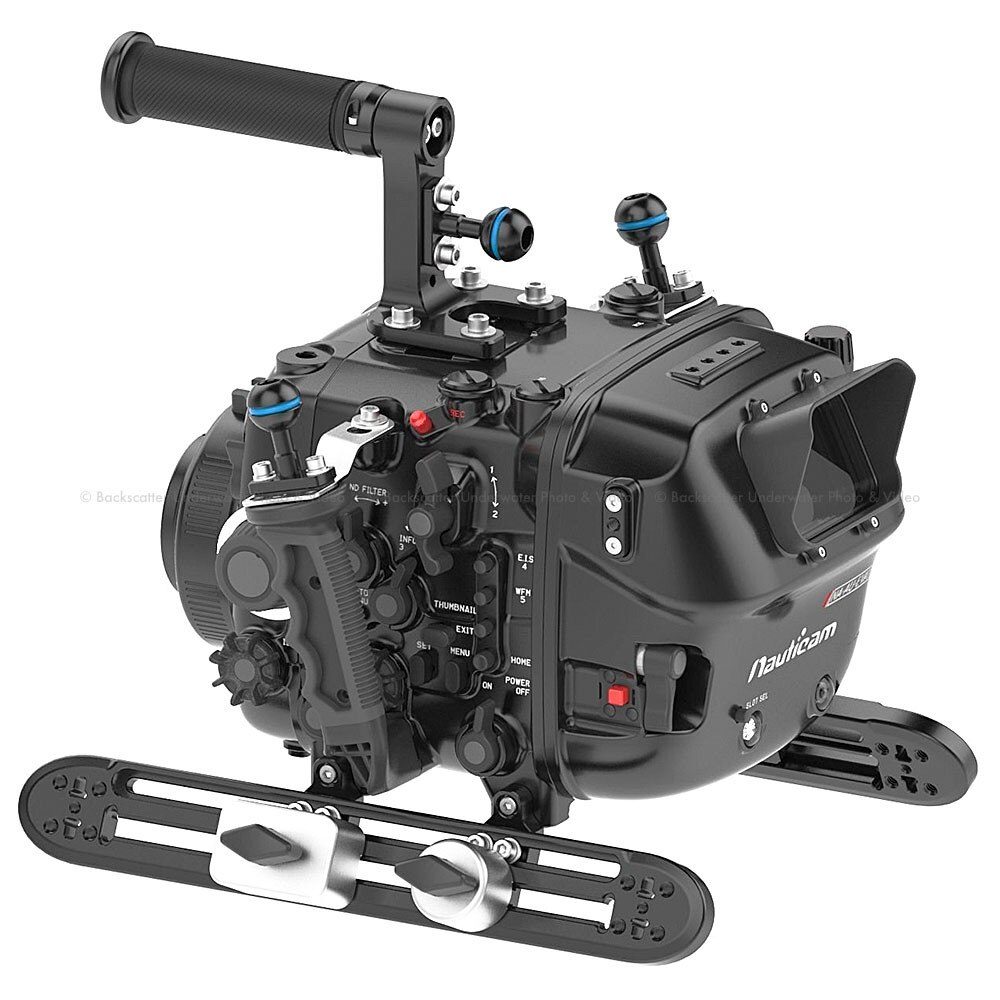

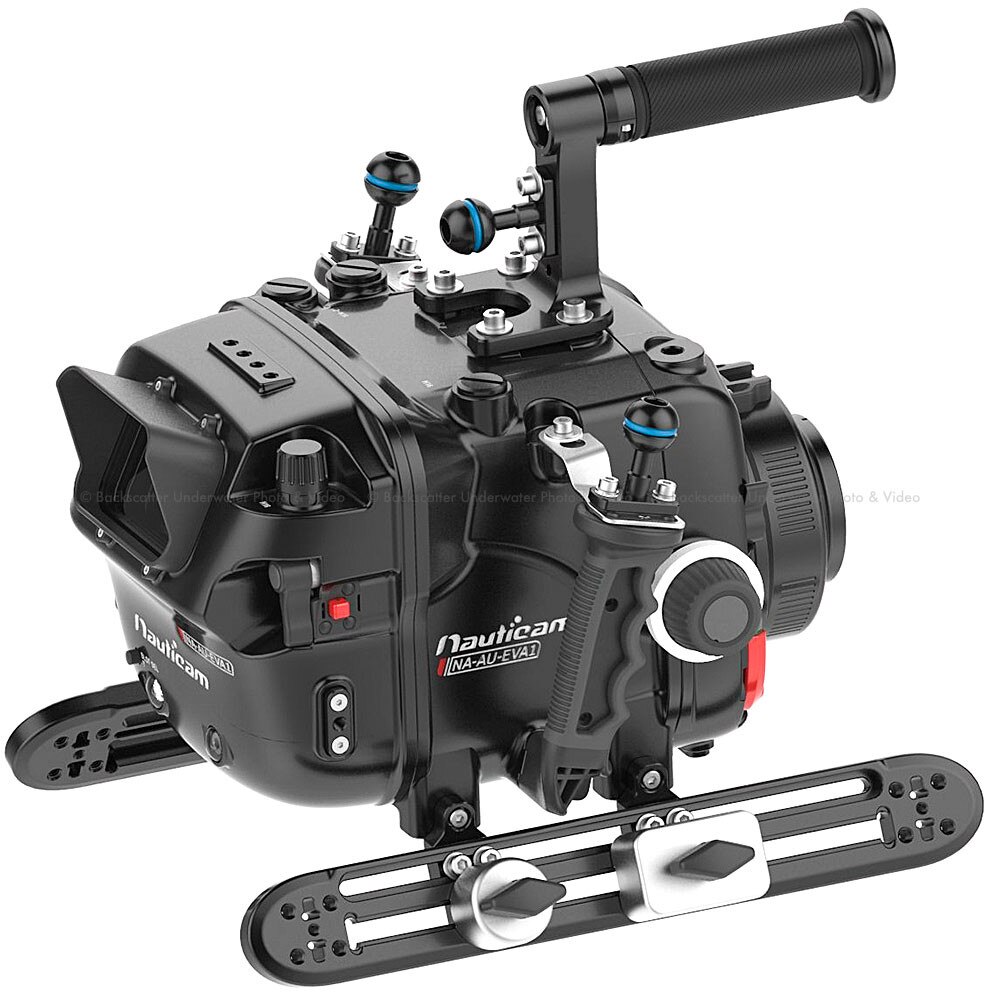

CINEMA ACCESSORIES

The Nauticam line of Cinema Camera Accessories features products that will meet the needs of any underwater filmmaker. From top handles, tripod mounts and skids, to surface support cables, external monitor housings and more. Your NA-EVA1 has a variety of mounting surfaces and extra bulkheads to support the shooter's needs.



SUPPORTED BATTERIES

The NA-EVA1 will allow for the use of the following battery options for the EVA1:
  • Panasonic AG-VBR59
  • Panasonic AG-VBR89G
  • Panasonic AG-VBR118G (allows 3hr 5min operation time)
  • Core SWX NANO-VBR98




FEATURES

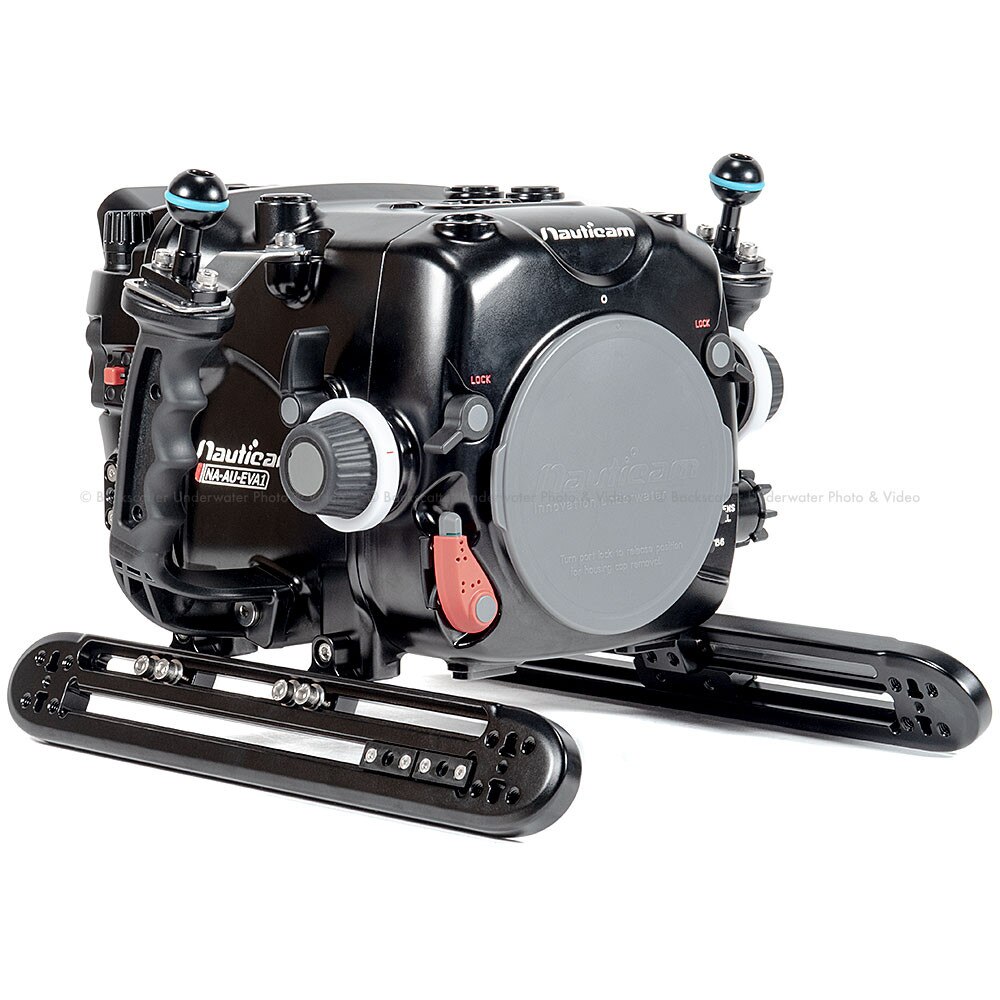

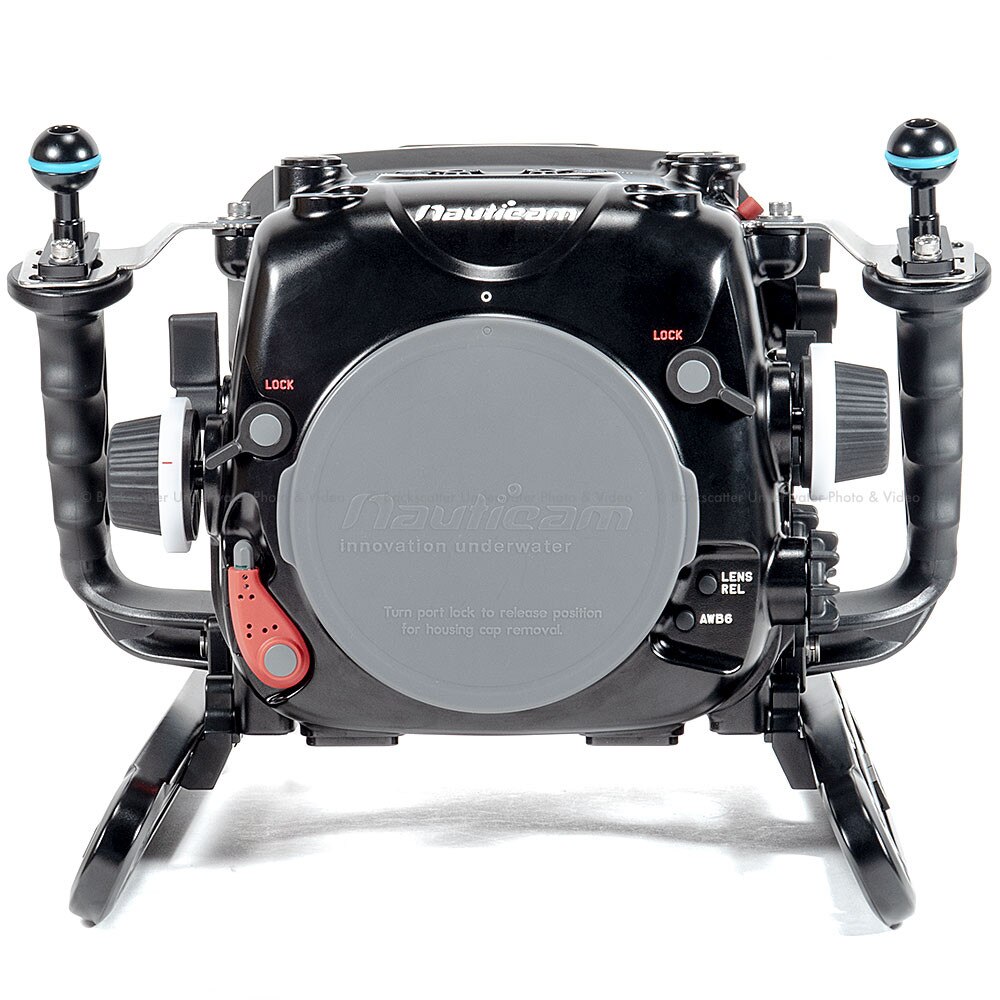

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.



HOUSING LOCKING LATCHES

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening but are easy to open when needed for a quick battery or memory card change.



MISSION CONTROL

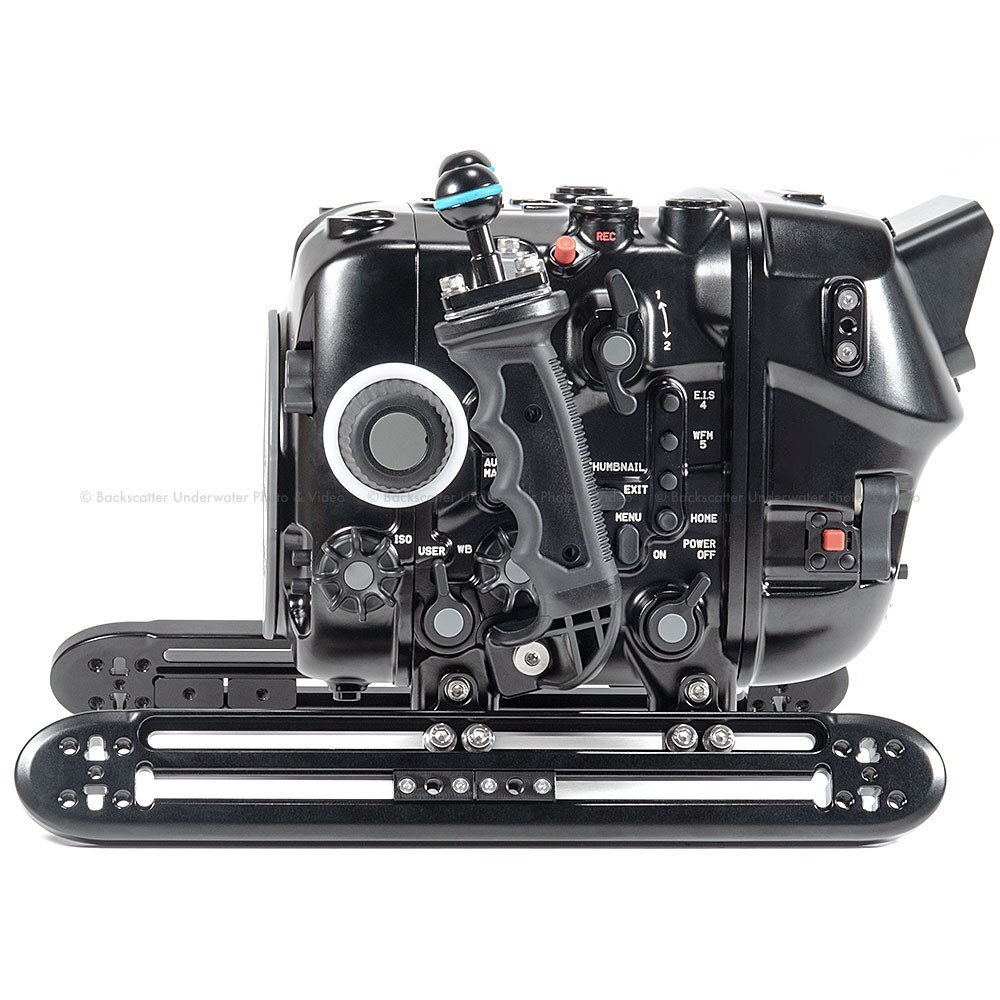

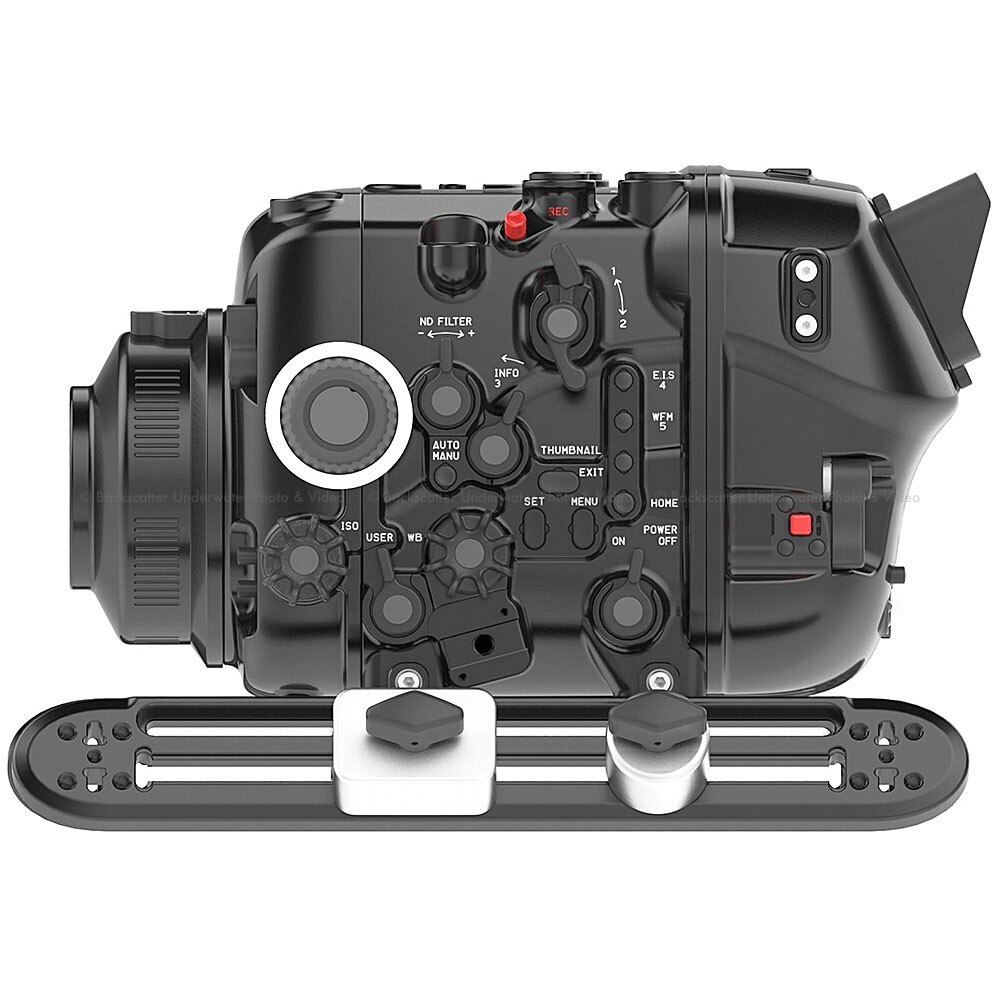

Access to critical controls while filming is crucial to capturing that split-second action as it happens. Taking your eye off the screen to change a setting can mean missing the shot. Nauticam engineers have intuitively placed all essential controls within reach of the handles.



CINEMA ACCESSORIES

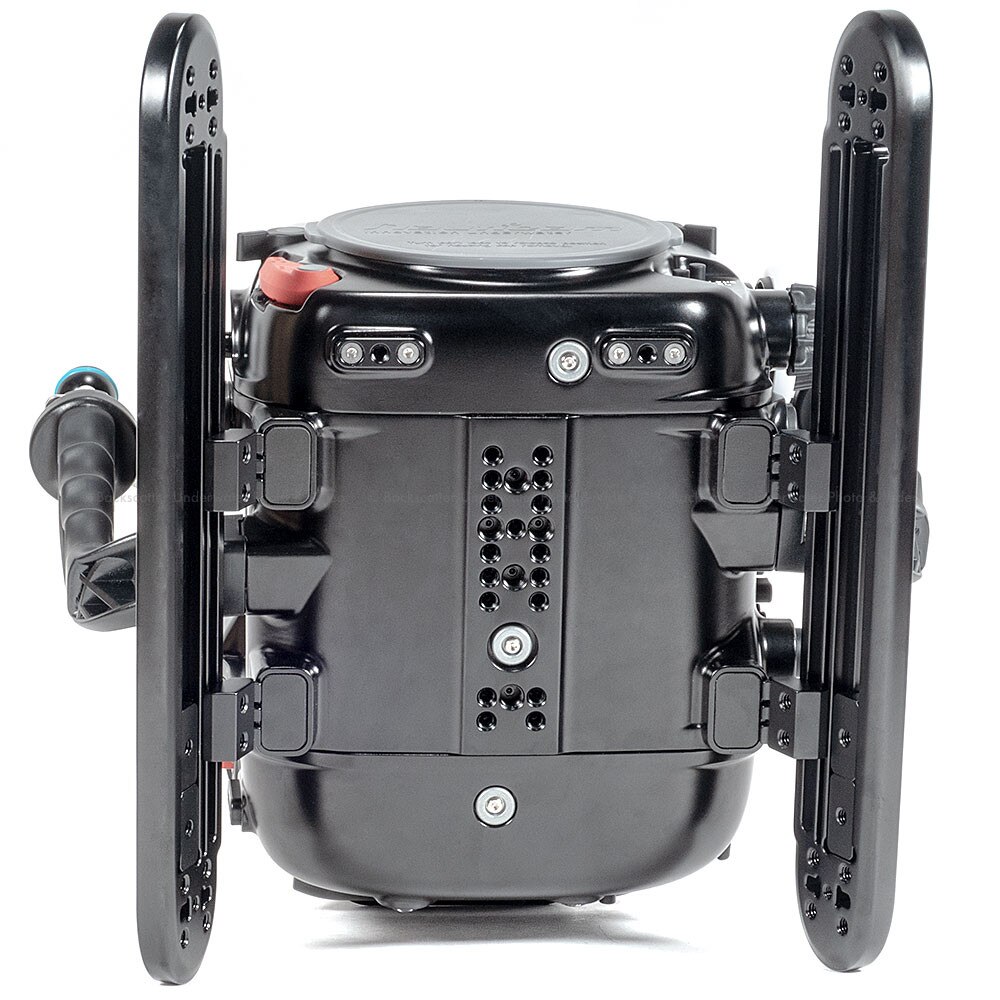

The trim weights can be moved independently along the length of the skids and additional mounting points are featured on the housing itself to trim the housing to the shooter's exact needs.



ZOOM AND FOCUS CONTROL KNOBS

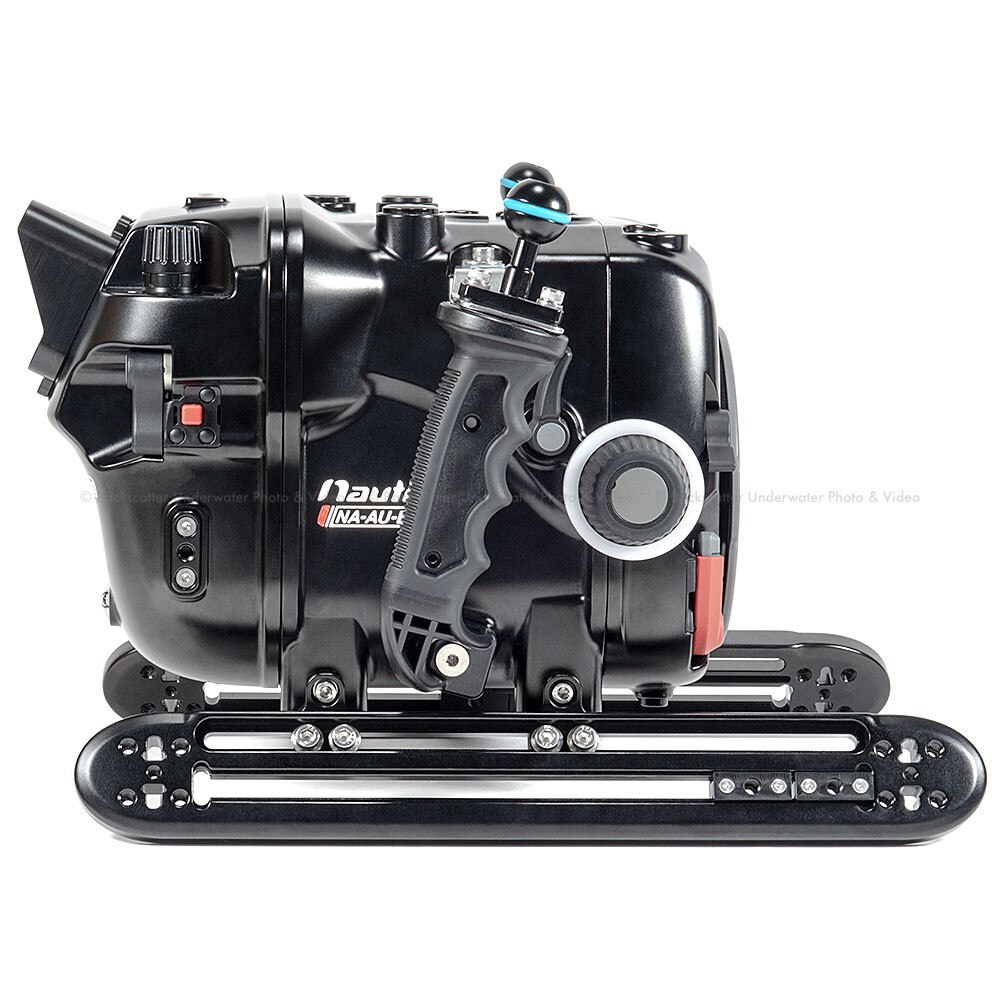

The NA-EVA1 features oversized mechanical zoom and focus knobs with erasable surfaces for focus/zoom position marks. The internal gearing is moved away quickly via a small external lever to allow removal of the camera without disruption of focus/zoom gear alignment.



Vacuum Check & Leak Detection System

The NA-EVA1 comes with the Vacuum Check and Leak Detector electronics pre-installed as well as the M16 Vacuum Valve assembly. This allows testing the water-tight integrity of the housing before the dive and constant monitoring with an easy to see colored LED status light.



What's In The Box:

  • NA-EVA1 Housing in Pelican 1610 Case
  • Housing Skids and Trim Weights (2 x 0.25kg and 2 x 0.5kg)
  • M16 Vacuum Valve (Pre-installed) and Hand Pump
  • Instruction Manual
  • Spare housing main o-ring, lubricant, and removal tool
  • Set of Allen wrenches
