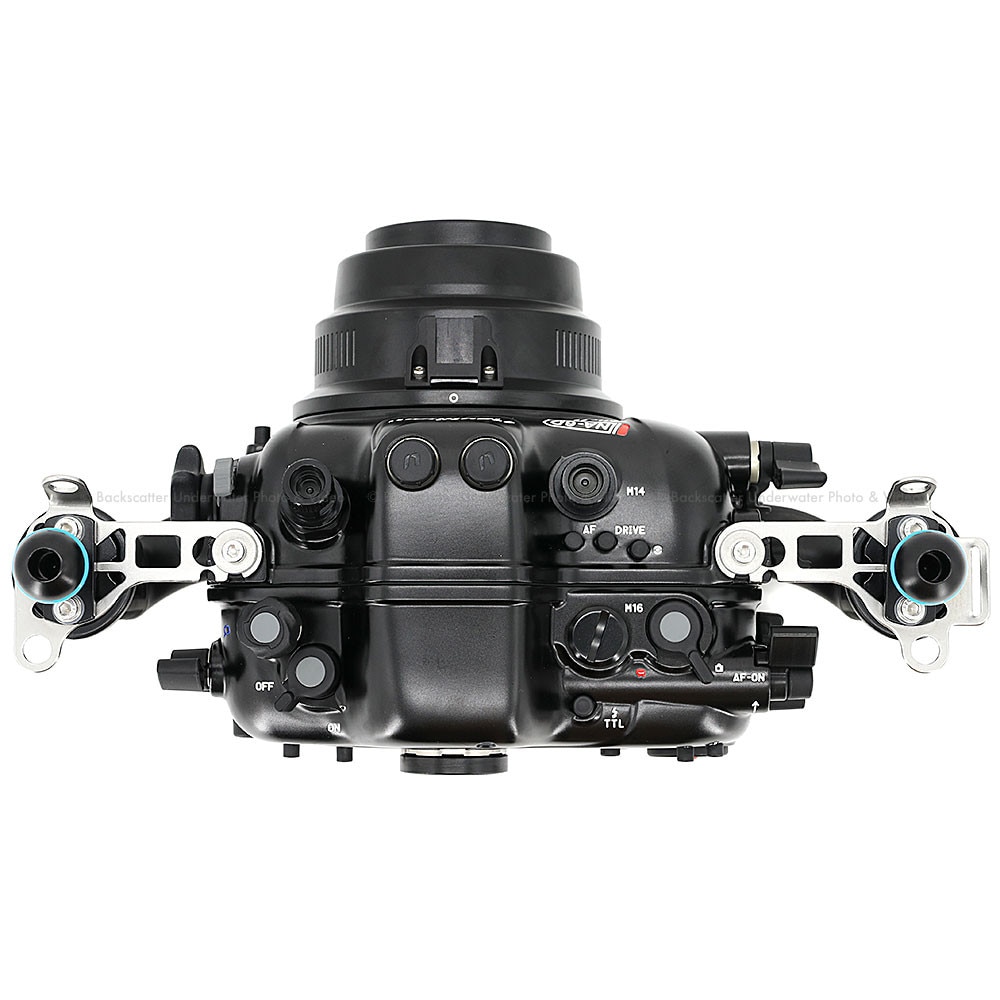

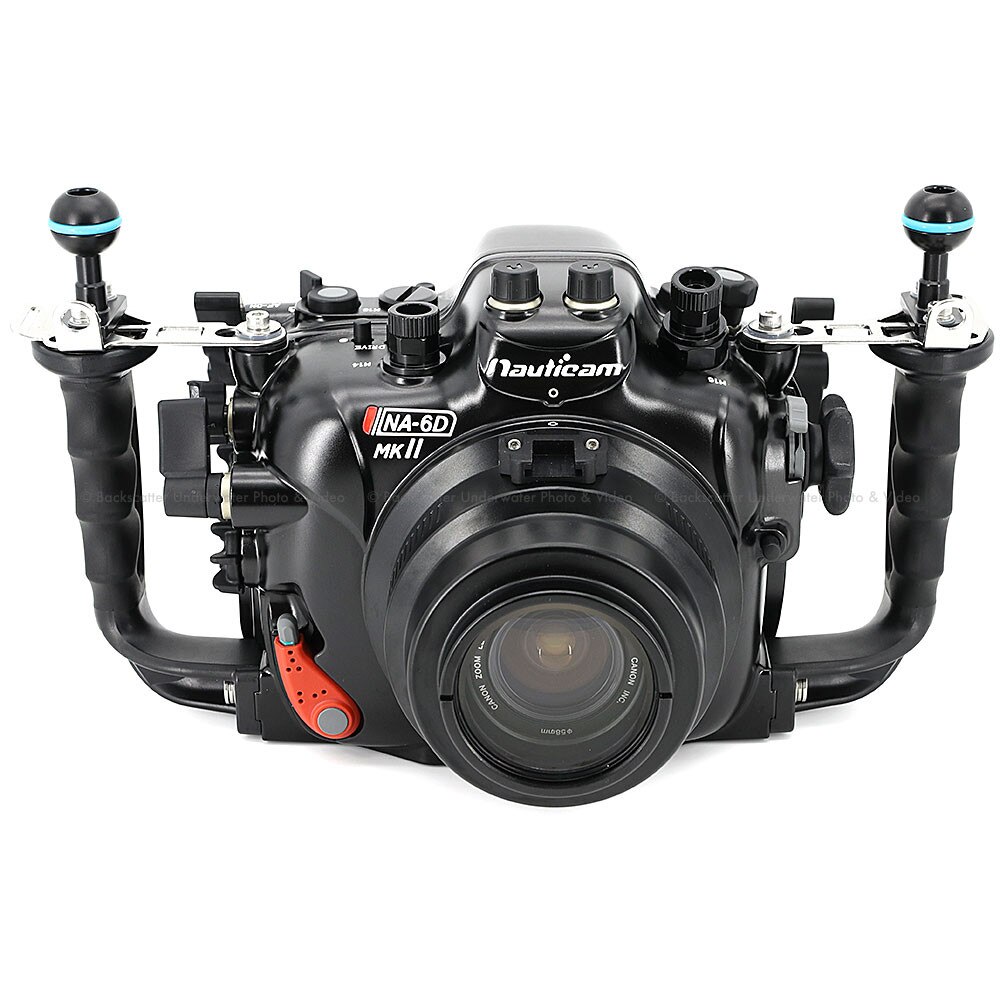

Nauticam NA-6DMKII Underwater Housing for Canon 6D Mark II DSLR Camera

Nauticam NA-6DMKII Underwater Housing for Canon 6D Mark II DSLR Camera

Nauticam is pleased to unveil NA-6DMKII, the latest release in the world's finest line of underwater camera housings. Nauticam is the market leader in ergonomics, build quality and reliability. Built on a foundation of innovative product design and modern manufacturing technology, NA-6DMKII is the ultimate accessory for the exciting new Canon EOS 6D Mark II camera.

The Canon EOS 6D Mark II

Offering superb performance, the Canon EOS 6D Mark II camera puts full-frame performance into a compact, fully featured DSLR. Its 26.2 Megapixel CMOS sensor and DIGIC 7 Image Processor help deliver amazing results even at expanded ISO settings, making it great for challenging low-light situations. The EOS 6D Mark II also features an impressive optical viewfinder with 45 all cross-type AF points*, fast and accurate Dual Pixel CMOS AF and a Vari-angle Touch Screen LCD for Live View operation which helps create unique angles. With the EOS 6D Mark II's speed to capture action and the versatility to create phenomenal photographs and Full HD 60p videos in numerous environments and lighting situations. The EOS 6D Mark II features a 26.2 effective Megapixel, full-frame CMOS sensor (approx. 35.9mm x 24.0mm) designed to create high-resolution and detailed images as well as take full advantage of Canon’s incredible collection of EF lenses. The EOS 6D Mark II’s sensor delivers an impressive combination of light sensitivity and detail, ideal for high-resolution shooting, and gives the user additional room to crop photos without compromising image quality.

The remarkable shutter and image processing system helps ensure virtually instantaneous response and performance at up to 6.5 fps which are great for helping the user capture fast action.

It is built for uninterrupted performance, even when conditions get messy. The battery compartment cover, card slot cover, lens mount, terminal covers, and buttons are weather-sealed to help keep water and dust out. The EOS 6D Mark II’s high precision aluminum alloy and polycarbonate resin construction makes the camera lightweight and durable.

Canon EOS 6D Mark II Key Features:

• New 26MP CMOS full-frame sensor with Dual Pixel AF
• 1080/60p video capture with in-lens + digital stabilization
• 45-point all-cross-type AF system
• Dual Pixel AF for both stills and video capture
• ISO 100-40,000 (expandable to 102,400)
• 6.5 fps continuous shooting (4.5 fps in Live View)
• 3" fully articulating touchscreen
• Wi-Fi w/NFC and Bluetooth
• Built-in GPS

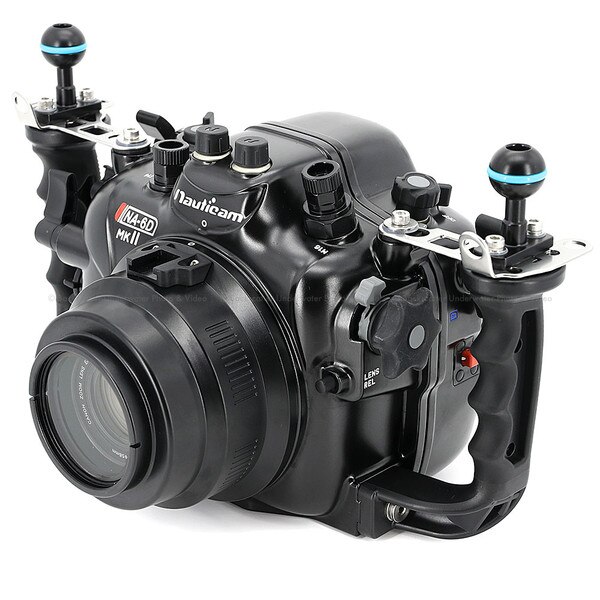

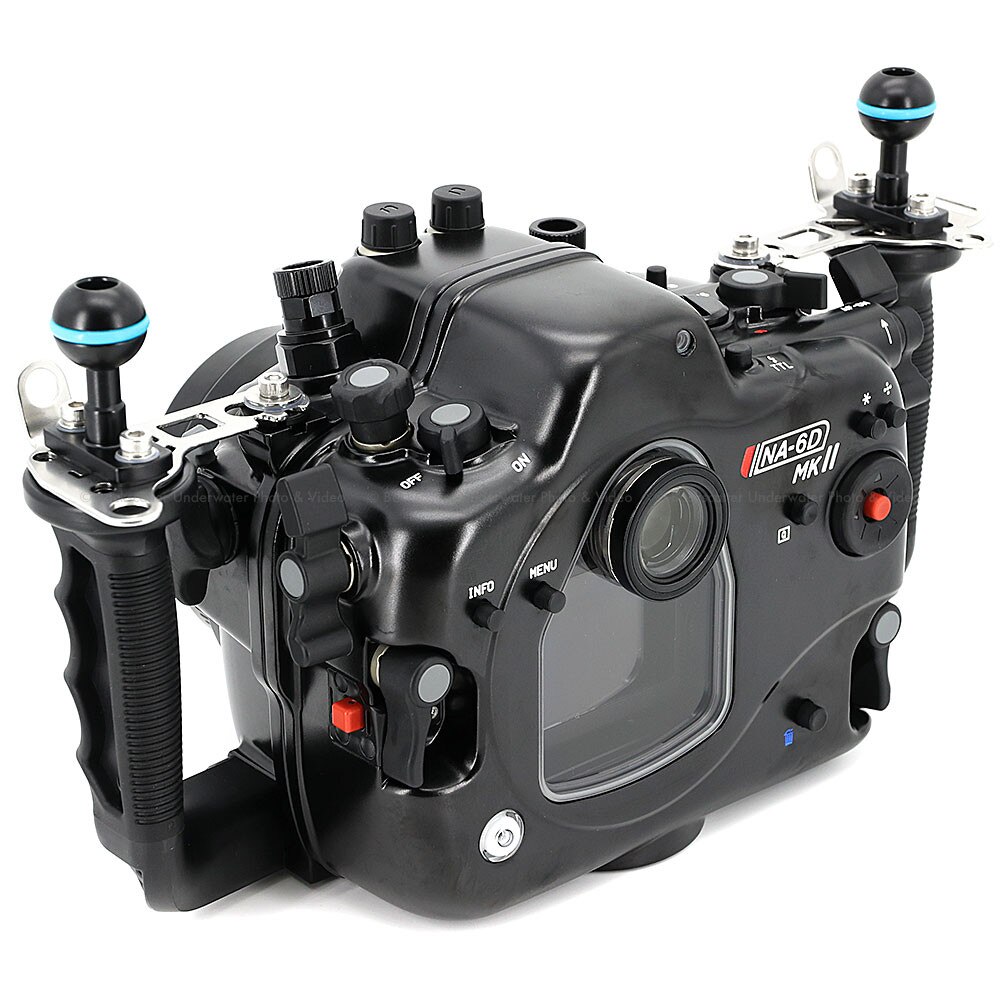

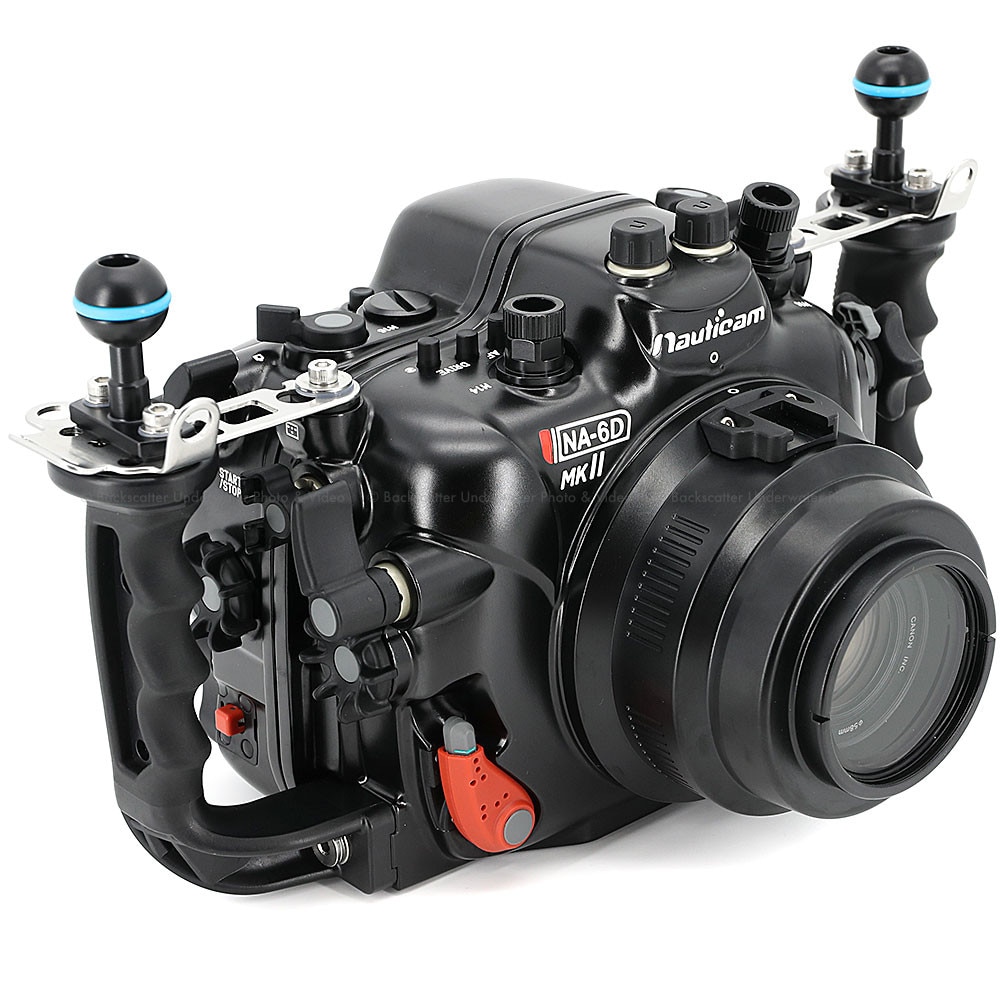

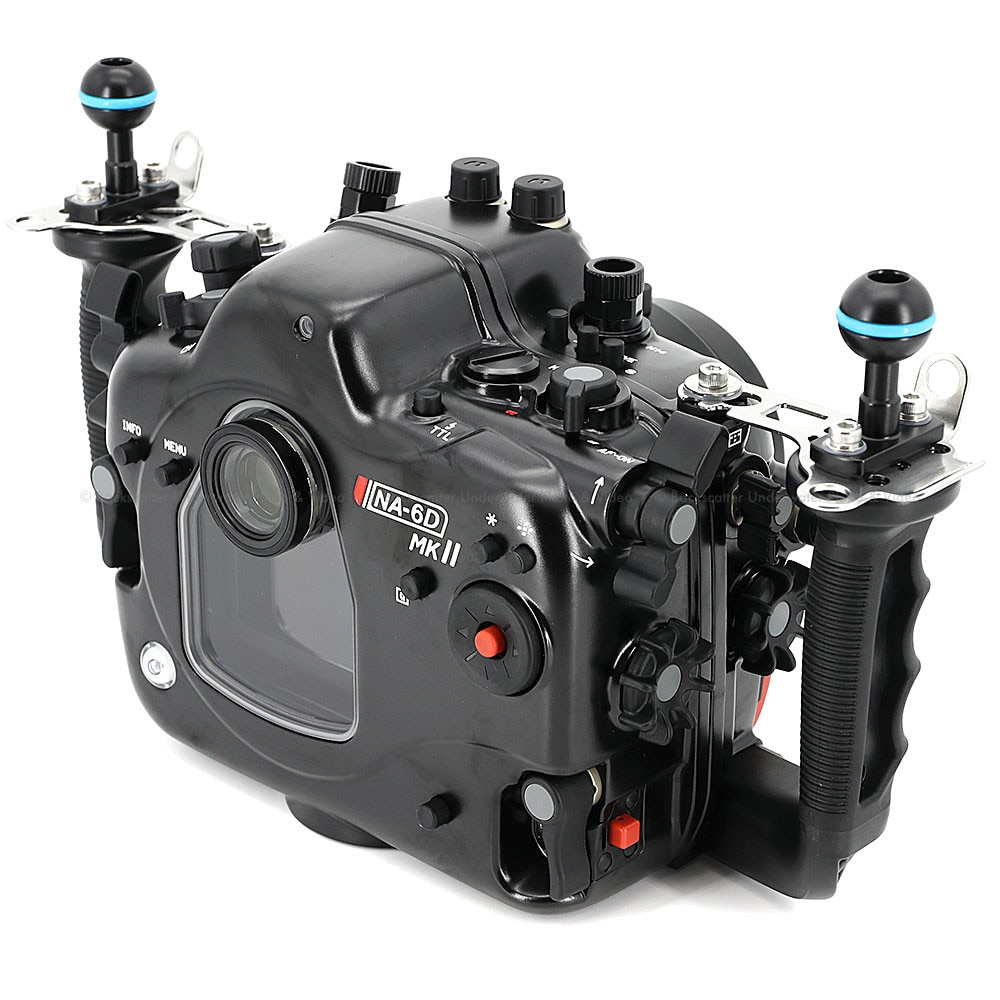

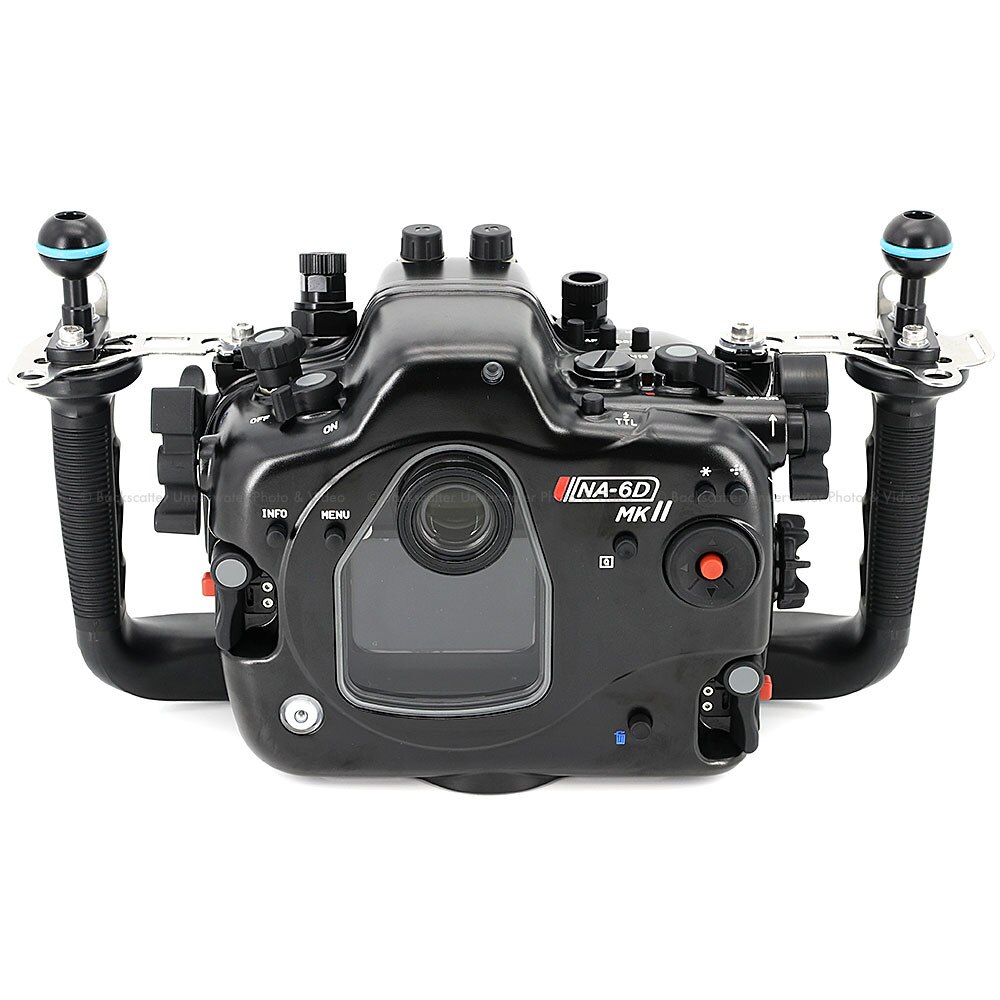

The Nauticam NA-6D MKll Underwater Housing

Innovation, ergonomics, and reliability are the hallmarks of the Nauticam brand. Every new housing design is carefully crafted based on feedback from Nauticam users around the globe. Feedback gained from the knowledge and experience of Nauticam owners results in every new housing design being better than the last.

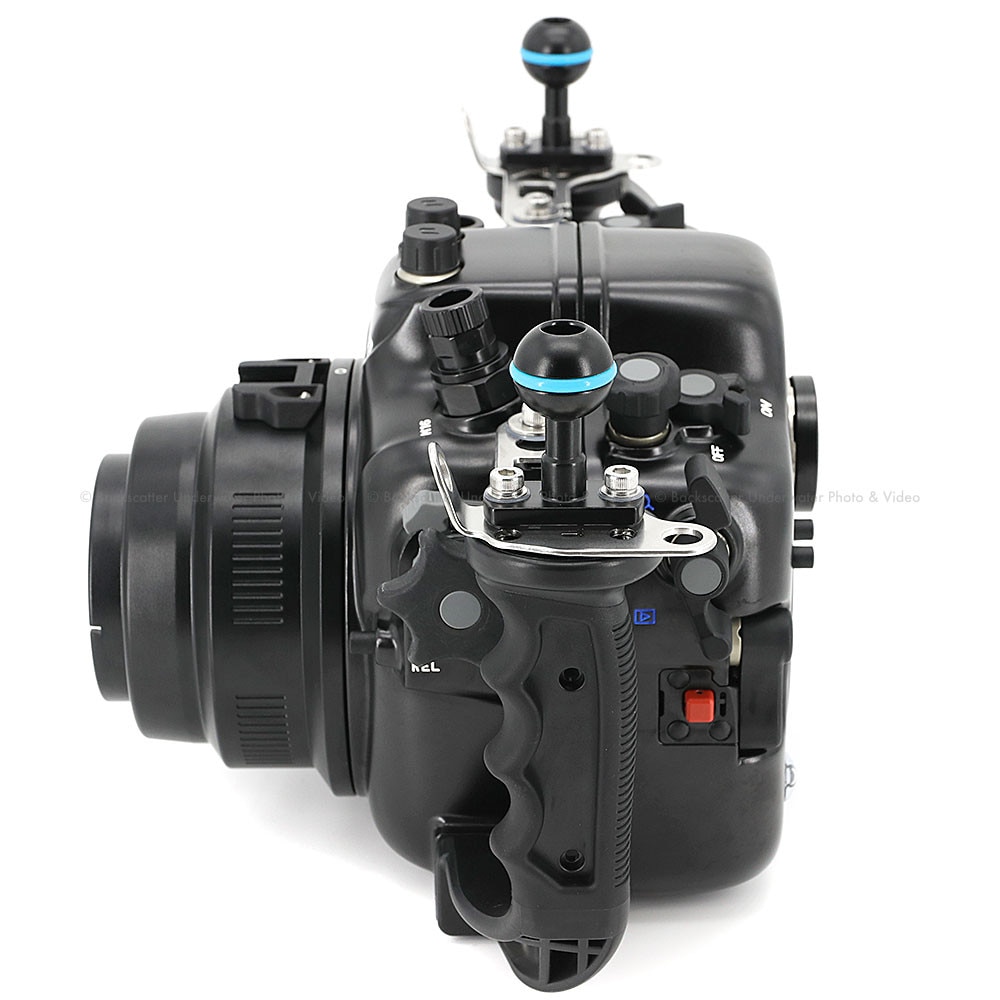

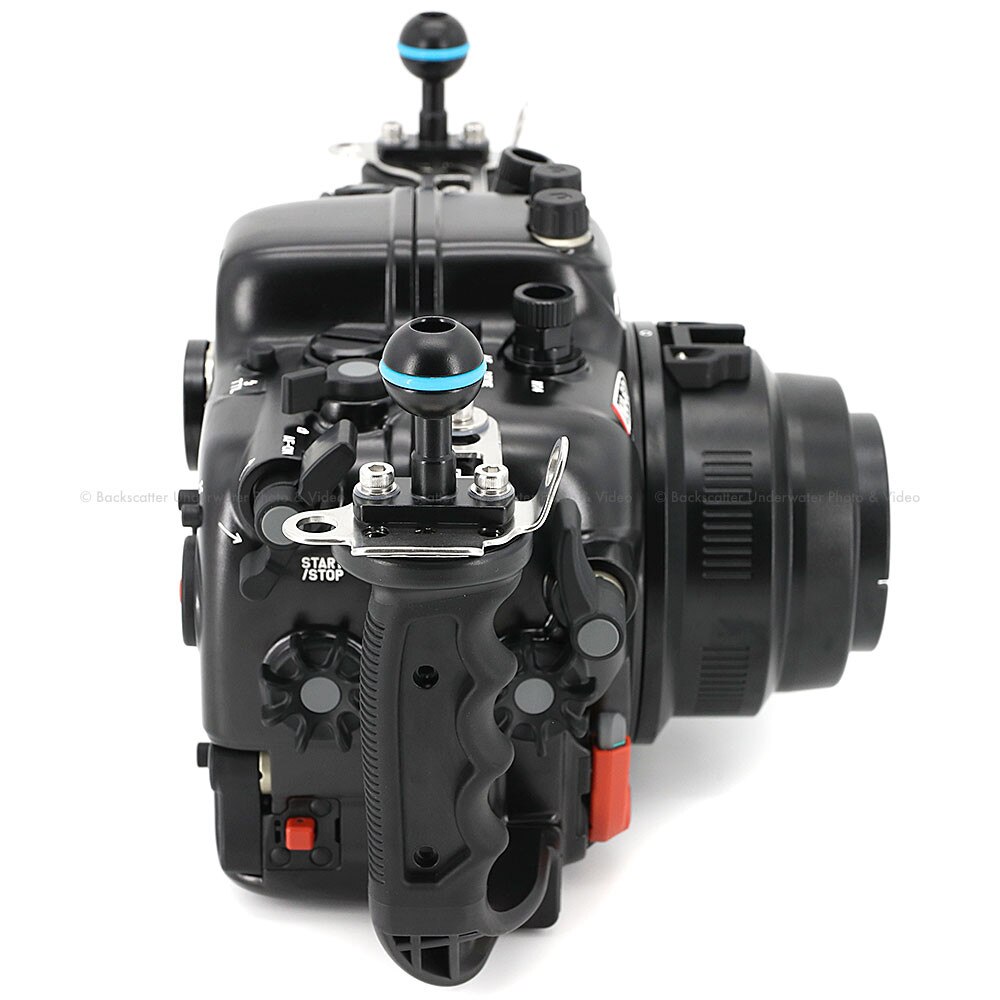

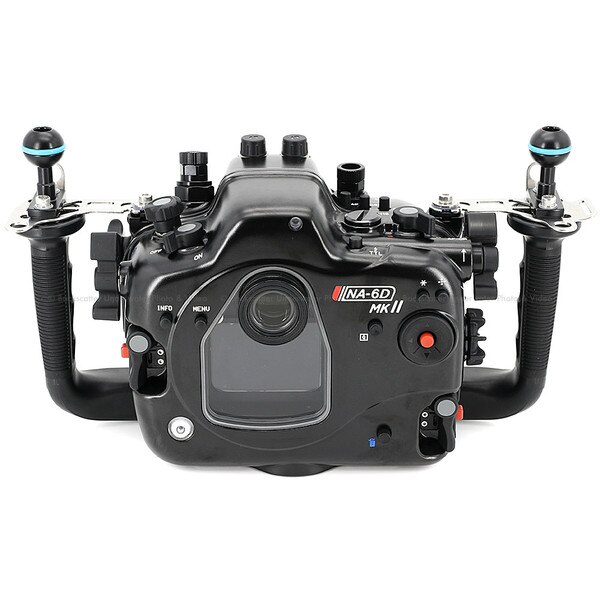

Key camera controls are placed within an easy reach from the ergonomic, rubberized handles. An incredible amount of design resources go into crafting this layout, but that effort pays off with the unmatched ease of use. Controls on the housing are placed exactly where they should be for easiest access in water, regardless of the camera layout. A large, sculpted shutter release lever is placed at the right-hand grip for index finger operation and features a patented geared mechanism that improves sensitivity for tactile feel of half press and full press. The right-hand side double thumb lever has been improved with a more ergonomic positioning. This lever accesses both AF-On and Video Record. The Multi Controller Pad allows the full multidirectional use of the 8-way controller, while still allowing for the rear command dial to be brought out to the right side of the housing. No other housing comes close to achieving this kind of ergonomic access to these critical controls. There is even a convenient on/off button and indicator window for use with the optional TTL flash trigger for Canon (26321).

The patented housing Locking Latch System has received acclaim worldwide for its ease and functionality. These recessed latches are equipped with safety locks, reduce bulk and require minimal physical effort to engage and release. Port changes have never been simpler than utilizing the Patented Nauticam Locking Port Release. No wrestling, no twisting, no misalignment – just seat and lock. Lens changes are also easily accomplished without removing the camera from the housing using the lens release button logically accessed on the housing front.

Viewfinders

The standard optical glass viewfinder is very good and travel-friendly, but many photographers prefer the ease of a magnified viewfinder with adjustable diopter. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high-quality optics and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

Premium Professional Optics

Experienced shooters know a camera is only as good as the lens in front of it, and the same is true when choosing optics for an underwater camera system. Four optically coated glass dome ports (250mm, 230mm, 180mm, and 140mm diameters) and a series of acrylic ports support popular lenses from Canon, Sigma, and Tokina. Port configurations are extensively tested at Nauticam to determine the ideal extension ring length for best performance.

For macro and super macro shooting, the Nauticam Super Macro Converter is a revolutionary accessory. This is an entirely in-house design, optimized for use in water. The water contact correction offers the highest overall sharpness, free from chromatic aberration and purple fringing, with reproduction ratios exceeding 2:1 when used with a Canon EF 100mm f/2.8L Macro IS USM Lens. A new Super Macro Converter II provides even stronger magnification, exceeding 4:1 reproduction ratio, for extreme macro magnification with water contact optimization yielding the highest possible quality.

Key Features

Patented Port Locking System

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and even the largest dome locks securely in place with this lever. Nauticam also offers locking port extension rings, meaning a dome will never twist.

Housing Locking Latches

The industry's easiest to use housing closure system, requiring very little hand strength to close, secures the housing back in place. The latches are safely locked, but easy to open for a quick battery or memory card change.

Multi Controller Pad

Located within easy reach of the right thumb, virtually recreates the Canon 6D MKll multi selector allowing the full multidirectional use of this powerful tool.

Integrated Vacuum Monitoring and Leak Detection

Circuitry included as standard equipment provides constant monitoring of watertight integrity when combined with an optional Nauticam M16 Vacuum Valve II (PN 25625). A simple vacuum reset pushbutton is also placed in the port mount allowing the vacuum system to be calibrated and initialized from the housing front. Ideal for quick lens swaps!

Stainless Steel Handle Brackets

Stiffening handle brackets are included with the housing. These brackets eliminate any flex or wobble when using big strobes, and provide multiple attachment points for lanyards, a hand strap, and other accessories.

Ergonomic Rubberized Grips

Another legendary Nauticam feature, these rubberized grips have been used every Nauticam DSLR housing release. Their ergonomic shape and soft rubberized coating prevents hand fatigue, even on long dives.

Clear Control Labeling

All camera controls are clearly labeled, allowing easy identification.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-6D MKll as standard equipment. Combined with an accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

Ease of Use

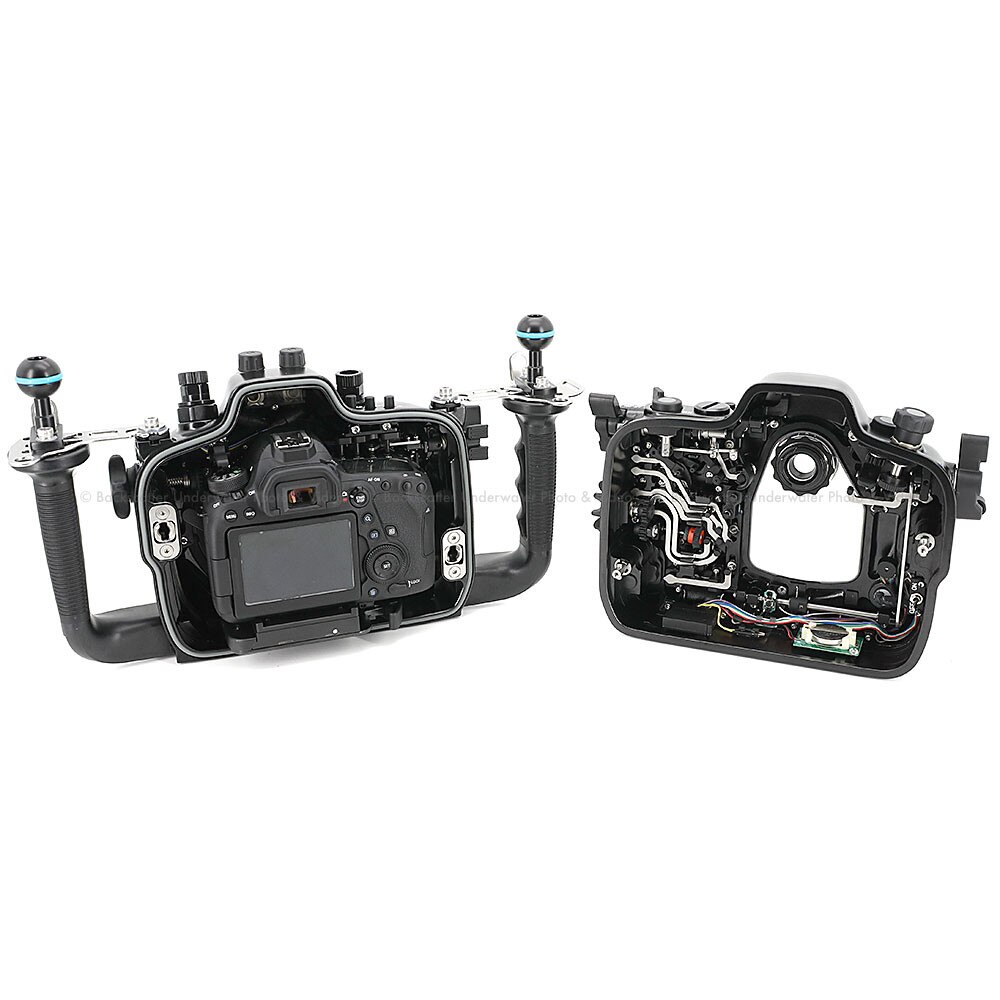

No system is easier to assemble or break down. The camera drops into the housing with a quick release camera tray. No controls need to be preset, as housing functions for dials and switches align automatically (on/off, still photo/video). The large 120mm housing port opening allows even the largest popular pro Canon wide angle lens (11-24mm f /4L) to be used.

Build Quality

Nauticam build quality is simply unmatched, using cutting-edge product design and modern, innovative manufacturing techniques that result in service-free reliability. A bit like a fine Swiss timepiece, the complexity under the hood results in a trouble-free user experience that just works and keeps working for years to come.

Recommended Accessories

• Magnifying Viewfinders
• 180º Enhancing Viewfinder (32201)
• 45º Enhancing Viewfinder (32203)
• Flash Triggers and Electrical Bulkheads
• TTL Flash Trigger for Canon (26321)
• Flash Trigger for Canon (26301)
• M14 Nikonos Bulkhead to Canon Hotshoe (25020)
• M14 Ikelite Bulkhead to Canon Hotshoe (25022)

Other Accessories

• Patent Pending Super Macro Converter (81201), providing 2.3:1 reproduction ration with the popular Canon EF 100mm f/2.8L Macro IS USM Lens
• SMC-2 for Extreme Super Macro (81202), greater than 4:1 reproduction with EF 100mm f/2.8L Macro IS USM Lens
• M16 Vacuum Valve (25625)
• Complete line of flat and dome ports for all major lenses, available in acrylic and glass
• Locking port extension rings from 10mm to 90mm
• Monitor Housing for SmallHD 502 Monitor (17906)
• Large Diameter Multi Core Universal Fiber Optic Cable (26216)
• Full line of mounting accessories for lighting, including mount balls, strobe adapters, arms, clamps, and specialty items
• Multiple styles of lanyards
• Lens holders, including flip-up
• Focus and Zoom gears for many Canon, Tokina, and Sigma lenses
• Port Adapters for Aquatica, Hugyfot, Ikelite, Inon, Nexus M5 & M6, Sea & Sea NX, Seacam, Subal Version 3 & 4, and Zillion
• Handle accessories including smaller handles, handle extensions for cold water diving
• Spare Housing O-Ring (90121)

Details and Specifications

• Depth Rating: 100m
• Weight: 3.05kg
• Dimensions: 360mm x 175mm x 135mm (W x H x D)
• Vacuum Sensor battery: CR2032
