Nauticam Fujifilm GFX 50S Underwater Housing NA-GFX50S

The marriage of medium format and mirrorless has led to the Fujifilm GFX 50S. The Nauticam NA-GFX50S and the N120 Port System supports the dedicated new lens lineup of GF lenses. With the NA-GFX50S you can now capture 4:3 aspect ratio 51.4MP uncompressed 14bit RAW underwater images in a form factor similar to a pro-level DSLR from a sensor that is 1.7x larger.


FUJIFILM GFX 50S

The Fujifilm GFX 50S brings medium format imaging to a mirrorless camera system. To take full advantage of the 51.4MP sensor, Fujifilm has also developed the new "G" lens mount and the "GF" lens lineup. The GFX 50S captures 14bit uncompressed RAW images in a 4:3 aspect ratio and features an ISO range from 50-102,400. Built for extreme environments the GFX 50S is water-resistant and freezeproof to -10ºC.


Key Camera Specifications

• 51.4MP medium format CMOS sensor (43.8 × 32.9mm) with Bayer filter array
• 3.69M-dot OLED Removable EVF
• 3.2" 2.36M-dot touch LCD tilts horizontally and vertically
• AF-point-selection joystick
• Weather-sealing
• 1/125 sec flash sync speed
• 3 fps continuous shooting
• 1080/30p video capture
• Dual SD card slots (UHS-II)

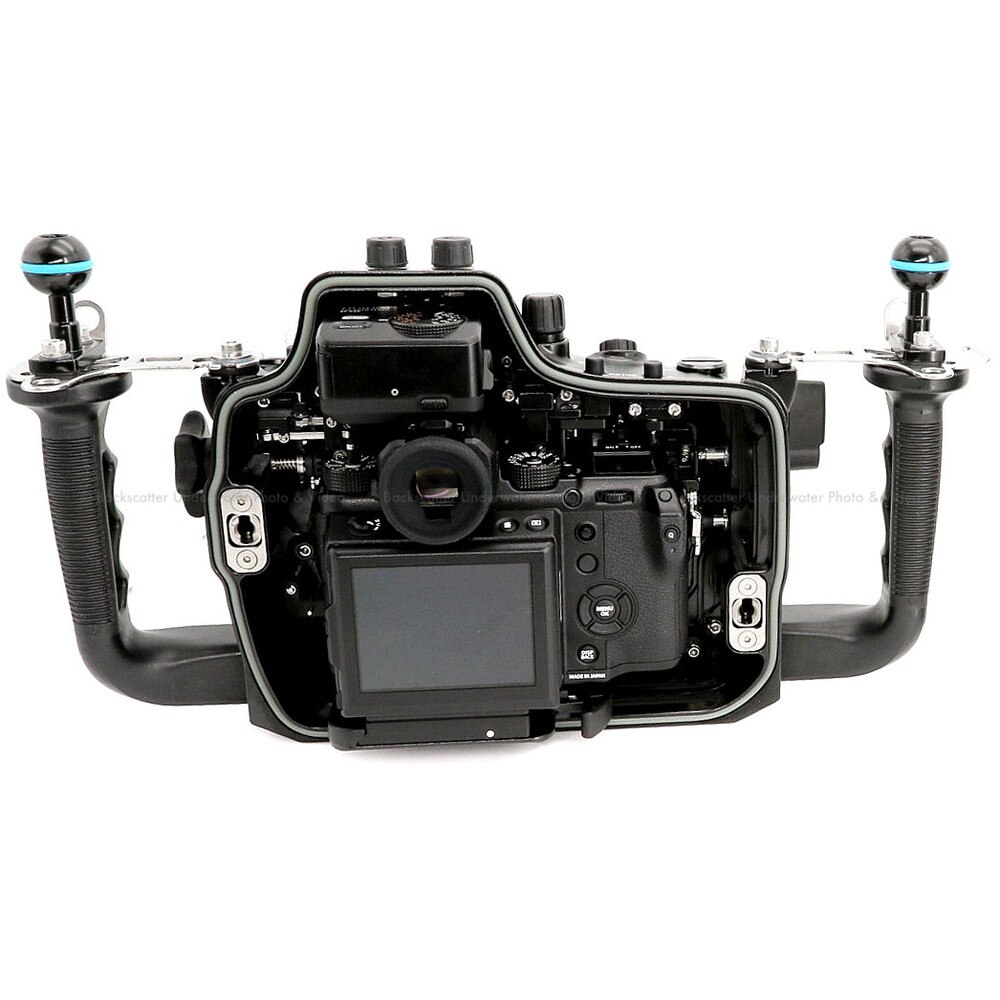

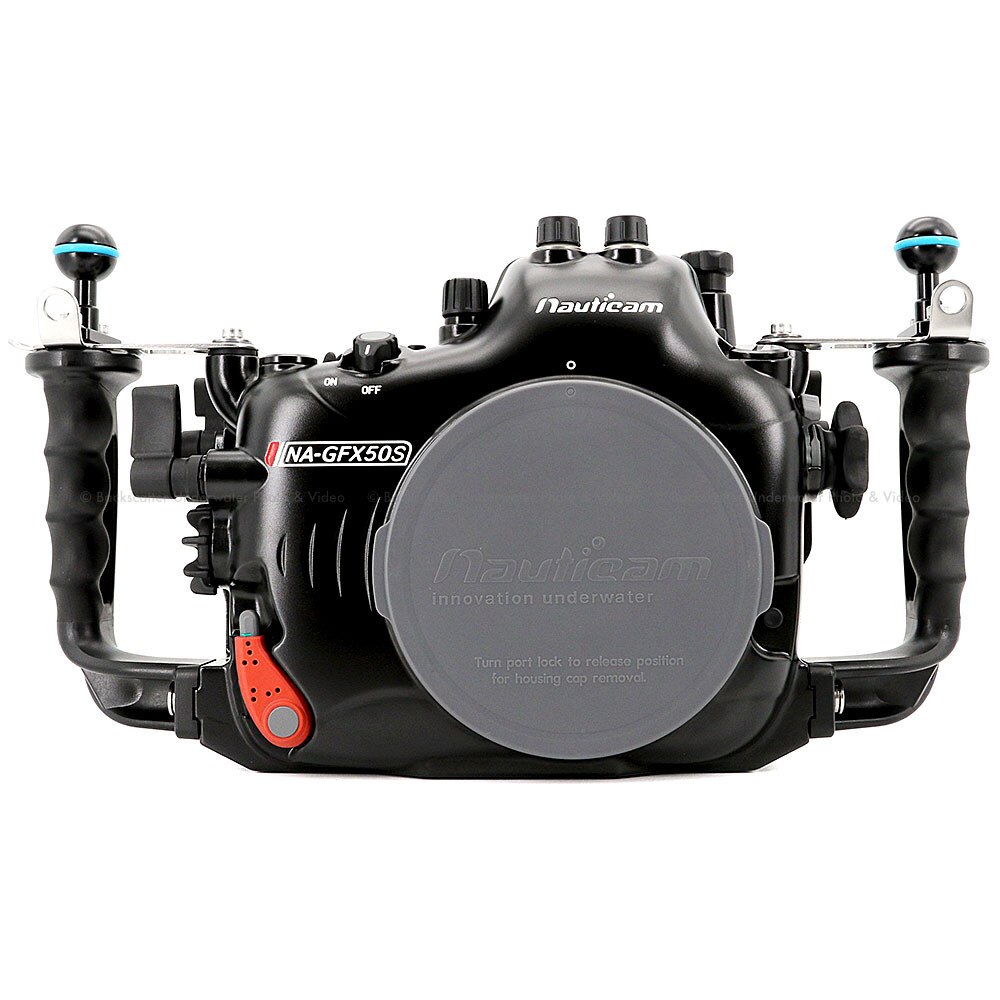

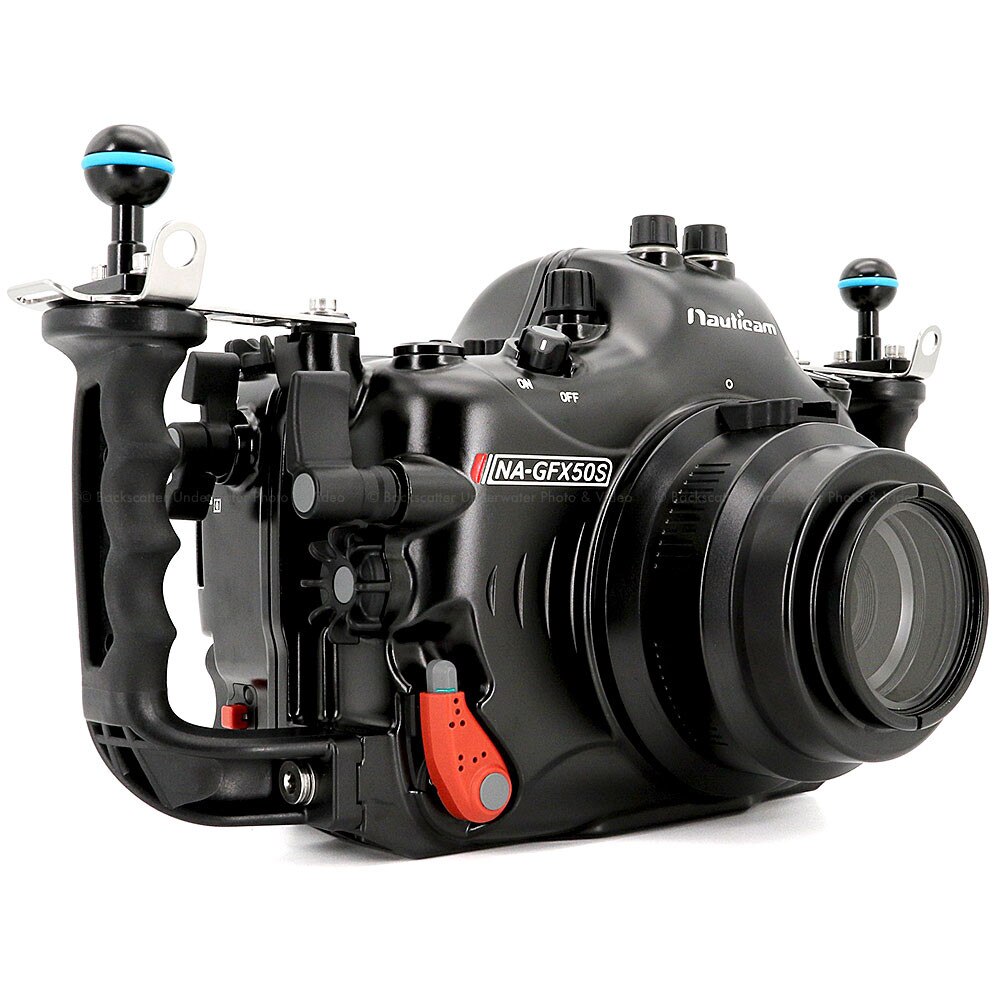

THE NA-GFX50S UNDERWATER HOUSING

Nauticam has produced housings for a variety of both medium format and mirrorless housings. The NA-GFX50S takes all that experience and produces the first housing for a mirrorless digital medium format camera. Nauticam has continued to offer unencumbered access to the essential controls that underwater photographers need.

The GFX50S has 10 customizable buttons. The camera's "Q" menu can also be customized to accommodate most-used menu items. The "Q" menu is easily accessed by the double thumb-lever on the right-hand side which also accesses the assignable "Fn 4" button. The left-hand double thumb lever accesses the "PLAY" and "DELETE" functions.

The FOCUS piano key on the right-hand side engages the joystick to change the focus point. The GFX50S has a total of 117 contrast focus points that can be further subdivided to 425 individually selectable points. The neighboring Piano Key activates the "Fn 5" button of the camera.


FLASH TRIGGERING

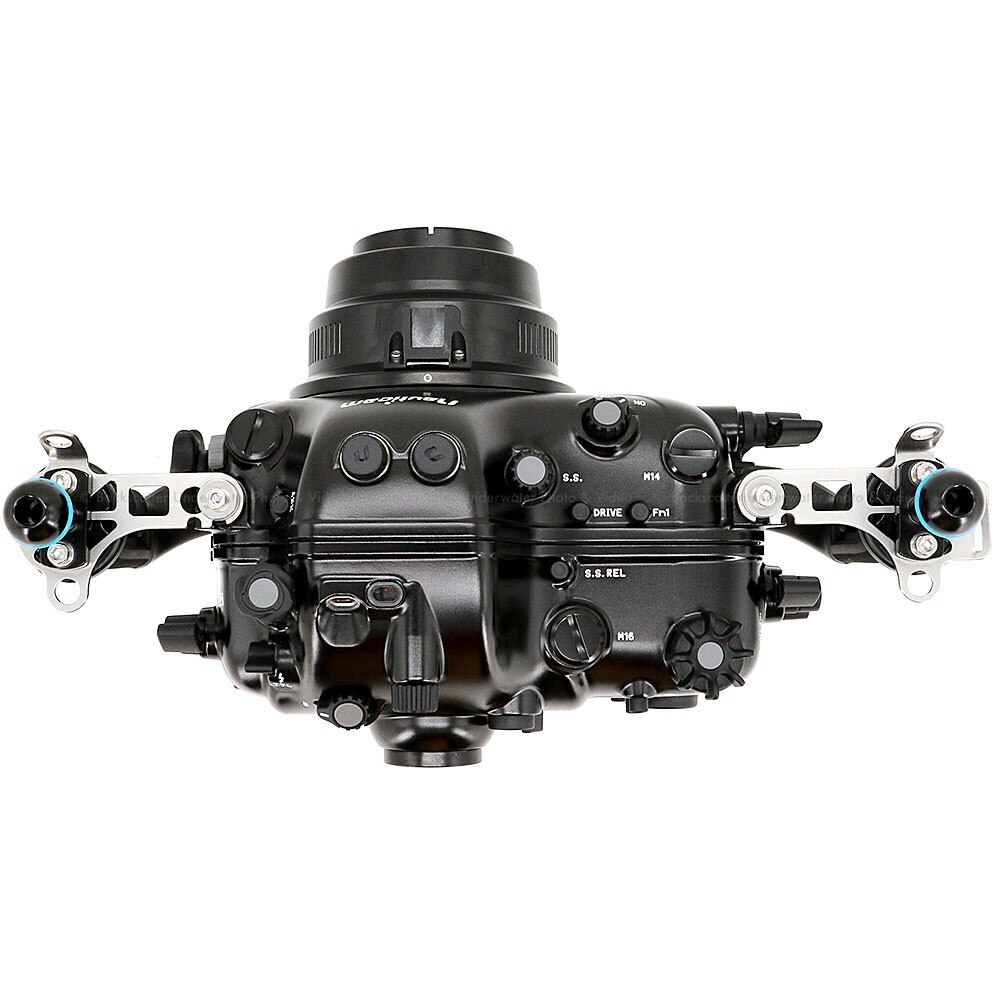

Flash triggering is performed via built-in fiber optic bulkheads using the Fujifilm EF-X20 TTL flash which fits into the housing when mounted on the hot-shoe. Flash EV can be controlled via a dial atop the housing and status can be seen through dedicated viewports. The flash can be turned on and off via a lever on the left side of the housing.


PREMIUM PROFESSIONAL OPTICS

The GFX 50S uses a new lineup of dedicated lenses with the moniker GF. The Nauticam N120 Port Systems supports many of those currently available including ultra-wide primes, zooms, and macro lenses.


VIEWFINDERS

The standard optical glass viewfinder is very good and travel-friendly, but many photographers prefer the ease of a magnified viewfinder with adjustable diopter. Nauticam produces a “straight” 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close quarters work often associated with macro shooting. Both viewfinders have high-quality optics and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

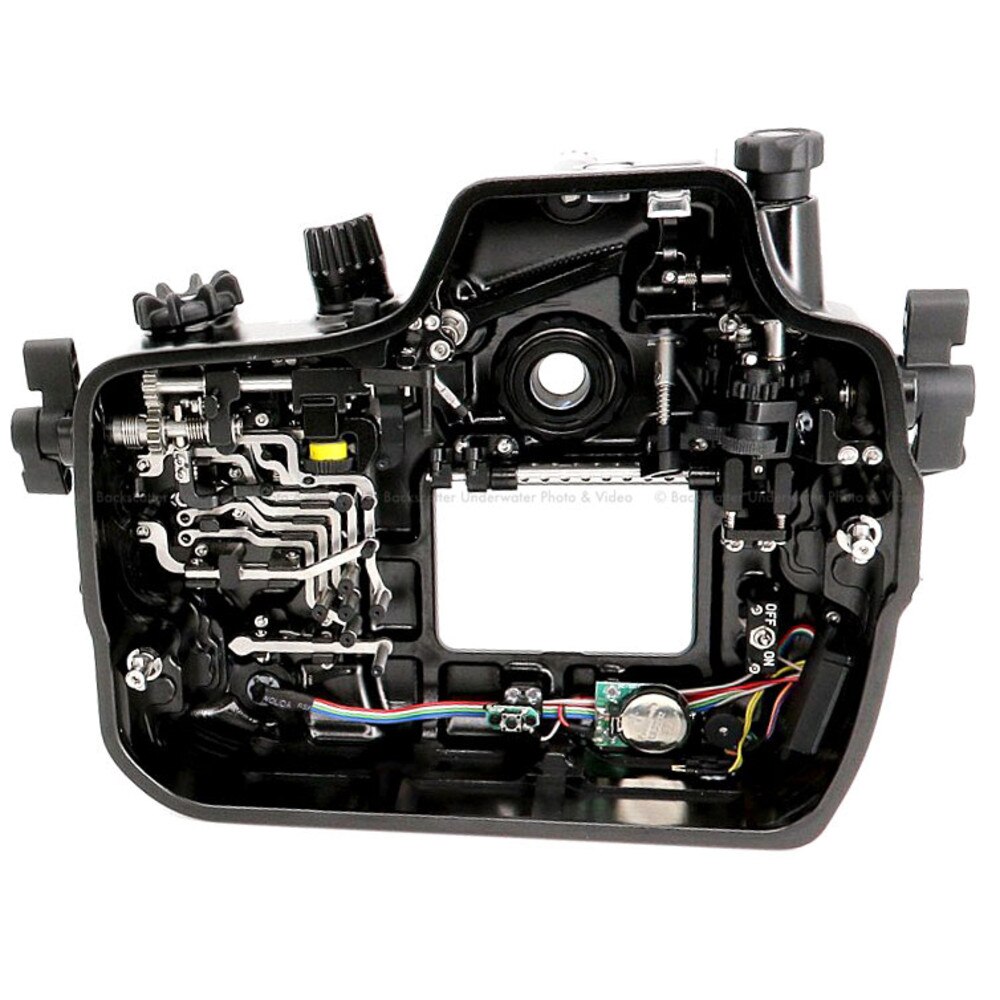

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is shipped with NA-GFX50S as standard equipment. Combined with an accessory vacuum valve this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.


WHAT'S IN THE BOX:

• NA-GFX50S Housing
• Spare main o-ring, lubricant and removal tool
• Set of Allen keys
• CR2032 Battery for Leak Detector



Optional Accessories:

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder



Various electrical bulkheads

Internal HDMI D to D cable in 200mm length is needed for connecting with an external monitor, however, It is included within Nauticam monitor housing.


FEATURES

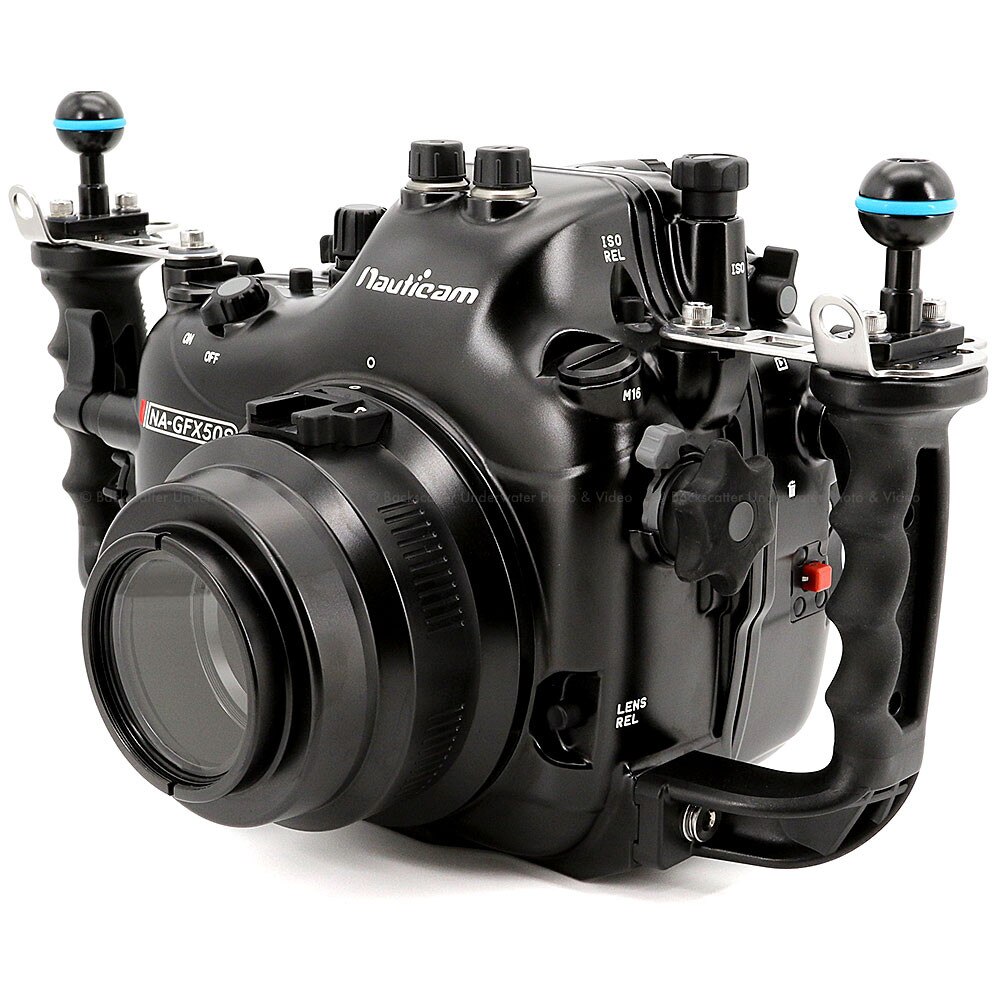

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.


HOUSING LOCKING LATCHES

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening but are easy to open when needed for a quick battery or memory card change.

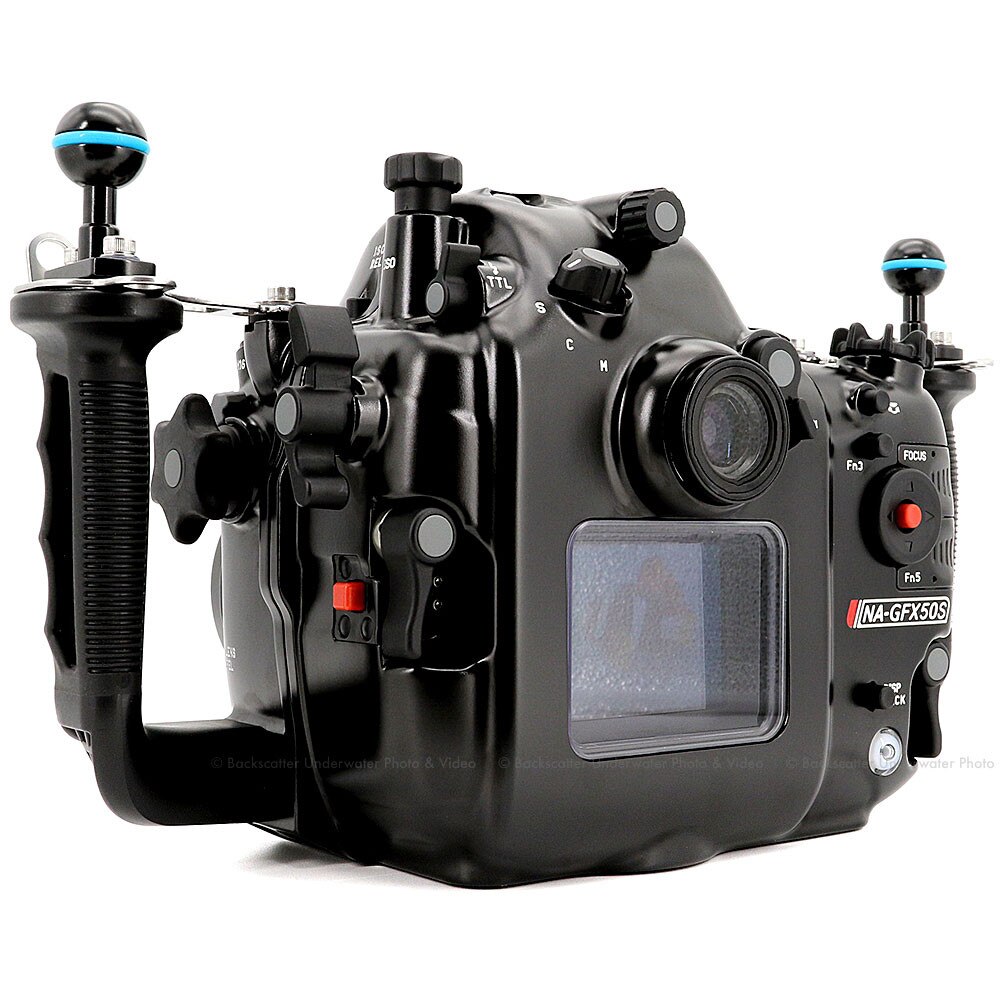

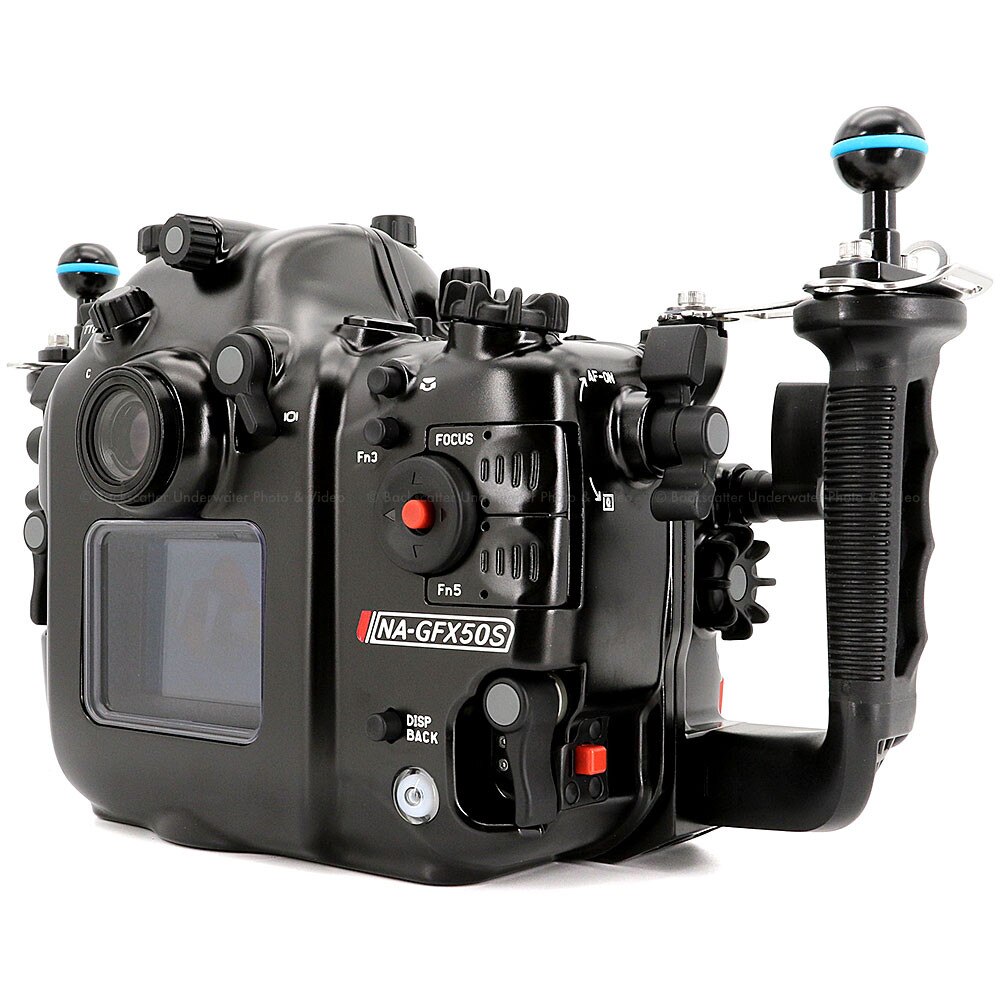

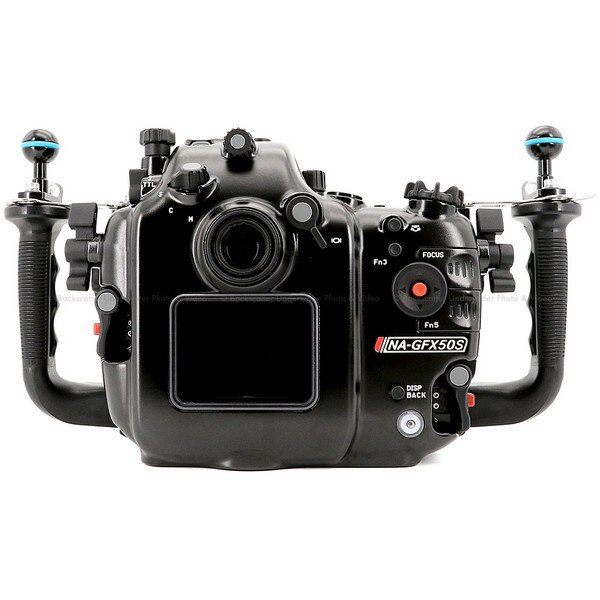

MULTI-CONTROLLER PAD & PIANO KEYS

Located within easy reach of the right thumb, ergonomically operates the GFX 50S focus joystick. Full directional control is available for fast focus point selection. A new focus area piano key button allows easy access to the focus area control. An additional piano key is for the custom function 5 buttons.

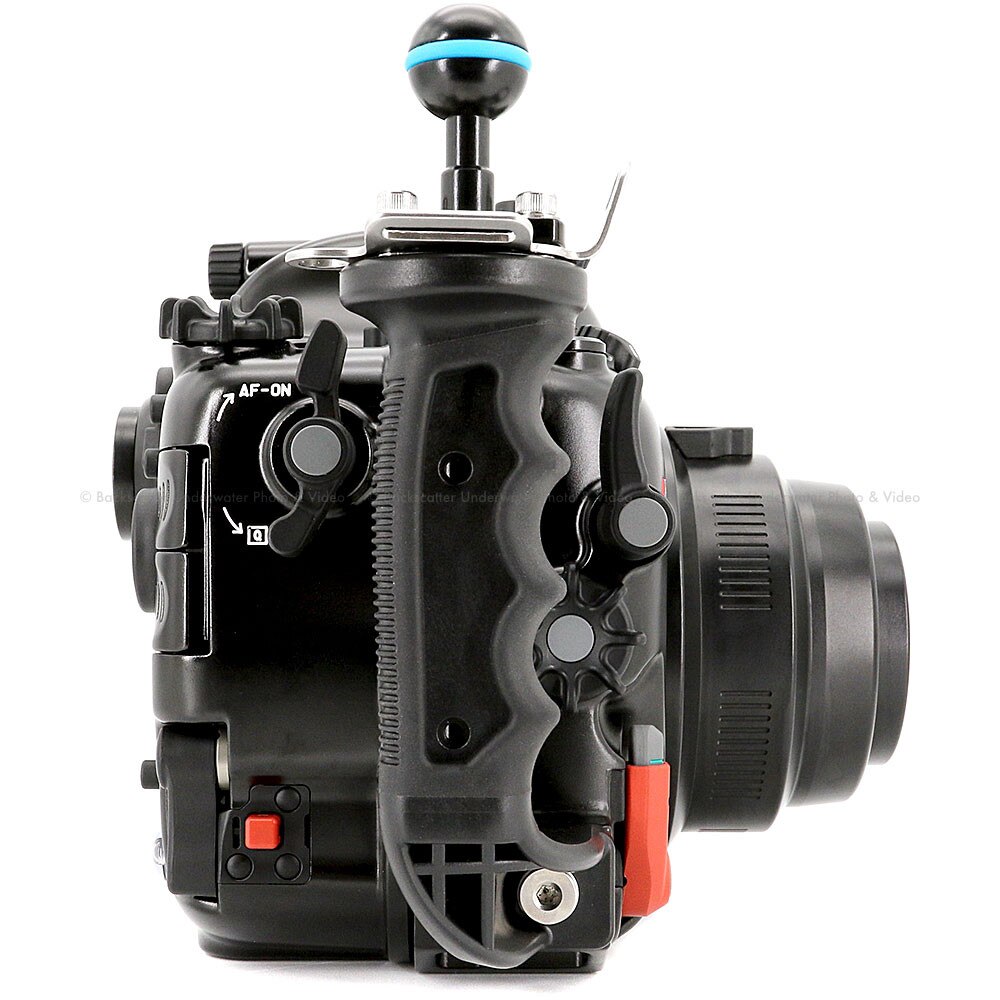

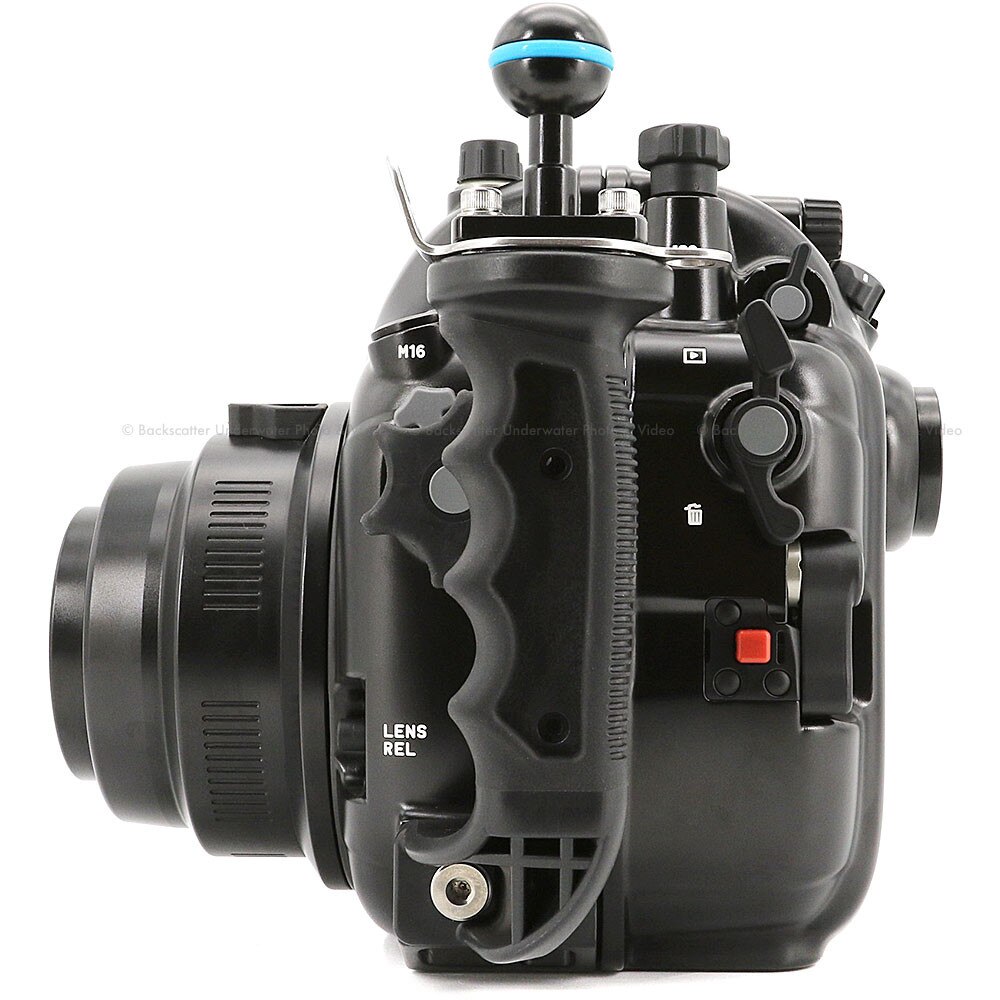

DOUBLE THUMB LEVERS

The NA-GFX50S has double thumb levers on each side. The left side pair accesses Playback and Delete while the right side pair brings up the Q menu and activates the autofocus.


TECHNICAL SPECIFICATIONS

• Depth Rating: 100m
• Weight: 3.5kg
• Dimensions: 383mm x 212mm x 158mm
• Port Opening: N120
