Nauticam Canon PowerShot V1 Underwater Housing NA-CV1

The Canon PowerShot V1 is Canon's latest compact camera. It features an impressive 1.4" CMOS sensor, a Dual Pixel CMOS II autofocus system, and an ultra-wide built-in 16-50mm power zoom lens, which pairs well with the Nauticam Water Contact Optics.

The Canon Powershot V1 Camera

Key Camera Specifications

• 22.3MP 1.4" CMOS Sensor
• 16-50mm Equivalent f/2.8-4.5 Lens
• Full-Width 4K 30p; 4K 60p with 1.4x Crop
• 10-bit Recording; Canon Log 3
• Dual Pixel AF II for PowerShot
• Optical Stabilization; 3-Stop ND Filter
• Active Cooling Extends Shooting Times

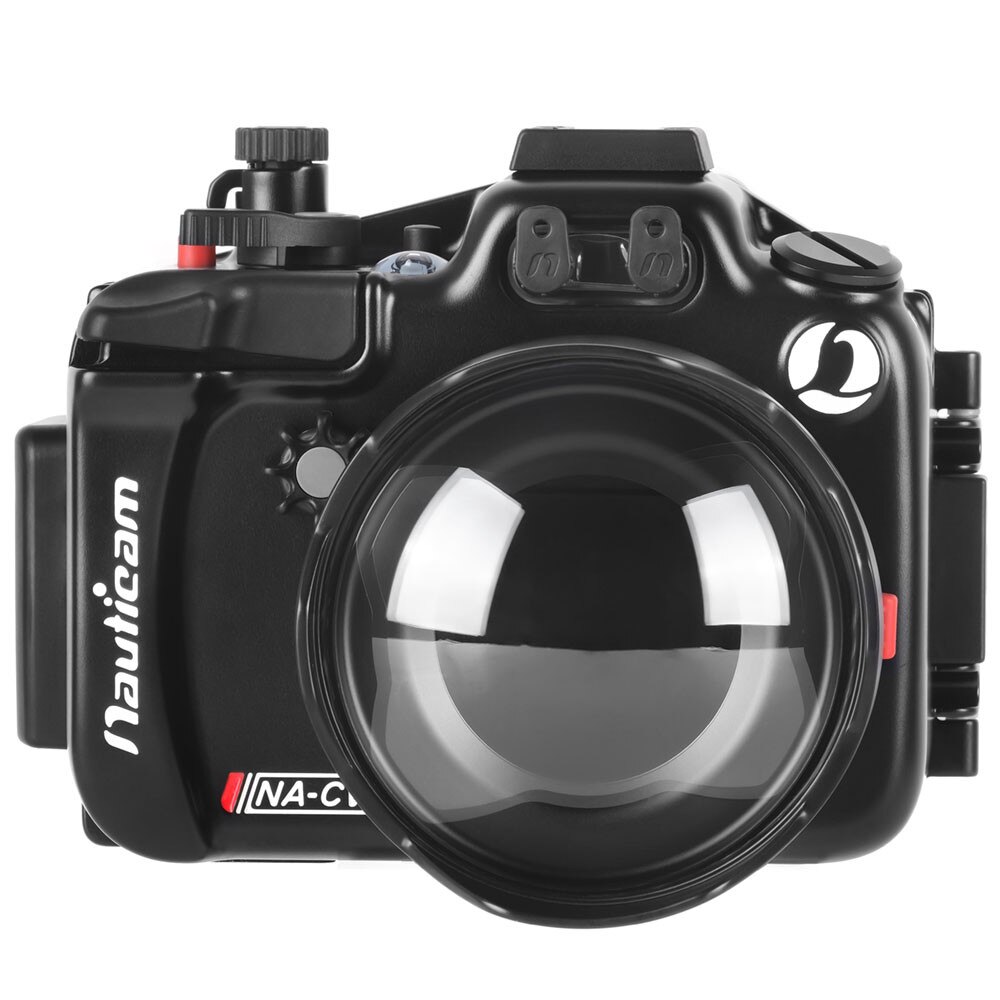

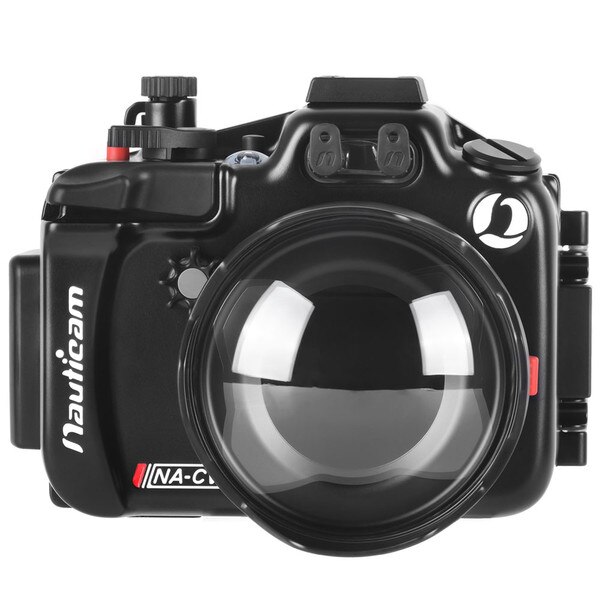

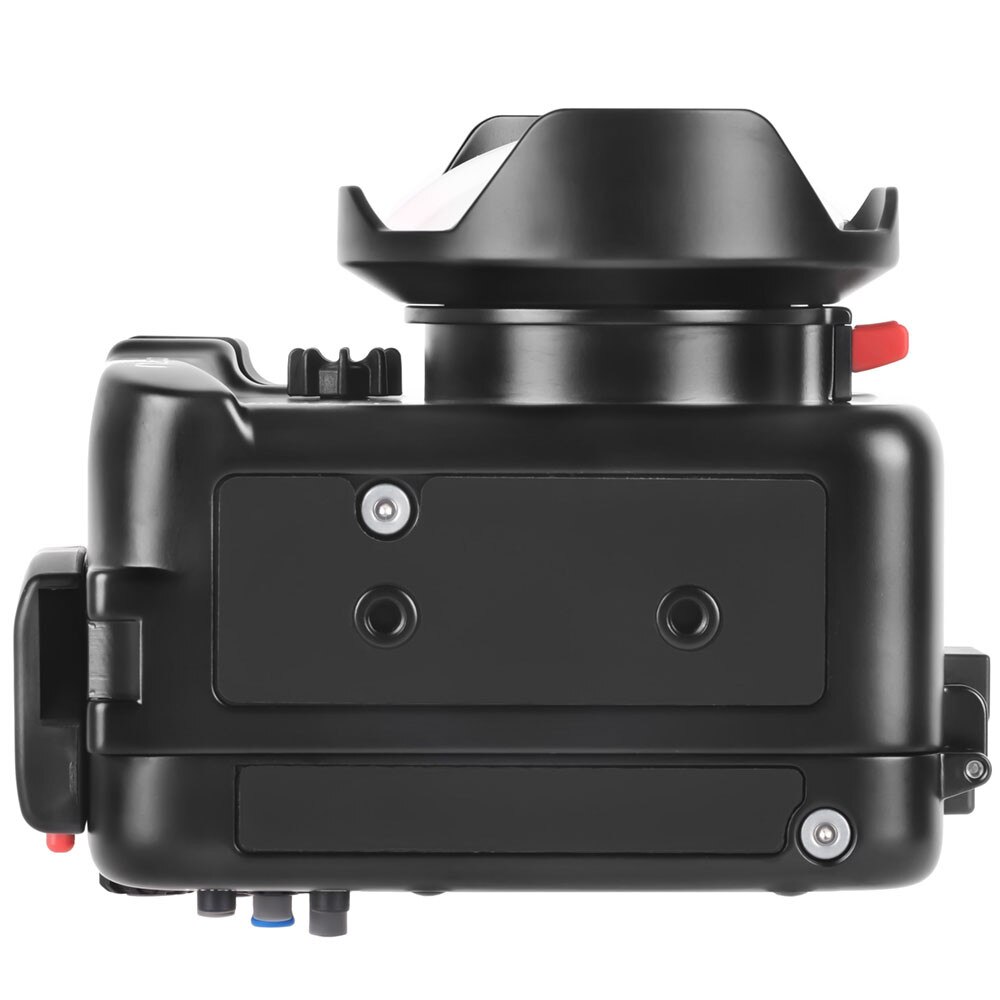

The Nauticam NA-CV1 Housing

NA-CV1 is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam. Many features found on professional DSLR systems have been integrated into this system, resulting in an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

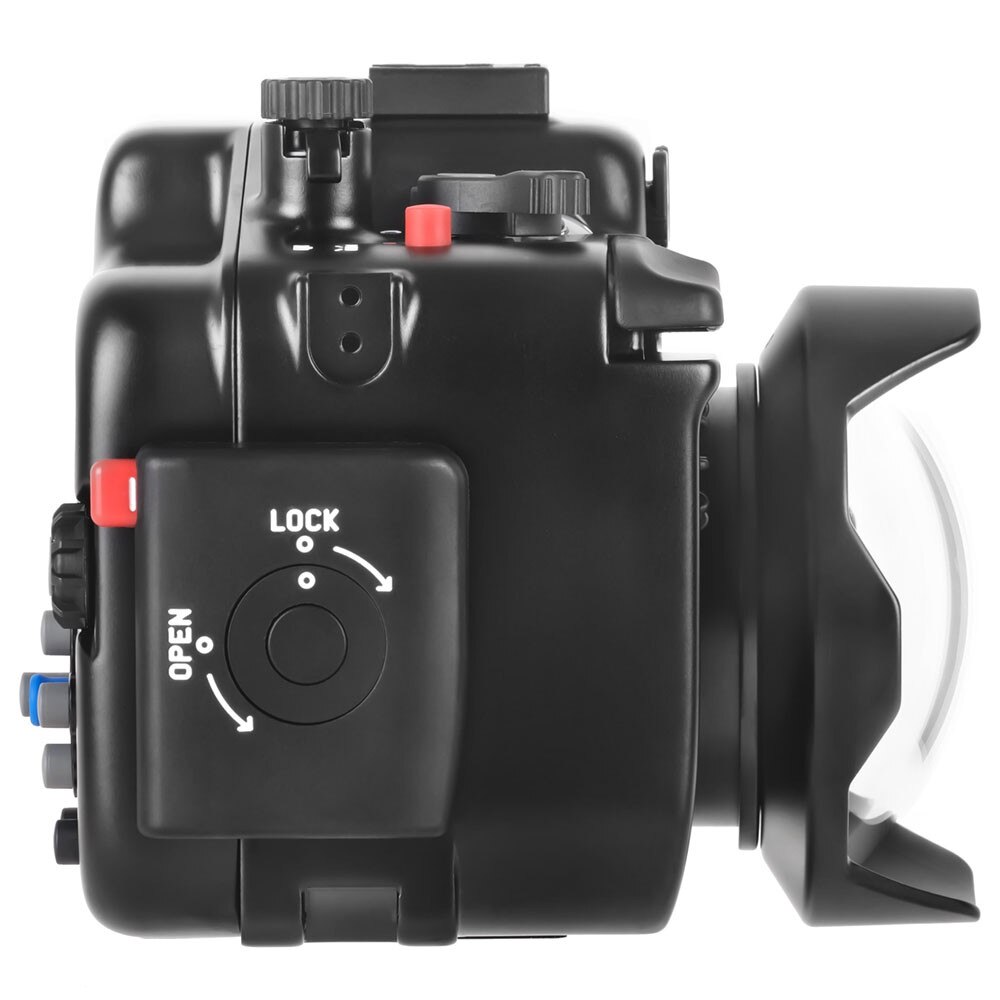

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-CV1. The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water. It is closed via a simple yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user's hand, and Nauticam's two-stage shutter release lever provides clear differentiation between the half-press and full-press shutter release positions. All functions are clearly labeled.

The Nauticam leak alarm and vacuum monitoring system are installed as standard equipment. This system provides an audible and visual alert to any water entry in the housing. When combined with an optional accessory, M16 Vacuum Valve II (25625), the system's watertight integrity can be tested before entering the water and monitored during every dive.

Expert product design, modern manufacturing techniques, top-quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot V1.

The N50 Port System The NA-CV1 ships with the N50 3.5" Acrylic Dome Port, which allows the full 16-50mm zoom range, but other ports are available from the N50 system. When combined with the 38703 N50 Short Port 25, you can add the 83203 WWL-C for a converted FOV of 130 degrees to 71 degrees.

What's In The Box?

• NA-CV1 housing
• N50 3.5" Acrylic Port
• Spare main housing o-ring (90131)
• O-ring remover
• CR2032 battery (for moisture alarm)
• Lubricant
• Set of Allen keys
• Padded Housing Bag

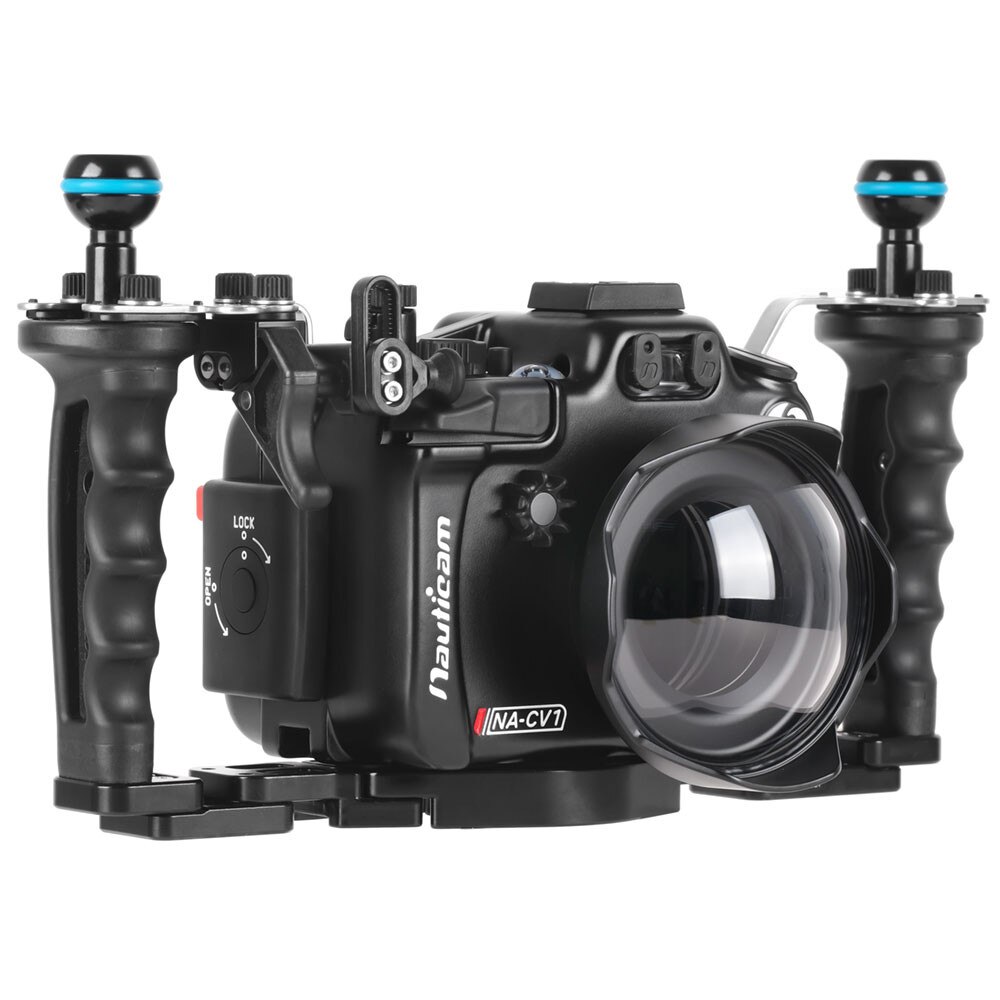

• Set of handle brackets with shutter release trigger

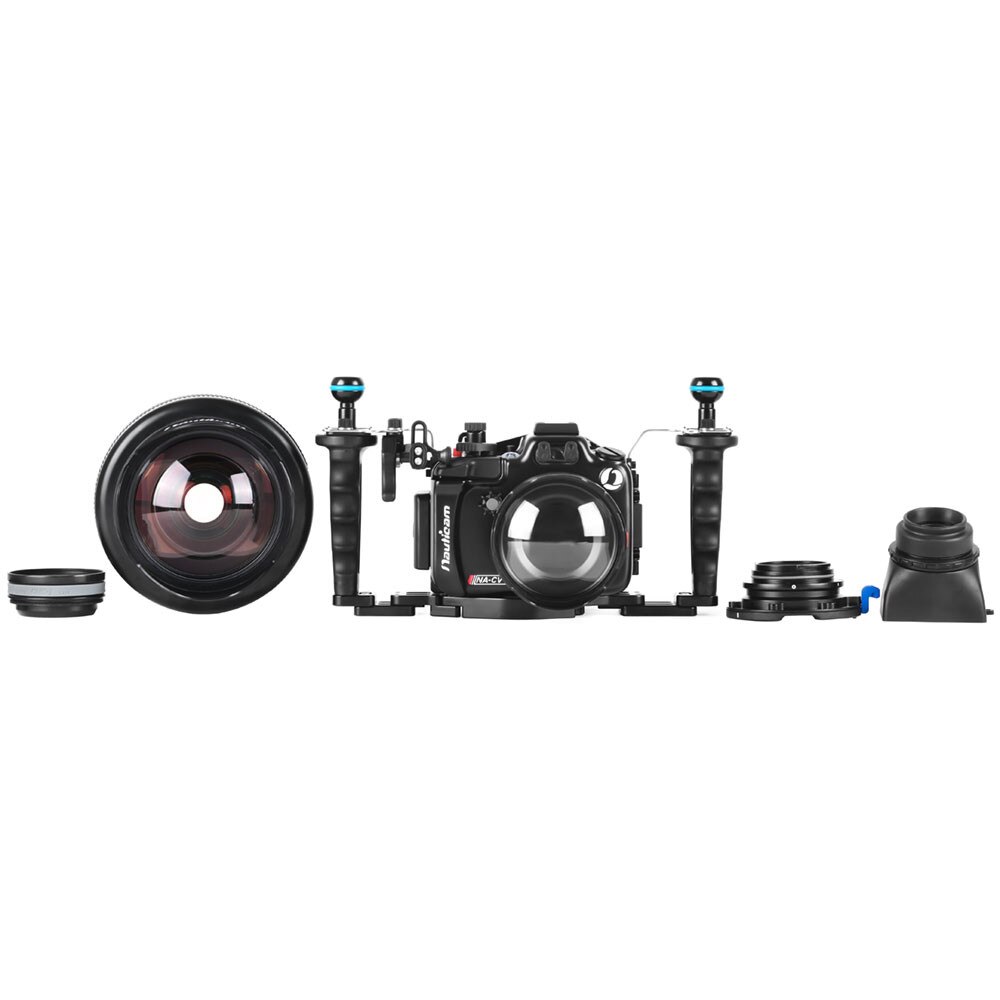

Recommended Accessories

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 25131 LCD Magnifier attachment Rails
• 25106 LCD Magnifier with Dioptric Adjustment
• 71206 Easitray II with left handle (with 2pcs 1/4" screws)
• 71207 Flexitray II with left handle (with 2pcs 1/4" screws)
• 71208 Adjustable right handle II (for Easitray II &Flexitray II)
• 38703 N50 Short Port with Bayonet Mount (To use with WWL-C or WWL-1B)
• 83203 Wet Wide Lens for Compact Cameras (WWL-C)
• 83202 Wet Wide Lens 1 (WWL-1B) 130 deg. FOV with compatible 28mm Lenses
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5X Magnification)
• 81302 Compact Macro Convertor 2(CMC-2, 2.8X Magnification)

N50 Port Chart

• 1. N50 3.5" acrylic dome port, Zoom Range: 16-50mm. *The minimum focus distance at Wide 16mm is 25mm, and at Tele 50mm is 530mm.
• 2. 38703 N50 Short Port 25 + 83203 WWL-C, Lens FOV 84-46º, Converted FOV. 130-71º, Zoom Range 24-50mm *slight vignetting at 24mm.
• 3. 38703 N50 Short Port 25 + 83202 WWL-1B, Lens FOV 75-46º, Converted FOV. 130-80º, Zoom Range 28-50mm
• 4. 38703 + 83214 Bayonet Mount Adaptor for SMC/CMC with MFO-1, CMC-2/1.
• *Test at focal range 50mm

Technical Specifications

• Dimensions: 165mm(W) x 139mm(H) x 128mm(D)
• Weight in Air: TBD
• Buoyancy in Water: TBD
• Depth Rating: 100m
• Port Mount: N50
• Accessory Ports: Front M16 x 1, M10 x1 on Top
