Nauticam Blackmagic 6K Pocket Cinema Camera Underwater Housing NA-BMPCC6K

The Blackmagic Pocket Cinema Camera line has been at the forefront of bringing cinema-grade features to a portable and affordable platform. With this, the Pocket Cinema Camera 6K, Blackmagic is adding an EF mount to compliment the larger 6K Super35 sensor. This iteration shares many of the great features found in its 4K sibling including Blackmagic RAW recording and 60fps capture at full resolution. Dual Native ISO and wide dynamic range round out this impressive spec sheet. Nauticam has supported both the original Pocket Cinema Camera as well as the 4K and now the 6K with the NA-BMPCC6K Housing.


THE BLACKMAGIC POCKET CINEMA CAMERA 6K

More than just a 6K version of the already capable Pocket Cinema Camera 4K, the Pocket Cinema Camera 6K adds a larger Super35 sensor behind an EF lens mount. Both cameras feature the ability to capture full-resolution (6K at 6144 x 3456) capture at 60fps in the Blackmagic RAW format. Dual Native ISO means there are two base ISO levels, ISO 400 for scenes with adequate natural light and ISO 3200 for those low-light situations. Each of the base ISO levels offers a similar level of dynamic range while minimizing noise in the image.

The Pocket Cinema Camera 6K also supports the use of an external power supply and recording directly to external media via USB-C 3.1. An HDMI output (1080p) allows for the use of an external monitor or recorder.


Key Camera Specs

• Super35 21.2MP 6K Sensor
• EF lens mount
• 6k (6144 x 3456) at 60p
•
• Blackmagic RAW and ProRes recording
• Dual Native ISO (400 and 3200)
• 13 stops of Dynamic Range

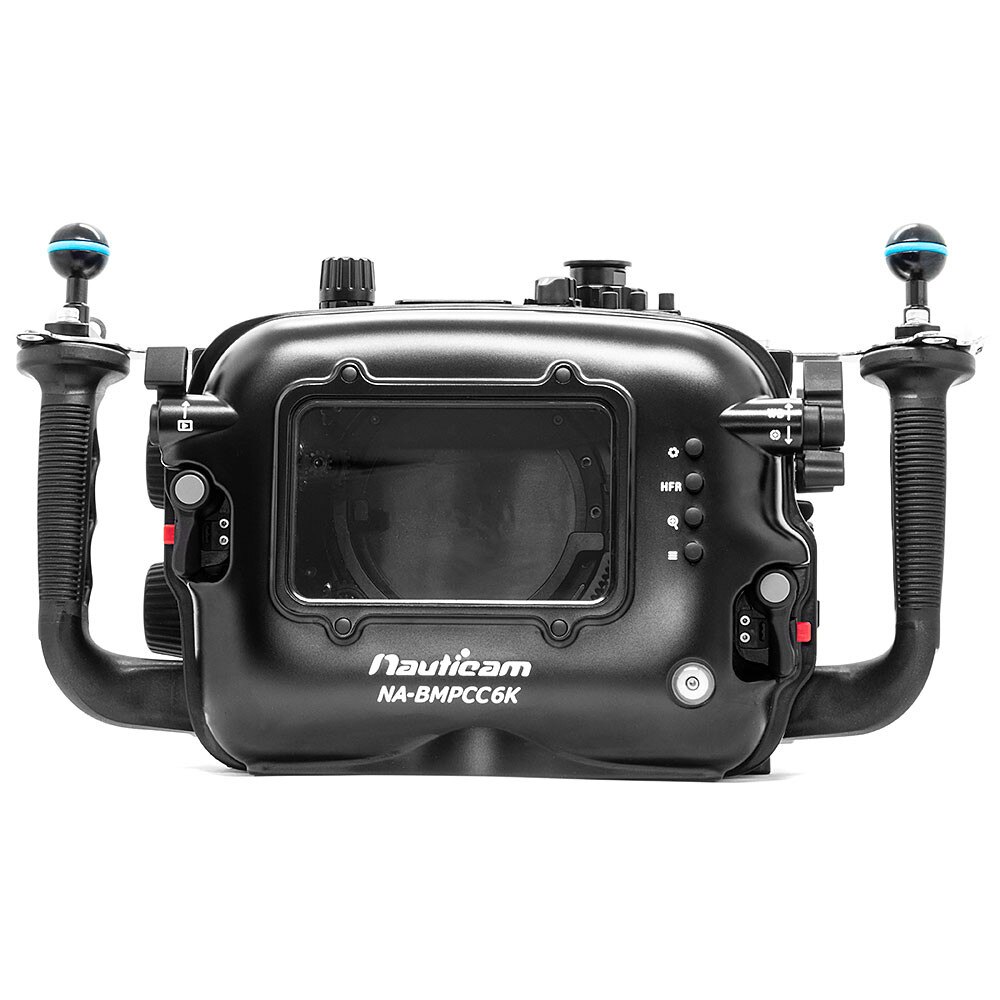

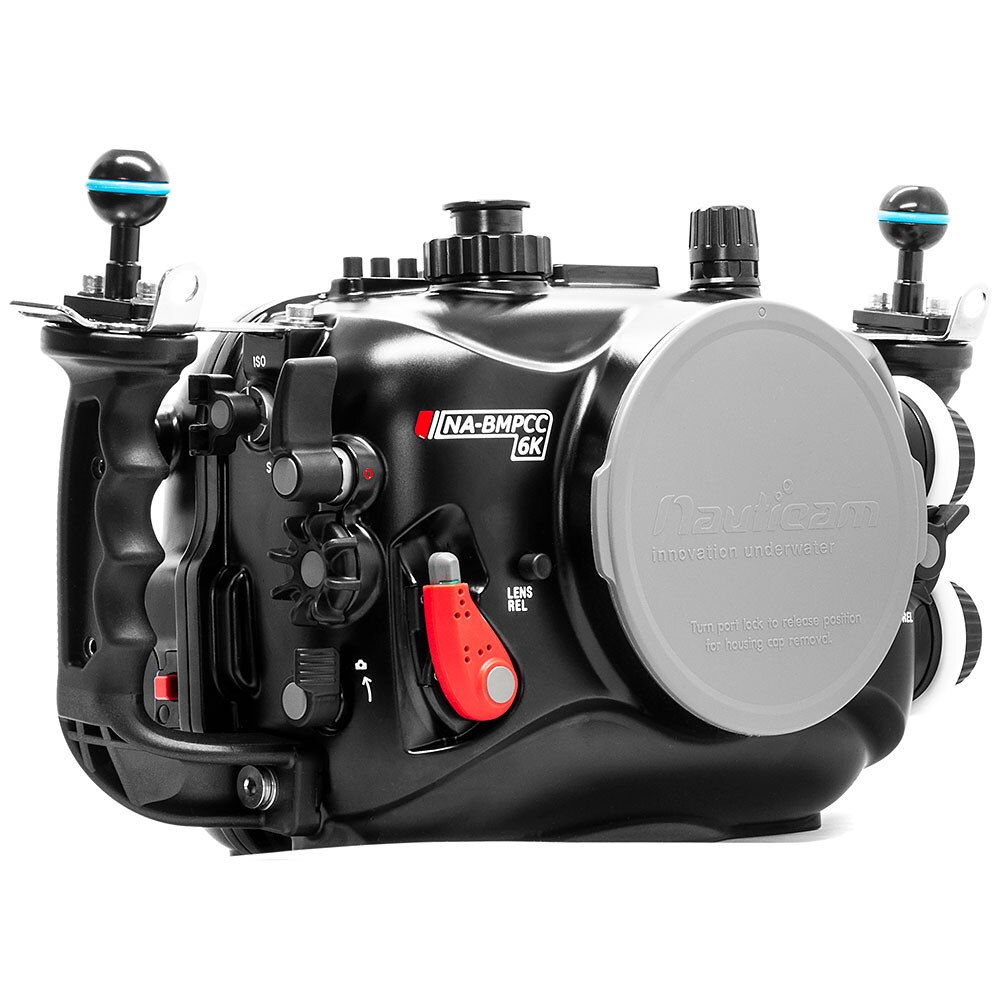

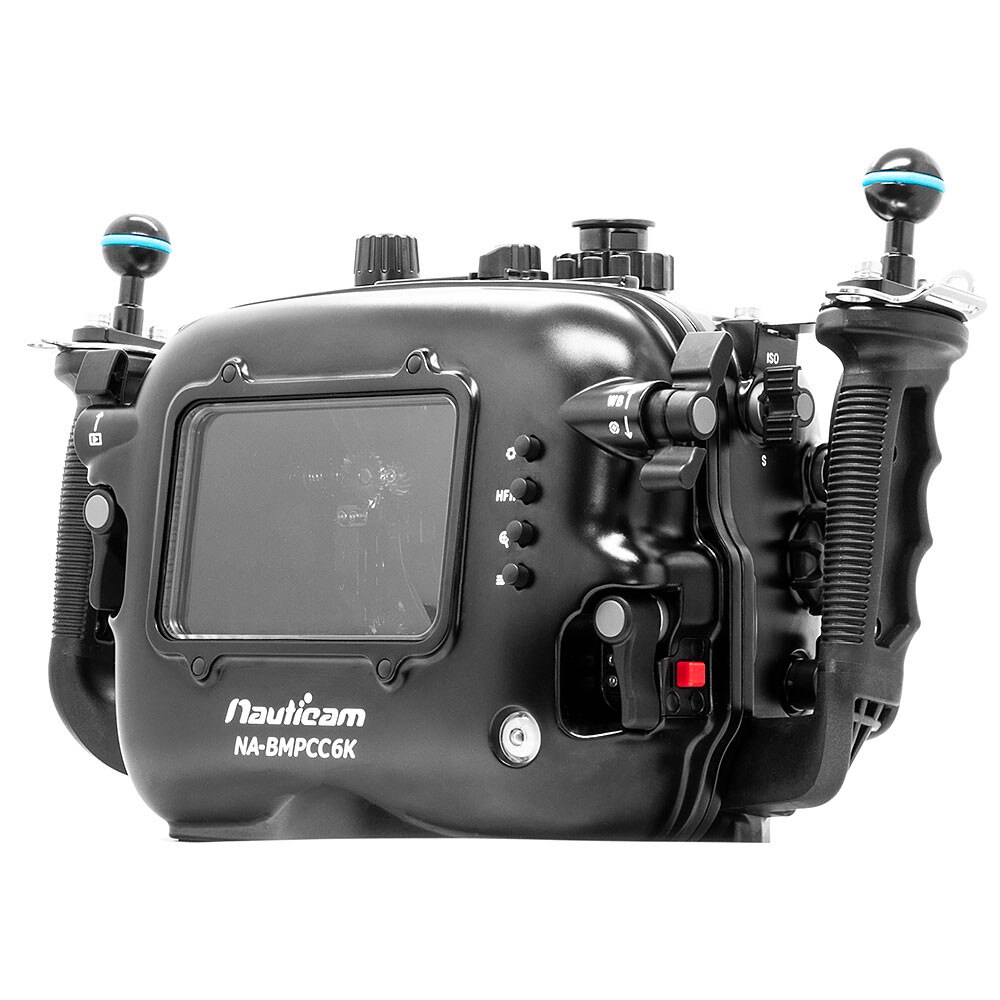

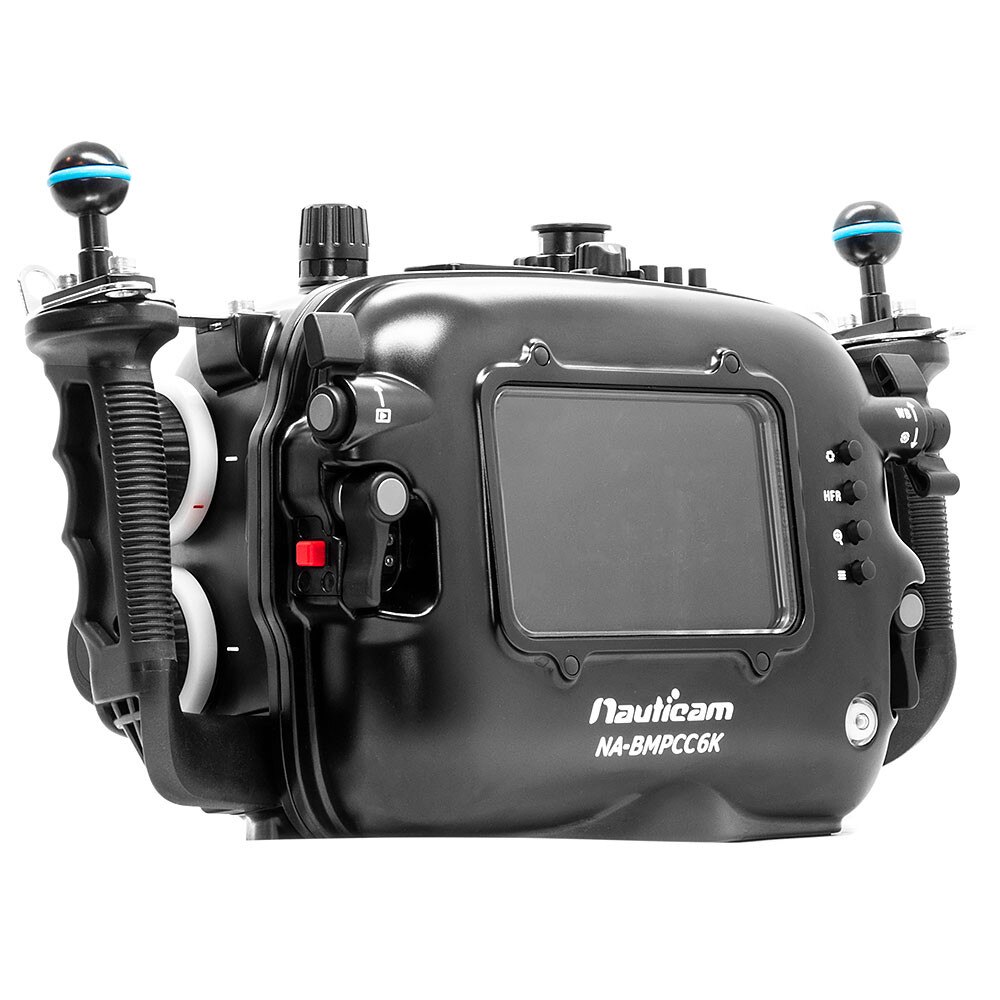

THE NAUTICAM NA-BMPCC6K UNDERWATER HOUSING

Nauticam is a leader in underwater cinema housings and the NA-BMPCC6K leverages this experience to create the ultimate tool for the Pocket Cinema Camera 6K owner.


N120 Port System

With the camera's new 6K Super35 sensor, the larger EF mount means the NA-BMPCC6K is designed around Nauticam's N120 Port System for C200 & EVA1 and RED systems. In addition to the standard ports available in this system, the NA-BMPCC6K will have access to the latest Nauticam premium professional optics such as the Wide Angle Conversion Port (WACP), the SMC-1/2 magnifiers.


T5 SSD Support

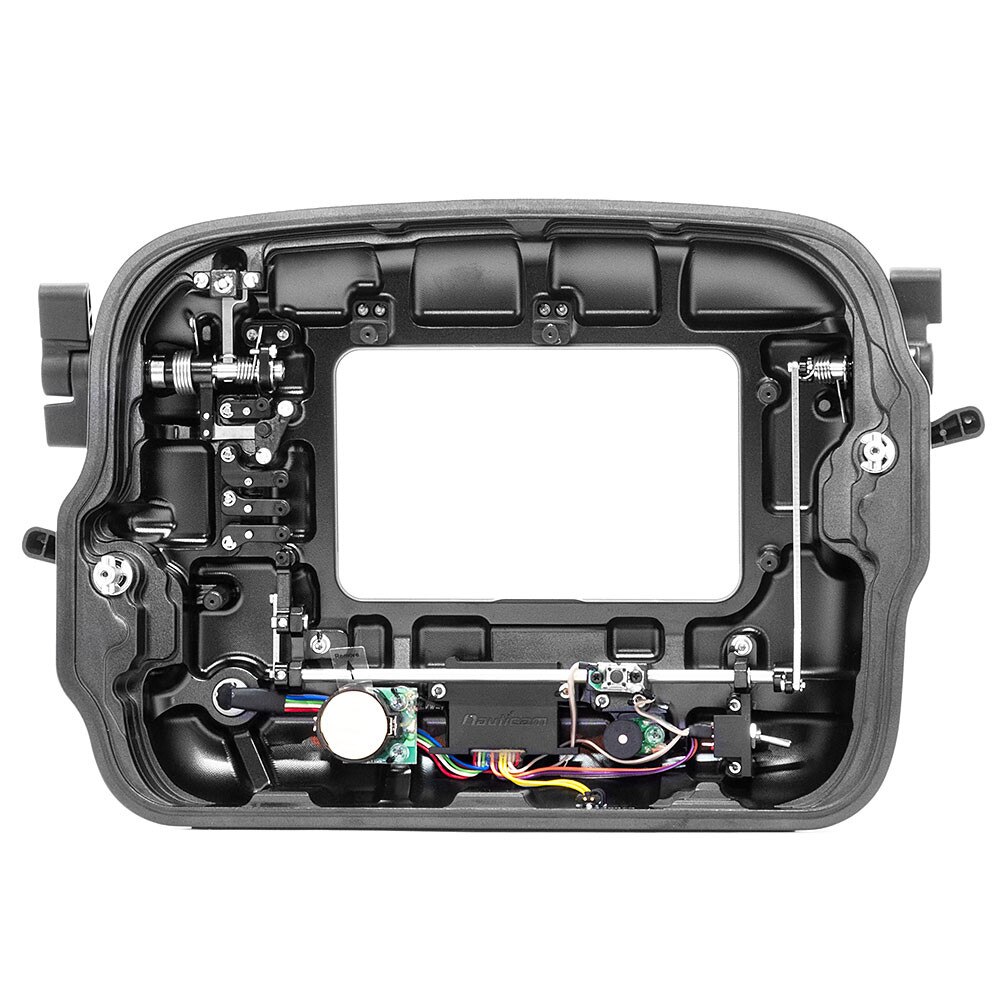

More than just an underwater housing, the NA-BMPCC6K is an underwater cinema platform. Inside the housing is a dedicated notch for a Samsung T5 USB-C SSD. The Blackmagic Pocket Cinema Camera 6K can record directly to the T5, making the transition from capture to edit seamless.


More Power

The included Nauticam 18650 Battery Holder can hold 4 x 18650 lithium batteries (not included) to power the camera for up to 2.5 hours and is securely mounted below the camera yet easy to remove and charge.


Mission Control

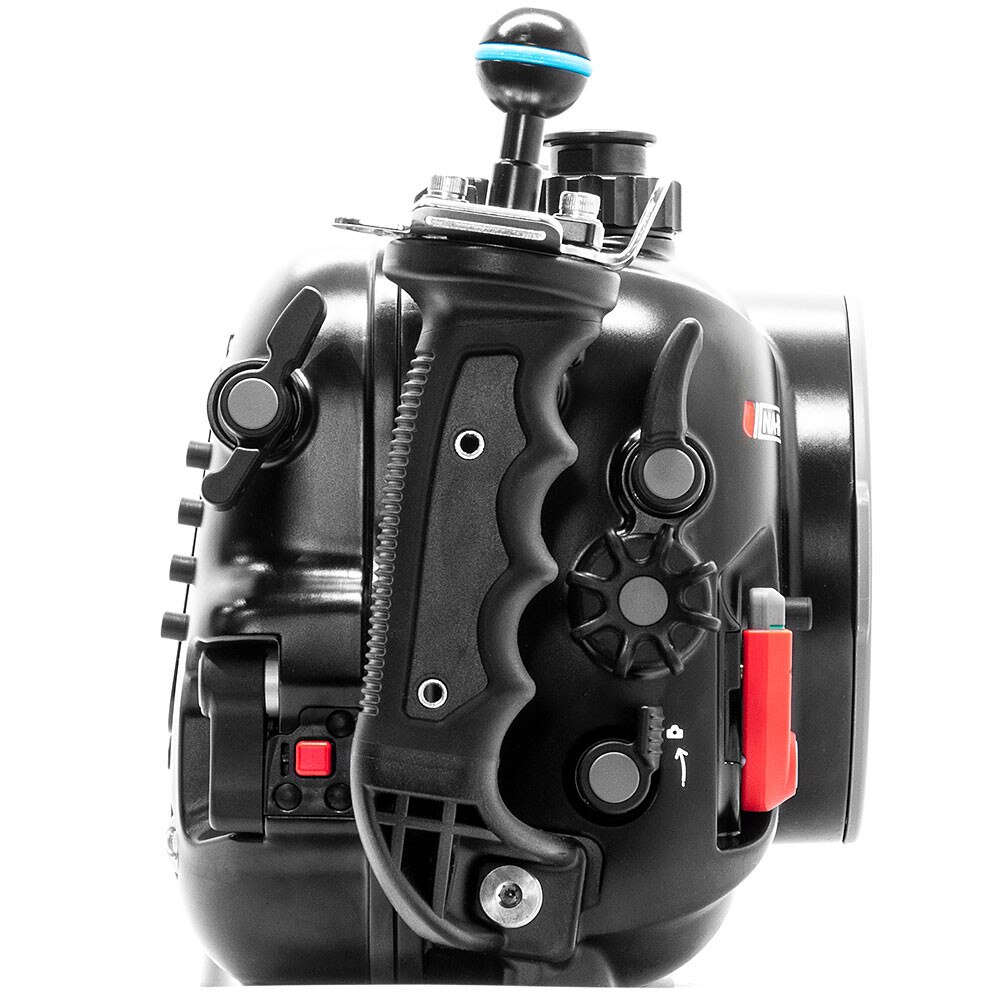

Nauticam engineers are driven to produce housings that are intuitive and easy to use. Essential to the capture process is effortless access to the camera's essential controls. On the housing's left side are large cinema-style focus and zoom gear controls. The NA-BMPCC6K features Nauticam's refined ergonomic handles with stainless steel stiffening brackets and changeable accessory mounting points. From the left handle, a thumb lever accesses the Playback function. From the right handle, the record lever and a dual-action lever for ISO and shutter speed can be reached. A second thumb lever towards the rear activates the White Balance and Focus controls.


Accessory Support

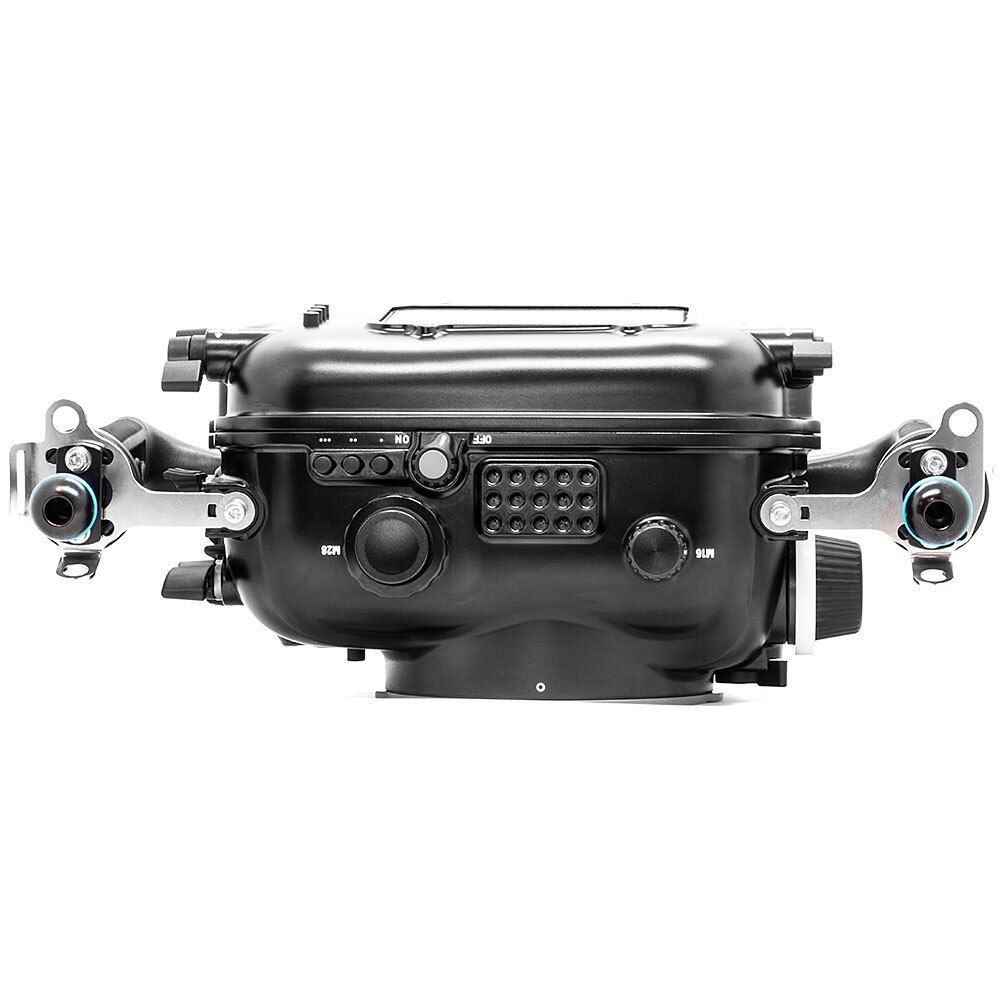

The NA-BMPCC6K features both an M28 and M16 bulkheads for HDMI accessories such as the Nauticam NA Ninja V or NA-502B monitor housings. The housing is also compatible with tripod mounting-ball set in addition to 1/4-20 UNC connection on the top and bottom of the housing.


HDMI 2.0 System

• 25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R to use with Ninja V housing)
• 17922 Nauticam Atomos Ninja V housing (HDMI 2.0) for Atomos Ninja V 5” 4Kp60 4:4:2 10-bit Recorder/Monitor/Player



HDMI 1.4 Cable System for NA-058/502H/FHD5/502B-H

• 25083 HDMI (D-A) Cable in 240mm Length for NA-BMPCCII/S1R (for internal connection from HDMI bulkhead to camera)
• 25080 M28-M16 Step Down Adaptor
• 5033 standard HDMI bulkhead with M16 thread
• (25033 is included in NA-058/502H/FHD5/502B-H monitor housing).



FEATURES

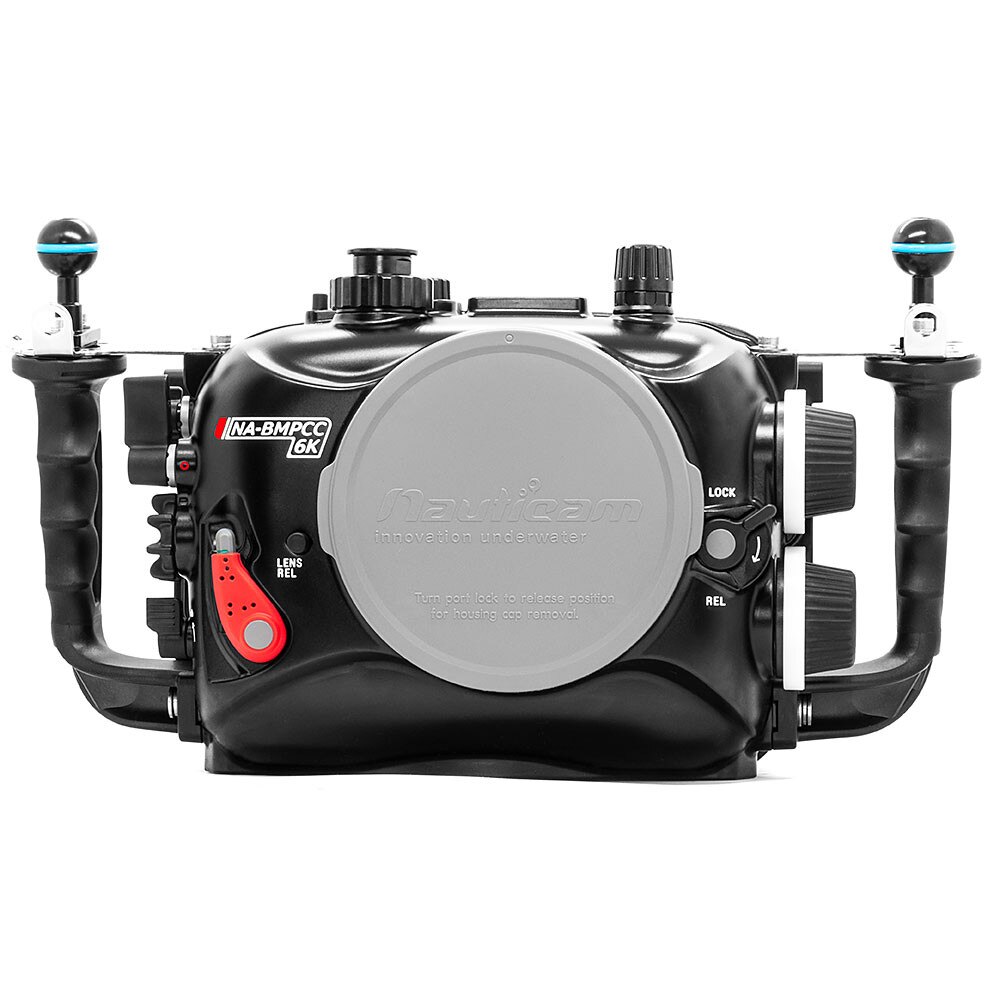

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.

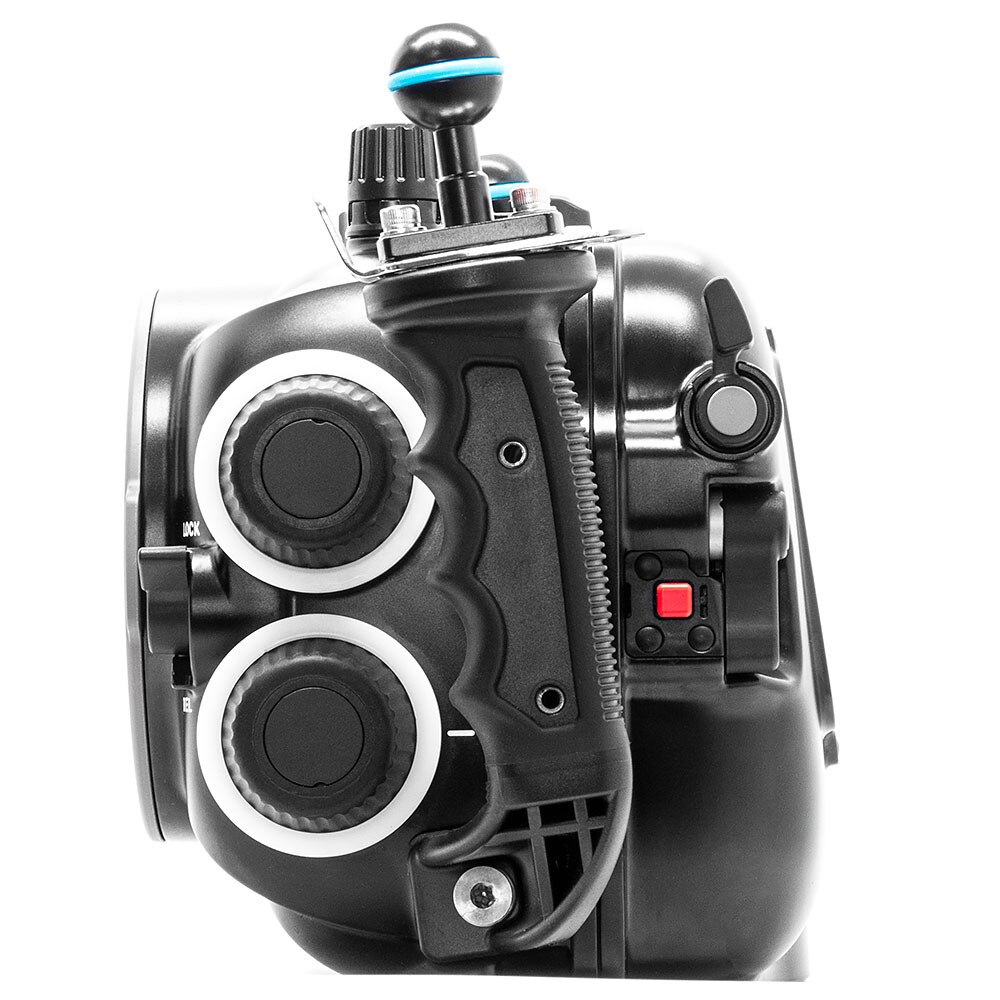

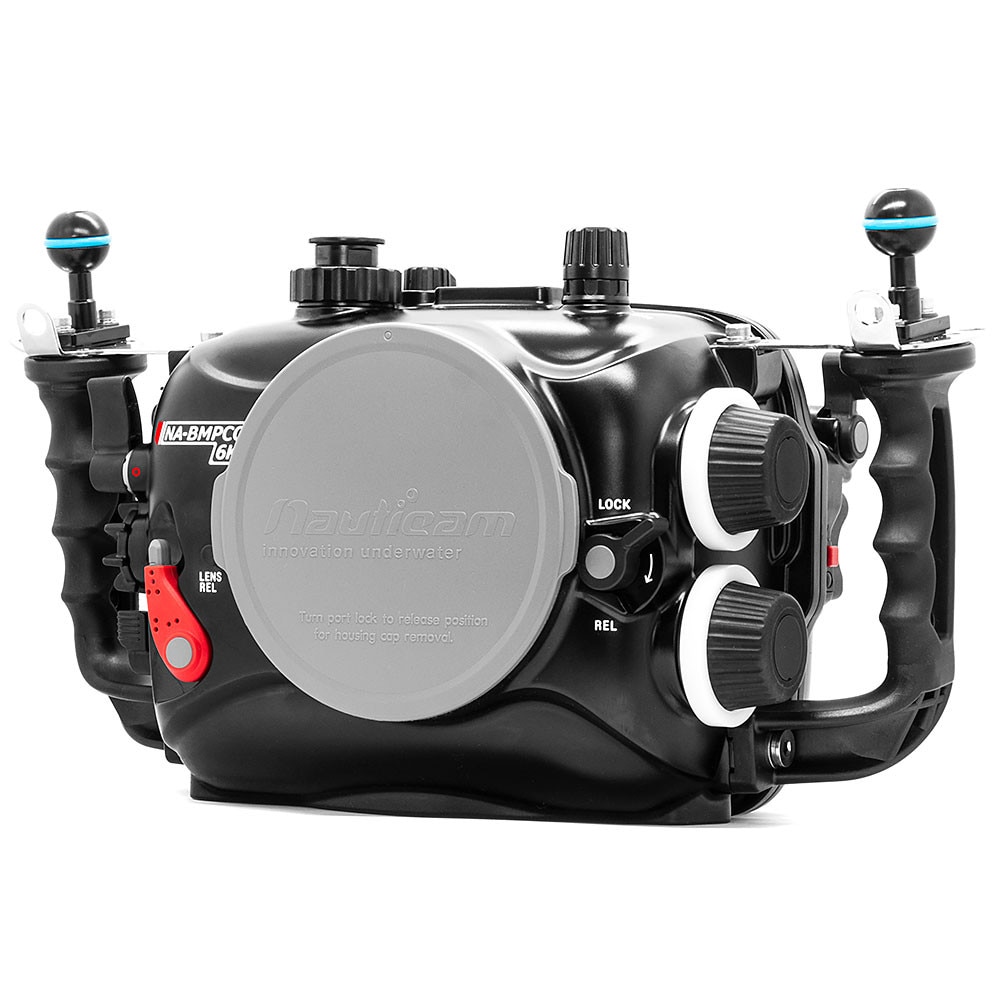

CINEMA STYLE ZOOM AND FOCUS

The NA-BMPCC6K joins the N120 port system and features cinema-styled zoom and focus dials within easy reach of the ergonomic left DSLR style handle.


T5 SSD SUPPORT

Inside the housing is a dedicated notch for a Samsung T5 USB-C SSD. The Blackmagic Pocket Cinema Camera 6K can record directly to the T5, making the transition from capture to edit seamless.


HDMI 2.0 AND 1.4 SUPPORT

The NA-BMPCC6K features both an M28 and M16 bulkheads for HDMI accessories such as the Nauticam NA Ninja V or NA-502B monitor housings. The housing is also compatible with tripod mounting-ball set in addition to 1/4-20 UNC connection on the top and bottom of the housing.


What's In The Box:

• BMPCC6K Housing with 4x18650 Battery Holder (excludes batteries) and M16 Vacuum Valve (25625) pre-installed
• 90134 Spare Housing O-ring, Lubricant and Removal Tool
• CR2032 Battery (for vacuum system)
• Padded Travel Case
• Shoulder Strap
• Allen Wrench Set

Recommended Accessories

• 28130 Hand Strap for 28113 (For NA-1DXII/D500/D5/80D/A9)
• 17916 Monitor hood for NA-501 /502 housing
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII)
• 36336 USB 3.1 Gen 2 Type C to C Cable with Connectors (for Samsung SSD T5 to use in NA-BMPCCII) (excl. SSD )
• 17959 Housing Mounting Ball with 1/4'' Screws (new item released with NA-E2 )

TECHNICAL SPECIFICATIONS

• Dimensions: 378mm(W) x 215mm(H) x 160mm(D)
• Wight In Air: 3.9kg
• Weight In Water (incl. camera and canon LP-E6 battery): -0.5kg
• Depth Rating: 100m/330ft
• Port Opening: N120
