Isotta RED V-RAPTOR X Undereater Cinema Housing

  • Isotta B120 & Sea & Sea MDX Port Size
  • M24 Monitor Bulkhead Option
  • Three M16 Bulkhead Option
  • Vacuum System Ready
  • Depth Rating: 100 meters / 330ft

SKU: # is-4352

Custom Options


Overview / Product Description

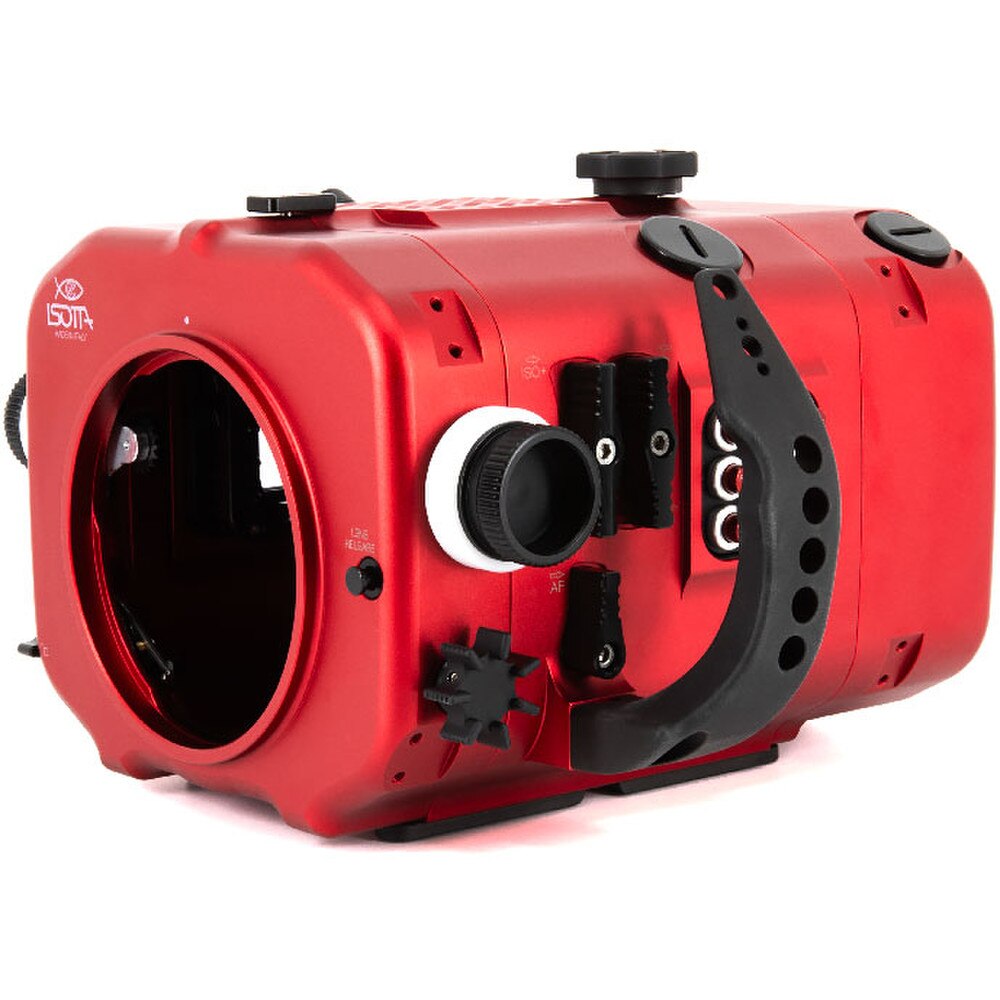

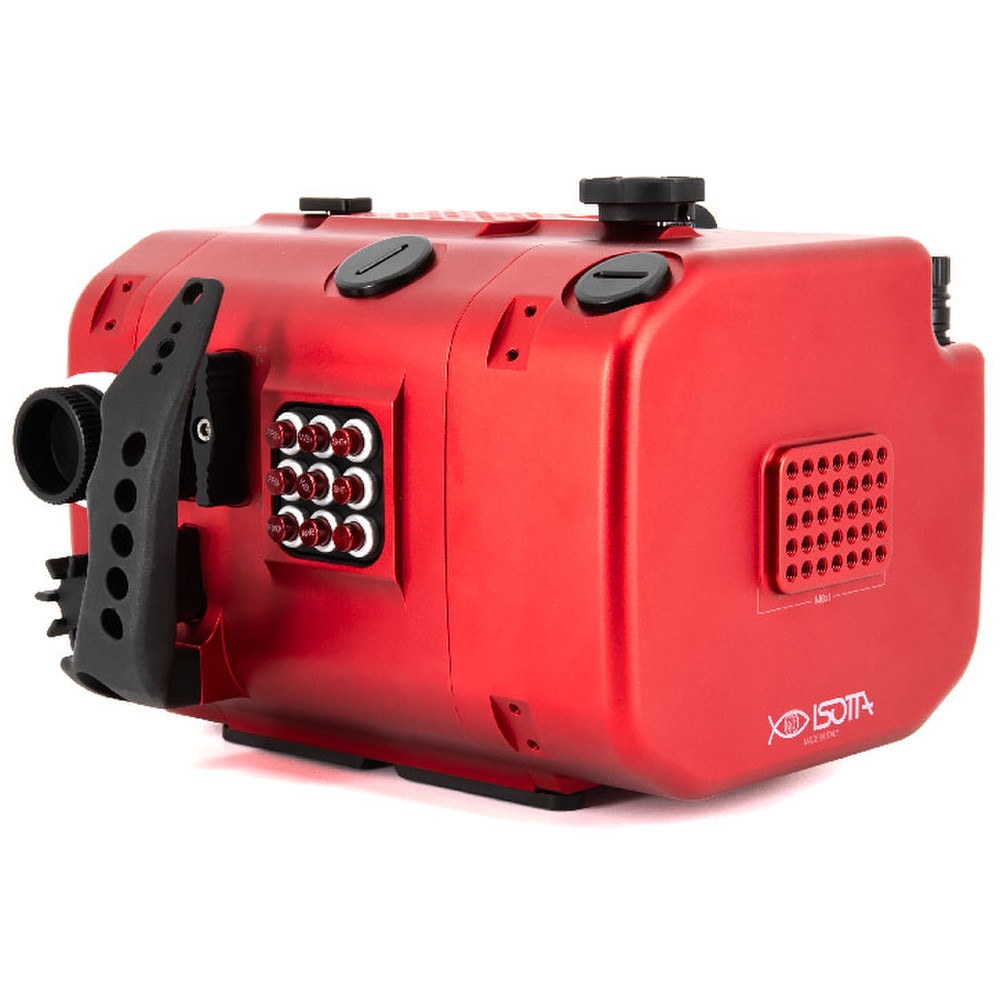

Isotta RED V-RAPTOR X Undereater Cinema Housing


TECHNICAL DATA

  • Red color anodized aluminum body
  • Ergonomic side handles, adjustable (via optional accessory)
  • Three M16 holes, one M24 hole, and one M24 hole for using accessories such as vacuum systems monitors
  • Back housing is completely detachable from the front housing
  • Tray with lock for the easy insertion of the camera
  • Single-hand closing knob for the back of the housing
  • Aluminum buttons at the buttons with window for viewing the menu display
  • Magnetic buttons and levers in aluminum for electronic control of the V-Raptor [X]
  • Double O-Ring seals on all buttons and removable parts
  • Moisture sensor with LED indicator (replaceable battery)

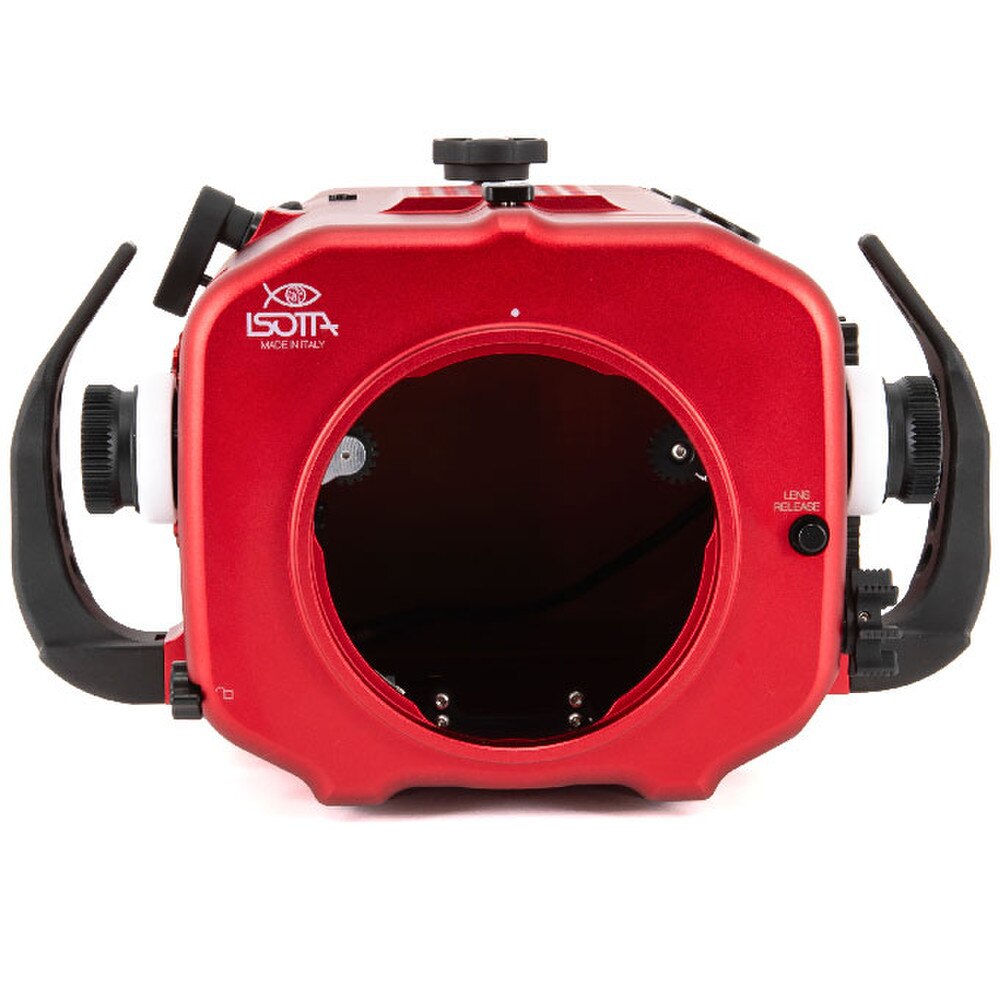

  • Removable port B120 bayonet
  • Safety lock on the porthole to prevent accidental opening

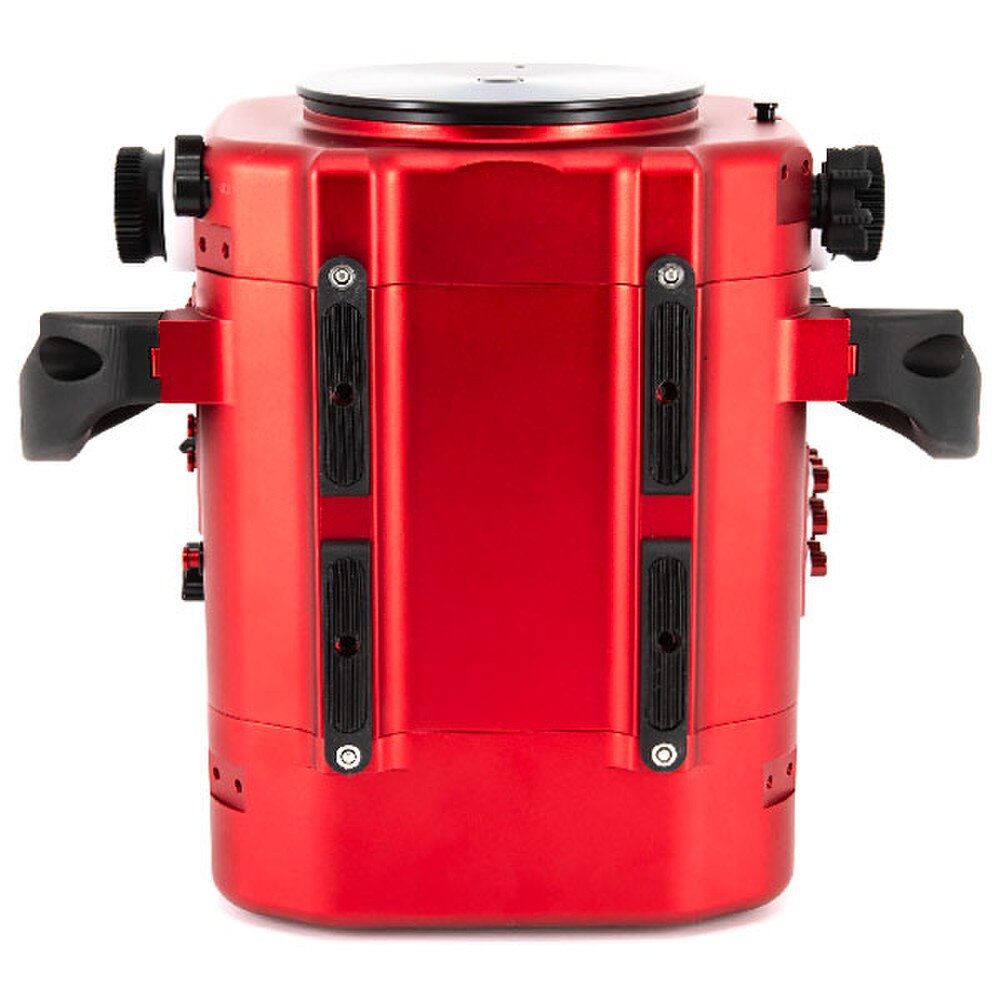

  • Wide, rubber-covered feet for solid footing on boat floors or sea floor

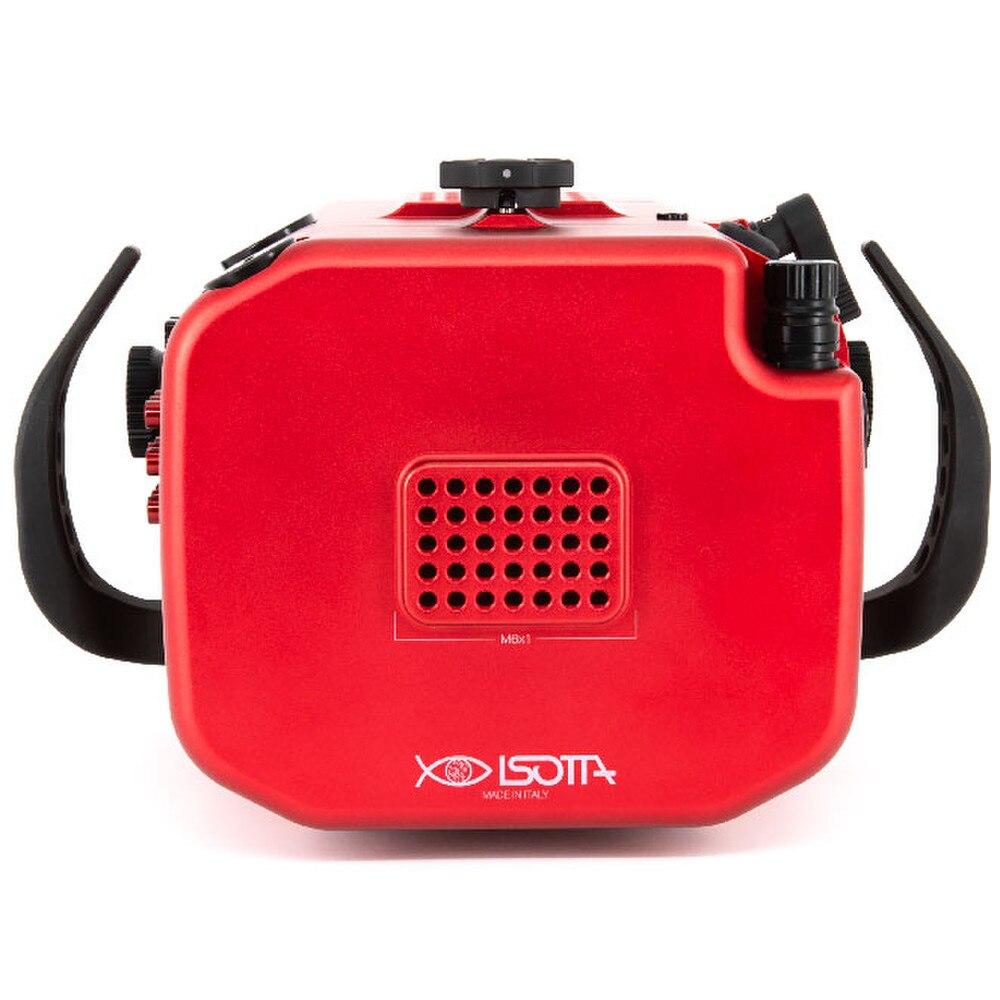

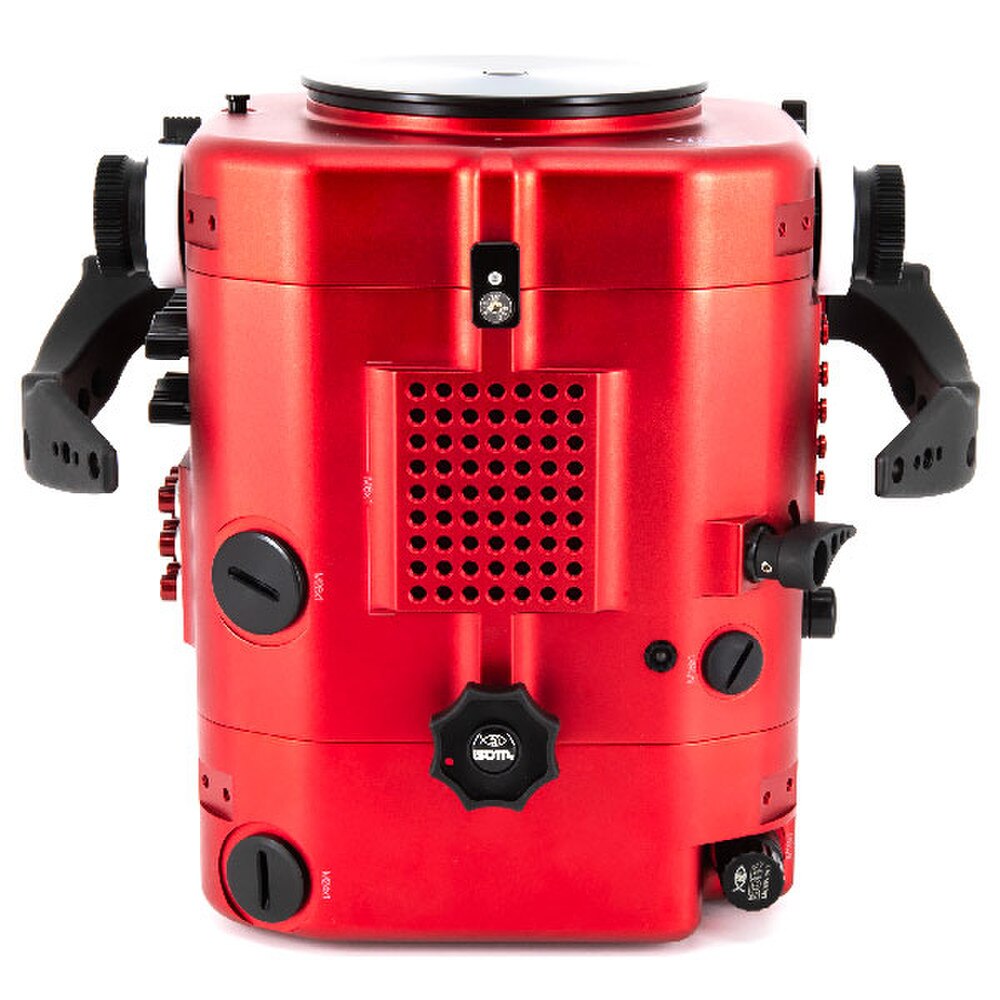

  • Upper and rear M6 hole grid to apply various accessories (spotlight, spheres, handle, etc.)
  • Four M6 holes located on the housing bottom side for different accessories such as brackets or tripods
  • Four pairs of M5 holes per side for attaching balls with plate
  • Prepared for ISOTTA vacuum system (not included)
  • Working depth: 100 meters / 330 feet

COMMANDS

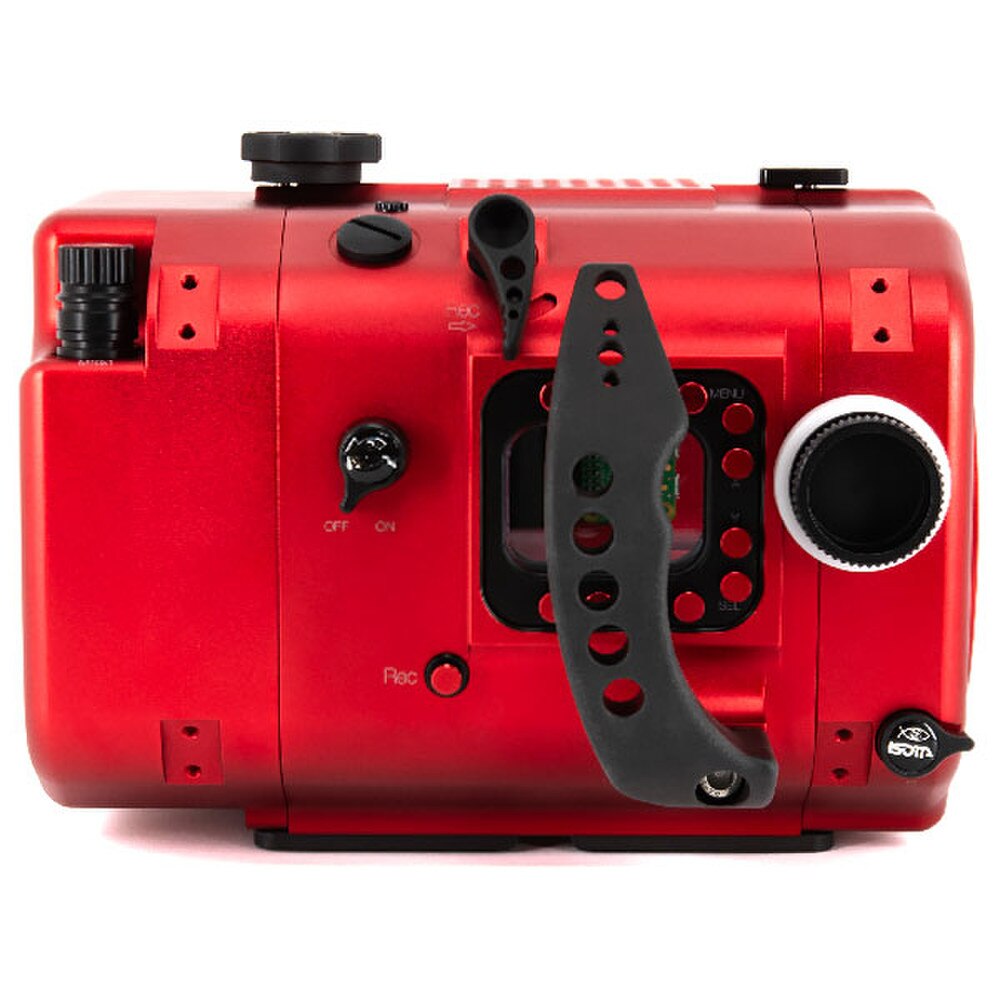

  • ON/OFF lever of the RED V-Raptor [X]
  • Ergonomic mechanical lever for movie shooting button, easy to use even with gloves
  • Movie shooting button (REC)
  • Lens release button
  • Filter dial
  • Zoom knob
  • Focus knob
  • Port safety lever
  • Menu navigation buttons
  • Auto Focus lever

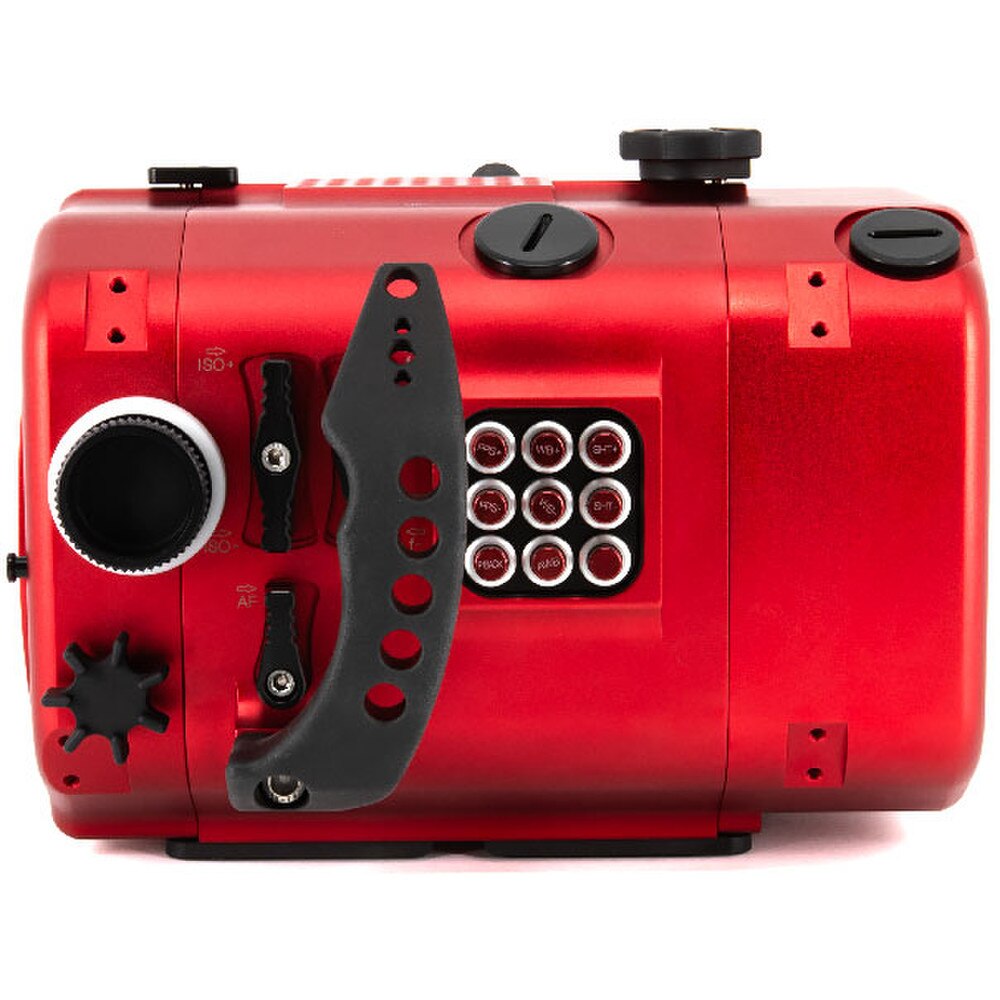

  • ISO+/ISO- lever
  • Diaphragm +/Diaphragm- lever
  • FPS+ button
  • FPS- button
  • White Balance + button
  • White Balance - button
  • Shutter + button
  • Shutter - button
  • Playback button
  • Auto White Balance button

OPTIONAL

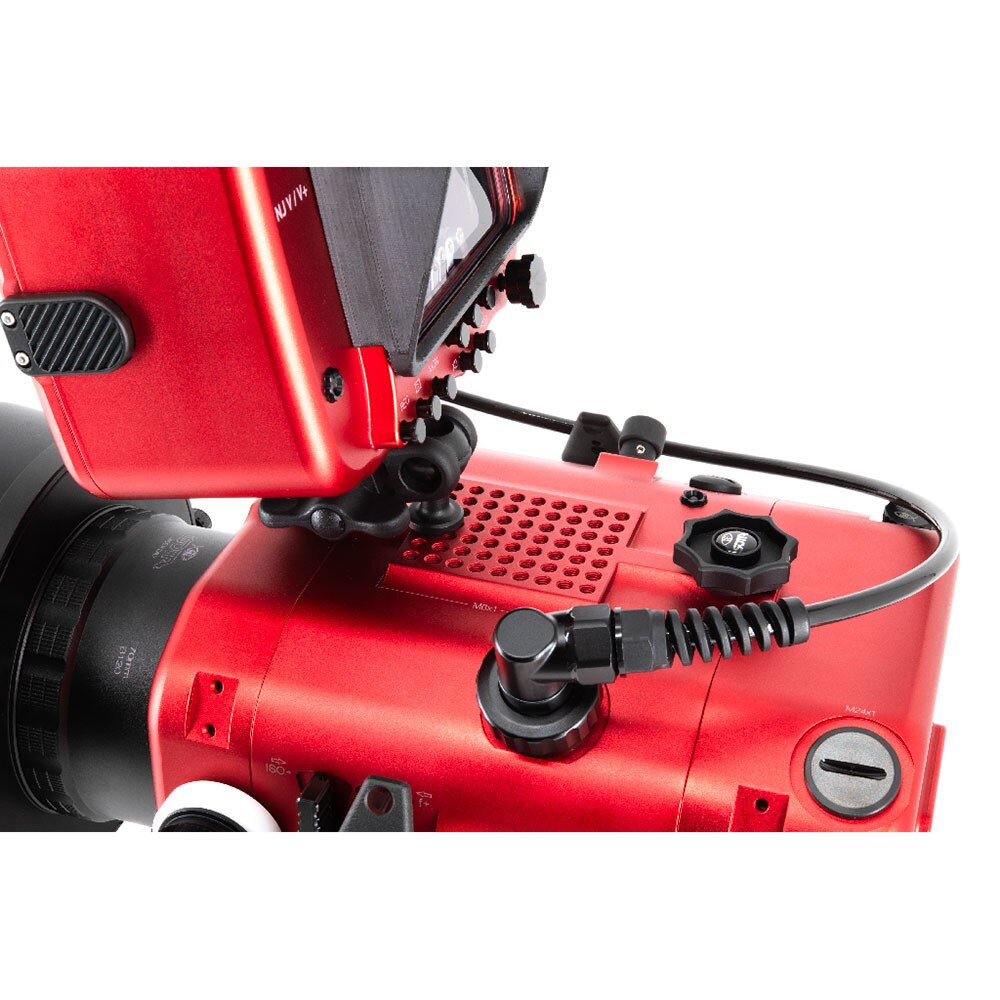

  • Ninja V+ monitor housing
  • M28x1 bulkhead
  • Connection cable
  • XL adjustable balance tray
  • Vacuum system
  • Handle extensions

SPARE PARTS

  • O-ring set for RED V-Raptor [X] housing
  • 1895 - Housing front lid B120
  • 1905 - M16X1 cap
  • 3352 - M24X1 cap

WHAT IS INCLUDED

  • Housing
  • front cover
  • Handles
  • Humidity sensor
  • Replacement O-ring kit
  • Silicone lubricant 15gr / 0.5 oz
  • Warranty: 2 years manufacturer's (excluding batteries)
