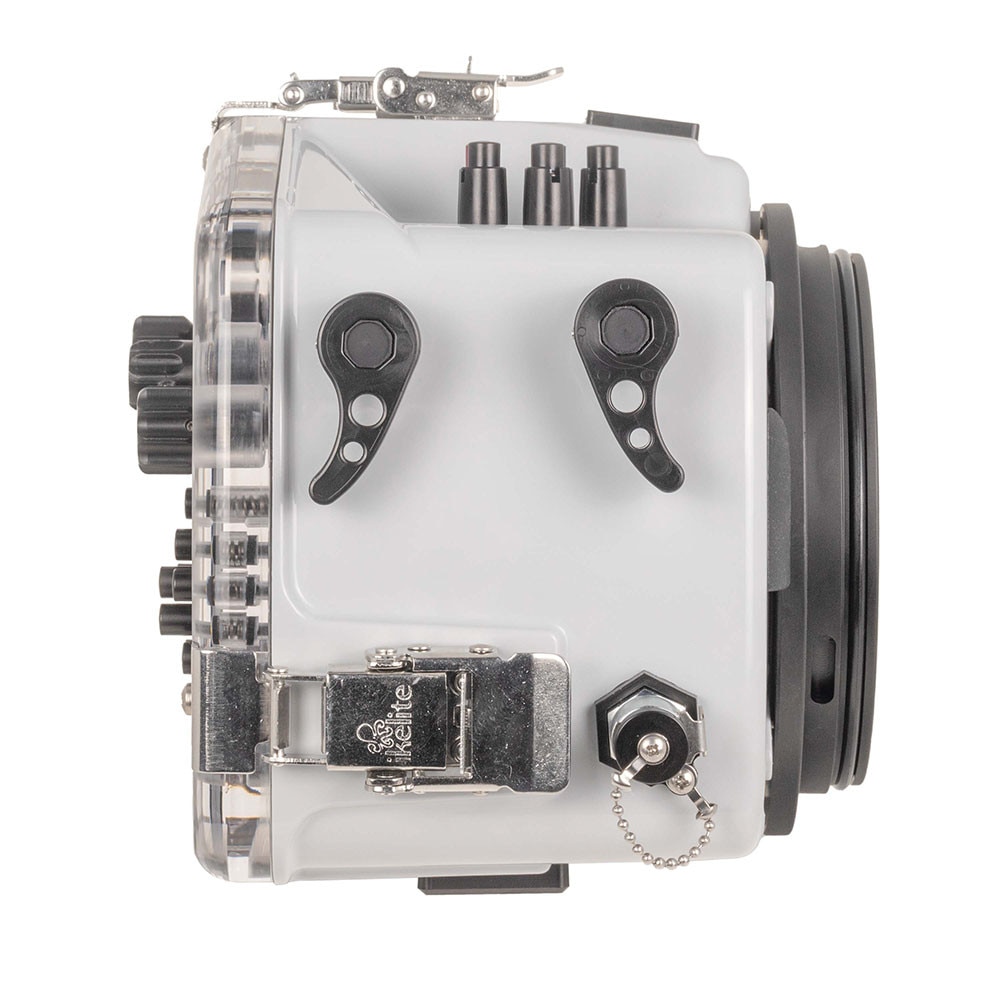

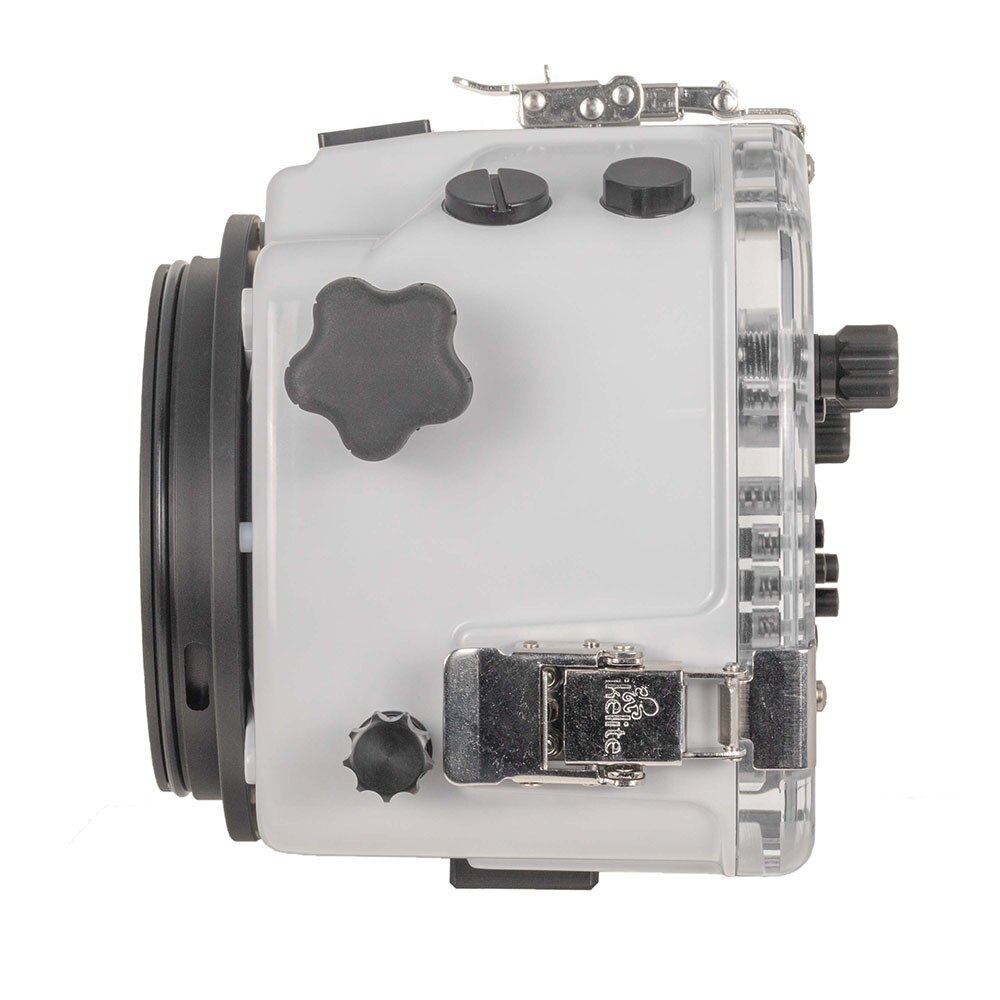

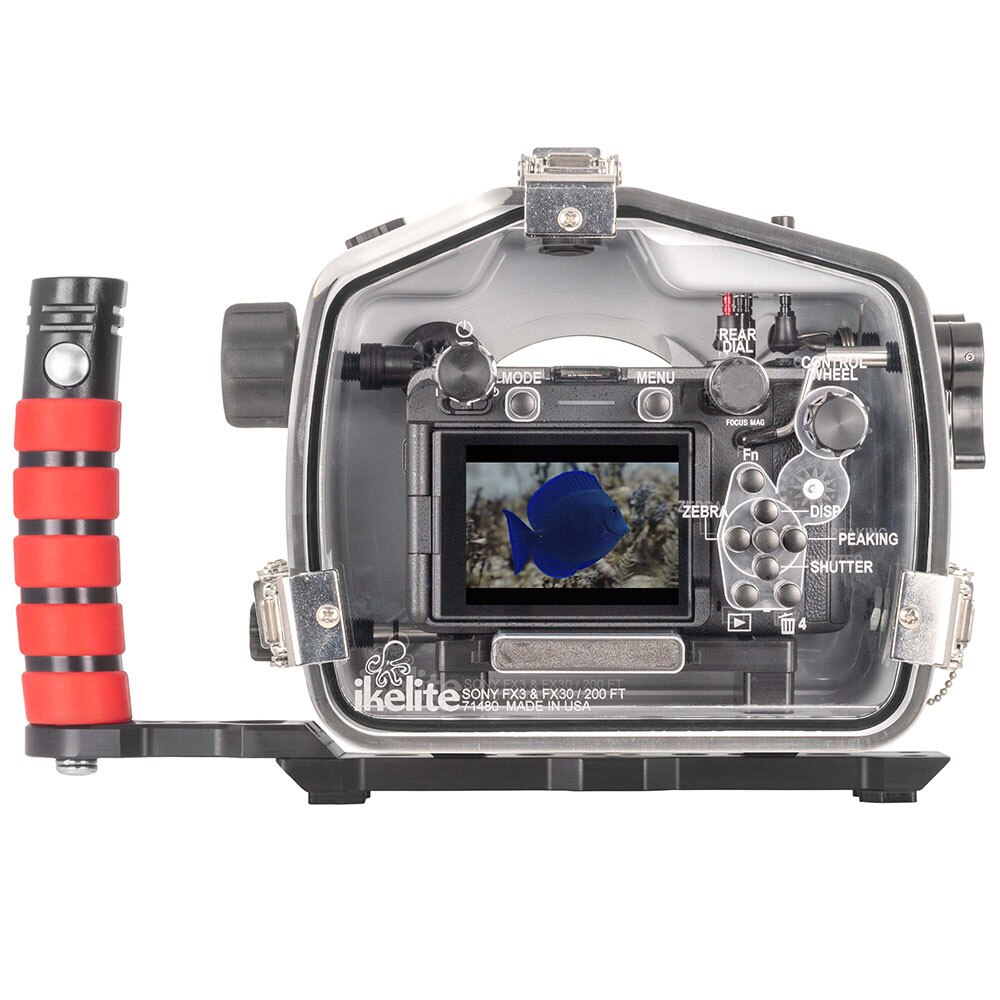

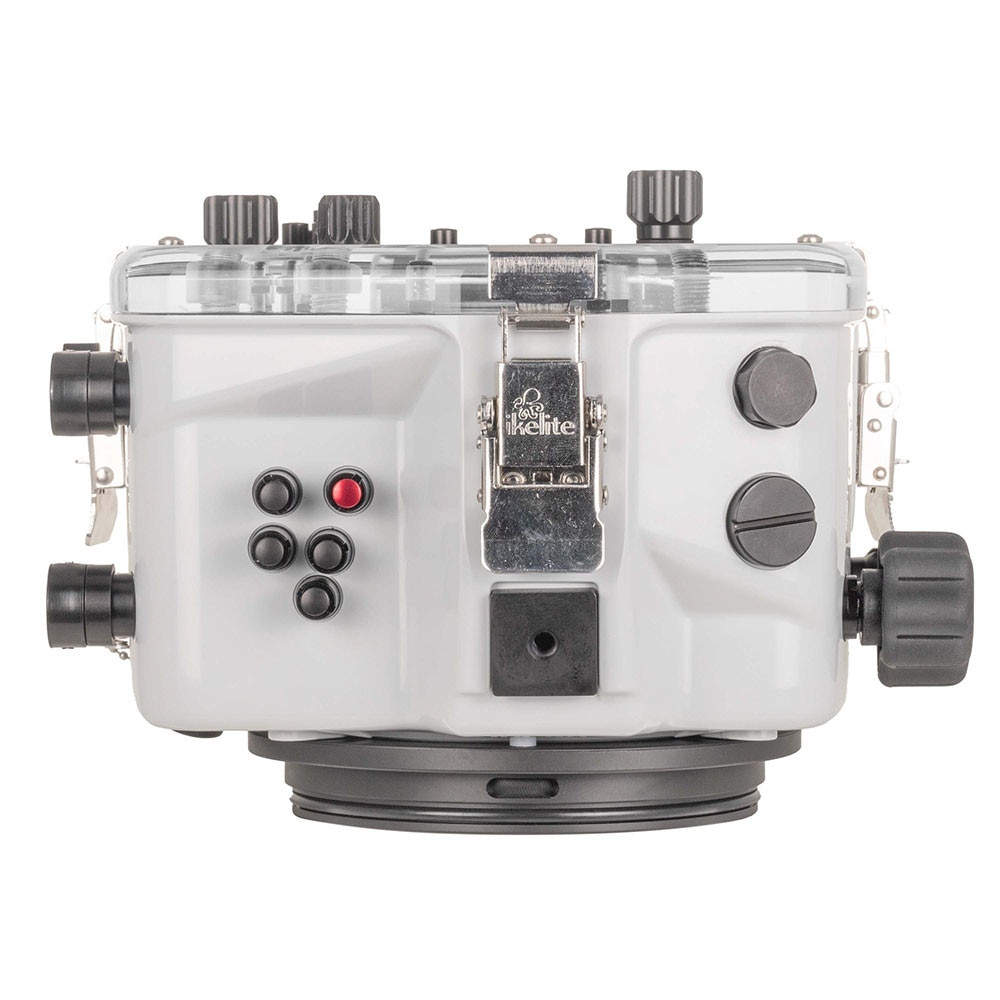

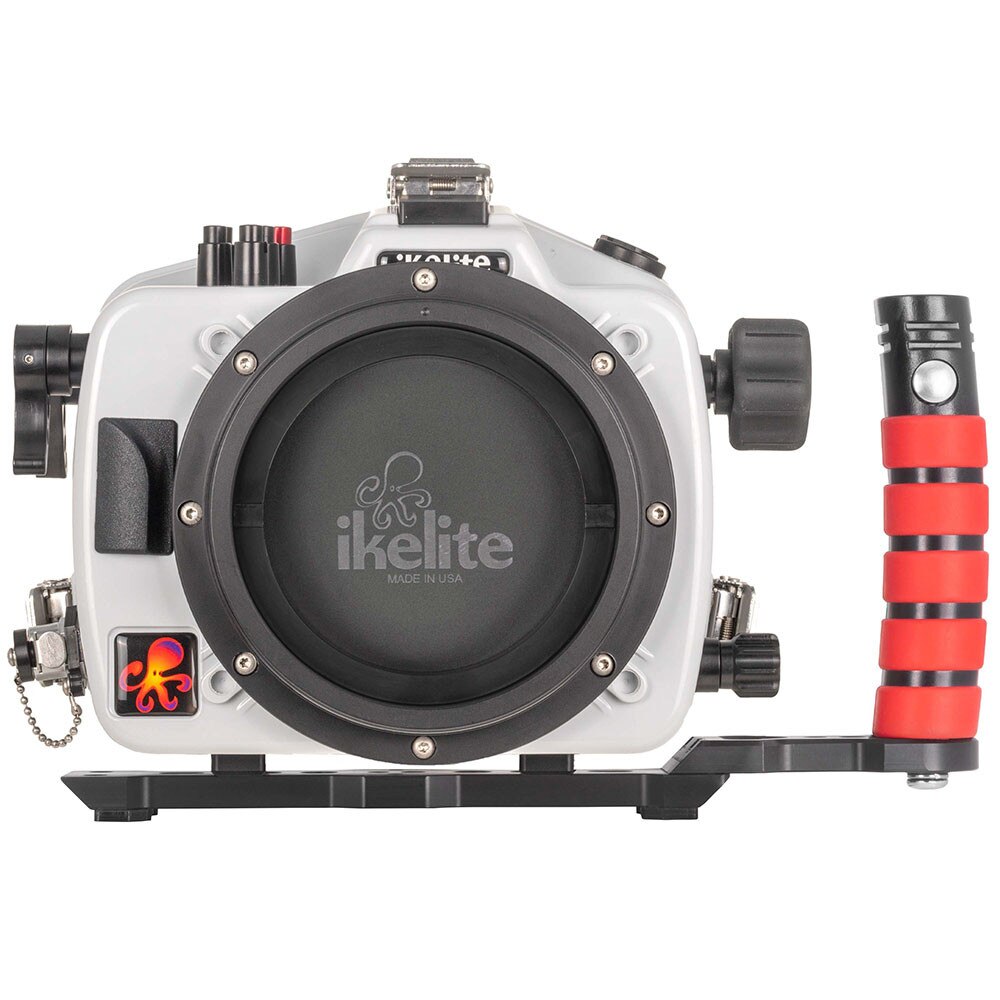

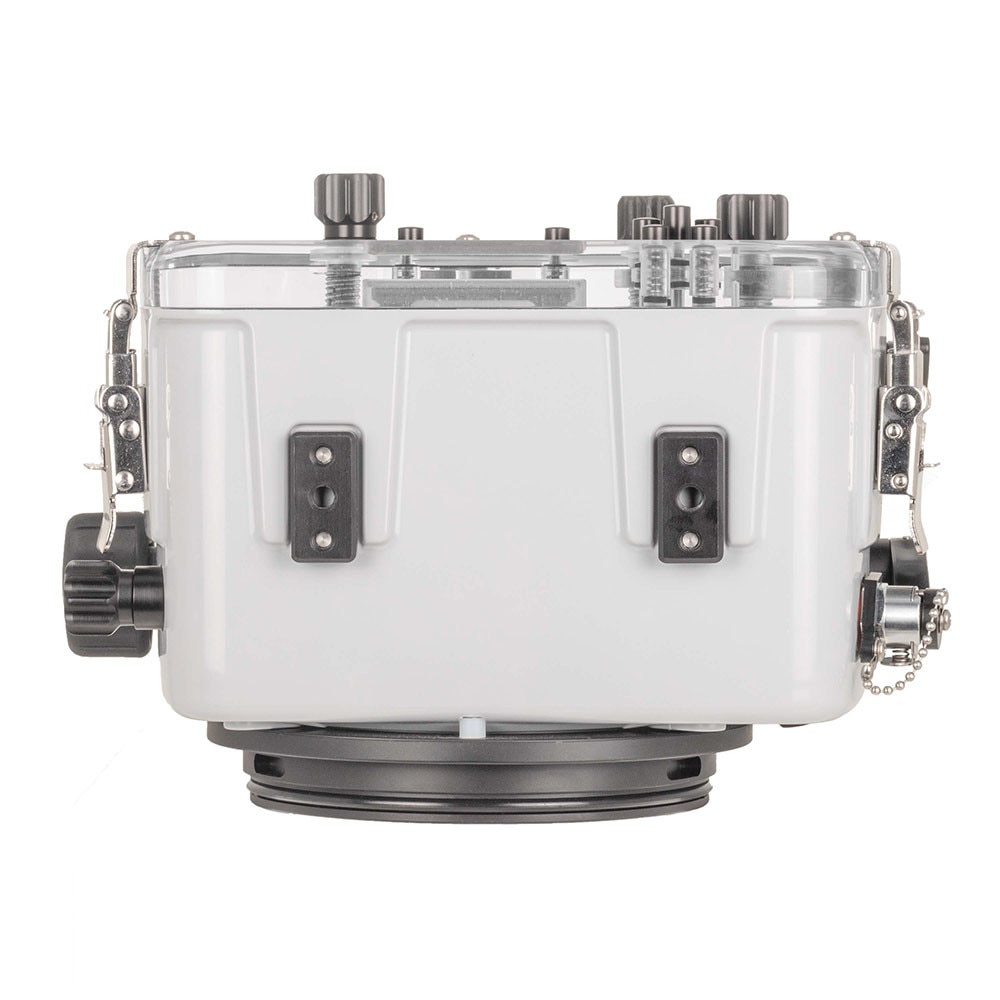

Ikelite Sony FX3 & FX30 Underwater Housing DL200

Ikelite 200DL Underwater Housing for Sony FX3, FX30 Digital Cinema Cameras

A full-featured and durable waterproof housing for Sony FX3 and FX30 digital cinema cameras. Suitable for scuba, snorkeling, surf, pool, and any application in or around the water. An optional USB-C Charging & Data Transfer Bulkhead allows you to charge the battery and offload your memory card without removing the camera from the housing. The Ikelite system can be expanded for any shooting needs including the addition of an optional M24 accessory port for an HDMI 2.0 external monitor.

LENS PORT REQUIRED (Sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

Pre-Dive Checks

There is no greater assurance than seeing your camera and o-ring seal through the back of the housing. Ikelite's signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed, the o-ring forms a solid, waterproof seal.

Ikelite recommends using a pump with a gauge to pull a vacuum on the housing and check for leaks prior to entering the water.

Construction

Ikelite's specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

Ikelite supports a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Wi-Fi Transfer

Lens ports and zoom gears are sold separately. Refer to the appropriate port chart for compatibility information.

Compatibility

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Unless otherwise noted, this housing does not accommodate adding-on grips, battery grips, eyepieces, LCD covers, or other accessories.

In The Box

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. Ikelite is not aware of any other models that may be used in or adapted to this housing.

Housing

• Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Camera Mount # 95438
• Tool for Zoom Gear Retainer # 0945.06
• 0.050" Hex Key # 0945.11
• Silicone Lubricant 1cc Tube

SPECS:

• Controls: Controls are provided for all camera functions except Custom button 6
• Port Mount: DL (Dry Lock)
• Accessory Port: M16 Thread and 1/2-20 Thread
• Depth Rating: 200 feet (60 meters)
• Weight: 5.35 lb
• Dimensions: 9 x 7.25 x 6" (229 x 184 x 152 mm) Not including Tray with left handle
• Rear O-Ring: 0132.59
• Front O-Ring: 0132.45
