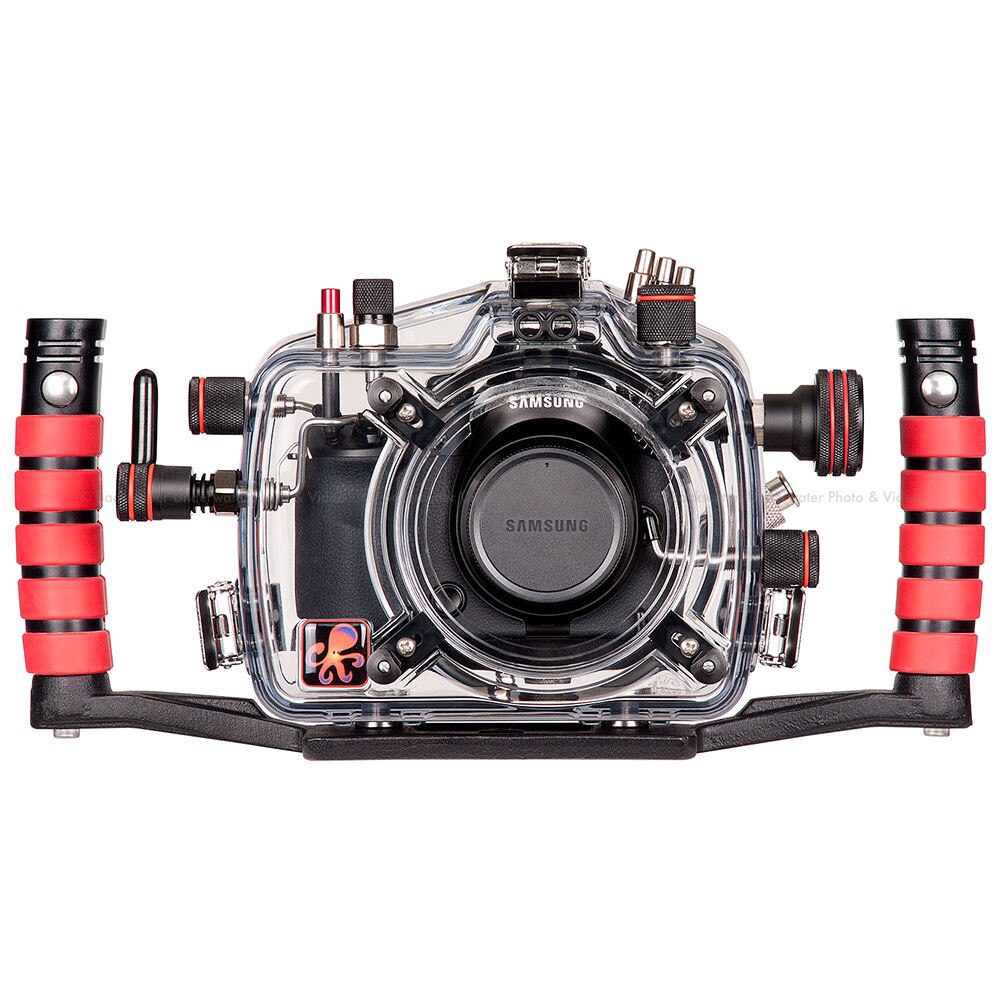

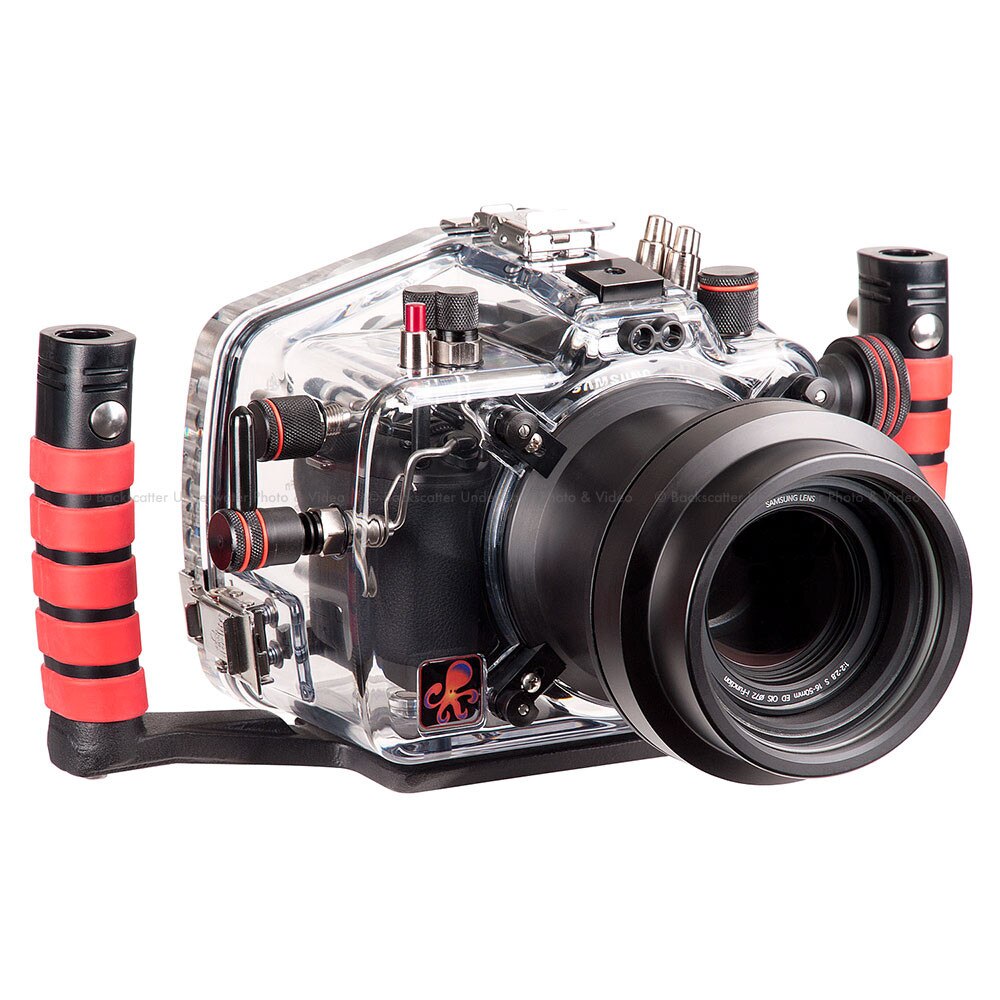

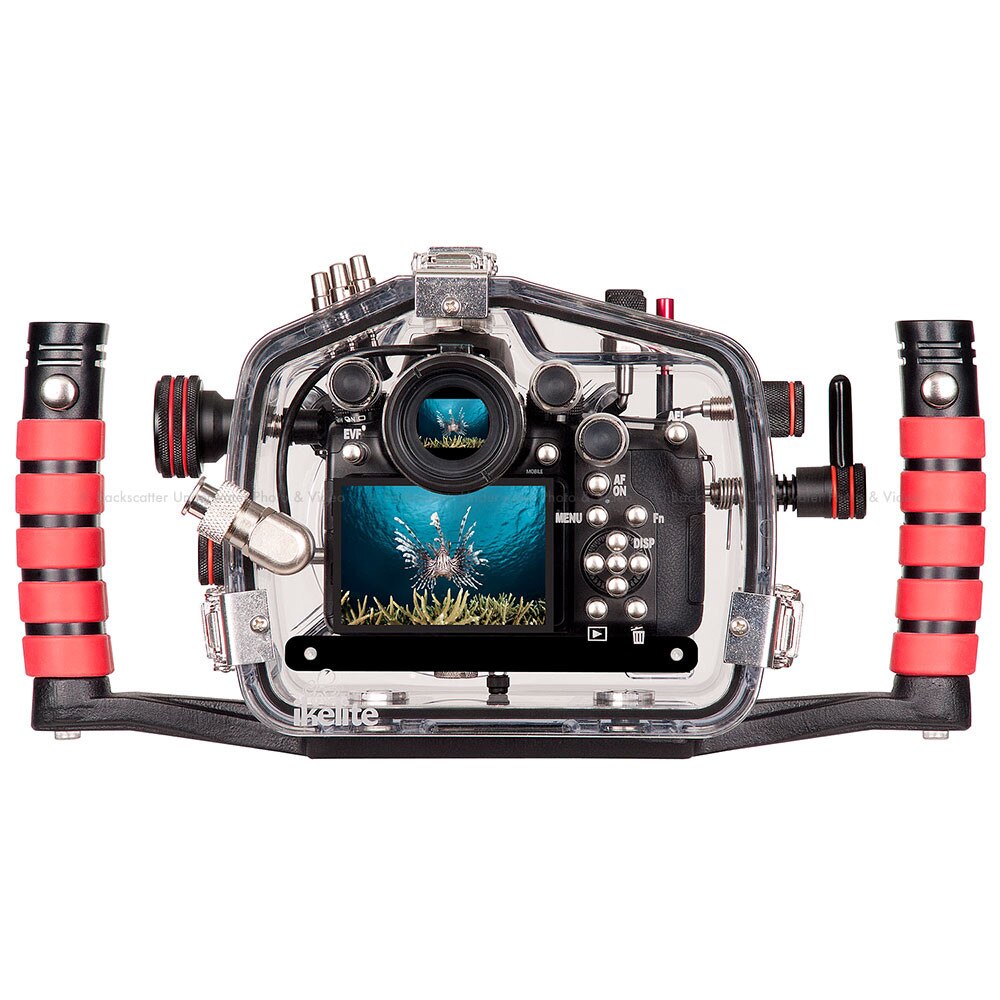

Ikelite Underwater Housing for Samsung NX1 Mirrorless Interchangeable Lens Camera

Ikelite Underwater Housing for Samsung NX1 Mirrorless Interchangeable Lens Camera

Samsung's NX1 camera is great for action and water sports photography thanks to its 28 megapixel sensor and advanced autofocus engine. And 4K video isn't too shabby either thanks to great low light performance.

Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. Ikelite believes there's no substitute for inspecting the actual o-ring seal once your housing is closed. Ikelite's signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

An over-sized knob smoothly engages Ikelite's unique system of universal zoom gears. Ikelite provides two zoom sets with each housing, one for use with most popular larger diameter zoom lenses and a second designed for use with smaller diameter zoom lenses. Both sets are lightweight and easy to install with no modification to the lens required. A variety of dome and flat ports attach with four locking latches for maximum security and quick changes between dives.

The included magnified viewfinder is optimized for viewing in the water when wearing a dive mask. It removes easily for the attachment of Ikelite's optional Straight or 45_ Magnified Viewfinders.

This housing includes a balanced aluminum tray with Ikelite's signature quick release handles for easy attachment and removal of external lighting. An aluminum 1/4-20 threaded top mount provides an additional attachment point for lightweight accessories.

Like every Ikelite product, Ikelite's housings are designed, built, and tested in the USA. Ikelite uses locally sourced, top-grade materials. Ikelite housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. Ikelite back their products with over 50 years of experience and the most accessible and responsive customer service staff in the dive industry.

This housing requires the addition of a compatible lens port for waterproof operation. Lens port not included.

Strobe Compatibility

The camera's built-in flash is not powerful or wide enough to be used effectively within the housing. However, it may be used to trigger a compatible external strobe. Two fiber optic ports are built into the front of the housing to attach Ikelite, SEA&SEA, or Olympus-type fiber optic cord connectors.

Alternatively, for rapid fire triggering, Ikelite recommends connecting a compatible strobe with the appropriate electrical sync cord. Ikelite offers a variety of sync cords made specifically for Ikelite, SEA&SEA, INON, and Nikonos strobes. Strobes attached via electrical sync cord must be used in manual exposure modeselectrical TTL exposure is not supported.

What's Included

• Housing
• Tray with dual quick release handles
• Port hole cover
• Waterproof bulkhead cap
• Universal zoom set up to 2.8-inch diameter
• Universal zoom set 2.8 to 3.0-inch diameter
• Silicone lubricant 1cc tube
• Micro-fiber lens cloth
• 1 year manufacturer warranty

Specifications

• 200 ft (60m) depth rating
• All important camera functions are accessible
• Controls are not provided for Preview button, Mode dial lock button, Diopter adjustment dial, Status display illumination window button
• Ikelite bulkhead connector with manual flash hot shoe
• Slightly negative buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 5.4 lb (2.4kg) not including tray + handles
• Dimensions 10.3 x 6.9 x 6.5 inches (26.2 x 17.5 x 16.5 cm) including projections

Spare Parts

• 5512.69 - Spare o-ring set with main o-ring, port o-ring and lubricant
• 0132.61 - Main o-ring0105Port o-ring
• 9104.5 - Waterproof bulkhead cap
• 0200.91 - Housing body cap
• 0184.2 - Silicone lubricant resealable 2cc tube
