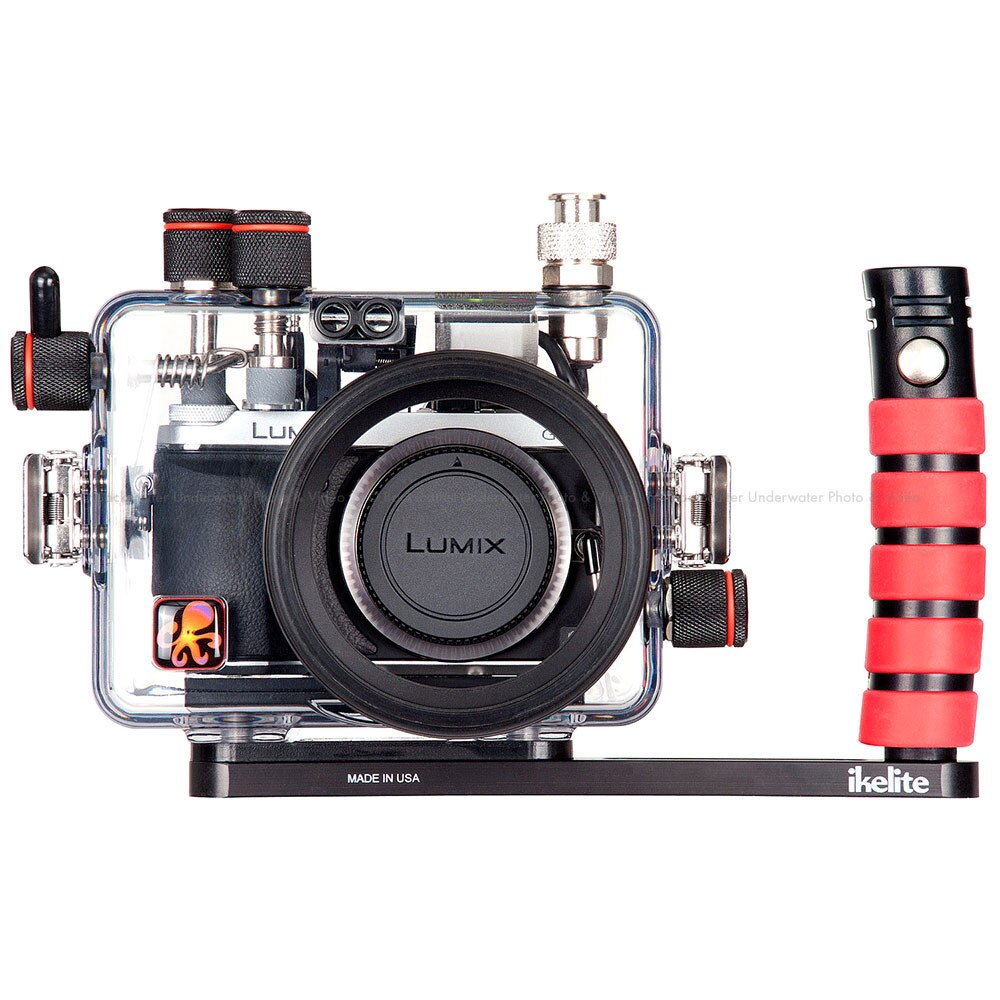

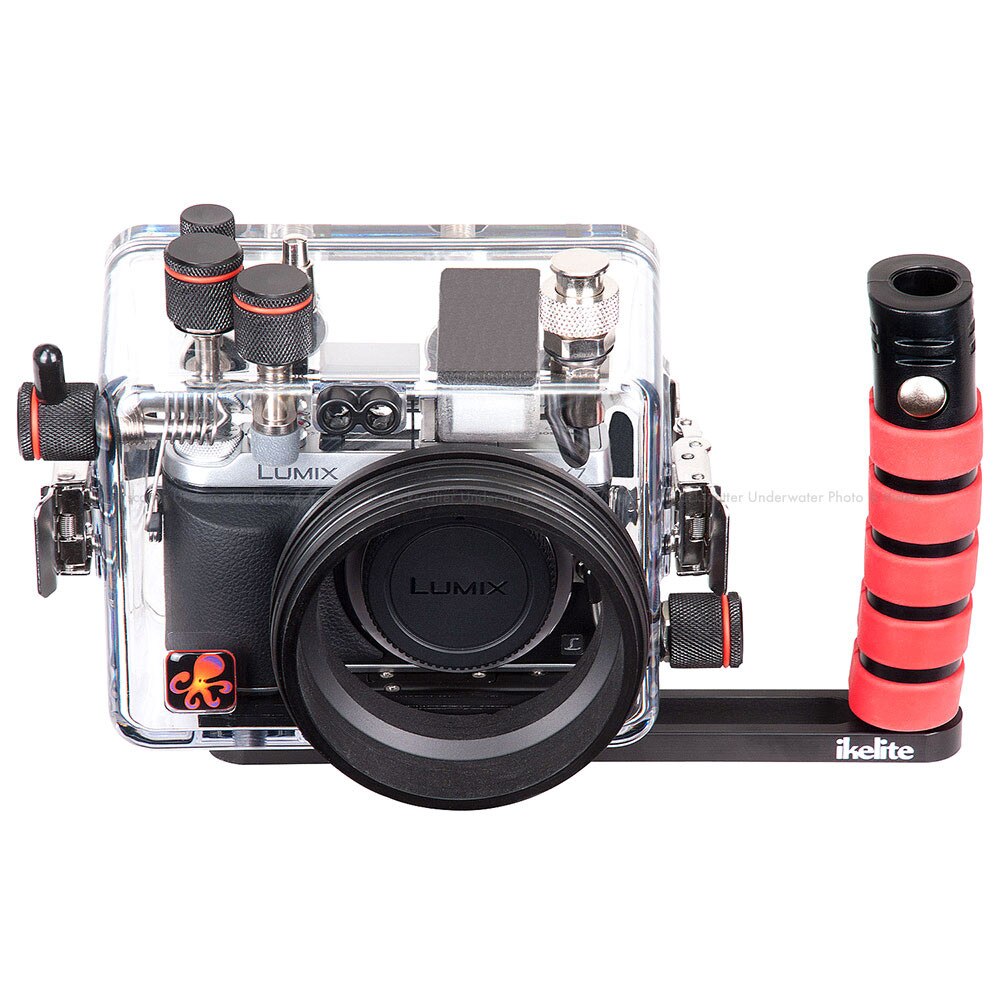

Ikelite Underwater TTL Housing for Panasonic Lumix GX7 Micro Four-Thirds Camera

Ikelite Underwater TTL Housing for Panasonic Lumix GX7 Micro Four-Thirds Camera

It's everything you love about an Ikelite DSLR Housing, shrunk down into a perfectly-sized package for travel. You can impress friends with your photo gear or your photos the only housing with built-in TTL strobe exposure helps you do both!

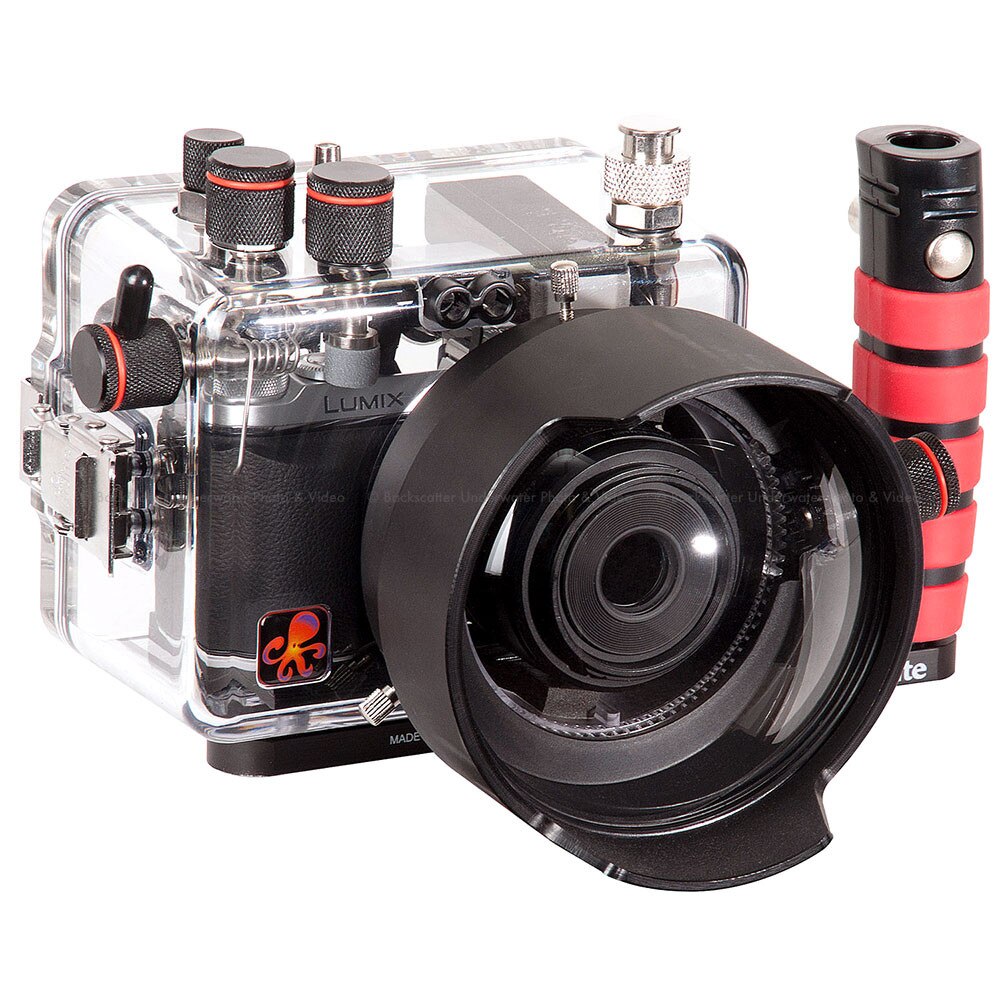

Housing shown with Mirrorless Port, not included. Please note that a compatible Mirrorless Port is required for waterproof operation of this housing.

The True TTL Advantage
Other housings simply waterproof your camera. An Ikelite TTL housing improves your photos. TTL or "Through-The-Lens" flash metering means the camera controls flash duration to properly expose an image. Ikelite's built-in proprietary circuitry tells your camera that a TTL external flash is attached, allowing the camera to adjust exposure more accurately than with slave TTL strobes.

Fiber optic slave flash units require the camera's flash to fire every time. This creates a shutter lag as you wait for the camera's flash to recycle in between shots, drains your camera's battery life, and builds up heat inside of the housing. Ikelite electronics translate direct electrical impulses from your camera, triggering your strobe and precisely adjusting its power without the need to fire the camera's flash. This eliminates the slave TTL strobe issues of signal interference, inconsistent exposure due to weak fiber optic transmission and false triggering caused by light rays bouncing off the water's surface or your buddy's flash going off.

Non-Ikelite strobes may be attached with the appropriate sync cord and operate non-TTL (manual exposure modes only) with this housing. Alternatively, two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords. The camera's built-in flash may be used as a trigger for an external strobe, but is not usable to properly light your underwater photos. Use of an external strobe is recommended.

Lens Port System
An interchangeable lens camera demands a housing with interchangeable lens ports. It couldn't be more simple to change ports than this sytemjust press the port on and tighten three thumb screws. Feel positive reinforcement that the port is secure without any complex moving parts that can jam or break in a remote location.

This housing accepts a variety of ports to accommodate zoom, macro, and wide angle lenses from Panasonic and Olympus. See port choices below. Lens port sold separately.

Viewing

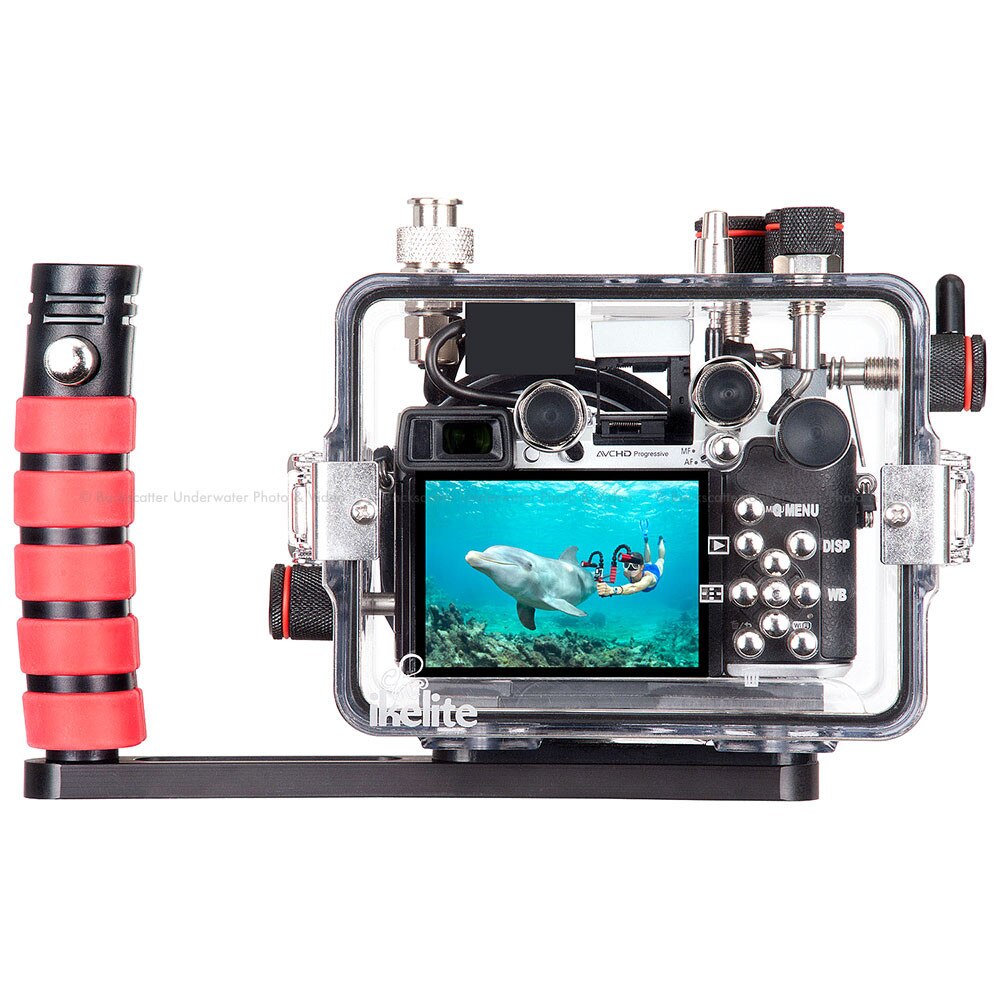

The camera's large, super-bright LCD screen is viewable edge-to-edge through the back of the housing. Due to proximity to nearby camera controls, this housing does not offer support of the camera's optical viewfinder.

Ergonomics
Controls are put right at your fingertips for all important camera functions. Control symbols laser engraved into the back of the housing will never peel off or fade even with years of use.

With a system of this caliber, a tray with handle is essential for the attachment of lighting and comfortable handling in a wide variety of shooting scenarios. This housing includes a balanced aluminum tray with Ikelite's signature quick release handle for easy attachment and removal of strobes and video lights. This unique handle is curved slightly to fit the nature curvature of your hand, and features a soft over-mold which makes it a delight to hold. The complete tray and handle detaches with the removal of two nuts for packing or to attach the optional Tray with Dual Handles.

Construction
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. Ikelite believes there's no substitute for inspecting the actual o-ring seal once your housing is closed. Ikelite's signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Unlike aluminum, polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

Like every Ikelite product, Ikelite's housings are designed, built, and tested in the USA. Ikelite uses locally sourced, top-grade materials. Ikelite's housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. Ikelite backs their products with over 50 years of experience and the most accessible and responsive customer service staff in the dive industry.

This housing requires the addition of a compatible lens port for waterproof operation. Lens port not included.

Strobe Compatibility

• AF35: no
• DS50: yes, above serial number 70000
• DS51: yes
• DS125: yes, above serial number 5000
• DS160, DS161: yes
• DS200: yes, above serial number 7163
• Non-Ikelite: yes, manual flash exposure only

What's Included

• Housing
• Tray with quick release handle
• Waterproof bulkhead cap
• Silicone lubricant 1cc tube
• 1 year manufacturer warranty

Specifications

• 200 ft (60m) depth rating
• All important camera functions are accessible
• Ikelite bulkhead connector with built-in TTL circuitry
• Slightly negative buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 3.13 lb (1423 g) not including tray, handles or port
• Dimensions 6 x 7.7 x 5.2 in (152 x 196 x 132 mm) including projections

Spare Parts

• 0110 - Main o-ring
• 9104.5 - Waterproof bulkhead cap
• 0184.2 - Silicone lubricant resealable 2cc tube
