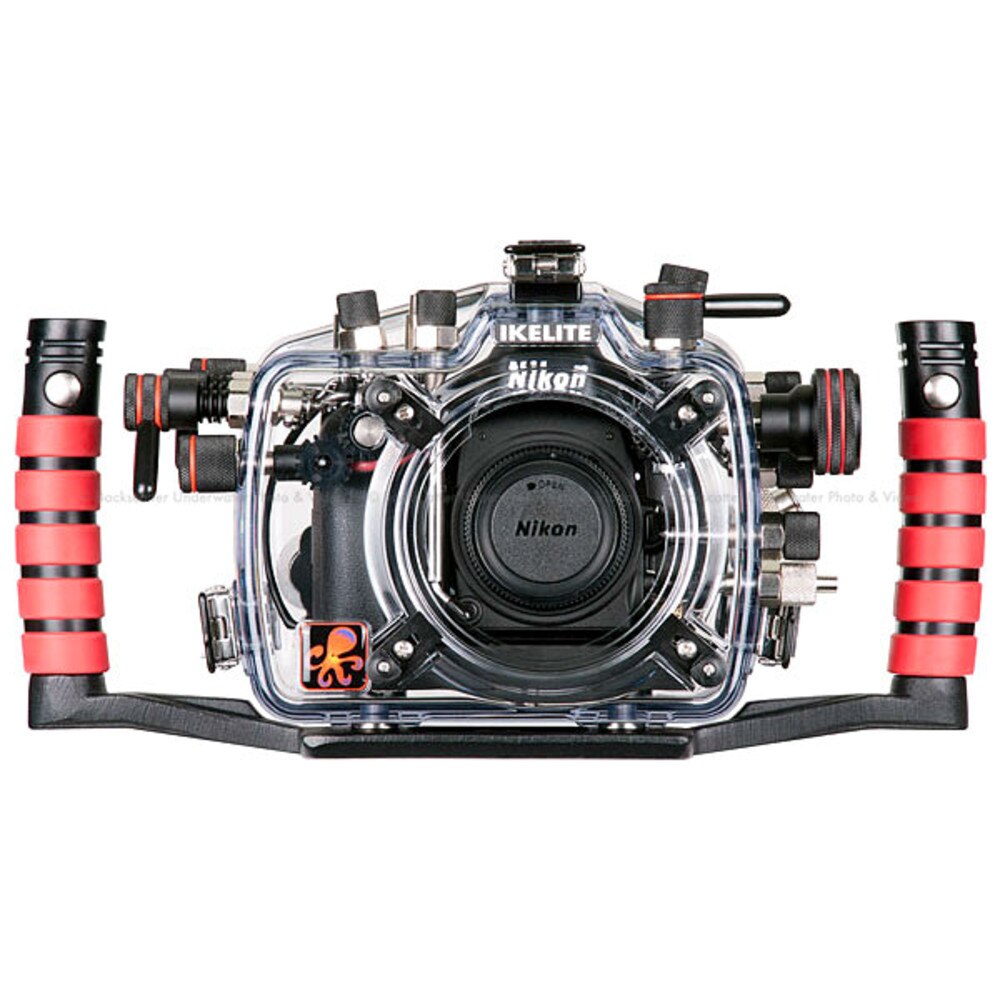

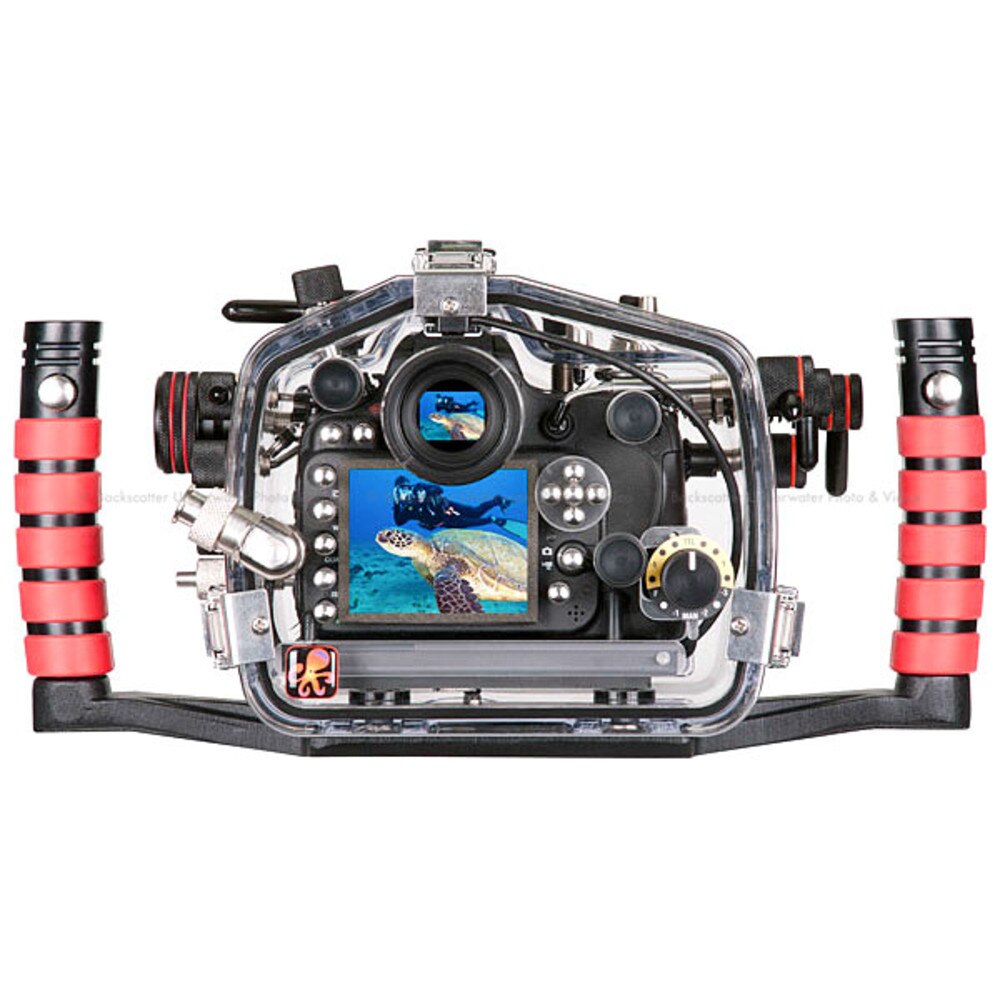

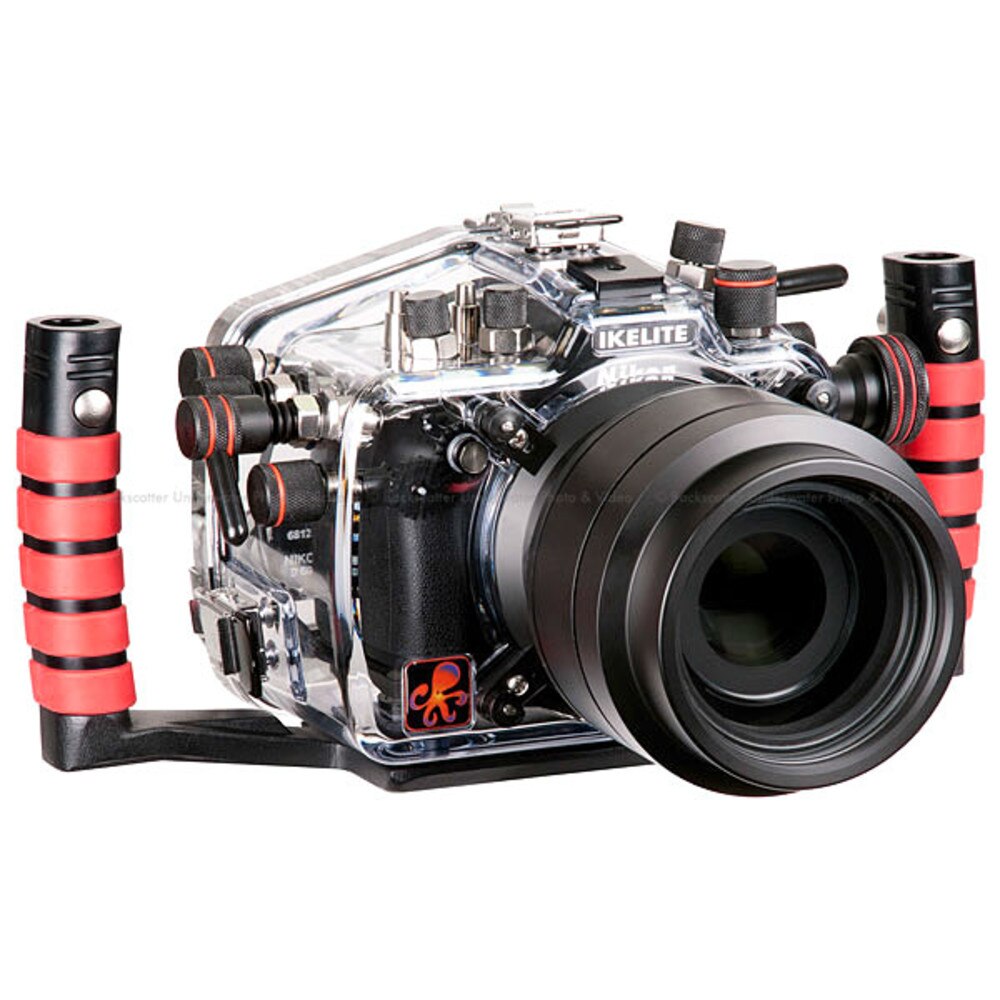

Ikelite Underwater Housing for Nikon D600 & D610 CamerasNikon D600 and D610 cameras are also fully functional in discontinued housing model 6812.6. Circuitry in the 6812.6 housing prevents the use of Nikon D610 camera in Live View mode. Circuitry in the newer housing model 6812.61 eliminates this problem and allows full functionality of both cameras.
Key Features
Superior flash controlDirect connect flash is the most reliable and efficient way to fire an external underwater strobe. The camera's built-in flash does not need to fire, providing the extended battery life and no lag between exposures. Our proprietary circuitry allows direct communication between the camera and current Ikelite DS Substrobes* for the most accurate through-the-lens (TTL) metering control of an off-camera flash. Electrical bulkhead and TTL circuitry are provided standard and included in the base purchase price.
Rather than reaching out to your external strobe, exposure with a current DS Substrobe can be adjusted quickly through the back of the housing using a large dial control. TTL mode provides four 1/3 f/stop increments over or under flash compensation to fine tune exposure. Or control strobe output completely through the back of the housing using one of the 7 manual power settings provided in half-stop increments.
Ergonomic handlingControls are provided for every camera function except the metering selector, diopter adjustment control and flash pop-up button. Shutter, video recording start/stop, and a large zoom control knob can all be comfortably reached without removing your hands from the handles. Comfortable rubberized grips provide quick-release attachment points for strobes and accessories. The tray and handles may be removed from the housing for convenience in traveling. The complete housing is neutral or slightly negative in freshwater depending on choice of lens port.
Reliable performanceA clear view of the camera and o-ring seals facilitates easy assembly and operation. Heavy-duty polycarbonate construction is durable and corrosion-free to ensure performance in even demanding conditions. Lens ports can be removed and replaced quickly with a simple positive locking system which provides visible assurance when the housing is assembled properly.
* Requires current model Ikelite DS Substrobe. Click here for strobe requirements by serial number. TTL circuitry does not operate with non-Ikelite strobes. Non-Ikelite strobes provide manual exposure only.
Required Accessories
Ikelite Standard or Modular Lens PortA compatible Ikelite lens port is required for operation of this housing and must be purchased separately. Lens ports vary based on length and type of lens. Quickly look up a compatible lens port by lens model using our Nikon port chart via the link below.
Specifications- Controls: All important camera functions are accessible. Controls are not provided for Diopter Adjustment Control
- Width: 9.6in (244mm) including controls
- Height: 6.9in (175mm) including controls
- Depth: 6.5in (165mm) including controls
- Weight: 6.0lb (2.5kg) without tray & handles
- Buoyancy: Slightly negative in freshwater
- Depth Rating: 200ft (60m)
- Built-in Flash: No
- Strobe Connection: Ikelite digital TTL electrical bulkhead
- Tray Mounting: 12-24 thread with 3in spacing (76mm)
- Main O-Ring: 0132.61
- Port O-Ring: 0105
- Spare Parts:
- 5020 Silicone lubricant in 4 1cc tubes
- 5512.69 O-Ring kit
- 0200.91 Housing body cap
- 9104.5 Electrical bulkhead cap
