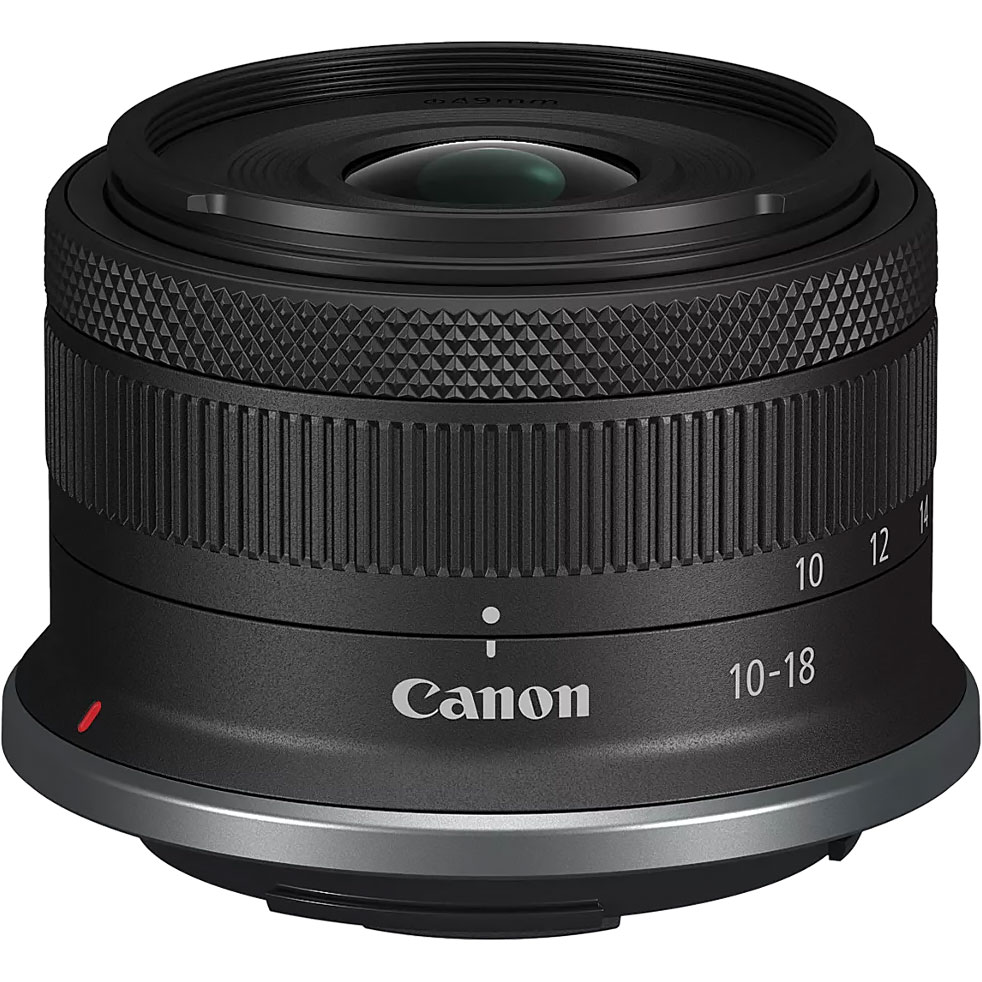

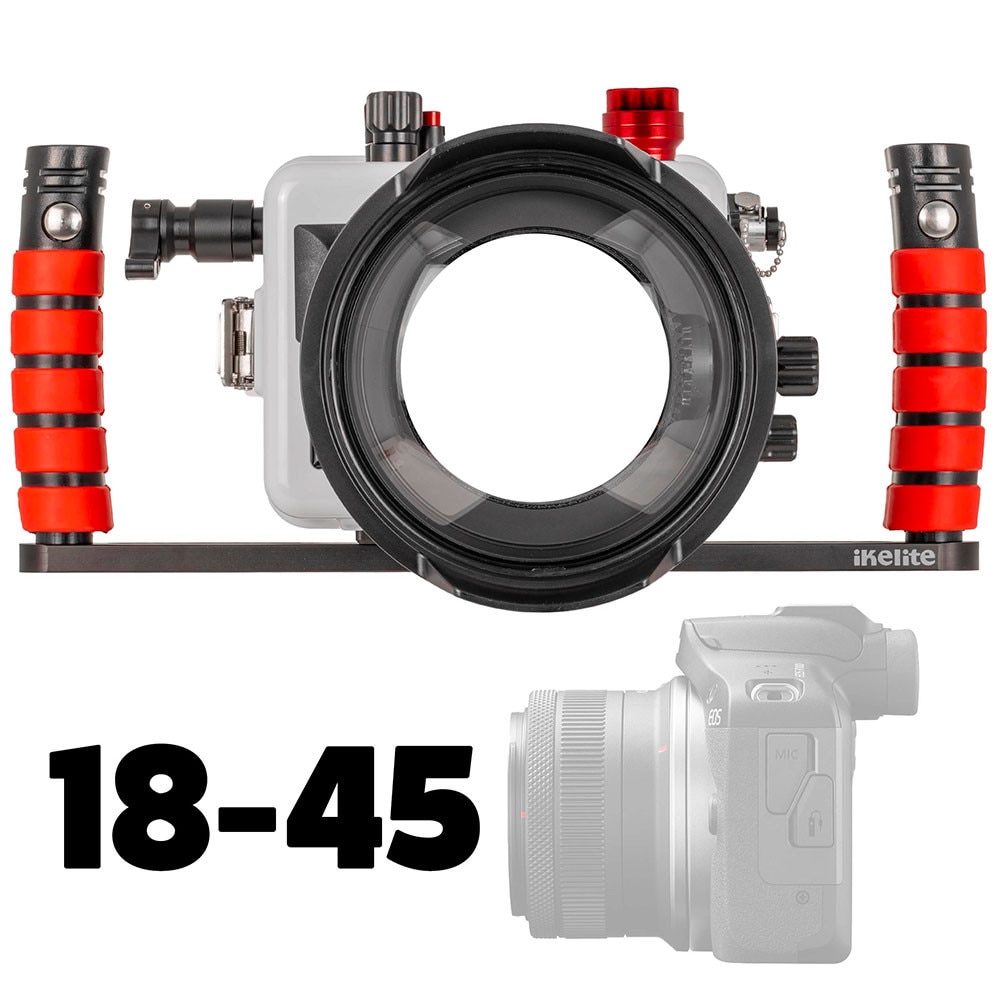

Ikelite 200DLM/D Underwater Housing for Canon EOS R100 with 18-45mm & 10-18mm Lenses [Fiber Optic Update]

The 200DLM Underwater Housing for Canon EOS R100 is equipped with everything you need to take your camera underwater, including a Fiber Optic TTL Transmitter, Dual Tray with Dual Handles, a Vacuum Leak Detection System, and a set of spare O-Rings.

Here's everything you need to get professional quality results underwater on a budget... except the camera.

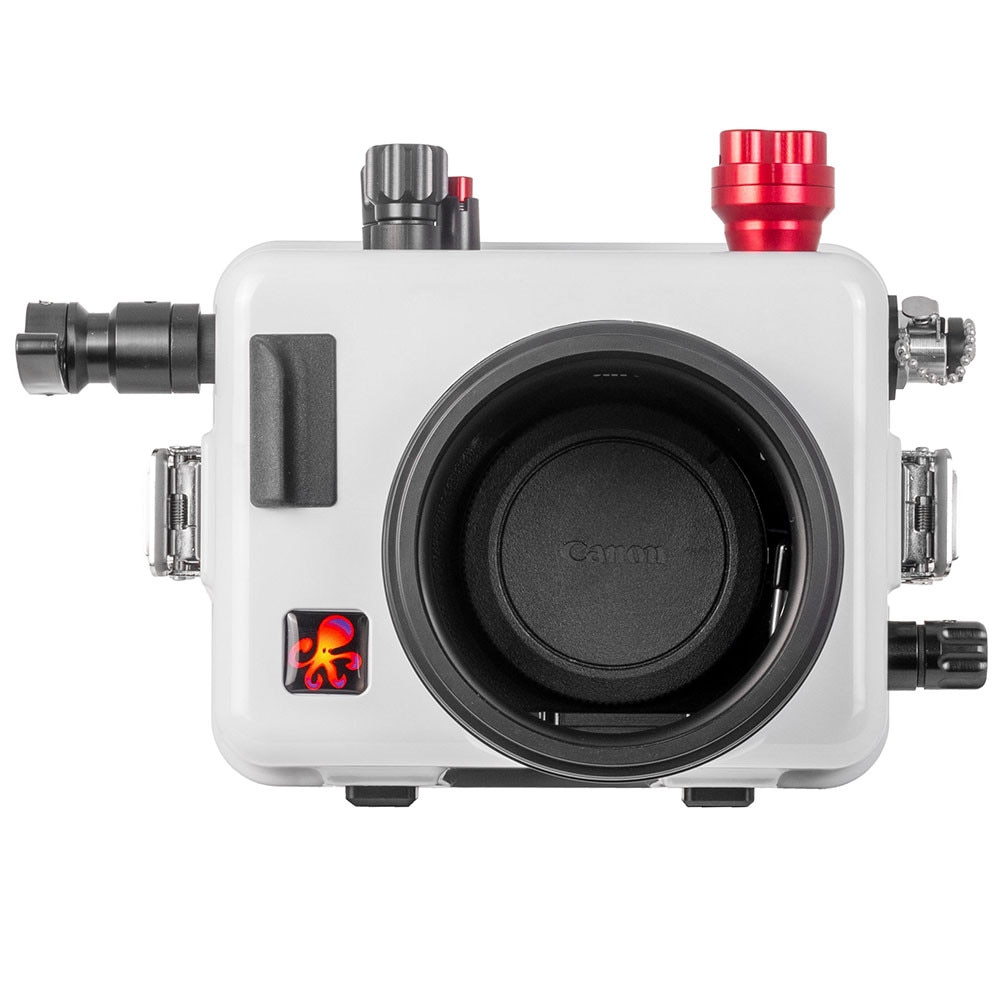

This is a full-featured and durable waterproof housing for Canon EOS R100 mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. Ikelite's custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.

TTL Automatic Flash

An integrated fiber-optic TTL transmitter communicates the camera's flash signals to compatible Ikelite fiber-optic strobes for seamless flash integration and accurate exposure on every shot. Flash exposure compensation can be added or subtracted in-camera effortlessly. Use legacy Ikelite DS strobes with full fiber optic TTL functionality by adding an RC2 Fiber Optic Receiver to each strobe (not required for newer Ecko Fiber and RC-series strobes). Non-Ikelite fiber optic strobes can be used in manual exposure modes only.

Peace of Mind Included

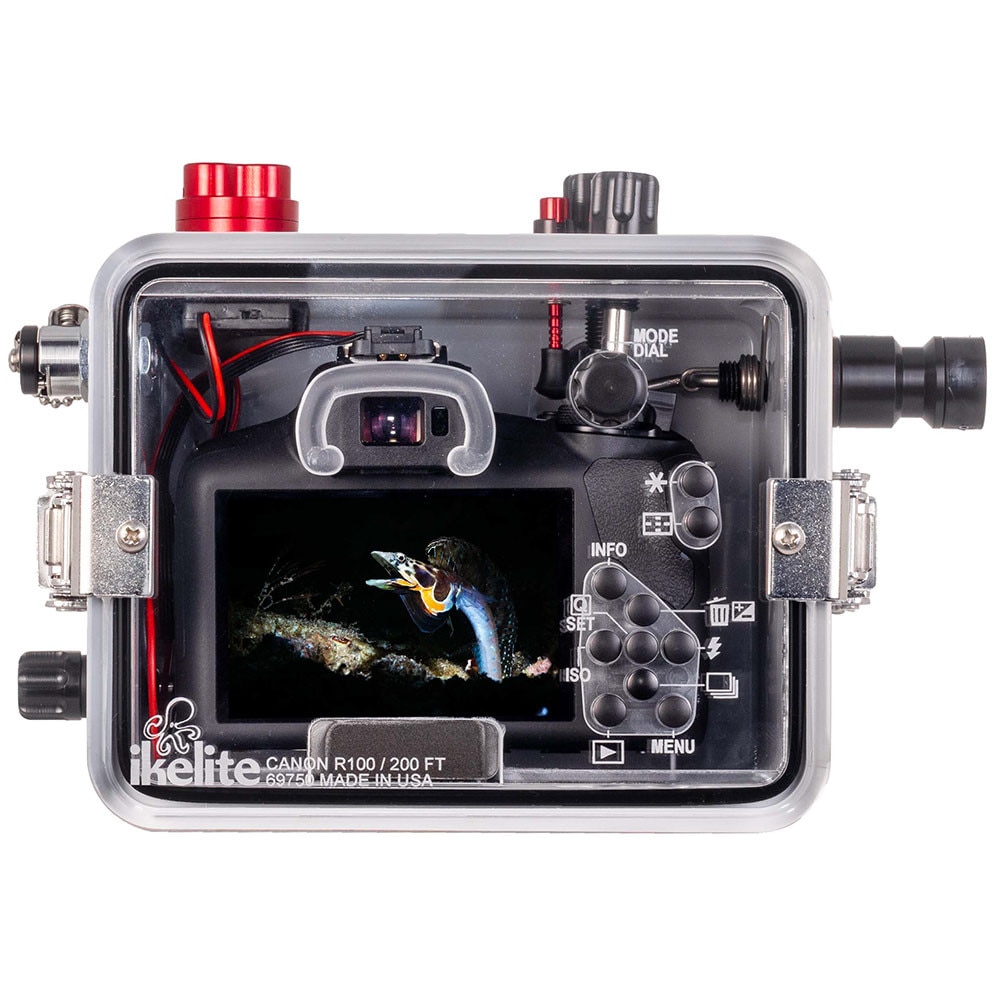

Ikelite's housings uniquely allow you to see your camera inside, making it easier to adapt to using it inside of a housing. The vacuum leak detection system allows you to check the housing before entering the water.

Every housing is built in the USA, checked with a camera, and water pressure tested to 200 feet (60 meters) before it makes its way from us to you.

"DLM" LENS PORT REQUIRED (Sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components for the lens you will be shooting.

Pre-Dive Checks

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Ikelite's signature open-groove design suspends the rear o-ring in a natural position, making it easier to maintain and more reliable than forcing it into a channel. Once the housing is closed, you can see the o-ring form a solid, waterproof seal.

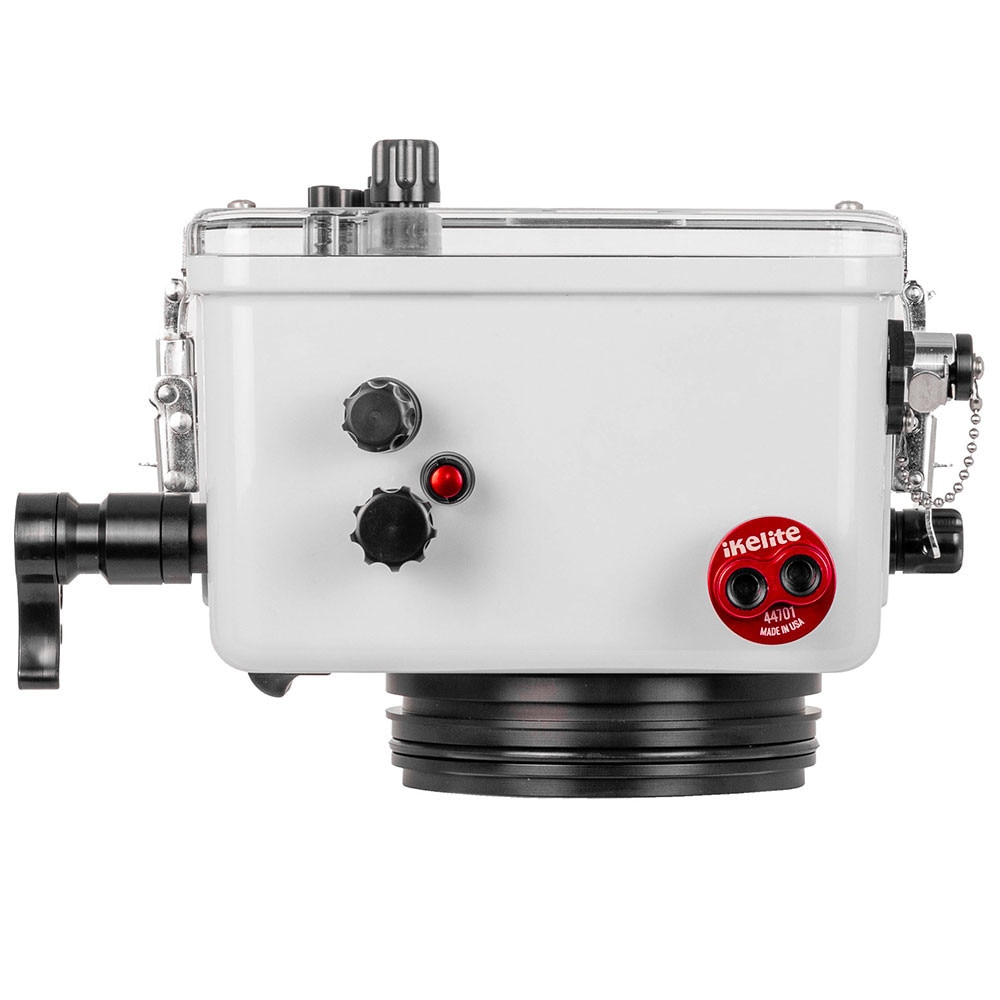

Ikelite recommends adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks before entering the water.

Construction

Ikelite's specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens Support

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

Ikelite supports a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.

Wi-Fi Transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is usable only above water and only within close proximity of the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. Ikelite is not aware of any other models that may be used in or adapted to this housing.

In The Box

• Housing with TTL Fiber Optic Transmitter
• Dome Port with Zoom # 5516.15
• Zoom Gear # 5515.14

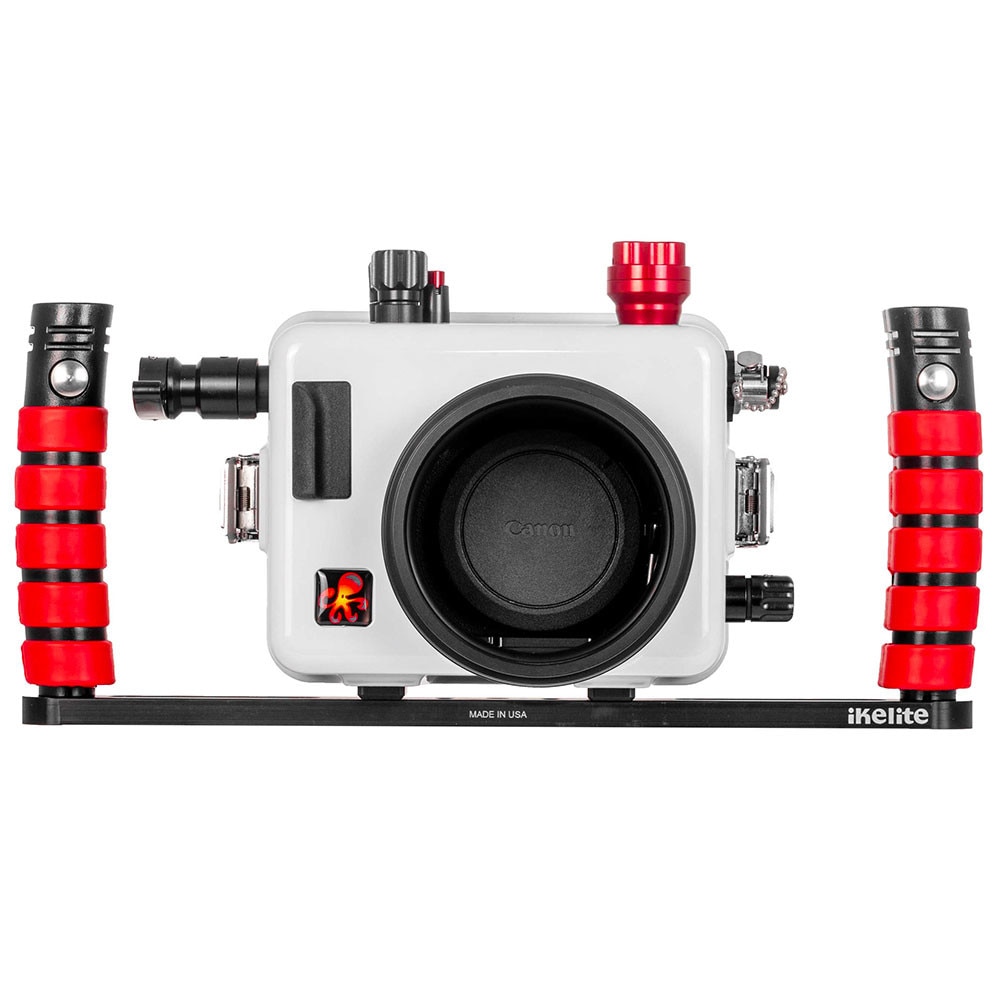

• Tray with Dual Handles # 9523.64 (installed)
• Vacuum pump with gauge # 47011
• Rear O-Ring # 0110 (installed + spare)
• Front O-Ring # 0132.36 (installed + spare)
• Silicone lubricant 1cc tube

SPECS:

• Controls: Controls are provided for every important camera function
• Strobe Connector: Fiber Optic Ports
• Port Mount: DLM (Dry Lock Micro)
• Depth Rating: 200 feet (60 meters)
• Weight: 3 lb / 1.4 kg
• Dimensions: 7.5 x 5.9 x 6 in (191 x 150 x 152 mm)
• Rear O-Ring: 0110
• Front O-Ring: 0132.36
