Ikelite Underwater Compact TTL Housing for Canon EOS 100D Rebel SL1 DSLR Camera
Canon calls the EOS Rebel SL1 100D camera "The World's Smallest and Lightest Digital SLR Camera." We call it one of the best packages for underwater use we've ever offered. Enjoy the responsiveness, razor-sharp image quality, and creative control of a DSLR in a truly miniaturized package essential for streamlined air travel.
Base Price $
Price as Configured $
Overview / Product Description
True TTL Exposure
TTL or "Through-The-Lens" flash metering means the camera controls flash duration to properly expose an image. Unlike fiber optic systems, which attempt to copy the behavior of the camera's built-in flash, this unique housing for the Canon EOS 100D Rebel SL1 provides direct, electrical transmission of this TTL signal to the strobe*.
Since the camera is talking directly to the strobe, the camera's built-in flash does not need to fire. This dramatically increases battery life and virtually eliminates the recycle lag, allowing the camera to be triggered in more rapid succession than with optical-based systems. When shooting a fast moving object, this make the difference between going home with the shot or just talking about it. Additionally, in-line communication between the strobe and the camera completely eliminates signal interference and false triggering caused by light rays bouncing off the water's surface or your buddy's flash going off.

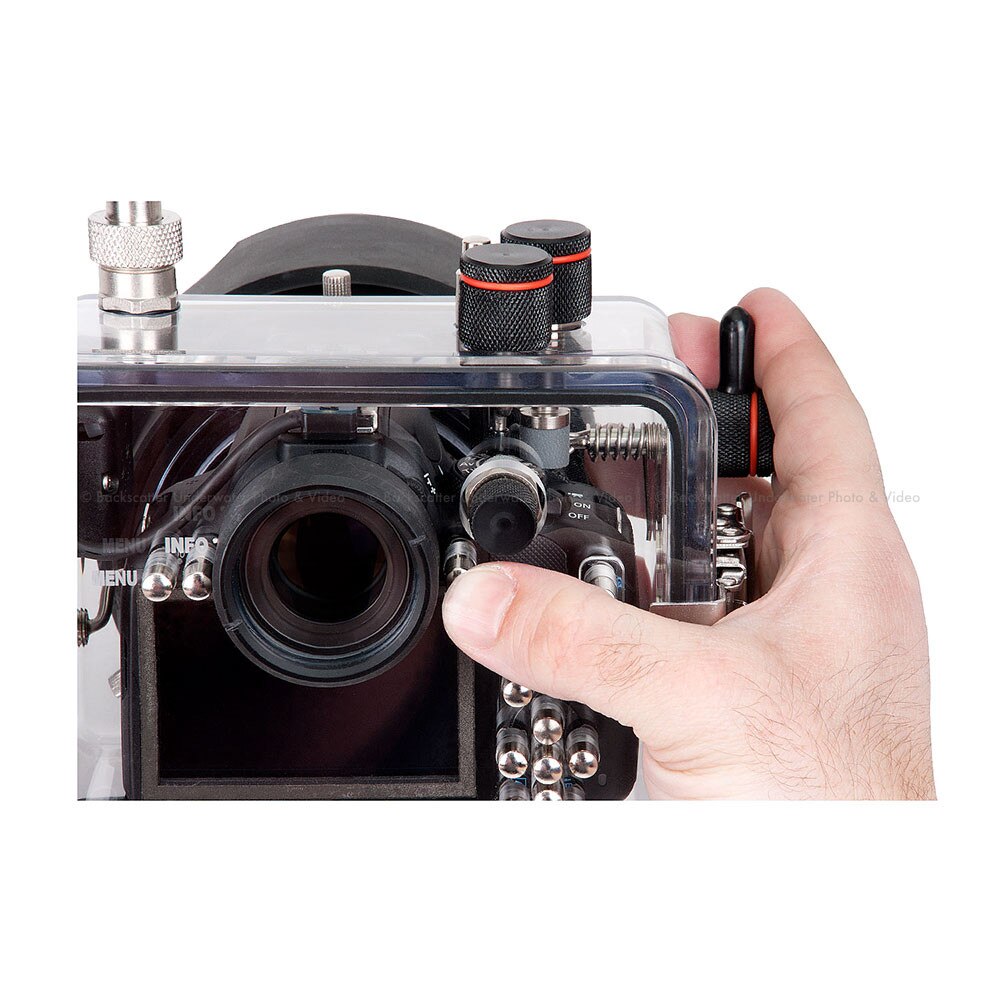

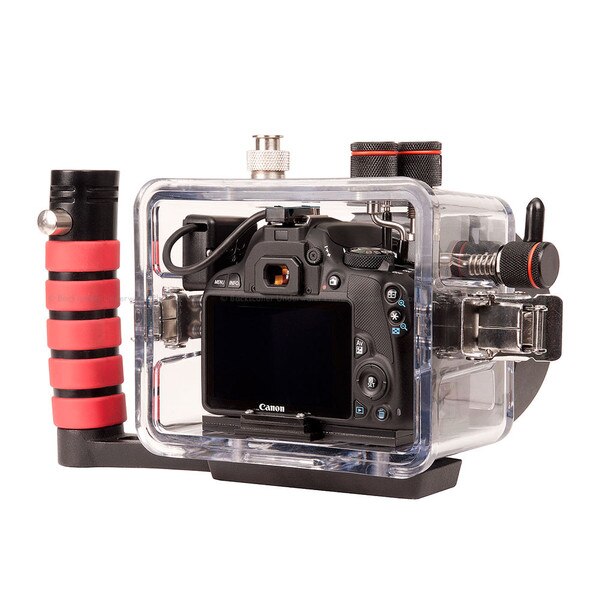

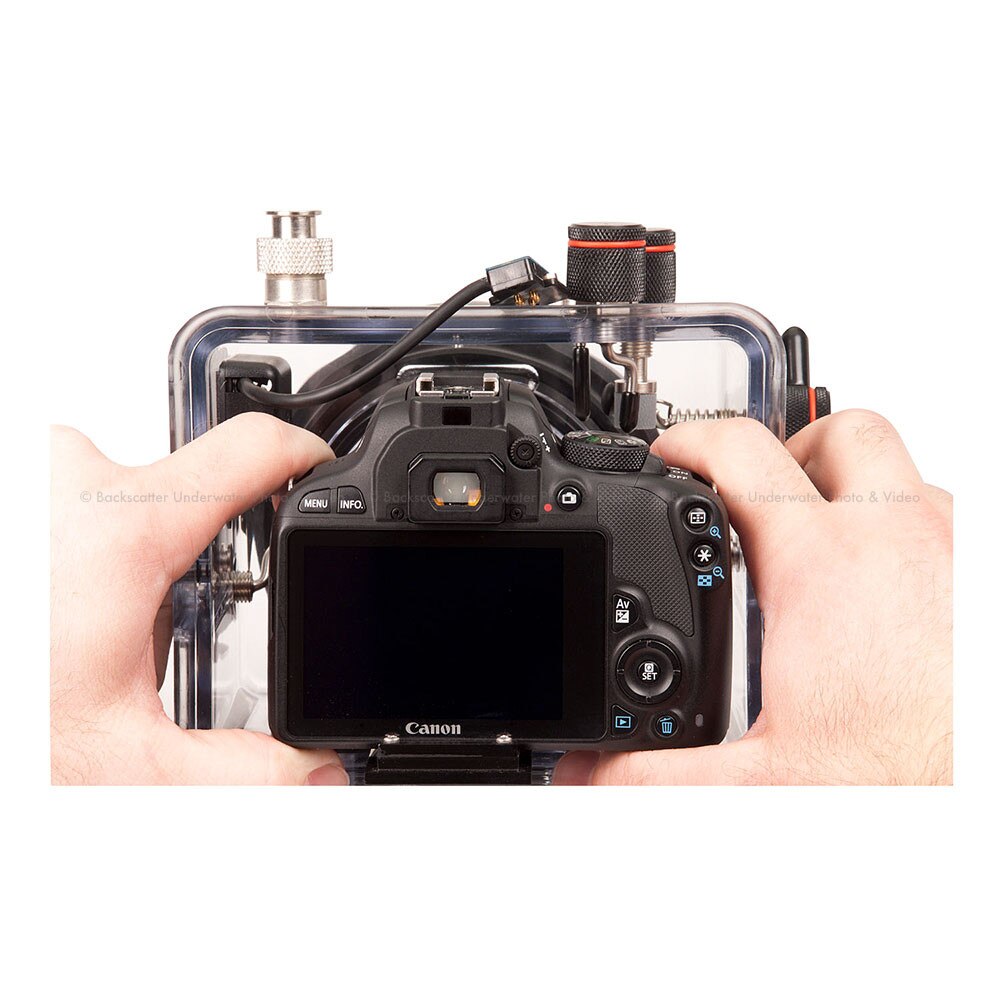

We've packed a lot in a small package, only slightly larger than the EOS 100D camera and just as comfortable to hold. Set up is a snap with simple, fully front-loaded camera installation. The camera mounting shoe is designed to be unobtrusive and allow changing of battery and memory cards, or attachment to a surface tripod without being removed from the camera. A smooth-action, sensitive shutter trigger is right at your fingertips whether holding the side of the housing or the optional dual tray with quick release handles. Controls are provided for all camera functions except for the rear touchscreen, so you have complete creative control anywhere you go. For a system of this caliber, a tray with handle is essential to good handling, balance underwater, and attachment of external lighting. The complete handle assembly removes with just two nut for traveling.

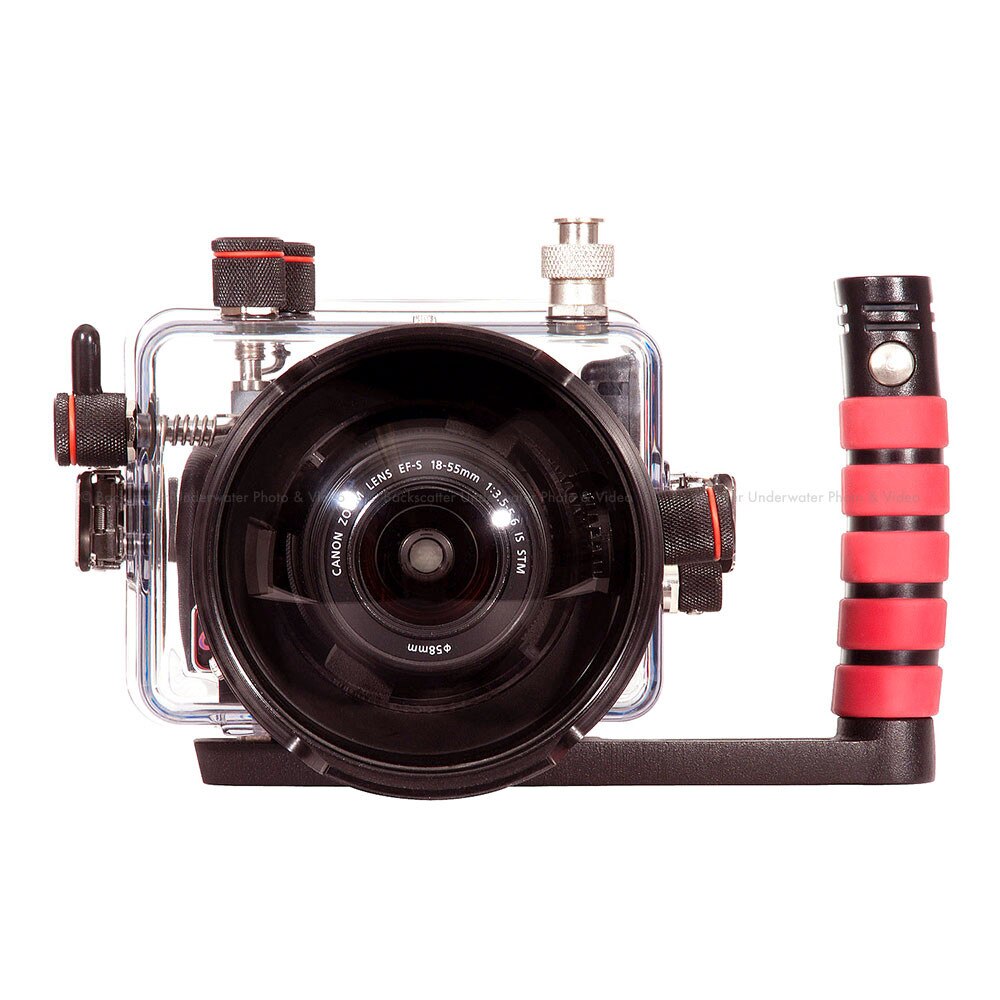

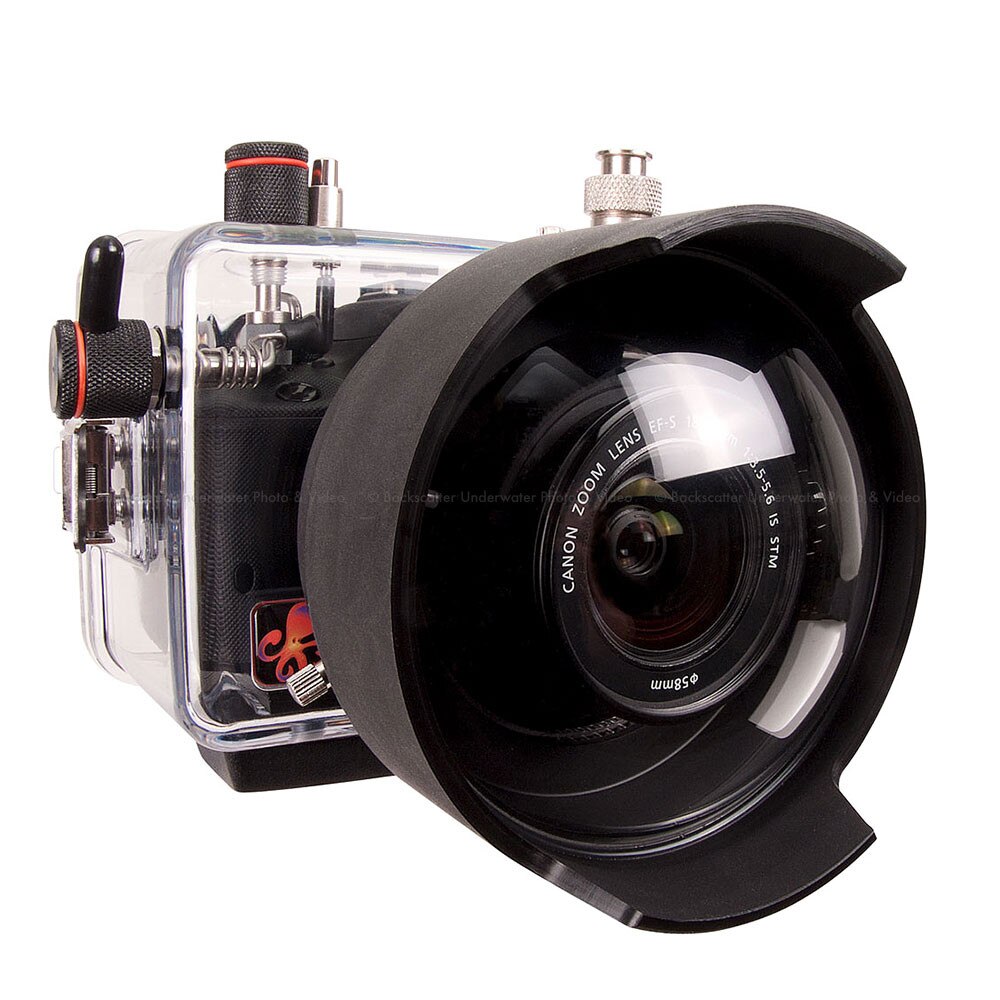

This housing comes standard with a optical grade acrylic dome port with zoom ring. This port provides sharp images and zoom capabilities with both the Canon EF-S 18-55mm STM kit lens, plus the popular Tokina 10-17mm lens. Minimal vignetting (dark shadows in the corners of the image) will be present in the 10-12mm range when used the Tokina lens. A special zoom gear system allows the camera with lens attached to be installed from the back of the housing, without requiring removal of the dome port.
The dome port may be removed without tools to attach the optional Flat Port for the Canon EF-S 60mm Macro lens. Simply loosen the securing thumb screws and slide the port off. The optional Flat Port allows use of the 60mm Macro lens in auto-focus mode and features 67mm front threads for the optional attachment of macro converter wet lenses.
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. We believe there's no substitute for inspecting the actual o-ring seal once your housing is closed. Our signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.
Like every Ikelite product, this housing is designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We pride ourselves in being readily available to help our customers with any need. We back our products with over 50 years of experience and the best service in the dive industry.

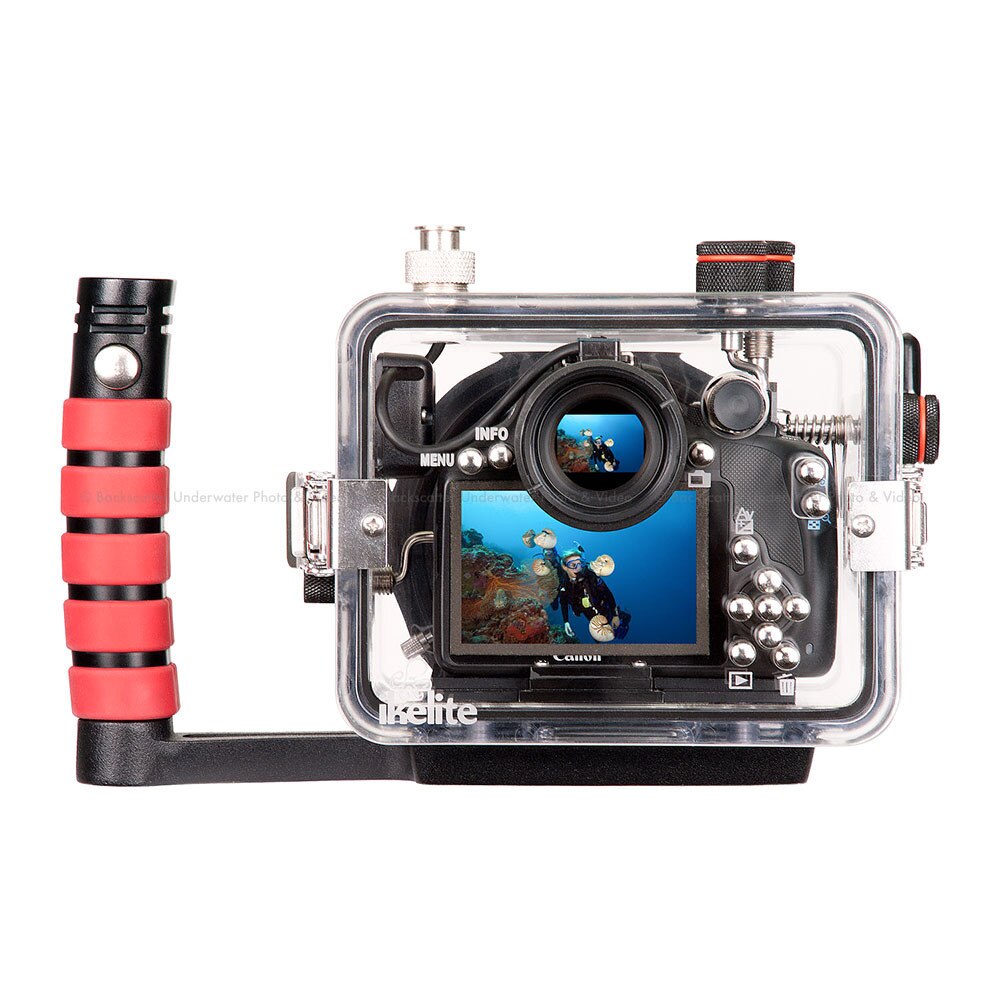

- Controls: All camera controls except rear touch screen
- Buoyancy: Nearly neutral in salt water
- Depth Rating: 200 ft (60 m)
- Strobe Connection: Ikelite Digital TTL ICS-5 5-pin Electrical Bulkhead plus TTL circuitry compatible with current model Ikelite DS strobes
- Use Built-in Flash: No
- Housing Dimensions: 6.4 x 7.5 x 5.9 in (164 x 189 x 150 mm)
- Dome Port Dimensions: 5 x 5.9 x 3.3 in (127 x 151 x 85 mm)
- Housing Weight: 3 lb 3 oz (1.4 kg)
- Dome Port Weight: 13 oz (376 g)
- Tray & Handle Weight: 11.5 oz (327 g)
- Main O-Ring: 0110
- Tray with Quick Release Handle
- Dome Port with Zoom Sleeve
- Waterproof Bulkhead Cap
- Spare Port O-Ring
- Spare Thumbscrews
- Silicone Lubricant
- Spare Parts:
- 0184.2 Silicone Lubricant 2cc Re-closable Tube
- 9104.5 Waterproof Bulkhead Cap
