Ikelite Nikon D810 Underwater Housing 200DL
Ikelite Nikon D810 Underwater Housing 200DL
SKU: # ike-71009
Add a Vacuum System
Add an Expanded Viewfinder
Add a Right Handle
Add 1-inch Ball Adapters
Add the Ikelite Trim Weight System
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
Ikelite 200DL Underwater Housing for Nikon D810 DSLR Camera
Featuring the new Dry Lock (DL) port system. Vacuum valve included. TTL converter sold separately. Lens port and zoom gear sold separately.
This popular model has been completely re-designed from the ground up to include all of Ikelite's latest improvements.

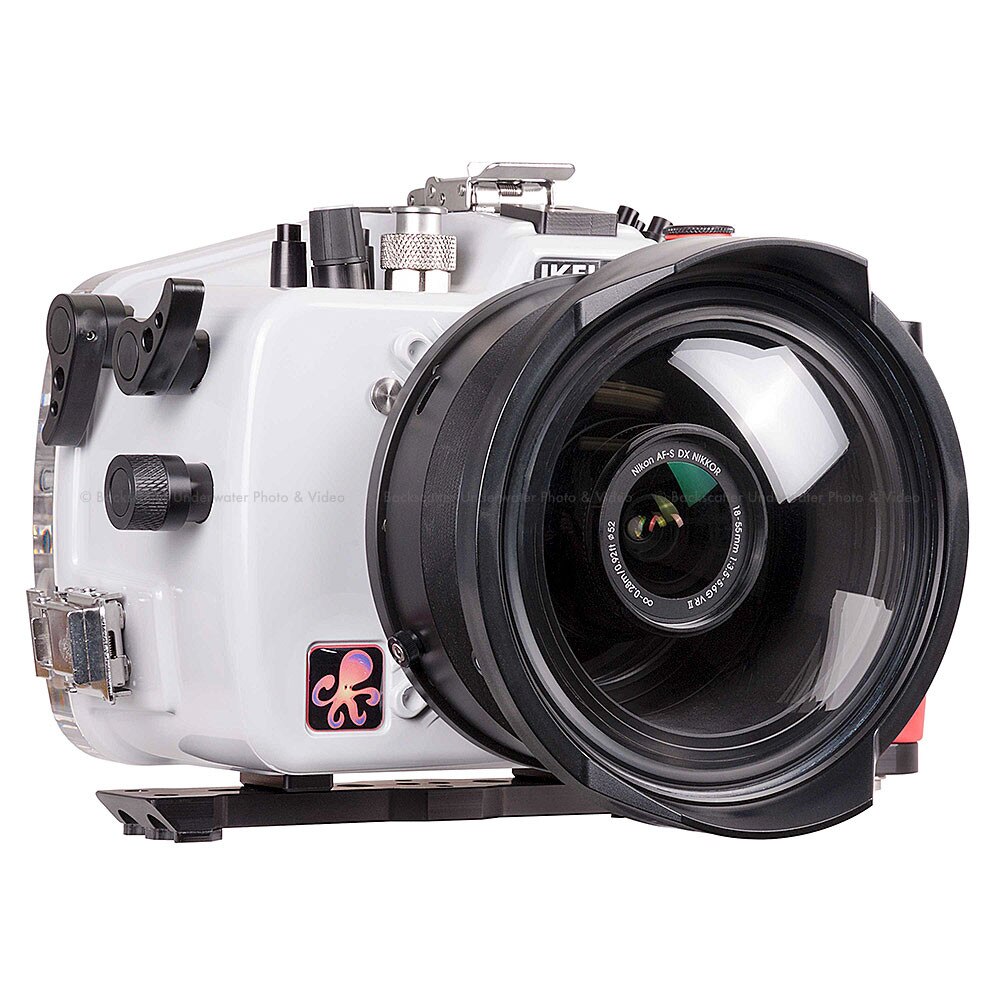

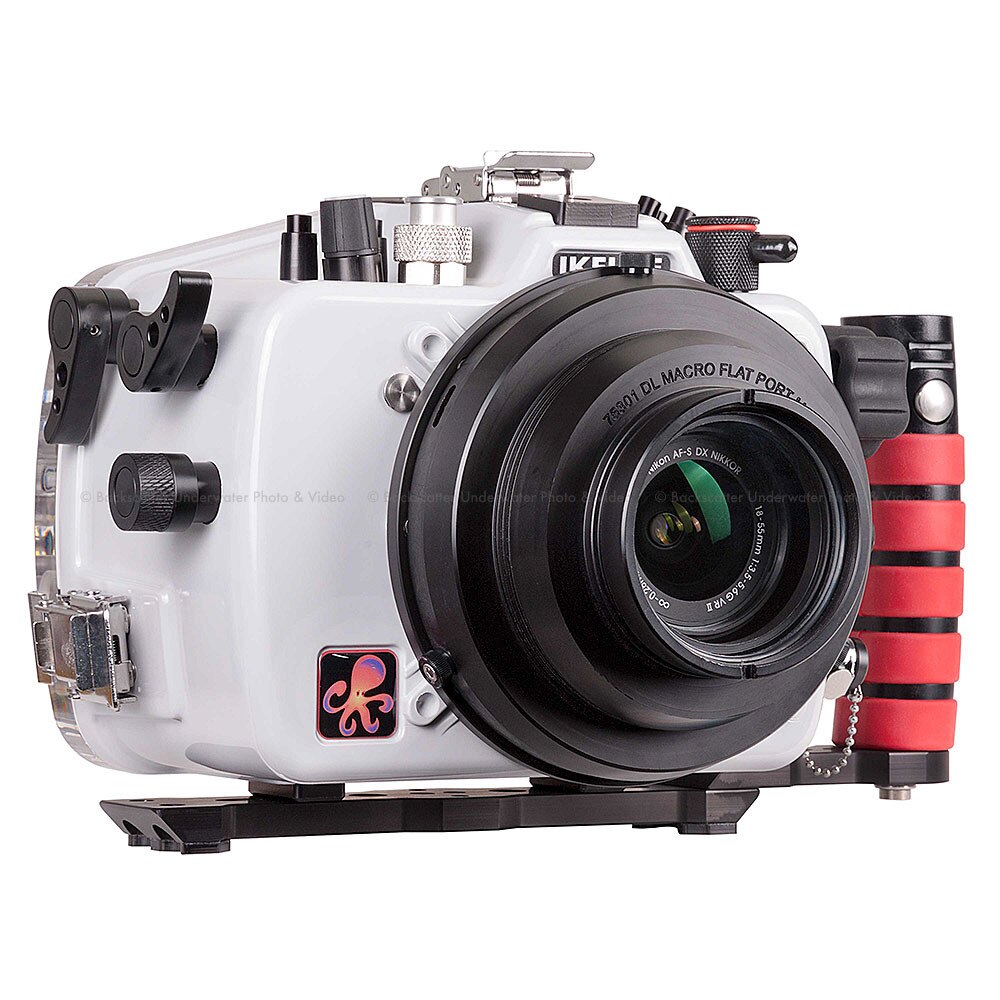

Lens PortsThe single most important upgrade is Ikelite's long awaited new Dry Lock (DL) port system. This exciting new system is even more robust and even easier to assembly than Ikelite's time-tested Four Lock (FL) system. The new ports are lighter and more adaptable, and can accommodate extremely large diameter lenses with ease. If you're considering shooting professional quality lenses like the Nikon 14-24mm or Sigma 10-20mm HSM, then the DL system is essential.
Most popular zoom lenses and select lens focus rings can be engaged using a simple yet effective gearing system that puts adjustment right at your fingertips. A large, soft-touch lobed knob on the side of the housing makes fine tuned adjustments a breeze. Zoom and focus gears differ depending on which lens you are using. All are lightweight and affordable. Refer to the DL System Port Chart to choose the correct gear. Zoom gears sold separately.

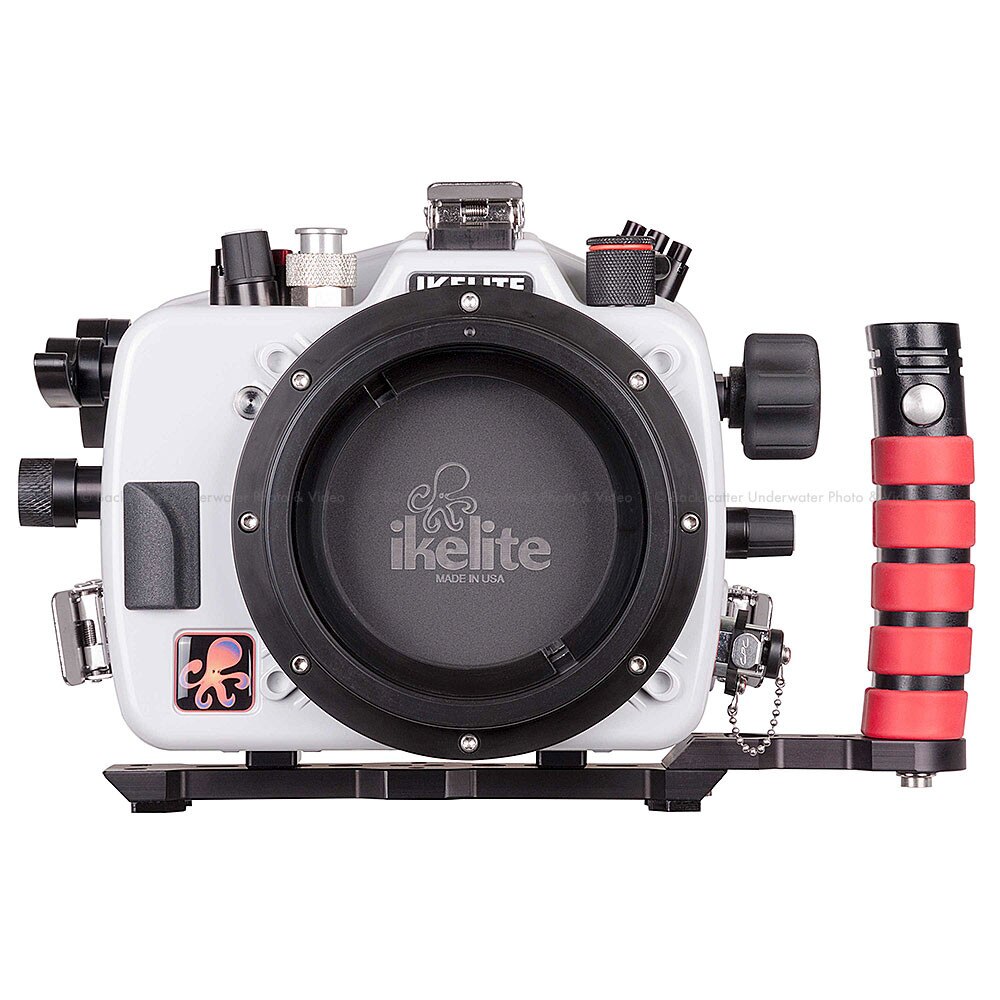

Due to differences in mount diameter and zoom engagement, DL and FL system ports cannot be used interchangeably. The DL port mount may be removed and replaced with old style port locks for legacy users with standard or modular ports from Ikelite's Four Lock system. This modification will prevent the use of newer DL ports. The housing cannot be converted back and forth repeatedly. Re-installation of the DL port base will require the housing to be returned to Ikelite or an Authorized Dealer and may incur additional service charges.
Vacuum SystemThe included vacuum valve allows you to vacuum test the housing to check for leaks prior to putting your expensive equipment in the water. Combined with a full view of the camera and o-ring seal through the back of the housing, there is no greater assurance that your gear will be safe. Ikelite's signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge # 47011, sold separately.
TTL ExposureThis housings supports your choice of shooting all manual or adding a TTL converter depending on your application. The flash bulkhead has been moved to the top of the case for improved cord routing and reduced strain. Reliable locking connectors between the hotshoe and bulkhead make it easy to install the optional TTL hotshoe or carry back up parts when traveling to remote locations.
You can still enjoy the fastest and most accurate TTL exposure on the market by adding the NT2 Nikon TTL hotshoe # 46064, Nikon TTL Converter with Ikelite plug # 4301.3, and a compatible Ikelite DS strobe. Exposure compensation can be used added or subtracted in the camera.
Controls and Set-UpWe've upgraded the shutter and AF-ON levers to a more natural feeling curved design. Both controls can optionally be extended using the Shutter Trigger Extension # 4077.93 for more comfortable use when using a right-hand quick release handle. If you're not already using back button focus, Ikelite recommends learning this valuable trick.

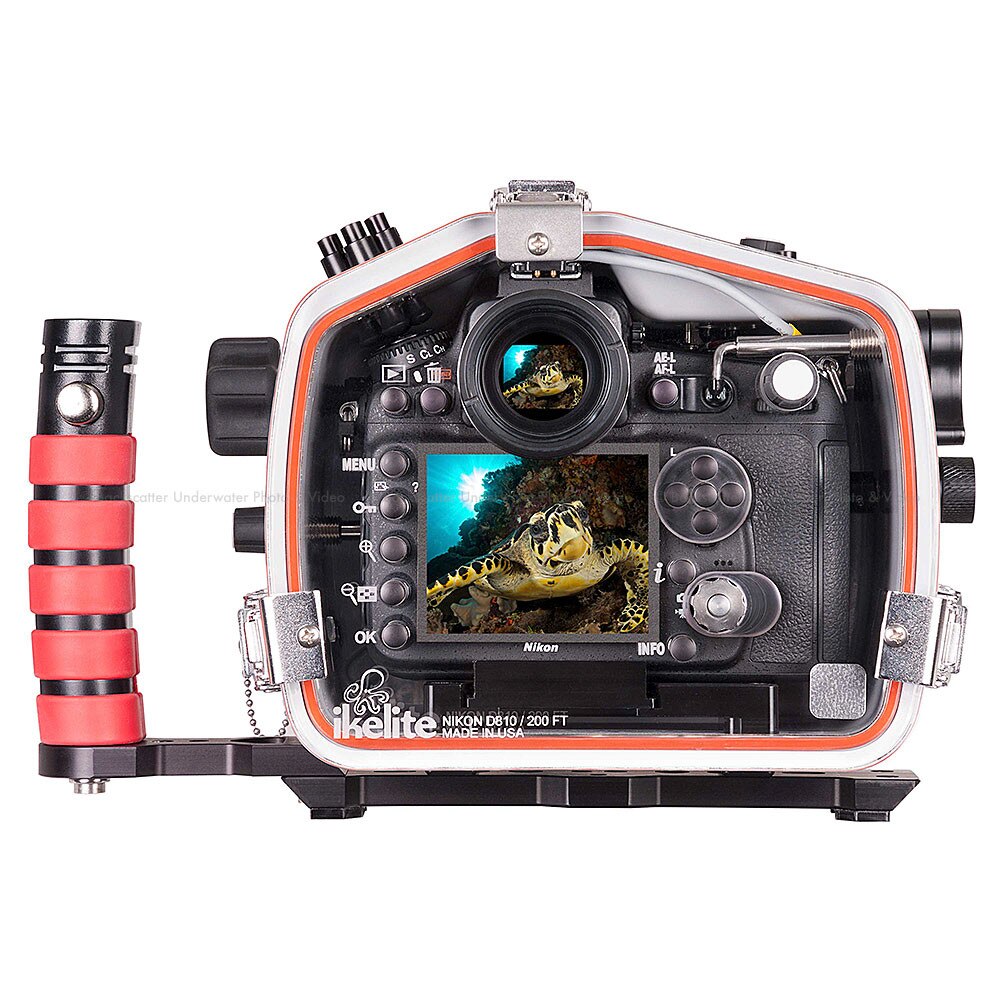

Ikelite's push buttons have been redesigned to reduce weight and salt build-up. The back of the housing features laser engraved control symbols which will never fade or fall off.
The camera mount is now front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.
ViewfindersThe included Supereye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask. The viewfinder removes quickly and easily for the attachment of an optional Straight Magnified Viewfinder # 6890 or 45° Magnified Viewfinder (Type 1) # 6891.1.
Handling & TravelOverall the housing is over 1/2 pound lighter than its former FL counterpart (housing model # 6812.81). If you're shooting an 8" diameter dome, you'll save almost 2 pounds by using the DL version instead.

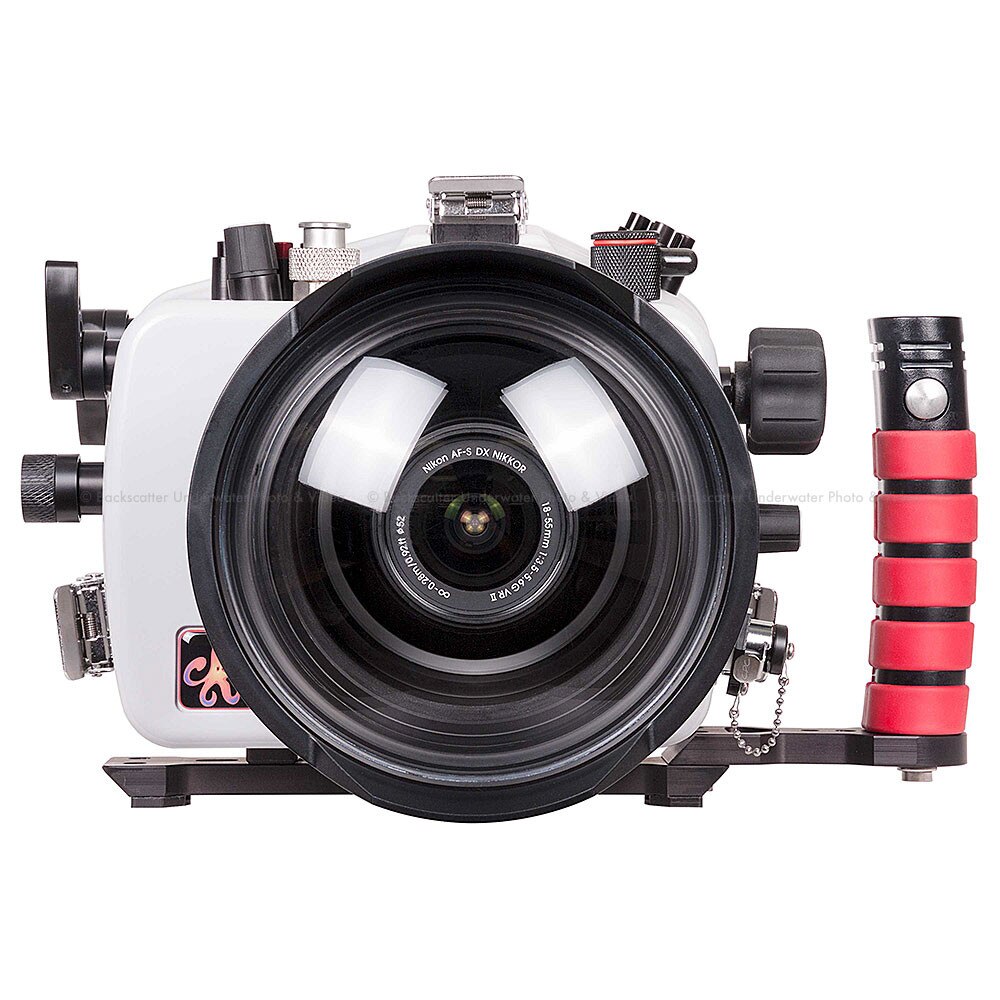

Ikelite's new hard anodized aluminum base with quick release handle has also been streamlined for travel and is over 3/4 pound lighter than Ikelite's previous DSLR tray and handle system. The Right-Hand Quick Release Handle # 4077.02 (sold separately) can be added or removed depending on how you want to shoot. The precision machined aluminum base features 1/4-20 tripod mounting sockets and additional mounting locations for future accessories. Plus, the base and handle can be quickly removed when breaking down your system for travel.
A 1/4-20 threaded mounting point is located front and center on the housing above the lens port mount. This mount can be used to attach lightweight accessories like a focus light or GoPro camera.
If you're shooting with two strobe or lighting arms, then a top handle can be added to make the system easier to carry to and from the dive site. Top handles are available in a Cable Grip # 4080.07 or Aluminum Top Handle # 4080.08. The rigid aluminum version provides additional mounting points for lighting and accessories.
ConstructionIkelite's new white ABS-PC blend front is stronger than its clear counterpart, provides improved contrast and visibility, and keeps your camera running cooler in the sun.
Like its predecessor and all of Ikelite's housings, this product is made in the USA, individually inspected for fit, and water pressure tested to 200 feet (60m).
Camera CompatibilityThis housing is only compatible with the Nikon D810 as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other DSLR models from being used in this housing. Ikelite is not aware of any other models which may be used in or adapted to this particular housing.
TTL ExposureInstall optional NT2 Nikon TTL Hotshoe # 46064 and attach the Nikon TTL Converter # 4301.3 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the TTL Converter and hotshoe installed, but will not provide TTL exposure. Single Strobe Cord # 4103.51 / Dual Strobe Cord # 4103.52
Non-Ikelite StrobesSea & Sea, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe. Single INON or Sea & Sea Strobe Cord # 4118.1 / Dual INON or Sea & Sea Strobe Cord # 4118.2 / Single Nikonos SB Strobe Cord # 4116.31 / Dual Nikonos SB Strobe Cord # 4116.32
Ikelite Non-Digital StrobesOlder non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes. Single Strobe Cord # 4103.51 / Dual Strobe Cord # 4103.52
Fiber OpticFiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.
Remote TriggeringStrobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4403 or the Water Wizard system (manufactured and sold by Aquatica).
- Underwater Housing
- Rear O-Ring # 0132.61
- Front O-Ring # 0132.45
- Base with Left-Hand Quick Release Handle # 4077.67
- Port Hole Cover # 0200.92
- Zoom Gear Retainer # 75900
- Tool for Zoom Gear Retainer # 0945.06
- Waterproof Bulkhead Cap # 9104.5
- 1/16" Hex Key # 0945.16
- 1/8" Hex Key # 0945.18
- Control + Push Button Tip Assortment # 9249
- Silicone Lubricant 1cc Tube # 0184.2
- 200' (60m) depth rating
- Controls are provided for all important camera controls; Controls are not provided for Release mode dial, Release mode dial lock release, Diopter adjustment control, Eyepiece shutter lever, Pv button, Fn button, Focus-mode selector, BKT button, Focus selector lock
- 1/4-20 thread base mounts with 3.5" spacing
- Near neutral buoyancy in fresh water
- Actual buoyancy varies depending on choice of lens and port
- Weight 4.9 lb (2.2 kg) not including tray + handles
- Dimensions 9.1 x 7.0 x 6.5" (231 x 178 x 165 mm) including projections
- 0132.61 - Rear o-ring
- 0132.45 - Front o-ring
- 9104.5 - Waterproof bulkhead cap
- 0184.2 - Silicone lubricant resealable 2cc tube
