Canon EOS R100 APS-C Mirrorless Camera

• 24.1 Megapixel CMOS (APS-C) sensor
• DIGIC 8 processor
• Dual Pixel CMOS AF
• 6.5 fps Continuous shooting
• Creative Filters and Creative Assist
• 4K (cropped) movie at up to 24 fps and Full HD movie at up to 60 fps

Turn Moments into Memories

Experience the fun of RF mount content creation with the smallest and lightest EOS R series camera1, the Canon EOS R100. Excellent still-image capabilities start with its 24.1 Megapixel APS-C size CMOS Image sensor and DIGIC 8 processor, along with Dual Pixel CMOS AF with the ability to detect human faces and focus on their eyes. The EOS R100 also can record Full HD video at up to 60 frames per second, and detailed, high-res 4K from the central area of the sensor at 24 frames per second.

24.1 Megapixel (APS-C) CMOS Sensor

The EOS R100 is equipped with a 24.1-million-pixel CMOS (APS-C) image sensor and DIGIC 8 Image Processor. With a significantly larger sensor size than many smartphones, this camera can capture images with natural bokeh for beautiful background blur, great color, and low noise. Images look stunning even when enlarged, with fine details reproduced with clarity.

Capture Bright Images Indoors without Flash Taking advantage of its sensor size, the EOS R100 can take high-sensitivity and low-noise images that capture the atmosphere, even in low-light conditions. That way you can take images at fast shutter speeds to minimize capture shake and subject blur.

Dual Pixel CMOS AF and Eye Detection AF

Dual Pixel CMOS AF provides fast, accurate autofocus that helps you get the photo you want right as the moment happens. The EOS R100 features an expansive focus area that covers up to approximately 88% horizontal and 100% vertical of the picture area, breaking the image up to 143 AF area zones during auto selection. With the EOS R100, you can easily capture your subject quickly with the Eye Detection AF — allowing you to shoot even when the subject is far away. Eye Detection AF can also be used when the subject's full body is in frame, to lock on the eyes from a further distance.

Continuous Shooting

Capture those can’t-miss moments with up to 6.5 shots per second continuous shooting when set to One-Shot AF. This allows you to capture those momentary changes in facial expressions that are easy-to-miss.

Creative Assist and Creative Filters

Take photos in your style with similar intuitive usability of a smartphone app with the EOS R100. Creative Assist allows you to take on the challenge of image creation while in Auto Mode by changing settings such as “background blur,” “brightness,” and “saturation” easily and in real time on the Live View screen.

Creative Filters on the EOS R100 allows you to select various effects from your favorite filters just like a smartphone app during shooting or playback, so you can easily capture impressive photos to share!

Silent Mode for Quiet Operation

Capture life’s moments without worrying about distracting them with Silent Mode on the EOS R100. Whether you are at your child’s recital, or your newborn baby is sleeping, the camera’s Silent Mode ensures you don’t startle your subject by enabling capture with virtually no shutter sound and preventing flash.

High-Definition Video

With the help of the 24.1 Megapixel CMOS (APS-C) sensor, the EOS R100 can record high-quality 4K movies at up to 24 frames per second, or Full HD movies at up to 60 frames per second. By pairing the camera with a variety of RF lenses, you can express yourself by capturing videos with blurred backgrounds, in dark settings, or using various techniques that would be challenging with smartphones.

Smooth Slow-Motion Videos

HD movies can also be recorded at a high-frame rate of approx. 120 frames per second — ideal for smooth, slow-motion playback of videos. Designed to capture fun, beautifully detailed videos, the EOS R100 helps ensure you don’t miss any of the unique expressions of your friends’ or family's faces.

Compact, Lightweight Body

The EOS R100 camera is the smallest and lightest camera in the EOS R series. Although it is compact and lightweight, the camera features a grip that provides a professional feel and steady hold while shooting. Whether for travel, everyday snapshots, or long-lasting still image or video shoots, you can easily enjoy taking it anywhere.

Precise Electronic Viewfinder

The EOS R100 is equipped with a high-precision 0.39-inch OLED (Organic Light-Emitting Diode) EVF with approx. 2.36 million dots which displays a bright image and extensive shooting information. The EVF has been designed to provide a bright, sharp, and colorful approximate 100% view of the subject at hand.

Built-in Bluetooth Capability

Bluetooth pairing helps you connect the camera to compatible smart devices using the free Canon Camera Connect app. This low-energy wireless connection helps preserve battery life while providing remote control of the camera. It also sends continuously updated GPS location data from your phone, letting you geotag what you've captured so you know precisely where you captured the photo.

Built-in Wi-Fi Capability

Enable wireless functions, such as remote live view, file viewing and transfer, by connecting to Wi-Fi quickly and seamlessly. Using the Canon Camera Connect app, you can also transfer files to your compatible mobile device to browse and share on social media.

Supercharge Your Stop Motion Animation

Stop Motion Animation firmware increases your Live View resolution to 1920x1280 from Canon’s normal of 960x640 when connecting to compatible stop motion animation software, like Dragonframe. This makes it easy for animators to confirm focus and movement within every frame. Other features include Live View Manual Focus Peaking, Focus Position Memory, and Aperture Lock.

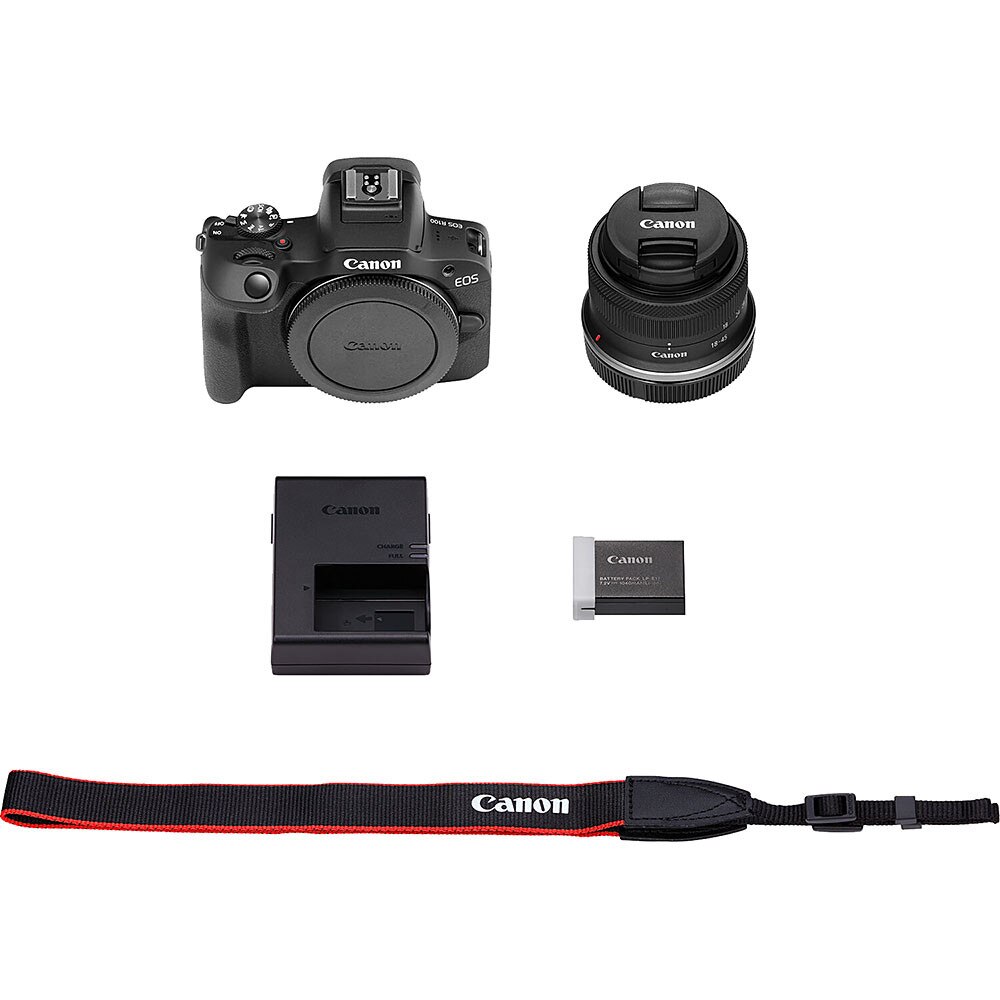

In The Box

• EOS R100 Body
• Camera Cover R-F-5
• Neck Strap EM-200DB
• Battery Charger LC-E17
• Battery Pack LP-E17
• Battery Pack Cover

Technical Specifications

Type

• Type: Digital interchangeable lens, mirrorless camera
• Image Processor: DIGIC 8
• Recording Media: (One) SD card slot
• Compatible with UHS-I
• Eye-Fi cards and Multimedia cards (MMC) are not supported.
• Lens Mount: Canon RF mount
• Compatible Lenses: Canon RF lens group (including RF-S lenses)

Image Sensor

• Type: APS-C CMOS sensor (compatible with Dual Pixel CMOS AF)
• Effective pixels: Approx. 24.1 megapixels
• Screen Size: Approx. 22.3×14.9 mm
• Pixel Unit: Approx. 3.72 µm square
• Total Pixels: Approx. 25.8 megapixels
• Aspect Ratio: 3:2 (Horizontal: Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: Not provided
• Dust Deletion Feature:
• Self Cleaning Sensor Unit not provided.
• Manual cleaning (by hand) not supported.
• Dust Delete Data acquisition and appending
• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
• The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.

Recording System

• Recording Format: Compliant to Design rule for Camera File system 2.0 and Exif 2.31 - Supports time offset information
• Image Format:
• JPEG (.JPG), RAW, C-RAW (.CR3) - HEIF not supported.
• Movies: ALL-I (Time-lapse video only), IPB (Standard) (.MP4) - IPB (Light) not supported.
• RAW + JPEG / HEIF Simultaneous Recording: Simultaneous recording of any combination of RAW/C-RAW images and JPEG images is supported.
• Color Space: Selectable between sRGB and Adobe RGB
• Picture Style:
• Auto
• Standard
• Portrait
• Landscape
• Fine Detail
• Neutral
• Faithful
• Monochrome
• User Defined 1-3
• * Picture Style files can be registered to user-defined settings 1-3.

White Balance

• Settings:
• Auto (Ambience priority/White priority)
• Day Light
• Shade
• Cloudy
• Tungsten light
• White fluorescent light
• Flash
• Custom (Custom WB)
• Color temperature
• Auto White Balance: Option between ambience priority and white priority settings, using SET button
• White Balance Shift:
• Blue/amber bias: ±9 levels
• Magenta/green bias: ±9 levels

Viewfinder

• Type: OLED color electronic viewfinder; 0.39-inch, approx. 2.36 million dots
• Coverage: Approx. 100% (at JPEG Large image quality, 3:2 aspect ratio, approx. 22 mm eyepoint)
• Magnification / Angle of View: Approx. 0.95×/28.0° (3:2 aspect ratio, with 50mm lens at infinity, –1 m–1)
• Eye Point: Approx. 22 mm (at –1 m–1 from eyepiece lens end)
• Dioptric Adjustment Range: Approx. –3.0 to +1.0 m–1 (dpt)
• Viewfinder Information: Users can customize and select whether to use the following three display elements.

Autofocus

• Focus Method: Still photo shooting: Dual Pixel CMOS AF
• Number of AF zones available for Automatic Selection:
• AF area: Horizontal: Approx. 88% x Vertical: Approx. 100%
• Stills: Max. 143 zones (13×11)
• Movies: Max. 117 zones (13×9)
• Selectable Positions for AF Point:
• AF area: Horizontal: Approx. 88% x Vertical: Approx. 100%
• Stills: Max. 3975 positions (75 × 53)
• Movies: Max. 3375 positions (75 × 45)
• Focusing brightness range (still photo shooting): EV –4.0 to 20 (With an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100)
• Focusing brightness range (movie recording): EV –2.0 to 20 (With an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100) * Except RF lenses with a Defocus Smoothing (DS) coating
• Available AF Areas
• Face+Tracking AF
• Spot AF
• 1-point AF
• Zone AF
• Available Subject Detection: People / Eye
• Eye Detection
• Auto: The eye closer to the camera is selected (as detected from the angle of the face).
• Changed Manually: Other eyes can be selected with the left and right cross keys after pressing the AF point selection button. Faces are selected when another subject’s eyes cannot be detected.

Exposure Control

• Metering Modes: 384-zone (24×16) metering using image sensor output signals
• (1) Evaluative metering (AF point-linked)
• (2) Partial metering (approx. 5.8% of the area at the center of the screen)
• (3) Spot metering (approx. 2.9% of the area at the center of the screen)
• (4) Center-weighted average metering
• Metering Range: Still Photo Shooting: EV -2 to 20 - Movie Recording: EV 0 to 20
• Exposure Modes:
• Still Photo Shooting:
• Scene Intelligent Auto
• Hybrid Auto
• Special Scenes
• Creative Filters
• Program AE
• Shutter-priority AE
• Aperture-priority AE
• Manual Exposure
• Bulb Exposure
• Movie Recording:
• Movie auto exposure
• Movie manual exposure

Shutter

• Type:
• Electronically controlled focal-plane shutter
• Rolling shutter, using the image sensor
• Shutter Speed / X-sync Speed:
• Creative Zone: 1/4000–30 sec., Bulb
• Basic Zone: 1/4000–1 sec.
• Maximum flash sync speed: 1/250 sec.
• Shutter Release: Soft-touch electromagnetic release
• Self Timer: 10-sec. delay, 2-sec. delay, Continuous

External Speedlite

• Accessory Shoe: Conventional accessory shoe
• E-TTL balance: Not supported
• Flash Exposure Compensation: ±2 stops (in 1/3-stop increments)
• Continuous flash control: Not supported

Video Shooting

• Video AF:
• Full HD or HD movie recording: Dual Pixel CMOS AF
• 4K movie recording: Contrast AF
• Time Code: Not supported
• Movie Pre-recording (On/Off): Not supported
• Time-lapse Playback Frame Rate: 29.97 (set to NTSC); 25.00fps (set to PAL)

LCD Screen

• Type: TFT color, liquid-crystal monitor
• Monitor Size: 3.0-inch (screen aspect ratio of 3:2)
• Dots: Approx. 1.04 million dots
• Coverage: Approx. 100% vertically/horizontally
• Brightness Control: Manually adjustable in a range of 1–7
• Touch-screen Operation: Not provided
• Coating: Anti-smudge & Anti-reflection coating not provided.
• Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

• Highlight Alert: Yes
• Histogram: Brightness / RGB

Quick Control Function

• Function: The Quick Control screen can be accessed by pressing the Quick Control button during still photo shooting, movie recording, or playback.
• Quick Control Screen: Displayable - Only the conventional Quick Control screen

Image Protection and Erase

• Protection: Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images
• Erase: Select and erase images / Select range / All images in folder / All images on card / All found images

Direct Printing

• Wireless Connections: Images can be sent via Wi-Fi to a PictBridge-compatible (wireless LAN) printer and printed.

DPOF: Digital Print Order Format

• DPOF: Compliant to DPOF Version 1.1

Wi-Fi

• Supporting Standards: Equivalent to IEEE 802.11b/g/n Standards
• Transmission Method:
• DS-SS modulation (IEEE 802.11b)
• OFDM modulation (IEEE 802.11g/n)
• Transition Frequency (Central Frequency)
• 2.4 GHz band
• Frequency: 2412 to 2462 MHz
• Channels: 1 to 11 channels
• 5.0 GHz band: Not supported
• Connection Method:
• (1) Camera access point mode
• (2) Infrastructure mode
• Communication with a Smartphone
• Images can be viewed, controlled, and received using a smartphone
• Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
• Images can be sent to a smartphone.
• NFC connection: Not supported
• Supported images: JPEG, RAW/C-RAW, MP4 video files
• Transcoding while sending: Size to send (original / reduced size); Quality to send (original / compressed)
• Remote Operation Using EOS Utility: The camera can be controlled via Wi-Fi or USB, with Canon EOS Utility software installed in a compatible Mac or Windows computer.
• Print from Wi-Fi Printers: Supported.
• Send Images to a Web Service
• image.canon: Video files (MP4) and JPEG, RAW or C-RAW still images can be uploaded to image.canon servers. From image.canon, images can be sent to specific social media and 3rd-party cloud image services.

Bluetooth

• Standards Compliance: Bluetooth Specification Version 4.2 compliant (Bluetooth Low Energy technology)
• Transmission Method: GFSK modulation
• Bluetooth Pairing: Smartphone — up to 10 devices; BR-E1 remote controller — 1 unit

Customization

• Available Functions: Customize buttons
• Customize Buttons: Functions can be assigned to the following camera controls.
• Shutter button (half-press)
• Exposure compensation button
• AE lock button
• ISO speed setting button
• Flash button
• Movie shooting button
• Drive mode button
• Customizable Dials: Customize control ring supported.
• My Menu Registration: Please click here for full specifications.

Video Calls / Streaming

• USB Video Class (UVC): Not supported.

Interface

• USB Terminal: Equivalent to Hi-Speed USB (USB 2.0)
• For PC communication
• Terminal type: USB Type-C
• HDMI Out Terminal: HDMI micro OUT terminal (Type D)
• Clean HDMI Output: Provided
• Microphone terminal: 3.5mm diameter stereo mini jack
• Headphone terminal: Not provided.

Power Source

• Battery: Canon LP-E17 battery pack - With the AC Adapter AC-E6N + DC Coupler DR-E18, AC power is possible (AC Adapter Kit ACK-E18 can also be used).
• Optional Battery Grip: Not supported
• Battery Check: Automatic battery check with 4-level display when the power switch is turned ON.
• Start-up Time: Approx. 0.9 sec.
• Based on CIPA testing standards.

Dimensions and Weight

• Dimensions (W x H x D): Approx. 4.58 × 3.37 × 2.71 in. / 116.3 x 85.5 x 68.8mm

Operating Environment

• Working Temperature Range: 32-104°F / 0-+40°C
• Working Humidity: 85% or less
