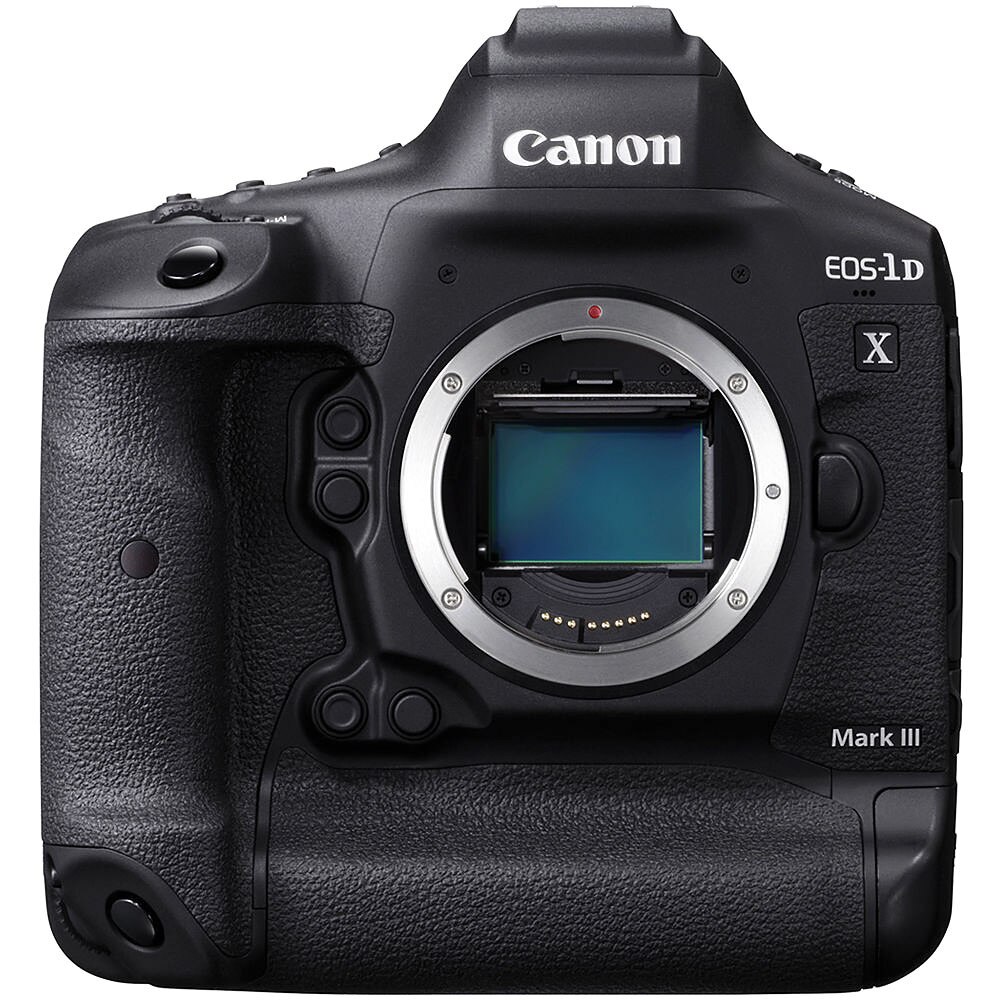

Canon EOS-1DX Mark III Pro DSLR Camera

A Totally New EOS-1D X

A new concept in Canon AF sensors. The fastest, most durable Canon shutter yet. Innovative DSLR mirror control. A DIGIC processor so powerful it replaces dual processors in the previous camera. A completely new imaging sensor. And the most powerful video features to date in an EOS DSLR. The EOS-1D X Mark III is a totally new camera.

• 20.1 Megapixels
• Full Frame CMOS
• ISO Up To 102,400
• DixicX Processor
• Up To 20 Frames Per Sec
• 5.5K Video

The ultimate EOS is here, making way for a new era in autofocus speed, accuracy and precision - the EOS-1D X Mark III. Offering the highest level of performance an EOS DSLR has ever possessed, the EOS-1D X Mark III changes the game for serious photographers around the world, boasting a powerful new 20.1 Megapixel Full-frame CMOS sensor, combined with a cutting-edge new DIGIC X image processor, for truly outstanding stills and video. Track subjects with incredible focus using the new 191-point AF system - including innovative new Head Detection AF technology (EOS iTR AF X) - along with faster continuous shooting speeds of up to 16 fps with the viewfinder and up to 20 fps in Live View mode. The EOS-1D X Mark III is also our most powerful DSLR for video to date, equipped with 4K 60p video capability, plus the option to shoot 5.5K RAW video or 10-bit 4:2:2 video with Canon Log, recorded to a CFexpress card in either or both of the available dual card slots. And, with built-in Wi-Fi for the first time ever in an EOS-1D series, this revolutionary, dust and weather resistant camera offers the connectivity to share photos and videos with clients, colleagues or family from virtually anywhere. The EOS-1D X Mark III - raising the bar on pro DSLR quality and performance.

Not Just a New Sensor - a New Imaging System

It’s not simply a list of new components, it’s what they bring to the professional photographer. Sharper, more detailed imaging from the newly-designed, 20.1 million pixel CMOS image sensor. A new concept in Low-pass filters with 16-point separation (instead of the conventional four), combined with remarkable sharpness processing from the new DIGIC X processor, to maximize detail yet further minimize risk of false colors and moiré patterns. The widest ISO range yet in an EOS camera (ISO 100–102,400, expandable to ISO 50–819,200 equivalent), and even better high-ISO image quality than the previous version. Broad tonal range, and the option for HDR HEIF images, with even more highlight detail when displayed on HDR-compliant monitors and printers. And a new, in-camera Clarity control, for adjusting contrast in mid-tones.

Performance Starts with Autofocus

New AF power, for viewfinder shooting, Live View, and video. Through the finder, a new 191 point AF system delivers not just speed, but new AF Tracking. With Face Detection, new Head Detection technology — supported by Deep Learning — and ability to read subject shape and color, the EOS-1D X Mark III can follow subjects across the 191-point AF array like no EOS DSLR before it. There’s impressive, menu-driven control over Subject Tracking, starting with the ability to prioritize AF for people. Live View leverages proven Canon Dual Pixel CMOS AF, now with fine 525 AF zones and Eye Detect AF, and adds Servo AF for moving subjects, even at 20 FPS. The same system translates into Movie Servo AF during video recording, and can operate in low-light down to EV -6.

Speed with Endurance: The EOS-1D X Mark III

Wildlife and sports photographers, rejoice. The 1D X Mark III gives you speed and burst rates unlike any Canon EOS camera that’s come before it. Up to 16 FPS, with AI Servo AF, thru the viewfinder. Switch to Live View, and get up to 20 FPS, with Servo AF, for moving subjects. Choose between Mechanical shutter, Electronic 1st-curtatin shutter, or Electronic (silent) shutter during Live View. All up to 20 FPS. Dual CFexpress card slots. Burst Rates? Shoot over 1,000 RAW or RAW + JPEG images, at the fastest speeds, in a continuous burst, without slowing down. Experience the same outstanding responsiveness and minimal “lag time” as previous EOS-1D X models, with even less mirror black-out in the viewfinder. And behind it, newly-designed shutter and mirror mechanisms, and the DIGIC X processor — image processing speeds over 3x faster than the previous dual DIGIC 6+ processors in the Mark II model, and continuous processing potential up to approximately 380x faster. One last thing: it’s easy to dial-down the Continuous Shooting speed, in 1-FPS increments, whenever you don’t need all the performance.

Canon's Highest-Performing DSLR for Video

Leveraging the full-frame, 20.1MP image sensor, the EOS-1D X Mark III puts powerful new video abilities in the hands of demanding photographers and videographers.RAW video at 5.5K (12-bit) can be recorded right onto the CFexpress card, or to external recorders via HDMI, at up to 60p. DCI-formatted 4K or broadcast/web-ready UHD 4K video can be recorded at 24p, 30p, or 60p, —all using the width of the full-frame sensor. Cropped DCI 4K video is yet another option, as is Full HD (including High Frame Rate recording, at 120p). Canon Log can be applied to any, broadening 4K/Full HD recording to 10-bit, 4:2:2, and enhancing options for color grading in post-production. Canon’s Dual Pixel CMOS AF(including Eye Detect AF), with Movie Servo AF for moving subjects, is great for fast-paced recording. Or, use manual focus aids like on-screen Focus Guide, and/or Focus Peaking.

Live View Becomes a Viable Road to Professional Results

For still-image shooting, Live View isn’t just a “tripod mode.” It extends shooting speed up to 20 FPS — with the option of virtually silent shutter operation with Electronic shutter, full Mechanical shutter, or Electronic 1st-curtain shutter. Dual Pixel CMOS AF covers a much broader area, with up to 100% (vertical) x 90% (horizontal) possible with most current Canon EF lenses. Servo AF can follow-focus on challenging moving subjects, or lock focus One Shot AF. The same AF Area options as in viewfinder shooting are available, with the addition of a horizontal Large Zone AF setting. Set the AF Method to Face Detect + Tracking, and the same powerful Subject Tracking capabilities as in viewfinder shooting are possible. That includes the same innovative Head Detection technology as with viewfinder shooting (to put focus upon heads, when faces are obscured, or turned away), and adds Eye Detect AF. As a method for virtually silent still shooting, 20 FPS speed, or AF covering nearly the entire image area, Live View on the 1D X Mark III is a tool professionals can turn to.

The Most Durable EOS-1D X Yet

It starts where it always begins for EOS-1D series cameras: an all-metal, magnesium-alloy body, backed up by an all-metal mirror box structure. This is a massively strong camera body. Dust- and moisture-resistant gaskets and seals abound, giving the Mark III weather resistance equaling that of the highly-regarded EOS-1D X Mark II version. Inside, however, the shutter mechanism is new, designed not only for speed, but reliability even under harsh use. And the mirror box, a vital component in a digital SLR, is likewise redesigned, enhancing not only speed, but AF accuracy and even less viewfinder “black-out,” with its superb control of mirror movement and “bounce.” The result? The entire camera — not just the shutter mechanism — has been durability-tested by Canon engineers to 500,000 exposures, the highest durability rating to date for a Canon EOS camera.

The DSLR Battery Life Advantage, Carried Even Further

The EOS-1D X Mark III is powered by the same rechargeable Canon Battery Pack LP-E19 as the previous-generation Mark II model, so transitioning to the newest professional EOS DSLR is a little easier for current EOS-1D users. But again, this is a new EOS-1D X — not just a lightly updated model. A host of internal changes have extended still-image battery life to an outstanding 2,850 shots (viewfinder shooting) and 610 shots (Live View), in Canon tests conforming to CIPA industry standards. (For reference, the previous Mark II camera, using the same battery pack, was rated at 1,210/260 shots, again in CIPA-conforming tests.) For video recording, EOS-1D X Mark III users can expect approximately 2 hours of recording time for RAW and 4K recording, and roughly 4 hours of battery life for Full HD (1080p) recording. Battery life underscores a significant DSLR advantage, compared to many currently-available mirrorless, interchangeable-lens cameras — 4x or more the stated still-image battery life of today’s mirrorless products, as of early 2020.

Enthusiasts and Professionals Can Stay Connected

For the first time in an EOS-1D series camera, the Mark III version includes built-in Wi-Fi, for connection (without accessories) to compatible smartphones and tablets. This opens the door for event, wedding, wildlife, nature and even independent sports photographers to quickly share still and video files. But for the working professional, especially at major news and sports events, the EOS-1D X Mark III brings incredible network performance and capability. It starts with a built-in Ethernet port, compatible with Gigabit Ethernet. Or, with the optional Canon Wireless File Transmitter WFT-E9, connect wirelessly to professional networks, with enhanced security, and ability to store and recall previous network settings and connections. A new Network menu tab keeps choices in one menu location, for quicker management. Finally, no accessory is needed on the Mark III for recording GPS location info — it’s built-in.

Features:

High Image Quality with New 20.1 Megapixel Full-frame CMOS Sensor Combined with Newly Designed low Pass Filter.

20.1 Megapixel Full-frame CMOS Sensor

Featuring a Canon-developed 35mm full-frame CMOS sensor with approx. 20.1 effective megapixels, the EOS-1D X Mark III camera is engineered with a new imaging system, designed to capture sharp and detailed images, even in low-light scenarios. This results in noise reduction in dark portions of the image even at high ISO speeds, and increased sensitivity that contributes to the EOS-1D X Mark III's high-speed image capture rate, accelerating frame-to-frame performance. The new sensor also includes Dual Pixel CMOS AF for high-speed, precise AF during Live View still and movie recording.

Low Pass Filter

The EOS-1D X Mark III features a newly developed four-layer low pass filter that provides 16-point separation. This not only helps to suppress moiré and color distortion, but also improves resolution.

New DIGIC X Image Processor with an ISO range of 100-102400; Expandable to 50-819200 .

New DIGIC X Image Processor

Replacing the two DIGIC 6+ processors from the previous EOS-1D X Mark II camera, The EOS-1D X Mark III camera is the first Canon EOS camera - in the DSLR series camera line - to feature a powerful new DIGIC X Image Processor, which helps to enhance fine detail from the added low-pass filter.

ISO range of 100-102400; Expandable to 50-819200

Delivering high standard and expanded ISOs, and a score of options to enhance shooting in varied and fast-changing lighting situations, The EOS-1D X Mark III can shoot at expanded sensitivities down to ISO 50 (L) and up to 204800 (H1), 409600 (H2) and even 8192000 (H3) (for stills). Beyond the obvious advantages of its wide ISO range, the EOS-1D X Mark III has automatic ISO settings, found on the dedicated ISO menu. Minimum and maximum ISO settings can be specified, as can a user-defined range, plus full auto and manual.

New 191-point AF System Capable of Tracking the Subjects Head and Face using Deep Learning Technology.

The EOS-1D X Mark III camera is equipped with a collection of 191 AF points, which allows the photographer to manually select every point, as well as select a variety of AF Zone Area selections. Covering virtually the same amount of the picture area as the previous 61-point system AF array. The EOS-1D X Mark III camera also features a new technology called EOS iTR AF X which helps to track a subject with excellent accuracy, including impressive Face Detection AF and new Head Detection AF - and even offers the added benefit of Eye Detection AF in Live View mode or while shooting video.

Dual Pixel CMOS AF for Fast and Accurate Auto Focus using up to 3869 Manual AF Positions and up to 525 Automatic Positions.

Dual Pixel CMOS AF

Adding to its powerful internal design, and ideal for sports photography, the EOS-1D X Mark III camera's fast and intelligent Dual Pixel CMOS AF system features an incredible 3,869 manually selectable AF positions, helping to ensure speedy, accurate and consistent AF throughout approximately 90% x 100% of the image plane. Able to detect shifts in movement at the pixel level, Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp still images and smooth, accurate focus transitions in movies.

Specs:

• Type: Digital, AF/AE single-lens reflex camera
• Recording Media: CFexpress cards, Type B

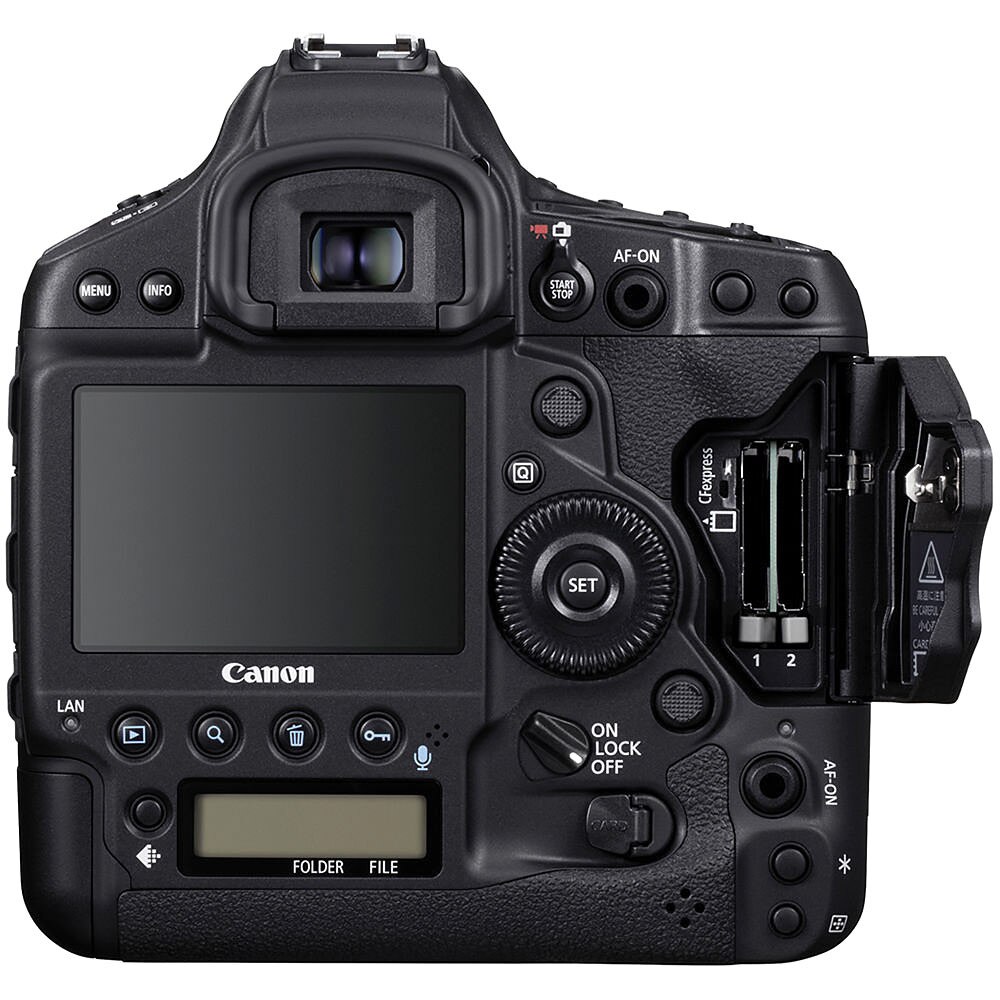

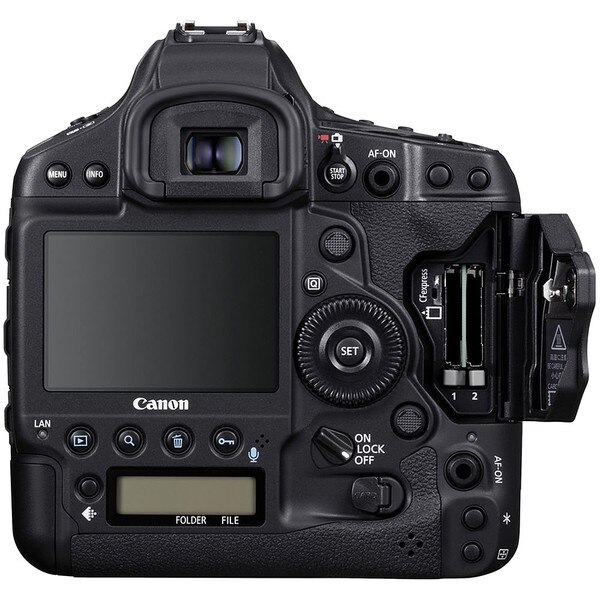

• Dual CFexpress card slots
• XQD, CFast, CF and SD cards not supported
• Image Format: Approx. 36mm x 24mm (35mm Full-frame)
• Compatible Lenses: Canon EF Lenses (excluding EF-S and EF-M lenses)
• Lens Mount: Canon EF Mount

Image Sensor:

• Type: High-sensitivity, high-resolution, large single-plate full-frame CMOS sensor
• Pixels: Effective Pixels: Approx. 20.1 megapixels
• Total Pixels: Approx. 21.4 megapixels
• Aspect Ratio: 3:2 (Horizontal: Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: High Detail Low Pass Filter, breaking one incoming light ray into 16 rays at image sensor
• Dust Deletion Feature:
• (1) Self Cleaning Sensor Unit
• Self-cleaning can be done automatically when the power is turned on/off.
• During manual cleaning ([Clean now]), the data for light spot correction is also obtained.
• (2) Dust Delete Data acquisition and appending
• The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
• The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
• (3) Manual cleaning

Recording System:

• Recording Format: Design Rule for Camera File System 2.0 and EXIF 2.31
• Backup Recording: N/A
• File Numbering:
• The following three types of file numbers can be set:
• (1) Continuous numbering
• The numbering of captured images continues even after you replace the card.
• (2) Auto reset
• When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
• (3) Manual reset
• Resets the file number to 0001, and creates a new folder automatically.
• RAW + JPEG Simultaneous Recording: Simultaneous recording of any combination of RAW/C-RAW and JPEG or HEIF image-recording quality is supported.
• Color Space: sRGB, Adobe RGB
• Picture Style: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined 1-3

White Balance:

• Settings: Auto (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash (Auto Setting), Custom (Custom WB) 1-5, Color Temperature
• Auto White Balance: Option between ambience priority and white priority settings
• Color Temperature Compensation:
• Blue/amber bias: ±9 levels
• Magenta/green bias: ±9 levels
• Corrected about the current WB mode's color temperature.
• Color Temperature Information Transmission: Provided

Viewfinder:

• Type: Eye-level SLR type, with pentaprism
• Coverage: Approx. 100% vertically and horizontally
• Magnification: Approx. 0.76x (-1m-1 with 50mm lens at infinity) / 35.1° angle of view
• Eye Point: Approx. 20mm (at -1m-1 from eyepiece lens center)
• Dioptric Adjustment Correction: -3.0 to +1.0 m-1 (diopter)
• Focusing Screen: Fixed
• Mirror: Quick-return half mirror
• Viewfinder Information AF displays, with red dot-matrix illumination: 191 AF points; active AF Area; Zone AF brackets; Automatic AF point select brackets
• Exposure Displays: Manual mode icon; AE Lock icon; Flash ready icon; FEL icon; Shutter speed; Aperture; Exposure compensation scale; Frames remaining on card; ISO; Highlight Tone Priority (D+) active; AF confirmation icon; AI Servo AF active arrows
• Right side display: +/- 3-stop metering scale; Flash Exposure Compensation/FEL/Flash Metered Manual scale; Frames remaining in burst (0~99); JPEG/RAW icons; Battery level icon
• Displayed on focus screen, via LCD overlay:
• Spot metering circle; Electronic level display; Grid lines; Shooting mode; Metering mode; White Balance setting; Drive mode; AF Operation; Flicker Detection icon;
• Warning symbol; AF status indicator
• All except Spot meter circle can be displayed or not with [Show/Hide in viewfinder]
• Depth Of Field Preview: Provided

Autofocus:

• Type: TTL secondary image-forming phase-difference detection system with High-res AF Sensor
• AF Points: Max. 191 points (Cross-type AF points: Max. 155 points)
• Focusing Modes:
• (1) Autofocus
• One-Shot AF
• AI Servo AF
• (2) Manual focus
• AF Point Selection: Manually-selected AF Areas
• Spot AF
• Single-point AF
• AF point Expansion (4-point surround)
• AF point Expansion (8-point surround)
• Zone AF
• Large Zone AF (all AF points divided into three large zones)
• Automatic AF point selection (all AF points available; reference brackets around AF array)
• AF Function Registration/Switching: Customizable with Custom Controls
• Selected AF Point Display: Red dot-matrix illumination of AF points, zone AF brackets, and Auto AF Area brackets
• Active AF Point Indicator: (1) Displayed in viewfinder area
• AF Assist Beam: When an external EOS-dedicated Speedlite is attached to the camera, the following options are available:
• (1) Enable
• (2) Disable
• (3) IR AF assist beam only

Exposure Control:

• Metering Modes:
• Optical Viewfinder: 216-zone (18 x 12) metering with approx. 400,000-pixel RGB+IR metering sensor.
• Live View: 384-zone (24 x 16) metering using image sensor output signals
• The following metering modes selectable:
• (1) Evaluative metering (linked to all AF points)
• (2) Partial metering (Viewfinder: Approx. 6.2% of the screen) (Live View: Approx. 5.8% of the screen)
• (3) Spot metering (center, approx. 1.5% of viewfinder) (Live View: Approx. 2.9% of the screen)
• Center spot metering
• AF point-linked spot metering (Custom Function)
• Linkable to all AF points.
• With automatic AF point selection, center spot metering will apply.
• Multi-spot metering (Optical Viewfinder only)
• (4) Center-weighted average metering
• The selectable metering modes can be restricted (Custom Function).
• Metering Range:
• At 73°F/23°C, ISO 100, with evaluative metering:
• EV 0–20 (Optical Viewfinder)
• EV -3–20 (Live View & Movie Recording)
• Exposure Control Systems:
• (1) Program AE (Shiftable)
• (2) Shutter-priority AE (Safety shift possible)
• (3) Aperture-priority AE (Safety shift possible)
• (4) Manual exposure
• The metering mode can be specified.
• (5) Bulb
• 6) Three custom shooting modes

ISO Speed Range:

• Manual setting:
• Normal ISO Speeds: ISO 100–102400 (in 1/3-stop increments)
• Expanded ISO Speeds (Equivalent): L: 50, H1: 204800, H2: 409600, H3: 819200
• Highlight Tone Priority: ISO range 200–102400.
• Expanded ISO cannot be set during HDR shooting.
• Exposure Compensation:
• Adjusted by user: ±5 stops in 1/3- or 1/2-stop increments
• AEB: ±3 stops in 1/3- or 1/2-stop increments

AE Lock

• (1) Auto AE lock
• In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.
• (2) User-applied AE lock
• With AE lock button in P, Av, Tv and M modes. (AE lock is updated each time you press the button.)
• Enabled in all metering modes.

Shutter:

• Type: Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
• Live View: Mechanical, Electronic 1st-curtain, and Electronic shutter operation selectable
• Shutter Speeds:
• When [Mechanical] or [Elec. 1st-curtain] is set: 1/8000 to 30 sec., bulb
• When [Electronic] is set: 1/8000-0.5 sec.
• X-sync: 1/250 sec.
• Available shutter speed range can be set via Custom Function
• Flash shooting not possible during Electronic shutter operation
• Shutter Release: Soft-touch electromagnetic release
• Self Timer: 10-sec. delay, 2-sec. delay

External Speedlite:

• EOS Dedicated Speedlite: E-TTL II autoflash with all EX and EL Series Speedlites
• Zooming to Match Focal Length: Provided
• Flash Metering: Ambience Priority, Standard, Flash priority
• Flash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
• FE Lock: Provided
• External Flash Settings
• (1) E-TTL each shot (New E-TTL reading for each exposure in a continuous sequence)
• (2) E-TTL 1st shot (Flash exposure locked for 2nd and subsequent exposures in a continuous sequence)
• Available for EX and EL series Speedlites.
• (1) General speedlite settings: Flash firing; E-TTL balance; E-TTL II metering; Continuous flash control; Flash sync speed in Av mode
• (2) Flash function settings: Flash exposure mode; Wireless flash control; Flash head zoom; Flash sync (1st/2nd curtain sync and High-speed sync); Flash exposure compensation; Flash exposure bracketing
• (3) Flash Custom Function settings
• PC Terminal: Provided

Drive System:

• (1) Single shooting
• (2) High-speed continuous shooting:
• Viewfinder: Max. approx. 16 shots/sec. (user-adjustable 16~3 fps)
• Live View Shooting: Max. approx. 20 shots/sec.
• (3) Continuous Shooting:
• Viewfinder: Max. approx. 10 shots/sec. (user-adjustable 15~2 fps)
• Live View Shooting: Max. approx. 10 shots/sec.
• (4) Low-speed continuous shooting
• Viewfinder: Max. approx. 3 shots/sec. (user-adjustable 14~1 fps)
• Live View Shooting: Max. approx. 3 shots/sec.
• (5) Silent single shooting
• (6) Silent high-speed continuous shooting
• Viewfinder: Max. approx. 8 shots/sec. (user-adjustable 8~2 fps)
• Live View Shooting: Max. approx. 10 shots/sec.
• (7) Silent low-speed continuous shooting
• Viewfinder: Max. approx. 3 shots/sec. (user-adjustable 14~1 fps)
• Live View Shooting: Max. approx. 3 shots/sec.

Live View Functions:

• Shooting Modes: Still photo and video recording
• Focusing:
• (1) Dual Pixel CMOS AF
• Dual Pixel CMOS AF is possible with all EF lenses.
• (2) Manual focus
• Magnify the image by 5x or 10x and focus manually.
• MF peaking and Focus Guide possible
• Metering Modes:
• (1) Evaluative metering (linked to all AF points)
• (2) Partial metering: Approx. 5.8% of the screen
• (3) Spot metering: Approx. 2.9% of the screen
• (4) Center-weighted average metering
• AE lock possible. The active metering timer can be changed.
• Metering Range: EV -3–20 (at 73°F/23°C, ISO 100, with evaluative metering)
• Grid Display:
• (1) Off
• (2) 3x3
• (3) 6x4
• (4) 3x3+diag
• Silent Shooting: Possible with Shutter mode set to Electronic
• Audible sounds possible from lens operation, etc.
• Flash not possible when LV Shutter mode set to Electronic

Video Shooting:

• File Format:
• Normal movie recording:
• MPEG4 H.264 / AVC
• 8-bit, 4:2:0; Color space BT.709
• Canon Log recording:
• MPEG4 H.265 / HEVC
• 10-bit, 4:2:2; Color space BT.709 / BT.2020
• Audio: AAC or Linear PCM (Audio Compression in C.Fn menu, during ALL-I or IPB recording)
• Internal monaural microphone
• 3.5mm stereo external microphone jack
• Focusing:
• 1) Dual Pixel CMOS AF
• (2) Manual focus
• Exposure Compensation:
• Up to ±3 stops in 1/3- or 1/2-stop increments
• * If AE Microadjustment is performed, the settable exposure compensation amount will decrease by the amount of the AE Microadjustment. For example, if you set the AE Microadjustment to +1 stop, the exposure compensation amount will be limited to a maximum +2 stops on the positive side.

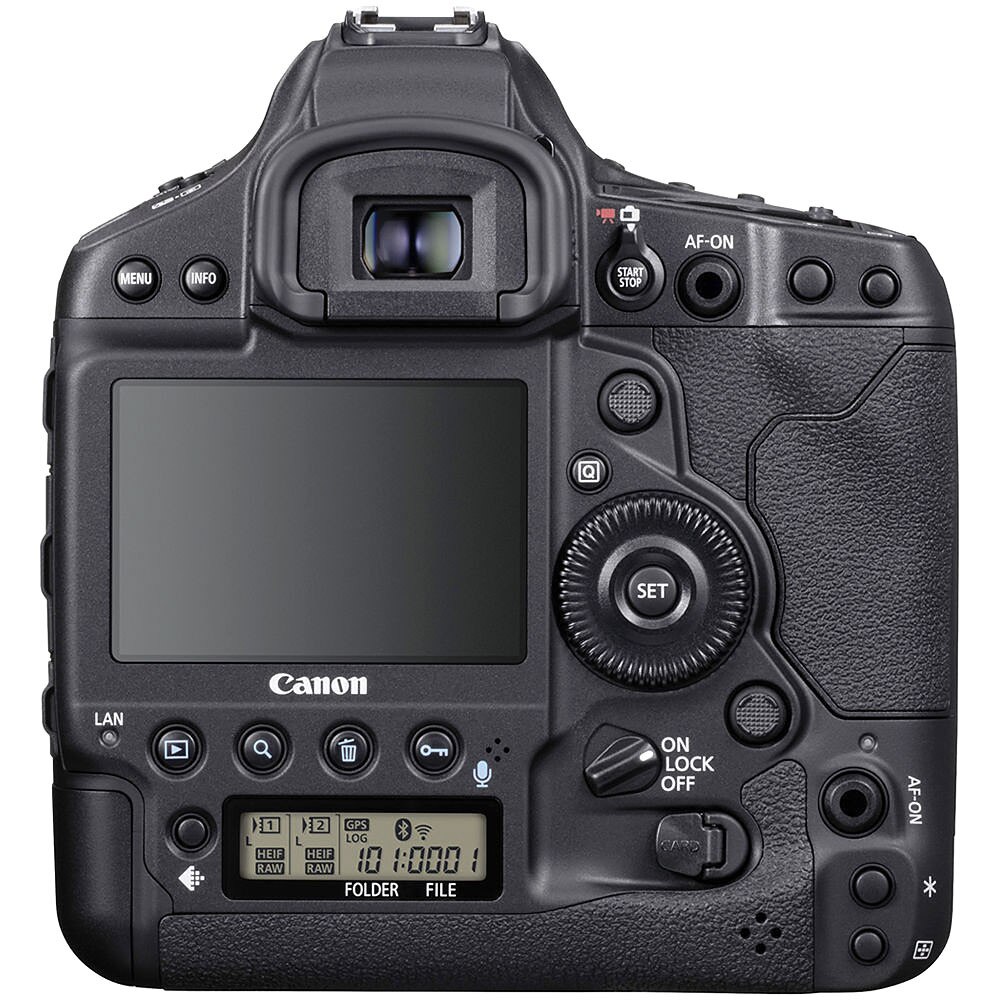

LCD Monitor:

• Type: TFT color, liquid-crystal monitor
• Monitor Size
• Size: 3.2-inches (aspect ratio 3:2)
• Diagonal: Approx. 3.15 in. / Approx. 8.01 cm
• Width: Approx. 2.63 in. / Approx. 6.67 cm
• Height: Approx. 1.75 in. / Approx. 4.44 cm
• Pixels: Approx. 2.1 million dots
• Coverage:
• Approx. 100% vertically and horizontally
• Viewing angle: Approx. 170° vertically and horizontally
• Brightness Control: 7 levels provided (manually adjustable, in Set-up Menu)
• Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, and Japanese)

Playback:

• Display Format:
• Single Image Display:
• No information display
• Basic information display
• Available display items (1-10)
• Detailed shooting information display
• Basic shooting information
• Lens information and RGB histogram
• White balance
• Picture Style
• Color space and noise reduction
• Lens abberation correction
• Record of sent images
• GPS information
• IPTC information
• Index Display:
• 4-image index
• 9-image index
• 36-image index
• 100-image index
• Highlight Alert: On the single-image display, highlight areas without any image information will blink.

Quick Control Function:

• Items: Frame Grab from 4K Movies:
Individual frames in 4K movies recorded with the camera can be saved as JPEG still photos.
• Approx. 8.8 megapixels (4096 x 2160) or approx. 8.3 megapixels (3840 x 2160)
• Frame grab images cannot be resized or cropped in-camera.

Image Protection and Erase:

• Protection:
• Erase protection: single image; select range; all images in folder; all images on card; all found images
• Unprotection: all images in folder; all images on card;
• Erase: Erase a single image, selected images, select range, all images in a folder, all images in a card or all found images.

Customization:

• Custom Functions: Total 39
• Camera User Settings
• Current camera settings can be registered to C1, C2 and C3 in Set-up Menu (called-up for shooting on top LCD panel).
• Automatic updating of the registered settings can be set to Enable or Diable.
• My Menu Registration
• Up to six top-tier menu options and Custom Function settings can be registered.
• Up to five My Menu tabs can be added.

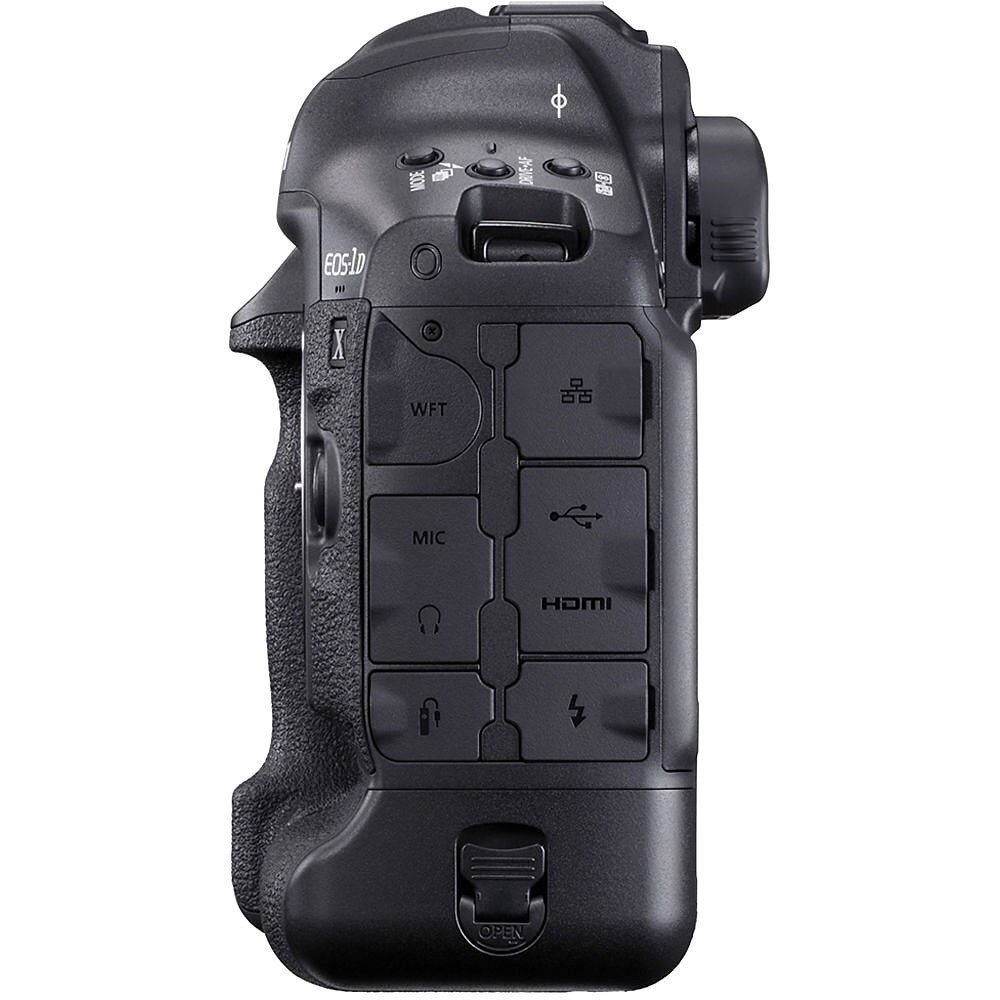

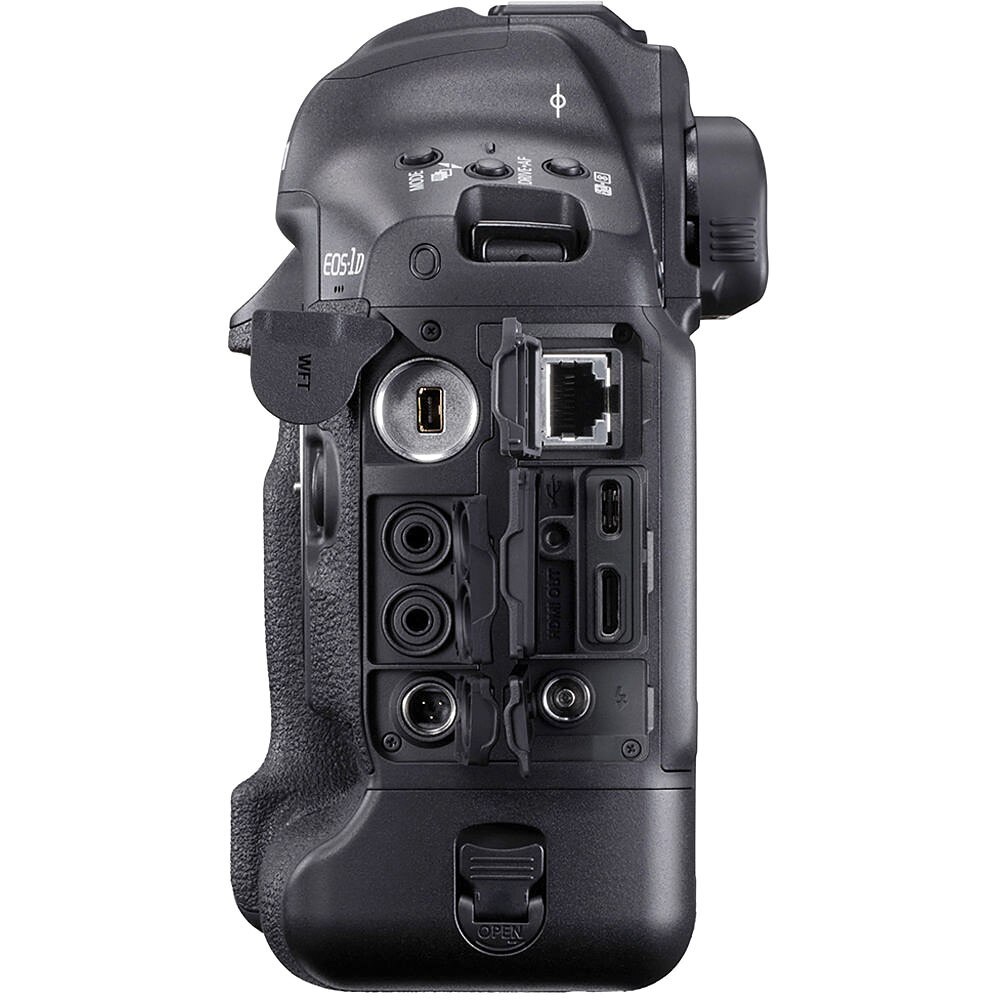

Interface:

• USB Terminal:
• USB Type-C
• SuperSpeed Plus USB (USB 3.1 Gen 2)
• For computer communication
• Video Out Terminal: Type C (Resolution switches automatically) / CEC not compatible.
• Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
• Extension System Terminal: Wireless File Transmitter WFT-E9

Power Source:

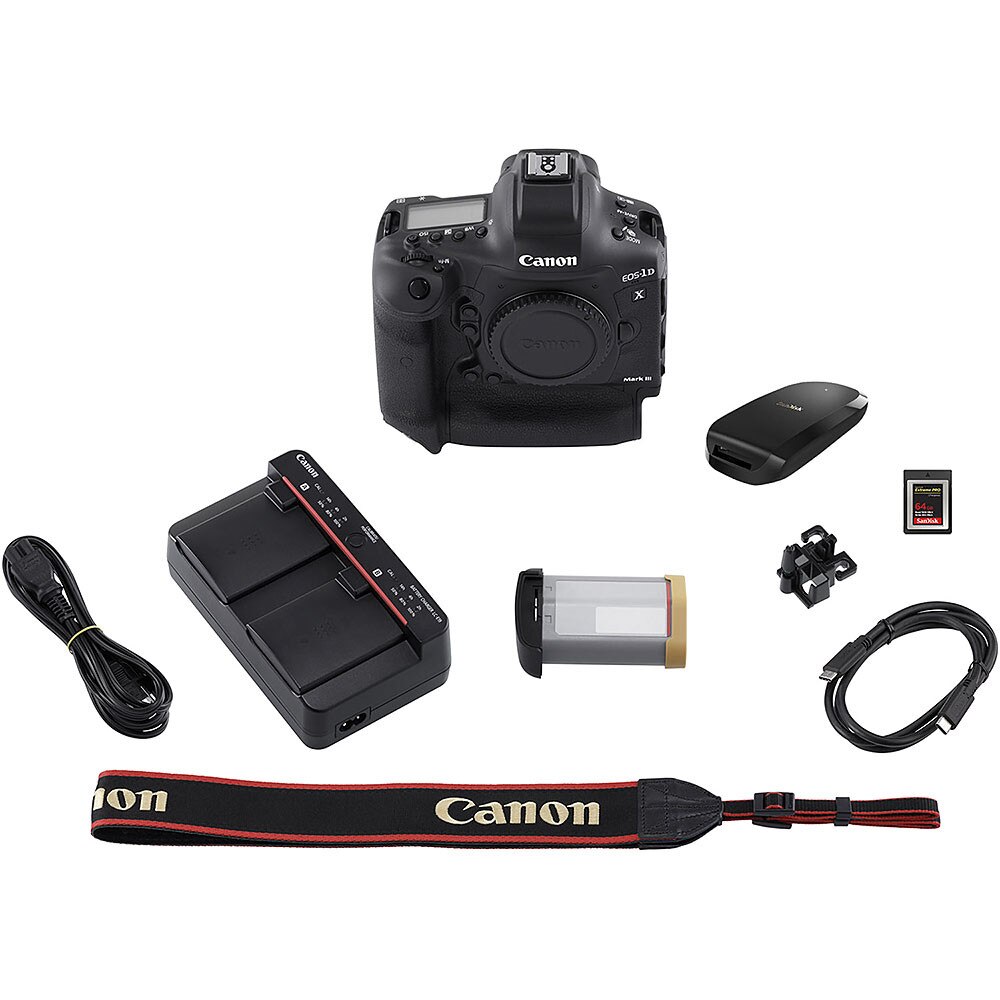

• Battery: Battery Pack LP-E19 (supplied)
• Battery Check: 4-level remaining charge display icon in viewfinder, top LCD panel, and LCD screen (when shooting info displayed)
• Battery info. in Set-up Menu — % charge remaining, shutter count on current charge, and recharge performance displayed
• Power Saving: Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses.
• Date/Time Battery: Rechargeable built-in secondary battery
• Maintains date/time for approx. 1 month, if primary battery pack removed or depleted
• Reharged by installation of charged LP-E19 or LP-E4N battery pack
• Recharging time approx. 8 hours
• Start-up Time: Approx. 0.2 sec. (Based on CIPA testing standards)

Dimensions and Weight:

• Dimensions (W x H x D): Based on CIPA guidelines: Approx. 6.22 x 6.60 x 3.25 in. / 158.0 x 167.6 x 82.6mm (W x H x D)
• Weight:
• Approx. 44.09 oz. / 1250g (Body only)
• Approx. 50.80 oz. / 1440g (Including battery, and memory card)

Operating Environment:

• Working Temperature Range: 32-113°F/0-45°C
• Working Humidity Range: 85% or less
