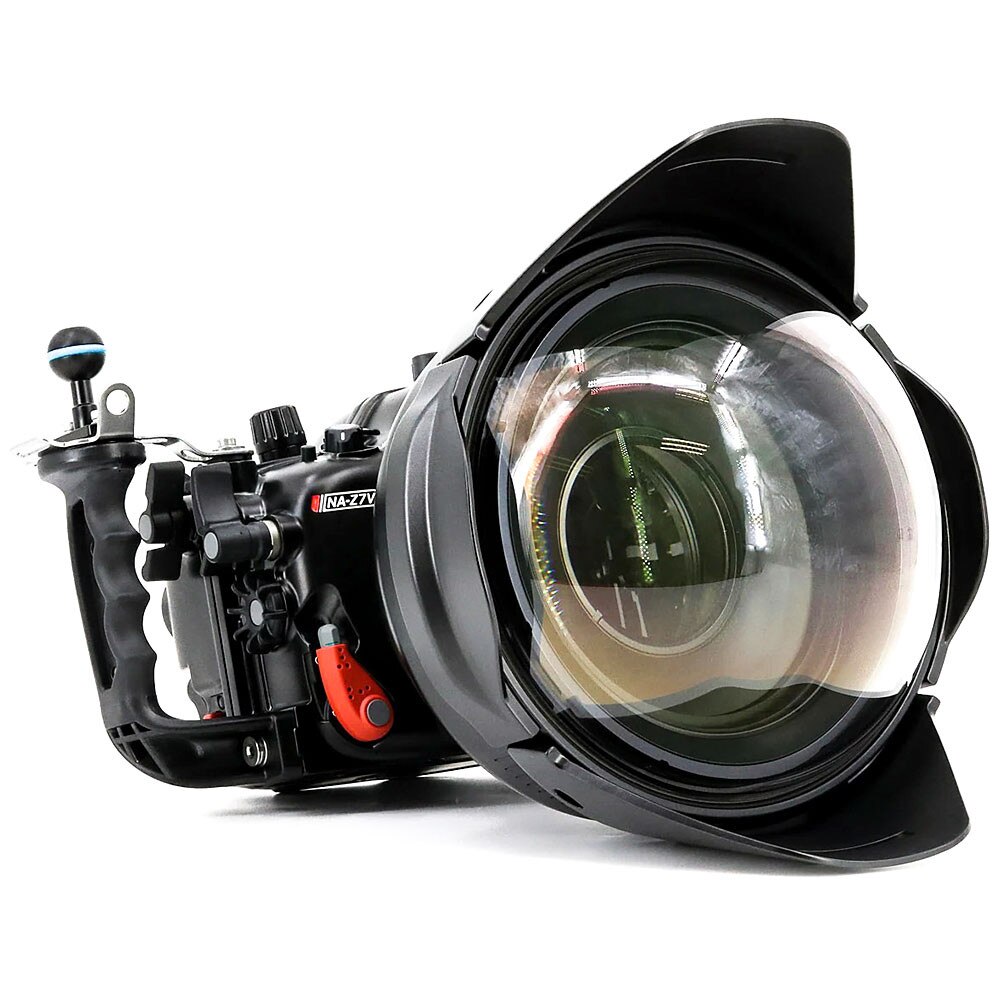

Nauticam WACP-2 0.57X Wide Angle Conversion Port 2 Underwater Lens

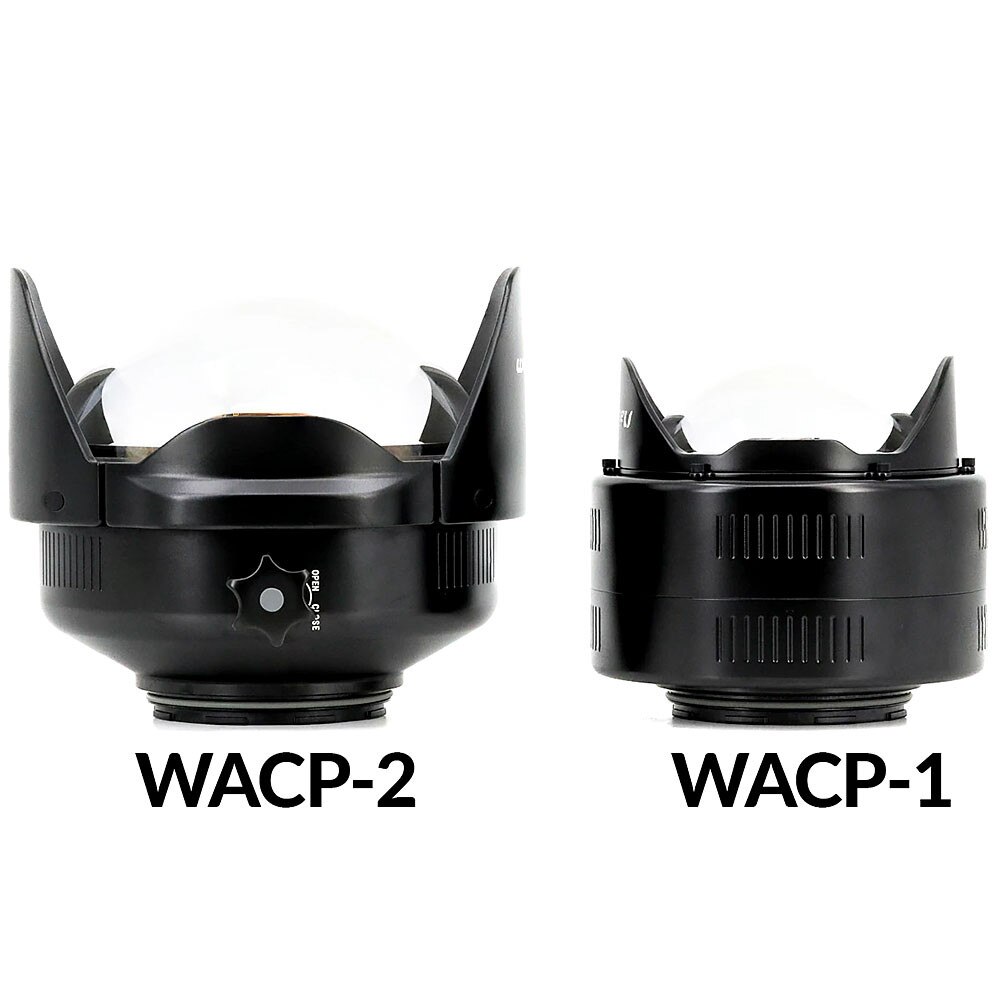

The WACP-1 has set the standard for what is possible when cutting-edge lens design is applied to underwater imaging, delivering an ultra-sharp 130º field-of-view close-focus low-distortion corrective optic. While the WACP-1 was designed to work primarily with 28mm equivalent lenses, the WACP-2 is optimized to work with 14mm lenses to produce an unparalleled 140º field-of-view while maintaining full zoom-through optical capability.

The WACP-2 is also able to focus in air, making it an even more capable imaging tool adding the ability to capture over-under images and even filming topside in wet environments. WACP-2 maintains the exceptional close-focus characteristics of the WACP-1.

The WACP-2's zoom-through capabilities mean the underwater filmmaker or photographer can capture establishing, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance. Take for instance the Nikkor Z 14-30mm F/4 S lens which receives a field-of-view range of 81º to 140º with the WACP-2. This lens allows for the acquisition of more dynamic content on each and every dive without the need for a second camera.

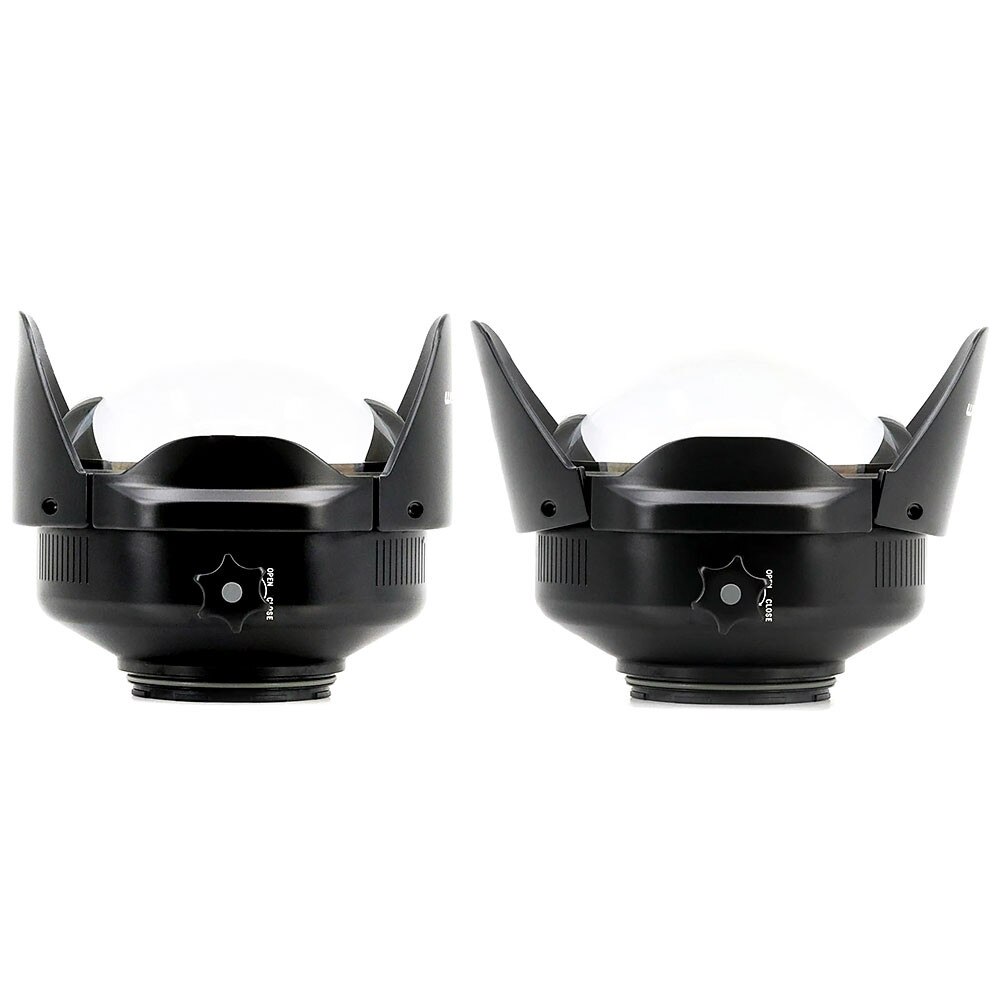

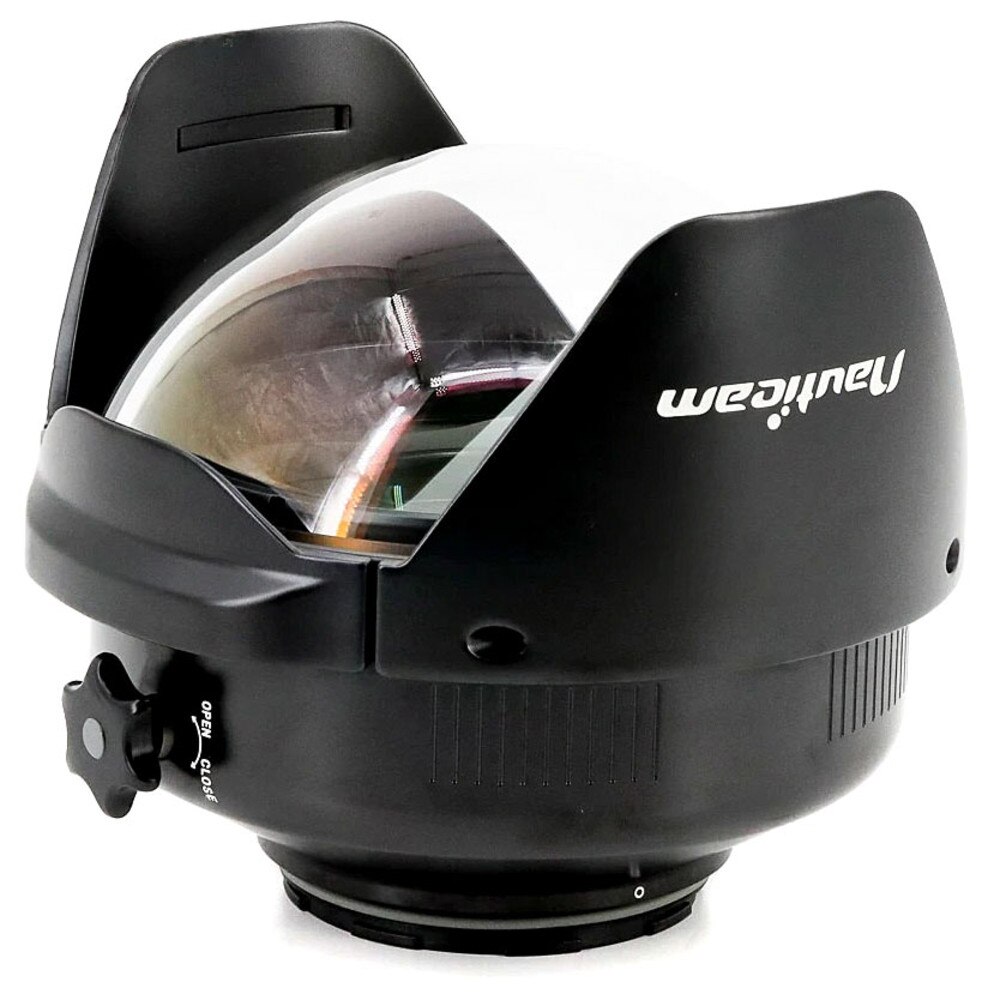

A radical new shade design allows for extending the shade out past the front element at longer focal lengths or during transport to further protect the dome while at wider focal lengths it cantilevers towards the outside to prevent vignette.

The WACP-2 is sure to be the uncompromising underwater image maker's tool of choice when looking for maximum optical quality, flexibility, and performance.


TECHNICAL SPECIFICATIONS

• Outer Diameter x Length: 280 x 213mm/11 x 8.4in
• Weight (in air): 7.06kg/15.5lbs
• Weight (in water): 0.85kg/1.9lbs
• Lens Construction: 4 elements in 4 groups
• Depth Rating: 100m/330ft
• Port Opening: N120



COMPATIBILITY INFORMATION

Full Frame Canon EF Mount:

Canon EF 16-35mm f/2.8L III USM: 128°-72°
Canon EF 16-35mm f/4L IS USM: 128°-72°

Full Frame Canon RF Mount:

Canon RF 15-35mm f/2.8L IS USM: 133°-72°

Full Frame Nikon F Mount:

Nikon AF-S 17-35mm f/2.8 IF ED: 123°-72°
Nikon AF-S NIKKOR 16-35mm f/4G ED VR: 128°-72°

Full Frame Nikon Z Mount:

Nikkor Z 14-30mm f/4 S: 140°-81°

Full Frame Sony FE Mount:

Sony SEL1635GM FE 16-35mm F2.8 GM: 128°-72°
Sony SEL1635Z Vario-Tessar T* FE 16-35mm F4 ZA OSS: 128°-72°
