Overview / Product Description
Anglerfish GoPro HERO 9, 10, 11, 12, 13 Large Underwater Housing

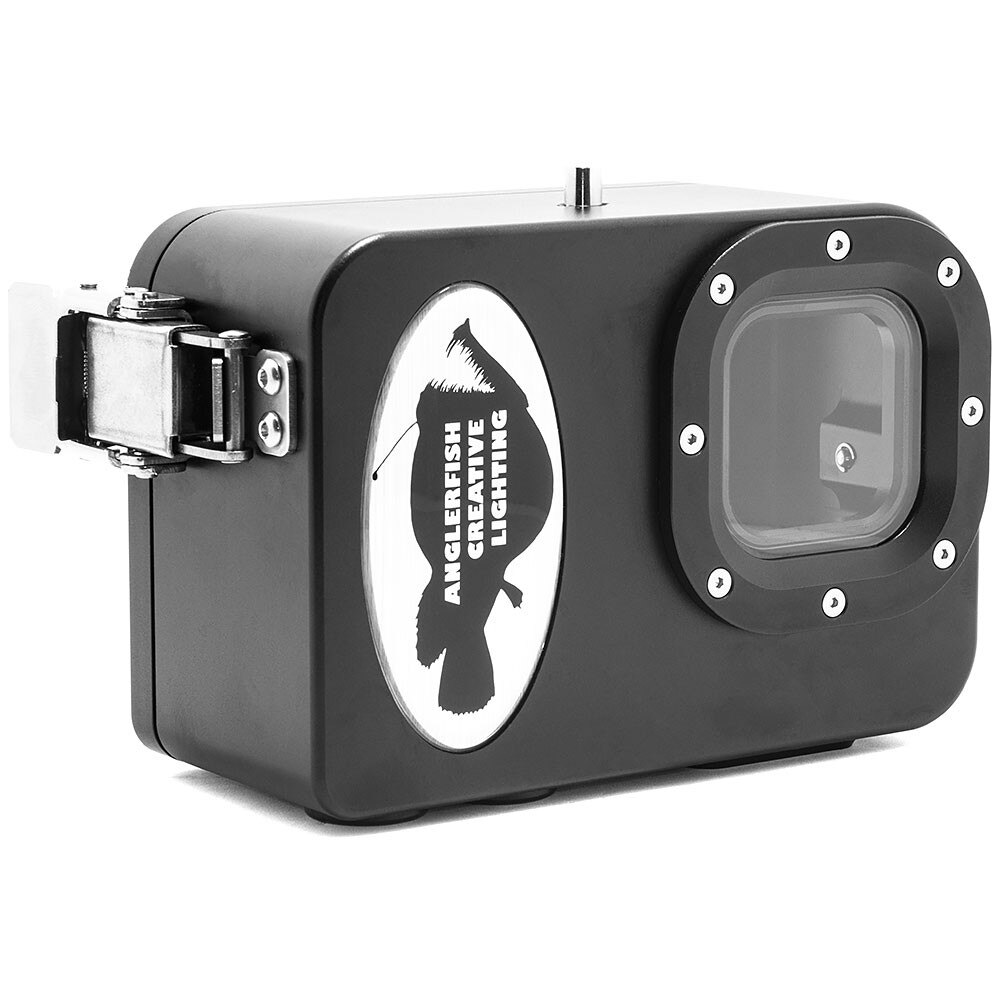

Anglerfish custom underwater housing is specifically designed for the GoPro HERO9, HERO10, HERO11, and HERO12 Black. The housing is constructed from 7075 T6 High Strength Aircraft Aluminum.
The housing is designed to accompany the GoPro MediaMod which allows for use of the HDMI signal and external power supply. 3x M14 bulkhead ports are installed for various accessories. These ports can be used for HDMI, Power, Wifi / Bluetooth antenna cable, and vacuum valve. The use of M14 allows for use of third-party accessories.
Though the housing can be used without the GoPro Media Mod, it is required for full functionality of the housing.
The housing is designed with large real estate inside to house a high voltage power supply regulator. This allows the camera to be deployed with 2km cable without cable power loss that is associated with a low voltage supply.
FEATURES
- Thick-walled Aluminum 7075 T6 housing
- Available in marine-grade Titanium and 316 Stainless Steel

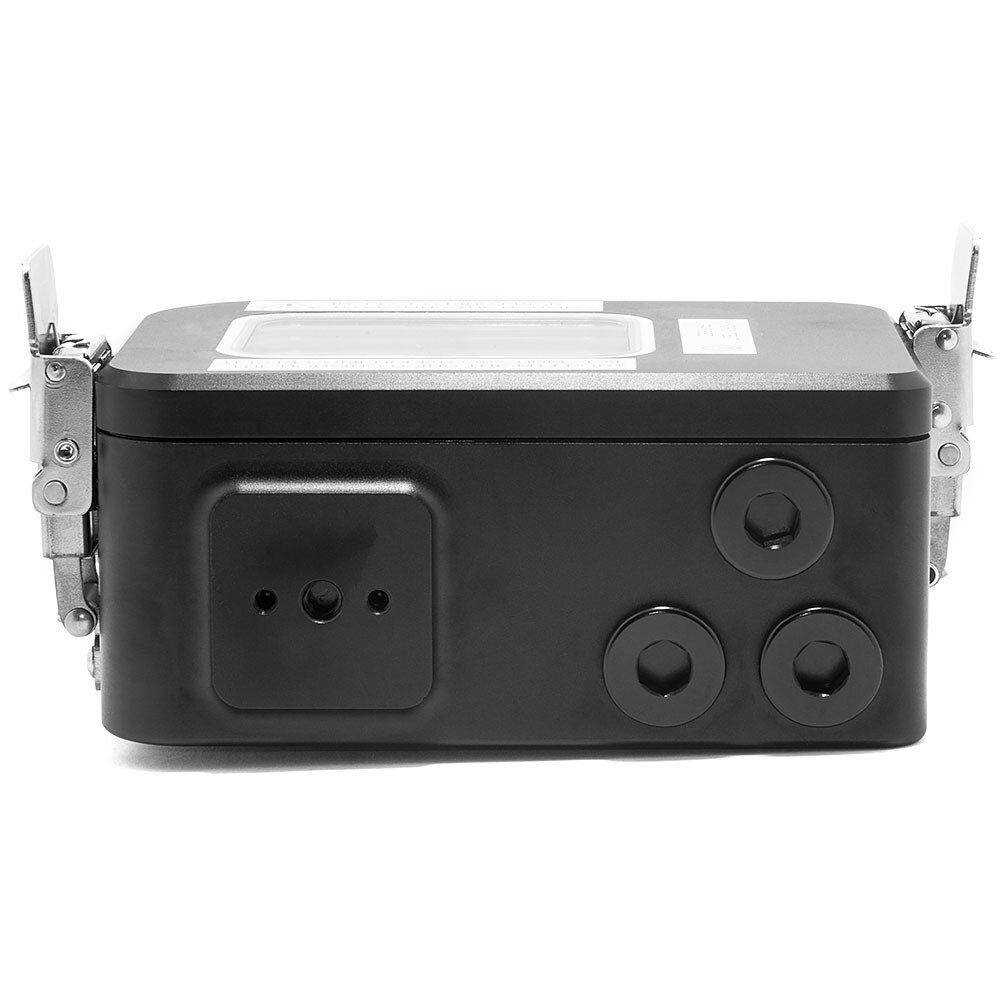

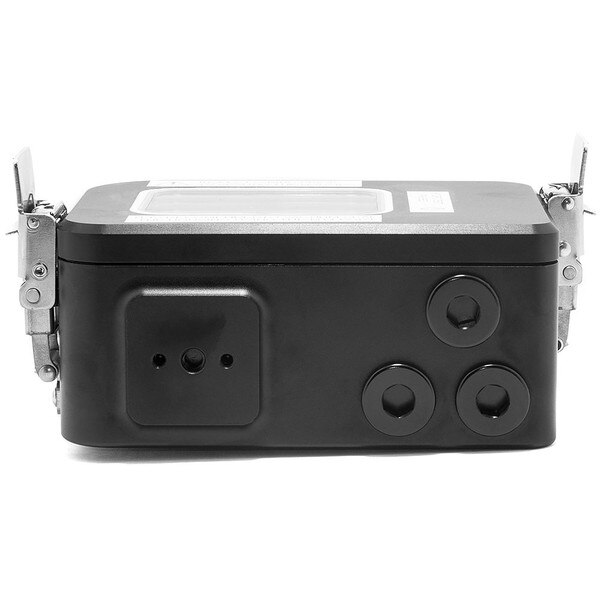

- Three M14 Bulkhead ports for accessories and cable connectors

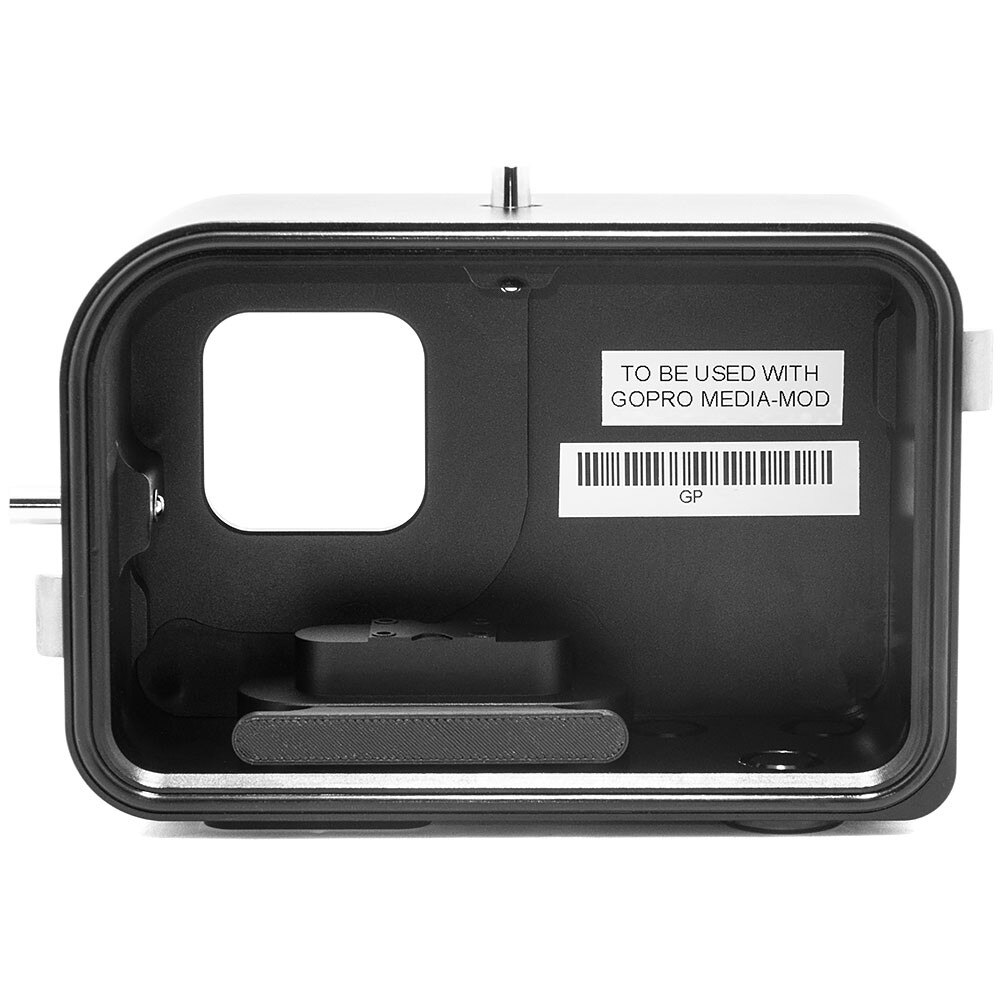

- Extra real estate for high-voltage switch-mode power supply to convert supply voltage to 5V DC to power camera

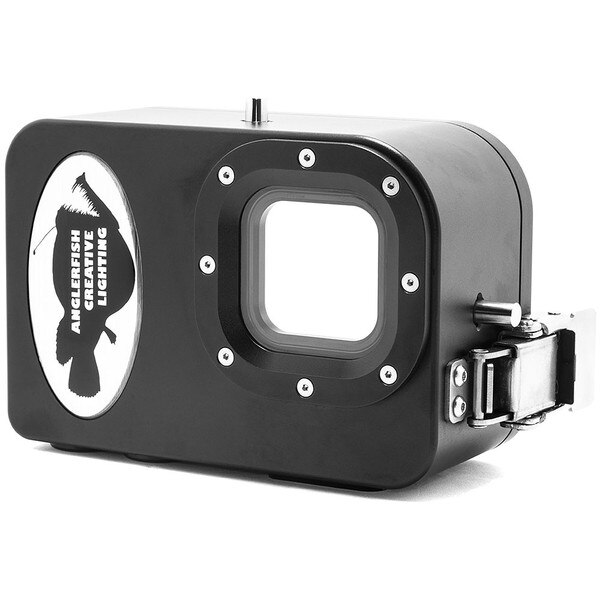

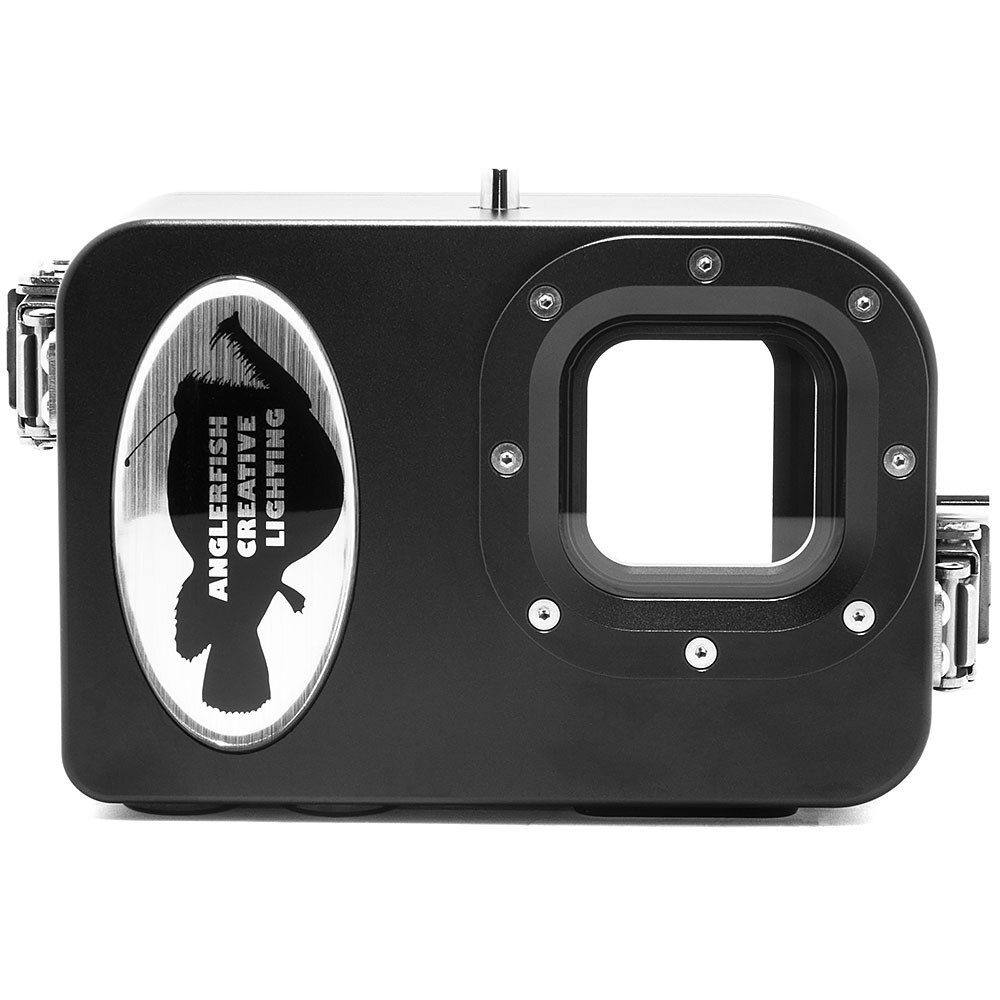

- Sapphire glass lens with AR coating allows for the camera lens to be deployed for long periods without fouling. The crystal glass is also scratch-proof. AR coating allows for maximum light transmission and reduces glare
- The camera can be used with or without the GoPro MediaMod
- Extra real estate to add additional internal batteries
SPECIFICATION
- Depth Rating: 50m / 164ft
- Material of Construction: 316SS / AL6061 T6 / AL7075 T6 / Titanium

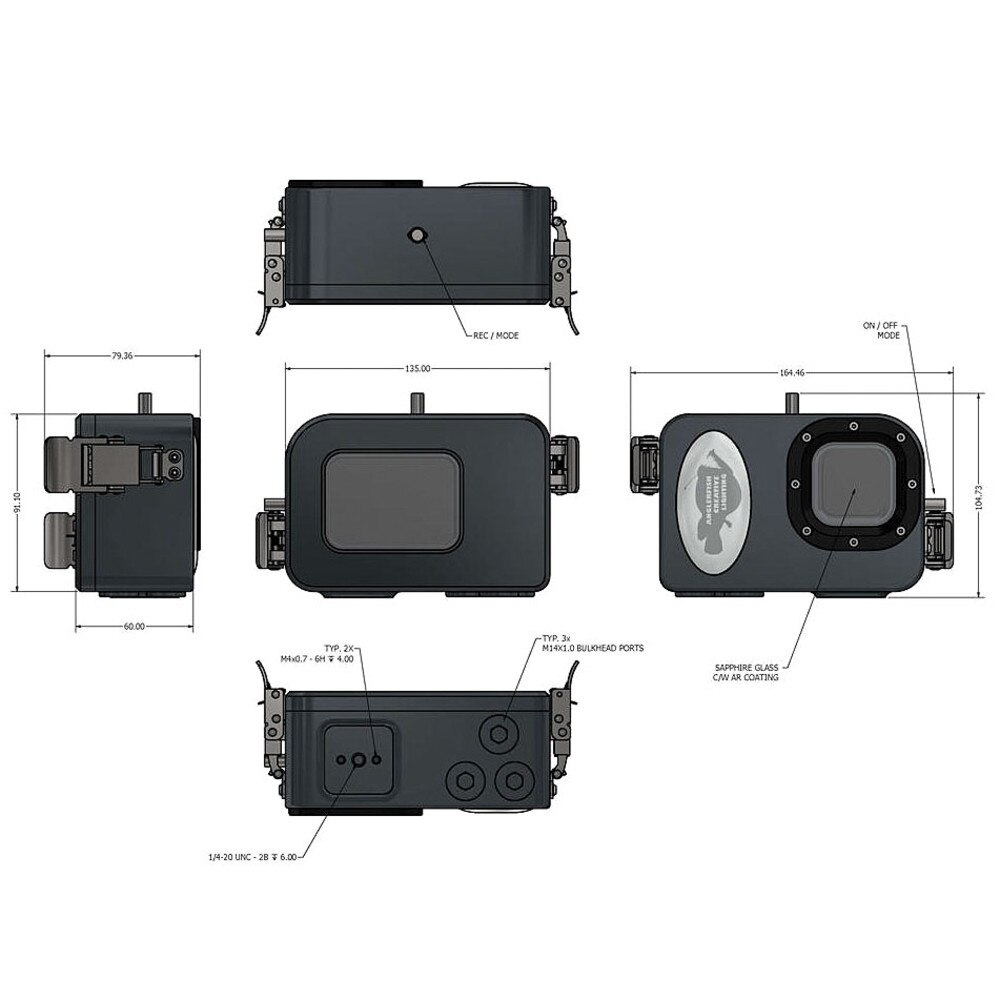

- Dimensions:
- Overall Length: 135mm / 5.31in
- Overall Width: 91mm / 3.58in
- Overall Height: 60mm / 2.36in
OPTIONS
- HDMI Bulkhead
- Power Bulkhead
- Dual Power / RF Wifi / Bluetooth Control Bulkhead

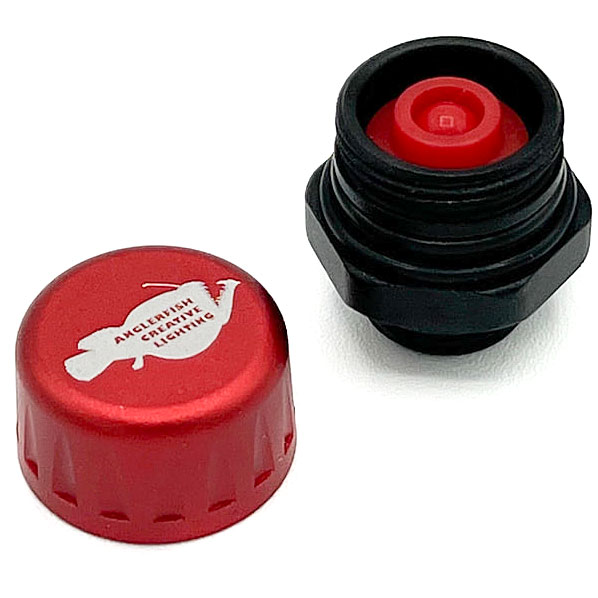

- Vacuum valve
- Leak detection sensor
- DC to DC high eff. low loss high voltage power supply converter
