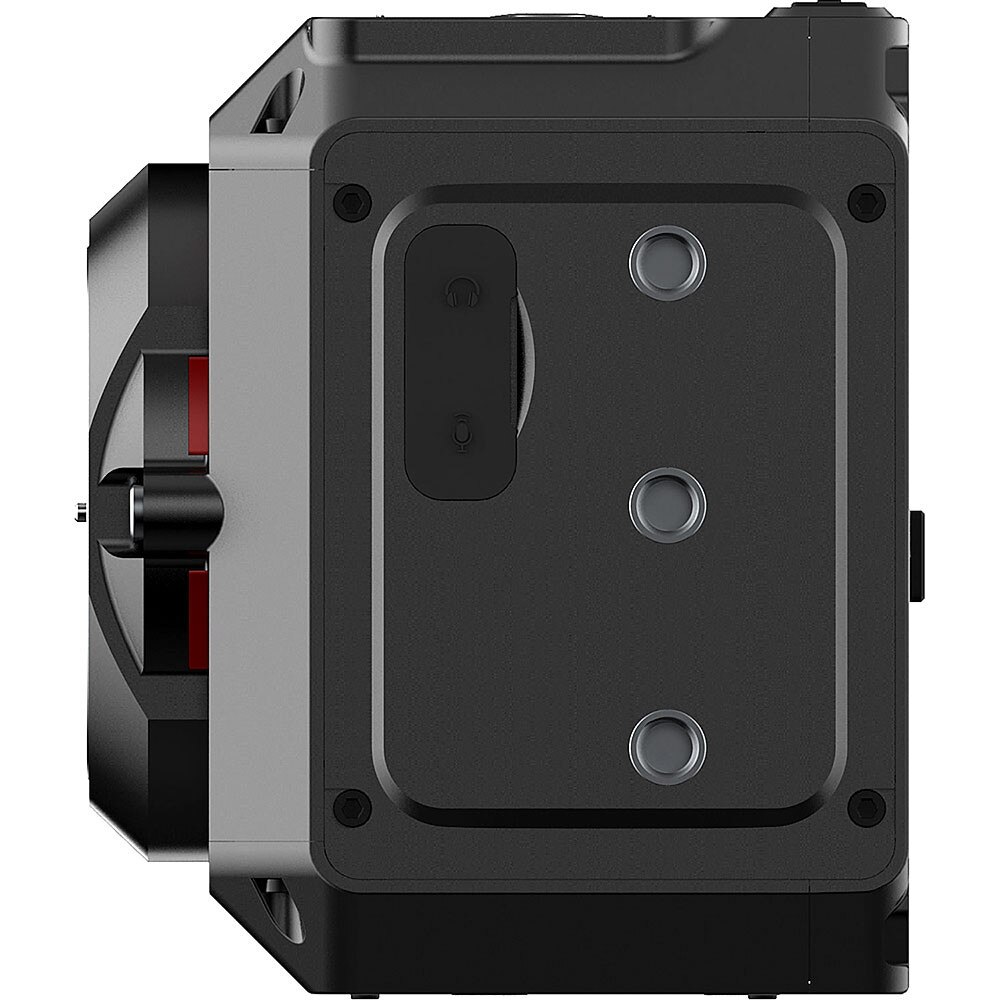

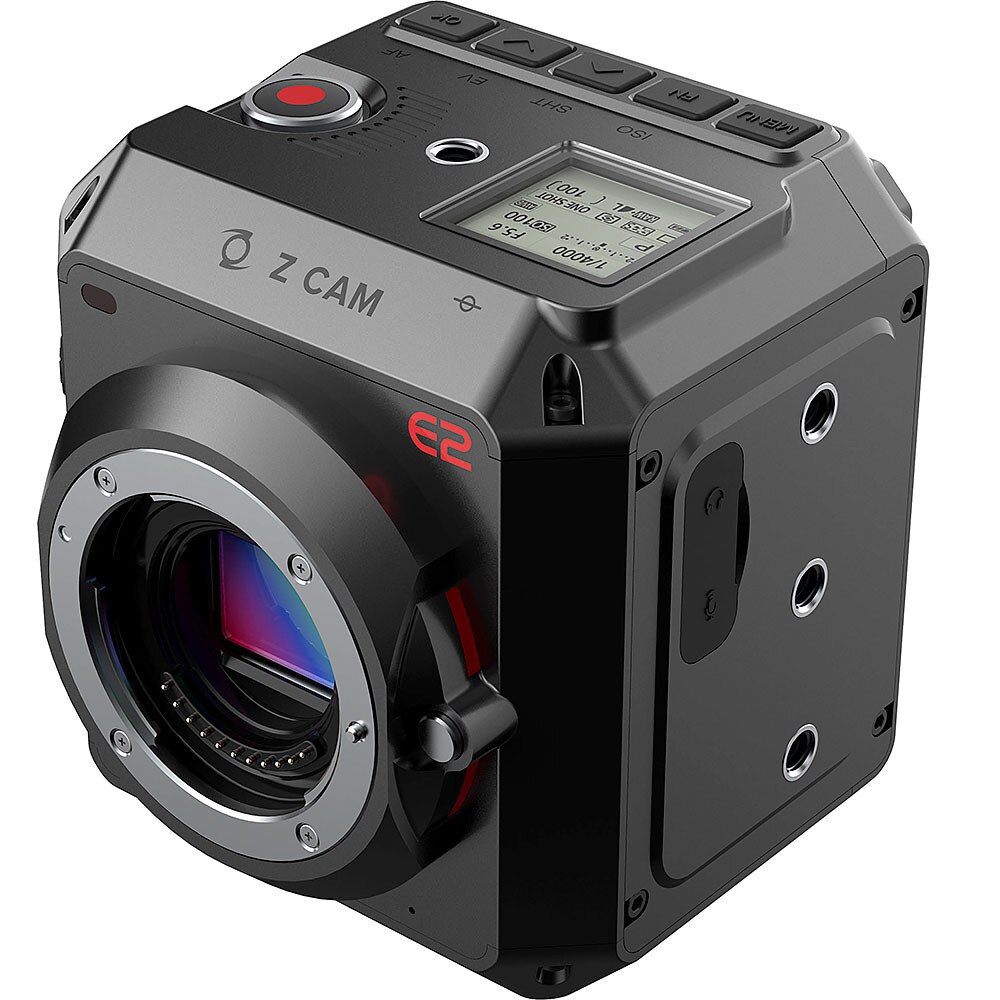

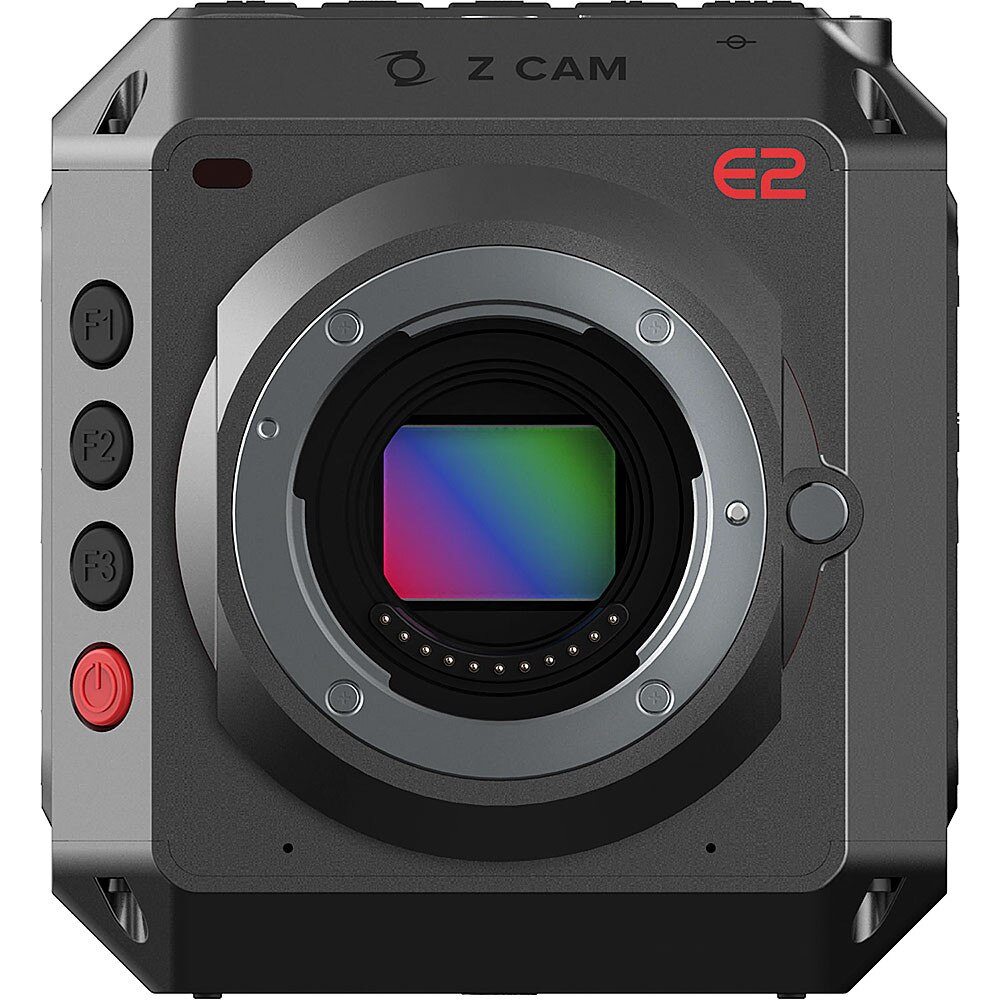

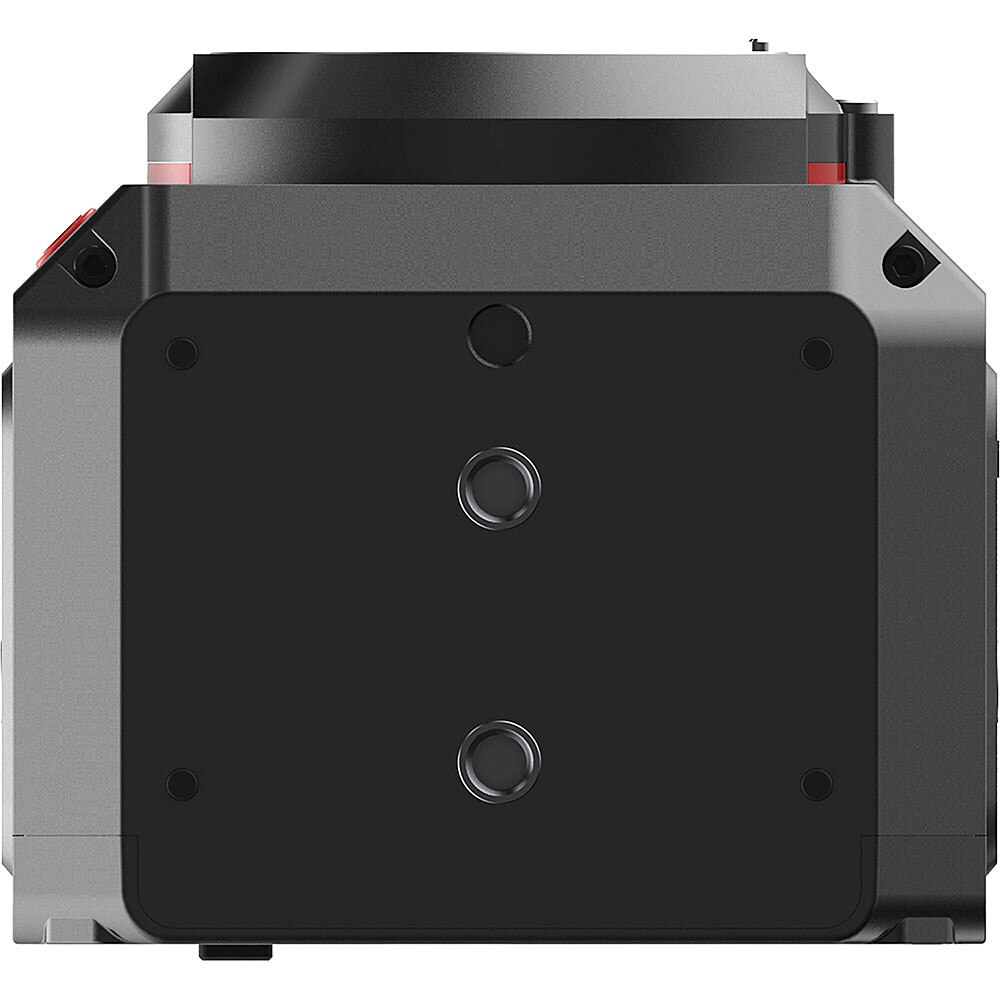

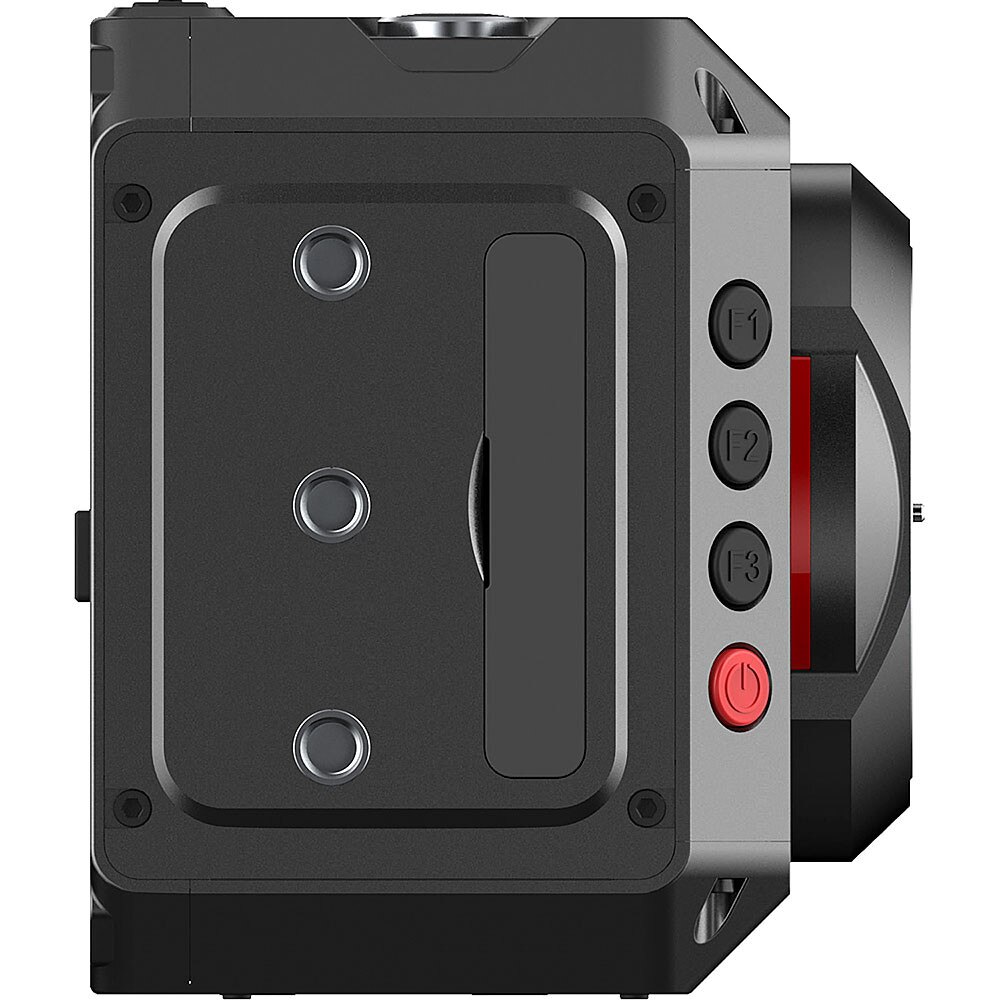

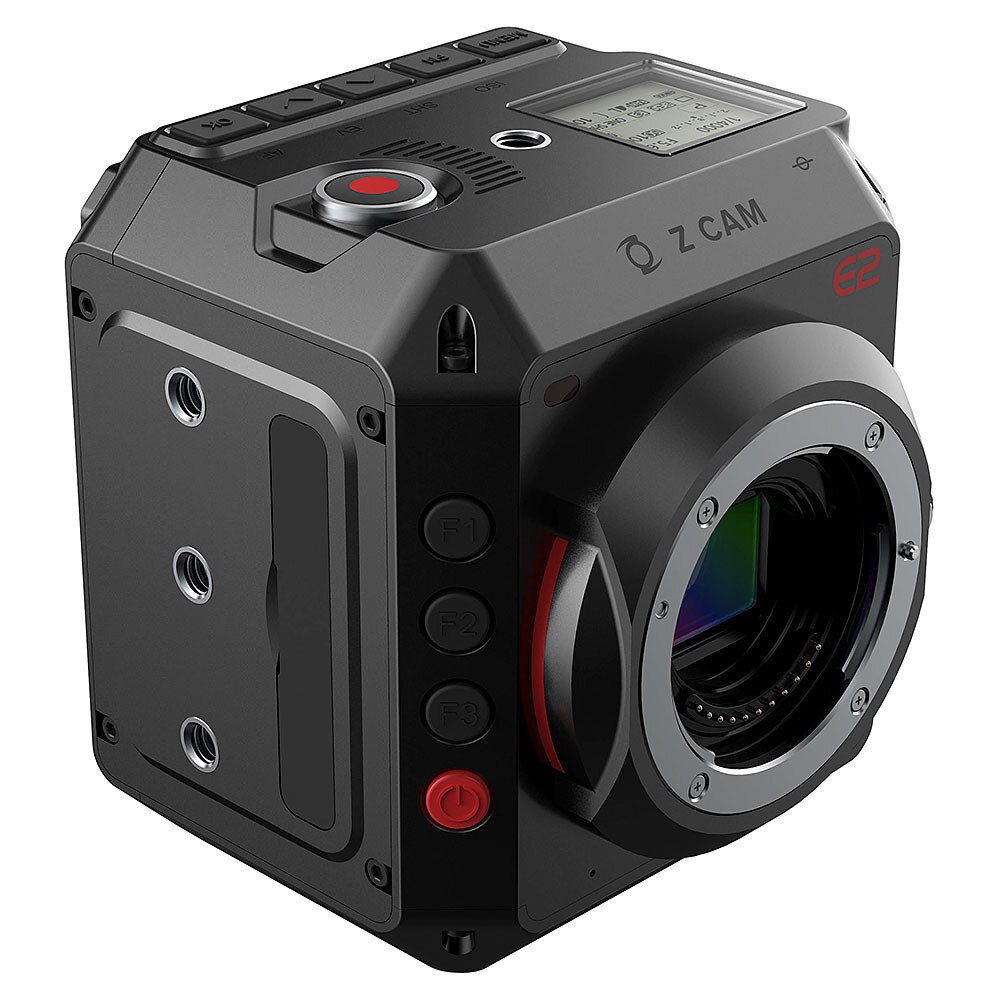

Z CAM E2 4K Cinema Camera

• 4K @160fps, 10-bit color
• 4/3" WDR CMOS sensor
• 13 stops dynamic range (16 stops with WDR enabled)
• ZRAW (partial debayer)
• Apple ProRes certified
• Lens Mount: Micro Four Thirds
• Multi-cam synchronization

Technical Specifications

Disclaimer: All product features and technical specifications stated are subjected to Z CAM ‘s sole interpretation and explanation. Product specifications reflect both current and projected information. Everything is subject to change.

Camera Features

• Sensor Type: 4/3" WDR CMOS Sensor
• Sensor Size: 19.0 x 13.0 mm
• Effective Pixels: 10.28M
• Dynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
• Lens Mount: Micro Four Thirds
• Microphone: Built-in Stereo Microphone

Recording

• Resolution:
• 4096 x 2160 (C4K) / 3840 x 2160 (4K)
• 4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
• 3696 x 2772 / 3312 x 2760
• 2704 x 1600 / 1920 x 1080
• Frame Rate: 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
• Max Variable Frame Rate:
• 120 fps for 4096 x 2160 (H.265 only)
• 120 fps for 3840 x 2160 (H.265 only)
• 150 fps for 4096 x 1728 (H.265 only)
• 160 fps for 3840 x 1620 (H.265 only)
• 160 fps for 2704 x 1600 (H.265 only)
• 59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
• 59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
• 240 fps for 1920 x 1080 (H.265 only)
• * Please refer to “Appendix 1” for more detail of the max frame rate for different encoders.
• Max Bit Rate:
• H.265 / H.264: 300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
• 200 Mbps for 1920 x 1080
• ProRes: Please check “Apple ProRes White Paper” for the bit rate of ProRes encoding.
• Color Bit Depth: 10-bit (H.265 & ProRes) & 8-bit (H.264)
• Video Encoder:
• ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
• ZRAW (partial debayer) / Proxy / H.265 main 10 profile / H.264 high profile
• Audio Format: 24-bit 48 kHz
• Audio Encoder: AAC / PCM (for MOV only)
• File Format: MOV / MP4
• Record Mode: Video / Time Lapse Video

Settings

• ISO: Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 500 / 2500 (250 / 1250 with WDR activated)
• Shutter:
• Shutter Speed: Auto, Manual (up to 1/8000”) or
• Shutter Angle: Auto, Manual (1° ~ 360°)
• White Balance: Auto, Preset, Manual (2300K ~ 7500K)
• Focus Mode: MF / AF / CAF
• Image: Brightness / Contrast / Saturation / Sharpness
• Image Profile: Rec.709 / Z-Log2 / FLAT / HLG
• Audio: Audio In / Out Level
• Time Code: Current Time / Manual Input / External Input

Storage

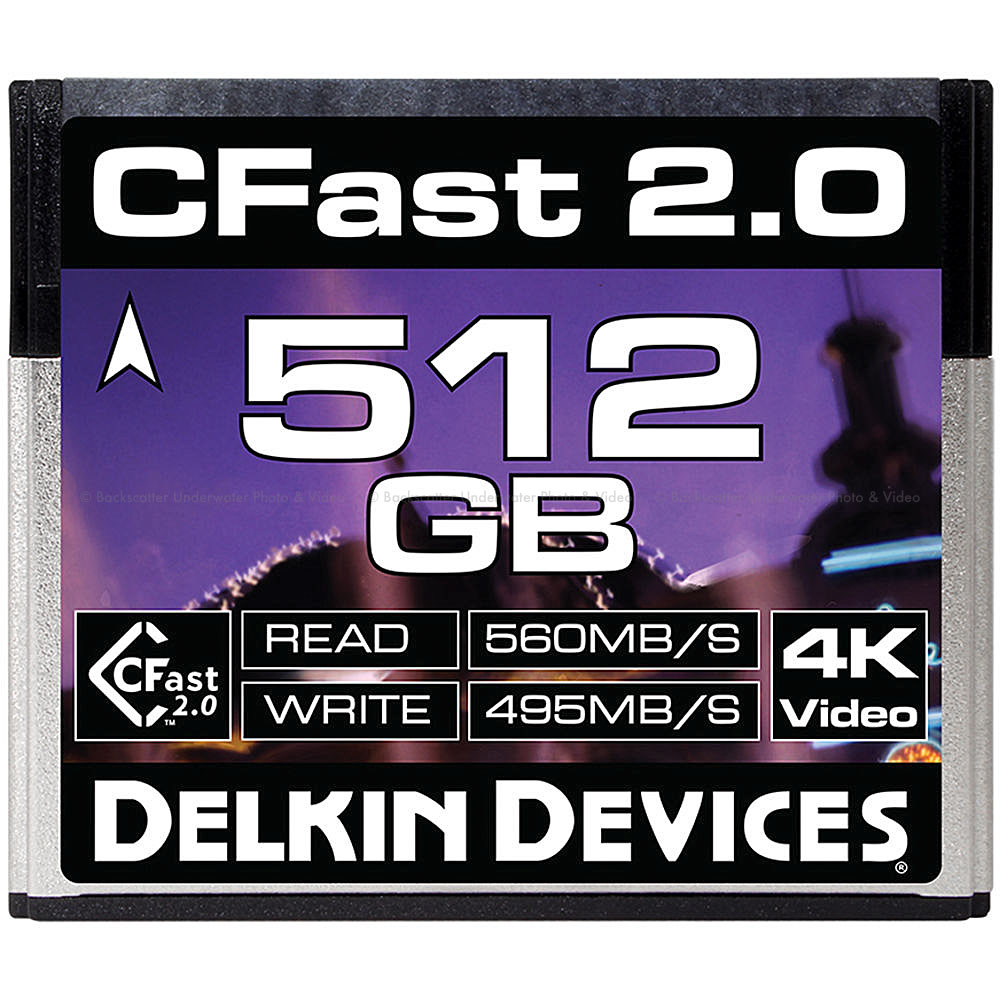

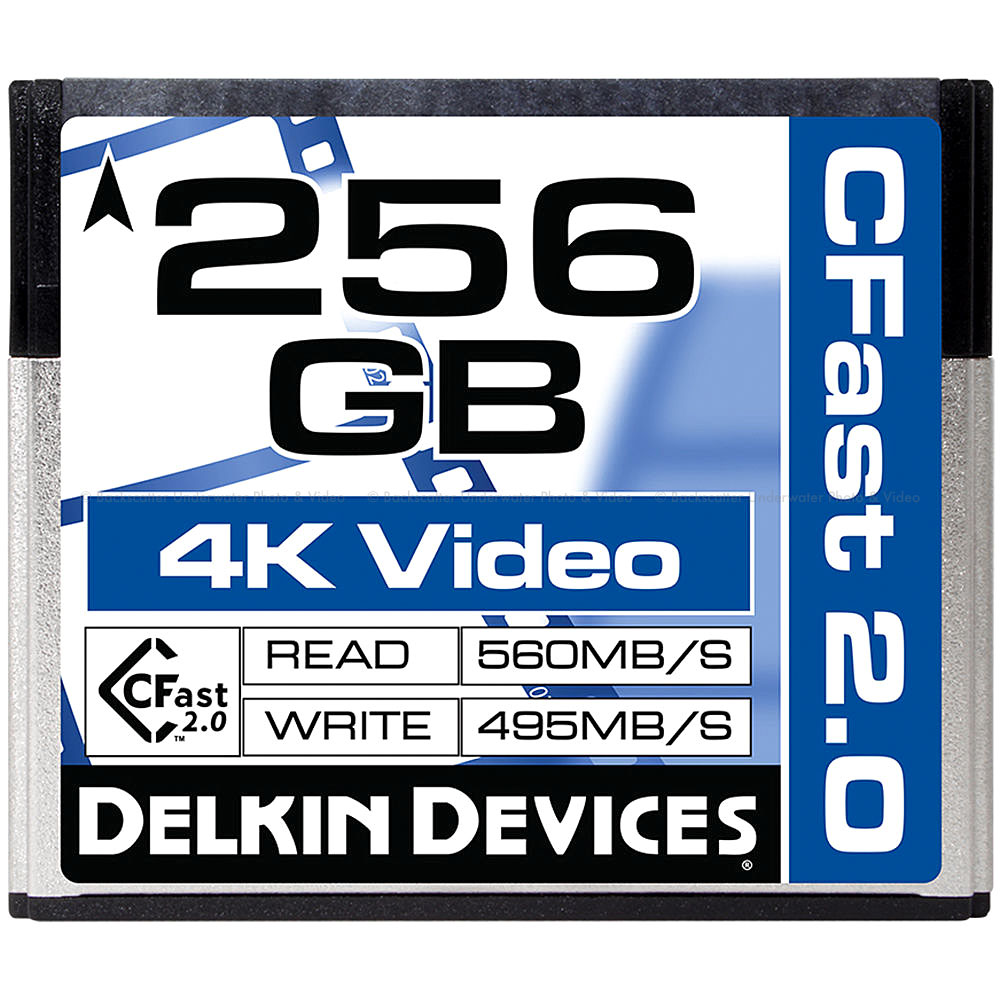

• Media: CFAST 2.0
• File System: exFAT

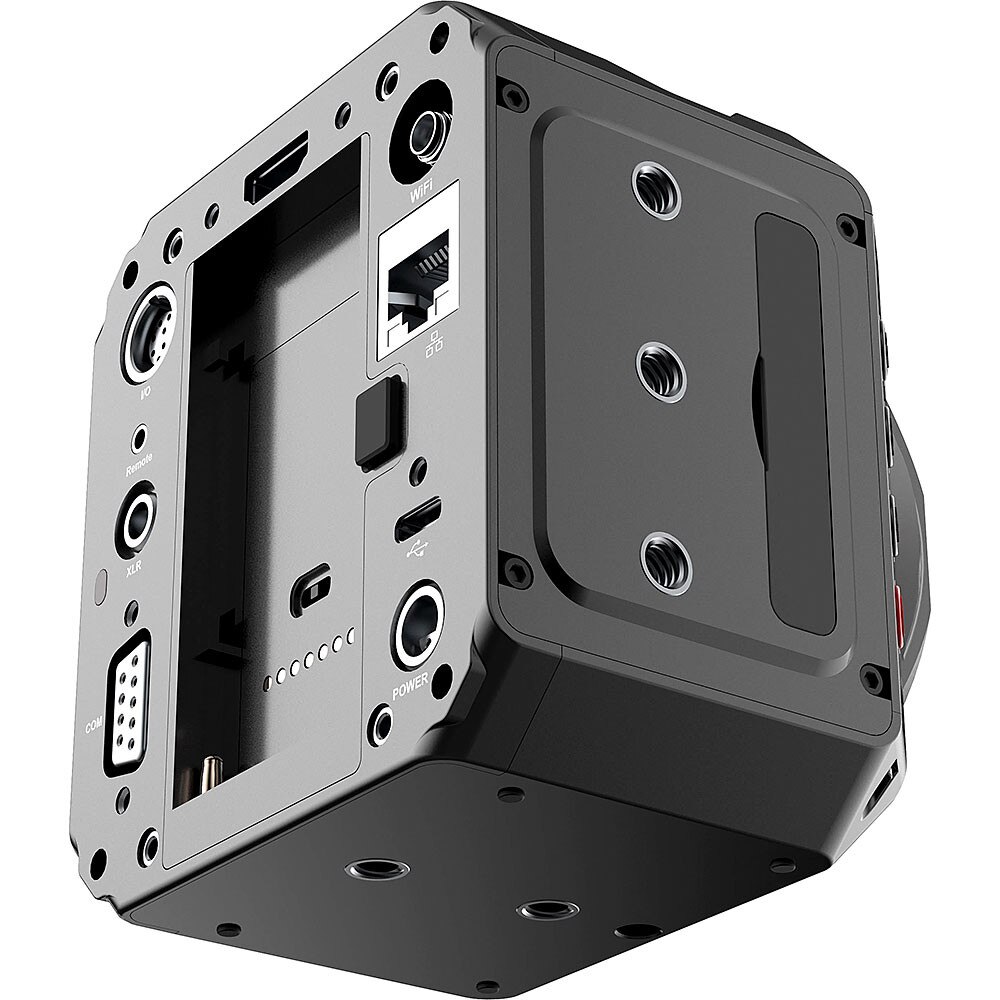

Connectivity

• HDMI: HDMI 2.0 Type A (video output up to C4K @60fps)
• USB: USB 3.0 Type C for camera control & data transfer only
• I/O: 10-pin LEMO port for synchronization (requires additional Sync Cable, not included)
• COM: DB-9 connector, supports RS-232
• Remote Control: 2.5 mm jack socket (Sony LANC compatible)
• Audio-in: 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
• Audio-out: 3.5 mm stereo jack socket
• Wi-Fi: 802.11n, 2.4G with external antenna port
• Ethernet: Gigabit Ethernet port for control, setting & live streaming

Power

• Battery: Sony NP-F series compatible (Battery not included)
• External Power Supply: DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter

Physical

• Material: Aluminum Alloy
• Weight: 757 g (without lens)
• Dimensions (W x H x D): 91.2 mm x 99.2 mm x 89.1 mm (without lens)

Environment

• Storage Temperature: -20 °C ~ 60 °C
• Operation Temperature: 0 °C ~ 40 °C
