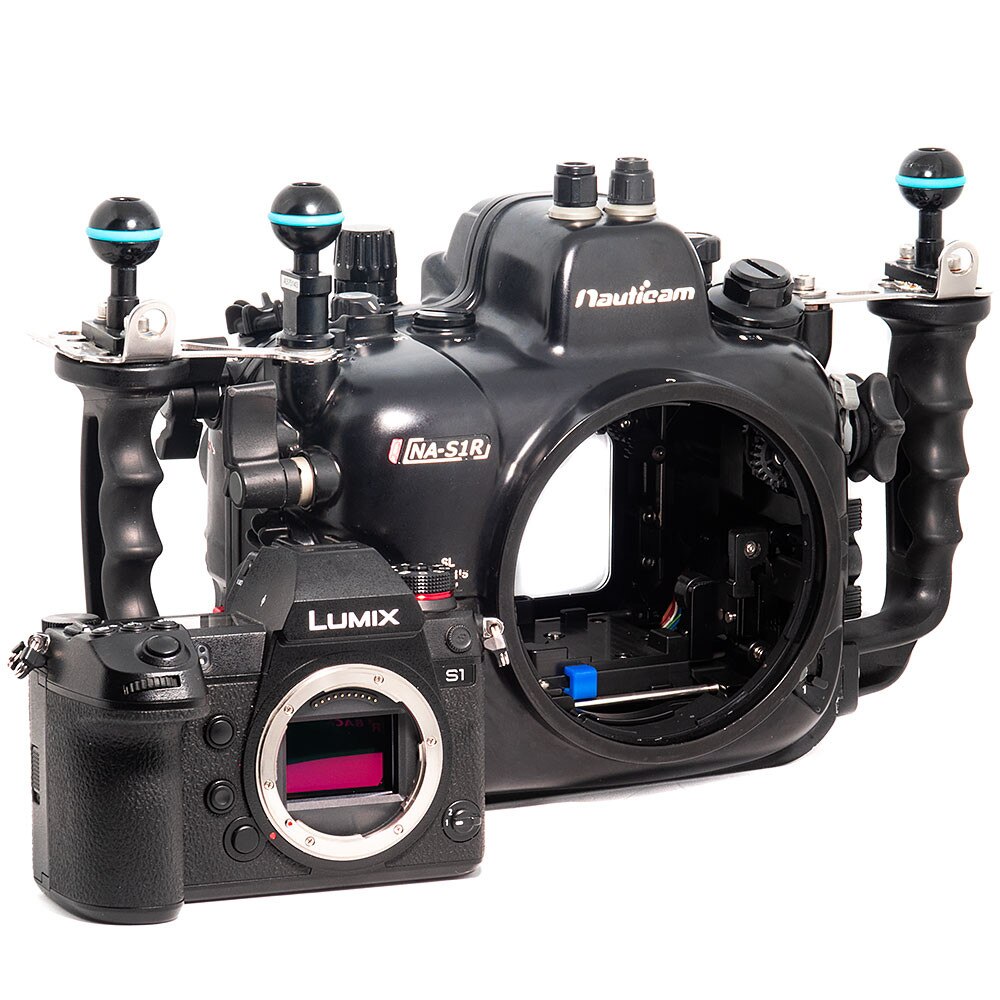

USED - Panasonic S1 Mirrorless Camera, Nauticam NA-S1R Underwater Housing & Lens Adapter



Package Includes:

• Used Panasonic Lumix S1 Full Frame Mirrorless Camera

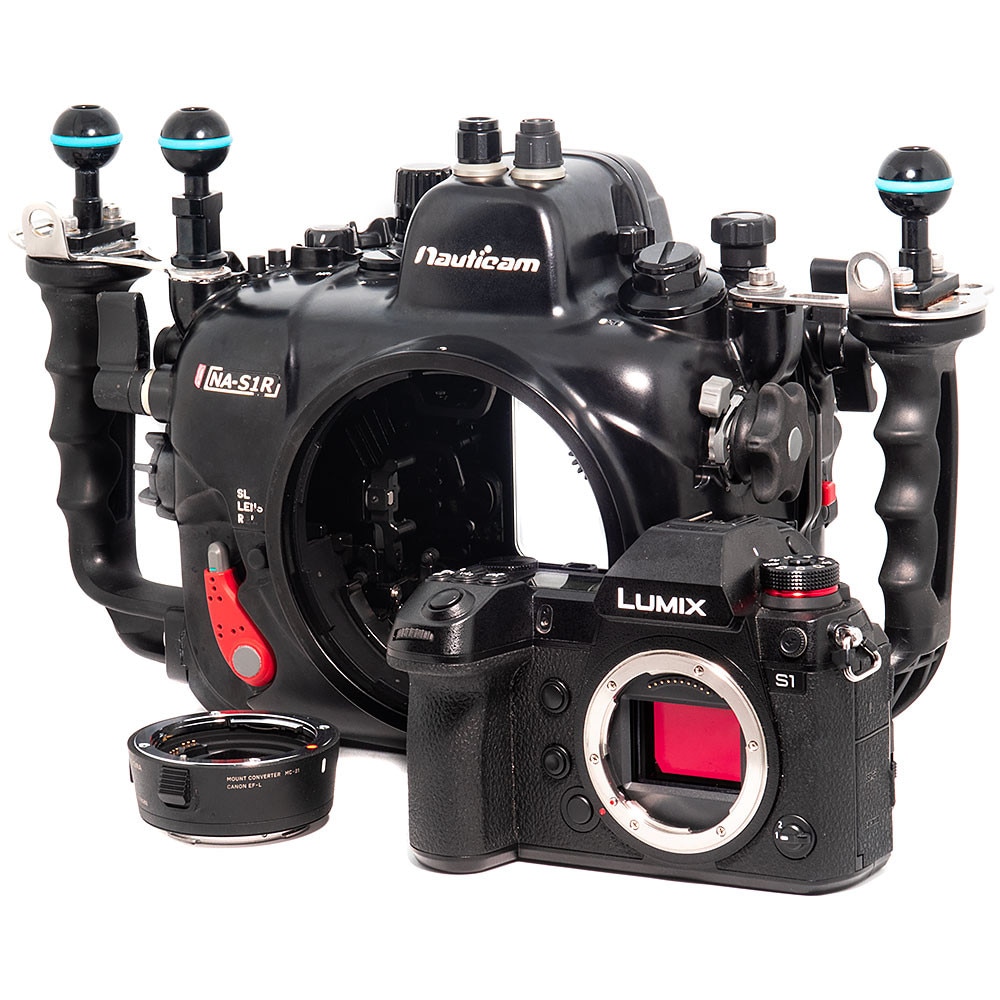

• Used Sigma MC-21 Mount Converter
• Used Nauticam NA-S1R Underwater Housing
• Used Nauticam Vacuum System

Nauticam Panasonic Lumix S1 & S1R Underwater Housing NA-S1R

Panasonic has thrown its hat into the full-frame mirrorless camera ring with the much-anticipated release of the LUMIX S1 and S1 R cameras. While the S1 and S1R may be physically identical, sharing a DSLR-style body, their capabilities are quite different. The S1's 24MP CMOS sensor is spec'd to appeal to the videographer while the S1R's 47MP CMOS sensor is clearly aimed at the photographer. While both can capture stills and 4K video, each one has its strong suit.


THE PANASONIC LUMIX DC-S1 AND DC-S1R CAMERAS

The LUMIX S1 and S1R share an identical magnesium alloy weather-sealed rugged body which is built around a full-frame sensor and what was previously referred to as the Leica SL-mount but now given the moniker of L-mount.

The viewfinder, touted by Panasonic as the having the world's highest resolution, for both the S1 and the S1R is a 5.76M dot OLED EVF with an effective magnification of 0.78x. Both the EVF and the LCD can be used in the new "Night Mode" configuration which changes from a white-on-black text display to a red-on-black color scheme.

Both cameras will feature dual card slots, one for a UHS-II v90 SD card and the other an XQD which will support the higher transfer rate CFexpress media in the future as well as both an HDMI (type A) and USB-C port.

Panasonic has given both models the same autofocus system which relies on their DFD (depth-from-defocus) contrast detection system. They have given the cameras 9 autofocus modes with customizable options. Panasonic claims a low-light autofocus capability of up to -6 EV.


THE PANASONIC LUMIX DC-S1 CAMERA

The S1 is given a more video-centric spec sheet as compared to the S1R. The S1 captures images using a 24MP CMOS sensor and does not have an Optical Low Pass Filter (OLPF). Video from the S1 is pulled from the full sensor width when recording UDH 4K at 30p with unlimited clip time length. UHD 4K 60p uses an APS-C crop with a maximum clip length of 29:59. Both 60p and 30p can be recorded with quality of 8-bit 4:2:2 whereas the 30p UHD 4K can also be recorded as 10-bit 4:2:0 in HDR with HLG (Hybrid Log Gamma). A future paid firmware update will upgrade this to 10-bit 4:2:2 for both 30p capture and HDMI output as well as access to full V-Log gamma (the GH5 uses the lower spec'd VLog-L ). The S1 is billed as having a high-sensitivity sensor which is reflected in the maximum ISO level of 204,800.


Panasonic LUMIX DC-S1 Key Camera Specs

• 24MP Full-Frame CMOS
• Maximum ISO of 204,800
• 4K UHD Recording at 30p (full sensor width) 8-bit 4:2:2
• 4K UHD Recording at 60p (APS-C crop area) 10-bit 4:2:0 HDR HLG



THE PANASONIC LUMIX DC-S1R CAMERA

The S1R is the higher-resolution model with a 47MP CMOS sensor. The S1R is clearly aimed at the needs of the still photographer but is still capable of capturing 4K UHD video if needed, albeit at a lower standard than the S1. The S1R has a maximum ISO level of 51,200. 4K UHD v 60p/30p video capture is pulled from a 1.09 crop area of the sensor with a maximum clip length of 10 minutes for 60p and 29:59 for 30p. The S1R features a high X-Sync speed of 1/320 sec as well as a highlight-weighted metering mode and the ability to adjust the standard EV level by up to +/-1-stop.


Panasonic LUMIX DC-S1R Key Camera Specs

• 47MP Full-Frame CMOS
• No OLPF
• X-Sync speed of 1/320
• Maximum ISO of 51,200
• 4K UHD Recording at 60p/30p (1.09 crop area)



THE NAUTICAM NA-S1R UNDERWATER HOUSING

With the ability to house both the Panasonic LUMIX S1 and S1R cameras, the Nauticam NA-S1R housing gives the underwater image maker tremendous versatility. Nauticam's drive for innovation and focus on real-world usability are clearly reflected in the features that are built into the NA-S1R.

While the two cameras may have different strengths, the NA-S1R is designed and built to give both video and still shooters dedicated access to all the controls and features exactly where they need them.


Mission Control

Nauticam engineers are obsessed with usability and the Mission Control philosophy means placing essential controls where they are needed, unrestricted by where they are located on the camera body. Placing the controls as close to the handles as possible and within easy and natural reach, the user can focus on composition and timing their shot while adjusting exposure or focus without taking their eye off the EVF or LCD.

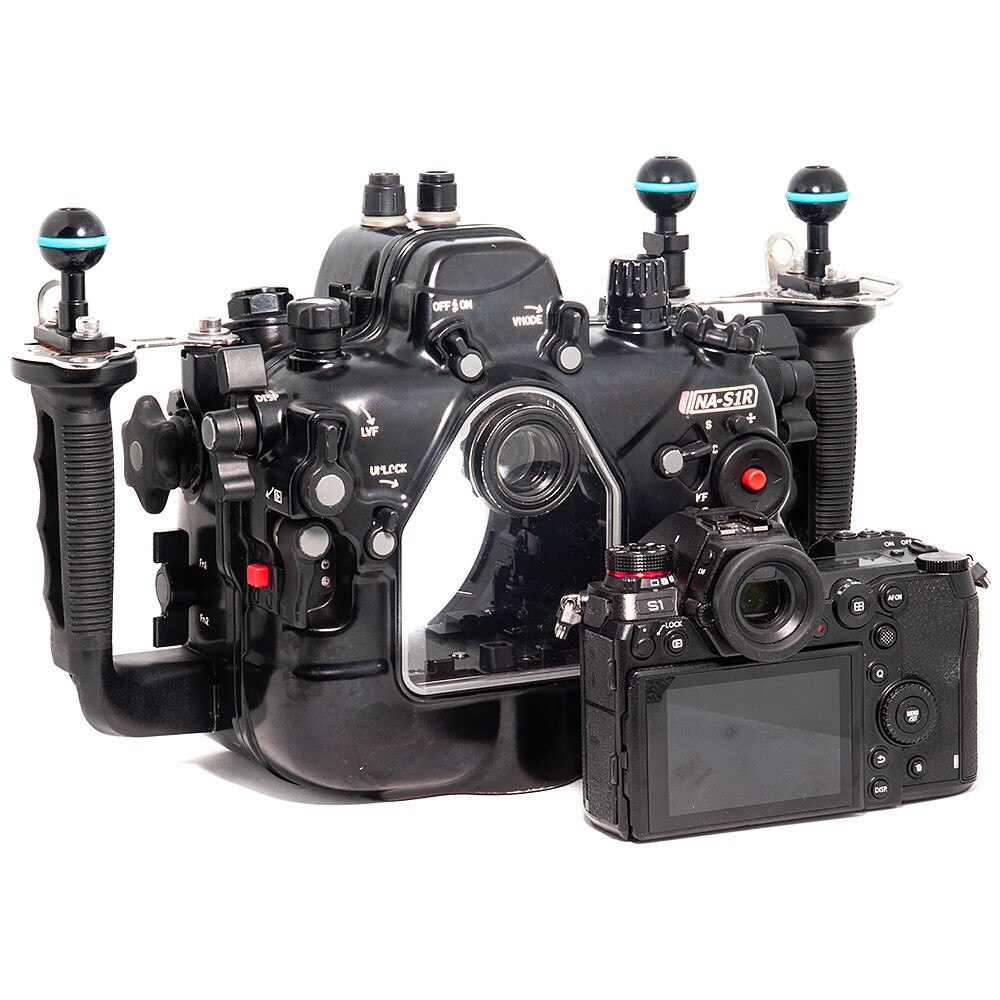

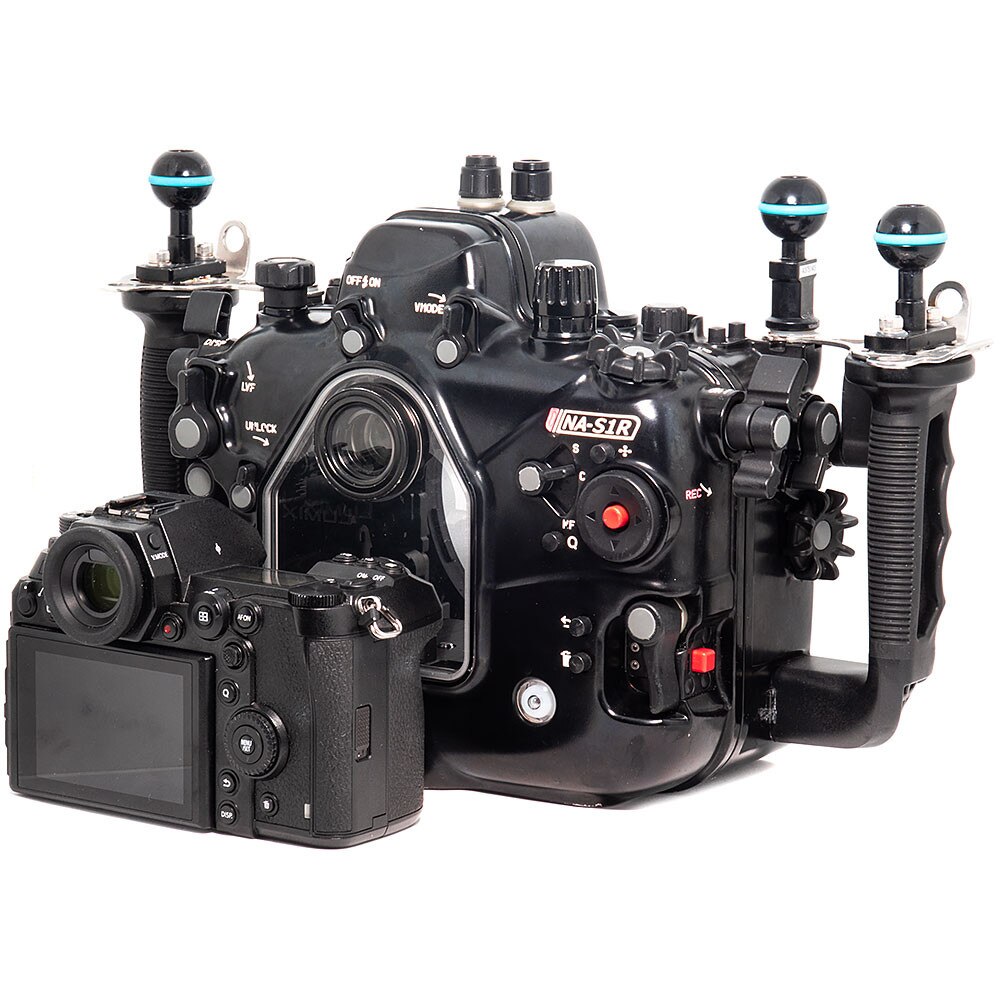

The NA-S1R has a double thumb lever on the rear left side of the housing that accesses DISP and Playback while a double thumb lever on the left front activates the customizable Fn1 and Fn2 buttons. A rear double thumb lever on the right side is for AF-On and REC.

A lever on the right read of the NA-S1R allows for focus mode switching between C/S/MF and a multi-directional pad gives the ability to navigate the menu or move the focus point.


Sigma EF-lens Support

Sigma's MC-21 EF to L adapter will allow for the use of Sigma EF-mount lenses to be used with the S1 and S1R cameras. The NA-S1R is designed to not only accommodate the adapter but to allow for the use of the existing focus and zoom gears for Canon EF-mount Sigma lenses for the N120 Canon System along with the existing Canon N120 extension ring and port combinations for those lenses.


Flash Triggering

Optical flash triggering with automatic exposure is supported by the Panasonic DMW-FL70 (sold separately). For rapid-fire manual flash triggering, the NA-S1R is compatible with the Mini Flash Trigger (26309) which uses small LED units to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216).

A TTL Flash On/Off lever on the top of the housing allows for enabling or disabling the DMW-FL70 flash in the water.


HDMI 2.0 Output

To take full advantage of the S1 video capabilities, the NA-S1R features the large-bore M28 bulkhead for HDMI 2.0 connections such as those on the Atomos Ninja V when used in conjunction with the Nauticam Atomos Ninja V Housing (HDMI 2.0) for Atomos Ninja V 5" 4K 60p 4:2:2 10-bit Recorder/Monitor/Player (17922).


Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-S1R as standard equipment. Combined with an accessory vacuum valve (PN 25625 or 25624), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.


FEATURES

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.


HOUSING LOCKING LATCHES

The industry's easiest to use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening but are easy to open when needed for a quick battery or memory card change.


MISSION CONTROL

Nauticam engineers pride themselves on giving the underwater image-maker unparalleled access to the essential exposure controls from within easy reach of their housing's handles, making the ergonomic handles of the housing their Mission Control.


LENS SUPPORT

The NA-S1R housing is designed to support a broad range of lenses, including native L Mount lenses jointly developed by Panasonic, Leica, and Sigma. The system also supports Sigma EF mount lenses attached by the MC-21 lens adapter.


What's In The Box:

• NA-S1R Housing
• 90134 Housing O-ring, lubricant and removal tool
• CR2032 Battery (for vacuum system)
• Padded Travel Case
• Allen Wrench Set



Recommended Accessories:

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ viewfinder
• 32203 Nauticam 45˚ viewfinder
• 26309 Mini Flash Trigger for NA-GH5/G9 Housing
• 28130 Hand Strap for 28113 (For NA-1DXII/D500/D5/80D/A9)



Recommended 4K Recorder/Monitor:

• 17922 Nauticam Atomos Ninja V housing (HDMI 2.0) for Atomos Ninja V 5" 4Kp60 4:4:2 10-bit Recorder/Monitor/Player
• 25078 HDMI 2.0 Cable M28A1R225-M28A1R170 for use with 17922 Ninja V Housing



TECHNICAL SPECIFICATIONS

• Dimensions: 363mm(W) x 215mm (H) x 153mm (D)
• Weight: 3.5 kg (in air)
• Depth Rating: 100m / 330ft



Panasonic Lumix S1 Full Frame Mirrorless Camera



Features

• FULL FRAME SENSOR – 24.2-megapixel full-frame (35.6mm x 23.8mm) MOS sensor that provides a wide dynamic range and excellent performance at high sensitivity. (ISO 51200 Max sensitivity)
• 4K HDR VIDEO - 4K 60p/50p, 4K 24/30P unlimited recording, 4K60P 29:59 min limited recording. HDR Mode and Hybrid Log Gamma (HLG). V-Log with Internal 4:2:2 10-bit 4k30/24p (4K60p output only) available via optional software upgrade key.
• 96MP HIGH-RESOLUTION MODE – A sensor-shift technology suitable for taking very high-resolution landscapes and fine art photos via tripod with toggleable motion correction capabilities
• LVF and MONITOR – 3.2” 2,100K-dot RGBW LCD monitor (3:2 aspect ratio) with triaxial tilt moving element, plus large 5,760k-dot high-resolution OLED eye viewfinder
• RUGGED MIRRORLESS CAMERA DESIGN – Dust/splash/freeze-resistant design withstands heavy field use under harsh conditions for high mobility



The Ultimate Hybrid for Stills and Video

Go beyond the boundaries of still and video with this full-frame camera's 24.2MP CMOS sensor for incredibly realistic detail. An hour of 4K video recording complements pro-level video performance.


24.2MP CMOS Sensor: Maximizing Sensitivity and Image Quality

Breathtaking quality with wide dynamic range and sharp, natural expression, even at high sensitivity settings. Maximum sensitivity of ISO512000.


4K 60p Smooth Video Recording

LUMIX S1 delivers 4K 60p video (QFHD 4K: 3840 x 2160 MP4) in a full-frame format, even in rapidly moving scenes. Heat dissipation allows 4K 30p/24p and full-HD recording with no time limit.


Advanced Recognition Technology

Create with high-speed, high-precision focus at every angle thanks to the unified control of sensor, engine, and lens. 480 fps and DFD technology offer high-precision autofocus of approx. 0.08 seconds.


Built Tough for Rugged Conditions

The durable magnesium alloy die-cast frame is sealed to help protect every seam, dial, and button. The camera is dust and splash-resistant and designed for use in temperatures as low as -10°C.


Unlimited Possibilities with L-Mount7

Leica Camera, Panasonic, and Sigma have aligned to offer photographers a limitless spectrum of mix-and-match creative possibilities.
