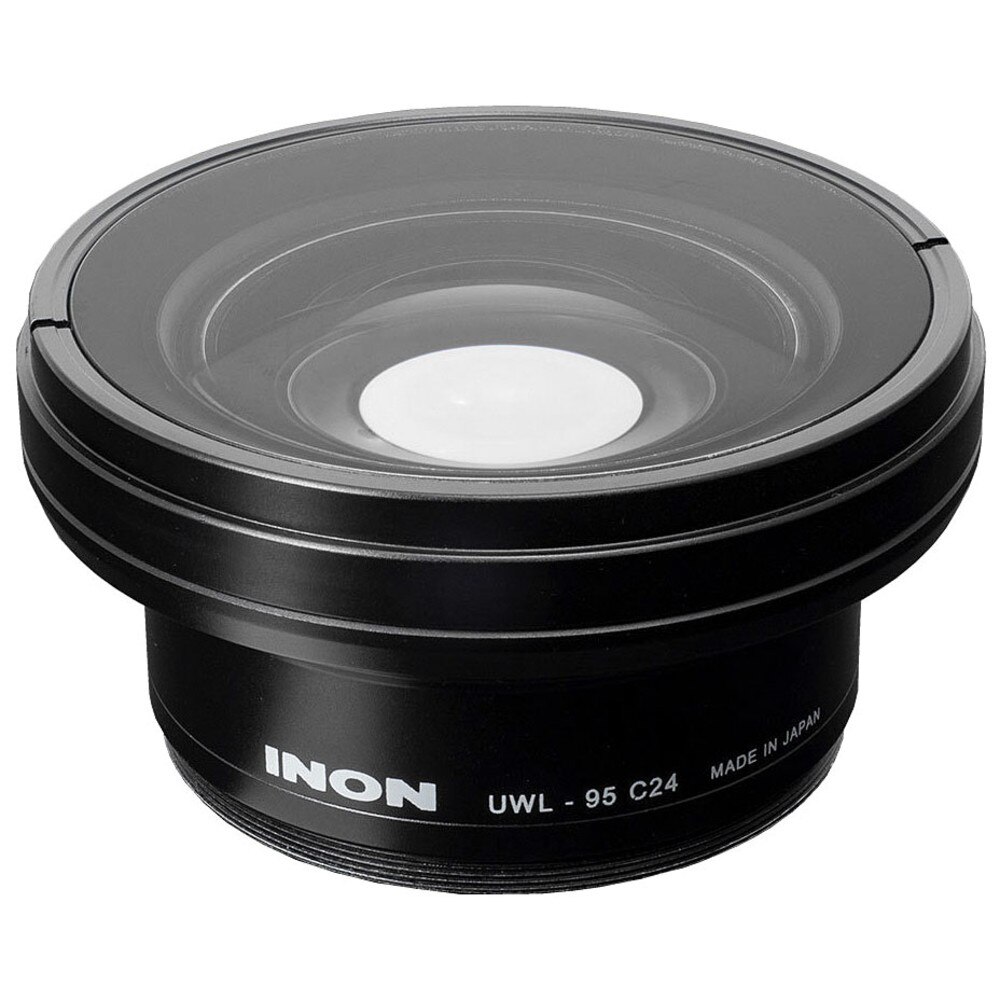

Inon UWL-95 C24 M67 Type 2 Underwater Wide Angle Lens

The maximum view angle is 95° underwater/159° in the air. Combination with optional super-wide option Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141°.

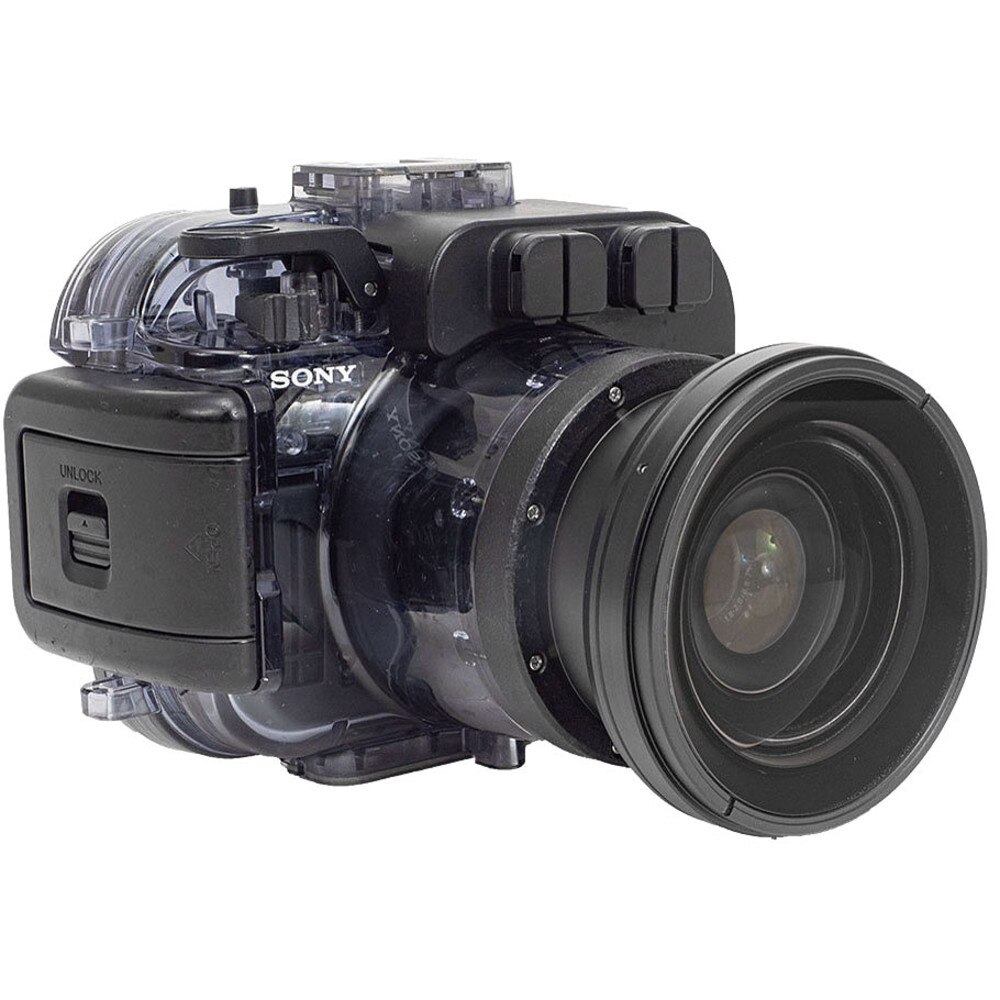

The totally renewed optical design effectively suppresses flare/ghost even in a backlit condition to provide a sharp and high-quality image. The UWL-95 C24 is designed to support a camera of the large 1.0 type sensor with a bright master lens. Using the UWL-95 C24 can dramatically reduce minimum focusing distance enabling to get subject on the lens in focus both on land and underwater.

The lens mount has a versatile M67 or M52 mount. The M67 version has two types, either of Type1 or Type2, having a different threaded thickness to bring out the optimal performance of the different combined master lens. Optional M67 Type1 Screw Ring for UWL-95 C24 or M67 Type2 Screw Ring for UWL-95 C24 is available to purchase making it easy to modify from M52 Mount to M67 Mount or convert original M67 type to the other type.

Specifications

• Outer diameter: φ90.0 mm/3.5 in
• Length: 48.2 mm/1.9 in
• Weight: [air] 618 g/21.8 oz [underwater] approx.396 g/14.0 oz
• Mount system: INON M67 Mount
• Depth rating: 60 m/196.9 ft
• Material: Corrosion-resistant aluminum alloy
• Surface finishing: Rigid black alumite
• Glass/Coating: Optical glass/both side anti-reflection coating
• Lens construction/magnification: 3 groups 4 elements/0.63 (aforcal)
• Max. view angle: [underwater] approx. 95°, [air] 159.0°
