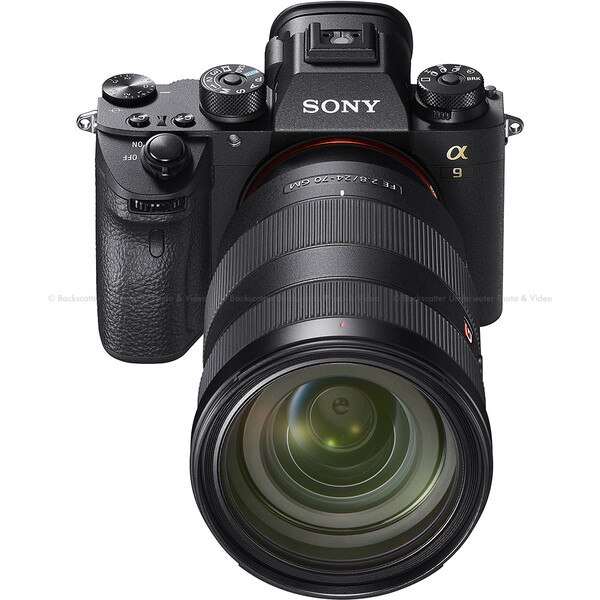

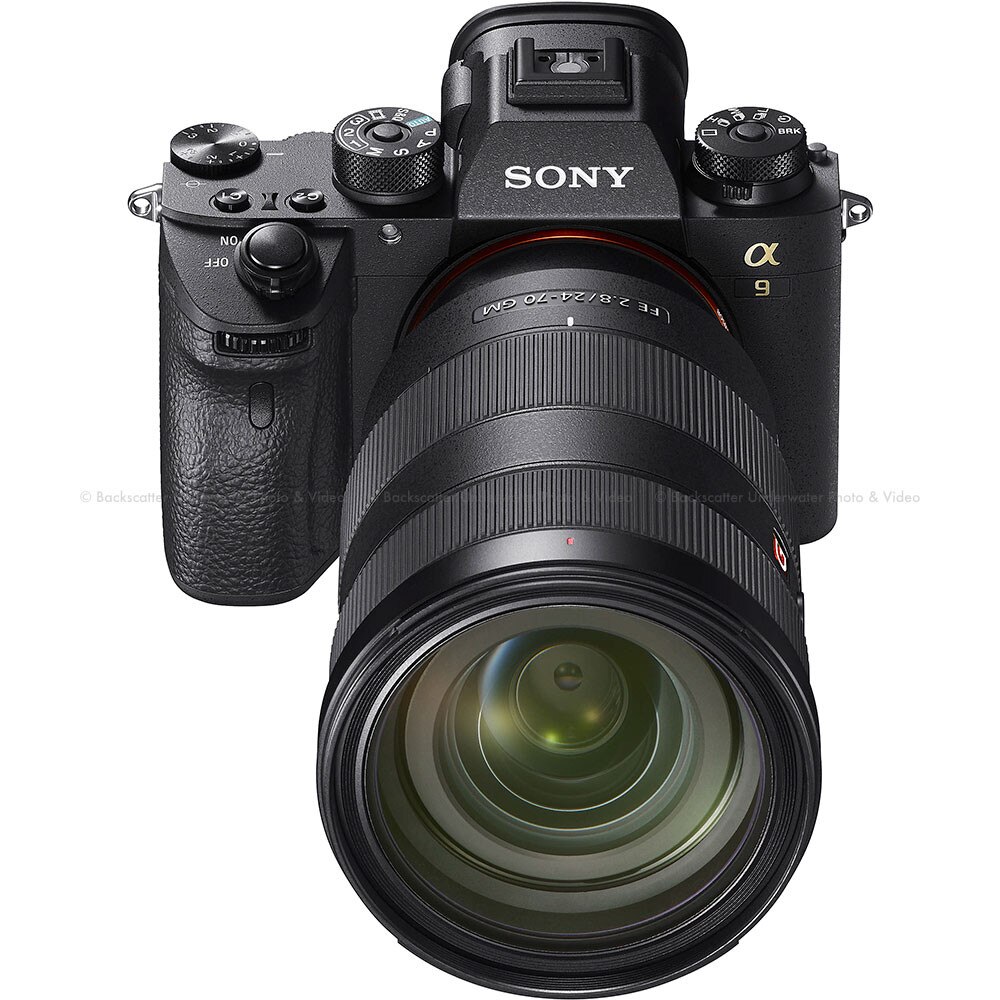

Sony a9 Full-Frame Mirrorless Camera

Sony a9 Full Frame Mirrorless Camera

What only α9 can do

This mechanism-free camera can deliver a-class-above performance conventional mechanical SLRs have only sought. For example, this system realizes a totally blackout-free viewfinder while conventional systems can only try to reduce blackout time. A high-speed, vibration-free, silent Anti-Distortion shutter vastly extends the range of shooting situations while a mechanical system can only aim for lower vibration and quieter shutter release sound. α9 provides continuous tracking of moving subjects for foolproof AF/AE while traditional SLRs can only challenge such AF/AE performance improvements. Moreover, α9 allows its viewfinder to show not only images of the subject — available on conventional systems — but also the final image of a shot. Now, thanks to a new image sensor that superbly manages all these roles, you can surpass all expectation with α9.

Driving force for full-electronic revolution

Innovative full-frame stacked CMOS sensor with integral memory

α9 liberates you from the limits of conventional SLRs that rely on mechanical systems. First to use high-speed stacked design, its 24.2-megapixel full-frame image sensor temporarily stores large-volume data in the integral memory for overall 20 times faster readout speed. The combination of CMOS sensor and enhanced BIONZ X image-processing engine brings you true digital freedom.


Sony a9 New image sensor - 35mm full-frame stacked CMOS sensor with integral memory

Capture the previously uncatchable

High-speed continuous shooting at up to 20fps

Groundbreaking full-frame Exmor RS CMOS sensor and BIONZ X processor team up for 20fps continuous shooting with AF/AE tracking. Stunning high-speed performance and ample buffer let you capture the decisive moment.

Blackout-free shooting

Non-mechanical electronic shutter eliminates blackout with typical SLR mirror action. An uninterrupted view of the subject is available even during shutter release, with 60fps live-view capability and minimal display lag in continuous shooting.

Track the action with an uninterrupted view

AF/AE calculations up to 60 times/sec.

Light directly reaches the image sensor without mechanical interruption. An ingenious fusion of mirrorless construction and new speed-enhancing technologies provides AF/AE at the full-frame focal plane.

Electronic shutter speeds up to 1/32000 sec.

Electronic shutter speeds up to 1/32000 sec. far surpass mechanical shutters for a new imaging expression. You can also maintain shallow depth of field without an ND filter, even under bright conditions.

Silence expands photographic potential

No noise distraction

An anti-distortion electronic shutter allows silent shooting without mechanical mirror and shutter noise. It’s ideal for sports and subjects that demand quiet operation, greatly expanding camera versatility

No unwanted vibration

During SLR shooting, mirror shock and shutter release shock cause subtle vibration. α9, however, has a vibration-free electronic shutter that can keep the camera stable, for razor-sharp images.

Mobility leads to unprecedented opportunities

Professional features and performance in a compact body. The freedom of mobility inspires fresh creativity.

4D FOCUS: Stunningly wide coverage

693. Remarkable number of phase-detection AF points

The phase-detection points on the surface of an image sensor — 693 AF points — covers approximately 93% of the image area. High-precision performance assures your focus on subjects.

4D FOCUS: Fast AF speed

Fast Hybrid AF achieves rapid AF for full-frame photos

Capture fast-moving subjects with reliable rapid AF. The speed and accuracy of this Fast Hybrid AF System are further improved in combination with the enhanced BIONZ X image processing engine.

4D FOCUS: Steadfast tracking

Reliable subject tracking in motion

Uninterrupted AF and optimized AF algorithm dramatically enhance AF accuracy and tracking. Even during shutter release, constantly activated AF lets you continue tracking random subject motion.

More AF features for assured shooting

Eye AF for more precise focusing

Eye detection — enhanced by 30% through improved face detection — keeps the subject’s eye in focus, even if the face is turned at an angle or partially shaded. Wide focal-plane phase-detection AF sensor shows its ability in challenging shots.

Reliable even in low light

Capture subjects with high AF precision down to light levels as low as EV-3 at ISO 100, due to the high sensitivity image sensor.

A-mount lens AF support

Focal-plane phase-detection AF system with 693 AF points functions reliably. Enjoy up to 10fps continuous shooting with AF/AE tracking even when you use A-mount lenses with a mount adapter (LA-EA3).

Outstanding image quality

Full-frame 24.2-megapixel sensor with sensitivity up to ISO 204800 and wide dynamic range captures outstanding image quality.

New CMOS sensor for imaging excellence

High sensitivity, a back-illuminated configuration, gapless on-chip lens architecture, and other Sony innovations deliver stunning images in a wide range of photographic situations. Standard ISO range is ISO 100-51200, expandable to ISO 50-204800 with minimum noise.

Technology for high-quality images

Utilize high-quality imaging that unites all available image sensor technologies — including back-illuminated structure, gapless on-chip lens architecture.

BIONZ X enhanced speed image processor

Enhanced image processing combined with new front-end LSI reduces noise while improving detail depiction over a wide sensitivity range. Improved detail rendering enables lifelike texture reproduction.

Uncompressed 14-bit RAW

Uncompressed 14-bit RAW format is supported, and it or the current compressed RAW format can be selected as required. Uncompressed 14-bit RAW is a good choice in situations where the sensor's wide dynamic range and fine gradation reproduction will benefit the images being captured.

Beautiful 4K imaging

High-resolution quality of 4K movies

Full-pixel readout with no pixel binning makes it possible to condense approximately 2.4 times the amount of data required for 4K (the equivalent of the amount of data required for 6K) into 3840 x 2160 4K output. This oversampling process plus full-frame pixel readout without binning results in the highest possible 4K movie image quality.


Sony a9 High resolution full-frame 4K

Efficient workflow and professional reliability

In addition to a magnesium alloy body that assures the camera’s all-around toughness and reliability, largely amplified versatile features enhance operability, supporting severe usage in professional photography.

Quad-VGA OLED Tru-Finder

The new high-resolution 3686k-dot electronic viewfinder (EVF) shows a clear image with fine detail. The legendary ZEISS® T* Coating greatly reduces reflections. Smooth EVF images realized by 120fps frame rate even allow you to easily track a subject in fast motion. Fluorine coating on the outermost lens provides improved protection from dirt.

5-axis image stabilization

New body-integrated 5-axis image stabilization unit offers a 5.0-stop shutter speed advantage. The live-view monitor image is also stabilized, so you can compose images easily even when shooting a fast-moving subject.

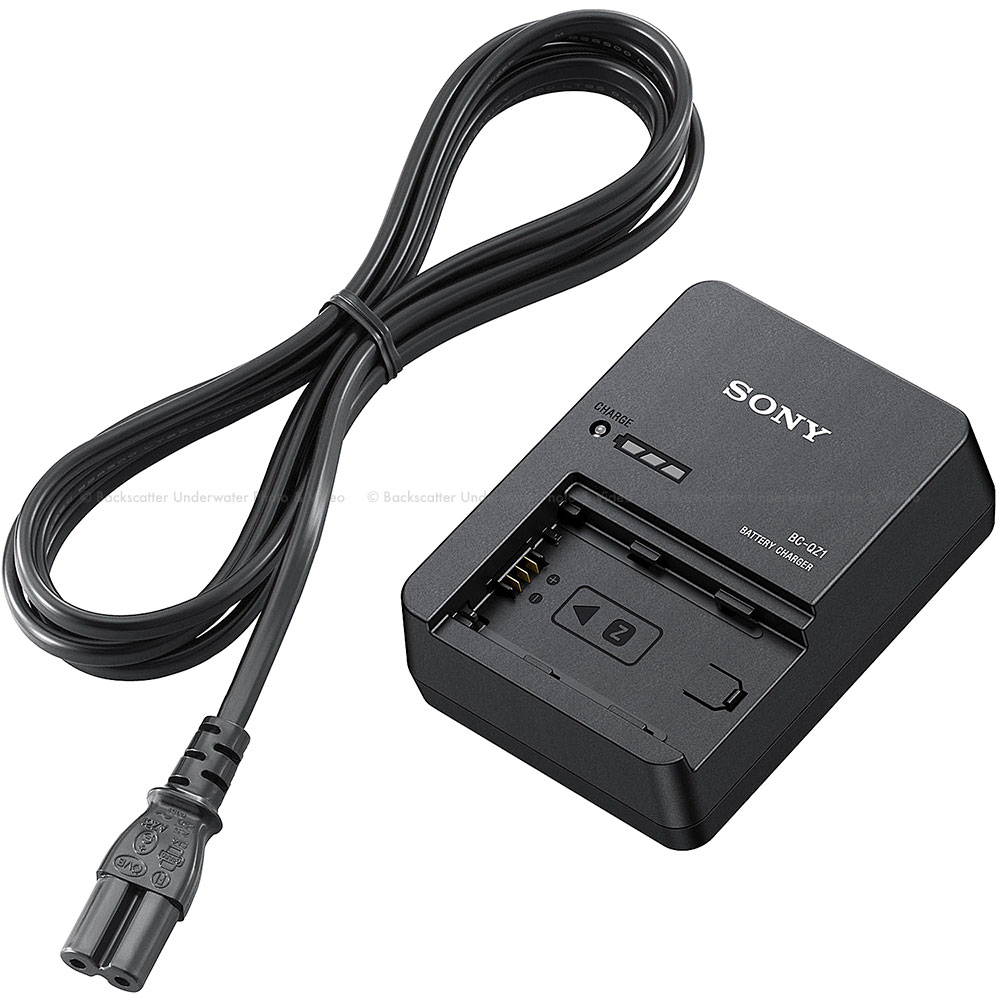

Battery stamina for professional use

A newly developed NP-FZ100 battery offers approximately twice the life of the previous NP-FW50. Capture up to approx. 480 still frames on one charge — and further increase the number of shots with an attached optional vertical grip (sold separately) that can hold two batteries.

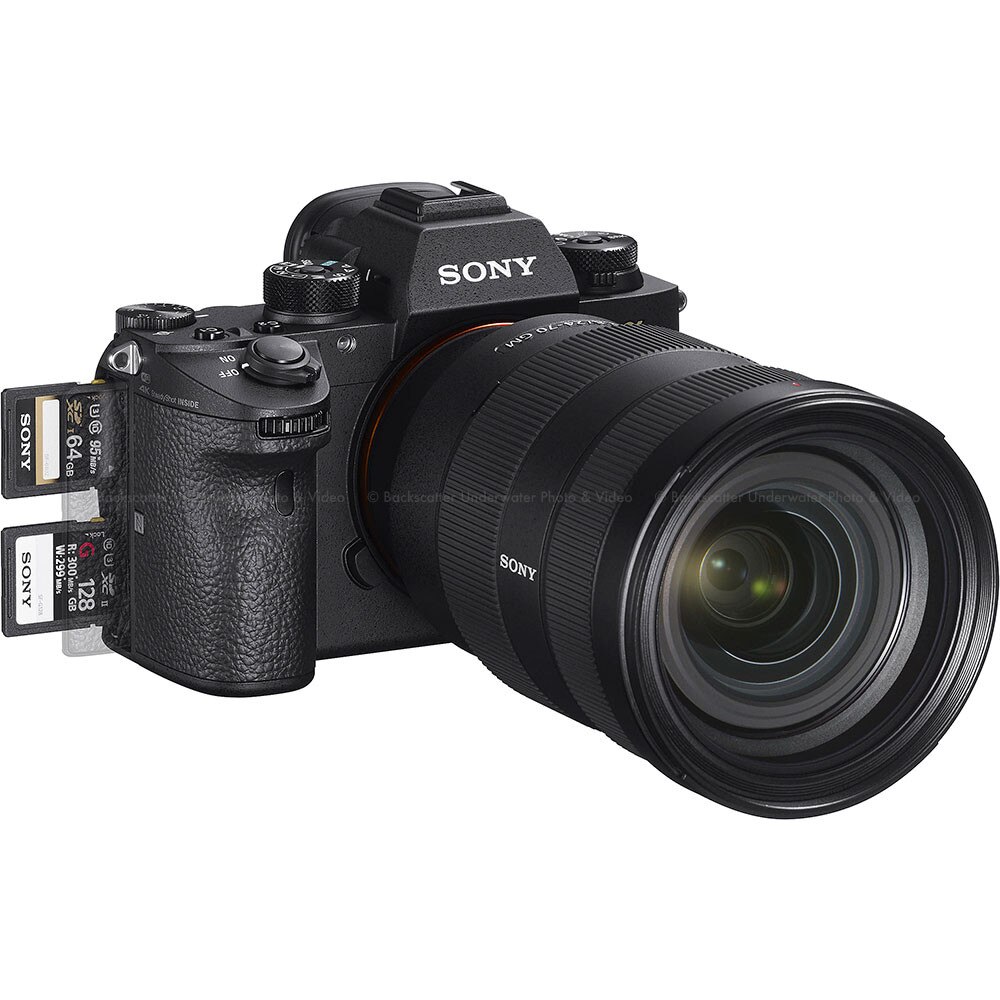

Dual media slots

Use two slots — one for SD and one for SD/Memory Stick cards — to simultaneously backup still/movie data, save RAW/JPEG images to different cards, and copy between cards. Lower card slot supporting UHS-II type cards is available for fast transfer speed.

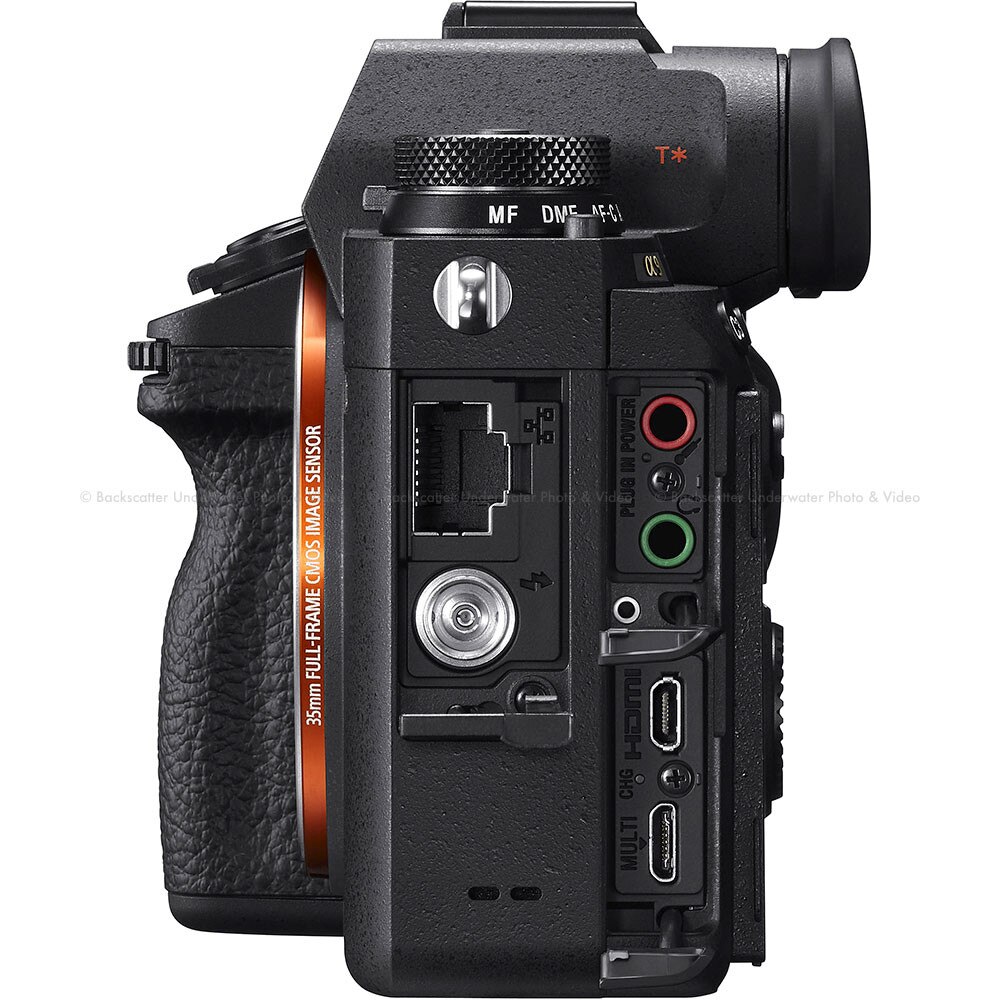

FTP file transfer

A new terminal for wired LAN connection lets you transfer still images to an FTP server for viewing and management. Since FTPS (File Transfer Protocol over SSL/TLS) is supported, image files can be encrypted while being transferred.

My Menu & new menu interface

A new My Menu feature lets you register up to 30 menu items for instant recall, arrange items in any order, and erase unused items. Also, primary menus have been reorganized for smoother search and operation.

SPECIFICATIONS AND FEATURES

• 24.2-megapixel 35mm full-frame stacked CMOS sensor with integral memory
• BIONZ X processing engine
• High-speed continuous shooting of up to 20fps with AF/AE tracking
• 693-point wide-area phase-detection AF
• 5-axis image stabilization with effectiveness equivalent to 5.0-stop slower shutter speed
• LENS COMPATIBILITY: Sony E-mount lenses
• TYPE: 35mm full frame (35.6×23.8mm), Exmor RS CMOS sensor
• NUMBER OF PIXELS (EFFECTIVE): Approx. 24.2 megapixels
• ISO SENSITIVITY (RECOMMENDED EXPOSURE INDEX)
• [Still images]
• Mechanical Shutter: ISO 100-51200 (ISO numbers up from ISO 50 to ISO 204800 can be set as expanded ISO range)
• AUTO (ISO 100-6400, selectable lower limit and upper limit)
• Electronic Shutter: ISO 100-25600 (ISO numbers up from ISO 50 can be set as expanded ISO range)
• AUTO (ISO 100-6400, selectable lower limit and upper limit)
• [Movies]
• ISO 100-51200 equivalent (ISO numbers up to ISO 102400 can be set as expanded ISO range)
• AUTO (ISO 100-6400, selectable lower limit and upper limit)
• BATTERY LIFE (STILL IMAGES): Approx. 480 shots (Viewfinder) / approx. 650 shots (LCD monitor) (CIPA standard)
• VIEWFINDER TYPE: 1.3 cm (0.5 type) electronic viewfinder (color),Quad-VGA OLED

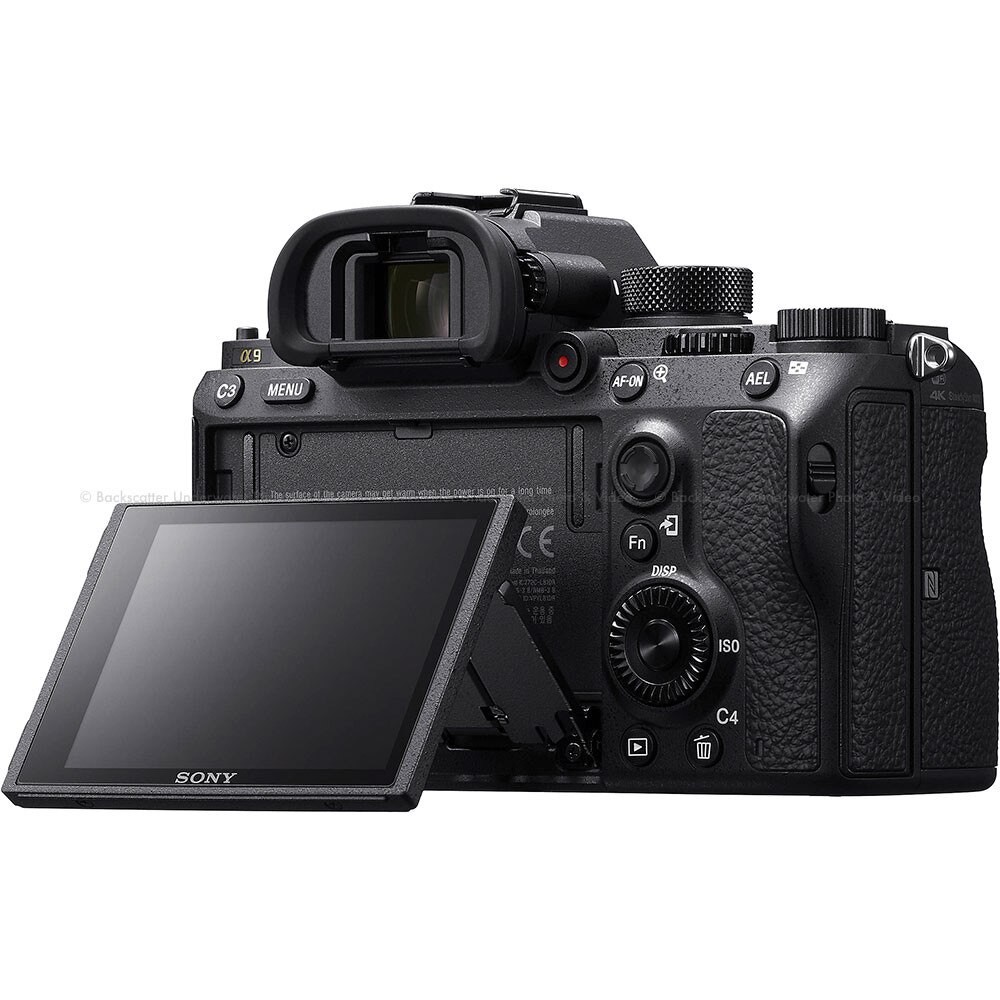

• TYPE: 2.95 inch (3.0-type) wide type TFT
