Sony ZV-E1 Mirrorless Camera

The Ultimate Vlog Camera for Content Creators

Designed as a professional photo+cinema camera for content creators to up their game, the ultra-compact black Sony ZV-E1 Mirrorless Camera provides cinematic looks to your vlogs, interviews, and product demonstrations. With an even smaller form than the EV-10 and the cinema-style inner-workings of the a7S III, the ZV-E1 features a full-frame 12MP Exmor R CMOS sensor and a BIONZ XR image processor to offer stunning cinema looks in a tiny, mobile form. Its full-frame E-mount makes it one of the smallest cameras with an interchangeable lens mount around. Some of the benefits of the ZV-E1 include a cinematic bokeh, 15+ stops of dynamic range, 5-axis stabilization, AI-based auto-framing, AF assist, multiple mic options, USB streaming, a dust and moisture resistant housing, and more.

12MP Exmor R CMOS Sensor + BIONZ XR Processor + AI

With 2.5x the image size of APS-C, the 12.1MP full-frame CMOS sensor features a back-illuminated Exmor R design, an updated BIONIC XR image processor, and a new, dedicated AI processing unit. Together, the camera provides capture of low-light images with its impressive ISO 80-102,400 with an extended ISO 80-409,600 range, 15+ stops of dynamic range, and a beautiful, cinematic bokeh for photo stills and video.

Video Recording

UHD 4K 120p | FHD 240p, 10-Bit 4:2:2 Internal Recording

UHD 4K recording is possible with frame rates up to 120p and full HD recording up to 240p, using full 1:1 pixel readout without binning. Internal 10-bit 4:2:2 sampling is also possible in all recording modes.

The camera supports All-Intra (All-I) and XAVC S-I, which are intraframe codecs for consistent performance and quality at bitrates up to 600 Mb/s.

Recording Flexibility

The high-speed, 120 fps recording enables slow-motion movie recording, or, if moving down to Full HD resolution, an effective 240 fps frame rate is also available for even greater motion control. Suiting long-form recording, the ZV-E1 does not have any recording time limits to allow for unlimited clip lengths. The camera's physical design also features an improved heat-dissipating structure to promote longer possible recording times, up to an approximate 60-minute recording time at 4K60p.

The Cinematic Vlog setting provides cinematic settings with one touch. You can set all your cinema settings right on one screen, including aspect ratio, frame rate, look mode, mood, and AF modes.

Advanced Color Control

S-Cinetone can be used to deliver distinct colors and healthy-looking skin tone rendering that matches the a7S III, FX9, and FX6 cameras and is based on technology from the professional Cinema Line cameras, such as the VENICE. This color profile offers natural mid-tones, soft colors, and especially well-controlled highlights.

Affording extensive customizable color and gamma controls, you can adjust the gamma, black level, knee, color level, and more. Also, users can use the same S-Log3/S-Gamut3.Cine Gamma Curve that is found on high end Sony Cinema cameras for increased post-production flexibility.

Users can import and apply their own LUTs for additional gamma and image profile options

Autofocus and Image Stabilization

Fast Hybrid AF

The Autofocus feature provides multiple features including focus breathing compensation, customizable AF transition speed settings, and AF subject shift sensitivity settings. It provides a focus map and AF assist functions to provide fast, accurate focusing.

AI Processing Unit

Its dynamic active mode stabilization using the AI recognition and tracking system creates auto-cropping to focus in on a subject, and the framing location is fully customizable. The camera's bokeh switch provides custom adjustment for the level of bokeh.

The Multiple Face Recognition setting allows the camera to automatically track multiple subjects within the frame. It facilitates framing stabilization and automatically tracks your subject in frame, to make sure the subject stays within the frame.

The Product Showcase Setting provides an AF tracking switch between your product and subject, to maintain the same bokeh on different subjects.

5-Axis Image Stabilization

The ZV-E1 incorporates a next-gen 5-axis optical image stabilization system, which compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.

Optical active mode that increases image stabilization when walking with the camera, and dynamic active mode adds electronic stabilization that is even more effective when using fast movements and longer focal lengths.

Creative Zoom Operation

The ZV-E1 also features smooth zooming with your zoom lens using the zoom lever, or by using digital Clear Image Zoom for stepped zooming from 1.0x, 1.5x in 4K, 2.0x in FHD, or 4.0x in FHD.

Vlogging Features

Time-Lapse

The camera supports instant time-lapse settings with framerate, recording, light, and interval customization.

Slow and Quick Motion

When directly replaying movies in slow or quick motion in S&Q mode while using the XAVC S-I format at 60p, a maximum bit rate of 600 Mb/s (4:2:2 10-bit, H.264, All-I) delivers outstanding image quality. When using the XAVC S format, up to 10x slow motion with Full HD resolution is possible at 240 fps (24p recording), providing fresh perspectives on dynamic sports and other types of action.

Audio and Pro Video Features

The camera features an internal three-capsule mic, a mic jack, and you can also utilize a digital audio interface via the Multi-interface (MI) shoe. It also features a 3.5mm headphone jack. A windscreen is included to protect the internal mic.

For use in professional situations, the camera features a tally lamp, a custom video control layout, an integrated shooting grip, and a self timer.

Connectivity and Streaming

The camera can connect to the Creators' Cloud central cloud platform using a smartphone app for sharing and storing media, editing in the cloud, and collaboration tools. You can utilize USB output using UVC/UAC control via a computer for streaming applications and broadcasts, and the USB output supports up to 4K30 video.

You can also livestream with the camera with its webcam function using a computer. You can output up to 4K30 video (or 1080p60 video) via USB-C to a computer and utilize the camera to live stream via a computer app. It supports UVC/UAC control protocol standards.

Body Design and Connectivity

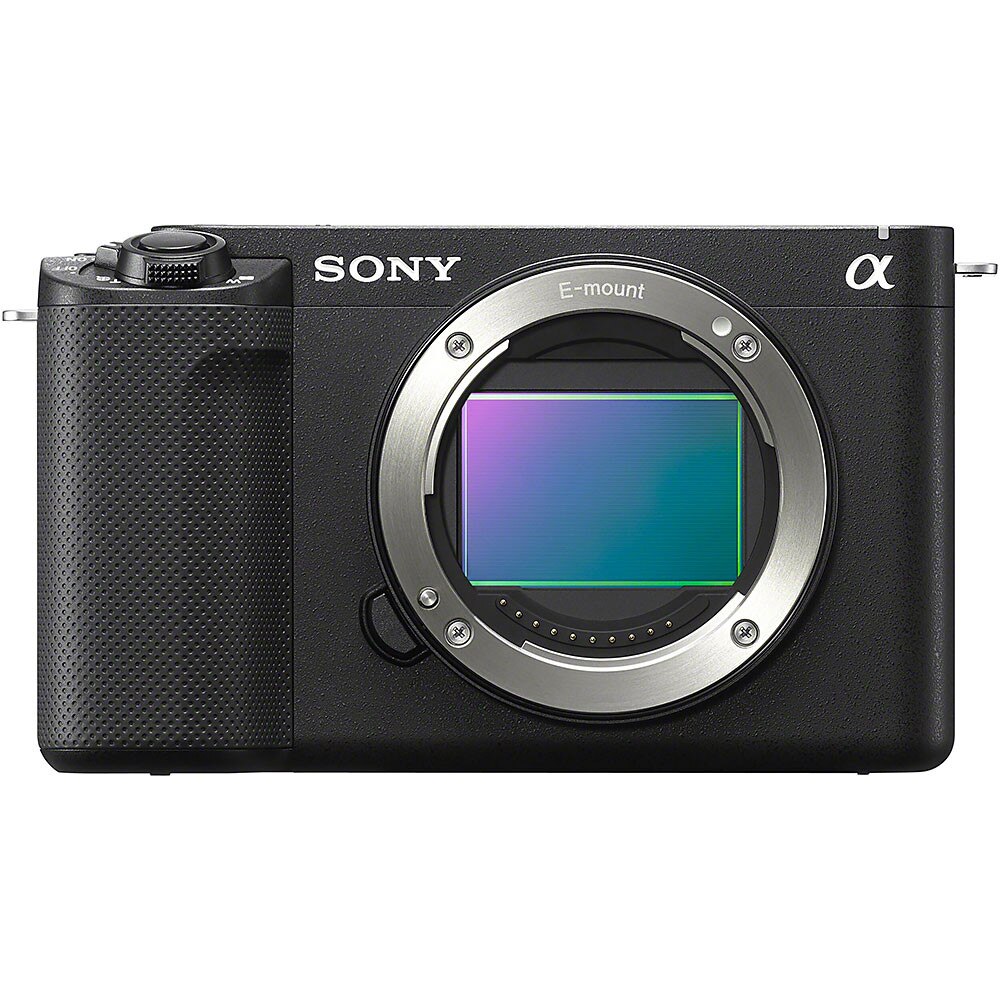

Sony E Lens Mount

The E mount supports all E-mount lenses, including full-frame FE lenses.

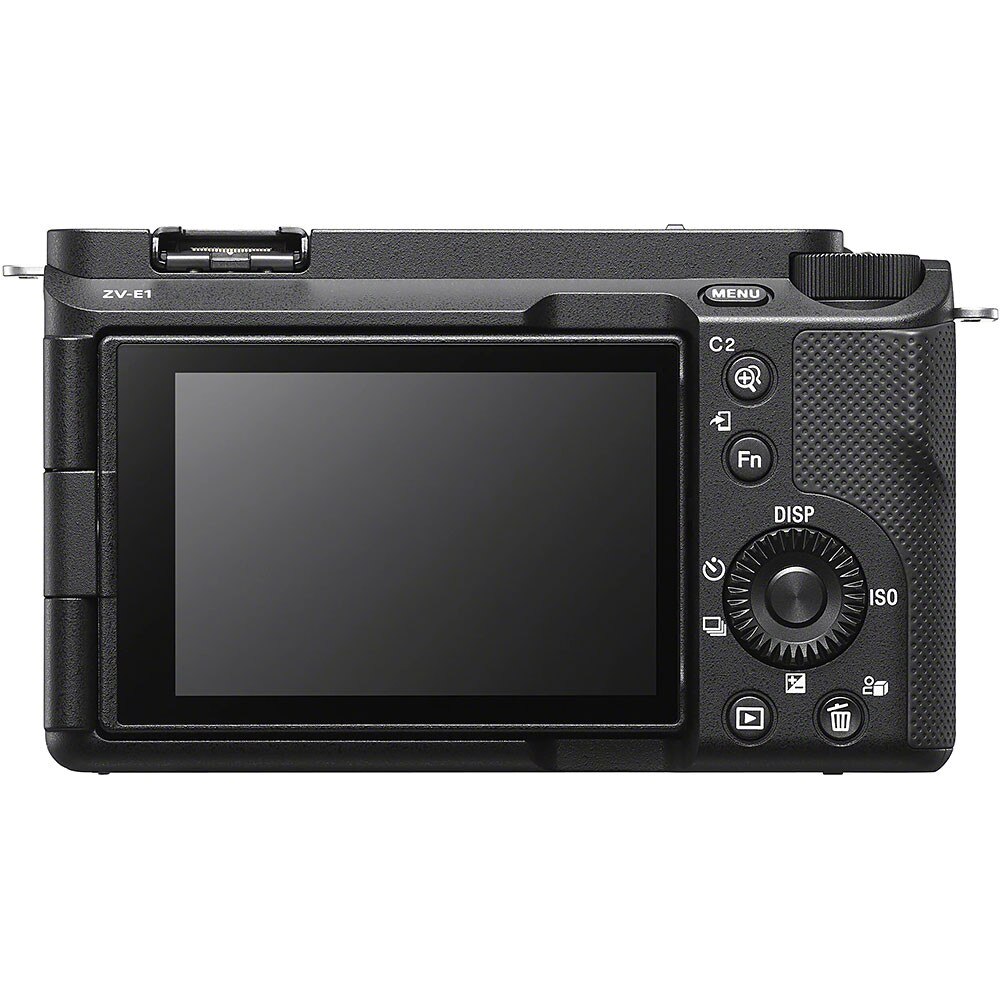

Intuitive Touchscreen LCD

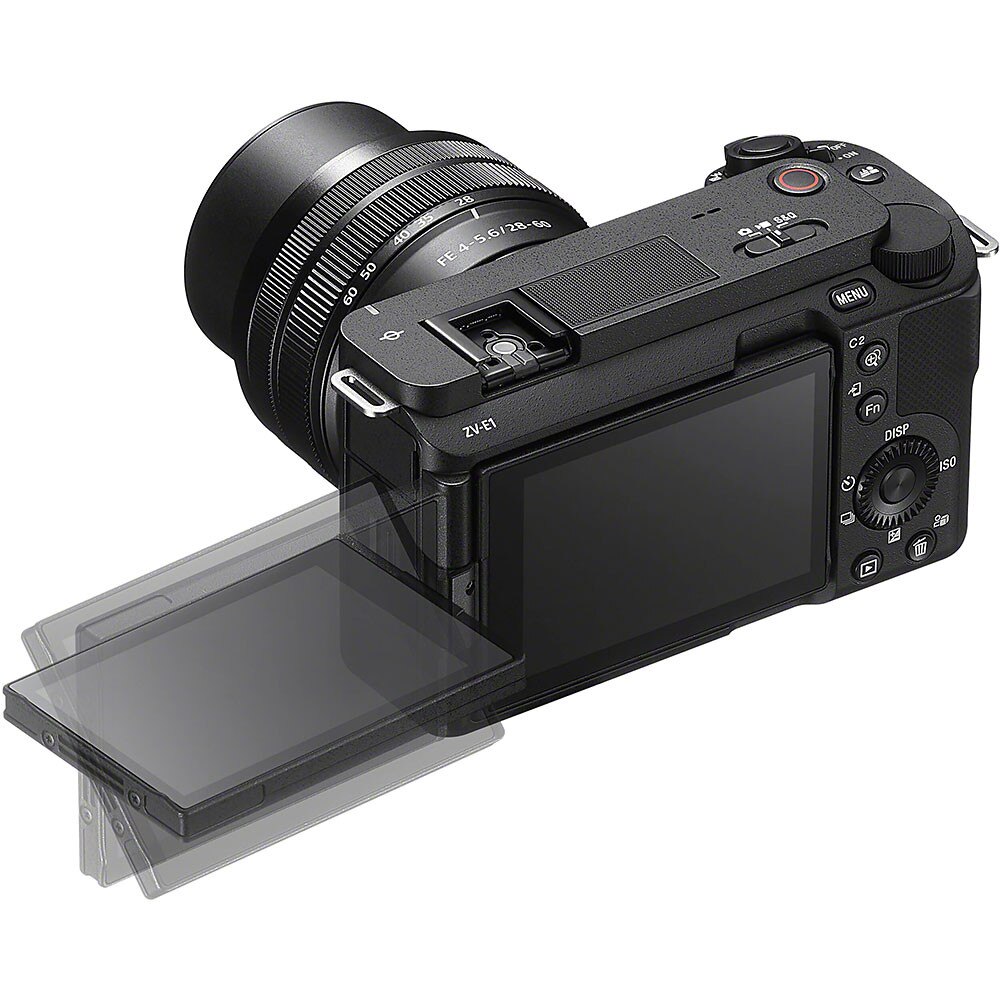

The side-opening, vari-angle display benefits working from high and low angles as well as a front-facing position for vlogging or other self-recording needs. It provides intuitive touchscreen shooting control, playback, and menu navigation.

Versatile and Durable Design

A tally lamp provides an indicator for your subject to show when the camera is recording

The housing is dust and moisture resistant for reliable operation in harsh weather conditions

Accepts the high-capacity Z battery rechargeable lithium-ion battery, which provides approximately 570 stills/120 minutes of video recording per charge

SPECS:

Imaging

• Lens Mount: Sony E
• Sensor Resolution: Effective: 12.9 Megapixel (4240 x 2832)
• Image Sensor: 35.6 x 23.8 mm (Full-Frame) CMOS
• Image Stabilization: Digital, 5-Axis
• Built-In ND Filter: None
• Capture Type: Stills & Video

Exposure Control

• Shutter Type: Electronic Shutter, Mechanical Focal Plane Shutter
• Shutter Speed: 1/8000 to 30 Second
• 1/8000 to 1 Second in Movie Mode
• ISO Sensitivity: Photo
• 80 to 102,400 (Extended: 80 to 409,600)
• Metering Method: Center-Weighted Average, Highlight Weighted, Multiple, Spot
• Metering Range: 3 to 20 EV

Still Image Capture

• Image Sizes: 3:2
• 12 MP (4240 x 2832)
• 5.1 MP (2768 x 1848)
• 3 MP (2128 x 1416)
• Image File Format: HEIF, JPEG, Raw
• Bit Depth: 10-Bit

Video Capture

• Internal Recording Modes: XAVC HS 4:2:0 10-Bit
• UHD 4K (3840 x 2160) at 50/59.94 fps [45 to 150 Mb/s]
• UHD 4K (3840 x 2160) at 23.98 fps [30 to 100 Mb/s]
• XAVC HS 4:2:2 10-Bit
• 3840 x 2160 at 50/59.94 fps [100 to 200 Mb/s]
• 3840 x 2160 at 23.98 fps [50 to 100 Mb/s]
• XAVC S 4:2:2 8-Bit
• UHD 4K (3840 x 2160) at 50/59.94 fps [100 to 200 Mb/s]
• UHD 4K (3840 x 2160) at 25/29.97 fps [140 Mb/s]
• UHD 4K (3840 x 2160) at 23.98 fps [100 Mb/s]
• XAVC S 8-Bit
• 1920 x 1080p at 100/120 fps [60 to 100 Mb/s]
• 1920 x 1080p at 50/59.94 fps [25 to 50 Mb/s]
• 1920 x 1080p at 25/29.97 fps [16 to 50 Mb/s]
• 1920 x 1080p at 23.98 fps [50 Mb/s]
• XAVC S 10-Bit
• 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [50 Mb/s]
• XAVC S-I 10-Bit
• 3840 x 2160 at 59.94 fps [600 Mb/s]
• 3840 x 2160 at 50 fps [500 Mb/s]
• 3840 x 2160 at 29.97 fps [300 Mb/s]
• 3840 x 2160 at 25 fps [250 Mb/s]
• 3840 x 2160 at 23.98 fps [50 Mb/s]
• 1920 x 1080p at 59.94 fps [222 Mb/s]
• 1920 x 1080p at 50 fps [185 Mb/s]
• 1920 x 1080p at 29.97 fps [111 Mb/s]
• 1920 x 1080p at 25 fps [93 Mb/s]
• 1920 x 1080p at 23.98 fps [89 Mb/s]
• External Recording Modes: None
• Fast-/Slow-Motion Support: Yes
• Recording Limit: None
• Broadcast Output: NTSC/PAL
• IP Streaming: None
• Built-In Microphone Type: Stereo

Interface

• Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC (UHS-II)
• Video I/O: None

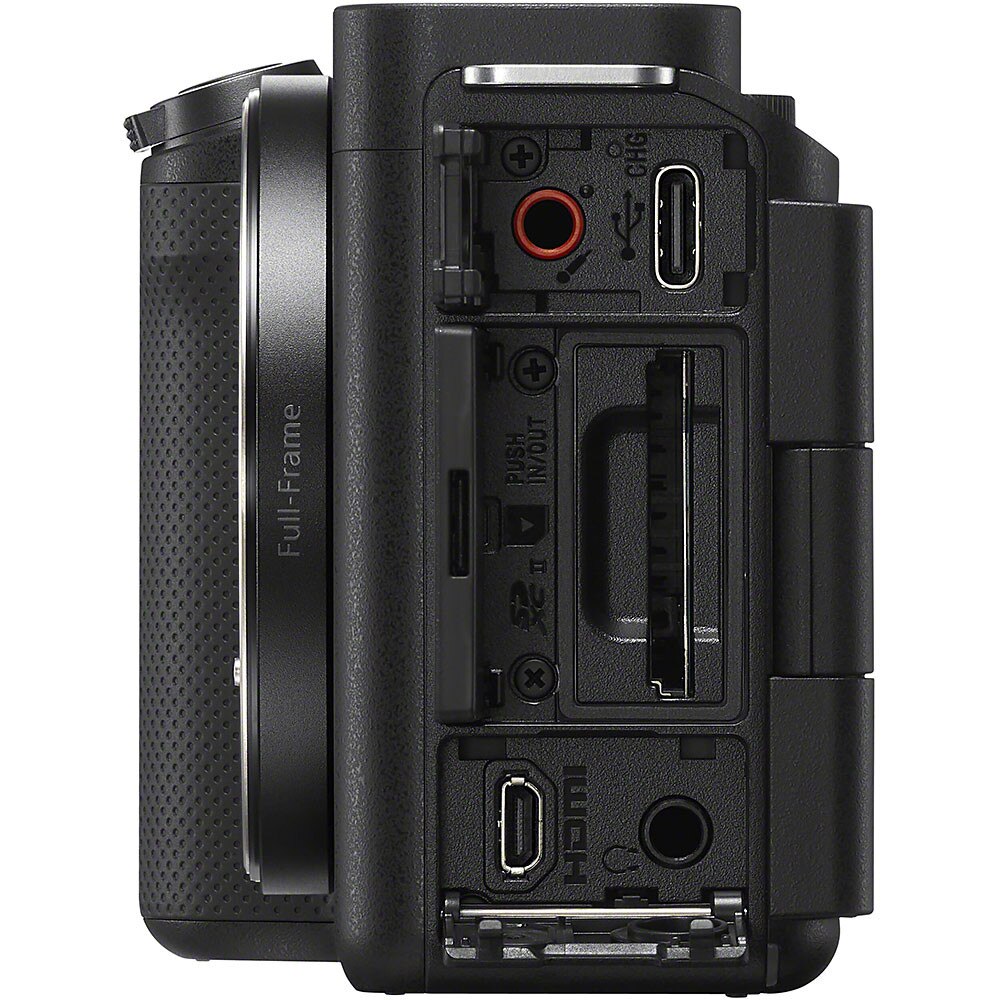

• Audio I/O: 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input - 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
• Power I/O: 1 x USB-C Input
• Other I/O: 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data Input/Output (Shared with Power Input) - 1 x Sony Multi/Micro-USB Control
• Wireless: Wi-Fi, Bluetooth
• Mobile App Compatible: Yes *As of March, 2023: Check with manufacturer for the most up-to-date compatibility
• Global Positioning (GPS, GLONASS, etc.): None

Monitor

• Size: 3.0"
• Resolution: 1,036,800 Dot
• Display Type: Articulating Touchscreen LCD

Focus

• Focus Type: Auto and Manual Focus
• Focus Mode: Automatic, Direct Manual Focus, Manual Focus
• Autofocus Points: Photo
• Phase Detection: 759

Video

• Phase Detection: 627
• Autofocus Sensitivity: 6 to +20 EV

Flash

• Built-In Flash: No
• External Flash Connection: Intelligent Hot Shoe

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C

General

• Battery Type: 1 x NP-FZ100 Rechargeable Lithium-Ion (Approx. 570 Shots)
• Power Consumption: ≤7 W

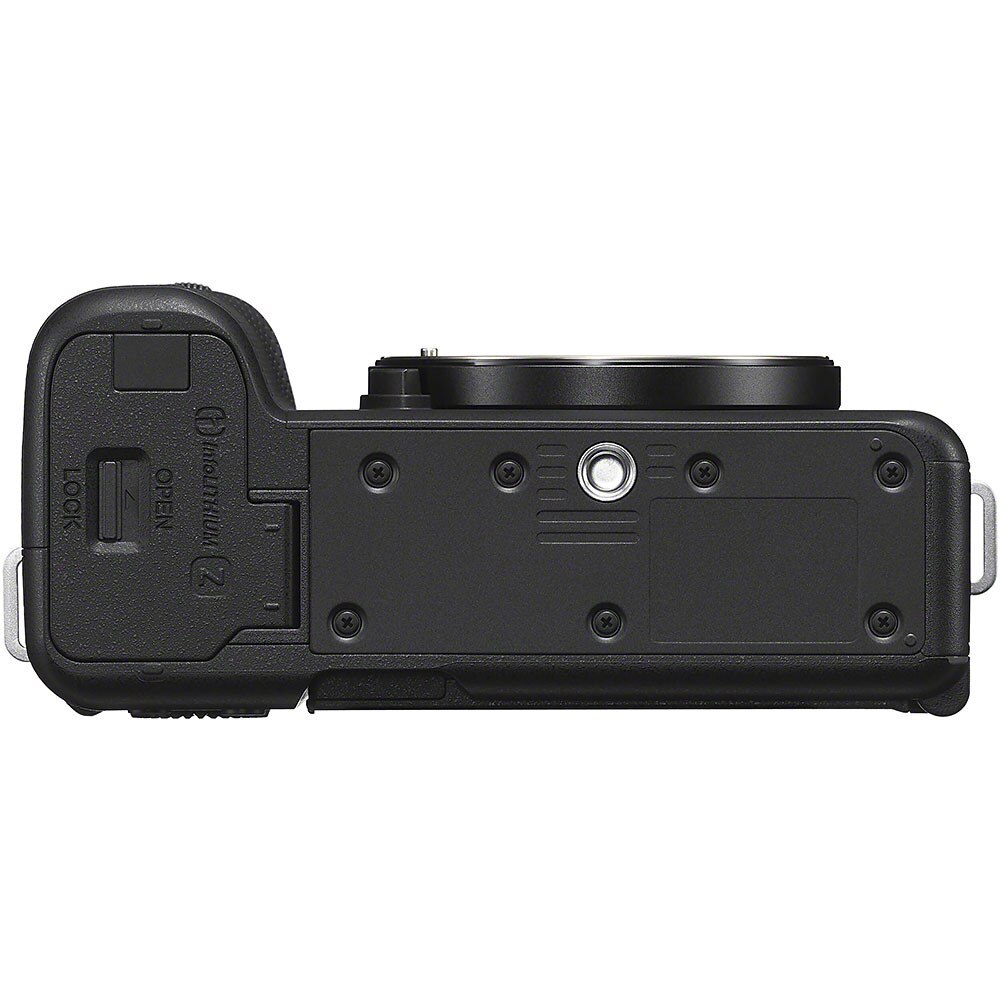

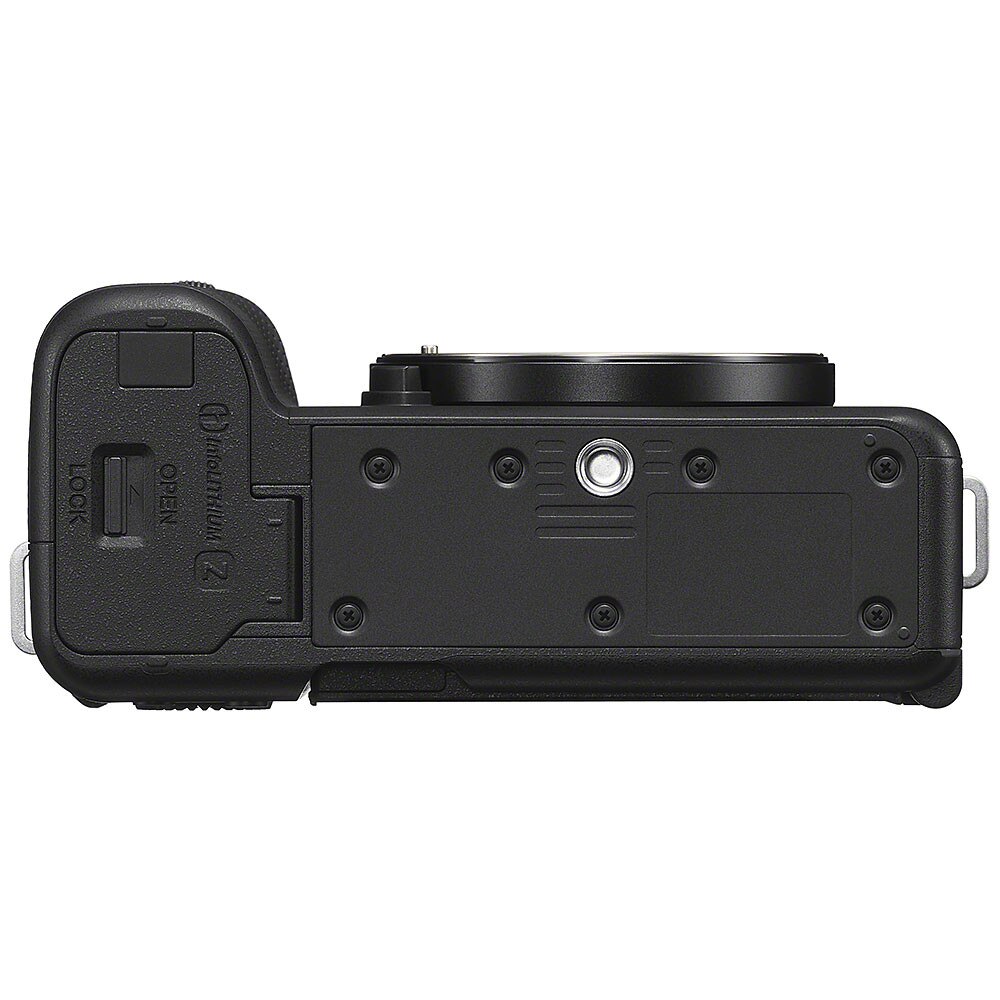

• Tripod Mounting Thread: 1 x 1/4"-20 Female
• Accessory Mount: 1 x Intelligent Hot Shoe
• Dimensions (W x H x D): 4.8 x 2.8 x 2.1" / 121 x 71.9 x 54.3 mm
• Weight: 14.1 oz / 399 g (Body Only) - 1.1 lb / 483 g (With Battery, Recording Media)
