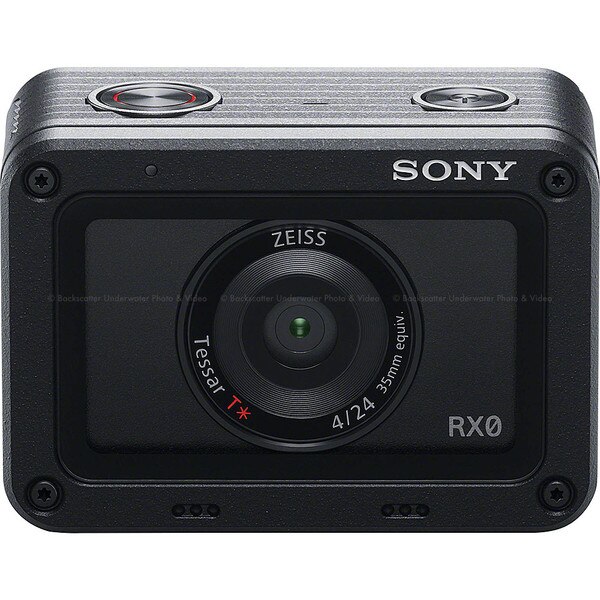

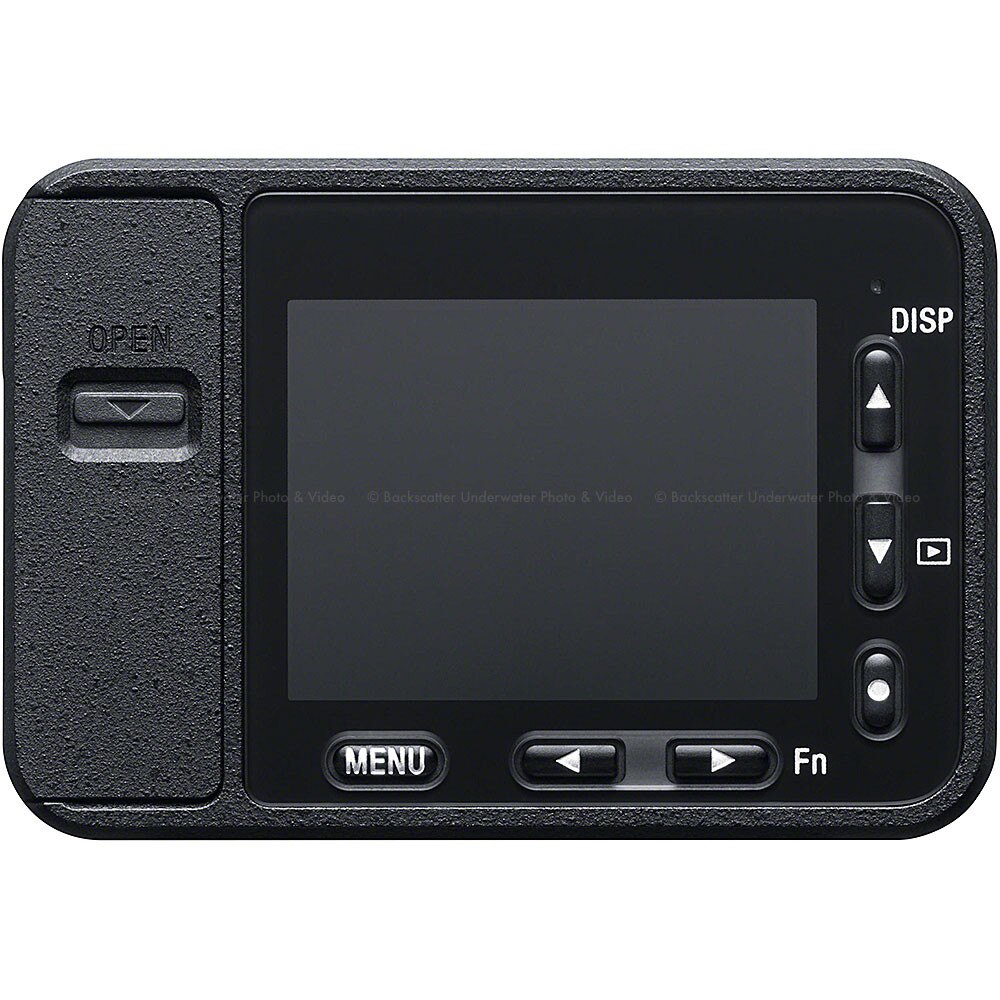

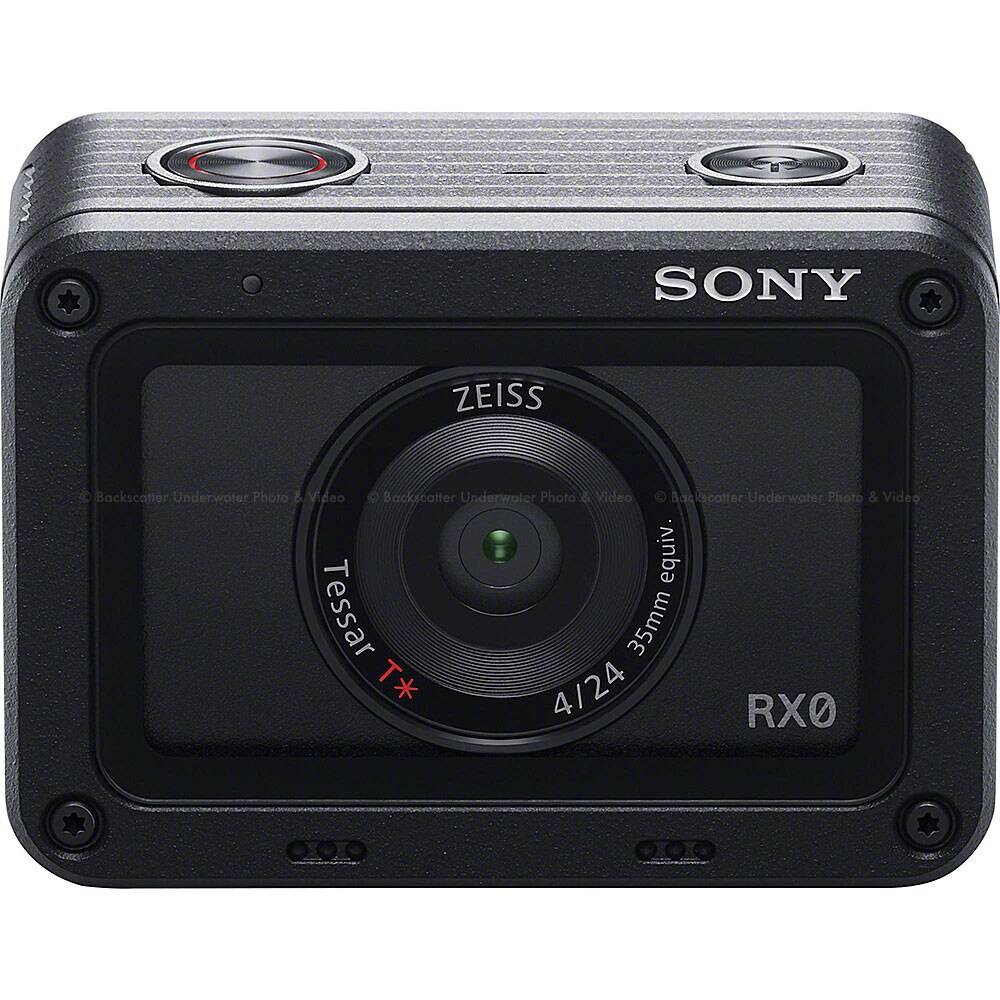

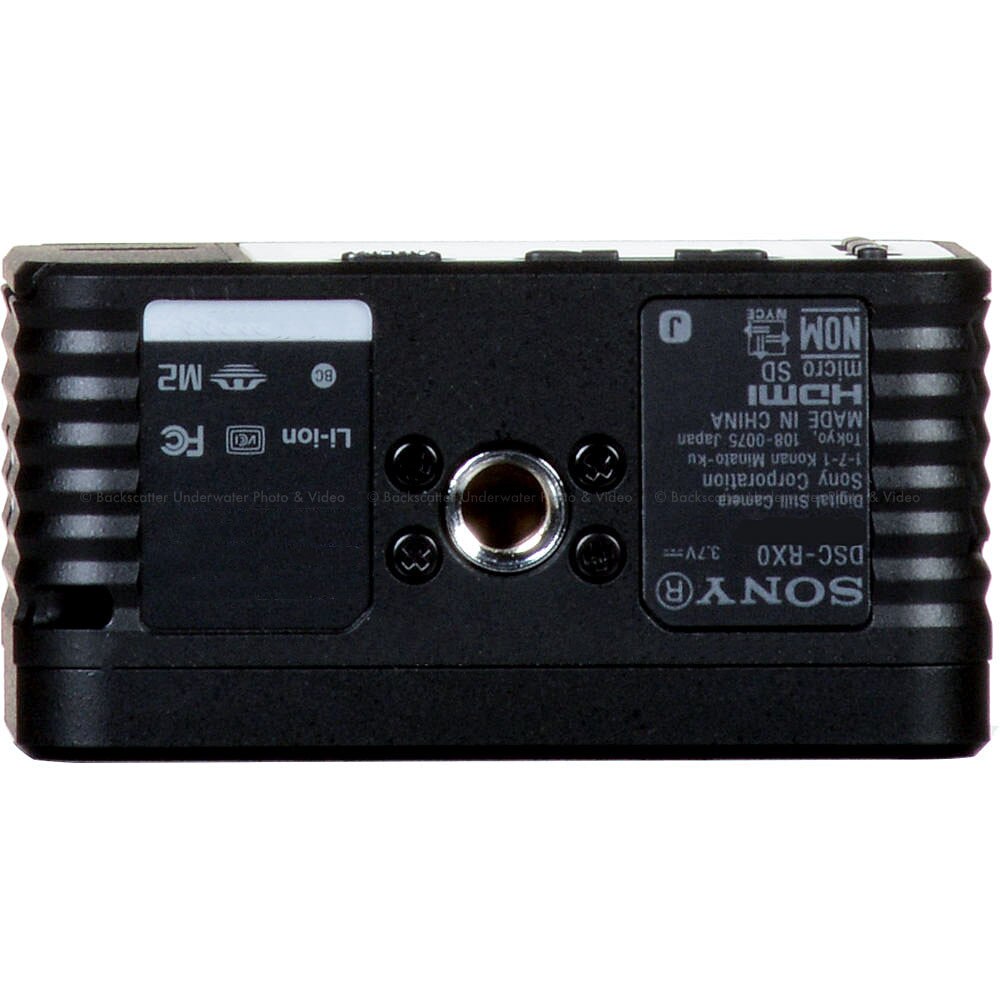

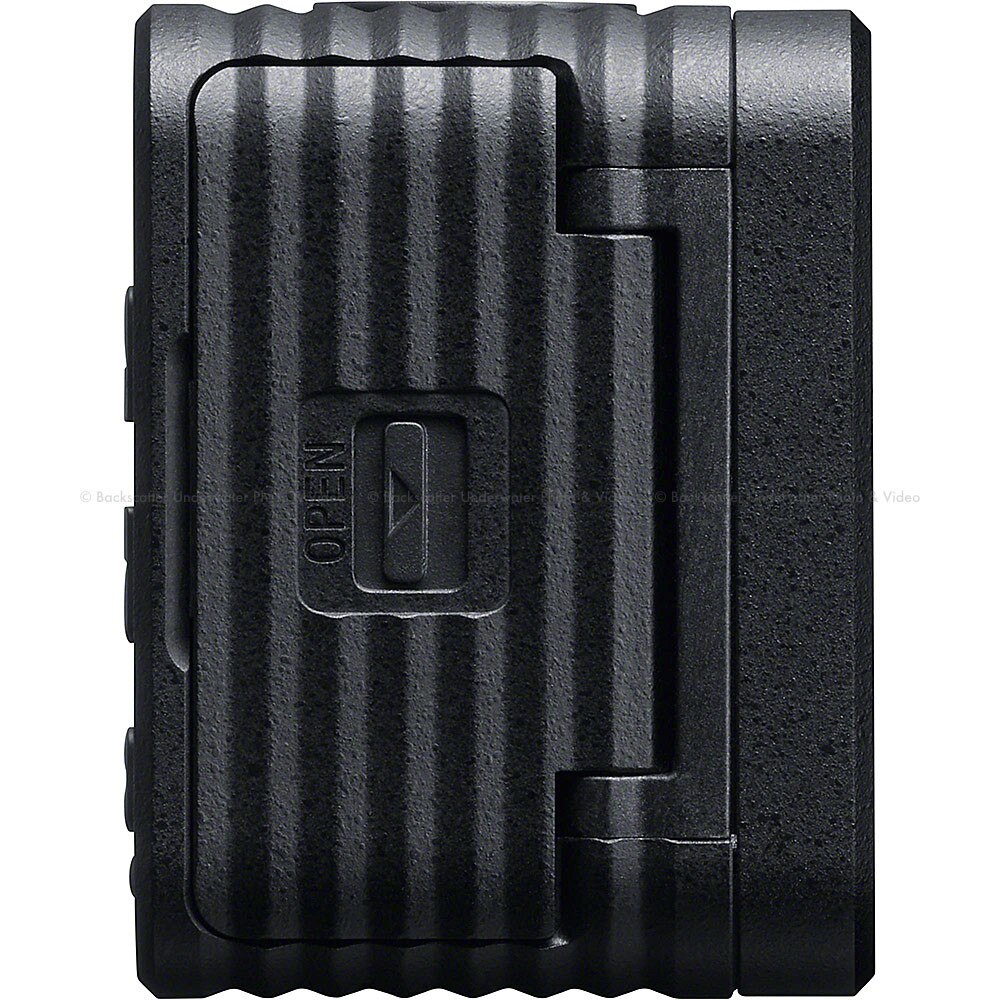

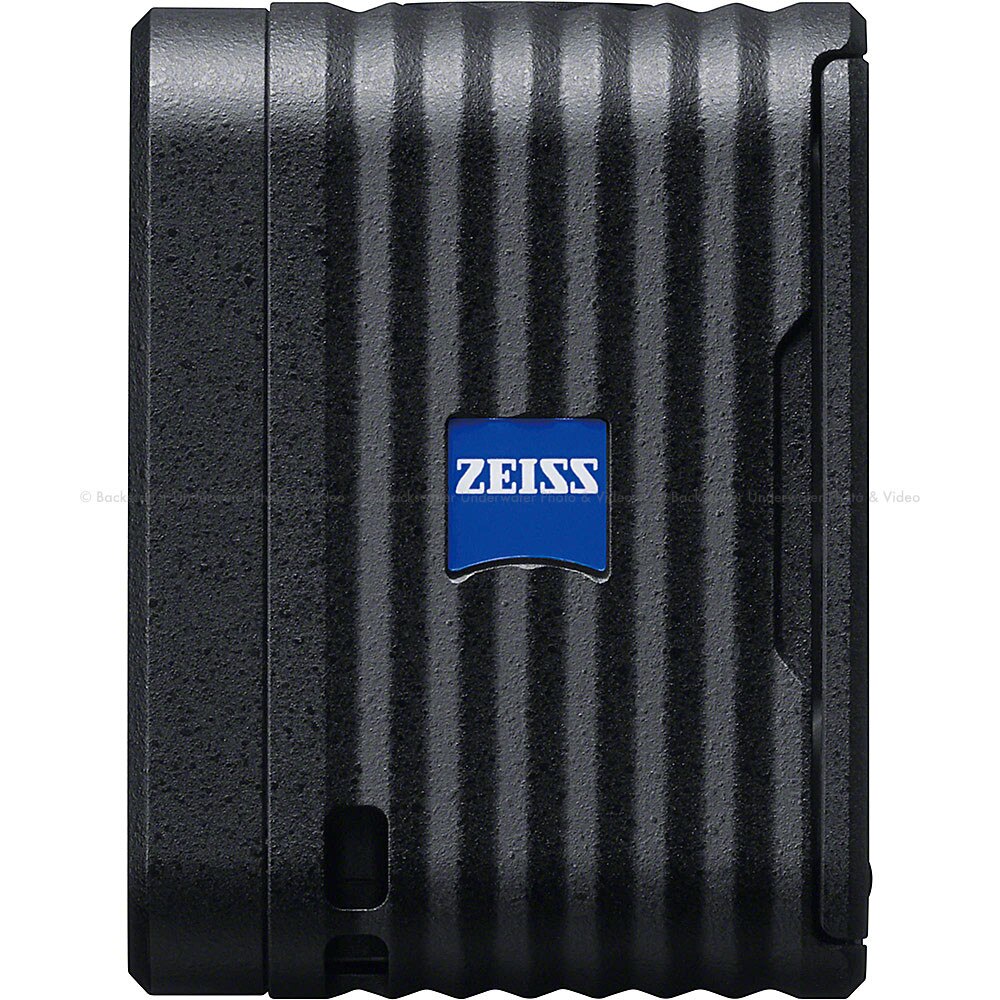

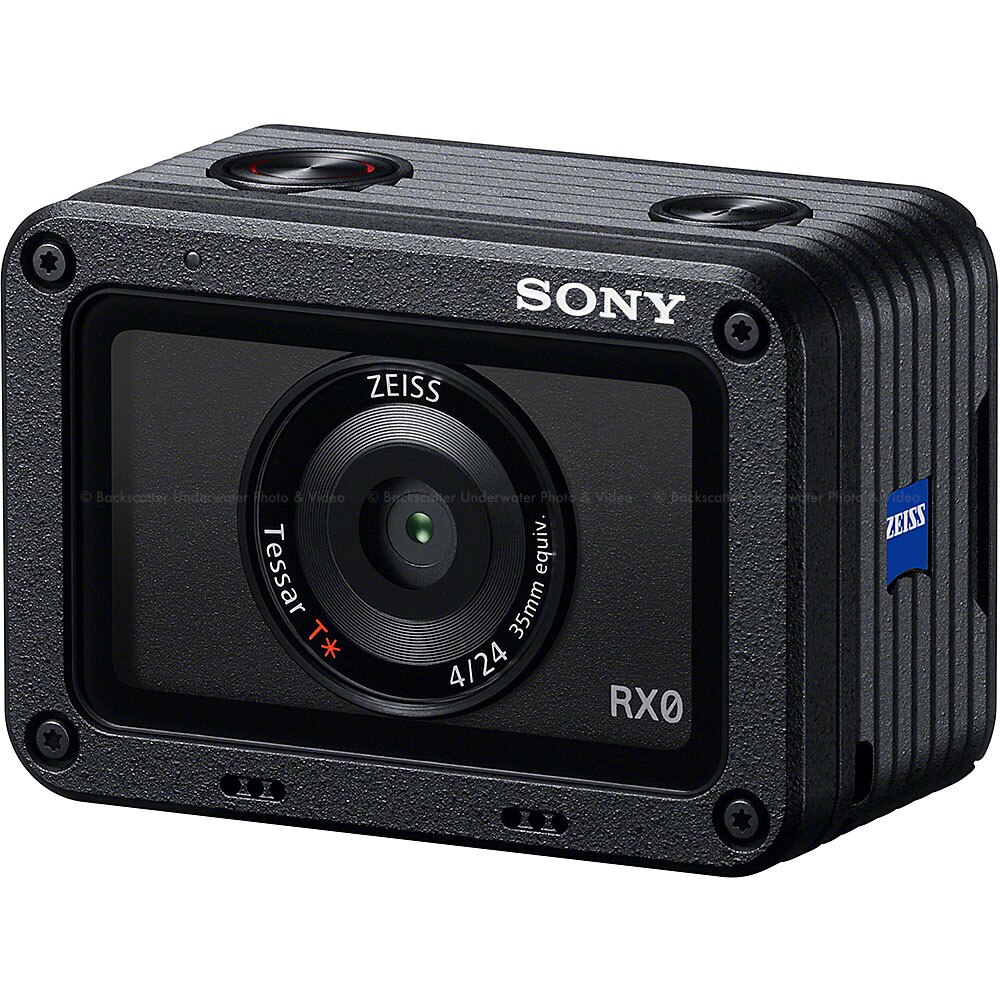

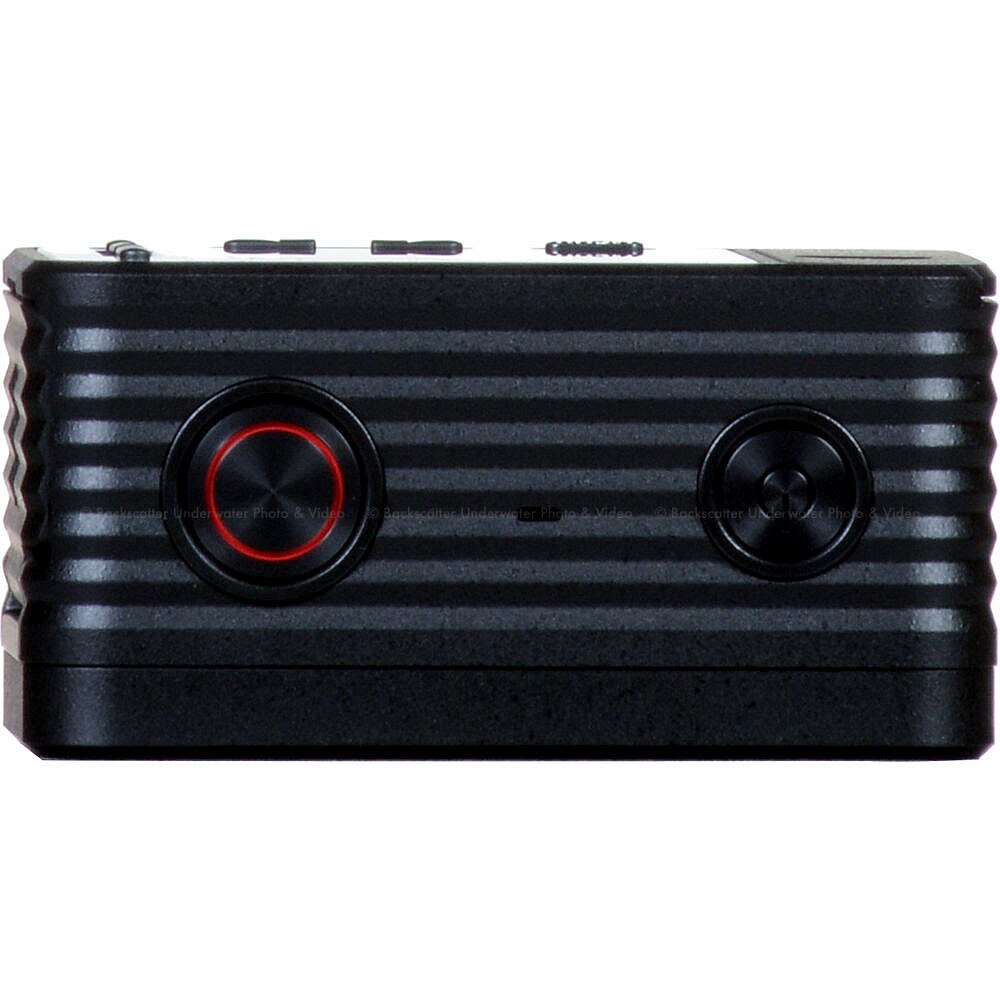

Sony RX0 Ultra-Compact Shockproof Waterproof Action Camera

Capture more of your vision

With boundless capability contained within a strong, miniature body, the RX0 combines cutting-edge imaging performance and rugged, ready-for-anything design for more versatile operation all around, whether on its own or with multi-camera systems and accessories. With so much creative shooting freedom at your fingertips, your power to bring your visions to life is limitless.

Quality and compactness uncompromised

High technology for high-quality imaging inherited from the RX series is packed into the uniquely solid, rigid, compact body. Along with the Exmor RS CMOS sensor and BIONZ X image processor, this camera's robust quality and unobtrusive, go-anywhere design ensure that you'll be ready to shoot with more creative freedom at every opportunity.

Advanced sensor extends expressive range

The image sensor's innovations enable various kinds of expression that used to be supported only by pro-use gear.

High-speed readout

Stacked DRAM memory chip structure allows for unconventionally fast readout that enables superb performance in many respects including super slow motion.

Robust, mobile design for extended shooting

Its rigid extra super duralumin body and ultra-compact dimensions make great shots easier to take all around. Yet it can withstand much weight, impact, and water; and performs coolly and reliably during tough shoots.

33 ft (10 m) waterproof

Waterproof down to 33 ft (10 m) underwater depth without an underwater housing.

6.5 ft (2.0 m) shockproof

Shockproof to impact of drops to the ground from heights up to 6.5 ft (2.0 m).

440 lbf/2,000 N (200 kgf) crushproof

The highly reliable, robust RX0 is crushproof under weights up to 440 lbf/2,000 N (200 kgf).

Unique expressive features

Packing professional-class functions to capture captivating images, the strong, compact RX0 gives you the range and freedom to shoot for more inspiration.

Super slow motion

Shoot high-quality super slow motion movies at high frame rates up to 960fps/1000fps (40x normal frame rate).

Anti-distortion shutter of up to 1/32000 sec.

Super-speedy shutter reduces distortion in shots of fast-moving subjects.

Fast continuous shooting

Shoot images at up to 16fps to capture moving subjects in clear detail.

Picture Profile/S-Log2

Picture Profile and S-Log2 gamma settings enable pro-style movie expression.

4K Clean HDMI output

Uncompressed high-quality 4K data can be recorded on an external recorder.

Super effects upon command

Miniature dimensions and all-around versatility maximize your freedom to take and use the RX0 effortlessly anywhere in creative ways — even with other RX0 cameras spread around to shoot from various perspectives. On its own or as part of a full-scale multi-camera system, the RX0 can broaden imaginations and open eyes to unprecedented recording possibilities.

Infinite potential to shoot the ultimate vision

Multi-angle shooting made easy

Respective optical axes of multiple RX0 cameras used together can be properly aligned for flexible setups, thanks to the cameras' minimalist symmetrical design.

Multi-cam precision via an IP connection

Wired multi-camera control with optional Camera Control Box CCB-WD1

Greatly enhance the flexibility and accuracy of multi-cam shooting with a wired LAN connection. This lets you smoothly control remote cameras, accurately synchronize multiple cameras, and easily transfer files immediately after shooting.

Wireless multi-control function

Freer camera placement, wirelessly

A smartphone or tablet with PlayMemories Mobile installed can control multiple RX0 cameras.

Various accessories for diverse use

The RX0 is minimal in physical dimensions and design, yet tremendously ingenious and versatile in every sense. The more accessories and other cameras you use it with, the more you can appreciate how thoughtfully every aspect of such a multi-camera system is integrated to accommodate a range of shooting needs and creative ambitions.

FEATURES

ZEISS Tessar T* lens

The ZEISS Tessar T* 24mm f/4 lens delivers high-resolution images with less image distortion in peripheral areas, despite its wide-angle lens design. This ZEISS lens intensifies recordings’ contrast and sharpness. Furthermore, you can capture improved images and suppress occurrence of ghost and flare by using an optional hood.

15.3 MP (effective) 1.0-type Exmor RS CMOS sensor

1.0-type stacked CMOS image sensor with DRAM chip enables up to 960fps/1000fps super slow motion and up to 1/32000 super-high shutter speed for movement that, in real time, is beyond human perception. The extended circuit features ample signal processing capacity and high-speed signal readout.

BIONZ X for superior detail and texture

The high-speed BIONZ X image processing engine from Sony is as important as the lens and image sensor, as it powers conversion of light captured by the sensor, so photos and movies can be recorded with more natural details, more realism, richer tonal gradations and lower noise.

Remote control via smartphones and tablets

Thanks to built-in Wi-Fi, multiple RX0 cameras can be remotely controlled using a smartphone or tablet. Simply download free PlayMemories Mobile app to your mobile device for remote control of camera shutter release, movie recording start/stop, and instant receiving of captured footage. Also, Bluetooth is available and allows simultaneous remote power on/off operation.

For more flexible shooting systems

The compact, simple, protrusion-free, rectangular body is advantageous in combination with optional accessories. Also, Upside-down Flip Capture flips the image the right way around when the camera has to be mounted upside down according to certain setting requirements.

Adjust images with superior flexibility and precision

The S-Log2 is a proprietary gamma setting from Sony that is invaluable for professionals seeking post-production flexibility and extends the dynamic range of recording to reduce occurrence of blown-out highlights and black crush. Picture Profile determines the character of movies by changing basic parameters like chromogenic effects and gradation adjustment.

For shooting as far-reaching as your imagination

The camera is tough enough for you to shoot with confidence in a range of difficult environments. It is waterproof down to 10m/33ft under water, shock resistant to drops to the ground from heights up to 2.0m/6.5ft and crushproof under weight of up to 200kgf/440lbf/2000N.

Superior integrity, handy features, compact form

The smooth extra super duralumin body is designed without protruding parts for distinctive quality, strength, and sophistication. Although this high-rigidity camera is sufficiently compact to fit in a palm, it integrates such convenient features as LCD monitor and buttons with ease of use, durability, and performance that you can rely on even under harsh shooting conditions.

Up to 960fps/1000fps super slow motion

Super slow motion at frame rate of up to 960/1000fps is available to capture split-seconds of action in movies. Slow motion shooting at 480/500fps and 240/250fps especially maintains fine images at nearly HD quality with the choice of Quality Priority mode. End trigger mode lets you capture the decisive moment in super slow motion starting from two or four seconds before the REC button is pressed.

Clean HDMI output for 4K movies

For production flexibility, you can use Clean HDMI output to record uncompressed video to an external recorder in your choice of formats and bitrates, including non-compressed 4K movie, and monitor the footage. Moreover, stunning high-precision 4K images with suppressed moiré and jaggies can be delivered via data readout without pixel binning or line skipping.

Up to 16fps continuous shooting with reduced blackout

Despite its 15.3MP high pixel count, the super-high-speed image sensor boosts readout speed to the extent that the camera can achieve continuous shooting up to 16fps. This lets you capture moments of fleeting beauty or facial expressions.

Up to 1/32000 sec. Anti-Distortion Shutter

Thanks to the Exmor RS sensor’s extremely fast readout, the Anti-Distortion Shutter that is capable of shutter speeds up to 1/32000 sec. minimizes image distortion caused by the rolling shutter phenomenon that can otherwise distort shots of swiftly moving subjects.

Choose pro-quality XAVC or AVCHD movie recording

Low-compression XAVC S format is excellent, especially among serious videographers, for expression of high-quality movies with minimal noise, even in scenes full of movement. The camera also features AVCHD format for easy editing and sharing.

Custom key creative convenience

You can program preferred frequently used functions on your choice of buttons to best adapt the camera to your shooting style. You’ll gain prompt, handy fingertip access to your selection of such settings, for faster, more intuitive camera operation.

Shoot virtually anywhere with wide ISO sensitivity

Sensitivity extends up to ISO 12800, for crisper images in extremely low light. Let Auto ISO mode determine the most appropriate setting automatically, or manually expand sensitivity as low as ISO 80. The camera also allows you to set up lower-limit shutter speed at time of Auto ISO setting.

Preset Focus for simpler movie shooting

For movie shooting, you can choose MF (manual focus) or PF (preset focus) mode. If you select PF mode, the RX0 automatically focuses on a subject in the range farther than approx. 1m. Also, while the RX0 is in PF mode, if you activate “NEAR” focusing range, the camera automatically focuses on a nearby subject (within approx. 1m range).

MF Assist and Peaking functions refine focus

To help you fine-tune focus, Manual Focus (MF) Assist magnifies the area you are focusing on to enable more precise adjustment while Peaking highlights the sharpest or most in-focus area with your choice of color to help determine whether further focusing adjustment is required.

Auto Power OFF Temperature can extend movie shooting duration

You can choose an internal temperature level at which the camera automatically powers off. For example, movie shots tend to run longer when a tripod is used, so by setting Auto Power OFF Temperature to “High”, movies can be shot for extended durations.

Supports Remote Camera Control

When the camera is connected to a computer, you can use Remote Camera Control to take pictures or change settings on the camera from the computer connected via USB port. All you need to do is to download the Remote Camera Control application of a version that supports your PC.

Works with iMovie and Final Cut Pro X

This product is compatible with Final Cut Pro X and iMovie.

New Imaging Edge software suite from Sony

Imaging Edge app suite can maximize image quality, improve production efficiency and help you finely adjust RAW-based images. Use its "Remote" to remotely control shooting; "Edit" to develop RAW data into high-quality photos; and “Viewer” to view, rate, and select photos from a list of shots.

Capture One (for Sony)

Capture One Express (for Sony) is a free award-winning image editing software that provides high-end image quality RAW development, easy management of your image files, and powerful editing tools. Capture One Pro (for Sony) can be bought for even more editing tools and tethered shooting capability.

Wired multi-camera control with optional Camera Control Box CCB-WD1

Greatly enhance flexibility and accuracy of multi-cam shooting with wired LAN connection. Harness the optional Camera Control Box (CCB-WD1) to unleash unlimited shooting possibilities of RX0. Combine Box units to simultaneously control up to 100 RX0 cameras, turn power on/off, adjust settings, and capture photos or videos, using a web browser on your PC. This also lets you accurately synchronize connected cameras, and easily transfer files after shooting.

SPECIFICATIONS AND FEATURES

This ultra-compact camera is a brilliant marriage of highly sophisticated imaging technology, including a 1.0-type Exmor RS CMOS sensor and wide-angle 24mm ZEISS lens, and a tough, rigid body that is waterproof down to 10m/33ft, shockproof when dropped up to 2.0m/6.5ft above ground, and crushproof under up to 200kgf/440lbf/2000N. High-speed continuous shooting, super slow motion and other features uniquely integrated into such smart form make for more creative production of images.

• ZEISS Tessar T* 24mm lens with f/4.0 aperture
• Anti-Distortion Shutter — 1/32000 super-high-speed shutter
• Up to 16fps continuous shooting without blackout
• Up to 960fps/1000fps super slow motion
• Various movie functions for pro-style quality — S-log2 gamma setting / 4K Clean HDMI output

• SENSOR TYPE: 1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2
• NUMBER OF PIXELS (EFFECTIVE): 15.3MP
• WATERPROOF: Yes (IPX8 equivalent)
• SHOCKPROOF: Yes (2.0m/6.5ft MIL-STD810G C1 Method516.7-Shock)
• CRUSHPROOF: Yes(200kgf/2000N/440lbf)
• ISO SENSITIVITY (STILL IMAGE)(RECOMMENDED EXPOSURE INDEX): Auto(ISO125-12800, selectable with upper / lower limit),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100), Multi-Frame NR: Auto(ISO125-12800), 200/400/800/1600/3200/6400/12800/25600
